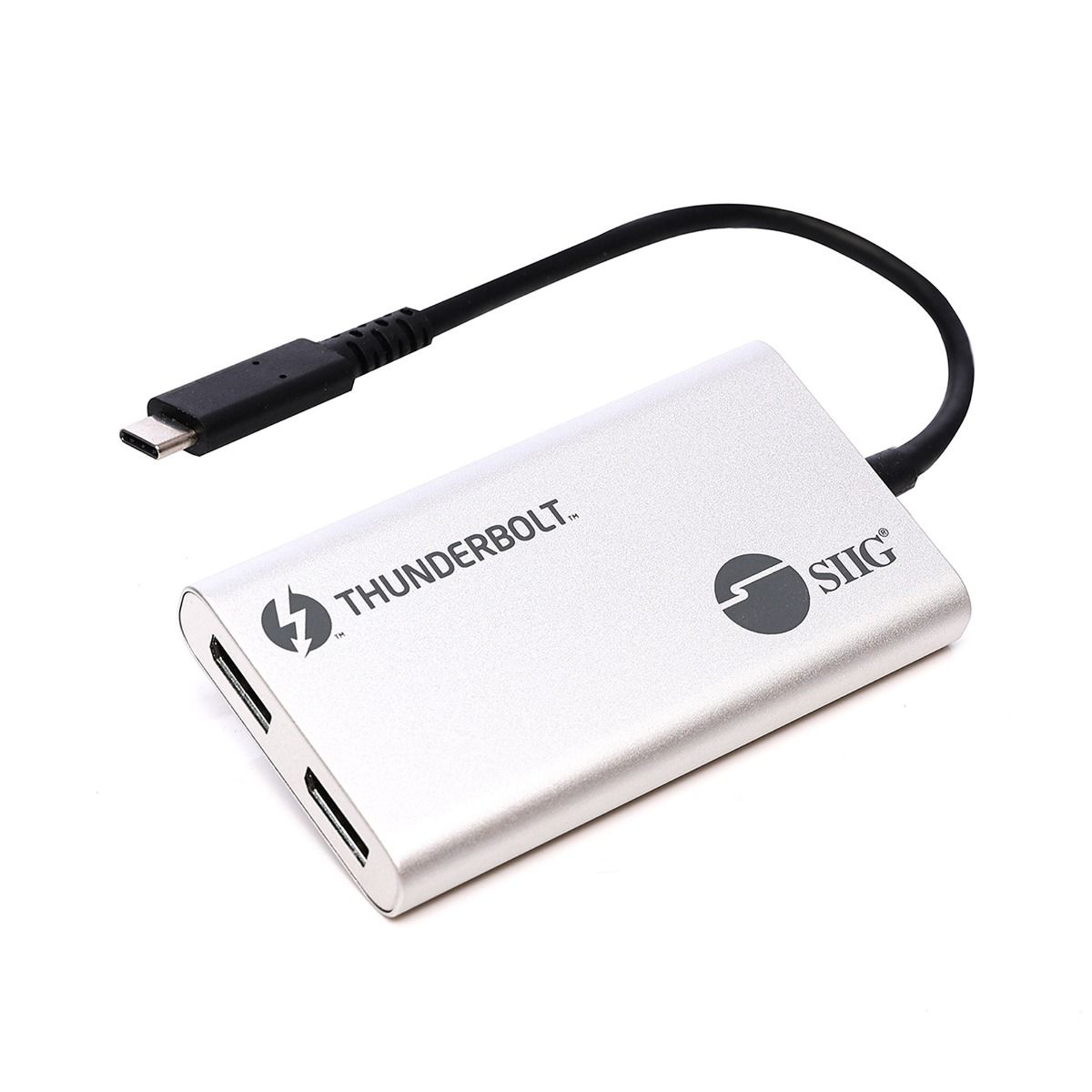

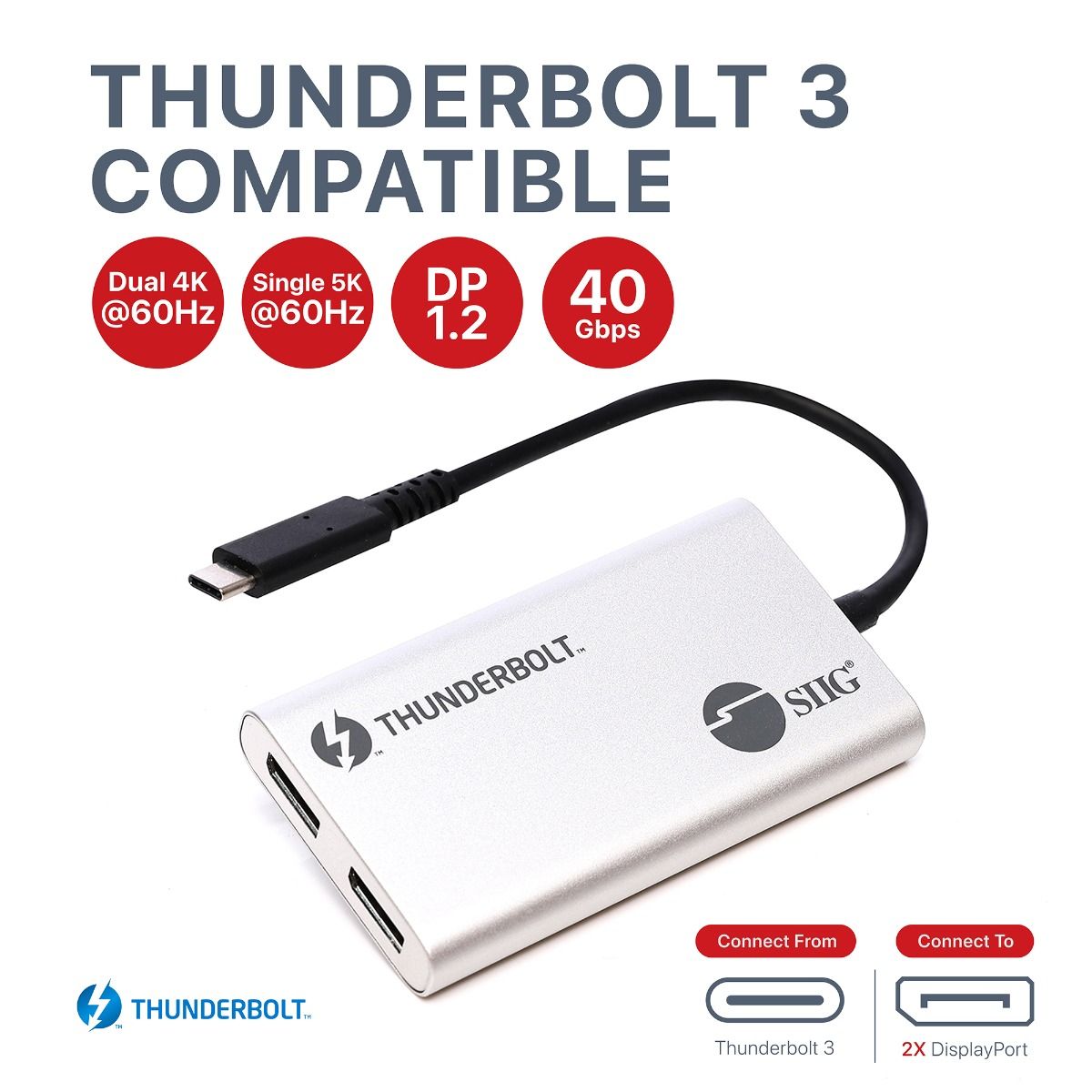

Thunderbolt 3 to Dual DP 1.2 Adapter
Thunderbolt 3 to Dual DP 1.2 Adapter is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Features

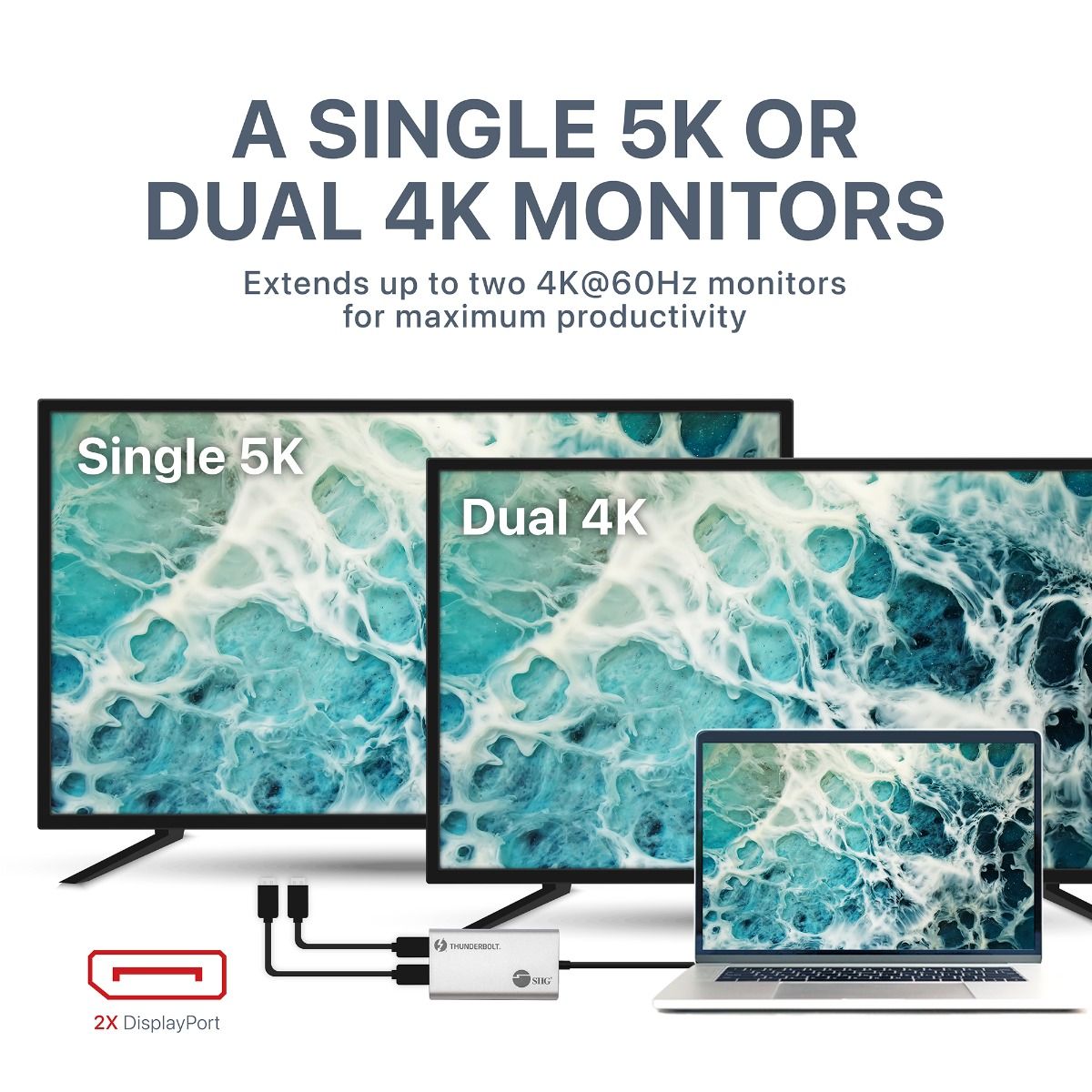

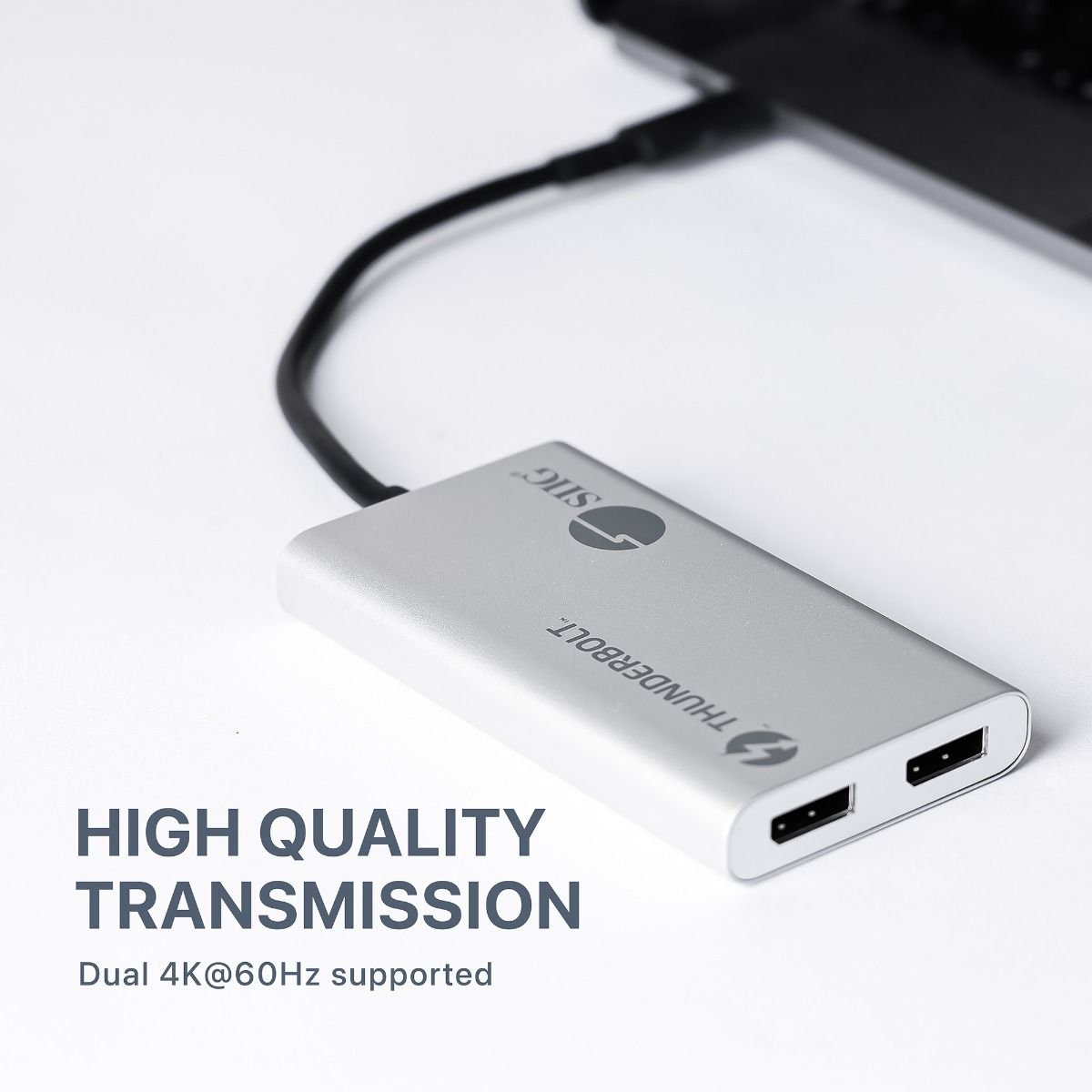

Dual 4K Video
Dual 4K Video
Single 5K VIDEO
Single 5K VIDEO
Intel Thunderbolt 3 Certified
Intel Thunderbolt 3 Certified
Wide Compatibility
Wide Compatibility

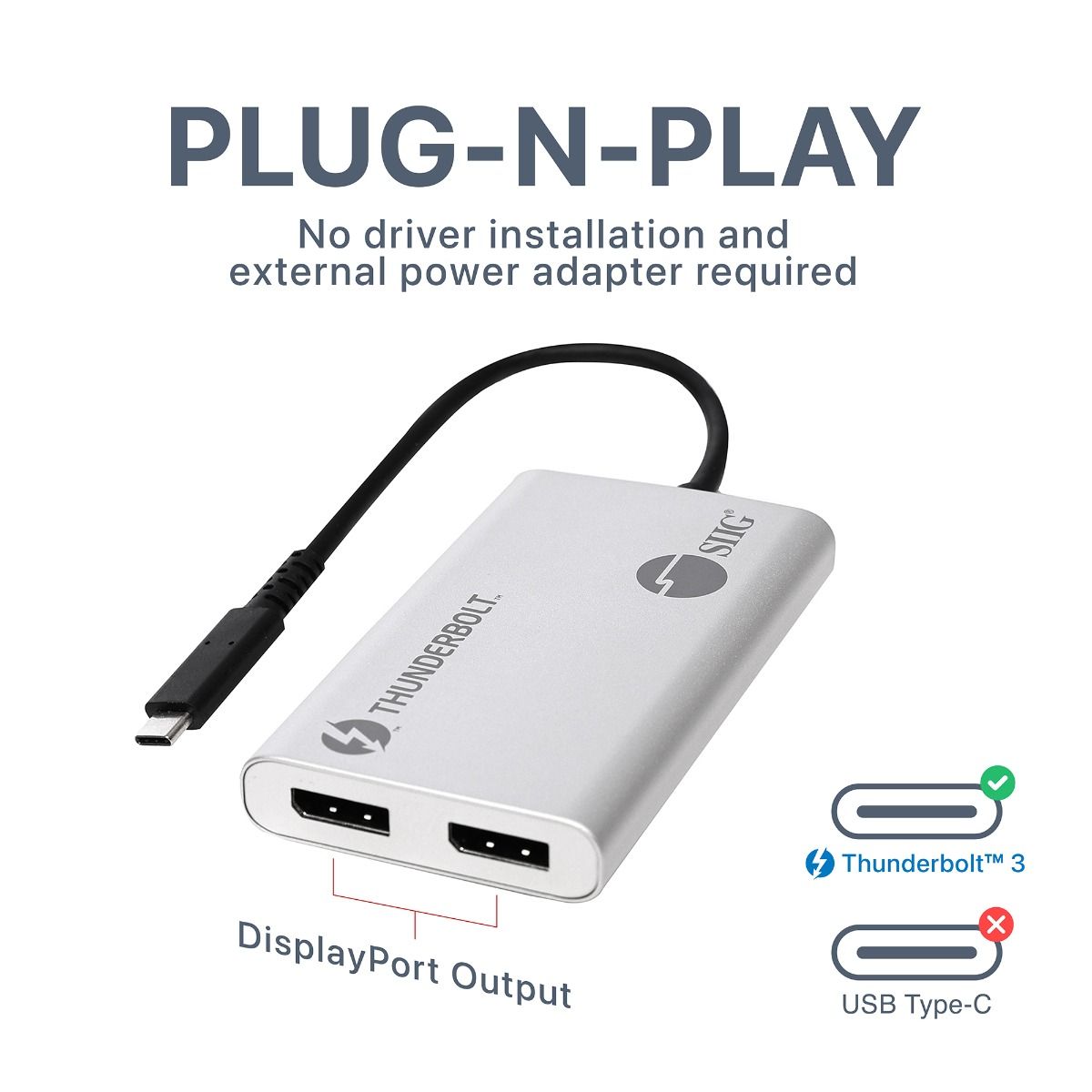

Plug-n-Play
Plug-n-Play
-
45 Days Free Return
-
2 Years Warranty
-
Lifetime Technical Support
| Chipset | JHL6540 |
| Output Signal | Dual DisplayPort 1.2 |
| Source Connection | Thunderbolt™ 3 |
| Connectors | Input: 1x 24-pin, Thunderbolt 3 USB-C, Male Output: 2x 20-pin, DisplayPort, Female |

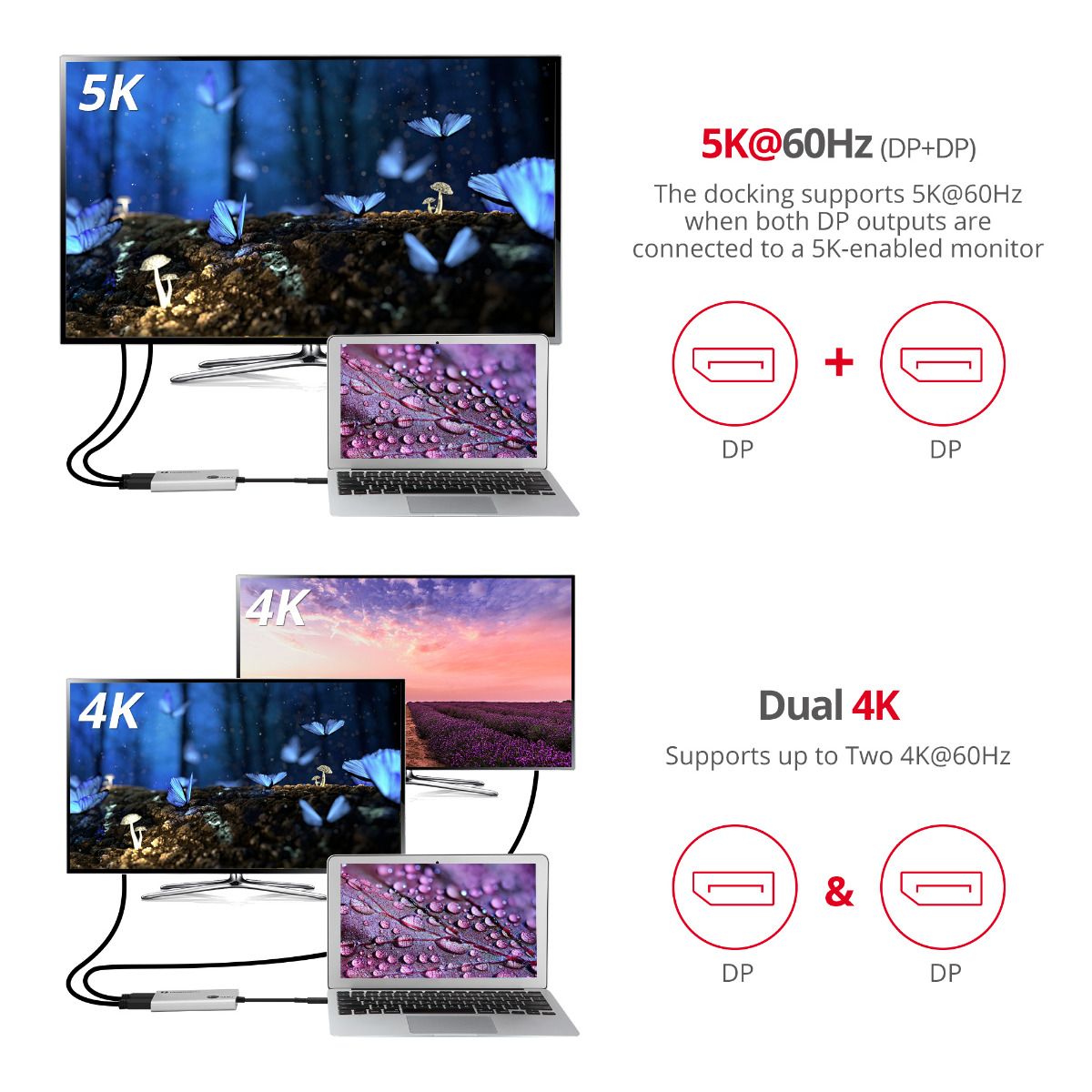

| Resolution (Dual Connection) | Up to 5120x2880 @60Hz for single 5K DisplayPort display |
| Resolution (Single Connection) | Up to 4096x2160 @60Hz for each display (x2) |
| Audio Support | 7.1 Ch audio up to 192kHz sampling rate |
| System Requirements | PC or Laptop with an available Thunderbolt 3 port Windows® 11 / 10 macOS® 10.13 and later *Note: only one extend video display is supported on M1 and M2 mac® system |
| Product | |

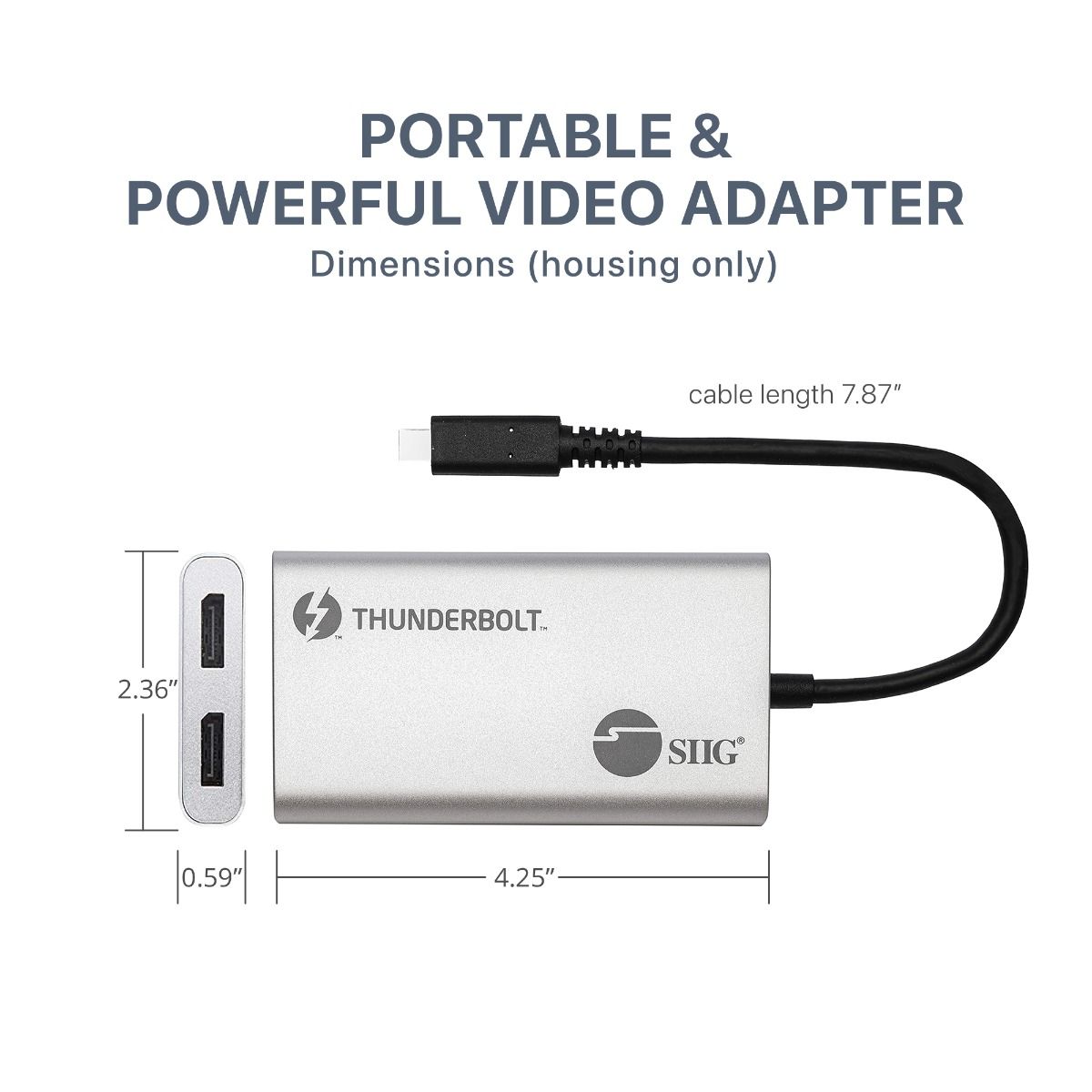

| Product Dimensions | 4.25" (L) x 2.36" (W) x 0.59" (H) |
| Product Weight | 0.26 lbs |
| Unit Package | |
| Unit Package Dimensions | 7.48″(W) x 0.98″(H) x 4.72″(D) |
| Unit Package Weight | 0.35 lbs |
| Master Carton | |
| Master Carton Dimensions | 20.87″(W) x 9.65″(H) x 10.24″(D) |
| Master Carton Weight | 16.09 lbs |
| Master Carton Quantity | 40 pcs/ctn |
| Total Length | 12.5" (including cable) |
| Cable Length | 7.87" (200mm ±10mm) |
| Package Contents | Thunderbolt 3 to Dual DP 1.2 Adapter |
| Environmental Conditions | Operating temperature: 32 to 104°F Storage temperature: 14 to 122°F Relative humidity: <85% RH (non-condensing) |
| Housing Material | Aluminum with plastic |
| Color | Silver |
| Certifications/Standards | FCC, CE, RoHS |
| Warranty | 2 years limited |
| Country of Origin | China |
