Docking Station |
SKU:
JU-DK0G11-S1

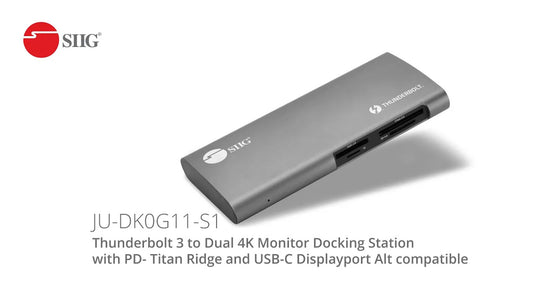

Thunderbolt 3 to 8K/Dual 4K Monitor Docking Station with PD- Titan Ridge and USB-C DisplayPort Alt compatible, support 4K 144Hz resolution
Thunderbolt 3 Docking
DisplayPort 1.4
8K60Hz
XQD / SD / CFast / Micro SD
PD 60W
Regular price
$299.99
Unit price
/
Unavailable
Shipping calculated at checkout.
Thunderbolt 3 to 8K/Dual 4K Monitor Docking Station with PD- Titan Ridge and USB-C DisplayPort Alt compatible, support 4K 144Hz resolution is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Features
8K/4K High-Resolutions
8K/4K High-Resolutions
High Performance
High Performance
Multiple Connectivity Port
Multiple Connectivity Port
Memory Card Reader Interface
Memory Card Reader Interface
60W Power Delivery
60W Power Delivery
Advanced Titan Ridge Thunderbolt 3 docking station
60W Power Delivery

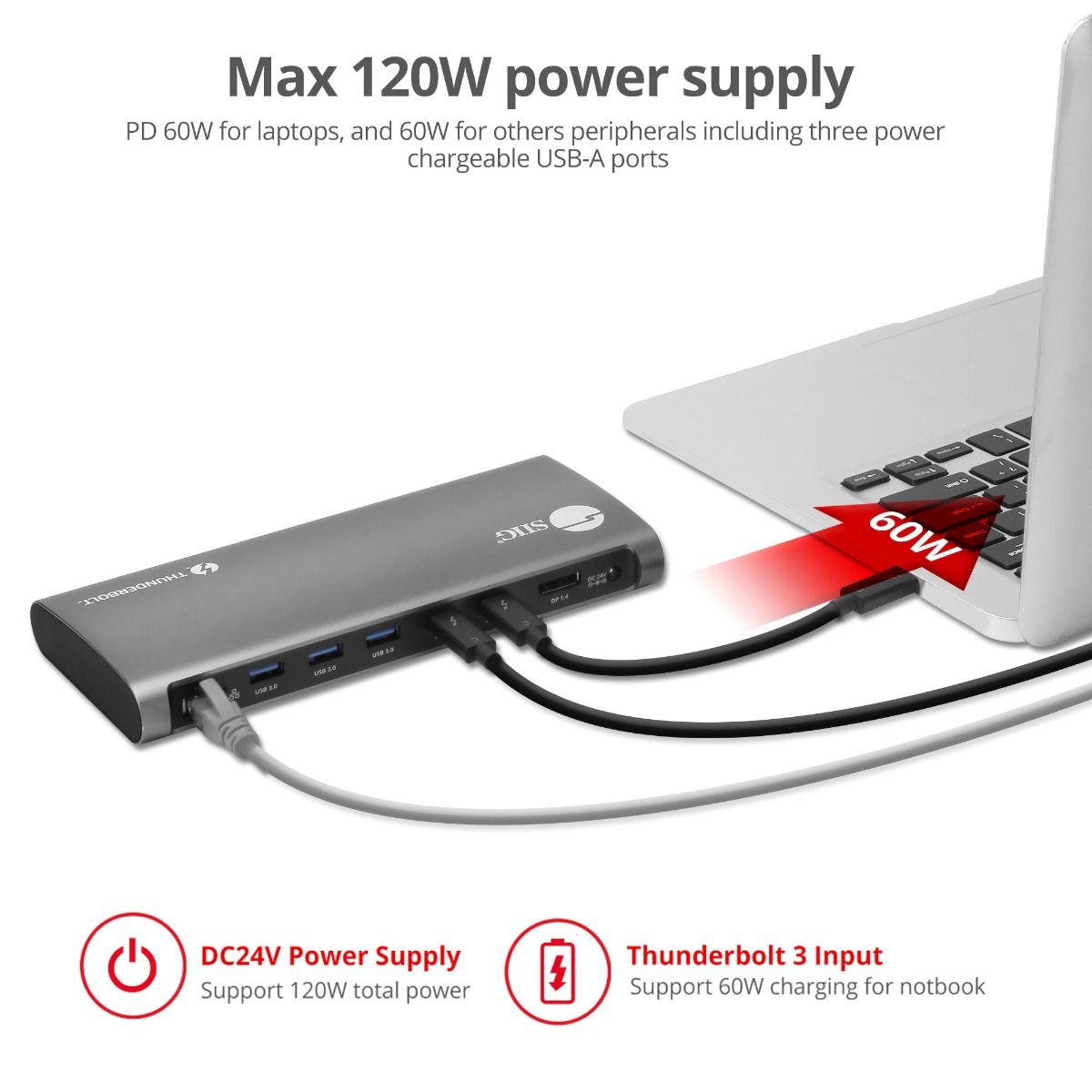

PD 3.0 charging specification compatible supplies up to 60 watts to charge your laptop, notebook, tablet, and smartphone. Includes 120W power adapter to provide enough power for the connected peripherals.
High-Speed Data Transfert
Delivers three USB-A ports with 5V/1.5A charging and supports data transfer rates up to 5Gbps.
1G Ethernet Data Transmission
Up to 1,000Mbps data transfer rate and seamless backward compatible with 10/100 Mbps.
Maximum Compatibility
Compliant with mac® M1, M2, M3 Pro, & Max systems for single extend video output and Mirror mode only; Compatible with Windows® 11 / 10 or macOS® 10.13 or new.
Aluminum Housing Design
Premium aluminum housing provides efficient heat dissipation for reliable performance and long life.
PD 3.0 charging specification compatible supplies up to 60 watts to charge your laptop, notebook, tablet, and smartphone. Includes 120W power adapter to provide enough power for the connected peripherals.
High-Speed Data Transfert
Delivers three USB-A ports with 5V/1.5A charging and supports data transfer rates up to 5Gbps.
1G Ethernet Data Transmission
Up to 1,000Mbps data transfer rate and seamless backward compatible with 10/100 Mbps.
Maximum Compatibility
Compliant with mac® M1, M2, M3 Pro, & Max systems for single extend video output and Mirror mode only; Compatible with Windows® 11 / 10 or macOS® 10.13 or new.
Aluminum Housing Design
Premium aluminum housing provides efficient heat dissipation for reliable performance and long life.
With a powerful Intel Titan Ridge IC making this docking station become the fastest connection that compatible with Thunderbolt 3 and USB-C DP Alt mode

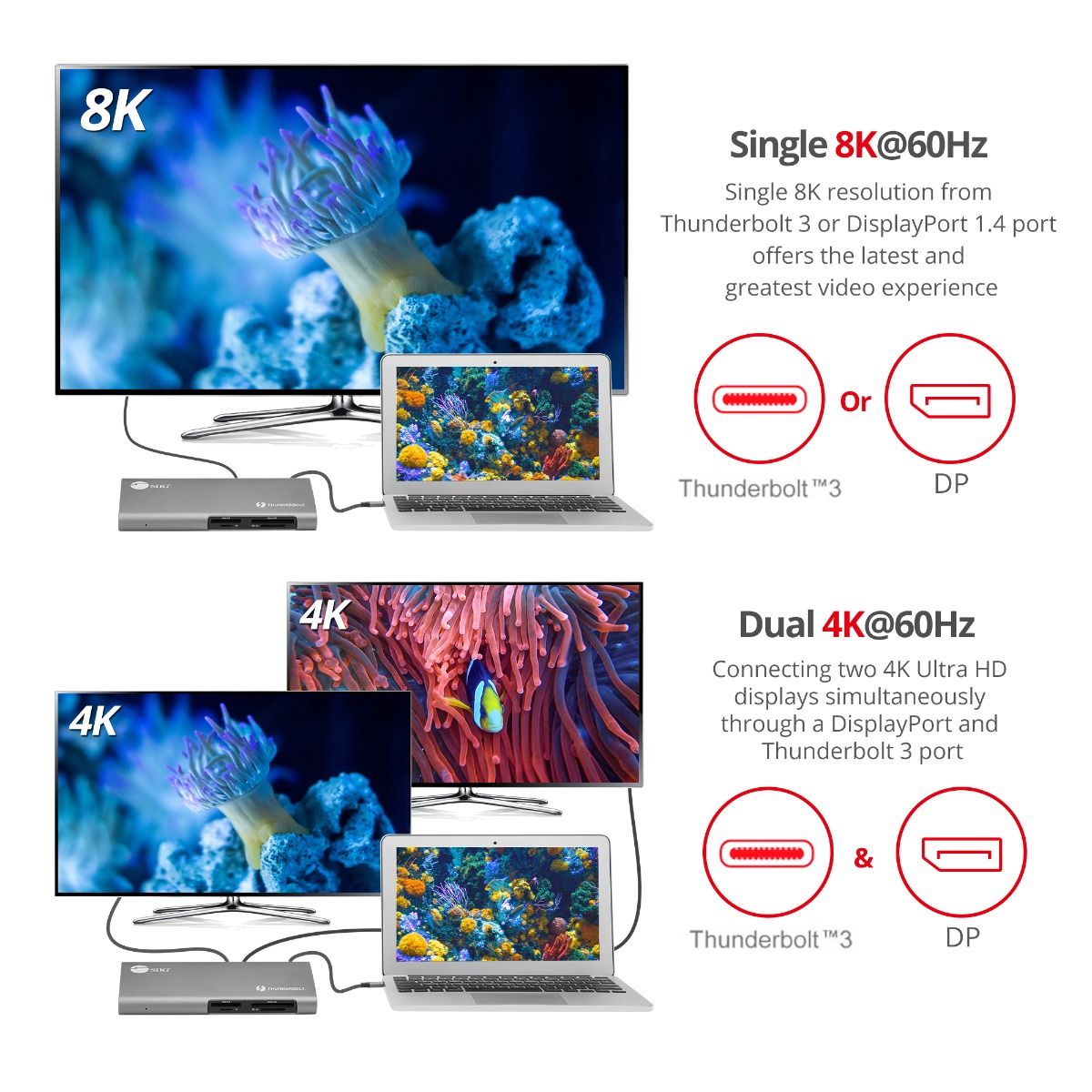

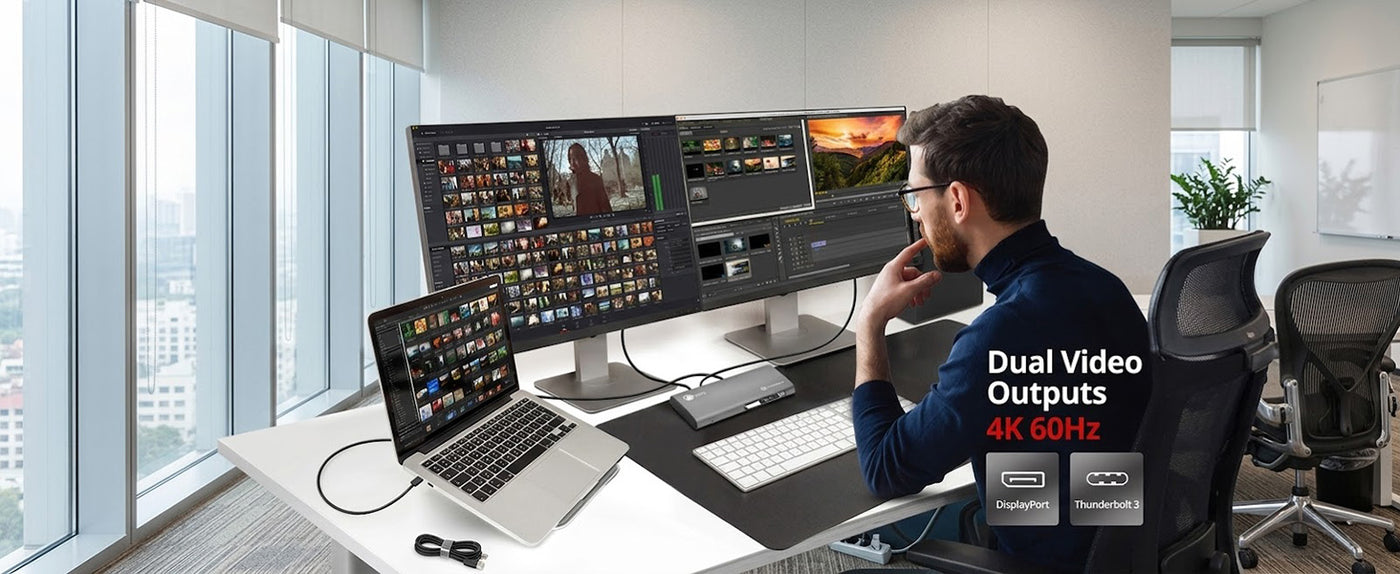

8K/4K High-Resolutions - Single 8K 60Hz / 4K 144Hz or Dual 4K@60Hz

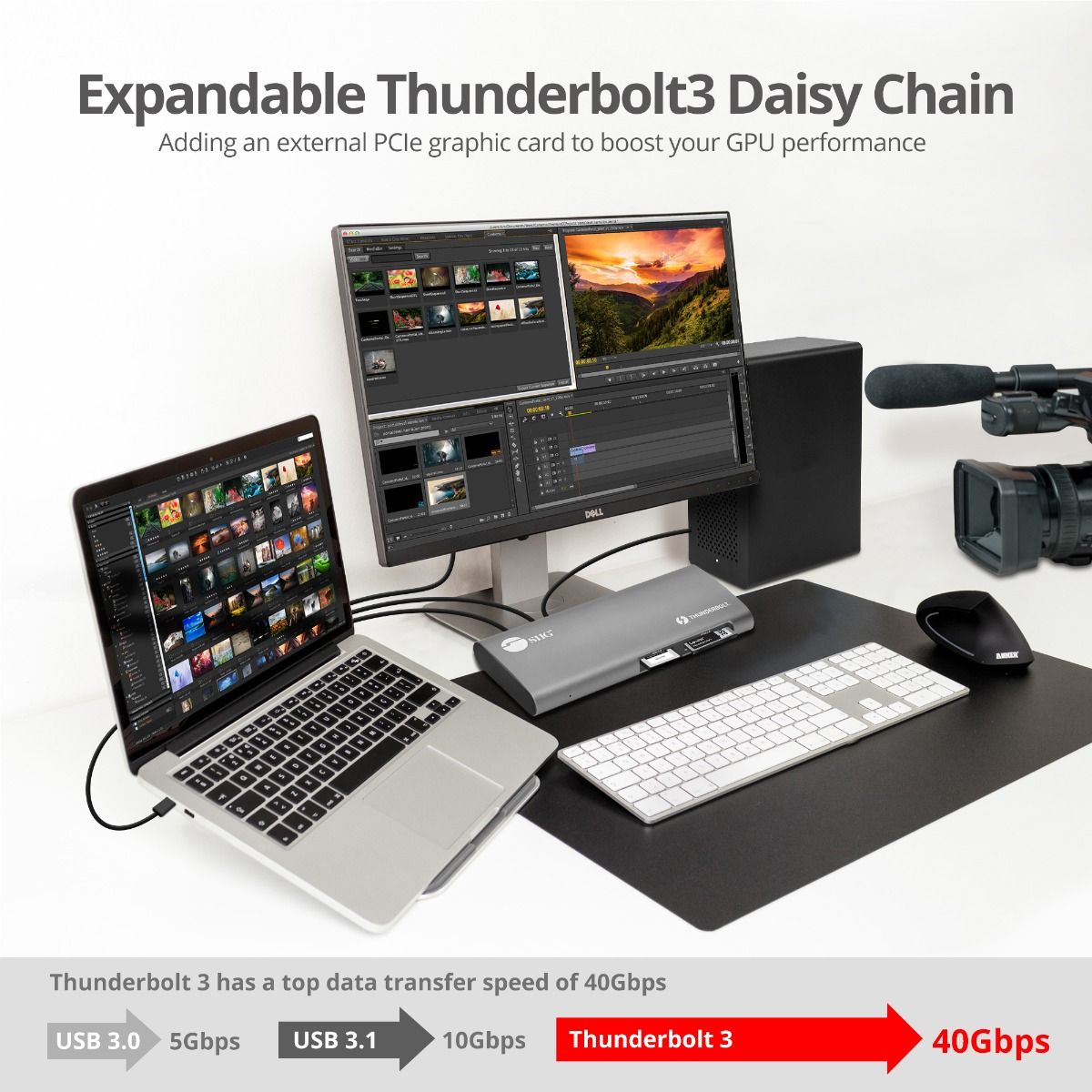

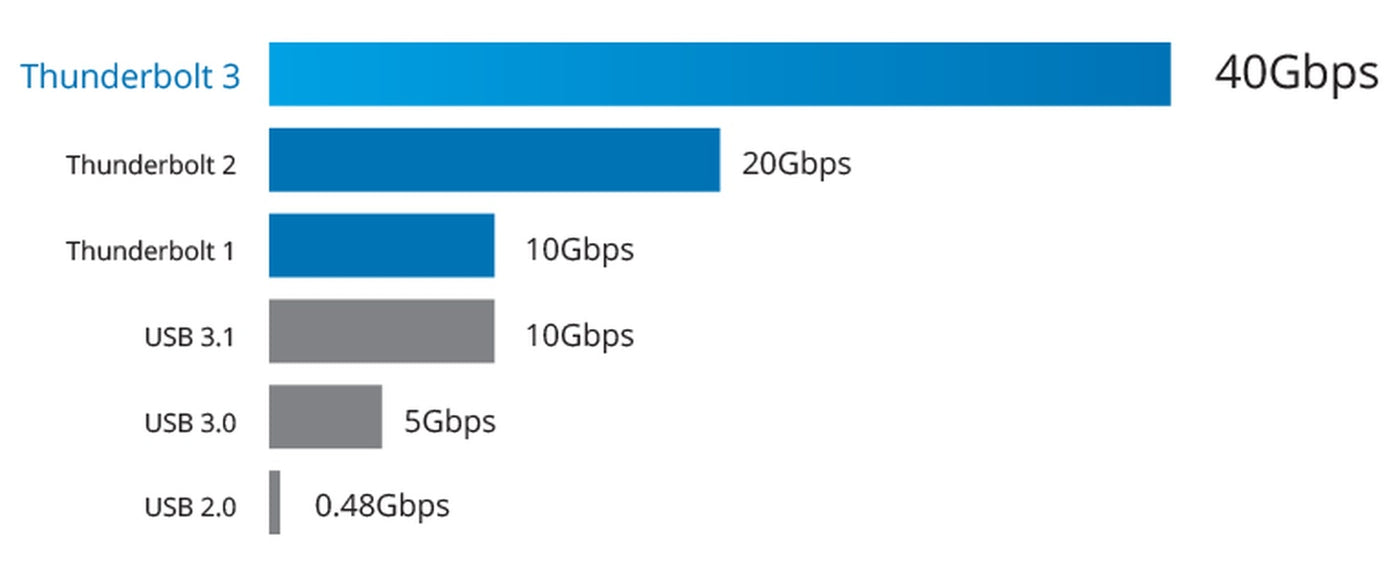

High Performance - allows data transfer speeds up to 40Gbps and daisy-chain up to 6 Thunderbolt 3 devices
Expand multiple connectivity ports to your Thunderbolt 3/DP Alt Mode* USB-C enabled Mac or Windows PC to increase your efficiency

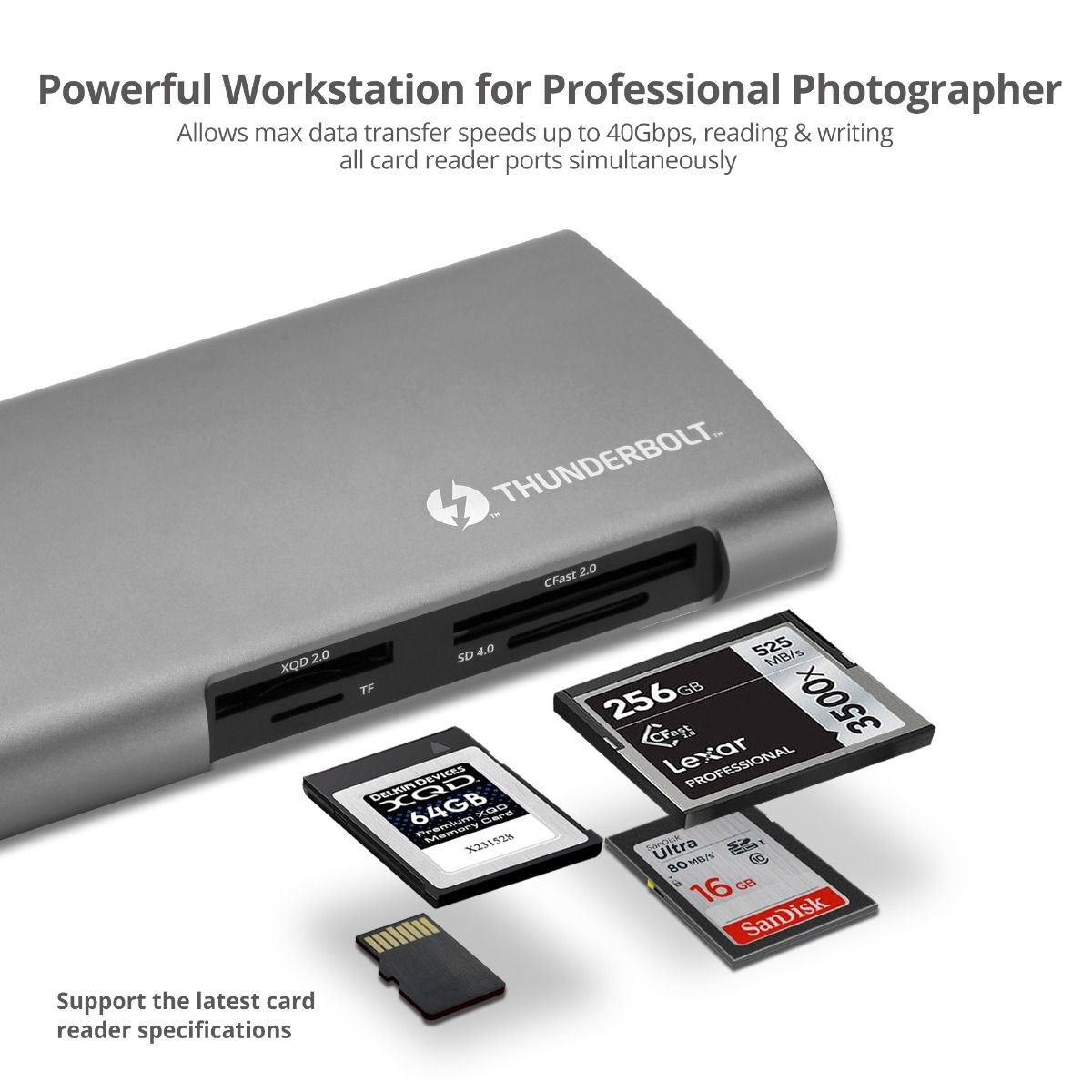

Supports the Latest Memory Cards, Meets the Demand of Professional and Amateur Photographers, Improving Work Efficiency
Thunderbolt 3 Laptop Docking Station with Multiple Memory Card Readers PD 60W

| Chipset | Intel Titan Ridge JHL7440, Realtek 5411E, Realtek 8153B and Realtek 5329 |
| Video | |

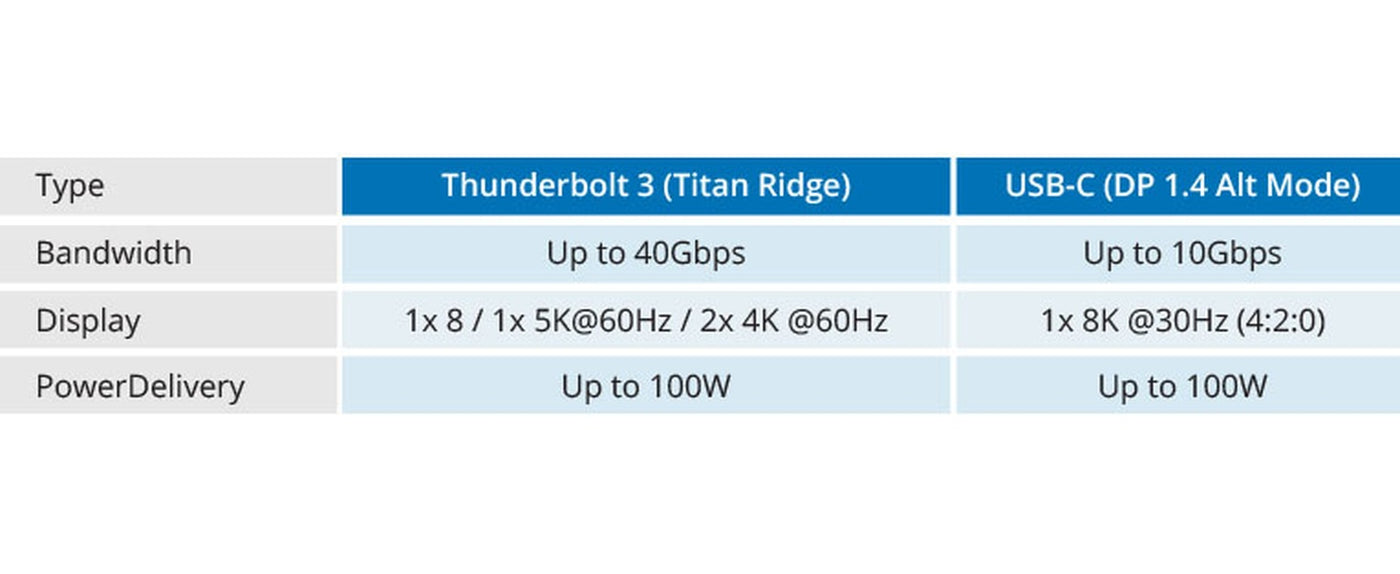

| Thunderbolt 3 | - Compliant with Intel Thunderbolt 3 specifications - Data transfer 40Gbps - Video: 1x 8K/5K/4K@60Hz display or 2x 4K displays - Special cables are required for longer connections - Up to 6 daisy chaining of Thunderbolt 3 devices *Compliant with mac M1, M2, M3 Pro, Max systems for single external video output |
| DisplayPort | DP 1.4, 8K/5K@60Hz / 4K@144Hz |
| Video cable length | DisplayPort: Up to 3M (max), cable is not included |

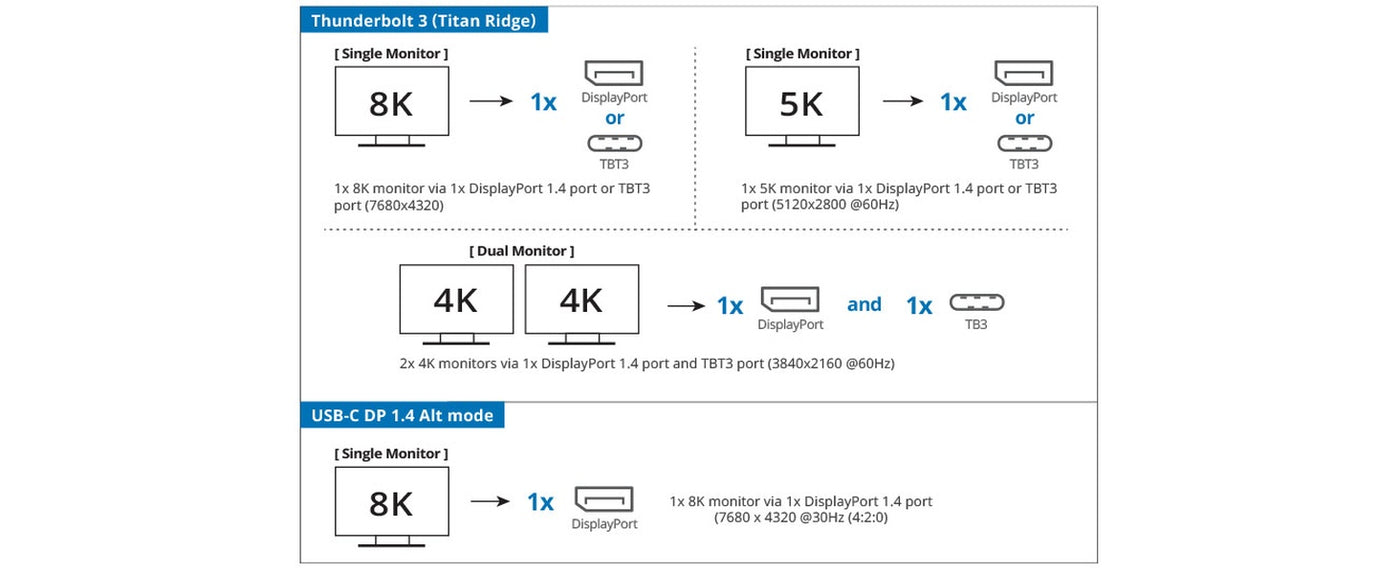

| Resolutions | Thunderbolt 3 with Titan Ridge chipset Single Video: up to 8K60Hz / 4K144Hz (DisplayPort 1.4 or Thunderbolt 3) Dual Video: up to 4K@60Hz (DisplayPort 1.4 and Thunderbolt 3) |
| Audio | 5.1 channel surround sound from DisplayPort output |
| USB | 3x USB 5.0Gbps with BAT 1.2 fast charging |
| Ethernet | |
| Data transfer rate | up to 1G (1000Mbps), backward compatible with 10/100Mbps |
| Features | Support IEEE 802.3u, IEEE 802.3, 802.3u Full Duplex flow operation, crossover detection, and auto-correction Wake-on LAN and PXE boot Note: Mac address pass-through not supported |

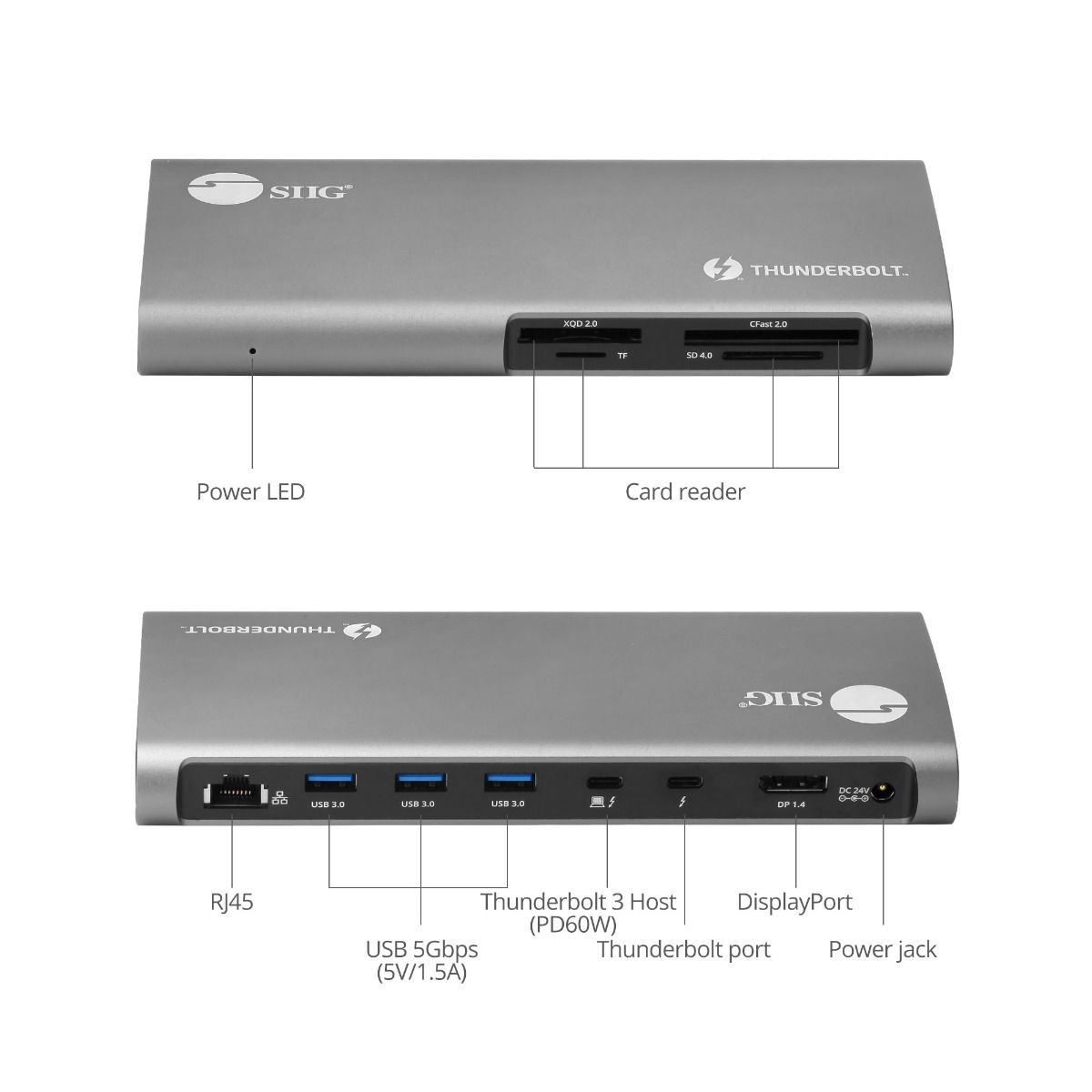

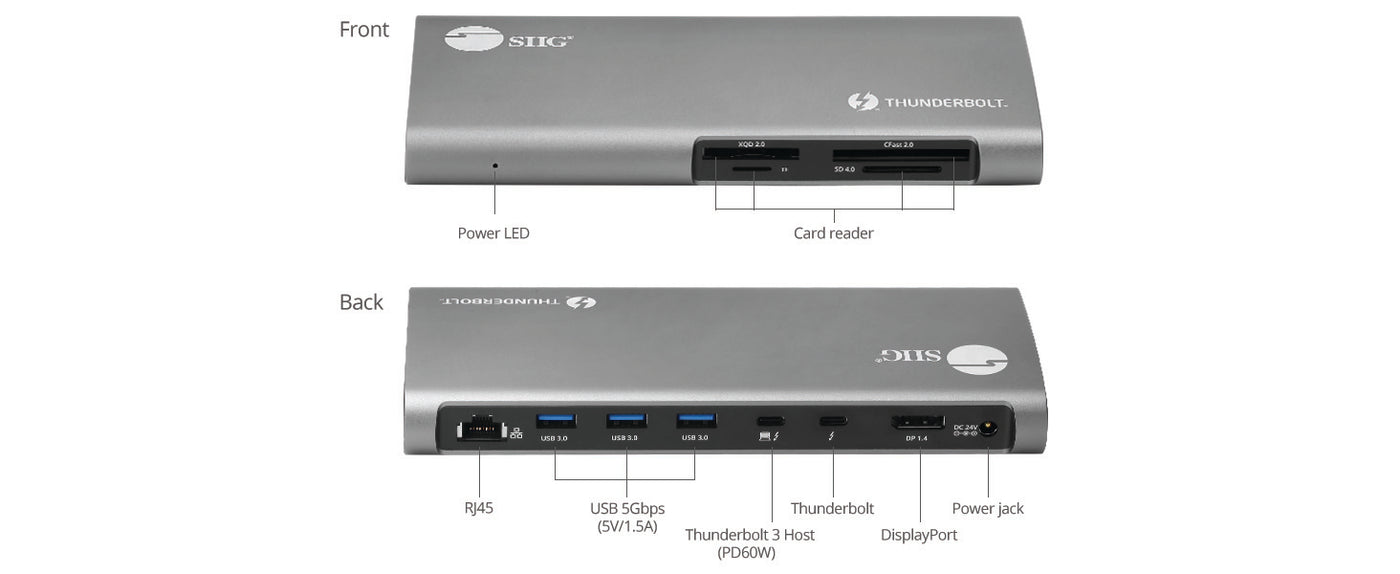

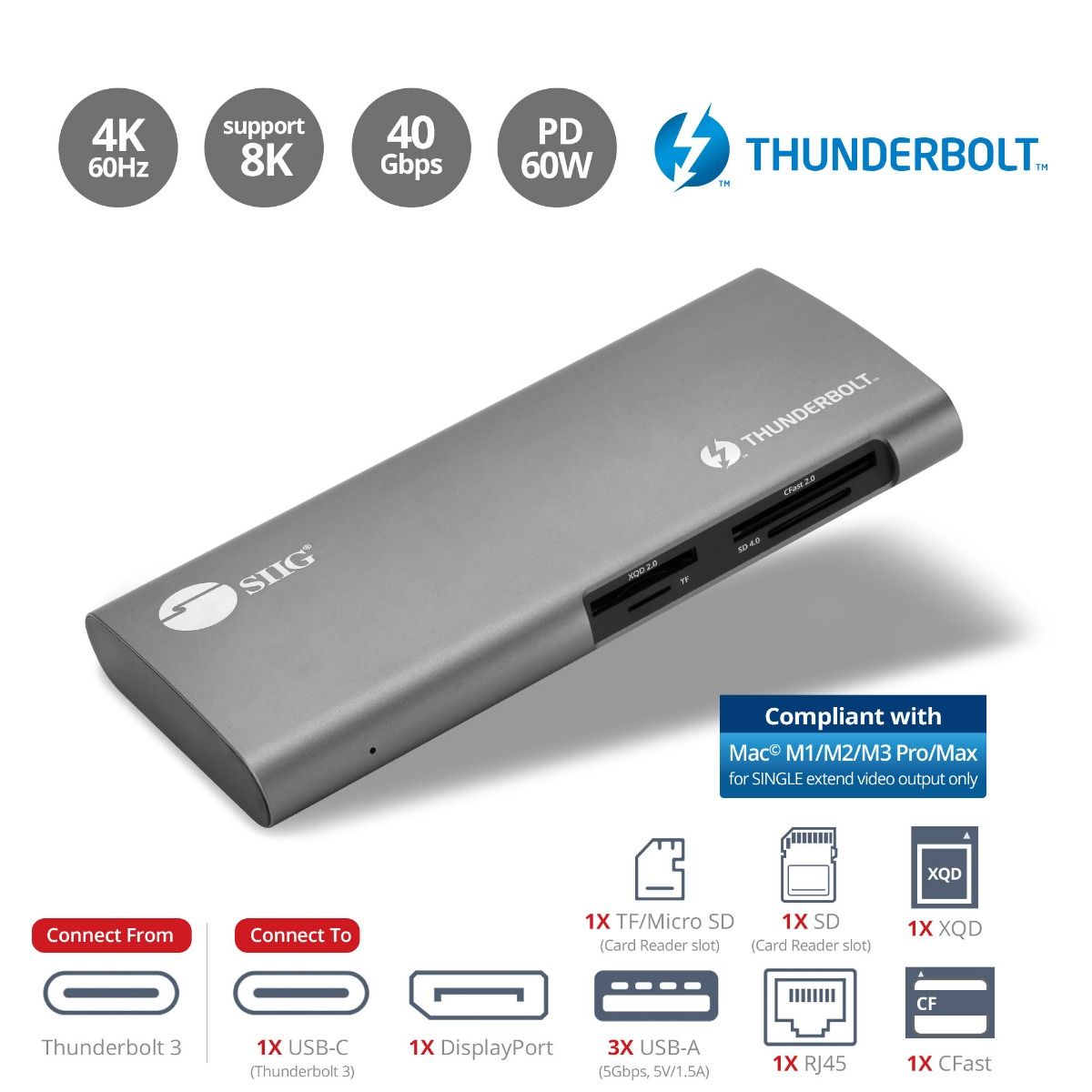

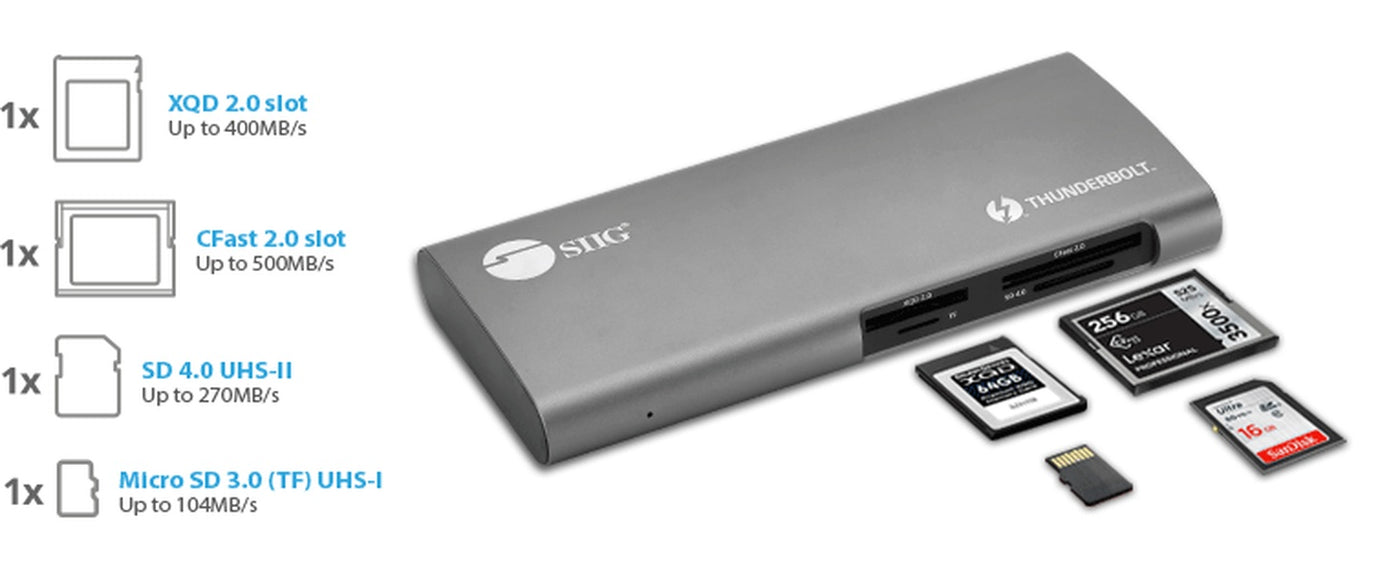

| Interface | 1x 24-pin, USB-C, Thunderbolt 3 (PD Charging), Female, for host 1x 24-pin, USB-C, Thunderbolt 3 (PD Charging), Female, for device 1x 20-pin, DisplayPort 1.4, Female 3x 9-pin, USB-A 5Gbps, Female, support BC 1.2 fast Charging 1x 8-pin, RJ45, Gigabit Network, Female 1x XQD 2.0 memory card slot, supports up to 400MB/s 1x CFast 2.0 memory card slot, supports up to 500MB/s 1x SD 4.0 (UHS-II) memory card slot, supports up to 280MB/s 1x TF/Micro SD 3.0 (UHS-I) memory card slot, supports up to 104MB/s 1x DC power jack |
| Product | |

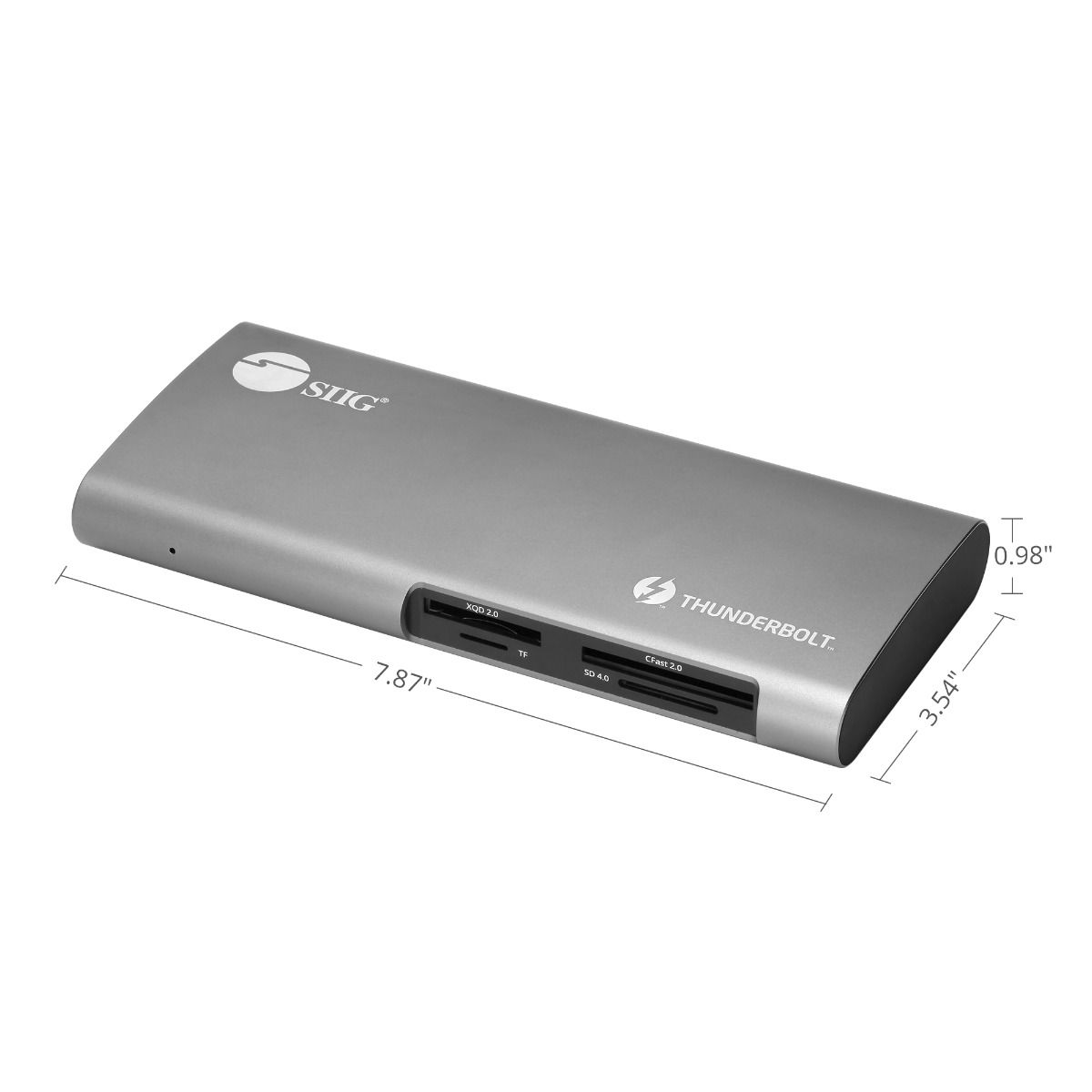

| Dimensions (L) x (H) x (W) | 7.87" x 0.98" x 3.54" 20.00 cm x 2.50 cm x 9.00 cm |
| Weight | 0.59 lbs (0.27 kg) |
| Color | Iron Gray |
| Housing | Aluminum + plastic |
| Unit Package | |
| Dimensions (L) x (H) x (W) | 9.84" x 3.35" x 5.39" 25.00 cm x 8.50 cm x 13.70 cm |
| Weight | 2.32 lbs (1.05 kg) |
| Master Carton | |
| Dimensions (L) x (H) x (W) | 20.28" x 11.02" x 17.13" 51.50 cm x 28.00 cm x 43.50 cm |
| Weight | 44.32 lbs (20.10 kg) |
| Quality | 18 pcs/ctn |
| Power | |
| Power Delivery 3.0 | 60W, Support 5V, 9V, 15V, 20V / 3A |
| Power Adapter | Input: AC 100-240V / 50-60Hz; Output: DC 24V / 5A |
| Environmental Conditions | |
| Operating temperature | 32 to 104 degrees F |
| Storage temperature | 14 to 158 degrees F |
| Humidity | 5% to 90% RH (non-condensing) |
| Certifications/Standards | FCC, CE, RoHS |
| UPC Code | 662774-044187 |
| Warranty | 2year limited |
| Country of Origin | China |
| System Requirements | - Desktop or laptop computer with an available Thunderbolt 3 with DP 1.4 technology - Compliant with mac M1, M2, M3 Pro, & Max systems for single external video output - Windows 11 / 10 - mac OS® 10.13 or newer |

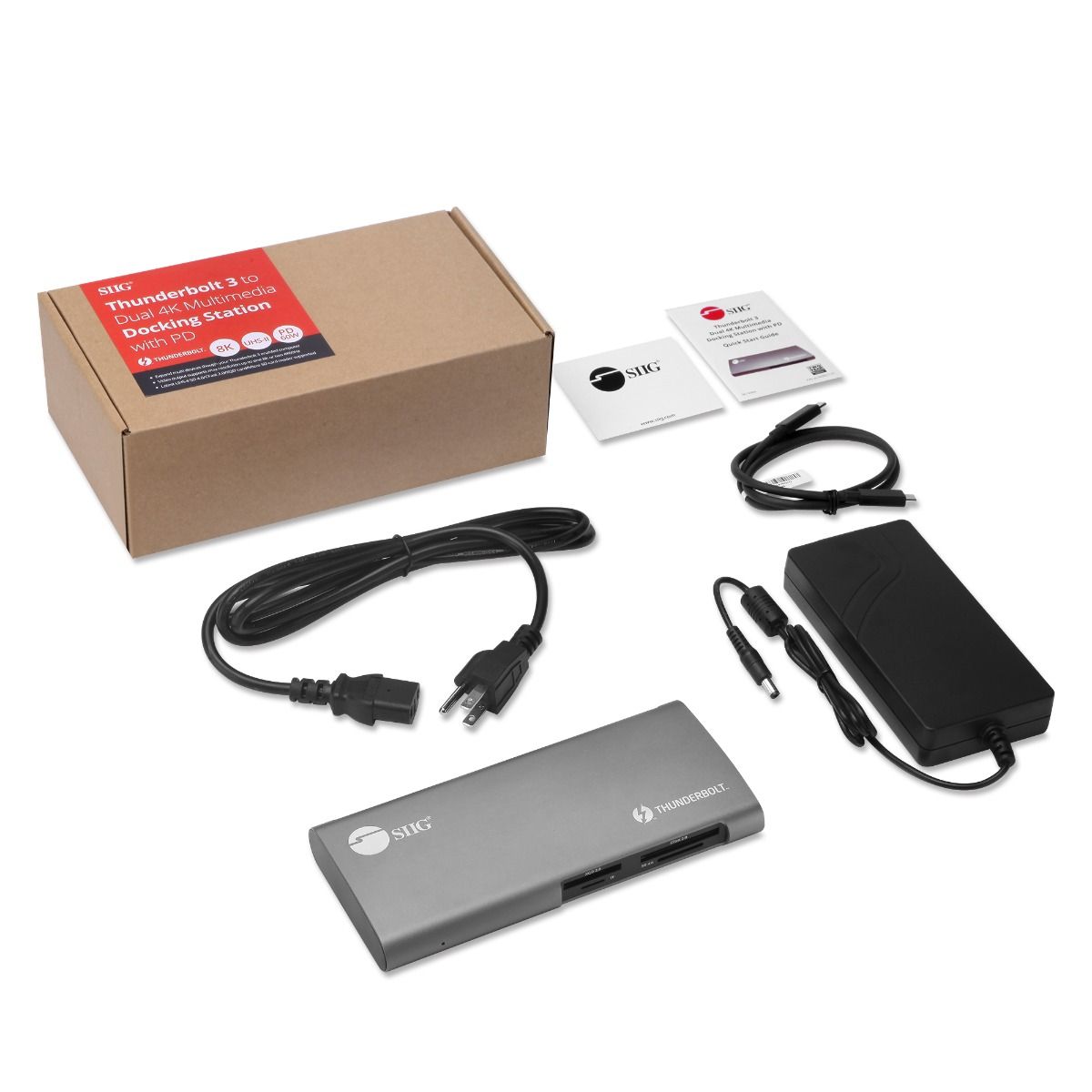

| Package Contents | 1x Thunderbolt 3 Dual 4K Multimedia Docking Station with PD - Titan Ridge 1x Thunderbolt 3 cable 1x Power Adapter (120W) 1x User Reference Guide |
Q1: Why does my DP to HDMI cable not work?
Q1: Why does my DP to HDMI cable not work?
A1: The DP port of the Docking Station is a DP native signal and requires an Active DP to HDMI cable or adapter. Please confirm your DP to HDMI cable or adapter has "Active" typeface.
DP to HDMI cable/adapter without "Active" is passive product, used for DP dual mode signal.
DP to HDMI cable/adapter without "Active" is passive product, used for DP dual mode signal.
