USB |
SKU:
JU-DV0511-S2

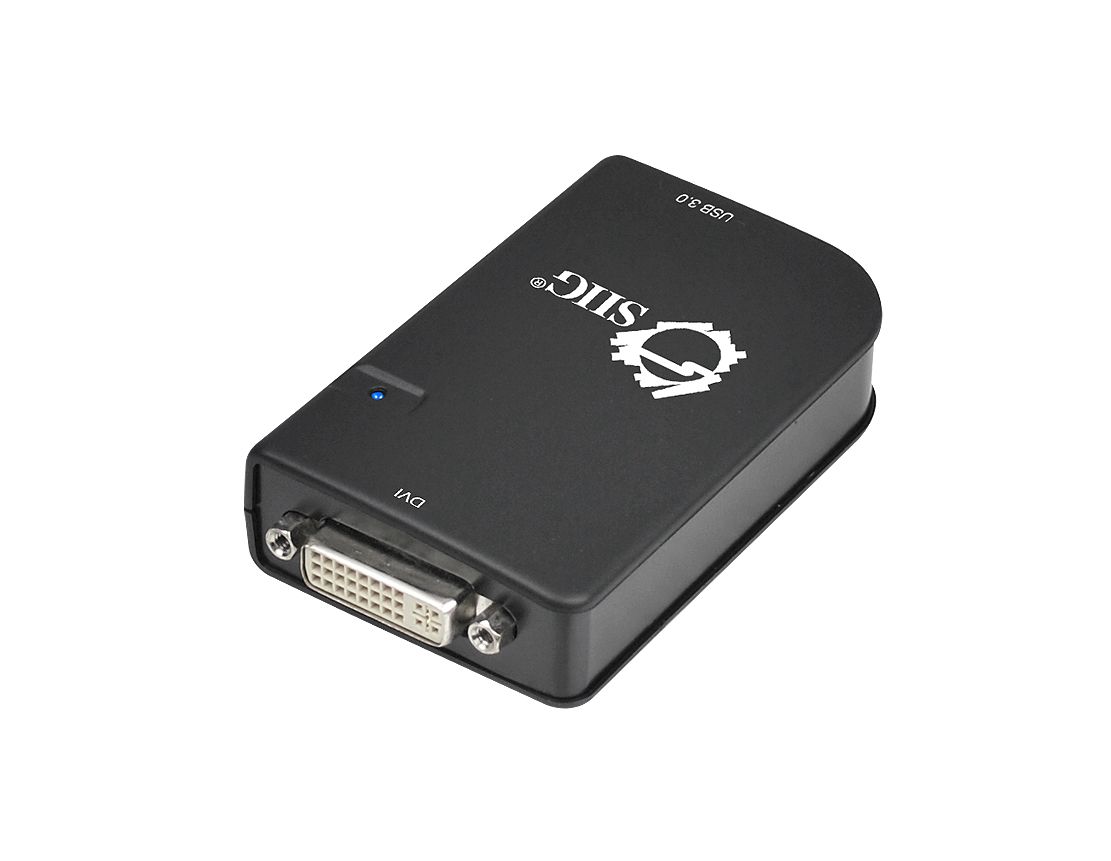

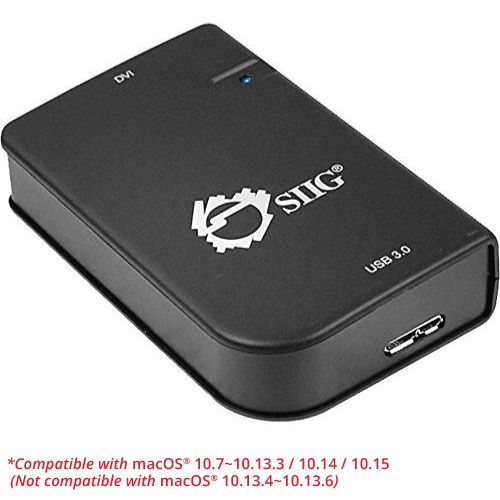

SuperSpeed USB 3.0 to DVI Adapter
USB to DVI Adapter
USB 5Gbps
2048x1152 60Hz
TAA Compliant
DisplayLink Solution
Regular price
$84.99
Unit price
/
Unavailable
Shipping calculated at checkout.
SuperSpeed USB 3.0 to DVI Adapter is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Features
SuperSpeed USB Performance
SuperSpeed USB Performance
High Resolution Display Support
High Resolution Display Support
Multiple Display Modes
Multiple Display Modes
Expand Up to 6 Displays
Expand Up to 6 Displays
Easy Setup with DisplayLink Technology
Easy Setup with DisplayLink Technology
-
45 Days Free Return
-
2 Years Warranty
-
Lifetime Technical Support
No content found
| Chipset | DisplayLink DL-3500 |
| USB Data Transfer Rate | Up to 5Gbps |
| Expansion Display | Connects up to 6 adapters per system |
| Standard | Compliant Compliant with SuperSpeed USB 3.0 and backwards compatible with USB 2.0 specification |
| Display modes | Primary, Extended, Mirror |
| Supports Resolution | |
| Standard (4:3) | 1600x1200, 1400x1050, 1280x1024, 1024x768, 800x600, 640x480 Widescreen (16:9 and 16:10) |
| Display Modes | Primary, Extend and Mirror |
| Power Source | USB bus powered and hot-pluggable |
| Connectors | 1x 10-pin, USB 3.0, Micro B, Female, Input 1x 29-pin, DVI-I, Female, Output |

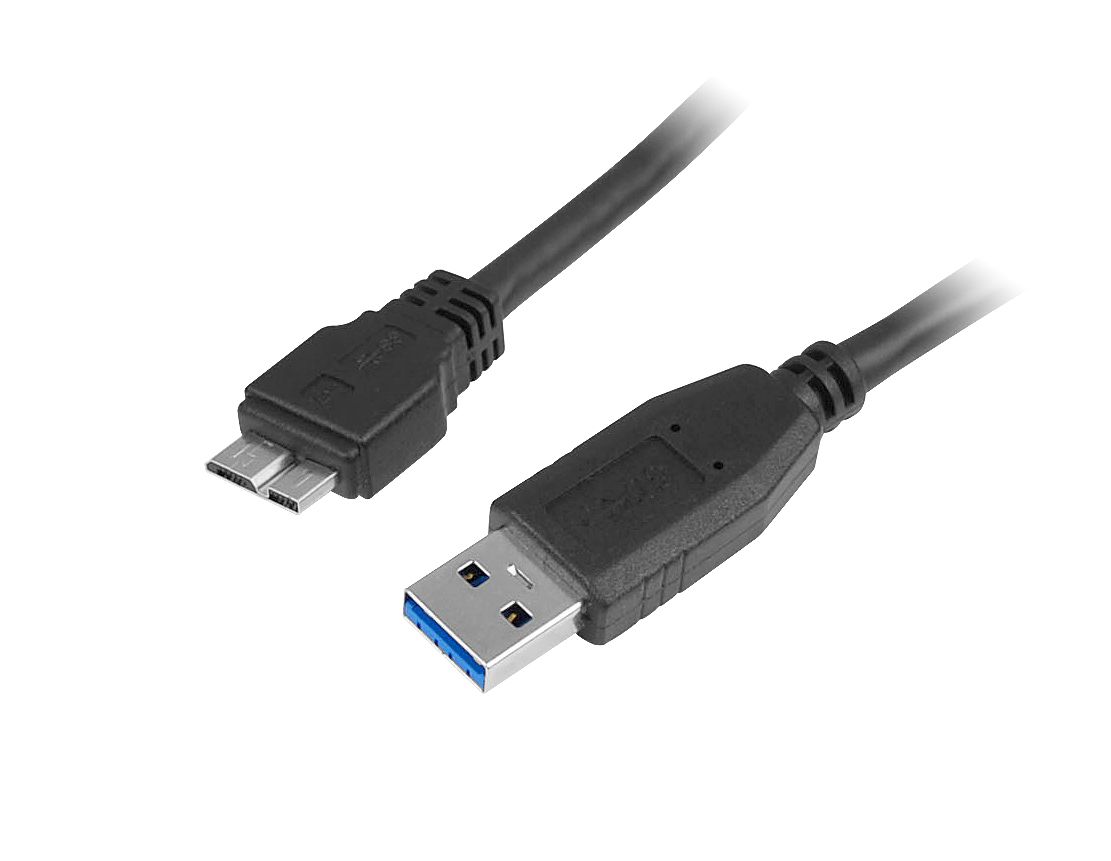

| Cable | USB 3.0, Type A to Micro B Length |
| System Requirements | Desktop or laptop computer with an available USB 3.0 port 2.0 GHz Dual Core CPU or faster |
| MacOS Compatibility | Our adapter DOES NOT work with macOS 10.13.4 - 13.6 update. It's recommended to upgrade to 10.14 or later or stay with 10.13.3 or earlier macOS 10.15 or later: Uninstall any legacy DisplayLink driver (v5.2.5 or earlier) and install the latest driver on SIIG's website MacBook 2018 models (based on the Intel Coffee Lake chipset) running Mac OS 10.14 or 10.14.1 can experience black extended display(s) with only mouse cursor. This problem is fixed by the Mac OS 10.14.2 update |
| Product | |
| Dimensions | 2.08″(W) x 0.78″(H) x 3.42″(D) |
| Weight | 0.13 lbs |
| Color | Black |
| Housing Material | Plastic |
| Unit package | |
| Dimensions | 7.09″(W) x 6.30″(H) x 1.65″(D) |
| Weight | 0.42 lbs |
| Master carton | |
| Dimensions | 11.57″(W) x 10.16″(H) x 15.87″(D) |
| Weight | 9.67 lbs |
| Quantity | 20 pcs/ctn |

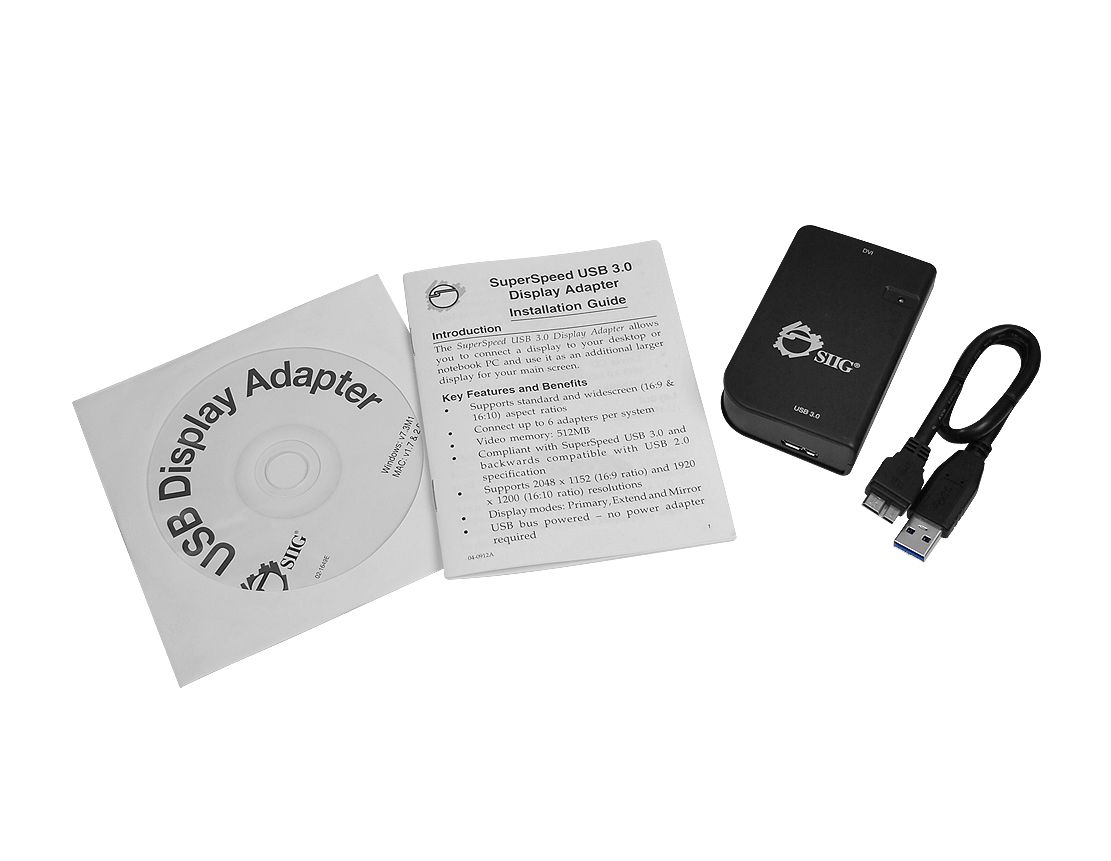

| Package contents | SuperSpeed USB 3.0 to DVI Adapter USB 3.0 cable (Type A to Micro B) Driver CD Installation guide |
| Environmental conditions | |
| Operating temperature | 32 to 104 degrees F |
| Storage temperature | 14 to 167 degrees F |
| Relative humidity | < 85% non-condensing |
| Certifications/Standards | FCC, CE, RoHS |
| UPC code | 662774021683 |
| Warranty | 5 years limited |
| Country of origin | Engineered in USA , Manufactured in China |
The displays are not working in Mac 10.13 & 10.14
The displays are not working in Mac 10.13 & 10.14
Applies to the Following Products:
- USB 3.0 4K Dual Video Docking Station - USB-C (JU-DK0411-S1)
- USB-C Triple 4K Display Docking Station with PD Charging - 60watts (JU-DK0611-S1)
- USB 3.1 Type-C Dual 4K Docking Station with Power Delivery 60watts (JU-DK0811-S1)
- USB-C Triple 4K Video Docking Station with Power Delivery (JU-DK0B11-S1)
- USB 3.0 Universal Dual Video Docking Station (JU-DK0211-S1)
- USB 3.0 to HDMI/DVI Dual Display Adapter (JU-H20511-S1)
- USB 2.0 to VGA Pro (JU-VG0012-S1)
- USB 2.0 to DVI/VGA Pro (JU-DV0112-S1)
- SuperSpeed USB 3.0 to DVI Adapter (JU-DV0511-S2)
- SuperSpeed USB 3.0 to VGA Adapter (JU-VG0511-S1)
- USB 3.0 to DisplayPort Adapter (JU-DP0011-S1)
Solution:
Due to strict security measures implemented on 10.14, the Docking Station's / Display adapter's system extension (driver) could be disable by the Mac OS.
This issue can be fixed using the instruction found at the link provided below.
https://support.displaylink.com/knowledgebase/articles/1188004-macos-10-13-or-10-14-video-functionality-not-enab
- USB 3.0 4K Dual Video Docking Station - USB-C (JU-DK0411-S1)
- USB-C Triple 4K Display Docking Station with PD Charging - 60watts (JU-DK0611-S1)
- USB 3.1 Type-C Dual 4K Docking Station with Power Delivery 60watts (JU-DK0811-S1)
- USB-C Triple 4K Video Docking Station with Power Delivery (JU-DK0B11-S1)
- USB 3.0 Universal Dual Video Docking Station (JU-DK0211-S1)
- USB 3.0 to HDMI/DVI Dual Display Adapter (JU-H20511-S1)
- USB 2.0 to VGA Pro (JU-VG0012-S1)
- USB 2.0 to DVI/VGA Pro (JU-DV0112-S1)
- SuperSpeed USB 3.0 to DVI Adapter (JU-DV0511-S2)
- SuperSpeed USB 3.0 to VGA Adapter (JU-VG0511-S1)
- USB 3.0 to DisplayPort Adapter (JU-DP0011-S1)
Solution:
Due to strict security measures implemented on 10.14, the Docking Station's / Display adapter's system extension (driver) could be disable by the Mac OS.
This issue can be fixed using the instruction found at the link provided below.
https://support.displaylink.com/knowledgebase/articles/1188004-macos-10-13-or-10-14-video-functionality-not-enab
Need help?
Contact usManuals
Drivers (Hardware Version: 2)
- Windows 11/10Download Release 11.2 M0
- Mac Sonoma14/ Ventura13/ Monterey12/ Big Sur11Download Manager v1.9
- Mac Catalina 10.15Download Manager v1.5
- Windows 8 (32-/64-bit)Download v9.3 M1
- Mac OS X 10.14.xDownload v5.2.6
- Mac OS X 10.11.5 to 10.11Download v4.1
- Mac OS X 10.13.3* / 10.12 / 10.11.6Download v4.3.1
- Mac OS X 10.10Download v3.1
- Mac OS X 10.8 / 10.9Download v2.6
- Mac OS X 10.6 / 10.7Download v2.2
- Windows Vista (32-/64-bit)Download v7.7M4
- Windows XP (32-bit)Download v7.6M2
