SKU:
SC-SA4R12-S2

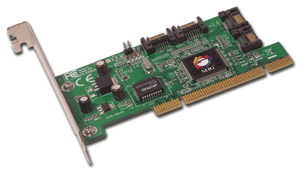

Serial ATA 4-channel RAID
SATA PCI Card
4-Port SATA
1.5Gbps
RAID
Up to 4TB
Regular price
$83.99
Unit price
/
Unavailable
Shipping calculated at checkout.
Serial ATA 4-channel RAID is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Features
PCIe SATA Expansion Card
PCIe SATA Expansion Card
1.5Gbps Data Transfer
1.5Gbps Data Transfer
Four Independent SATA Channels
Four Independent SATA Channels
PCI Compatibility
PCI Compatibility
Accessories
Accessories
Serial ATA 4-channel RAID
Estimated shipping by May 25, 2026
Regular price
$83.99
Unit price
/
Unavailable
-
45 Days Free Return
-
2 Years Warranty
-
Lifetime Technical Support
No content found
| Chipset | Silicon Image Sil3114 |
| Port Type | Four Serial ATA ports |
| Slot Type | 32-bit PCI |
| Compliance | Serial ATA Specification, revision 1.0 PCI Specification, revision 2.2 |
| Supports | Supports 48-bit LBA and verified to work with up to 4TB drives Supports RAID 0 (striping), RAID 1 (mirroring) and RAID 10 (mirror + striping) Supports 32-bit wide PCI bus at 66MHz Supports data transfer rates up to 150 MB/s (1.5Gb/s) |
| Features | Coexists with Ultra ATA controller and allows you to connect up to four Serial ATA drives Features independent 256-byte FIFOs per channel for host reads and writes Features Watch Dog timer for fault resiliency and flash memory for future BIOS updates |
| System Requirements | Pentium® or equivalent PC with one available PCI slot Windows® 10 (32-/64-bit) / 8 (32-/64-bit) / 7 (32-/64-bit) / Vista (32-/64-bit) / XP (32-/64-bit) / Server 2003 & 2008 (32-/64-bit) / 2000 |
| Product | |
| Dimensions | 5.24″(W) x 4.72″(H) x 0.79″(D) |
| Weight | 0.12 lbs |
| Color | Black |
| Unit package | |
| Dimensions | 9.50" (W) x 6.50" (H) x 2.50" (D) |
| Weight | 0.94 lbs |
| Master Carton | |
| Dimensions | 19.80" (W) x 21.65" (H) x 12.20" (D) |
| Weight | 29.54 lbs |
| Quantity | 28pcs/ctn |
| Package Contents | Serial ATA 4-channel RAID 4 Serial ATA data cables 2 Dual-connector SATA power cables 2 "Y" split power cables Driver and utility software CD Installation guide |
| Environmental Conditions | |
| Operating Temperature | 32 to 122 degrees F |
| Operating Humidity | 20% to 80% RH |
| Storage Temperature | -4 to 140 degrees F |
| Storage Humidity | 10% to 90% RH |
| Certifications/Standards | FCC, CE, RoHS |
| UPC Code | 662774-000053 |
| Warranty | Lifetime limited |
| Country of Origin | China |
No content found
Manuals
Drivers (Hardware Version: 1)
- Windows Server 200332-bit RAID driver for Vista and Server 2003
- Windows Vista32-bit RAID driver for Vista and Server 2003
- Windows Server 2003 x6464-bit RAID driver for Vista
- Windows Vista x6464-bit RAID driver for Vista
- Windows XP x6464-bit RAID driver for Vista
- Windows 2000|
- Windows 98SE|
- Windows ME|
- Windows NT 4.0|
- Windows XP|
- Windows 2000Use this driver with BIOS version 5.0.18 and Quick Installation guide 04-0370A
- Windows 98SEUse this driver with BIOS version 5.0.18 and Quick Installation guide 04-0370A
- Windows MEUse this driver with BIOS version 5.0.18 and Quick Installation guide 04-0370A
- Windows NT 4.0Use this driver with BIOS version 5.0.18 and Quick Installation guide 04-0370A
- Windows XPUse this driver with BIOS version 5.0.18 and Quick Installation guide 04-0370A
