Switch |
SKU:
CE-H22S11-S1

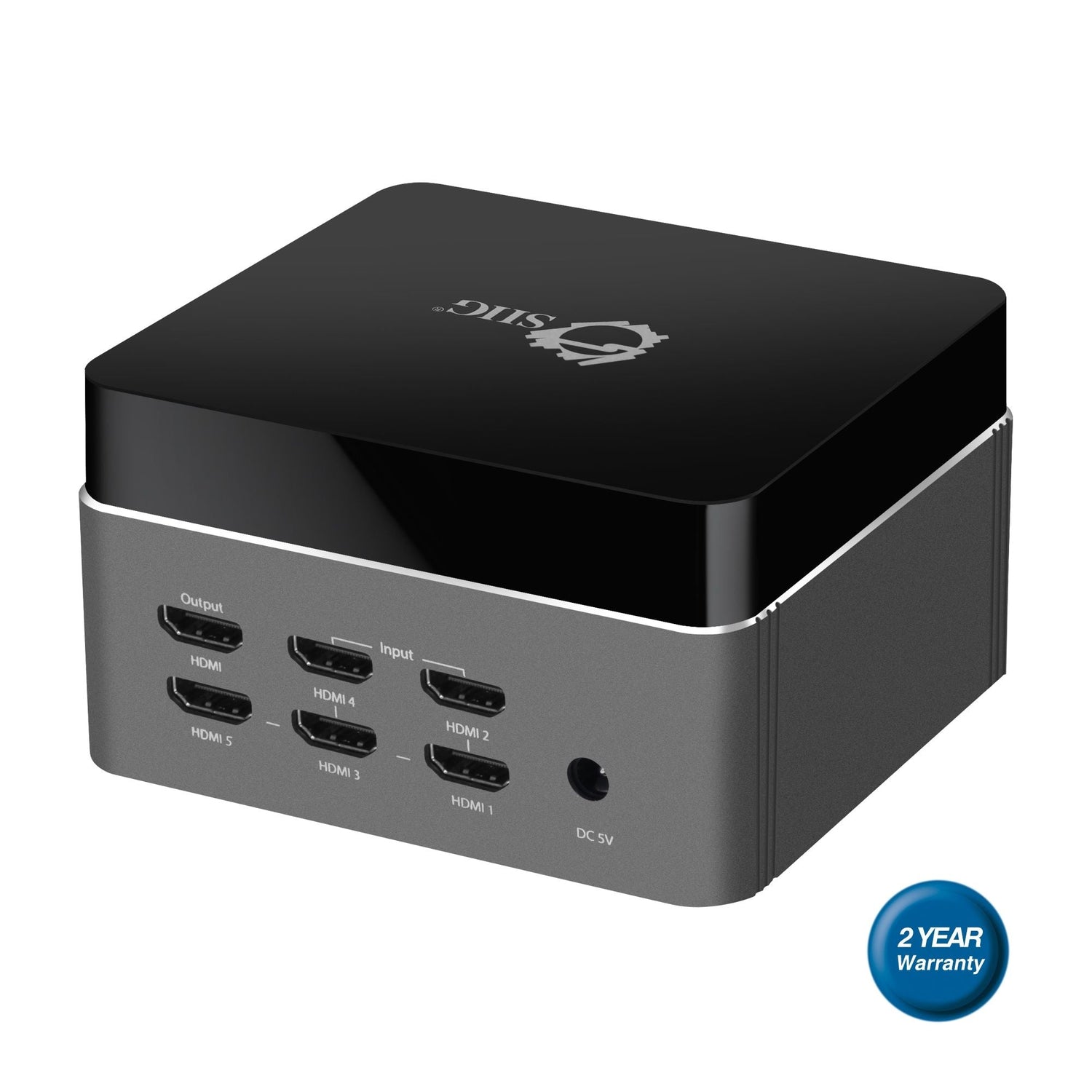

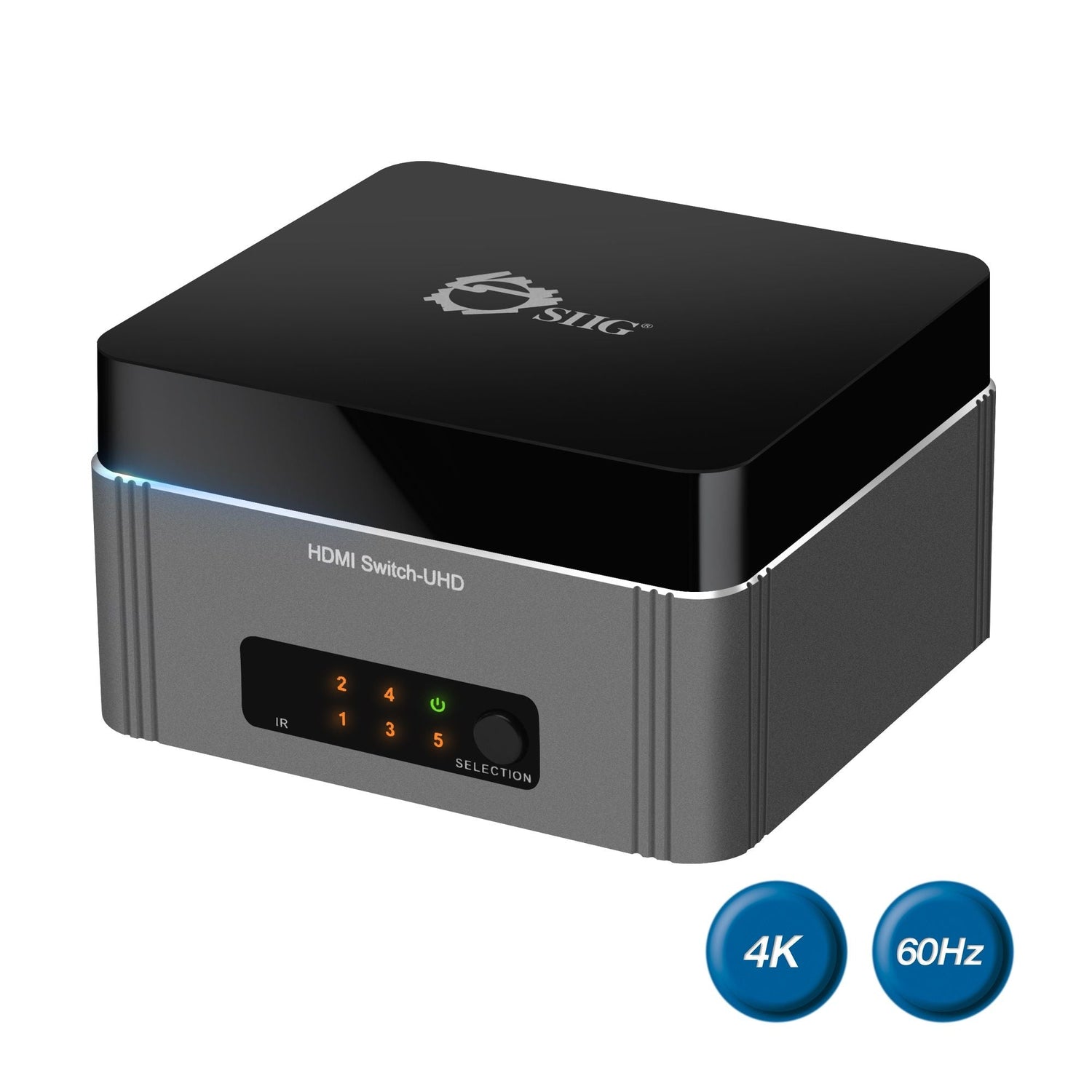

Premium 5-Port HDMI Switch with IR Remote Control - 4Kx2K 60Hz HDR
HDMI Switch
5x1 HDMI
4K60Hz
HDCP 2.2
IR Remote
Regular price
$49.99
Unit price
/
Unavailable
Shipping calculated at checkout.
Premium 5-Port HDMI Switch with IR Remote Control - 4Kx2K 60Hz HDR is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Features
4K HDMI Switcher
4K HDMI Switcher
Compatibility
Compatibility
Video Resolutions
Video Resolutions
HDMI Standards
HDMI Standards
LED Indicators
LED Indicators
No content found
| Video | |
| HDMI | 5x input, 1x output |
| Standard | HDCP 2.2 compliant |
| Bandwidth | up to 18.2Gbps (single-line 600Mhz) |
| Resolution | 480p / 720p / 1080i / 1080p / 4K UHD HDR (3840x2160 60Hz) *Note: Mixing UHD source devices with non-UHD source devices is not recommended |
| HDMI Cable Length | Input: up to 5 meters Output: up to 3 meters |
| IR Signal | Full Frequency: 20KHz to 60KHz |
| Power Adapter | |
| Input | 100-240V AC, 50 / 60Hz |
| Output | 5V DC / 2A |

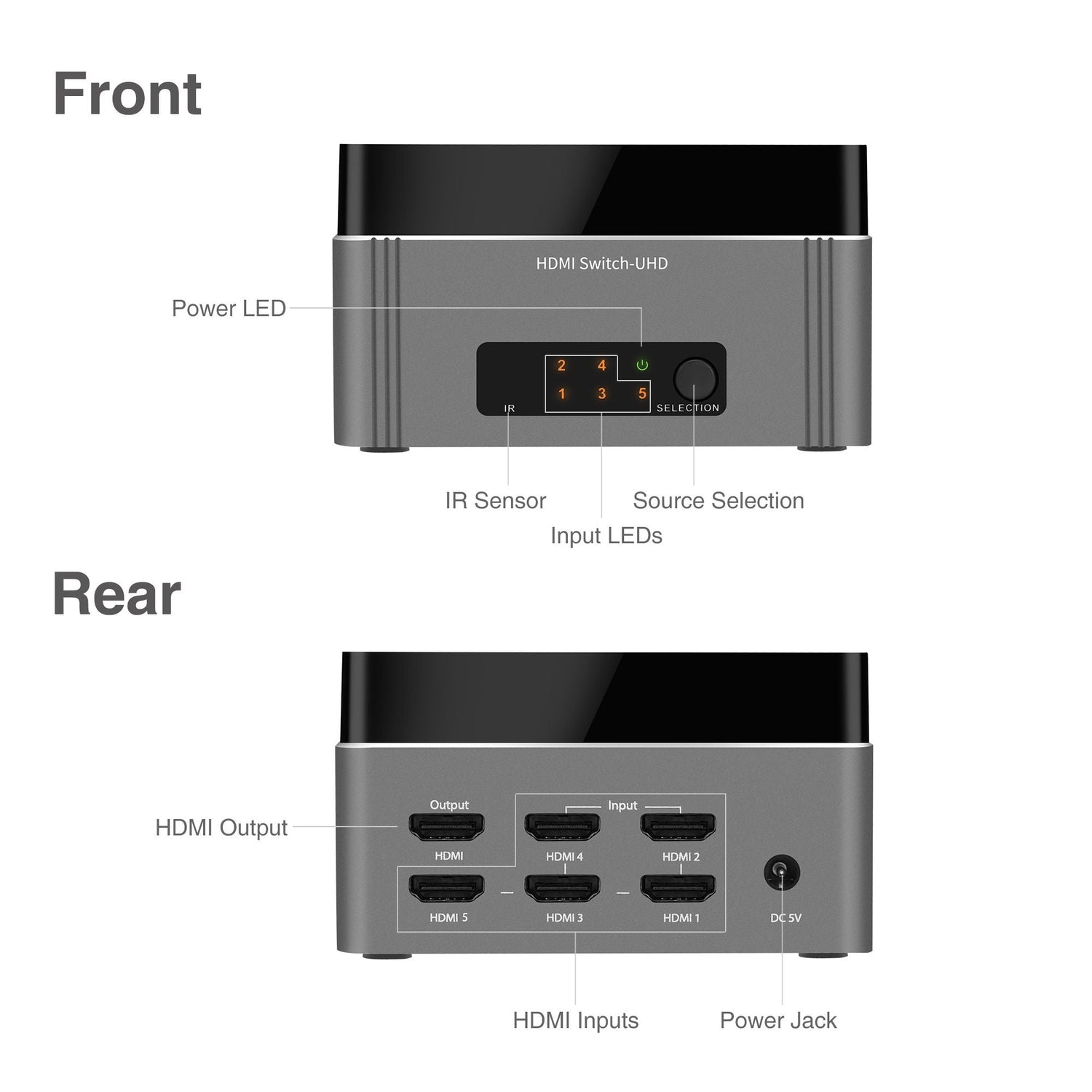

| Interface | 1x 19-pin, HDMI, female, output 5x 19-pin, HDMI, female, input 1x Power jack 1x Switch button |

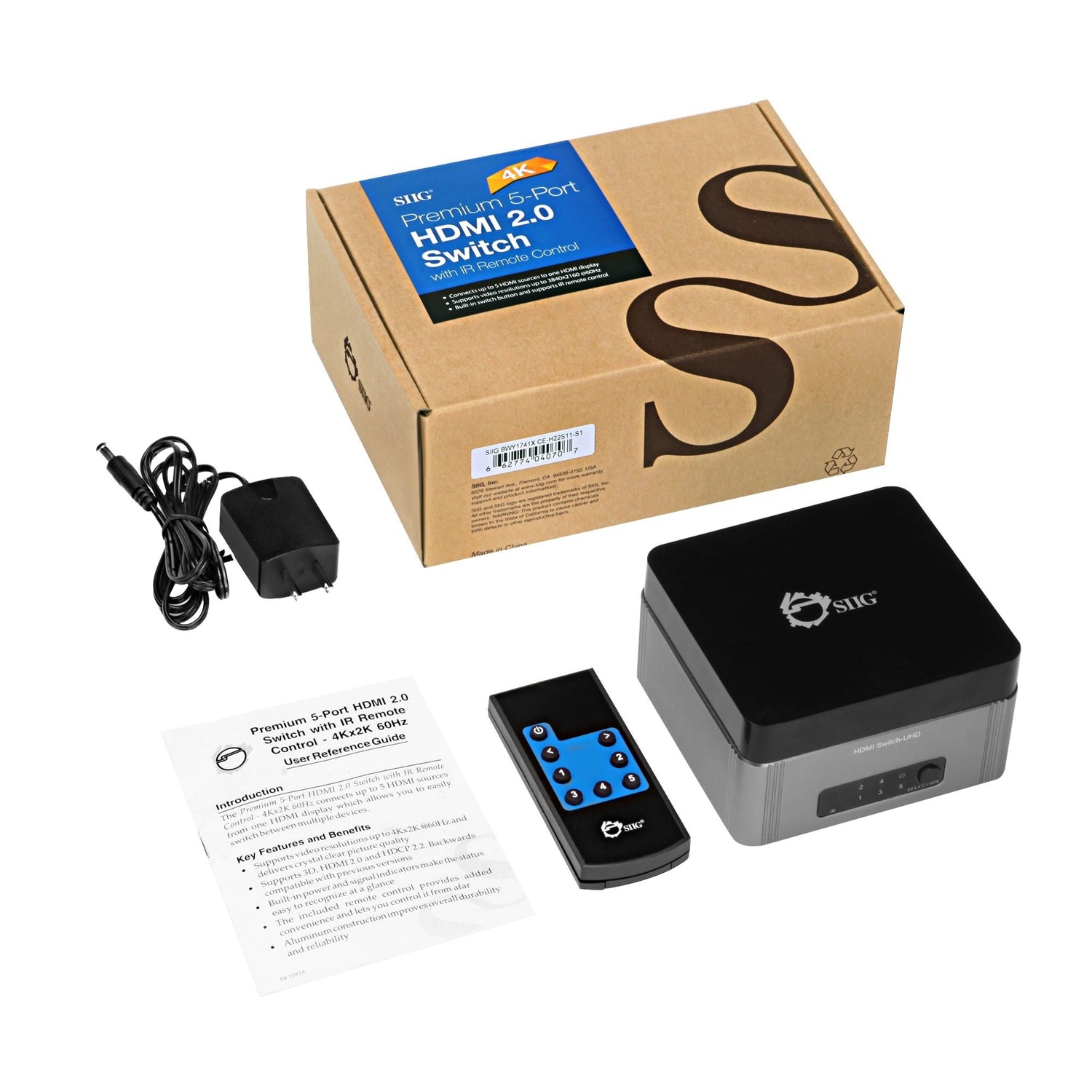

| Package Contents | 1x Premium 5-Port HDMI Switch with IR Remote Control - 4Kx2K 60Hz 1x Power adapter 1x Remote control 1x User reference guide |
| Certifications/Standards | FCC, CE, RoHS |
| UPC Code | 662774-040707 |
| Warranty | 2 years limited |
| Country of Origin | China |
| Product | |

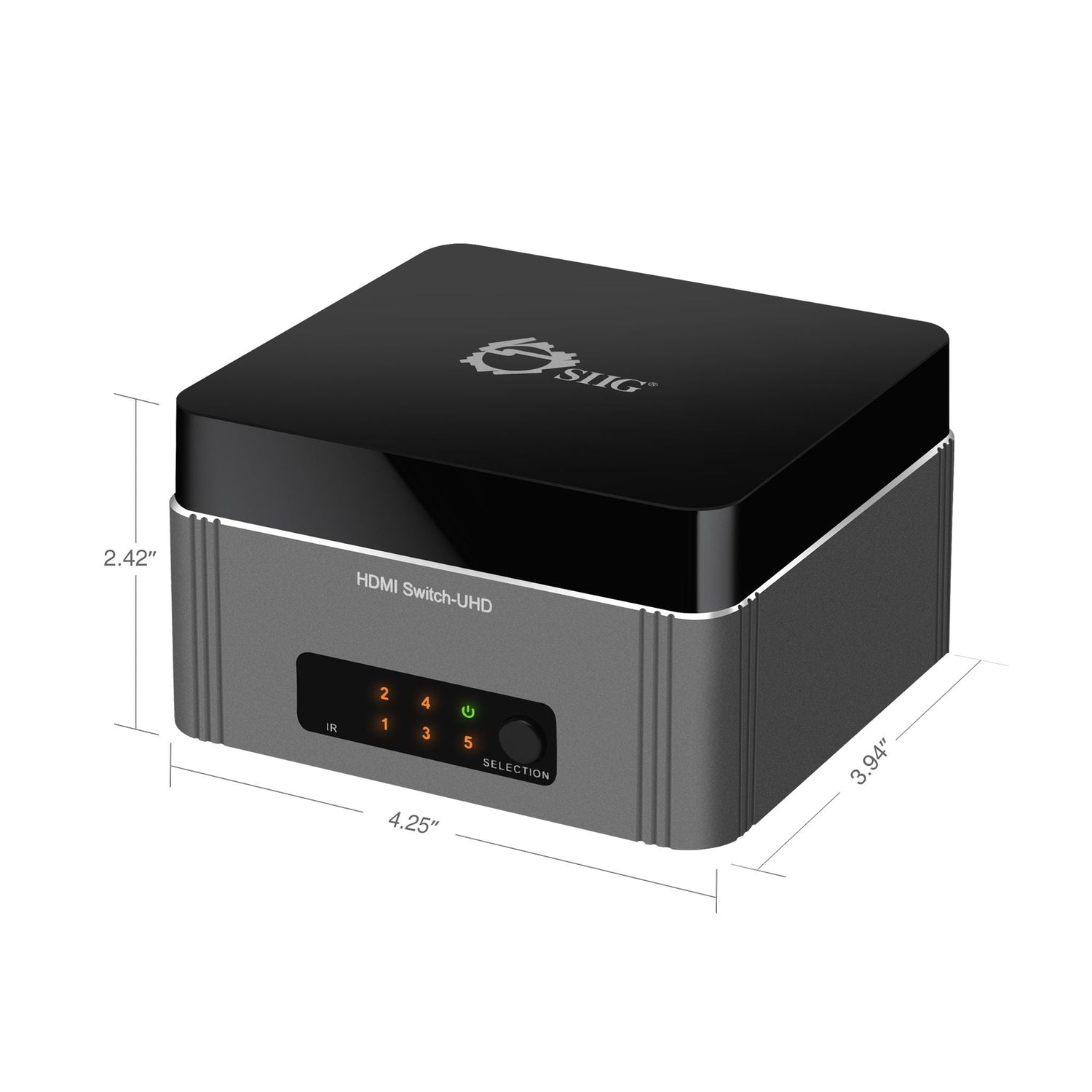

| Dimensions (L) x (H) x (W) | 4.25″ x 2.42″ x 3.94″ 10.80 cm x 6.15 cm x 10.01 cm |
| Weight | 0.52 lb (0.24 kg) |
| Color | Black & Deep Grey |
| Housing | Aluminum |
| Unit Package | |
| Dimensions (L) x (H) x (W) | 7.83″ x 3.15″ x 5.87″ 19.89 cm x 8.00 cm x 14.91 cm |
| Weight | 1.12 lbs (0.51 kg) |
| Master Carton | |
| Dimensions (L) x (H) x (W) | 16.73″ x16.54″ x 12.40″ 42.49 cm x 42.01 cm x 31.50 cm |
| Weight | 24.45 lbs (11.09 kg) |
| Quantity | 20 pcs/ctn |
| Environmental Conditions | |
| Operating Temperature | 32° to 104° F |
| Storage Temperature | 14° to 140° F |
| Relative Humidity | 5% to 90% RH (non-condensing) |
