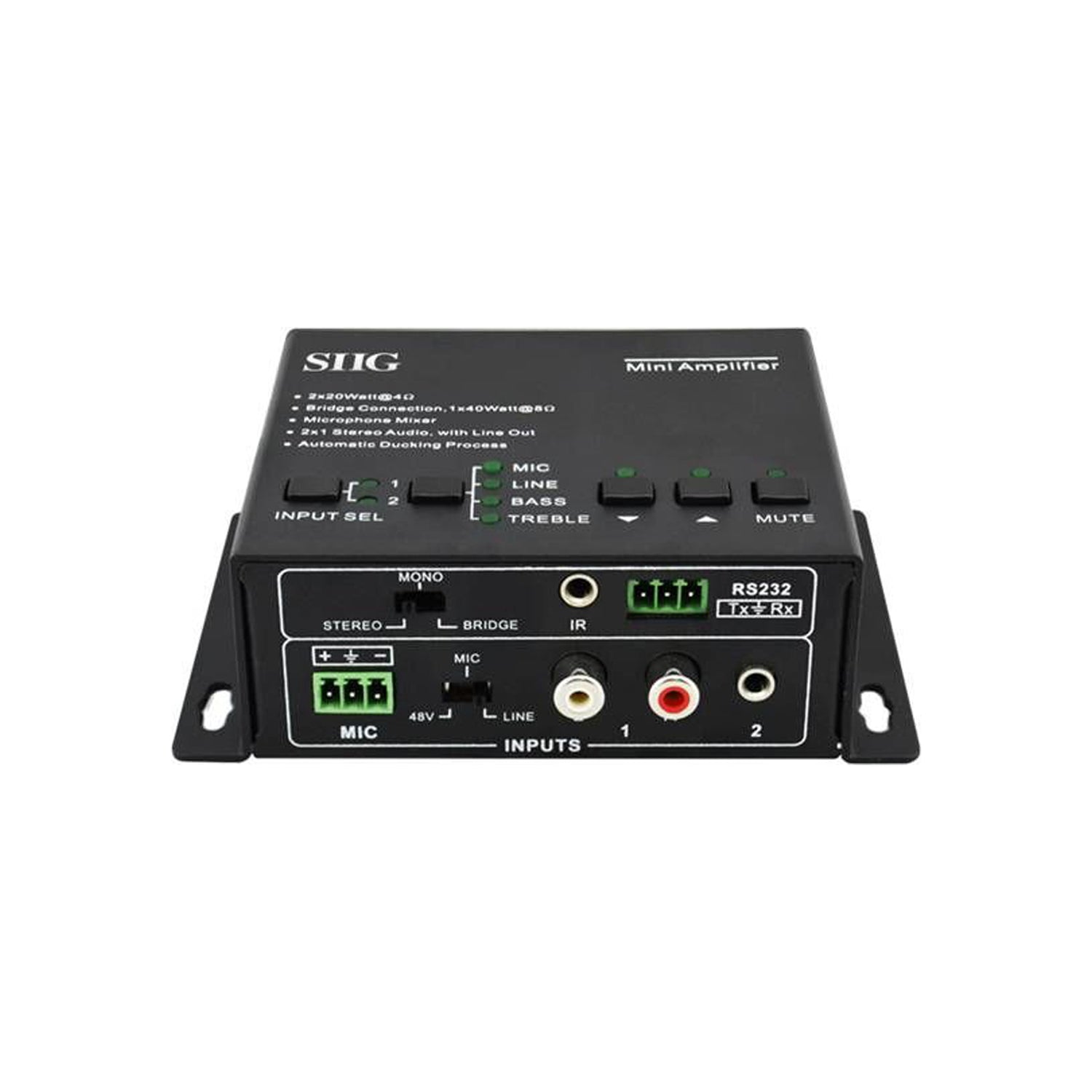

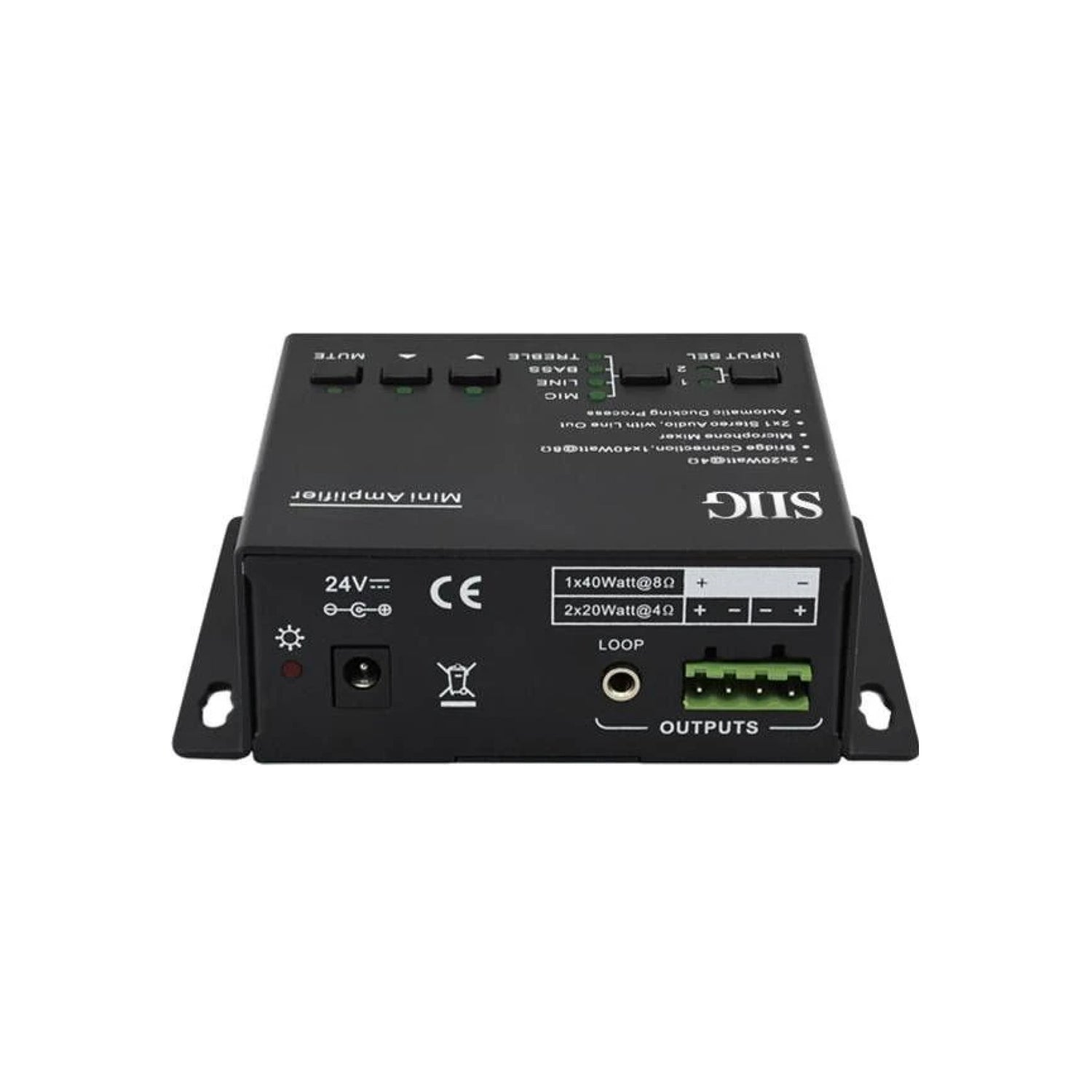

Mini Digital Amplifier
Mini Digital Amplifier is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Features
Digital Amplifier
Digital Amplifier
Control Methods
Control Methods
Dual Stereo Inputs
Dual Stereo Inputs
MIC Support
MIC Support
Ultra Low Inrush Current
Ultra Low Inrush Current
Mini Digital Amplifier
Estimated shipping by May 25, 2026
-
45 Days Free Return
-
2 Years Warranty
-
Lifetime Technical Support
| Dual Power Modes | 2x20Watts @4 ohms as the default amplifier output 1x40Watts @8 ohms (Bridge connection) |
| MIC Input | 48V: Condenser microphone MIC: Dynamic microphone Line: Normal or wireless microphone |
| Auto Noise Gate | Detects the audio and MIC input, will mute the output when there is no input signal |
| Connector | 1x 3-pin DIP switch, audio control 1x 3.5mm, IR receiver 1x 3-pin, Phoenix connector, RS-232 1x 3-pin, Phoenix connector, MIC 1x 3-pin DIP switch, MIC mode 1x L/R audio, input 1x 3.5mm, MIC, input 1x 3.5mm, Audio loop out 1x 4-pin Audio output |
| Package Contents | 1x Mini Digital Amplifier 1x IR Receiver cable 1x IR Remote control (no battery) 1x Power adapter 1x RS232 cable 4x Screw kit 4x Rubber pads 1x User's manual |
| Environmental Conditions | |
| Operating Temperature | 32 to 104 degrees F |
| Storage Temperature | -4 to 140 degrees F |
| Relative Humidity | 20 to 90% RH (non-condensing) |
| Product | |
| Dimensions (L) x (H) x(W) | 4.85″ x 1.56″ x 3.90″ 12.32 cm x 3.96 cm x 9.90 cm |
| Weight | 0.67 lb (0.30 kg) |
| Color | Black |
| Metal Housing | Provides good protection for long-term and stable performance |
| Unit Package | |
| Dimensions (L) x (H) x(W) | 10.40″ x 2.60″ x 7.80″ 26.42 cm x 6.60 cm x 19.81 cm |
| Weight | 1.77 lbs (0.80 kg) |
| Master Carton | |
| Dimensions (L) x (H) x(W) | 14.18″ x 24.41″ x 22.44″ 36.02 cm x 62.00 cm x 57.00 cm |
| Weight | 89.29 lbs (40.50 kg) |
| Quantity | 40 pcs/ctn |
| Certifications/Standards | FCC, CE, RoHS |
| UPC Code | 662774-042046 |
| Warranty | 3 years limited |
| Country of Origin | China |
