Wall Mounts |
SKU:
CE-MT5W11-S1
17% off
Medical Monitor Wall Mount Arm, 13–32 Inches, 17.6 lb, White
Medical Grade
Single Arm Wall Mount
74" Long Extension
Up to 32"
Full-Motion Adjustment
Sale price
$499.95
Regular price
$599.99
Unit price
/
Unavailable
Shipping calculated at checkout.
Medical Monitor Wall Mount Arm, 13–32 Inches, 17.6 lb, White is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Features

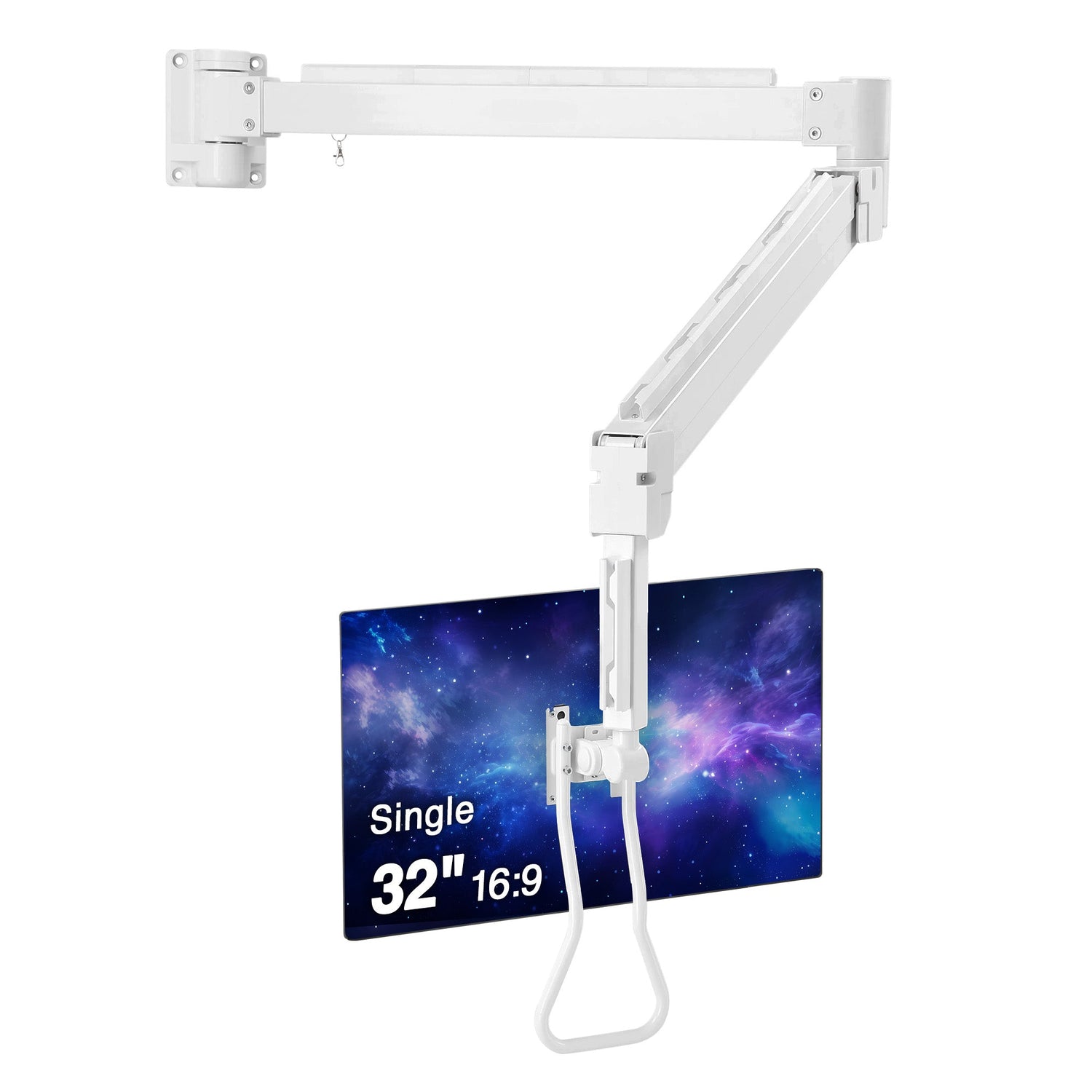

Single Monitor Compatibility
Single Monitor Compatibility

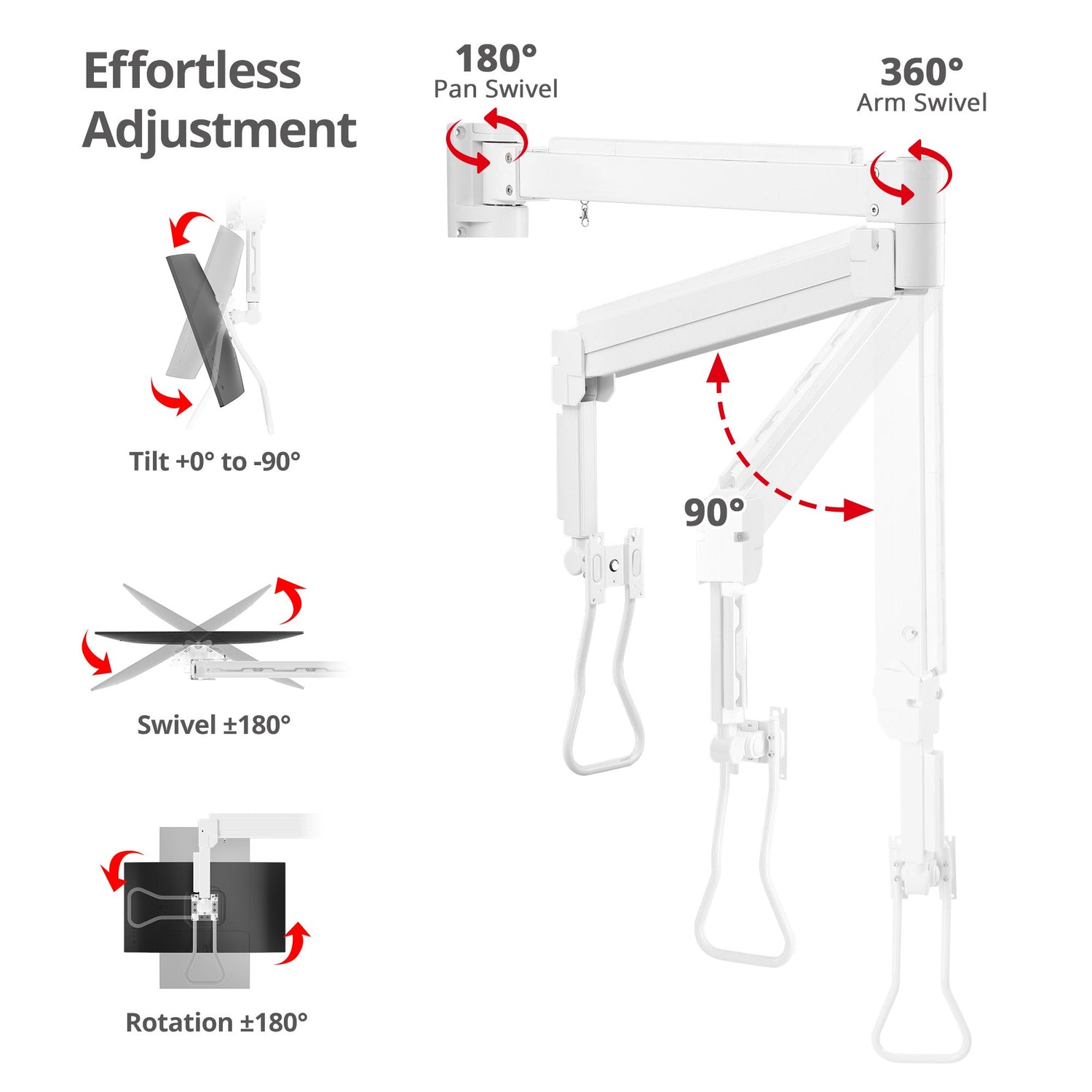

Ergonomic Full-Motion Adjustment
Ergonomic Full-Motion Adjustment

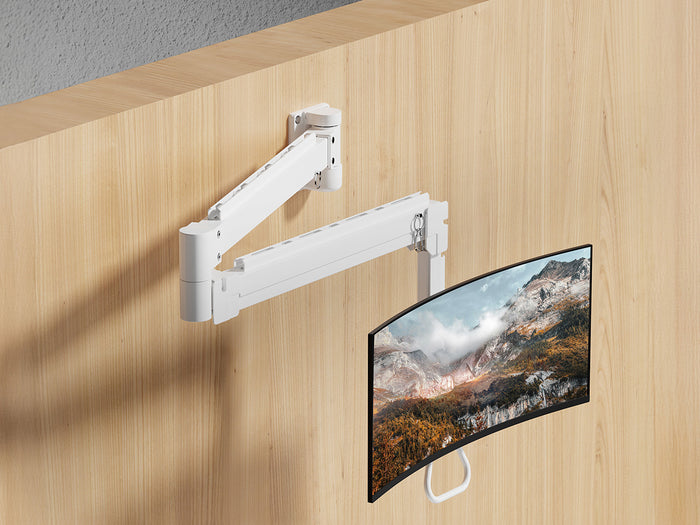

Space-Saving Wall Mount
Space-Saving Wall Mount
Secure Wall Plate & Hardware Included
Secure Wall Plate & Hardware Included
Smooth On-The-Fly Adjustments
Smooth On-The-Fly Adjustments
Detailed Designs You'll Appreciate
-

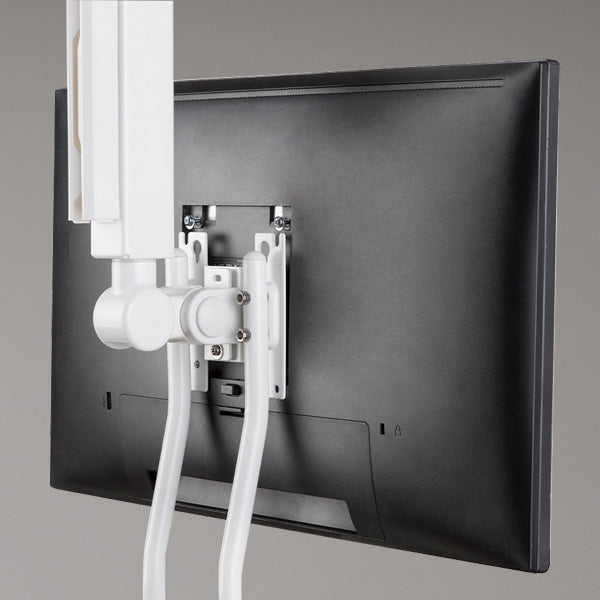

Simple Monitor Installation
Stable and secure design. Supports monitor with VESA 75x75mm and 100x100mm patterns. -

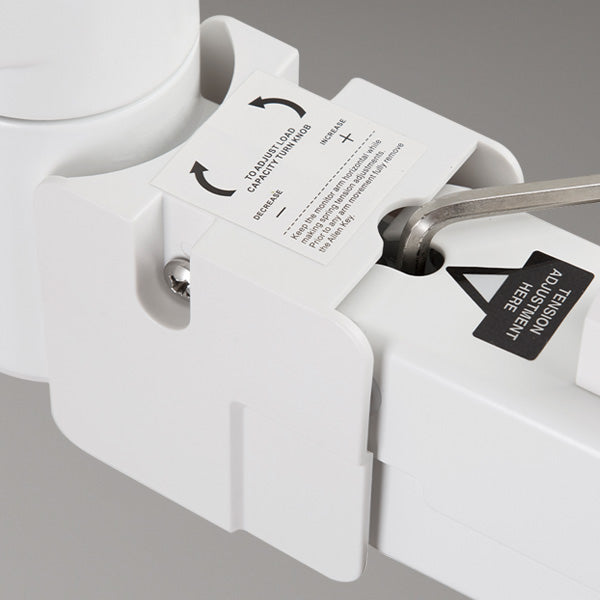

Easy Tension Adjustments
Ultra smooth height adjustments with high quality gas spring arm for fluid movements. -

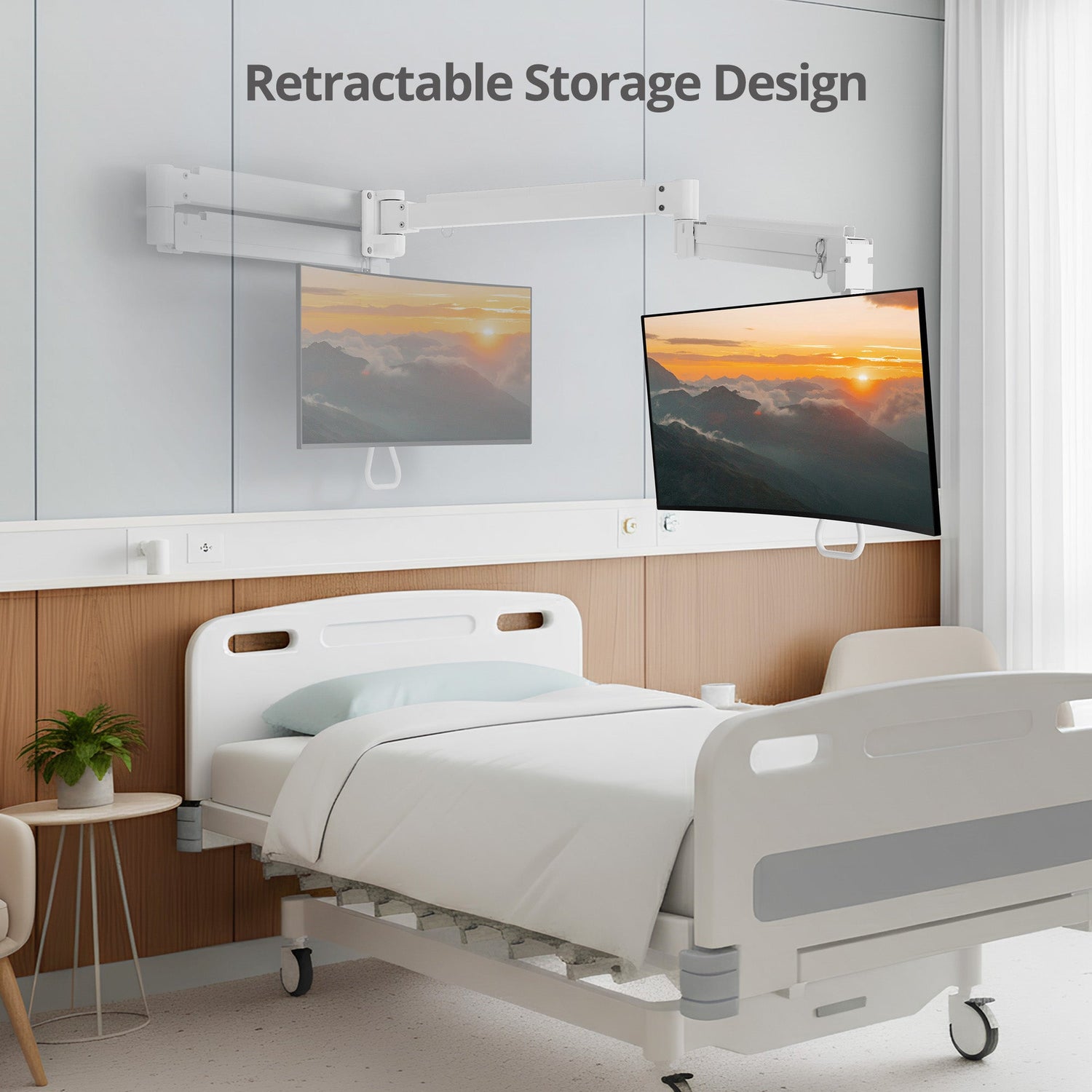

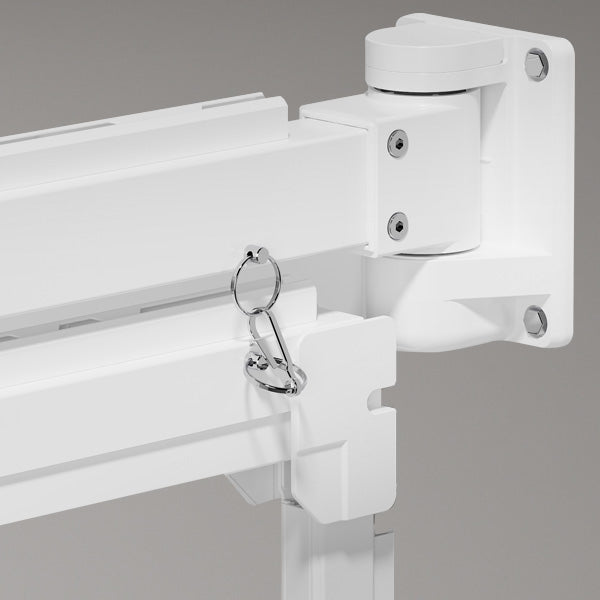

Retractable Design
Neatly line the monitor arm up against the wall to keep it out of the way and keep it folded using the integrated harness. -

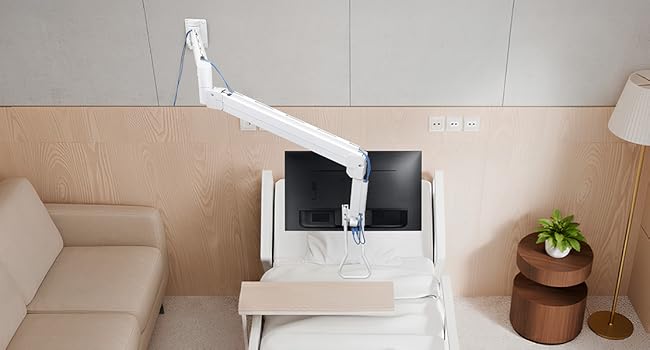

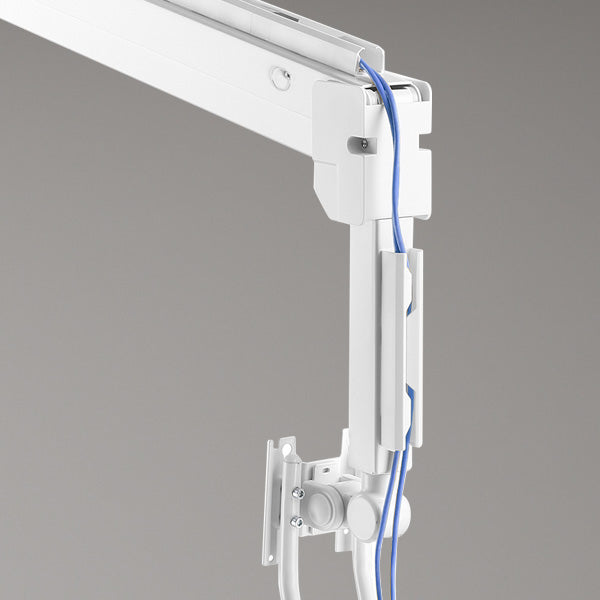

Simple Cable Management
Tool free cable management design.

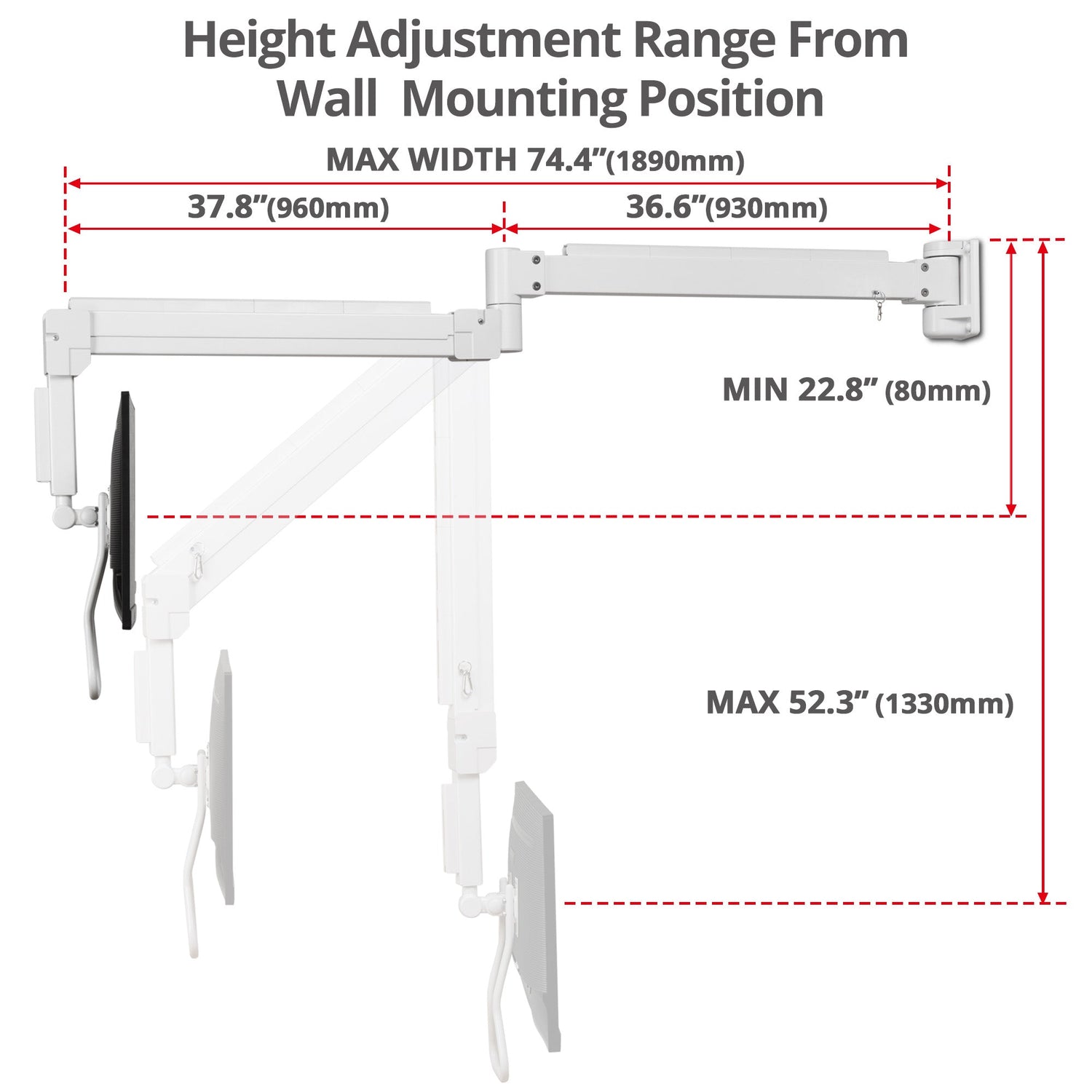

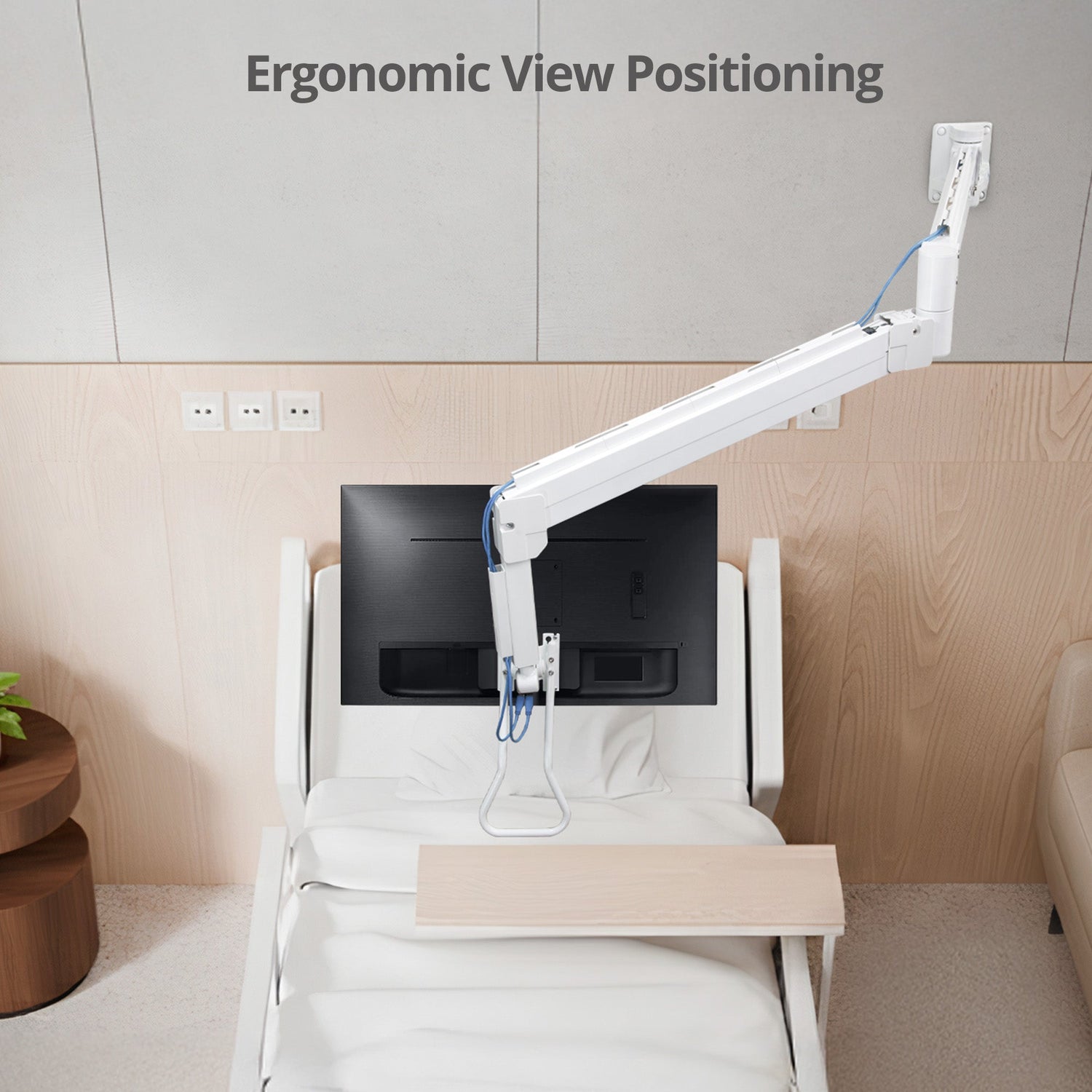

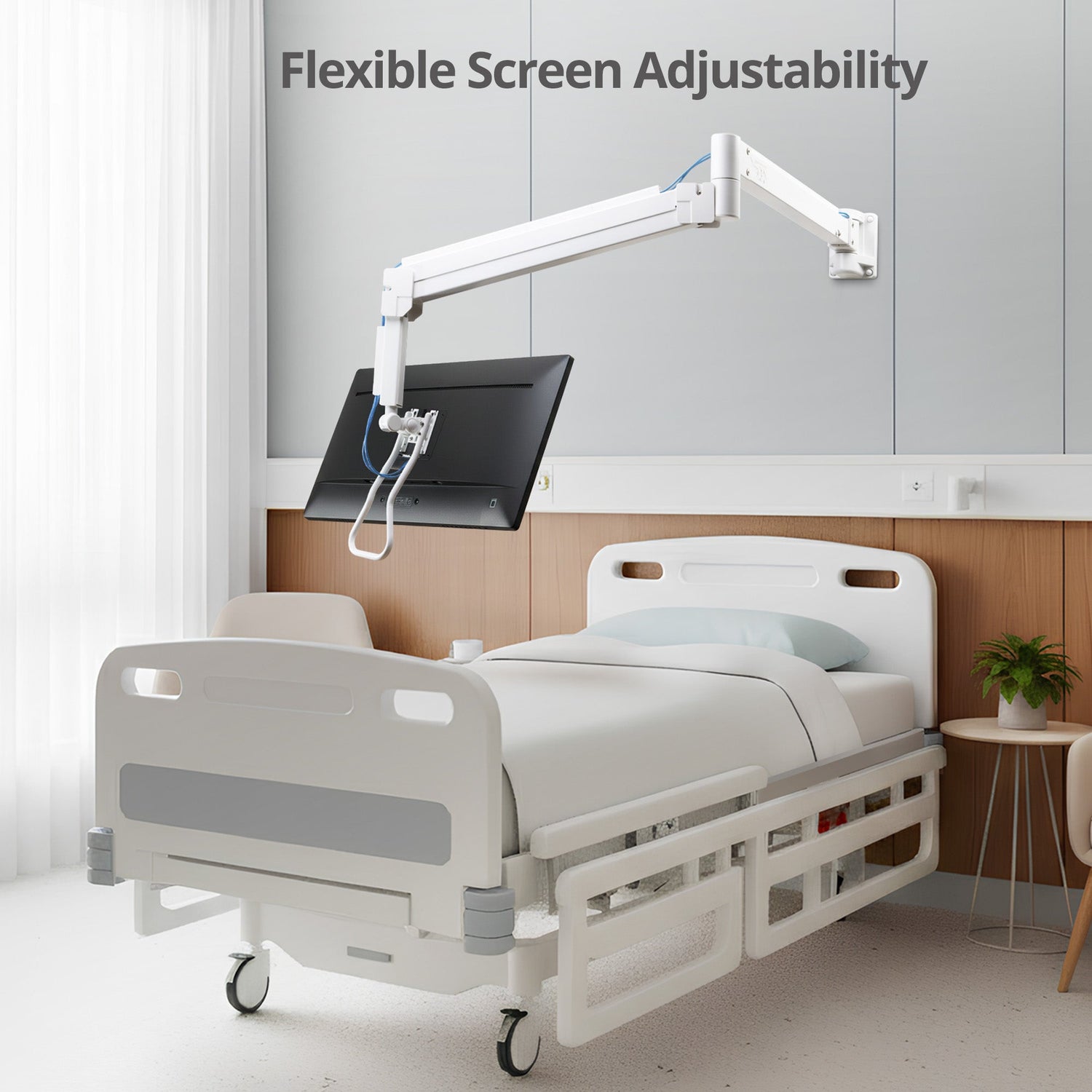

Flexible Height Adjustment and Long Reach

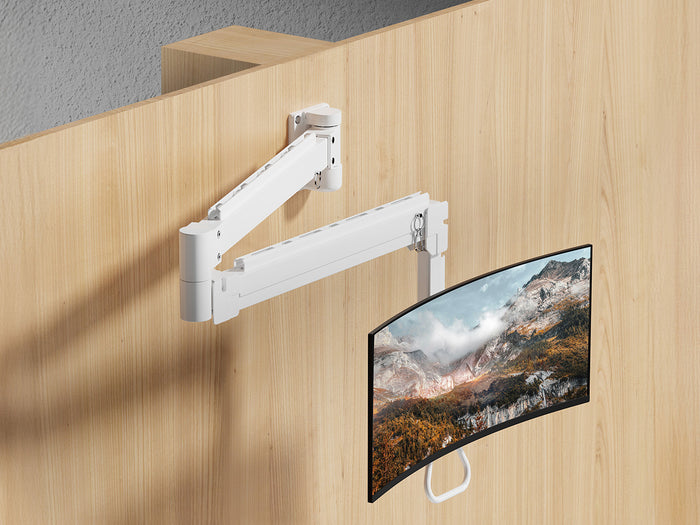

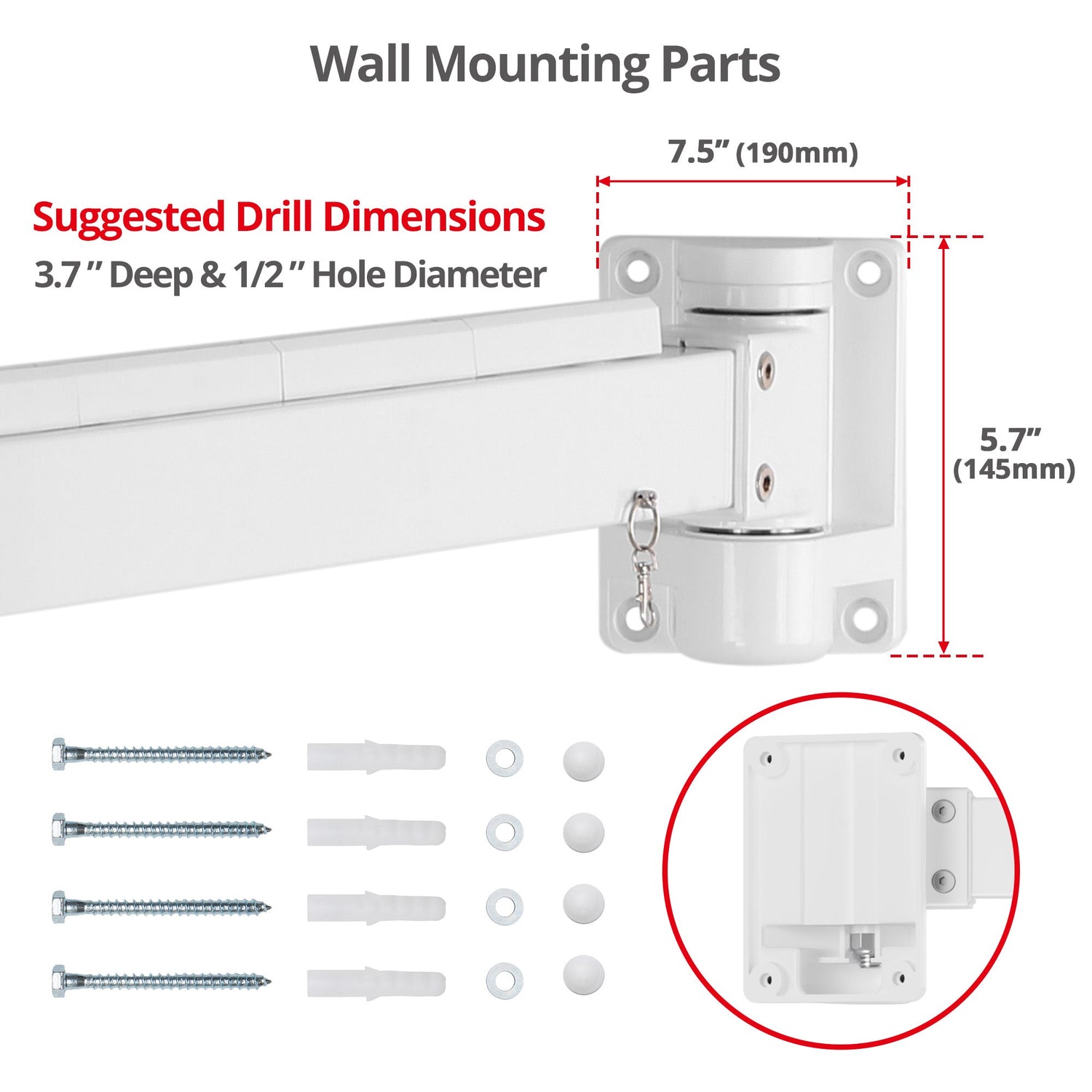

Mounts Securely to A Solid Wall or Stud

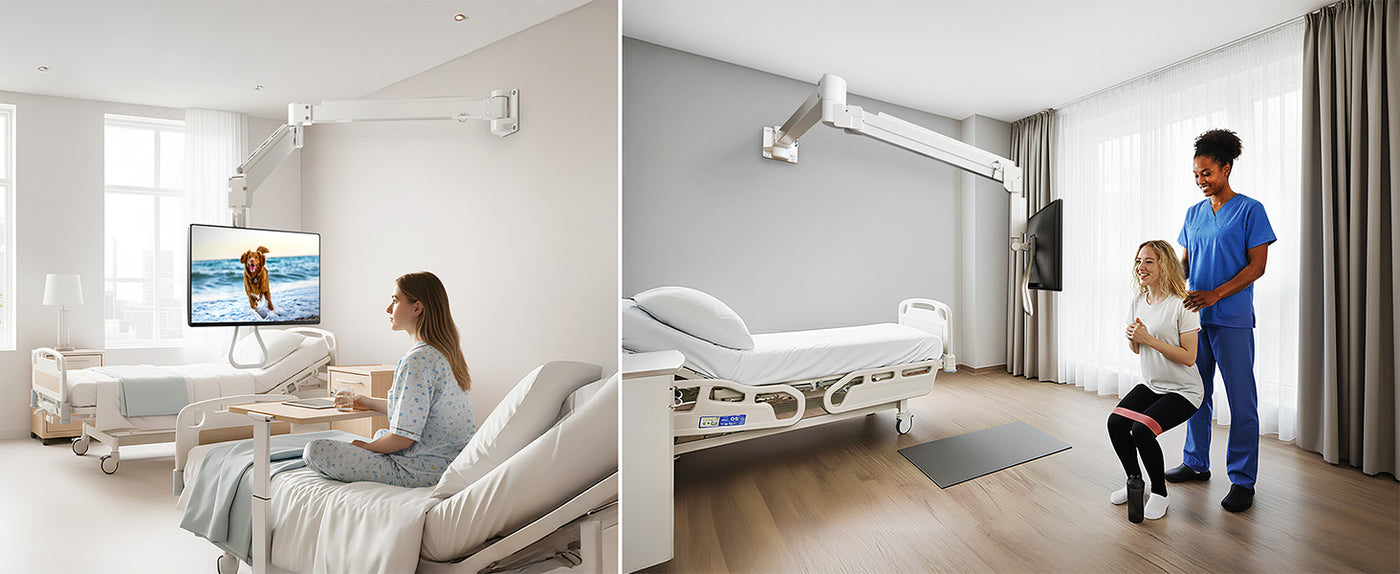

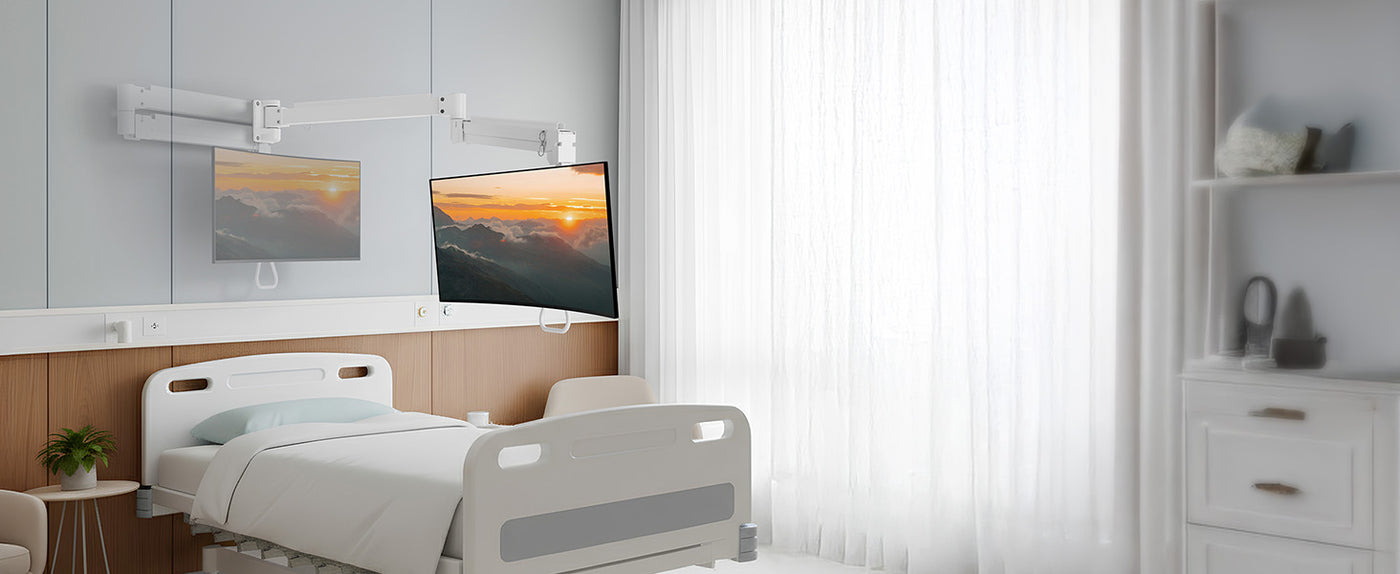

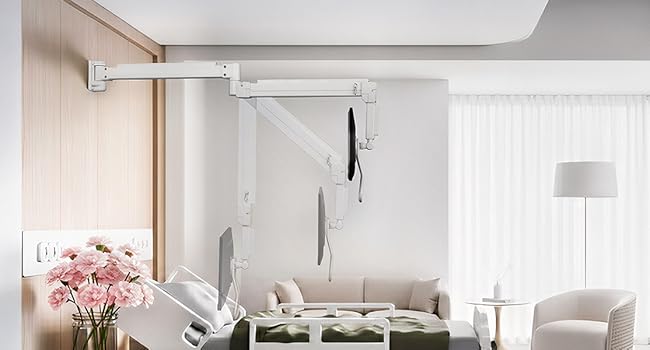

Repurpose Care Facilities to Maximize Service Value

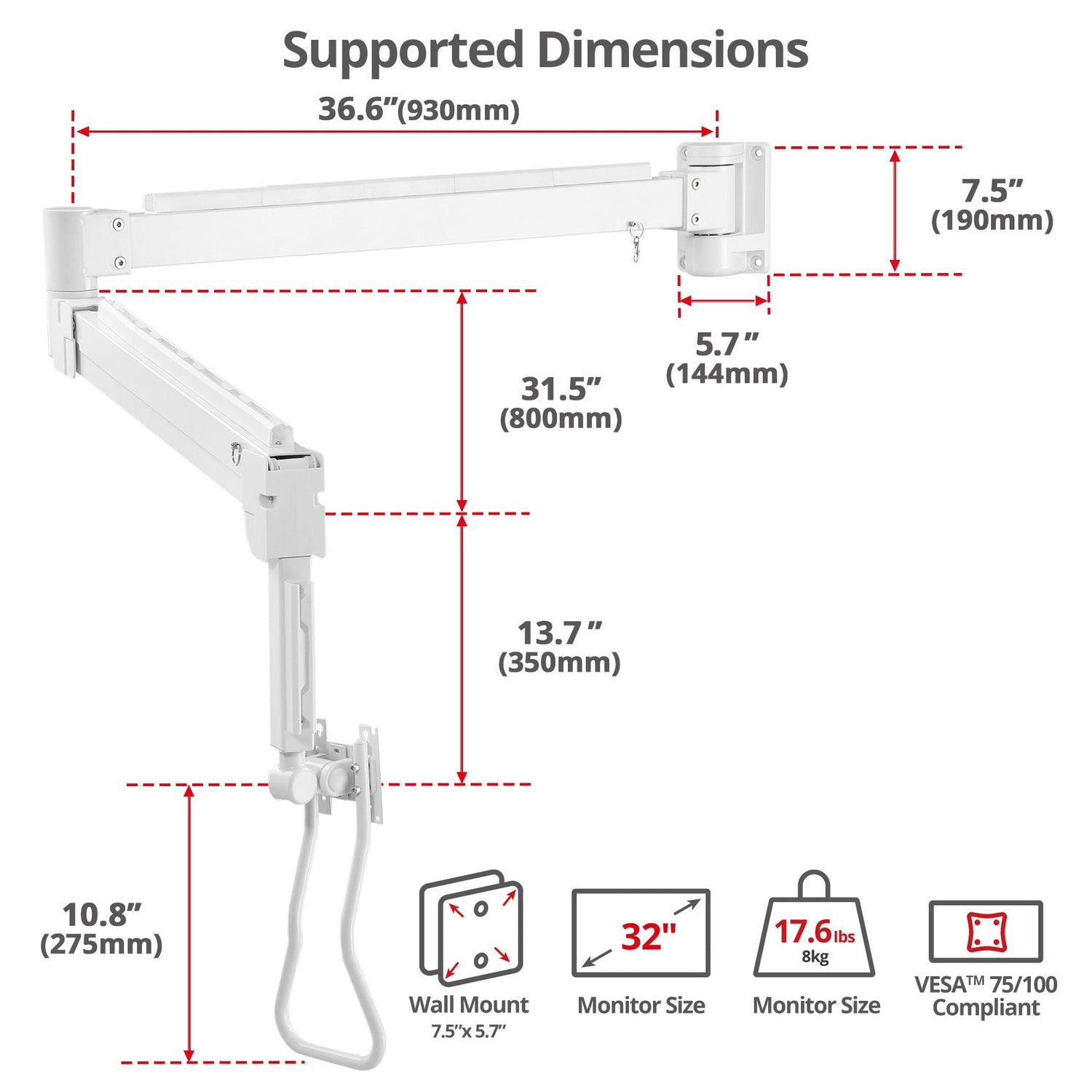

| Screen Size | 13"–32", Flat / Curved / Ultra-wide 21:9 |
| Weight Capacity | 2.2–17.6 lbs (1–8 kg) per screen |
| VESA Compatibility | 75×75, 100×100mm |
| Arm Height Range | 52.3" (1330mm) |
| Arm Full Extension | 74.4" (1890 mm) |
| Arm Swivel | 180° |
| VESA Tilt Range | +45° ~ -45° |
| VESA Swivel Range | 180° |
| VESA Rotation | 360° |
| Recommended Wall Type | Cement or Concrete wall at least 5" (13cm) thick |
| Quick Release VESA Plate | No |
| Cable Management | Yes (fits 4 cables) |
| Certifications/Standards | RoHS |
| UPC Code | 662774-047416 |
| Warranty | 2 years limited |
| Country of Origin | China |
| Product | |
| Dimensions (L) x (H) x (W) | 74.41" x 33.07" x 6.89" 189.00 cm x 84.00 cm x 17.50 cm |
| Weight | 24.26 lbs (11.00 kg) |
| Color | White |
| Material | Steel / Aluminum |
| Unit Package | |
| Dimensions (L) x (H) x (W) | 44.88" x 17.32" x 5.31" 114.00 cmx 44.00 cm x 13.50 cm |
| Weight | 29.76 lbs (13.50 kg) |
| Master Carton | |
| Dimensions (L) x (H) x (W) | 44.88" x 17.32" x 5.31" 114.00 cm x 43.99 cm x 13.50 cm |
| Weight | 29.76 lbs (13.50 kg) |
| Quantity | 1 pc/ctn |

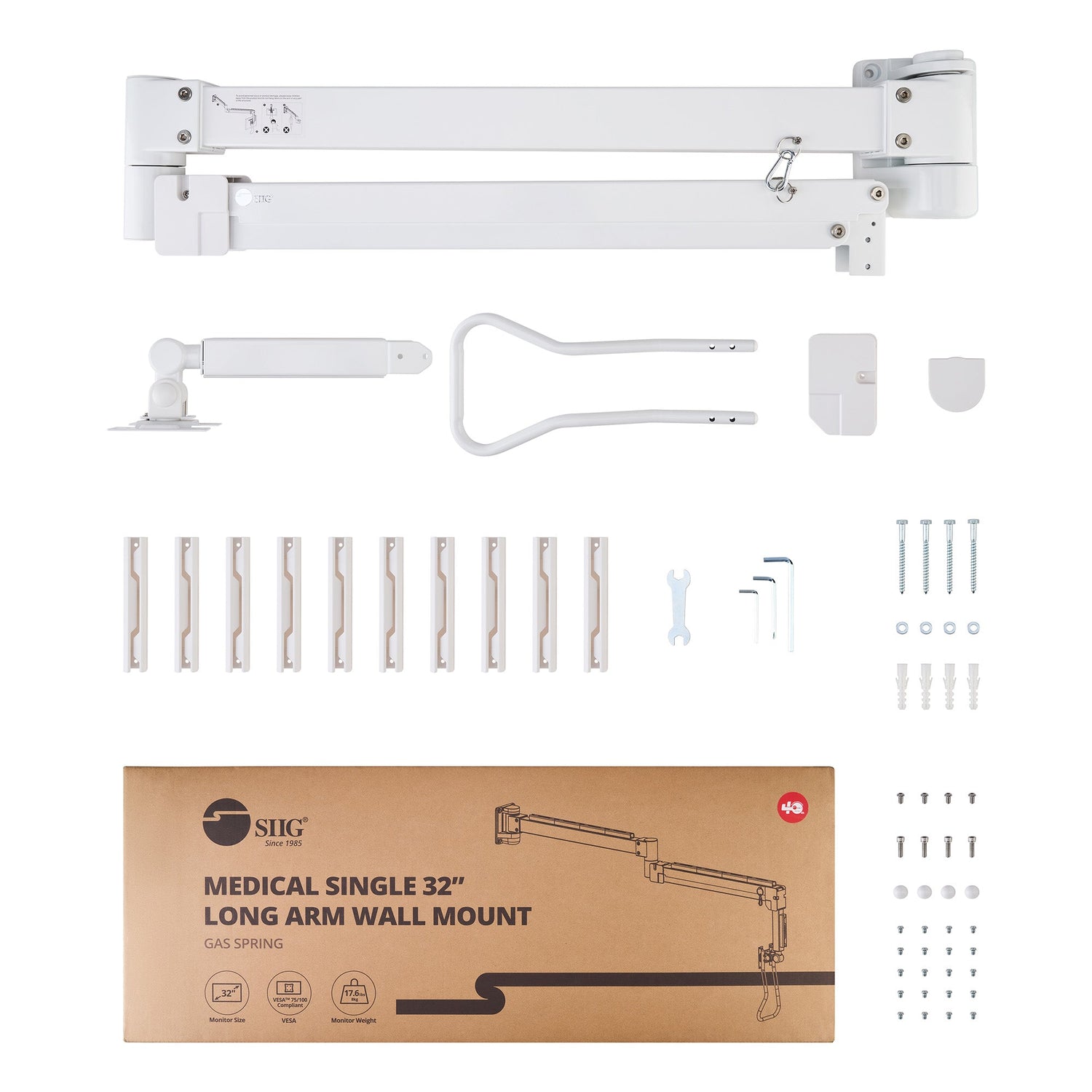

| Package Contents | 1x Medical Single 32 inch Monitor Long Arm Wall 17.6 lbs-White 1x Installation kit 1x Installation guide |
