Extender |
SKU:
CE-H24211-S1

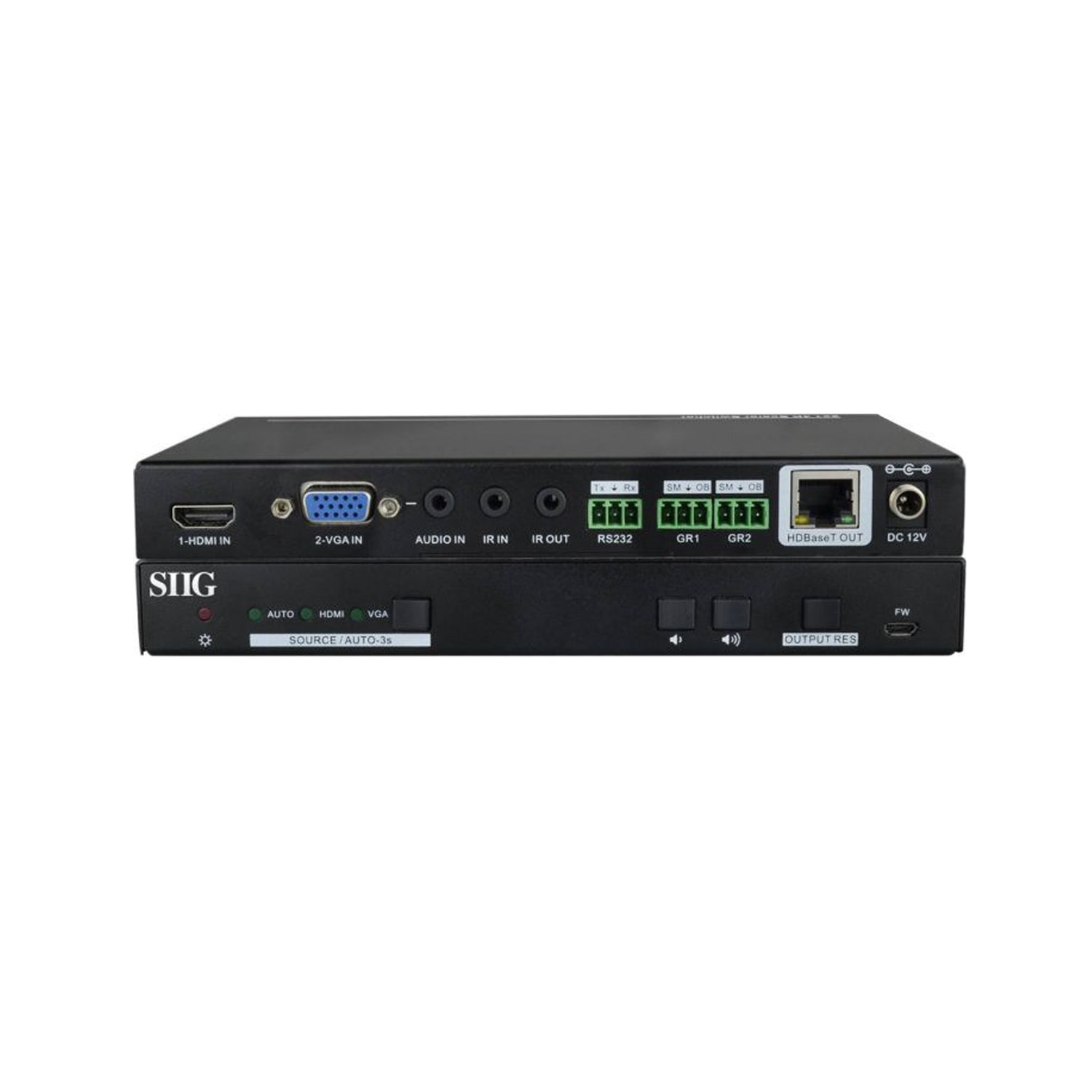

HDMI/VGA 2x1 HDBaseT 4K Scaler Switcher
2x1 Video Switch
HDMI / VGA In
4K60Hz
EDID Management
IR Extension
Regular price
$429.99
Unit price
/
Unavailable
Shipping calculated at checkout.
HDMI/VGA 2x1 HDBaseT 4K Scaler Switcher is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Features
Advanced HDBaseT Signal Extension
Advanced HDBaseT Signal Extension
Ultra-Long Range Connectivity
Ultra-Long Range Connectivity
Selective 4K Video Scaling
Selective 4K Video Scaling
Flexible Bidirectional PoH
Flexible Bidirectional PoH
Smart Control & Management
Smart Control & Management
No content found
| Features | 1 HDMI input and 1 VGA input with auxiliary audio input Output resolution selectable between720p and 4Kx2K @30Hz YUV 4:4:4 Automatically switch based on video sensing Allows the connected source and display to be controlled via bi-directional IR pass-through |
| Transmission Distance | |
| 4Kx2K | Up to 131ft (40m) |
| 1080p | Up to 230ft (70m) |
| Supports | Supports volume control via push buttons Supports RS232 pass-through to communicate control signal between the scaler and the connected HDBaseT matrix or receiver Supports bidirectional Power over HDBaseT (PoH) Supports advanced built-in EDID management |
| Connectors | 1x 19-pin HDMI, Type A, Female, Input 1x 15-pin VGA D-sub, Female, Input 1x 3.5mm jack, Audio, Input 1x 19-pin HDMI, Type A, Female, Output 1x 8P8C RJ-45, HDBaseT Signal, Output 1x 5-pin, Micro USB, Firmware update 1x 3-pin terminal block, RS-232, Control 1x 3.5mm jack, IR receiver, Input 1x 3.5mm jack, IR emitter, Output 1x Power jack |
| Power Adapter | |
| Input | 100-240VAC, 50/60 Hz |
| Output | DC 12V/2A |
| System Requirements | HDMI and VGA source device, such as computers, game consoles, Blu-ray/DVD players, and media players HDMI displays, monitors, and HD TVs HDMI Cable VGA Cable CAT 5e/6/7 Cable HDBaseT Receiver/Matrix/Transceiver |
| Product | |
| Dimensions | 7.68″(W) x 0.93″(H) x 3.94″(D) |
| Weight | 1.77 lbs |
| Color | Black |
| Housing | Metal |
| Unit Package | |
| Dimensions | 10.24″(W) x 2.76″(H) x 9.06″(D) |
| Weight | 2.87 lbs |
| Master Carton | |
| Dimensions | 14.18″(W) x 27.47″(H) x 2.44″(D) |
| Weight | 53.36 lbs |
| Quantity | 18pcs/ctn |
| Package Contents | HDMI/VGA 2x1 HDBaseT 4K Scaler Switcher Power Adapter Mounting Ears (2) Screws (4) Plastic Cushions (4) RS-232 Cable User Manual |
| Environmental Conditions | |
| Operating Temperature | 32 to 104 degrees F |
| Storage Temperature | -4 to 131 degrees F |
| Relative Humidity | 10 to 90% RH (non-condensing) |
| Certifications/Standards | FCC, CE, RoHS |
| Warranty | 3 years limited |
| Country of Origin | China |
