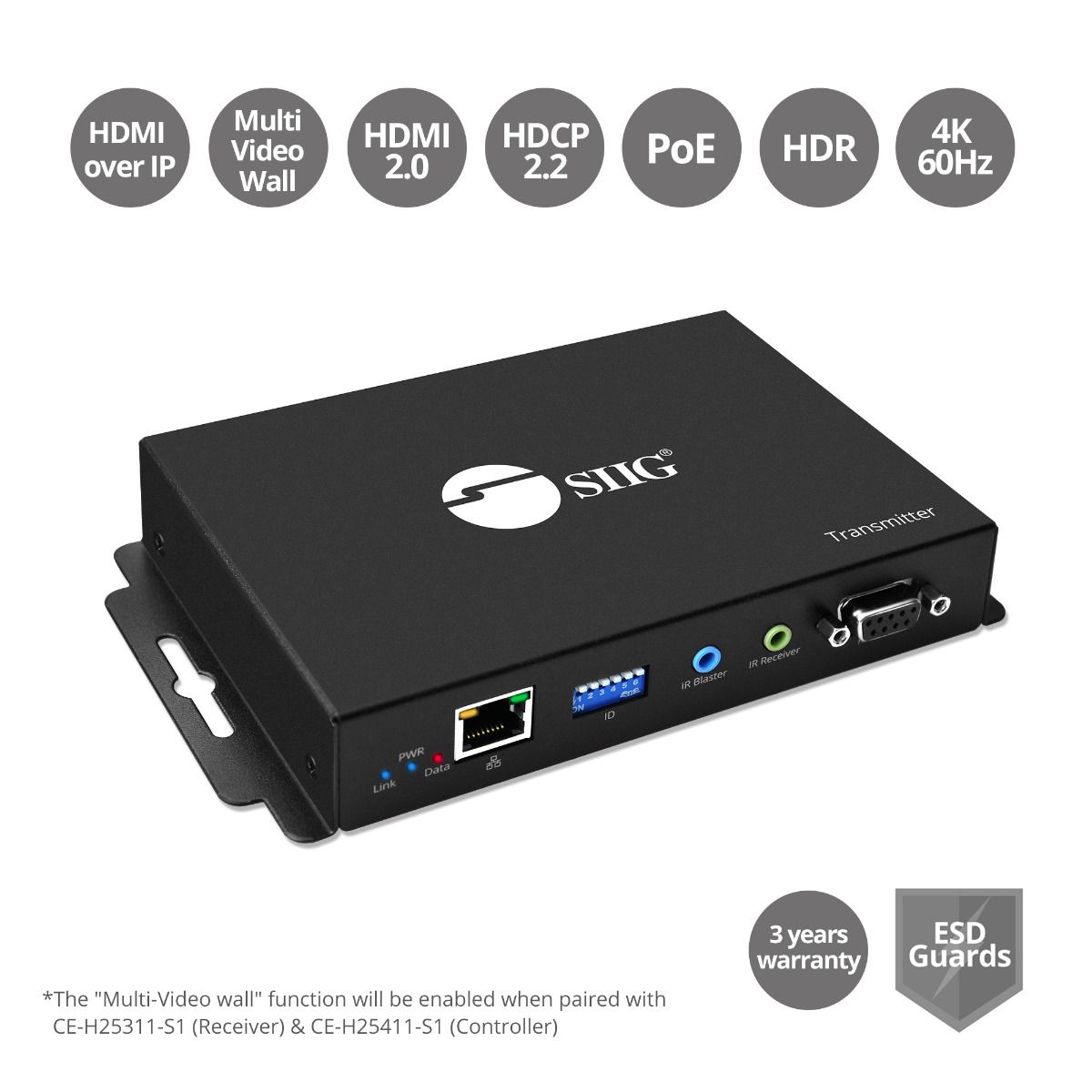

HDMI Over IP Extender with Video Wall, Many to Many, 4K30Hz, Serial & IR control, 120m - Encoder (TX) for CE-H25311-S1
HDMI Over IP Extender with Video Wall, Many to Many, 4K30Hz, Serial & IR control, 120m - Encoder (TX) for CE-H25311-S1 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Features
4K HDMI Over IP Transmission
4K HDMI Over IP Transmission

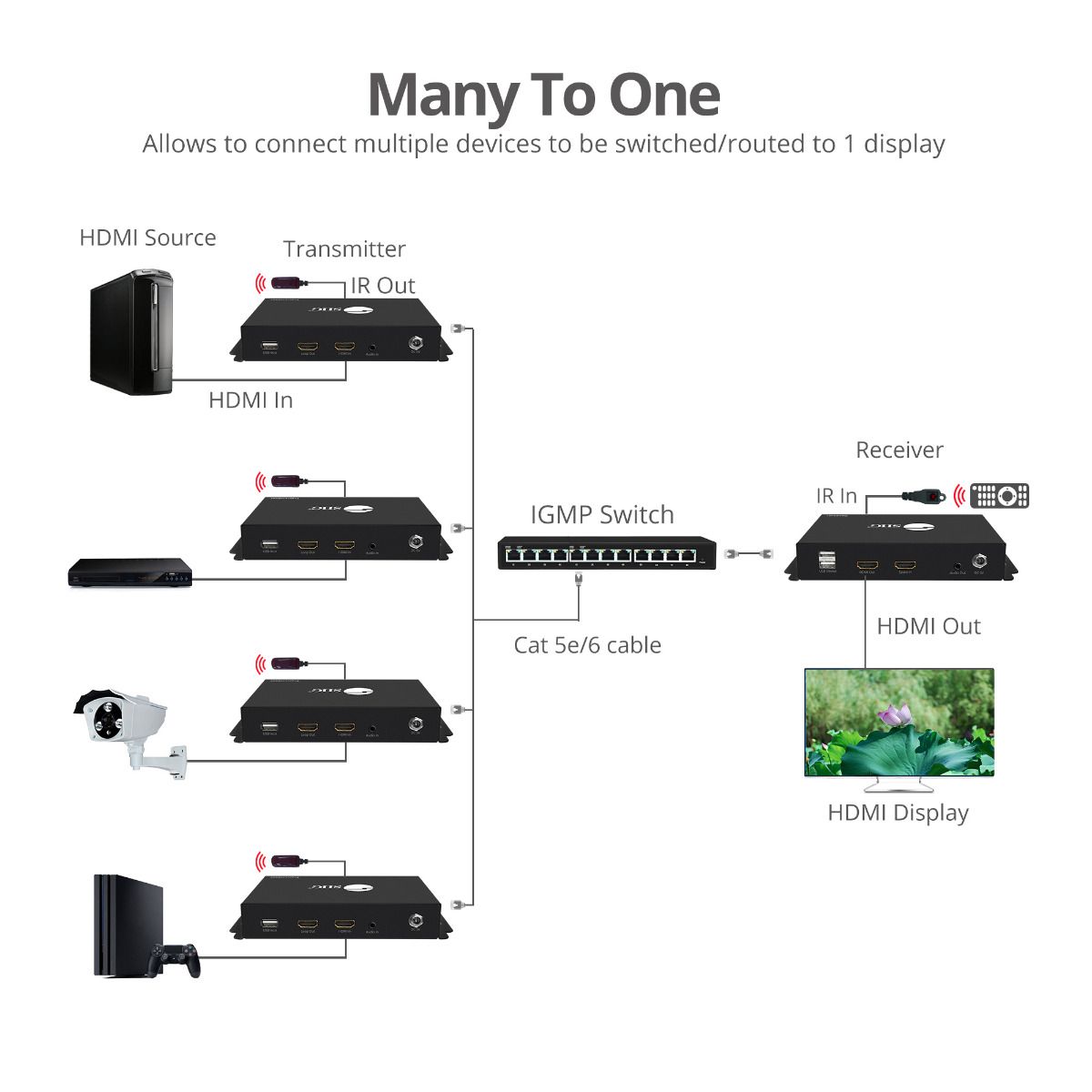

Flexible Multi-Device Broadcasting
Flexible Multi-Device Broadcasting

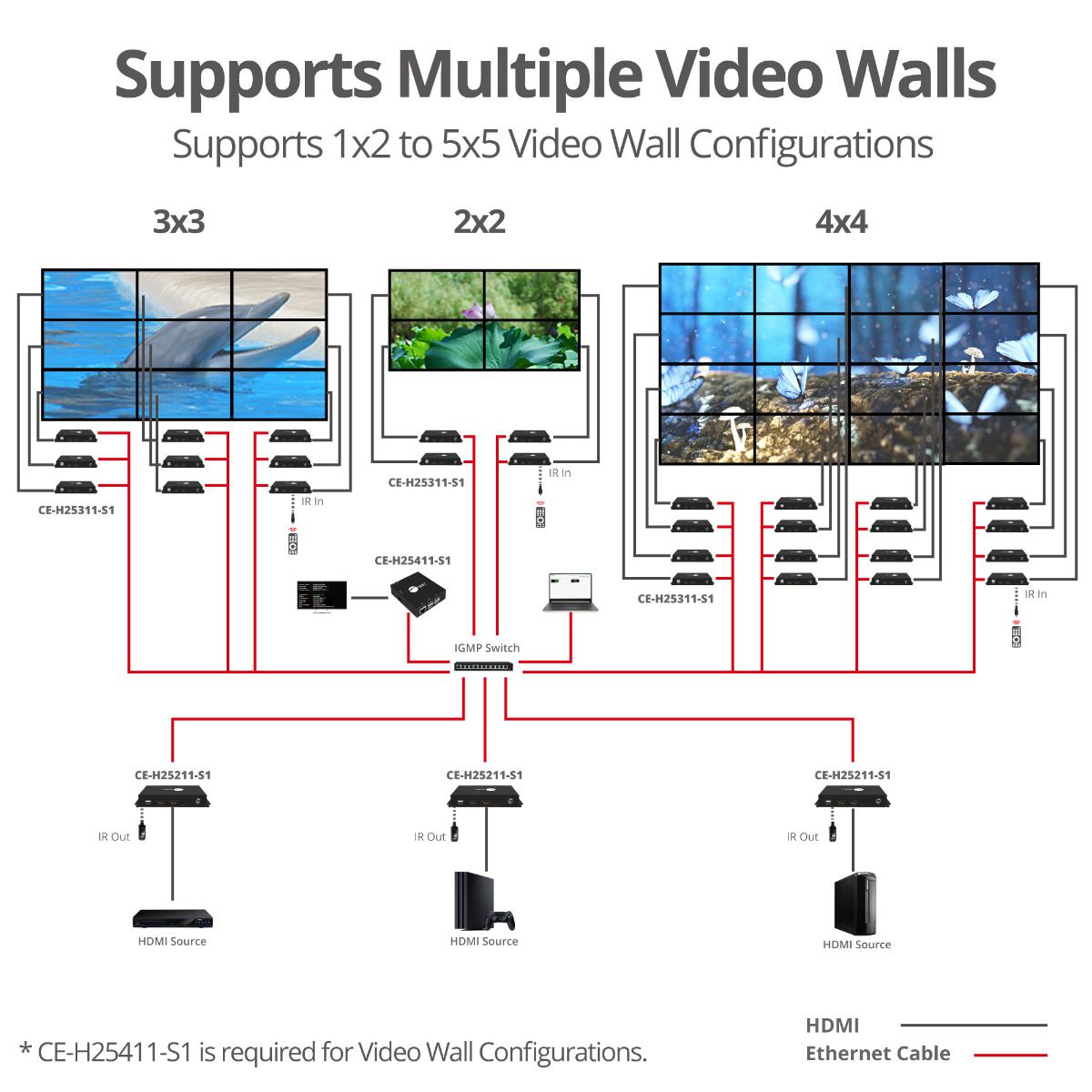

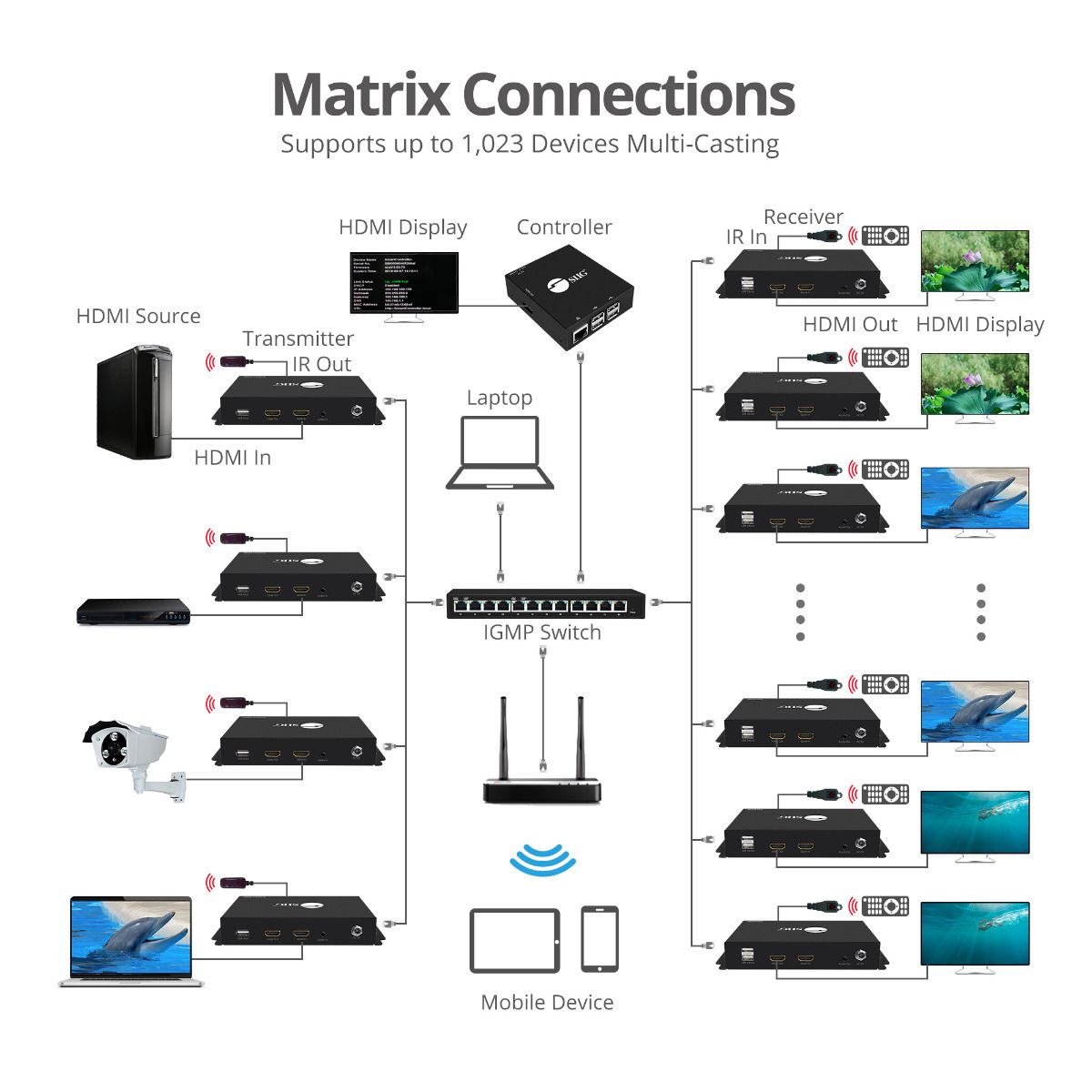

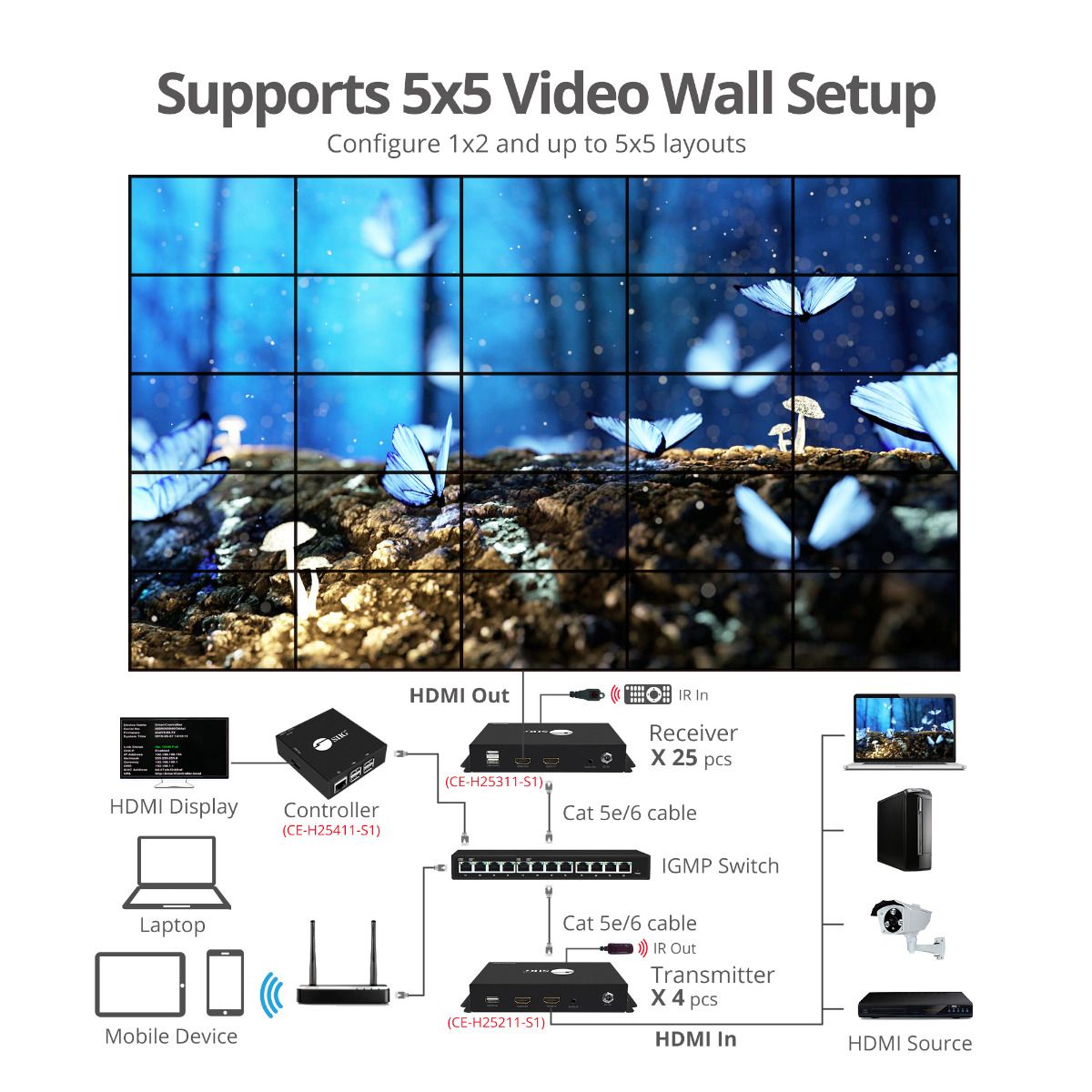

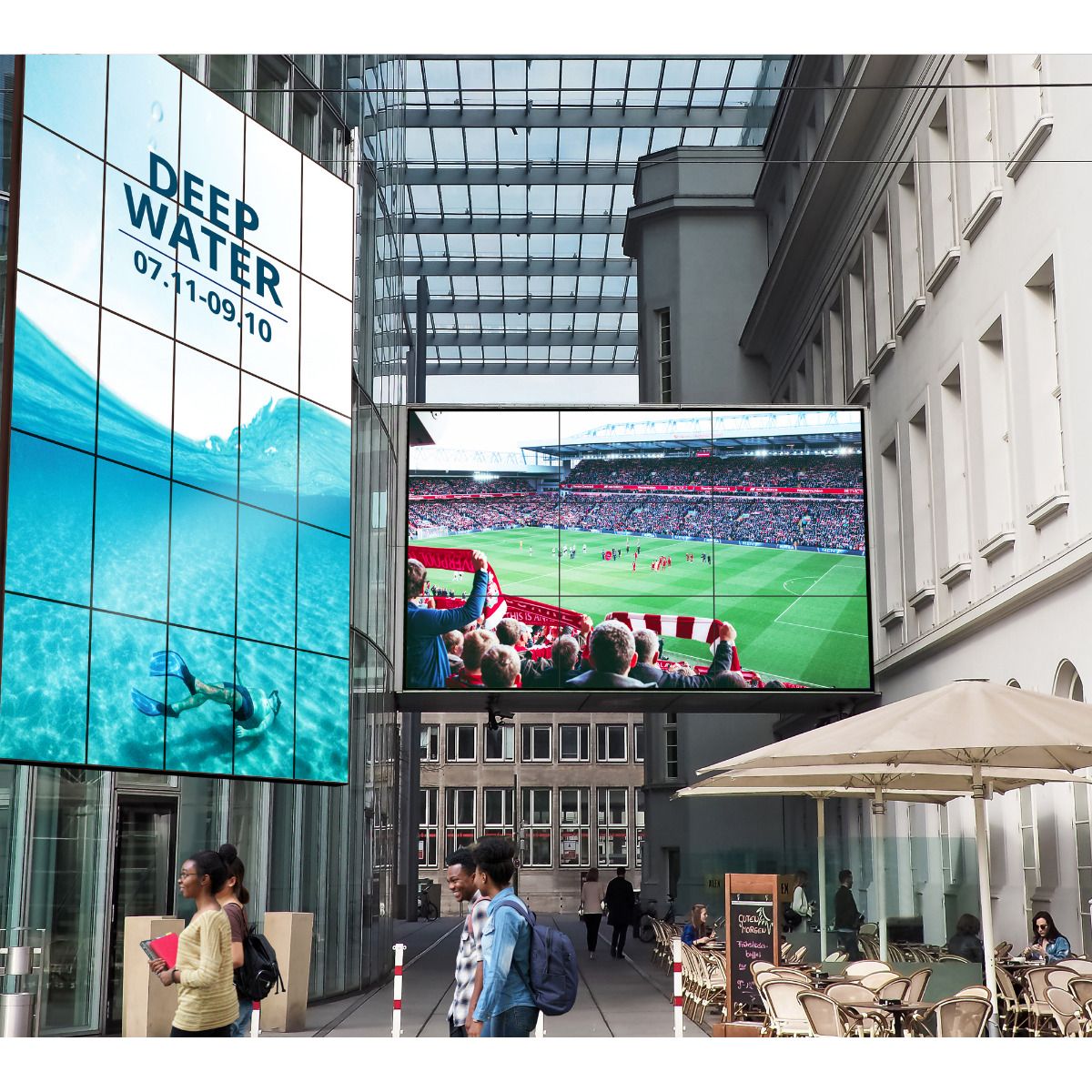

Advanced Matrix & Video Wall Control
Advanced Matrix & Video Wall Control
Rich Control & Connectivity Options
Rich Control & Connectivity Options
Easy Setup & Scalable Expansion
Easy Setup & Scalable Expansion
HDMI Over IP Extender with Video Wall, Many to Many, 4K30Hz, Serial...
-
45 Days Free Return
-
2 Years Warranty
-
Lifetime Technical Support
| Chipset | Aspeed |
| Compliance | HDCP 2.2 |
| Input resolution | Up to 4Kx2K 60 (YUV 4:4:4 8bits) |
| Output resolution | Up to 4Kx2K 30Hz |
| Resolution | 480p / 720p / 1080i / 1080p / 4K30Hz |
| Distance | 394ft (CAT6) 4Kx2K 30Hz *Note: The transmission distance will vary depending on cable quality, 100% copper using IEEE-T568B wiring standard is recommended |
| HDMI cable length | Up to 5m (Input & Output) |
| Audio | Supports surround sound (up to 7.1ch) or stereo digital audio |
| Latency | 23ms for 1080p 60Hz |
| IR frequency | 20KHz to 60KHz |
| ESD protection | Human body model- ±15kV (air-gap) & ±8kV (contact) |

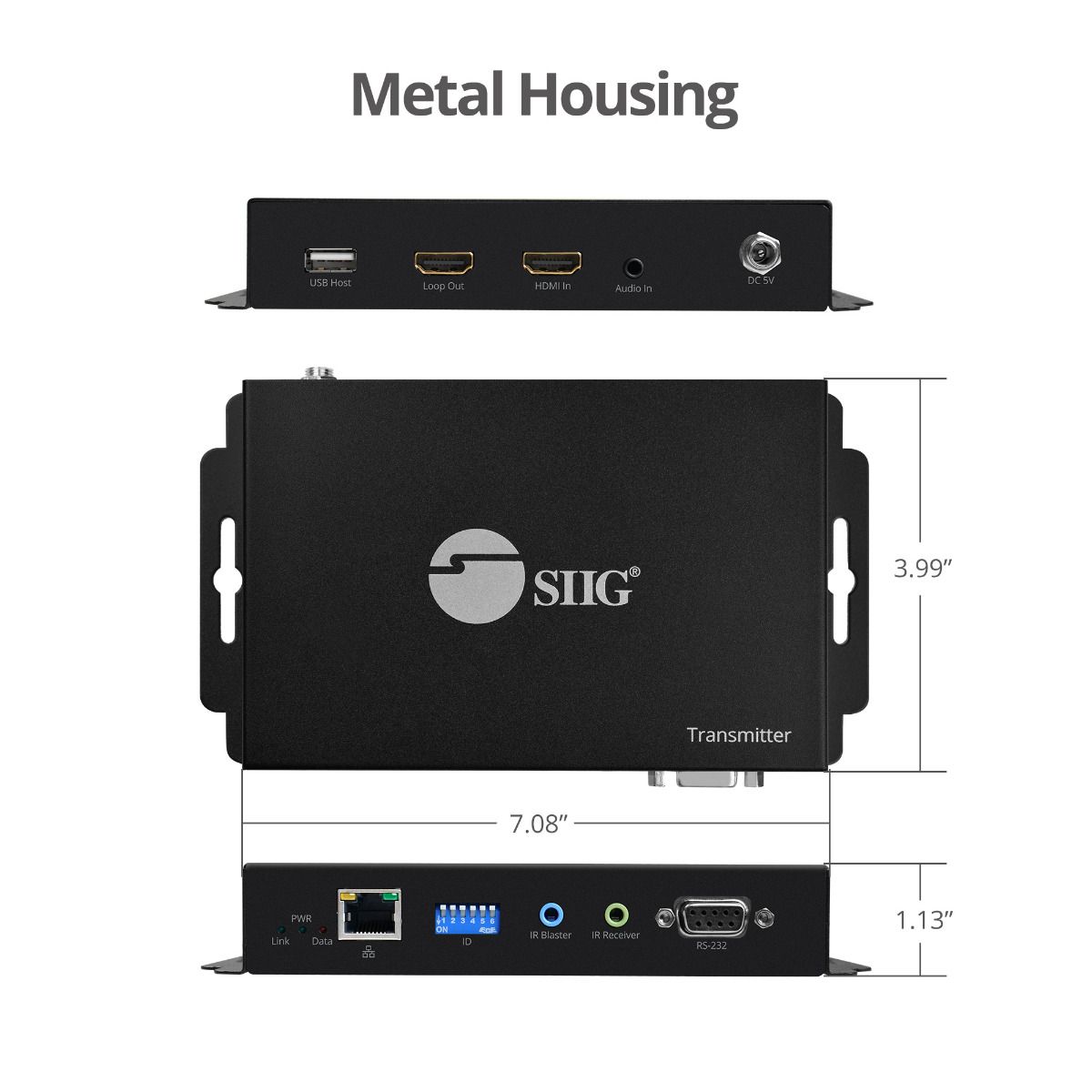

| Housing material | Metal Housing |
| Housing color | Black |
| Power Adapter | |
| Input | 100-240V / 50-60Hz |
| Output | DC 5V/2A |
| UL Listed | E135856 / Class VI |
| Product | |

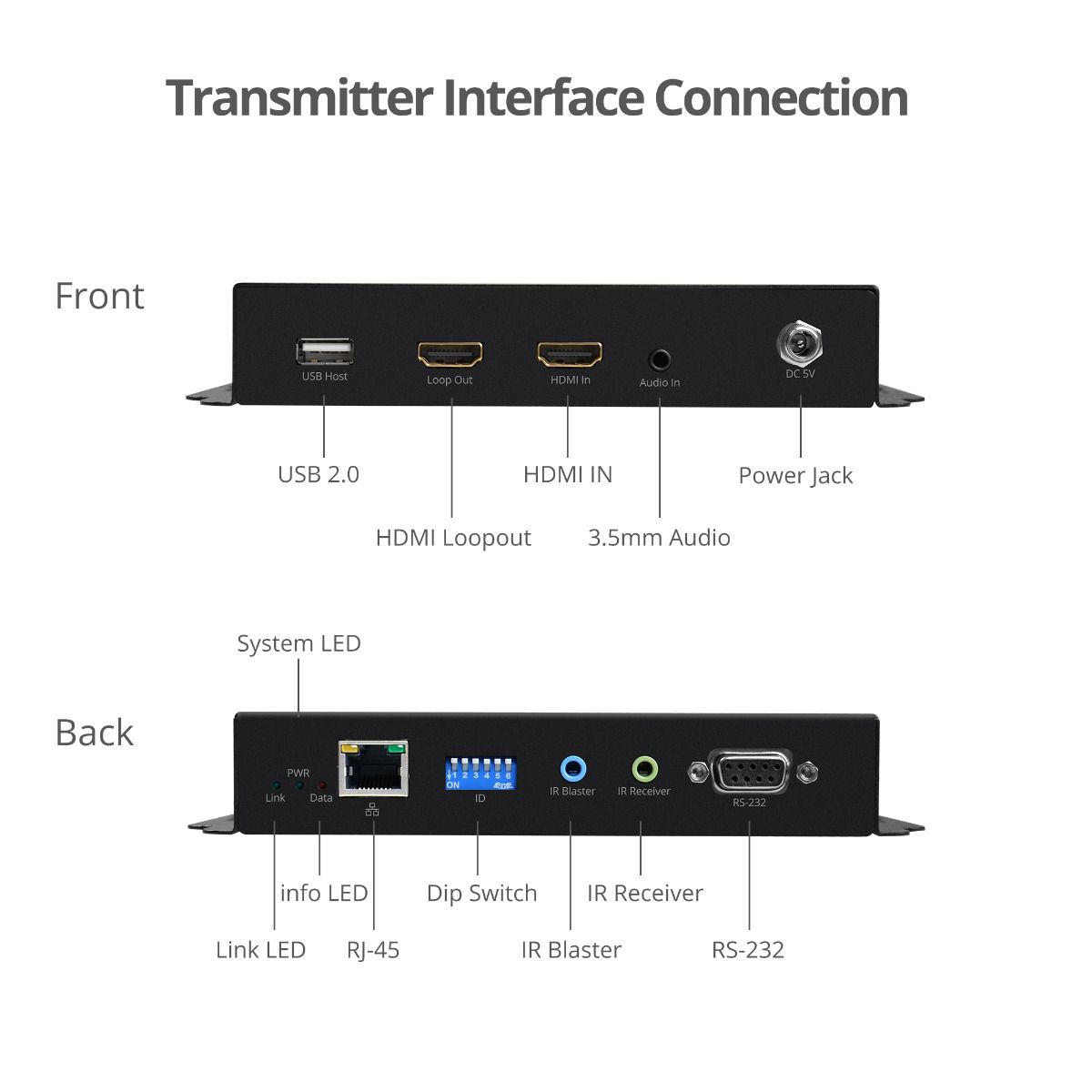

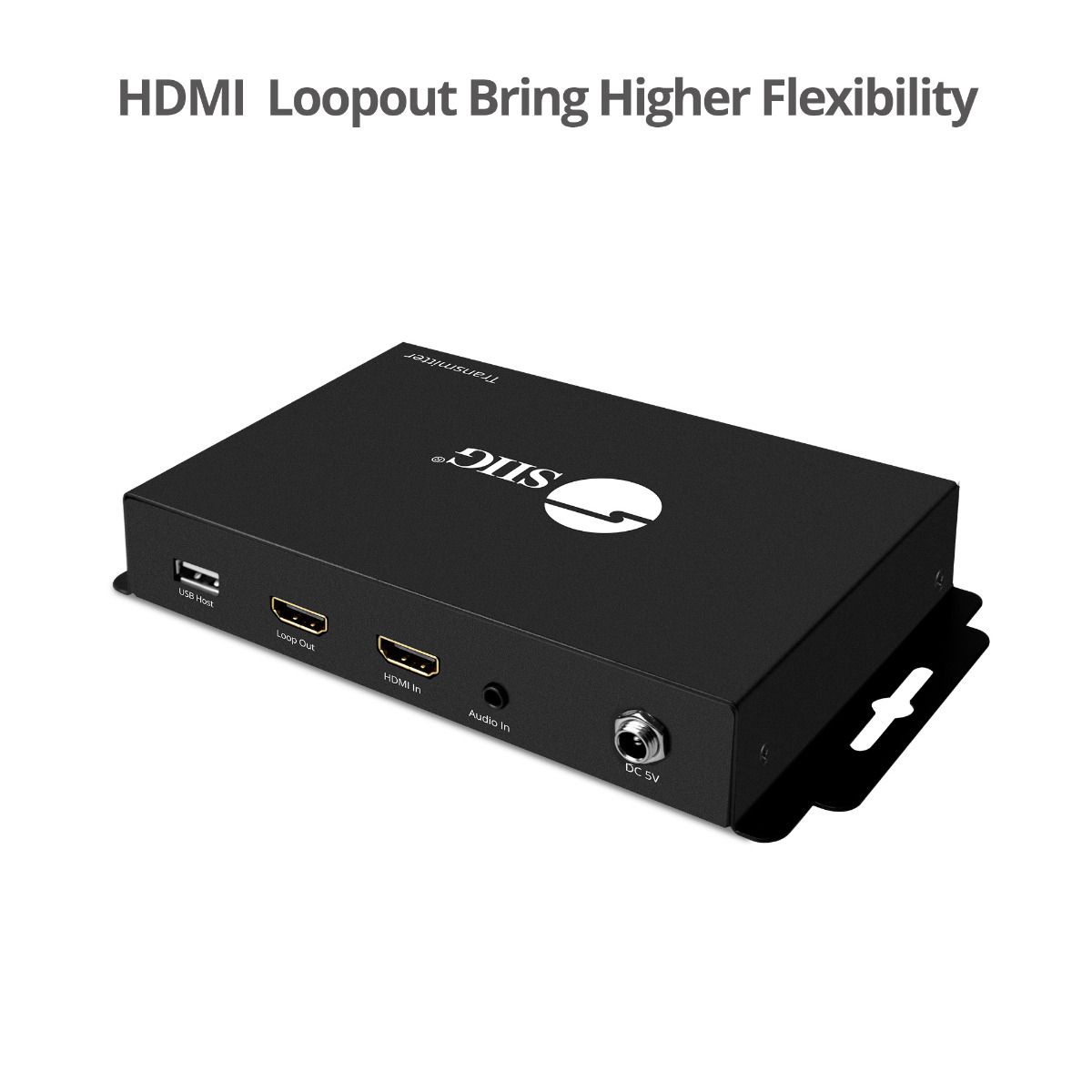

| Connector | 1x 19-pin HDMI, Type-A, Female, Input 1x 19-pin HDMI, Type-A, Female, Loop-out 1x 9-pin RS-232, Female 1x 3.5mm jack, Audio, Input 1x 3.5mm jack, IR Blaster 1x 3.5mm jack, IR Receiver 1x 8-pin RJ45, Output 1x 4-pin, USB 2.0, Type A, Female 1x Power jack 1x 6-pin DIP Switch for video channel selection 1x DIP Switch for debug/bypass mode |
| System Requirements | HDMI Over IP Matrix and Video Wall - Decoder (RX), part # CE-H25311-S1 sold separately HDMI Over IP Matrix and Video Wall - Controller, part # CE-H25411-S1 sold separately 100% Copper CAT6 cable using T568 wiring standard |
| Product | |
| Dimensions | 7.09″(W) x 1.13″(H) x 4.00″(D) |
| Weight | 1.08 lbs |
| Color | Black |
| Unit package | |
| Dimensions | 7.79″(W) x 2.91(H) x 5.55″(D) |
| Weight | 1.62 lbs |
| Master carton | |
| Dimensions | 16.53″(W) x 11.81″(H) x 15.75″(D) |
| Weight | 35.19 lbs |
| Quantity | 20 pcs/ctn |

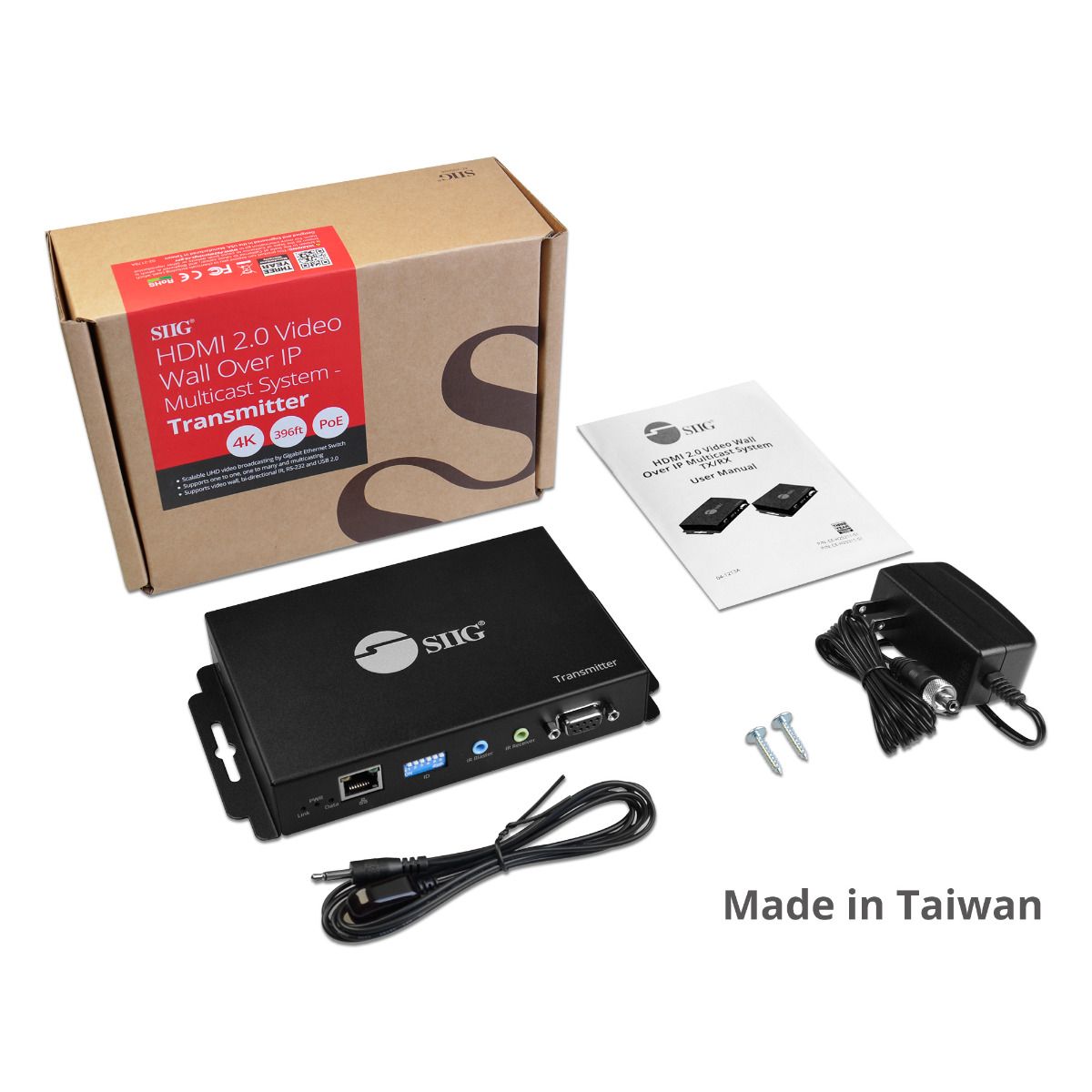

| Package contents | HDMI Over IP Matrix and Video Wall - Encoder (TX) Power adapter 5V/2A 1x IR blaster cable Screw Kit (2) Insert card User Manual |
| Environmental Conditions | |
| Operating temperature | 32 to 140 degrees F |
| Storage temperature | -4 to 140 degrees F |
| Relative humidity | 20 to 90% RH (non-condensing) |
| Certifications/Standards | FCC, CE, RoHS, TAA compliant |
| UPC code | 662774042879 |
| Warranty | 3 years limited |
| Country of Origin | Engineered in USA , Manufactured in Taiwan |
