Extender |
SKU:
CE-H25311-S1

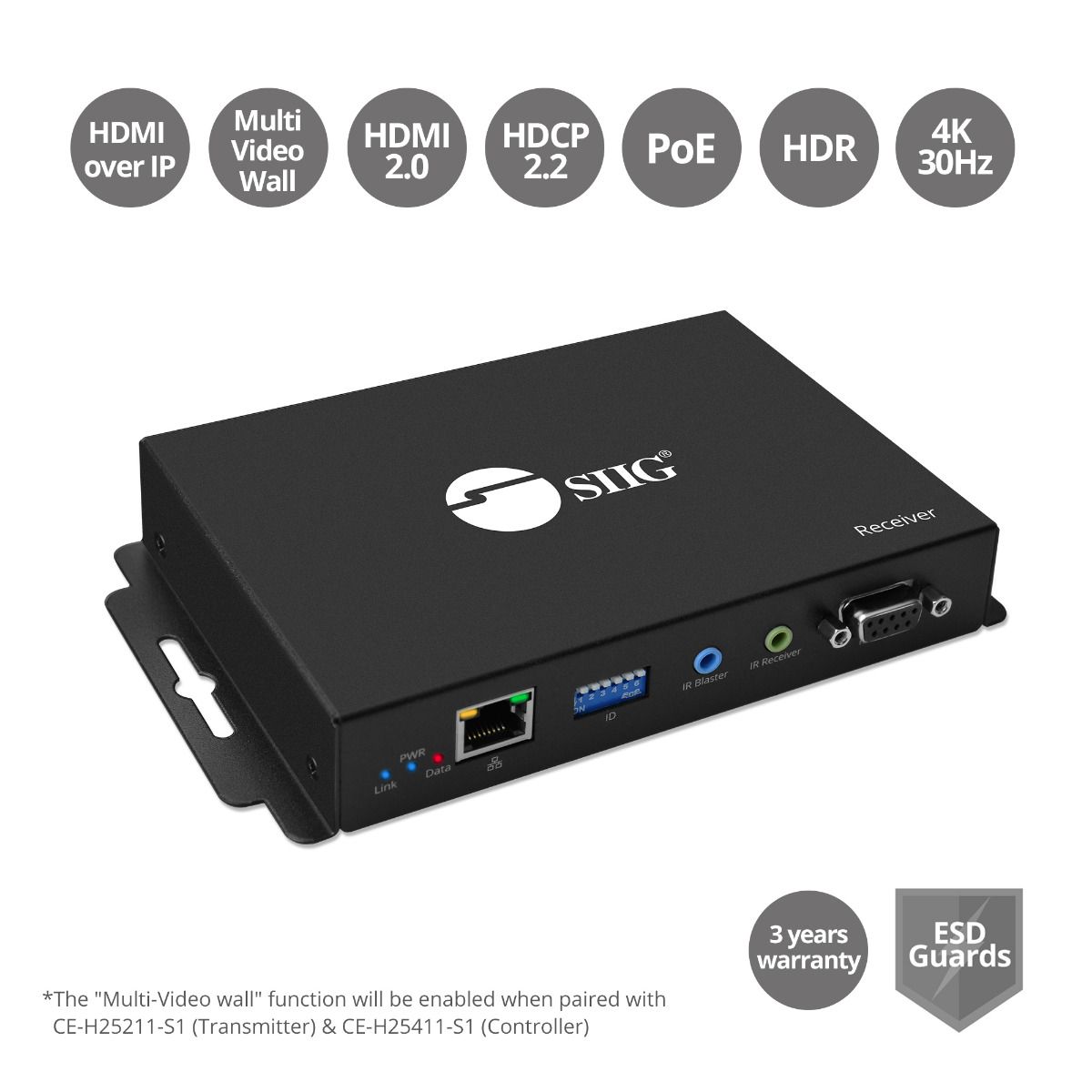

HDMI Over IP Extender with Video Wall, Many to Many, 4K30Hz, Serial & IR control, 120m - Decoder (RX) for CE-H25211-S1
HDMI Over IP Decoder
4K30Hz
Many to Many
Video Wall
TAA Compliant
Regular price
$559.99
Unit price
/
Unavailable
Shipping calculated at checkout.
HDMI Over IP Extender with Video Wall, Many to Many, 4K30Hz, Serial & IR control, 120m - Decoder (RX) for CE-H25211-S1 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Features
4K HDMI Over IP Transmission
4K HDMI Over IP Transmission

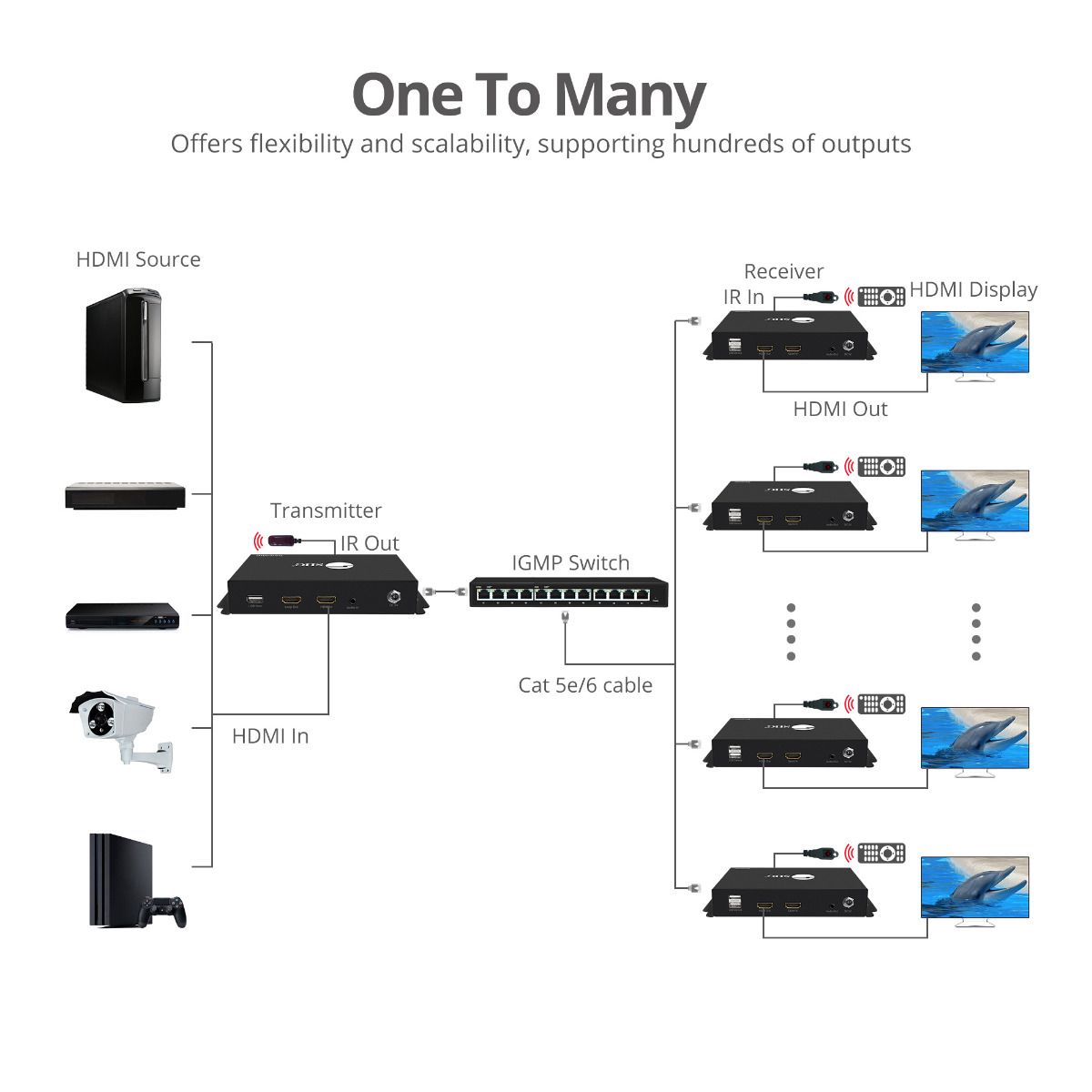

Flexible Multi-Device Broadcasting
Flexible Multi-Device Broadcasting

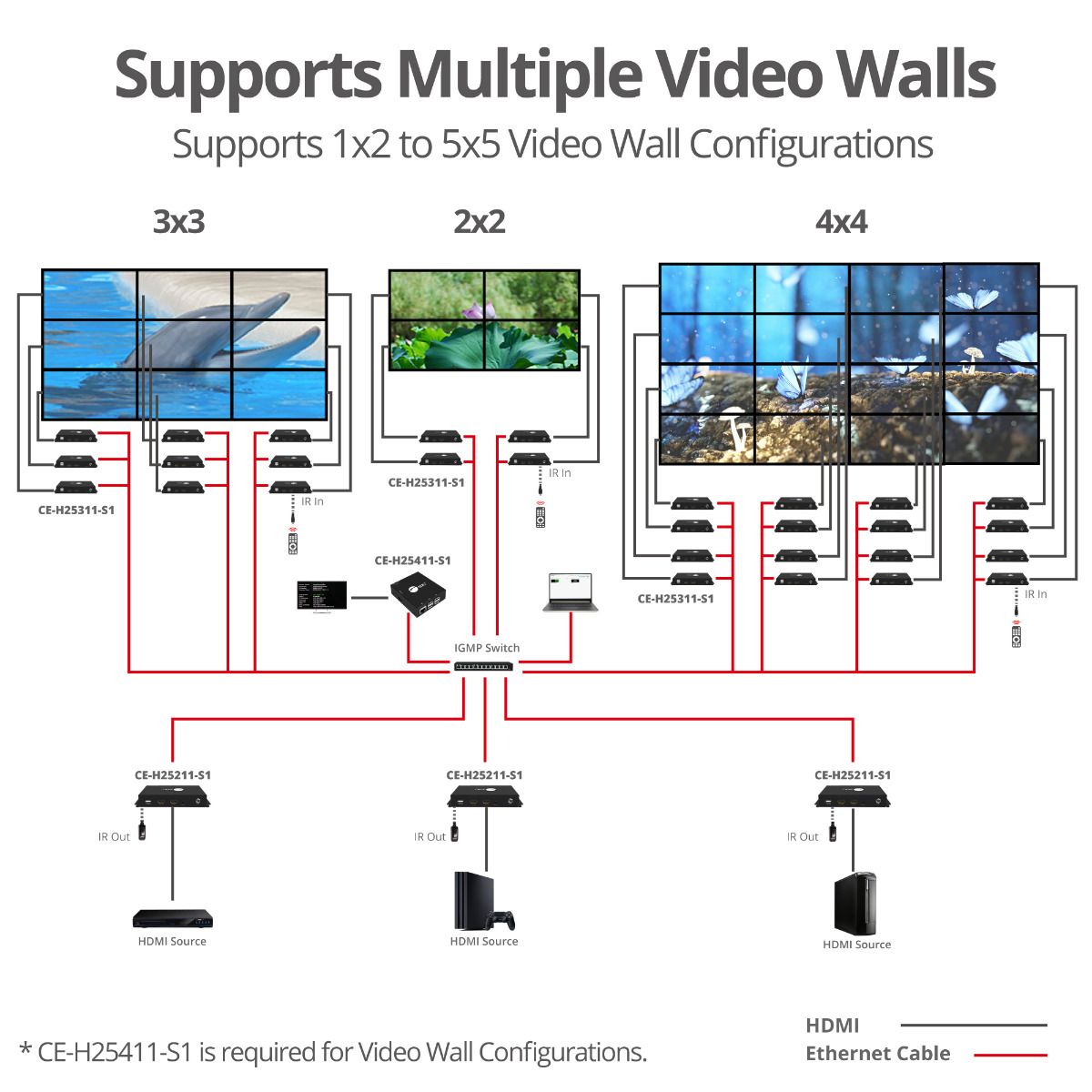

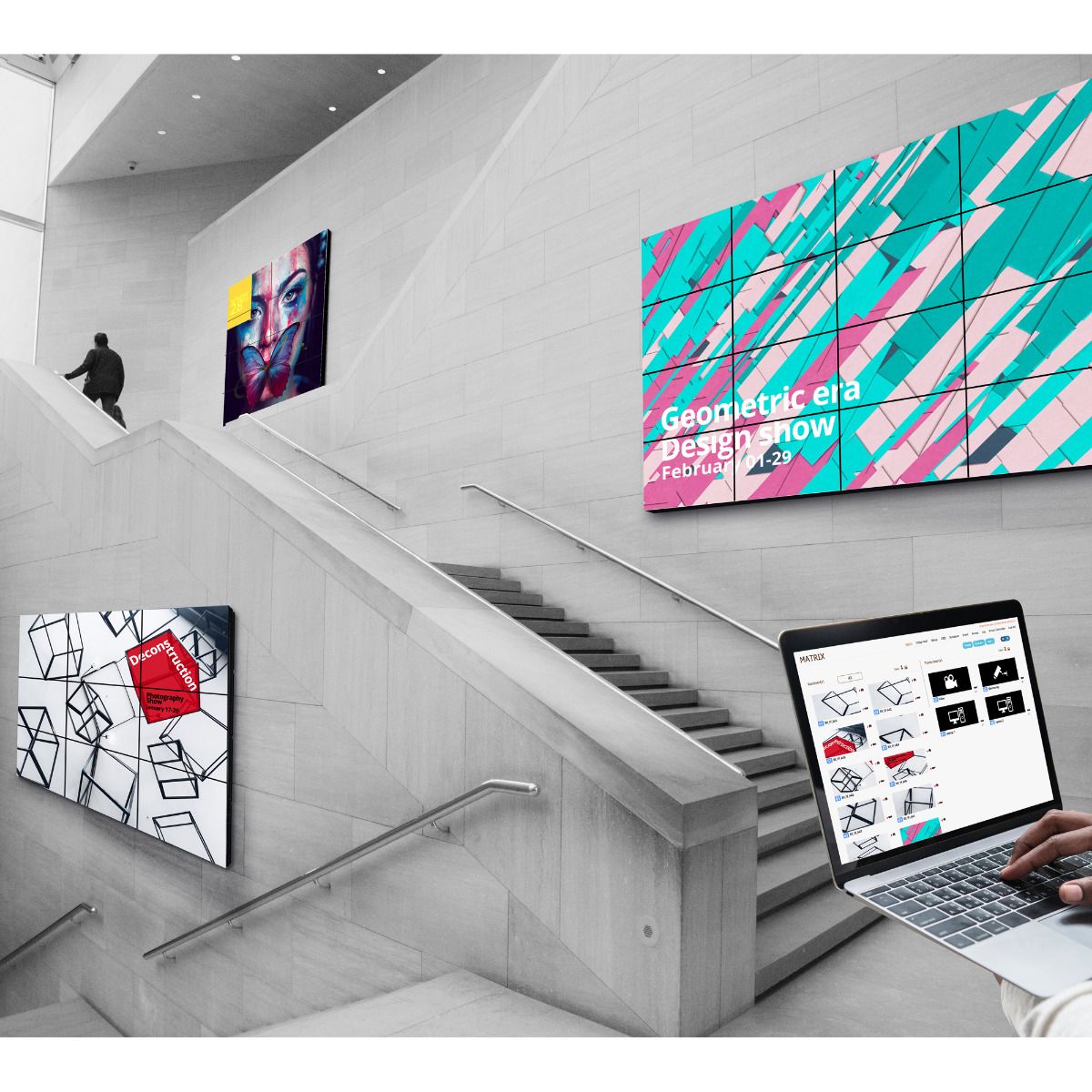

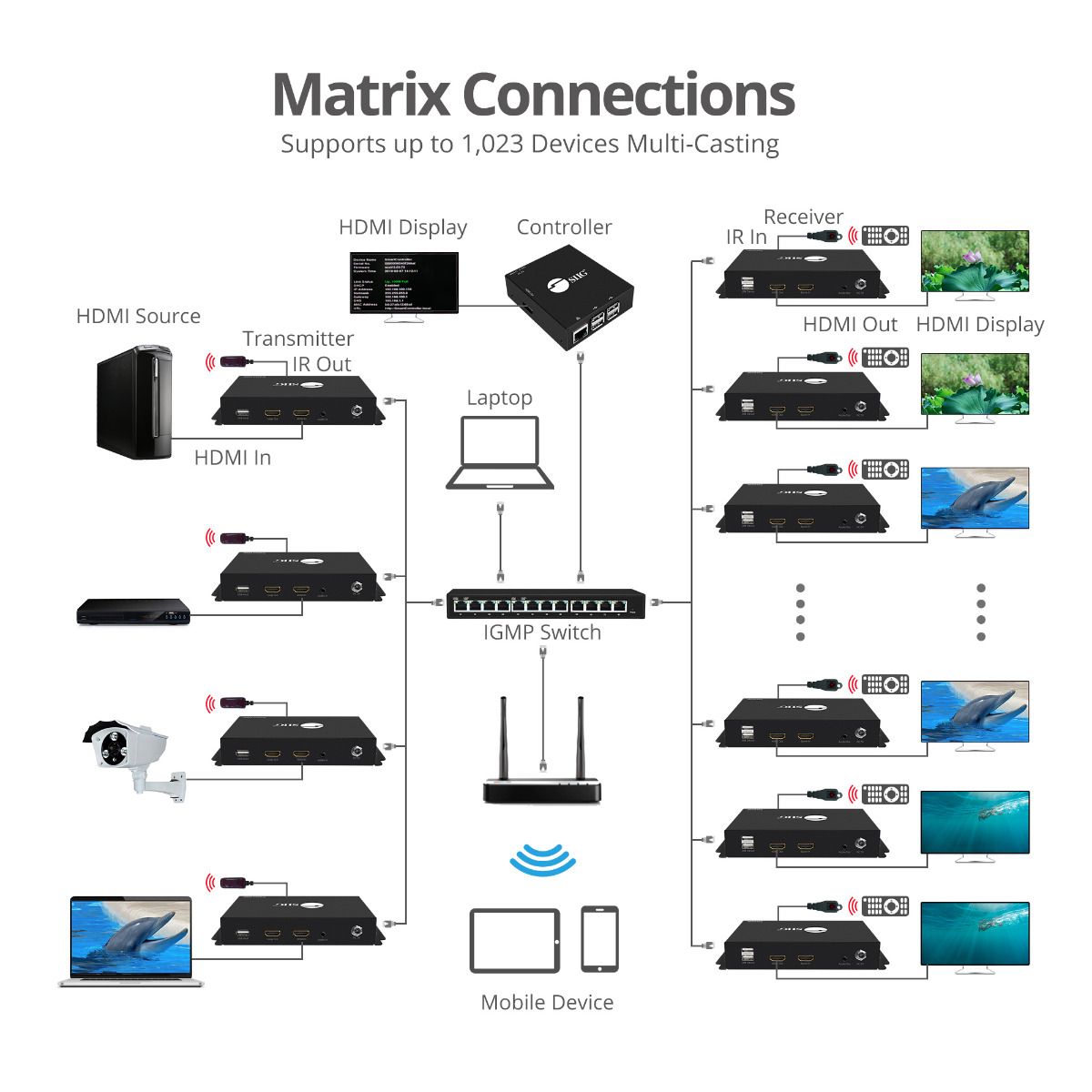

Advanced Matrix & Video Wall Control
Advanced Matrix & Video Wall Control
Rich Control & Connectivity Options
Rich Control & Connectivity Options
Easy Setup & Scalable Expansion
Easy Setup & Scalable Expansion
-
45 Days Free Return
-
2 Years Warranty
-
Lifetime Technical Support
No content found
| Hardware | |
| Chipset | Aspeed |
| Video | |
| Standard | HDCP 2.2 compliant |
| Resolution | 480p / 720p / 1080i / 1080p / 4K 30Hz Input: up to 4Kx2K 60, YUV 4:4:4 8-bit Output: up to 4Kx2K 30Hz |
| Transmission Distance | HDMI cable: up to 5m (in & out) CAT6 cable: up to 394ft 4Kx2K 30Hz *Note: The transmission distance will vary depending on cable quality, 100% copper using IEEE-T568B wiring standard is recommended |
| Audio | |
| Surround Sound | Up to 7.1 ch or stereo digital audio |
| Latency | 23ms for 1080p 60Hz |
| IR Signal | Full frequency rate: 20KHz to 60KHz |
| ESD Protection | ±15kV Air / ±8kV Contact |
| Power Adapter | |
| Input | 100-240V / 50-60Hz |
| Output | DC 5V/2A |
| UL Listed | E135856 / Class VI |

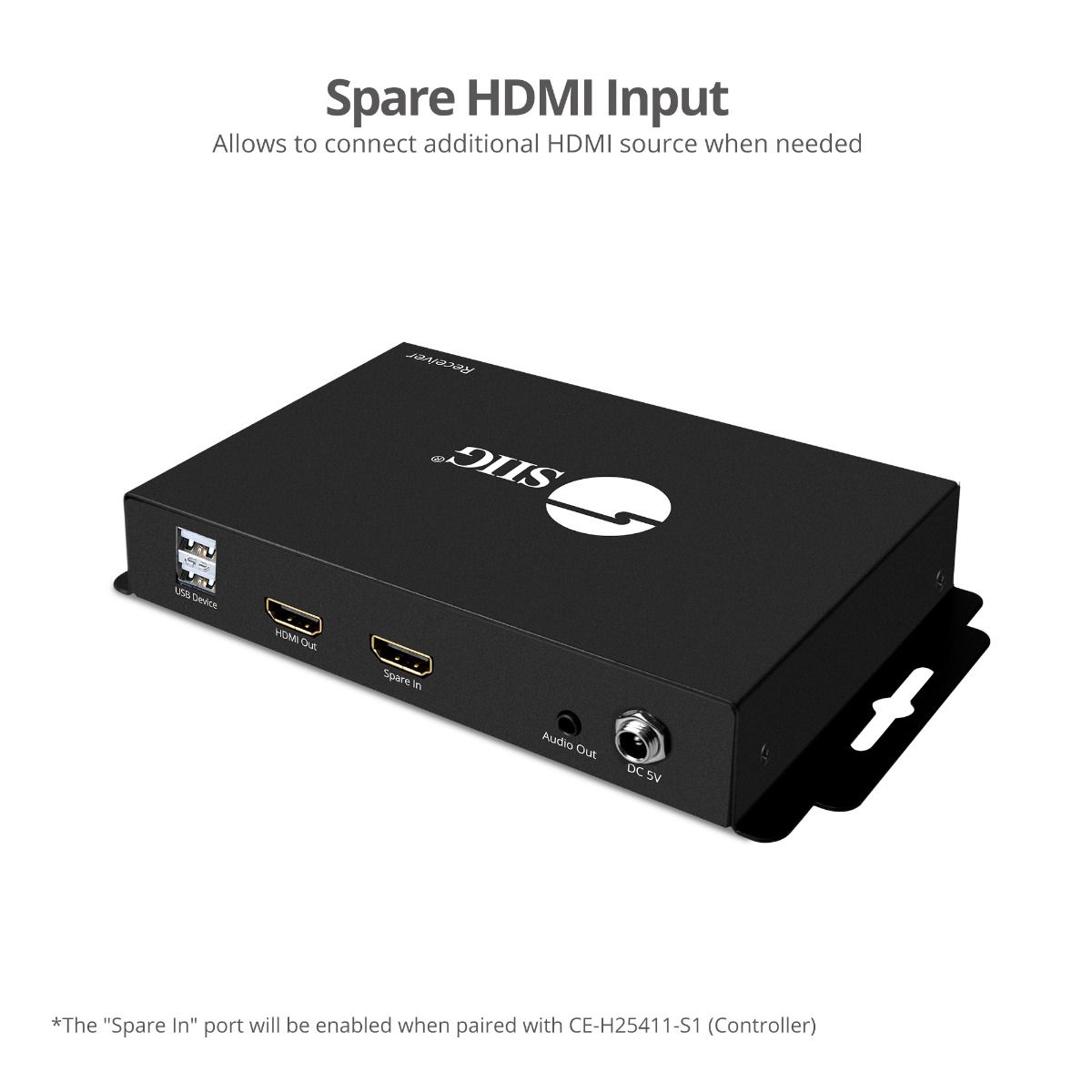

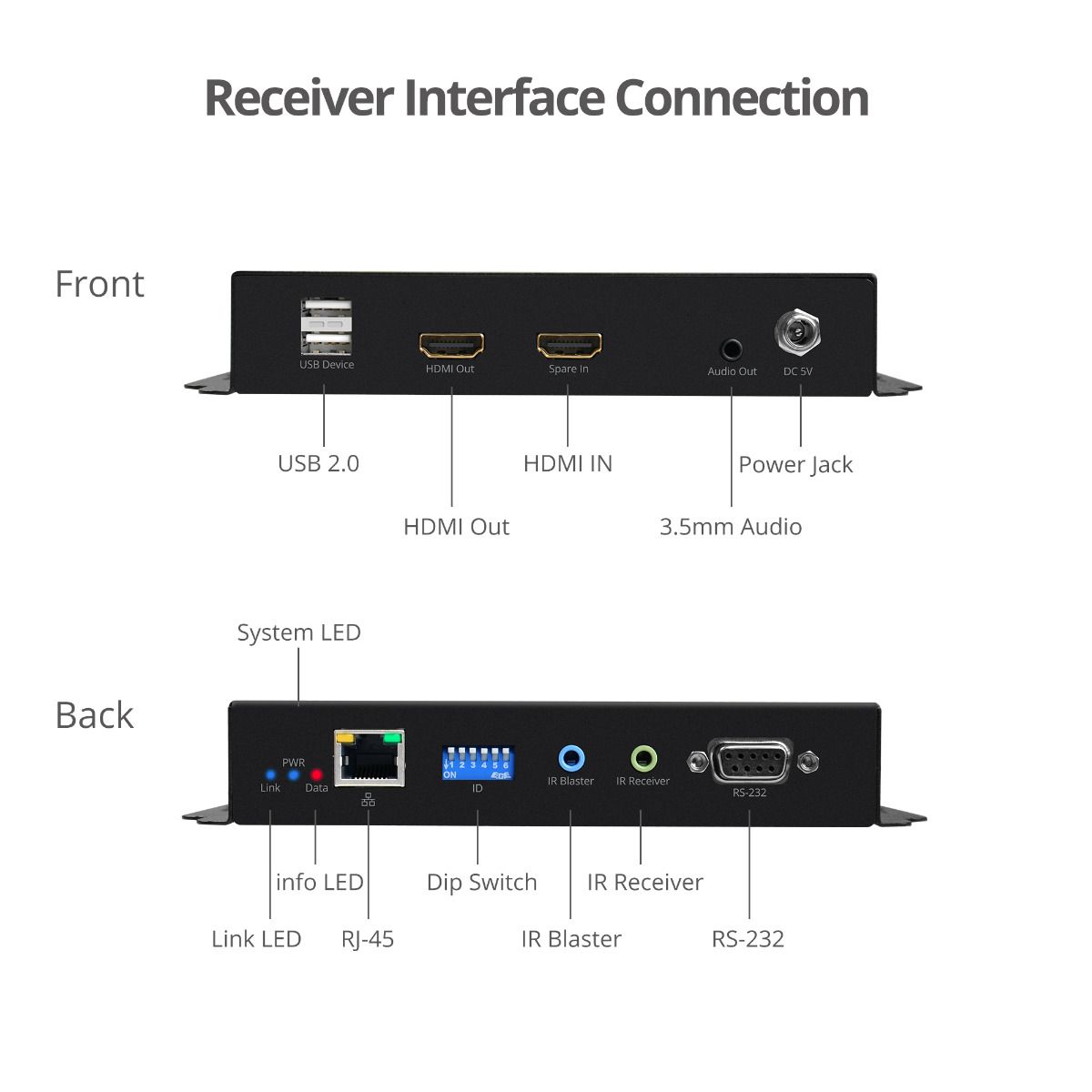

| Interface | 1x 19-pin, HDMI, Type-A, female, input 1x 19-pin, HDMI, Type-A, female, output 1x 9-pin, RS-232, female 1x 3.5mm jack, audio out 1x 3.5mm jack, IR blaster 1x 3.5mm jack, IR receiver 1x 8-pin RJ45, input 2x 4-pin, USB 2.0, Type A, female 1x Power jack 1x 6-pin DIP switch, for video channel selection 1x DIP switch, for debug/bypass mode |

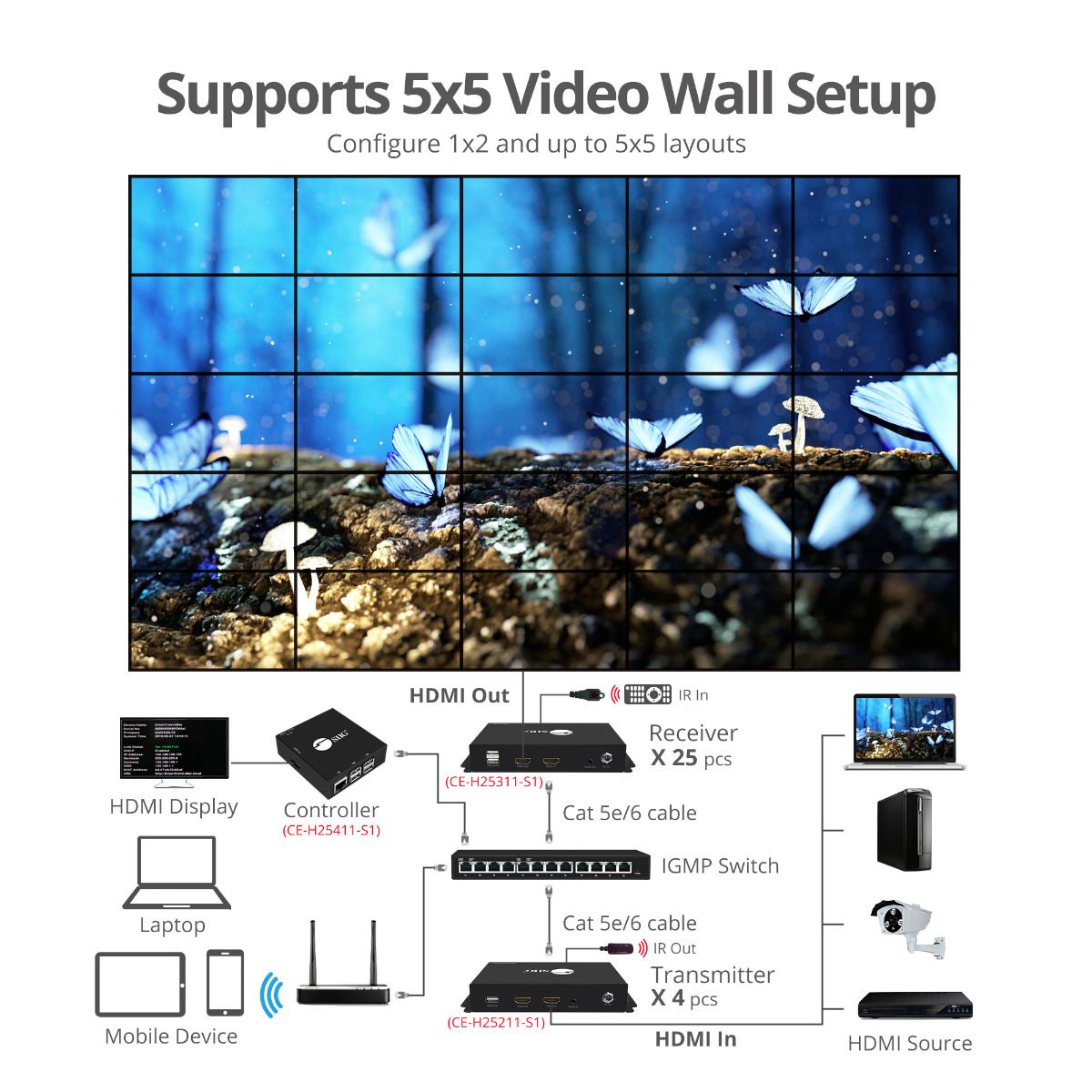

| System Requirements | - HDMI Over IP Matrix and Video Wall - Encoder (TX), part # CE-H25211-S1 sold separately - HDMI Over IP Matrix and Video Wall - Controller, part # CE-H25411-S1 sold separately - 100% Copper CAT6 cable using T568 wiring standard |
| Product | |

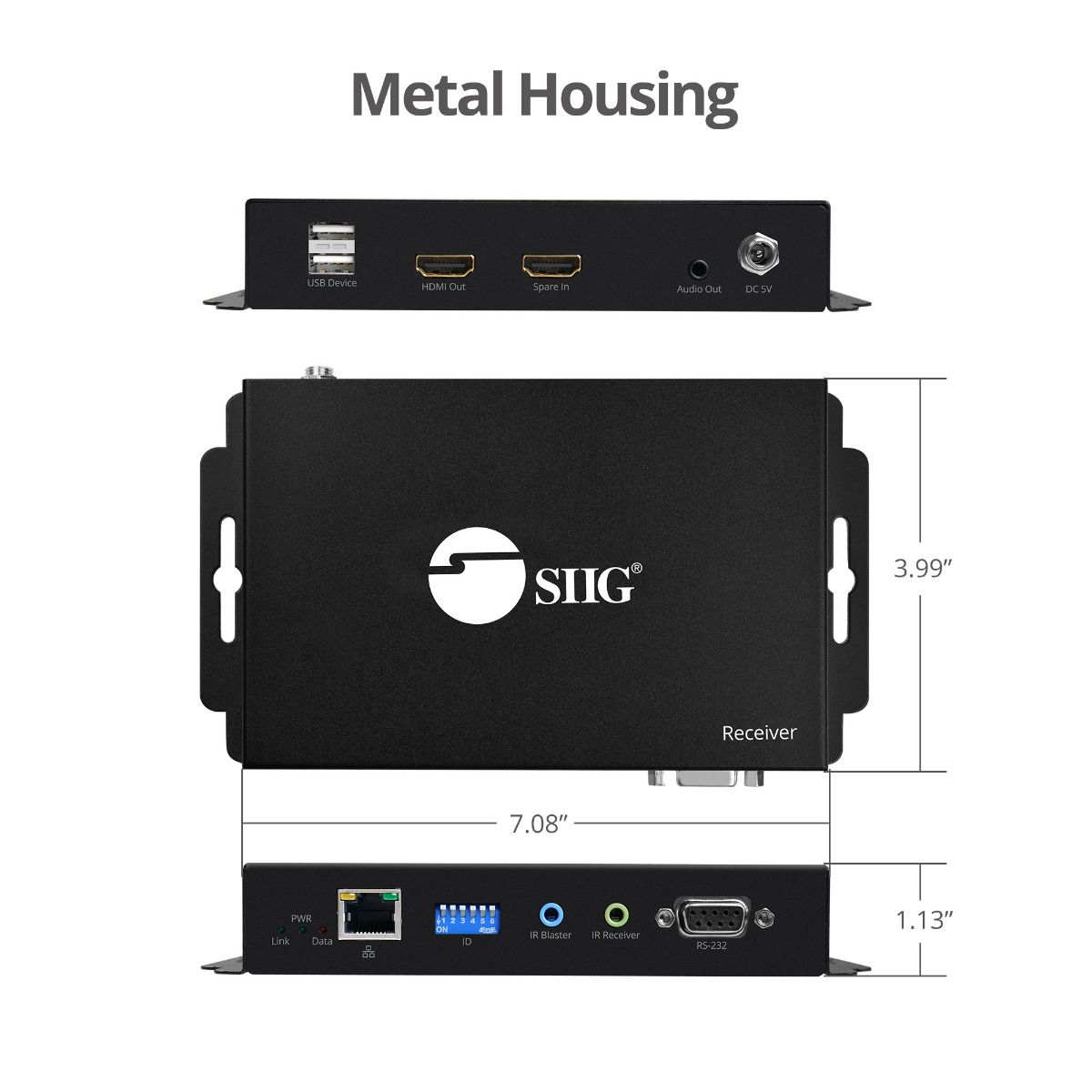

| Dimensions (L) x (H) x (W) | 7.09″ x 1.13″ x 4.00″ 18.01 cm x 2.87 cm x 10.16 cm |
| Weight | 1.07 lbs (0.49 kg) |
| Color | Black |
| Housing Material | Metal |
| Unit Package | |
| Dimensions (L) x (H) x (W) | 7.79″ x 2.91" x 5.55″ 19.79 cm x 7.39 cm x 14.10 cm |
| Weight | 1.64 lbs (0.74 kg) |
| Master Carton | |
| Dimensions (L) x (H) x (W) | 16.53″ x 11.81″ x 15.75″ 41.99 cm x 30.00 cm x 40.01 cm |
| Weight | 35.80 lbs (16.24 kg) |
| Quantity | 20 pcs/ctn |

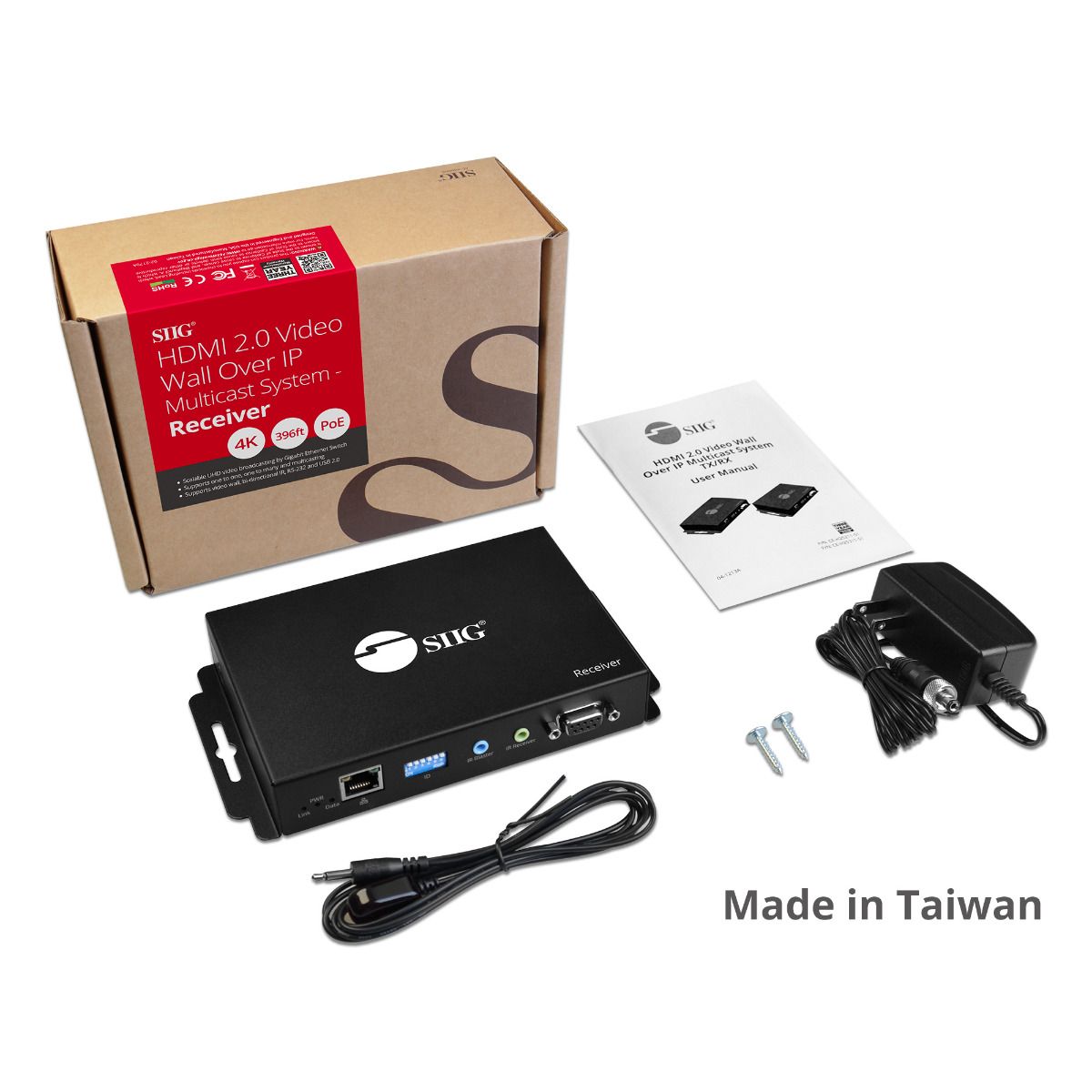

| Package Contents | 1x HDMI Over IP Matrix and Video Wall - Decoder (RX) 1x Power adapter, 5V/2A 1x IR receiver cable 2x Screws 1x Insert card 1x User manual |
| Environmental Conditions | |
| Operating Temperature | 32° to 140° F |
| Storage Temperature | -4° to 140° F |
| Relative Humidity | 20% to 90% RH (non-condensing) |
| Certifications/Standards | FCC, CE, RoHS, TAA compliant |
| UPC code | 662774-042886 |
| Warranty | 3 years limited |
| Country of Origin | Taiwan |
Q1: Why the Over IP extender video can not cross the Router?
Q1: Why the Over IP extender video can not cross the Router?
A1: The Over IP extender are using Multicast Protocol, please check do the Switch and Router can support Multicast packet pass through.
