Extender |
SKU:
CE-H23B11-S2

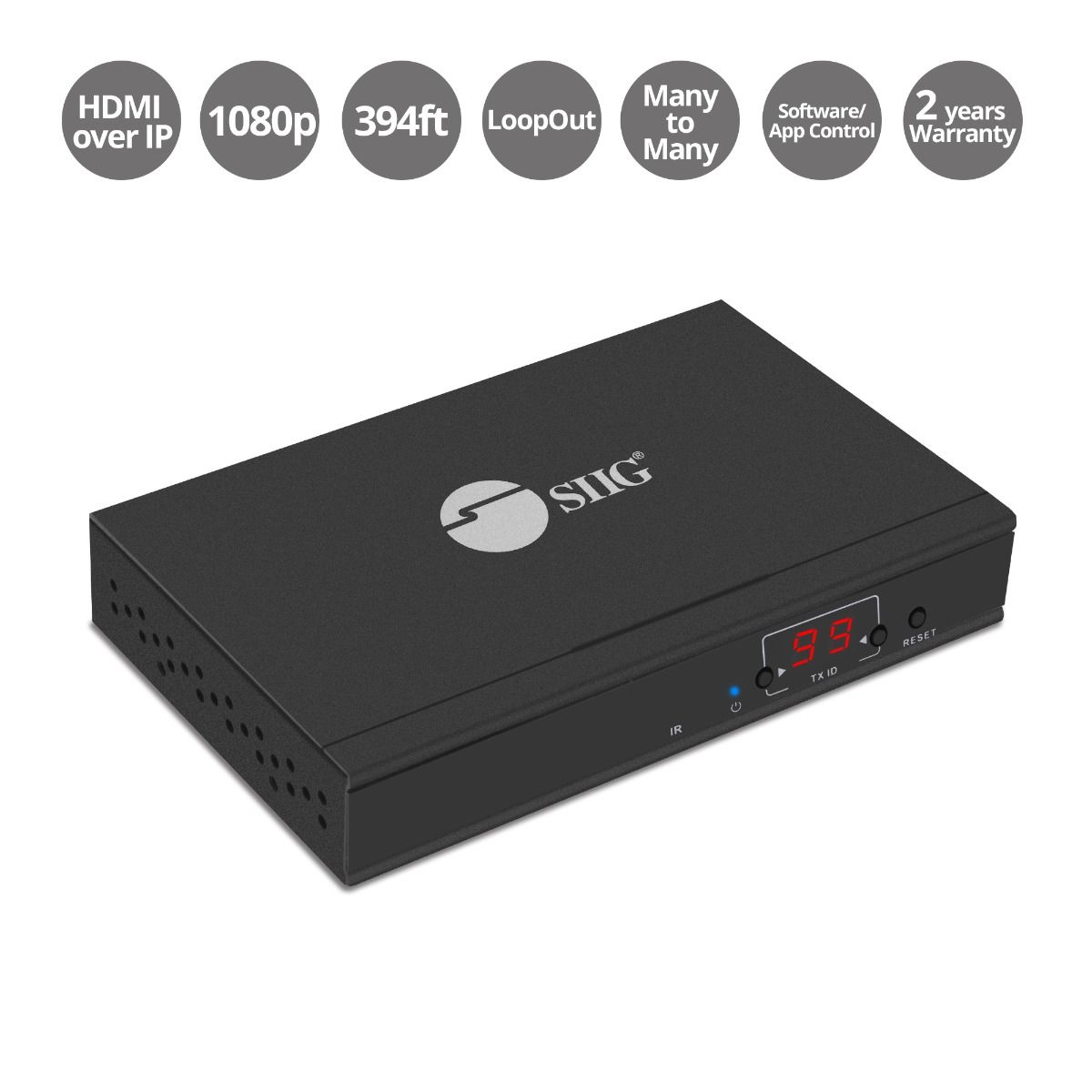

HDMI Over IP Extender with IR - Encoder (TX)
Over IP Extender
Many-to-Many
1080p 60Hz
Up to 394ft (120m)
H.264 Compression
Regular price
$189.99
Unit price
/
Unavailable
Shipping calculated at checkout.
HDMI Over IP Extender with IR - Encoder (TX) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Features
Further Distance
Further Distance
Full HD Resolution
Full HD Resolution
IR Extension & RS-232 Control
IR Extension & RS-232 Control
Flexible Control
Flexible Control
Metal Housing Design
Metal Housing Design
HDMI Over IP Extender with IR - Encoder (TX)
Estimated shipping by May 25, 2026
Regular price
$189.99
Unit price
/
Unavailable
-
45 Days Free Return
-
2 Years Warranty
-
Lifetime Technical Support
SIIG HDMI Over IP Extender with IR - Encoder (TX)
Receives high definition 1080p HDMI signals from a source device and extends the signal through economical CAT5e/6/7 cabling to an HDMI display device up to 120 meters using advanced HDbitT technology, use with HDMI Over IP Extender with IR - Decoder (RX) (part # CE-H23C11-S2) sold separately.

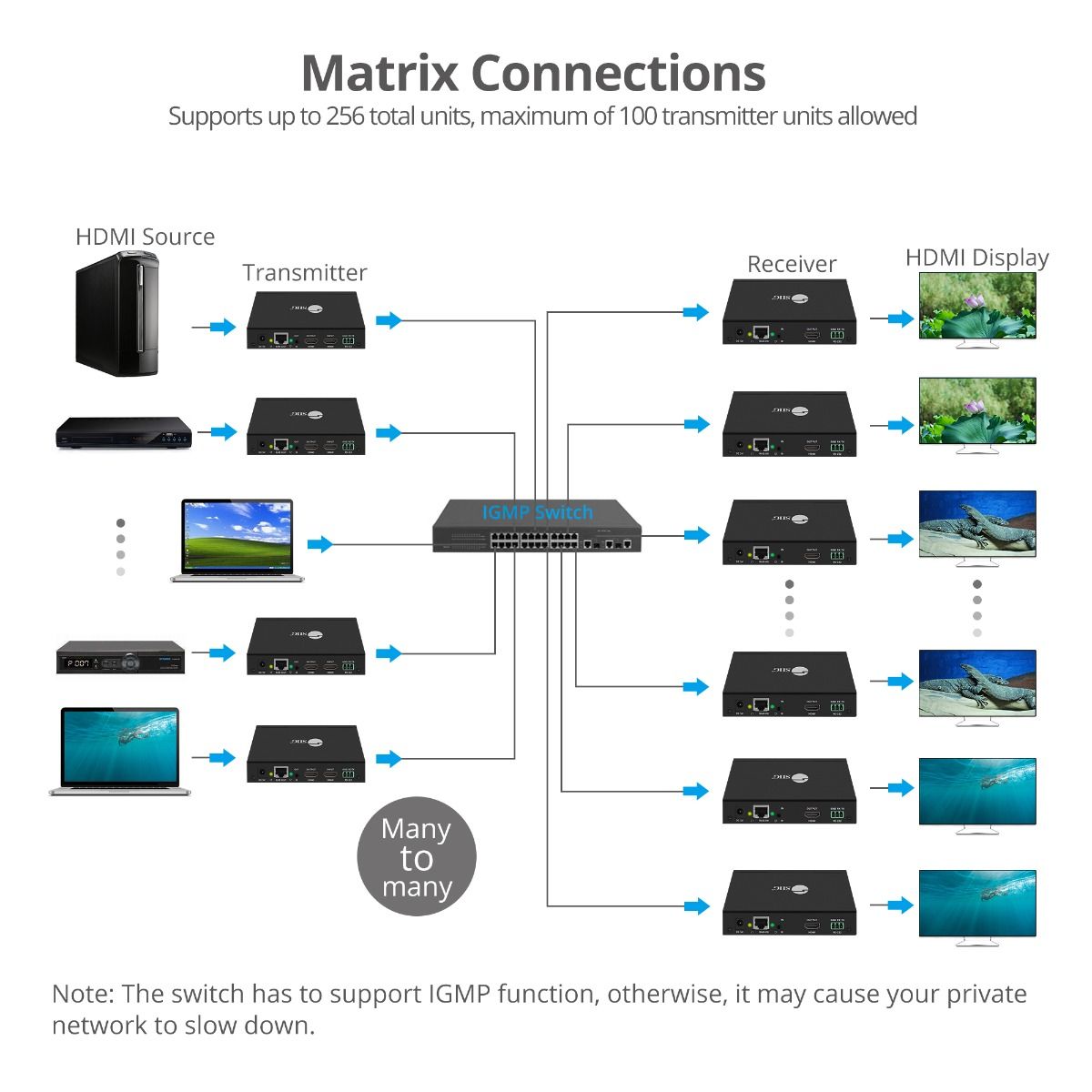

Point to Point/ One to Many Applications
The device can be scaled up to 256 total units, with a limit of 100 units per transmitter. It works as a scalable TX/RX matrix over a dedicated IP network, extending/splitting HDMI signals to multiple displays.
Don't let distance or a lack of HDMI ports limit your viewing options
Imagine you are giving a public speech at a seminar with hundreds of attendees.
You want to make sure that everyone can see your presentation. What would you do? Try this HDMI HDbitT Extender Over IP with IR Kit from SIIG today!
| Video | |
| HDMI | 1x input, 1x loop-out |
| Standard | HDCP 1.4 compliant |

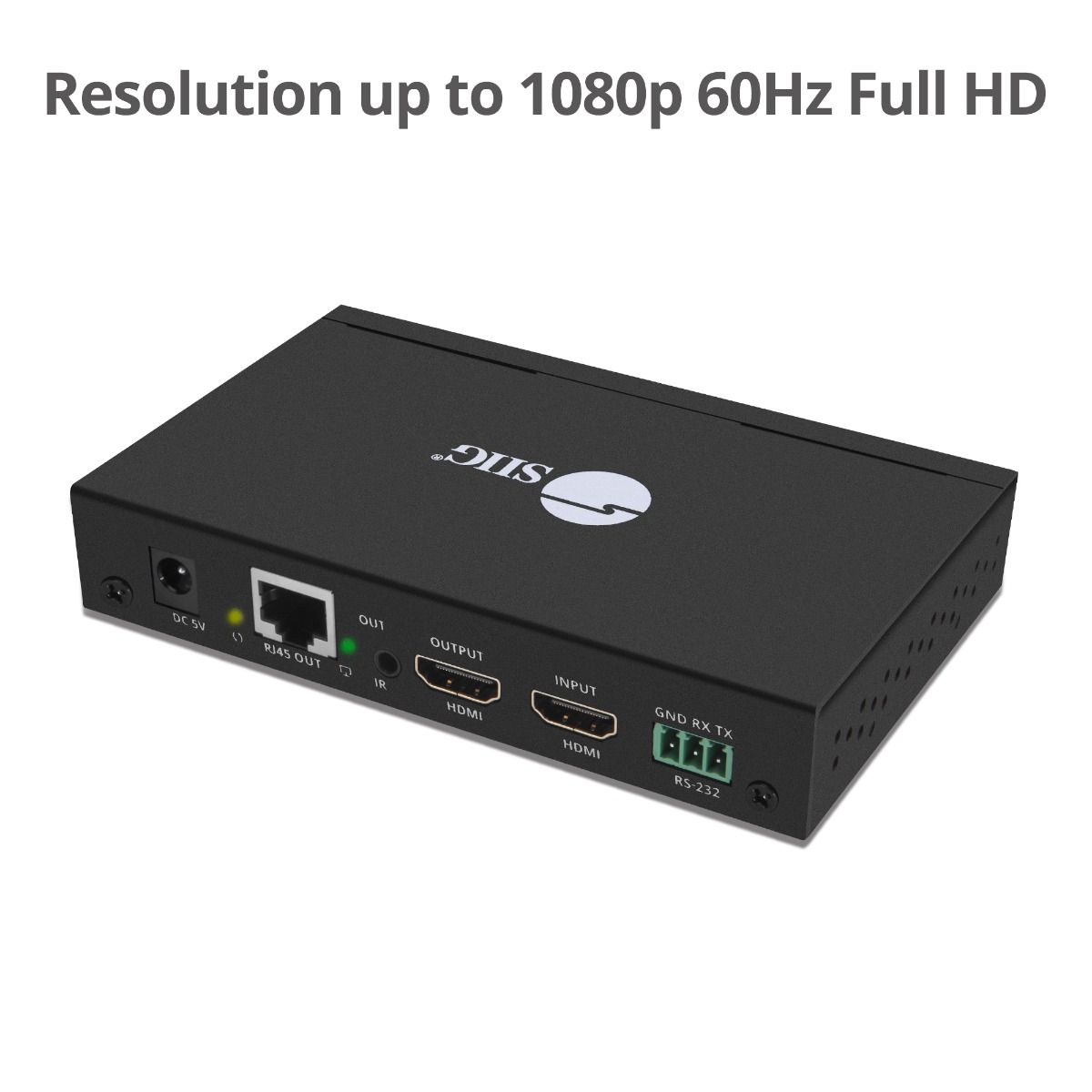

| Resolution | 1080p / 1080i / 720p / 480p 60Hz |
| Transport Protocol | |
| HDbitT Protocol | Audio/video digital connection transmission protocol |
| Audio | Stereo audio from HDMI, support 192Kbps bit rate |
| IR Pass-Through | - Allows remote control of the HDMI source device and playback function at the remote display - Full frequency: 20KHz to 60KHz |
| RS-232 Control | Bi-direction function and pass-through connection to control RS-232 enables devices in either direction |
| Power Adapter | |
| Input | 100-240V/50-60H |
| Output | DC 5V/2A |
| UL Listed | E335801/Level: VI |
| Interface | |

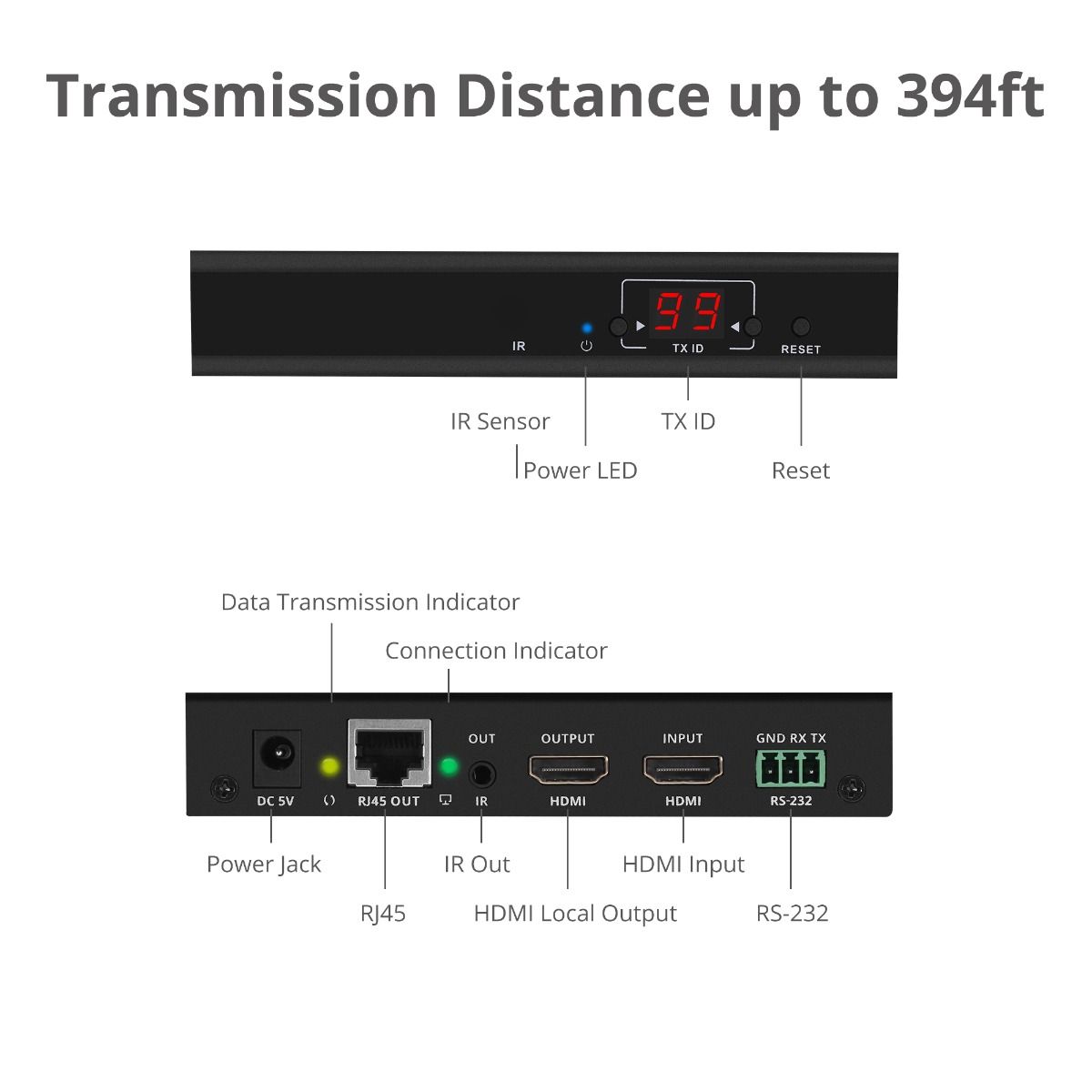

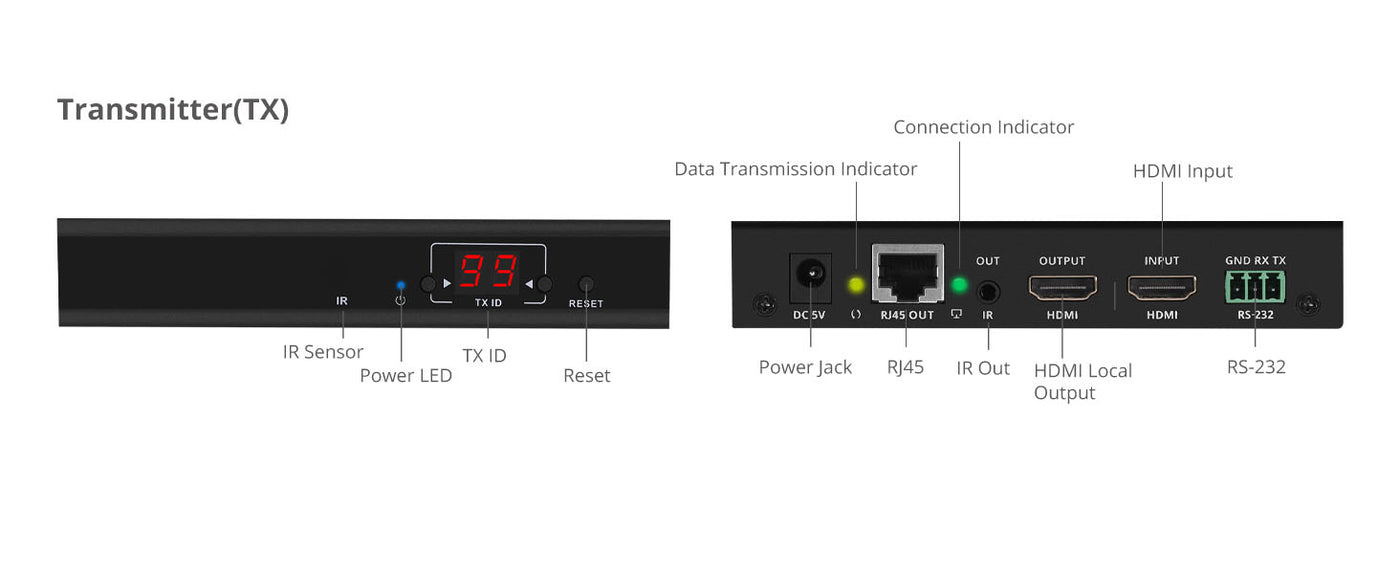

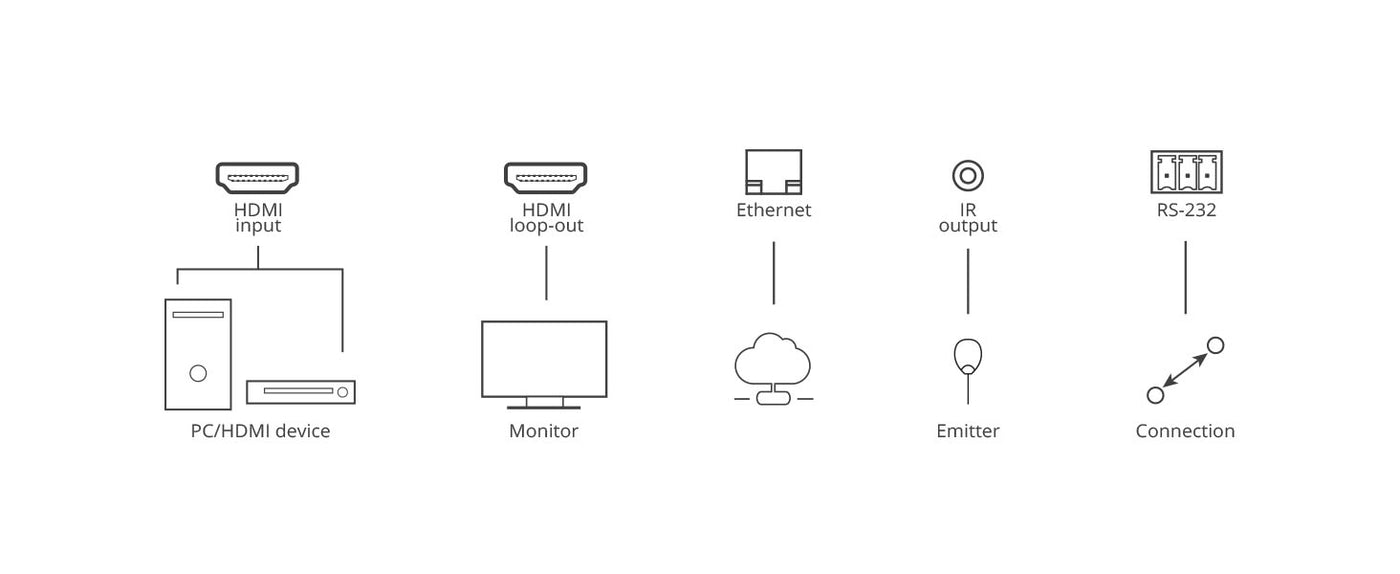

| Encoder Unit (TX) | 1x 19-pin, HDMI, female, input 1x 19-pin, HDMI, loop-out, female, output 1x 3-pin, RS-232 terminal block, female 1x 3.5mm infrared jack, IR emitter, output 1x 8-pin, RJ45, output 2x Switch TX channel buttons, up/down 1x Reset button 1x DC power jack, 5V/2A |

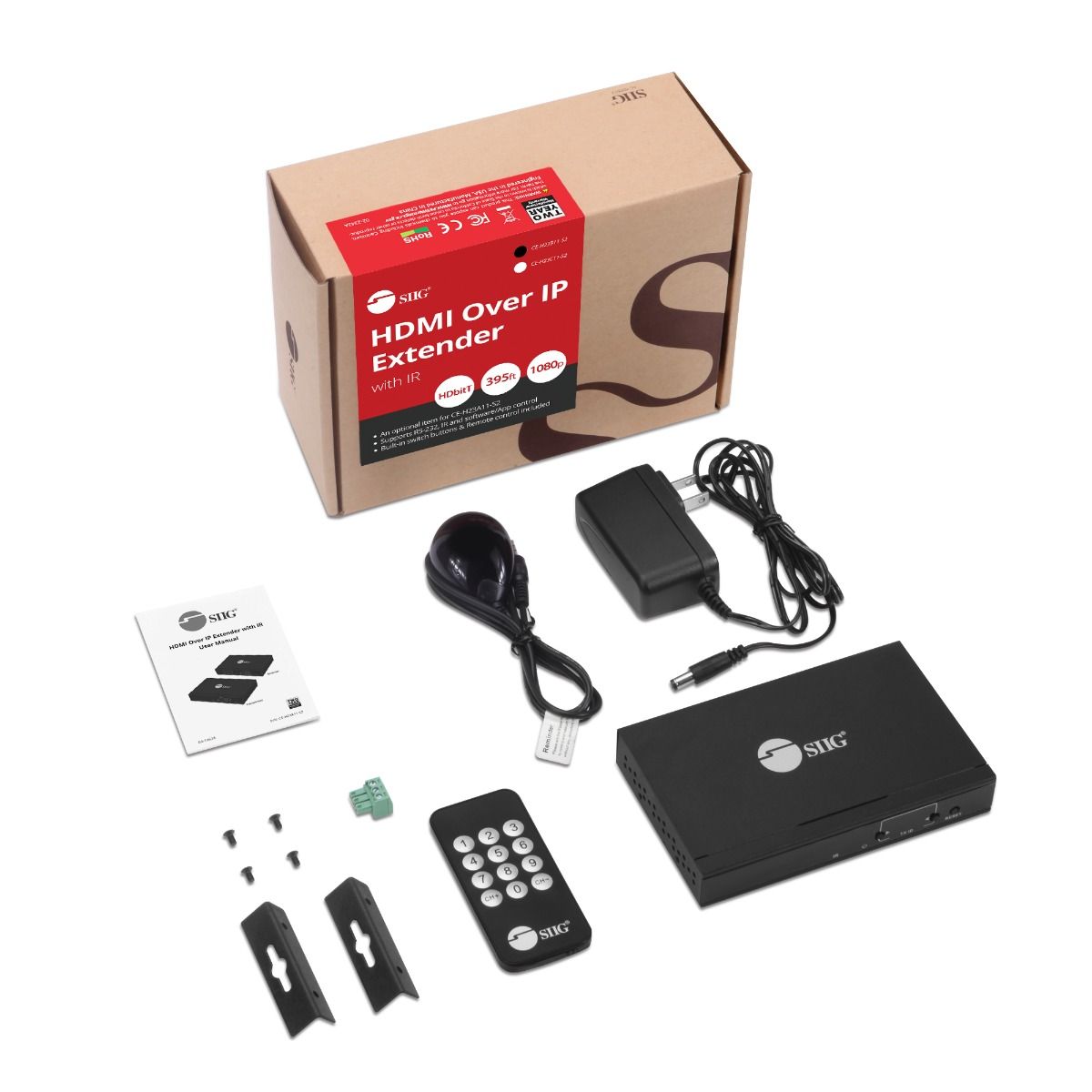

| Package Contents | 1x HDMI over IP Extender with IR- Encoder (TX) 1x 3.5mm IR emitter extension cable 1x Remote control (for setting TX & RX channels) 1x 3-pin, RS-232 phoenix connector 2x DC power adapter (5V/2A) 1x Installation kit 1x User reference guide |
| Product | |

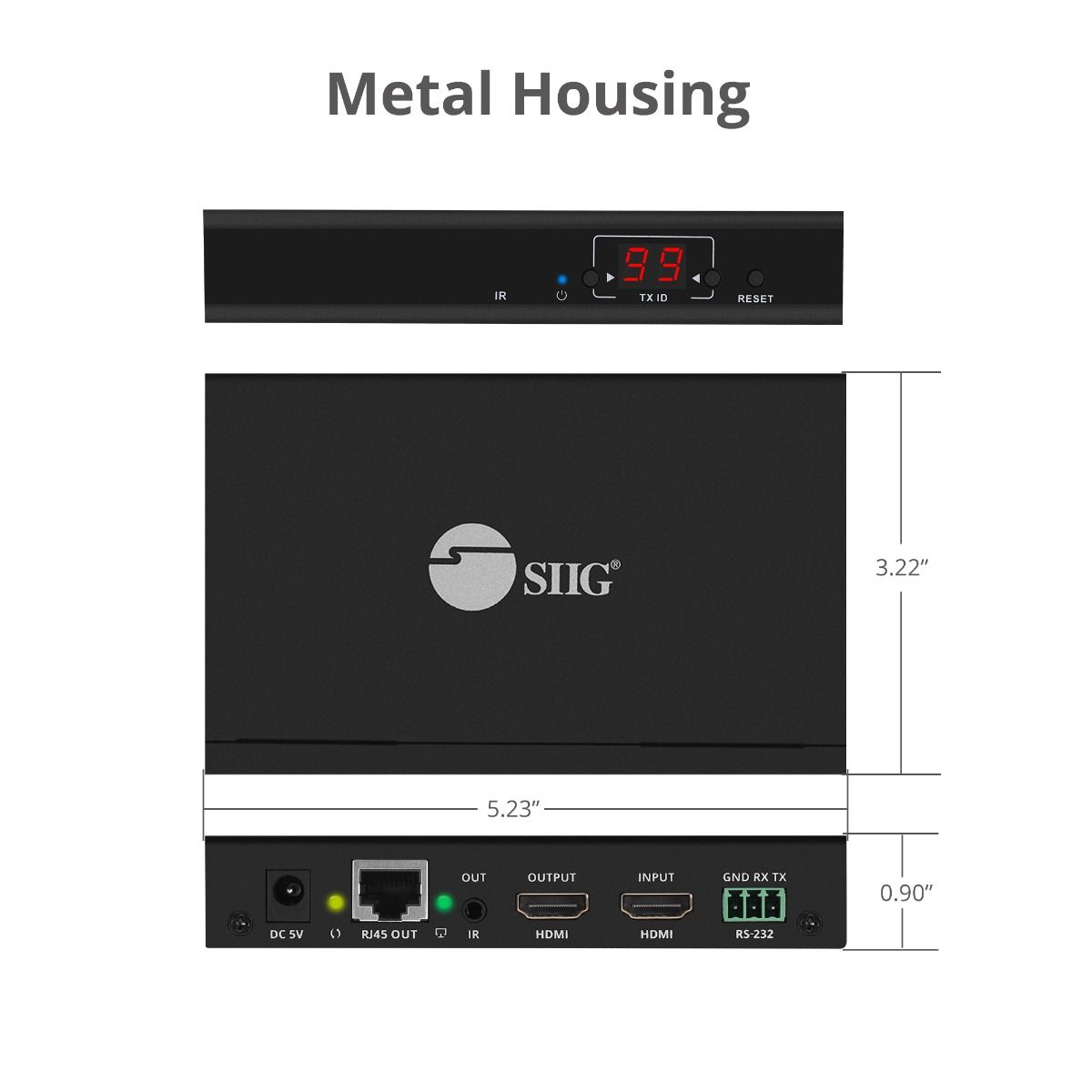

| Dimensions (L) x (H) x (W) | 5.27″ x 0.94″ x 3.30″ 13.39 cm x 2.39 cm x 8.38 cm |
| Weight | 0.60 lb (0.27 kg) |
| Color | Black |
| Housing Material | Metal |
| Unit Package | |
| Dimensions (L) x (H) x (W) | 7.83″ x 3.15″ x 5.87″ 19.89 cm x 8.00 cm x 14.91 cm |
| Weight | 1.37 lbs (0.62 kg) |
| Master Carton | |
| Dimensions (L) x (H) x (W) | 16.73" x 16.54″ x 12.4″ 42.49 cm x 42.01 cm x 31.50 cm |
| Weight | 28.67 lbs (13.00 kg) |
| Quantity | 20 pcs/ctn |
| Environmental Conditions | |
| Operating Temperature | 32 to 122 degrees F |
| Storage Temperature | 14 to 144 degrees F |
| Relative Humidity | 0% to 90% RH (non-condensing) |
| Certifications/Standards | FCC, CE, RoHS, REACH |
| UPC Code | 662774-045108 |
| Warranty | 2 years limited |
| Country of Origin | China |
Q1: Why the Over IP extender video can not cross the Router?
Q1: Why the Over IP extender video can not cross the Router?
A1: The Over IP extender are using Multicast Protocol, please check do the Switch and Router can support Multicast packet pass through.
