Extender |
SKU:
CE-H21M11-S1

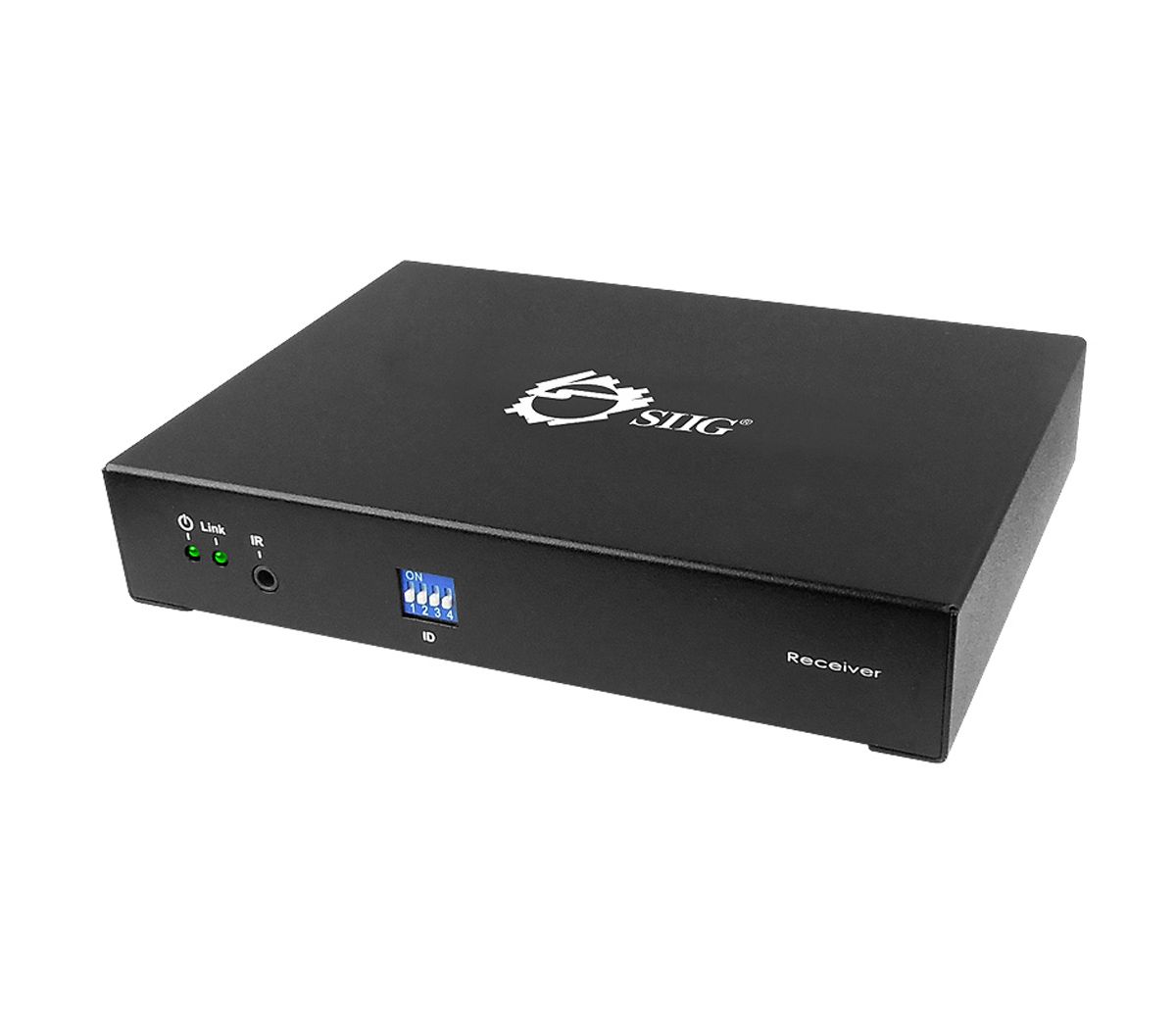

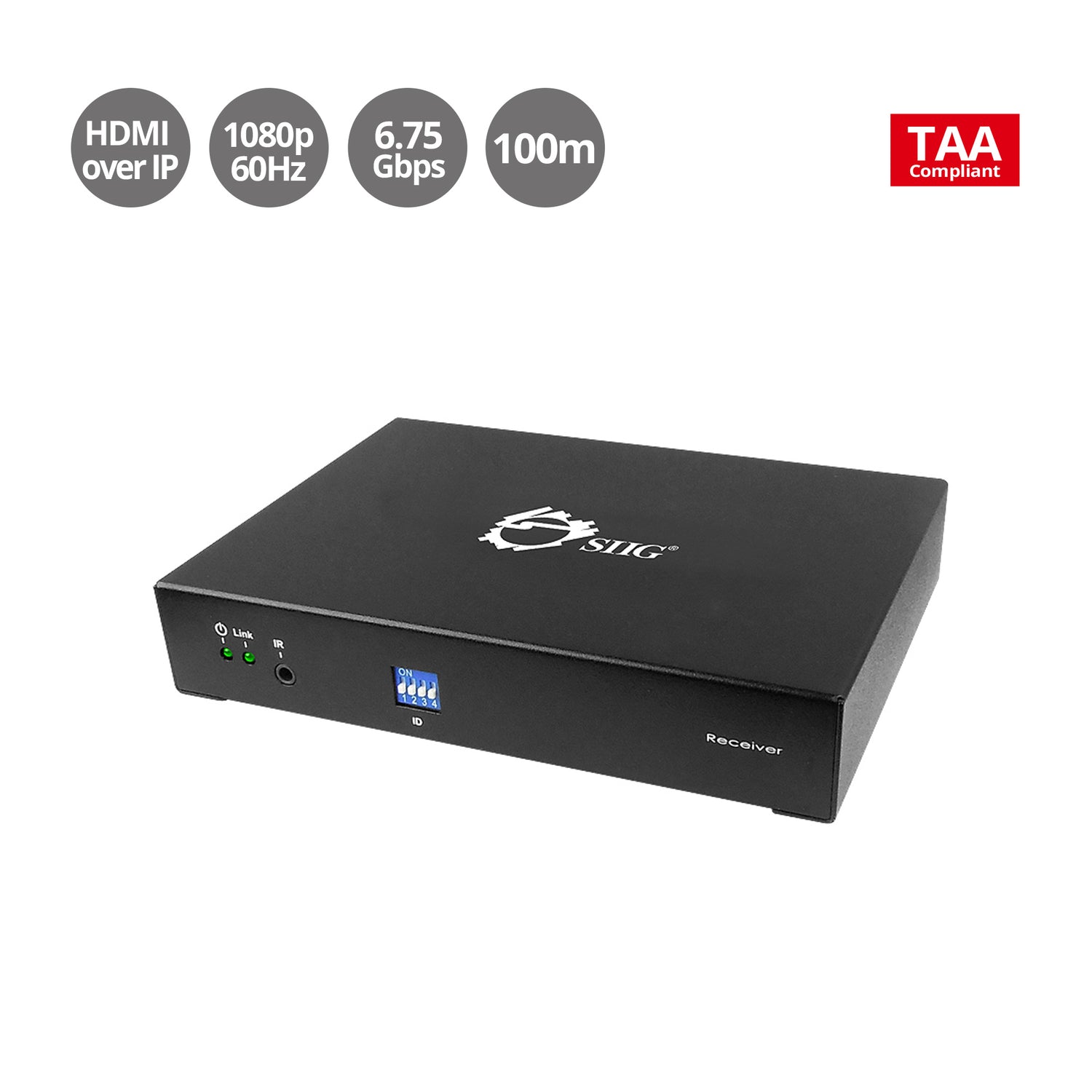

HDMI Over Gigabit IP Distribution System - Receiver
HDMI Over IP Receiver
1080p 60Hz
6.75Gbps
Up to 100m
TAA Compliant
Regular price
$159.99
Unit price
/
Unavailable
Shipping calculated at checkout.
HDMI Over Gigabit IP Distribution System - Receiver is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Features
Scalable IP Network Integration
Scalable IP Network Integration
Crystal Clear HD Performance
Crystal Clear HD Performance

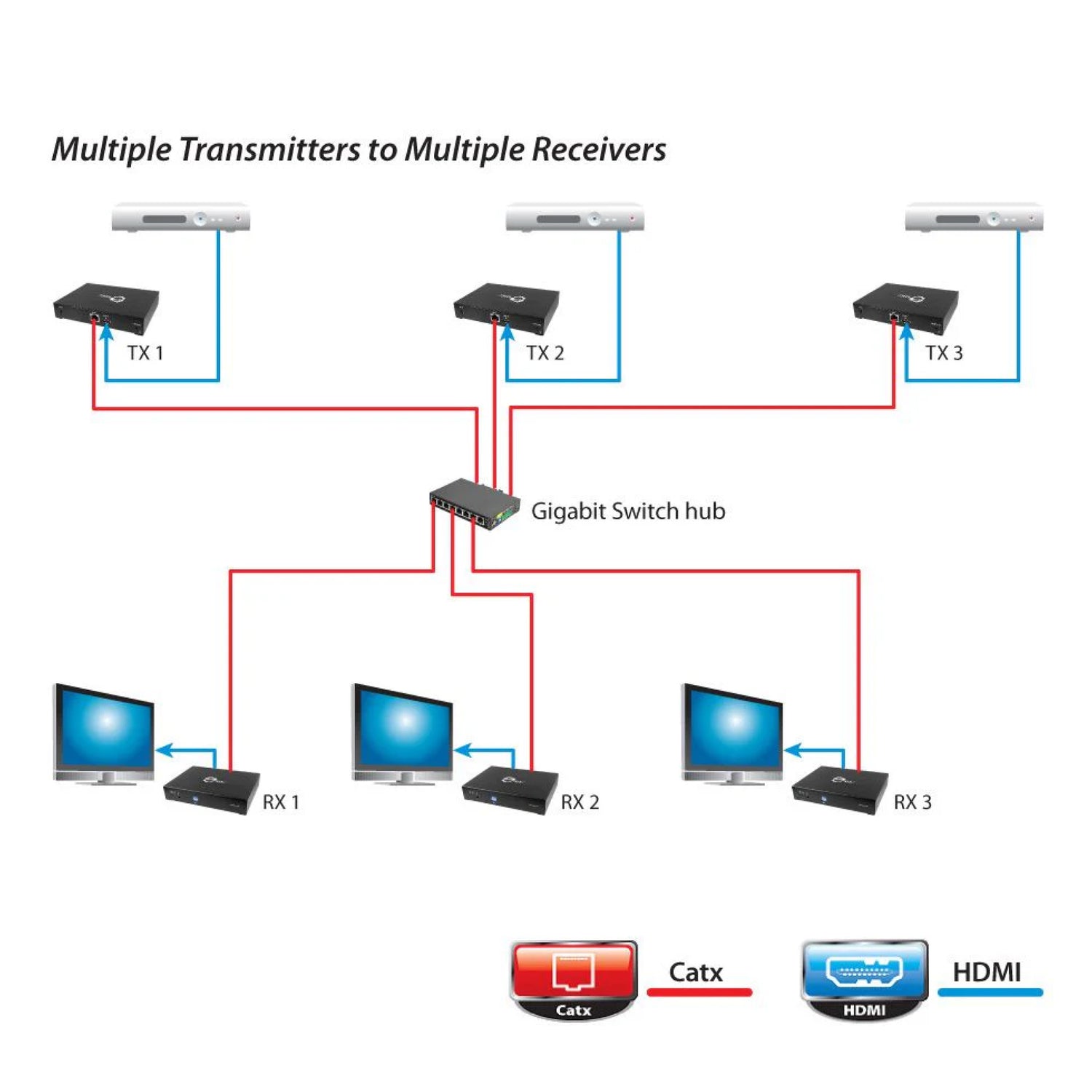

Multi-Transmitter Support
Multi-Transmitter Support

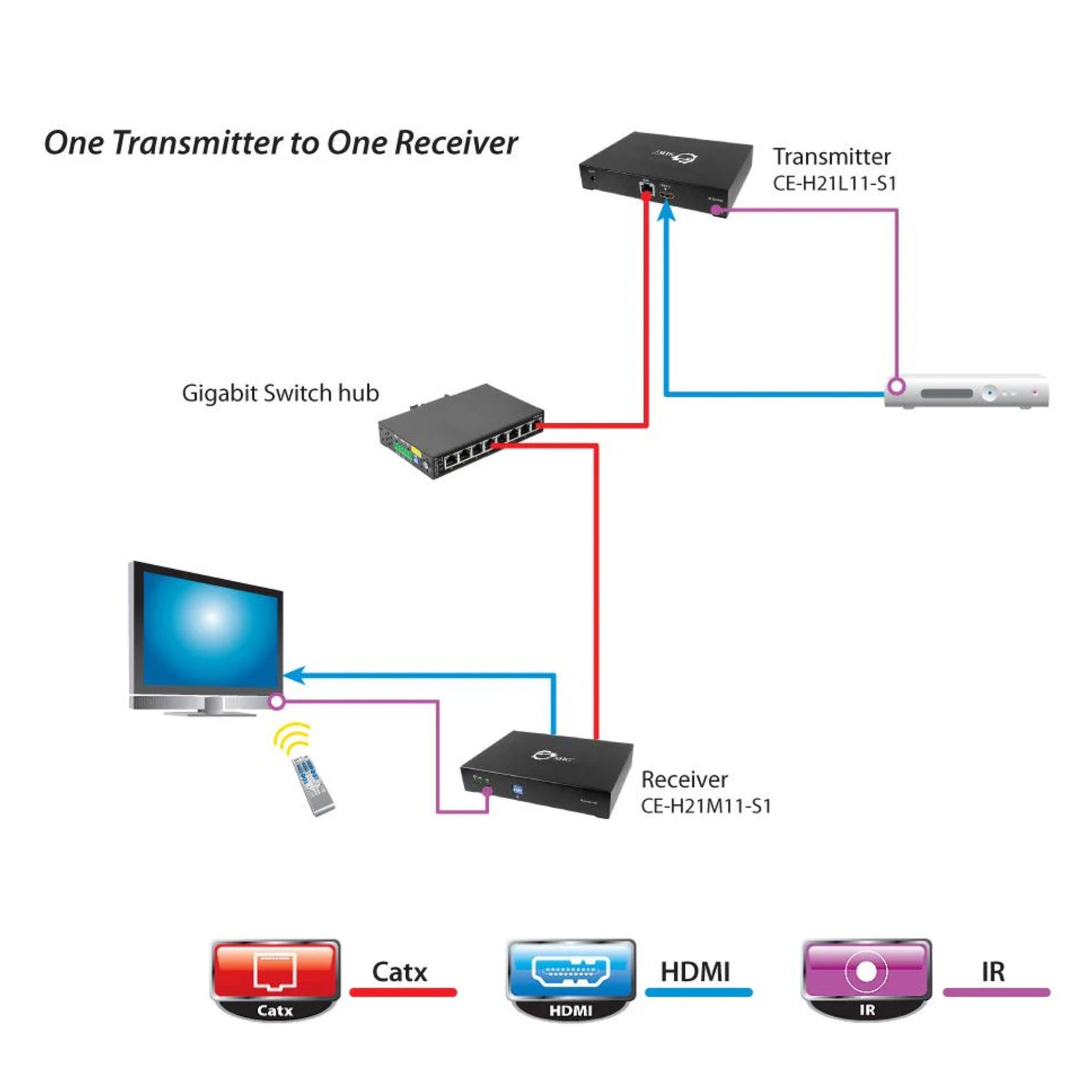

Integrated Remote IR Control
Integrated Remote IR Control
Durable Industrial Build
Durable Industrial Build
No content found
| Chipset | AST1500 |
| Compliance | HDMI 1.3c, HDCP 2.0 and DVI 1.1 standards |
| Video Amplifier Bandwidth | 225MHz |
| Video Bandwidthm | 6.75Gbps |
| Input TMDS Signal | 1.2V (peak-to-peak) |
| Input DDC Signal | 5V (peak-to-peak, TTL) |

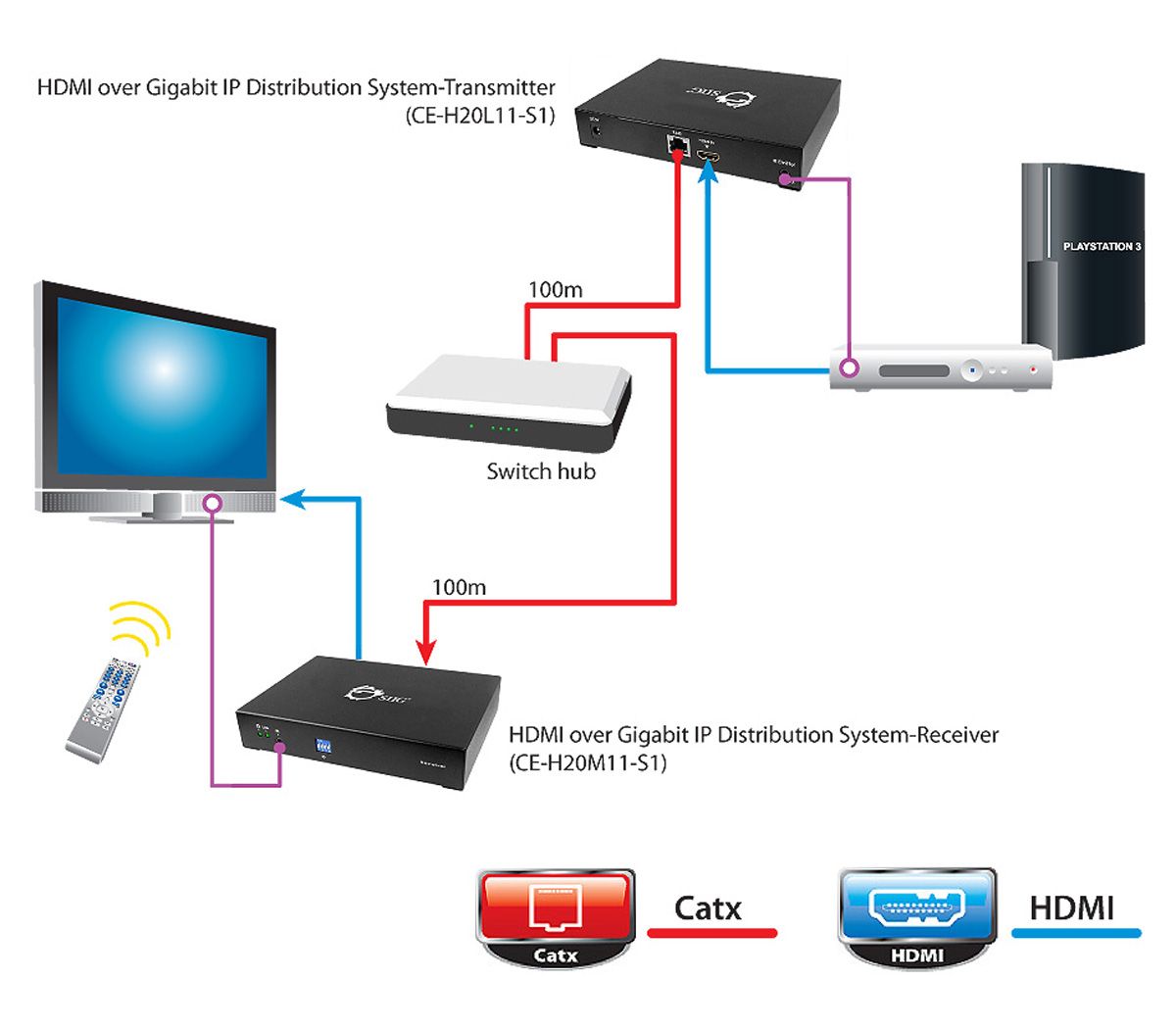

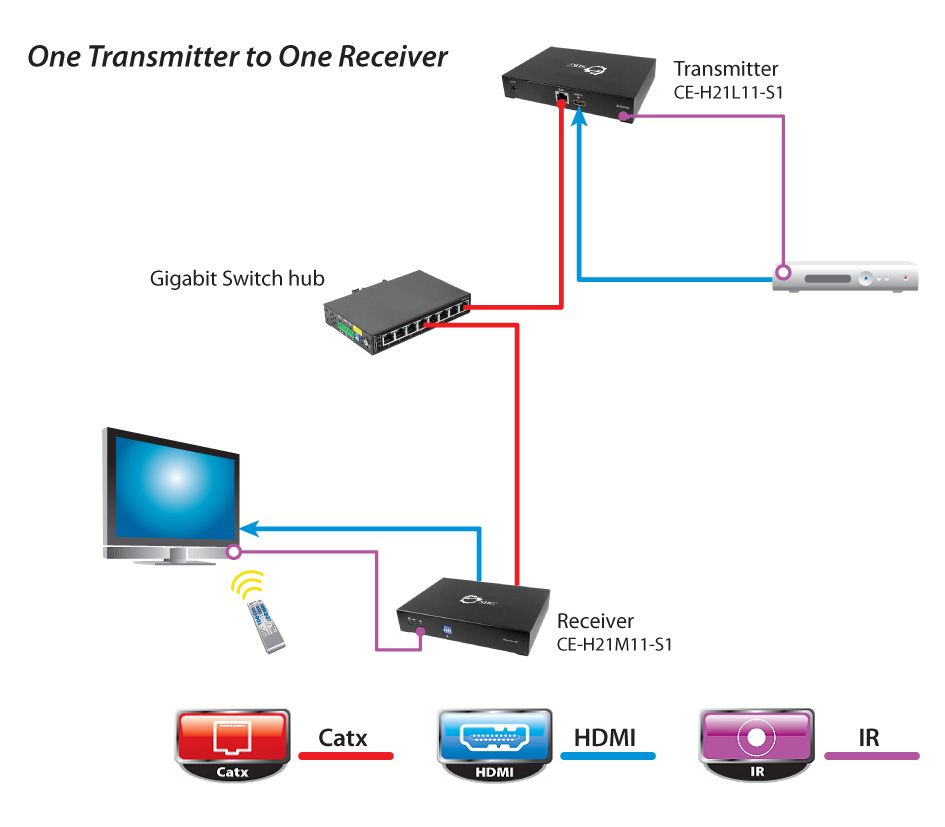

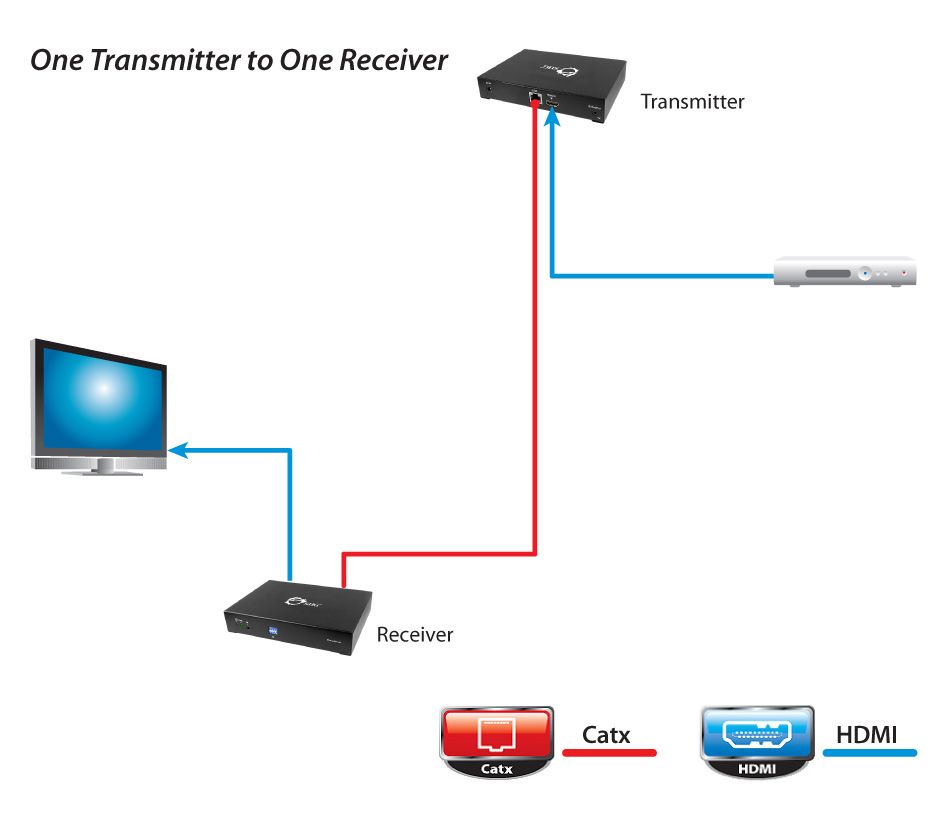

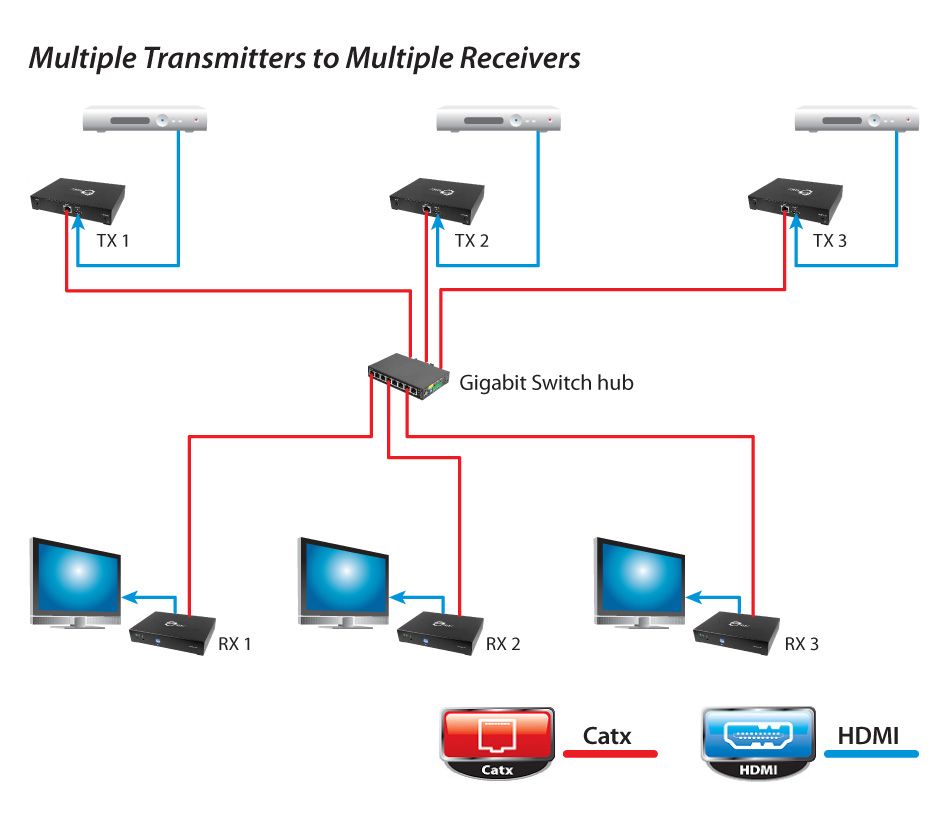

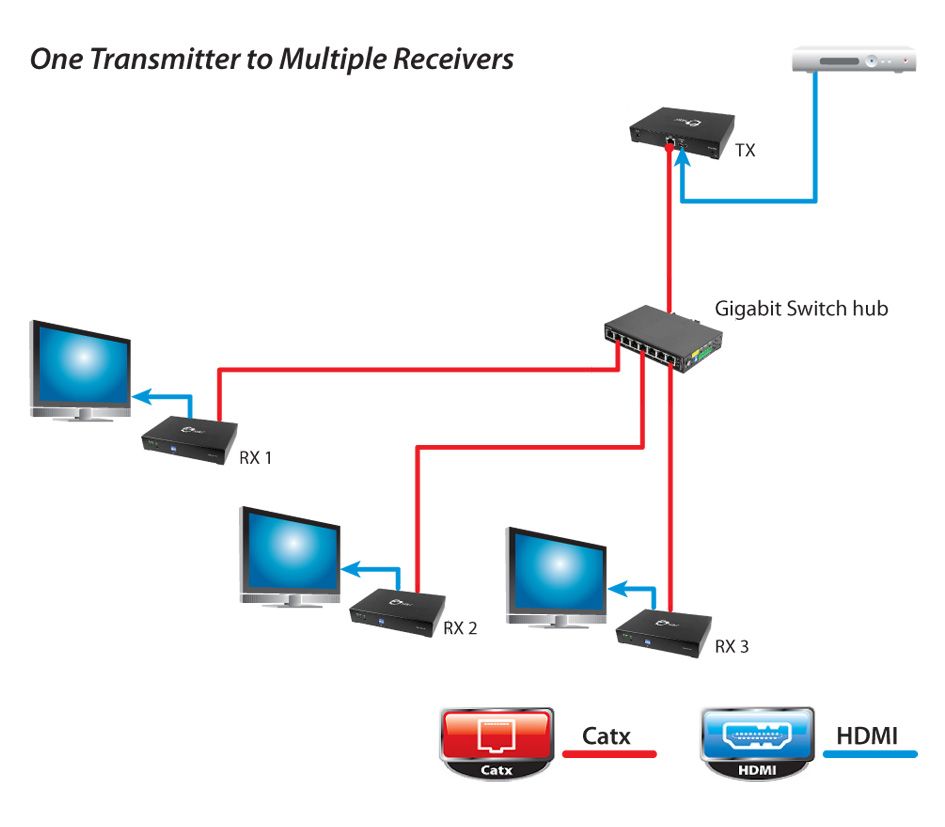

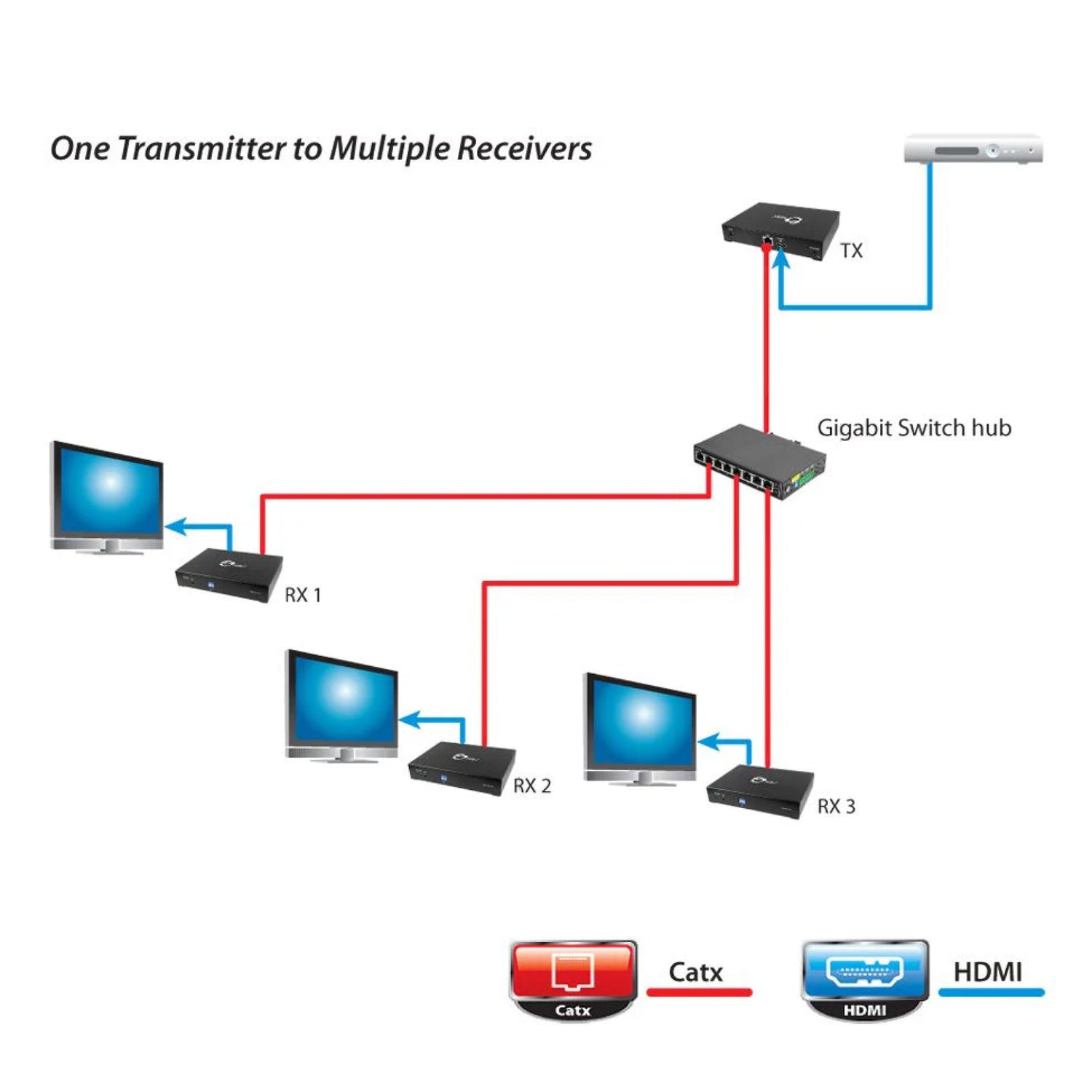

| Features | Supports 10/100/1000 bps IP network transfer rate Integrated dual MAC compliant with IEEE802.3 and IEEE802.3z specification Supports digital video format in 480p, 720p, 1080i and 1080p/60Hz Supports PC resolution up to 1920x1200 Link up to 16 Transmitters (SIIG part number - CE-H21L11-S1) within the IP network Extend to longer distances with cascading network routers/switches |
| Power Consumption | 10 Watts (max) |
| Maximum Cable Range | |
| Output | Up to 15 feet (HDMI cable) |
| RJ-45 | Up to 330 feet (CAT6 cable) |

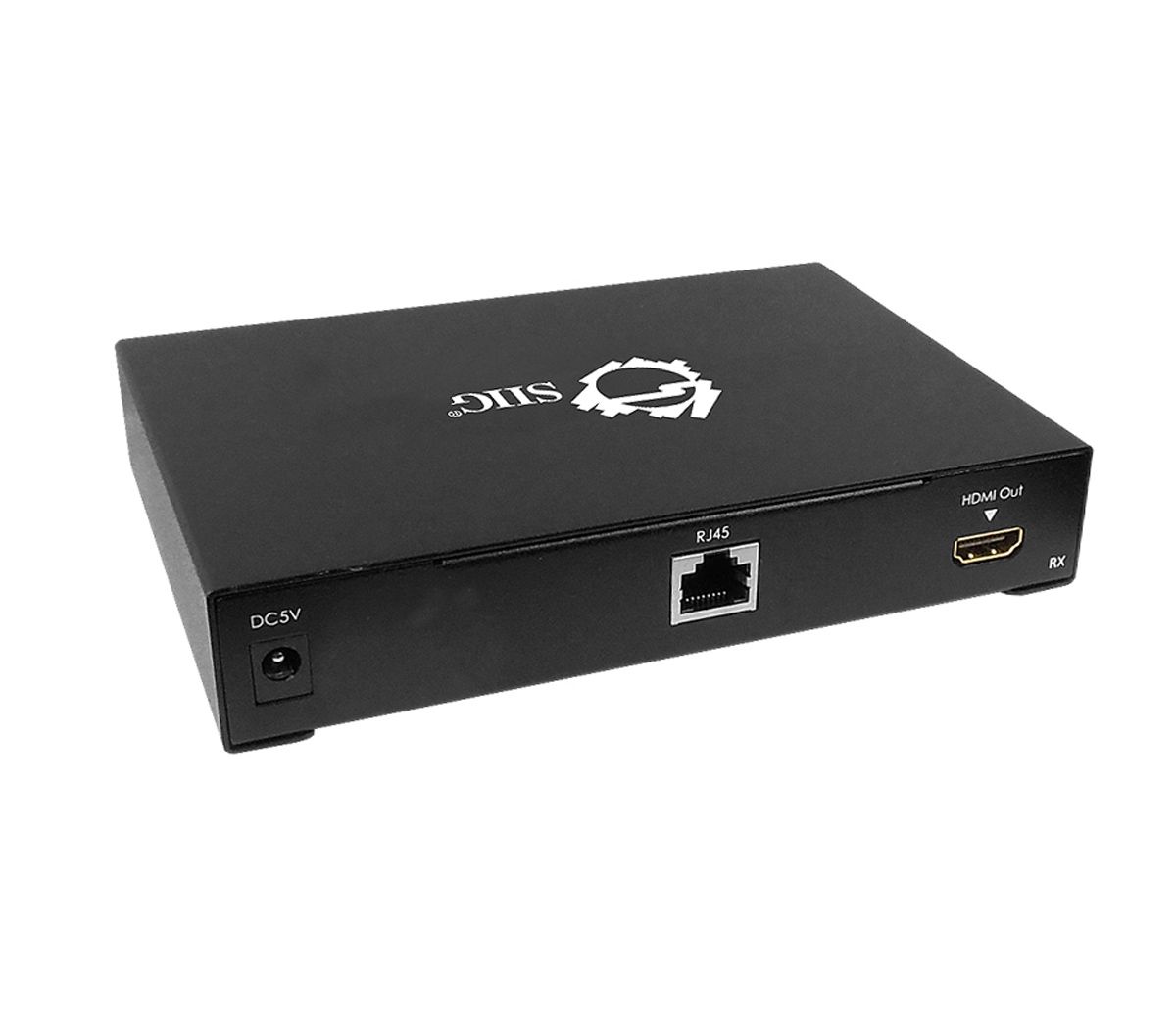

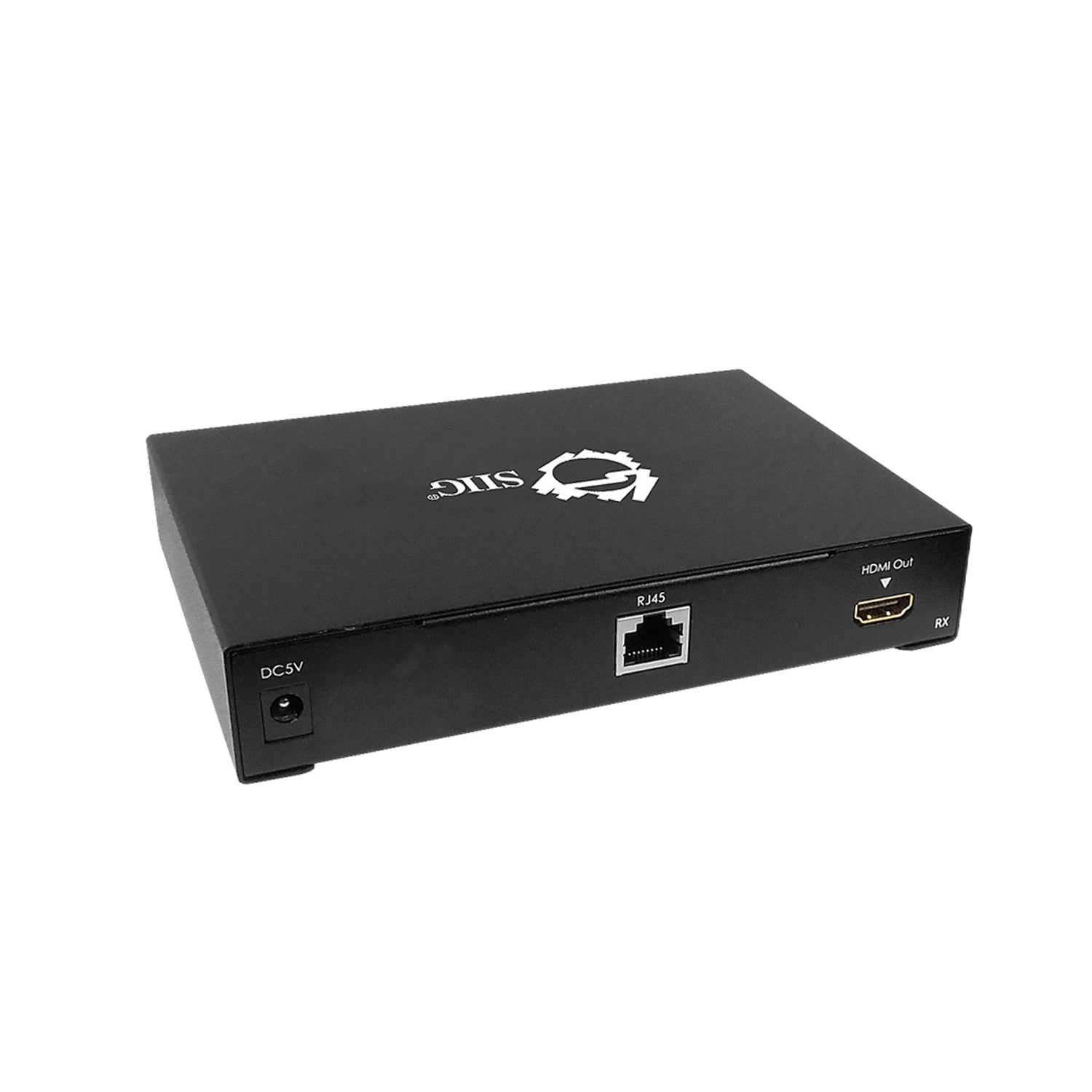

| Connectors | 1x 19-pin HDMI, Type A, Female, Output 1x 3.5mm jack, IR Blaster, Output 1x 8-pin, RJ45, Input |
| Power Adapter | |
| Input | 100-240VAC, 50/60Hz |
| Output | 5VDC/2.5A |
| Product | |
| Dimensions | 6.38″(W) x 4.53″(H) x 1.18″(D) |
| Weight | 1.21 lbs |
| Color | Black |
| Housing Material | Metal |
| Unit Package | |
| Dimensions | 9.92″(W) x 7.80″(H) x 3.78″(D) |
| Weight | 2.20 lbs |
| Master Carton | |
| Dimensions | 19.69″(W) x 16.54″(H) x 11.02″(D) |
| Weight | 24.52 lbs |
| Quantity | 10pcs/ctn |

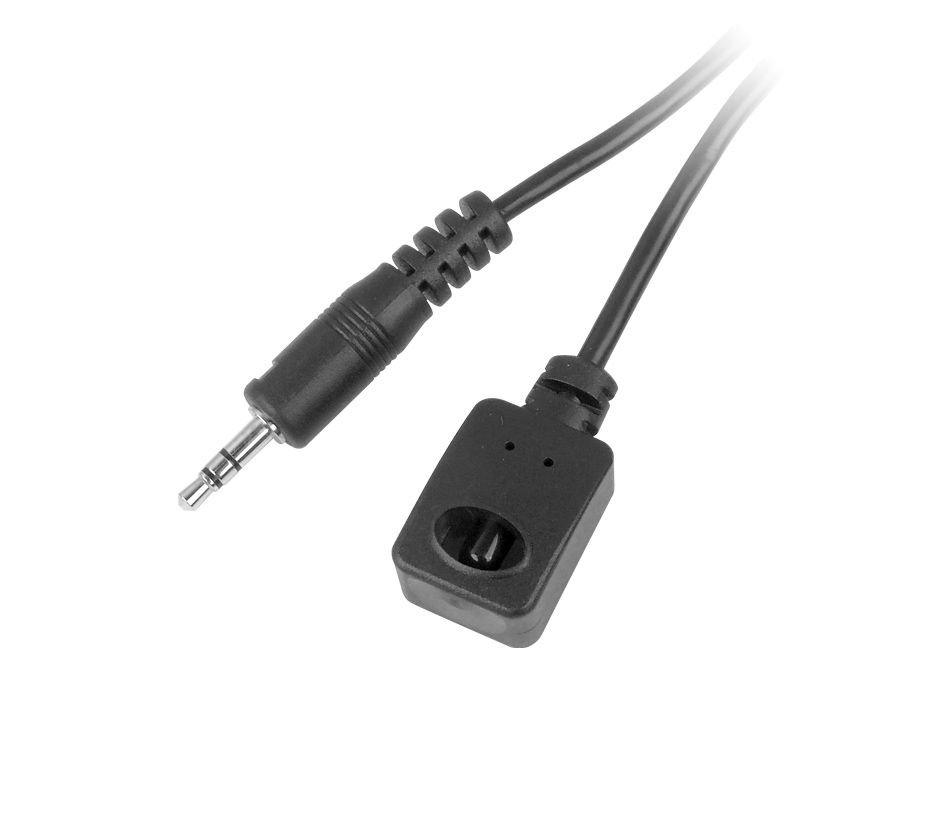

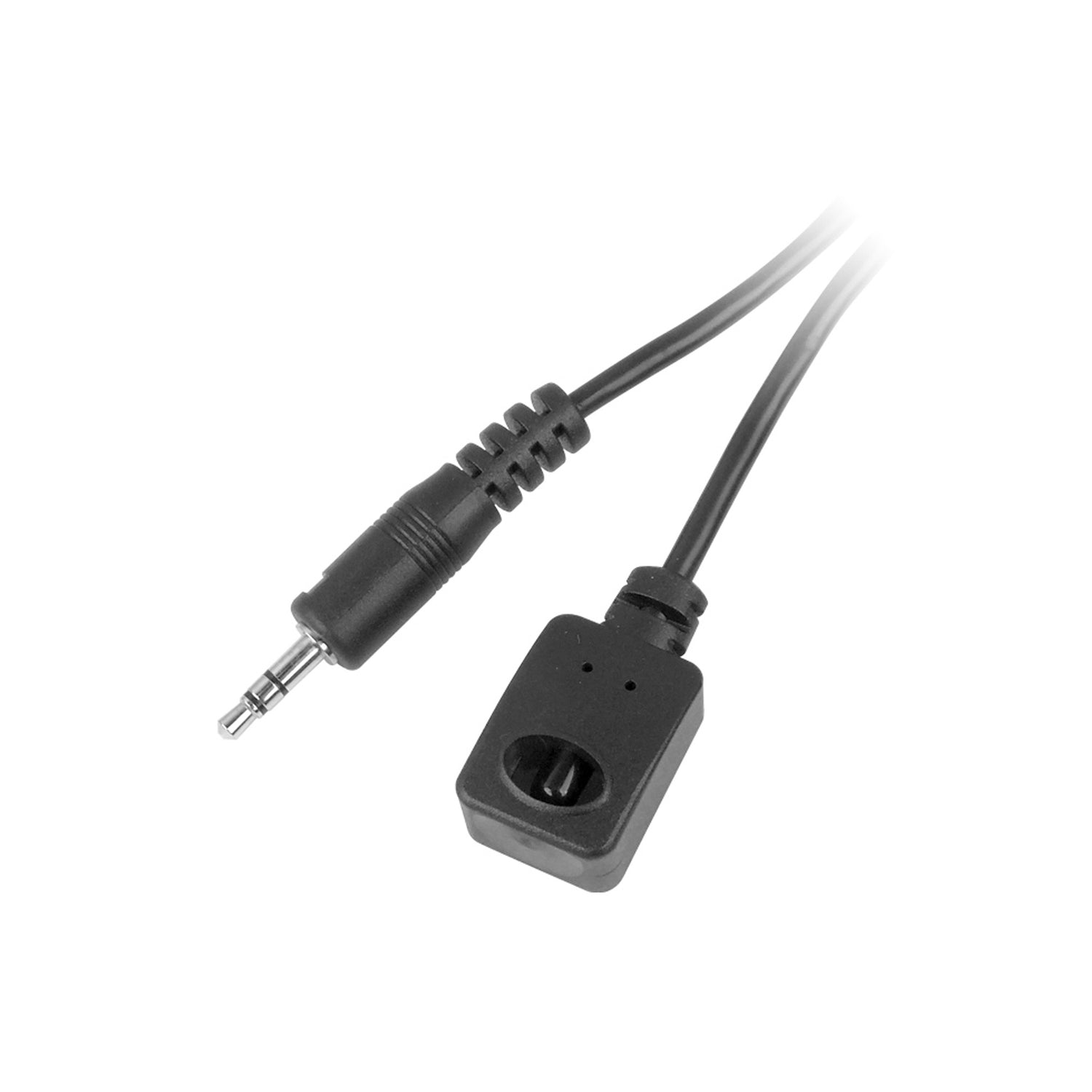

| Package Contents | HDMI Over Gigabit IP Distribution System - Receiver Power Adapter (Output: 5VDC/2.5A) IR Receiver cable Installation guide |
| Environmental Conditions | |
| Operating Temperature | 32 to 104 degrees F |
| Storage Temperature | -4 to 140 degrees F |
| Relative Humidity | 10% to 85% RH (non-condensing) |
| Certifications/Standards | FCC, CE, RoHS |
| Warranty | 3 years limited |
| Country of Origin | Taiwan |
