Extender | SKU: CE-H25E11-S2

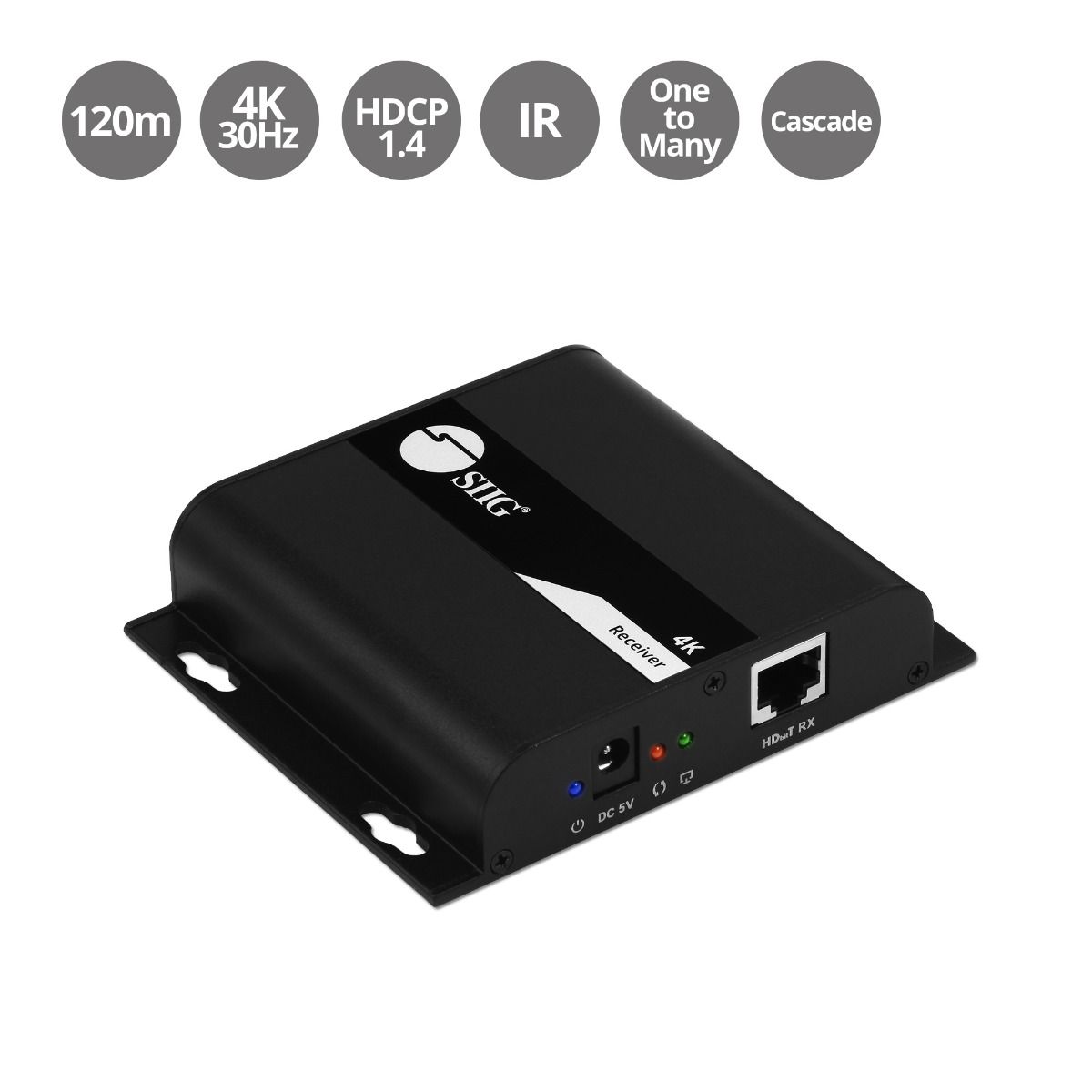

HDMI 4K30Hz HDbitT over IP Extender - Receiver

HDMI over HDBitT
One-to-Many
4K30Hz
Up to 394ft (120m)
IR Control
$149.99
Shipping calculated at checkout.
Product Features

HDMI Extender Receiver

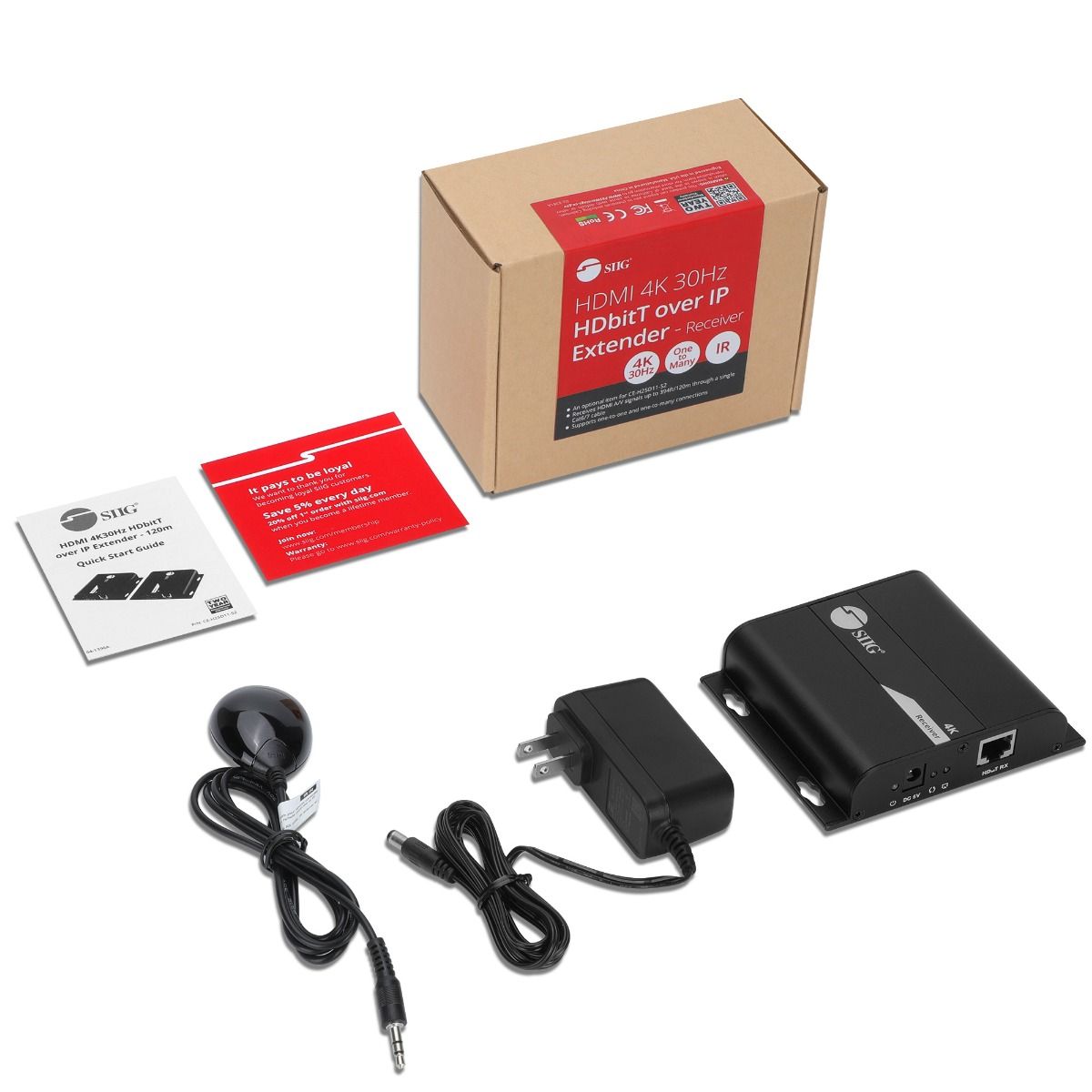

This item is ONLY the Receiver unit for the CE-H25D11-S2 extender kit. One Transmitter allows multiple receivers to be used simultaneously in multiple configurations, extending /splitting HDMI signals to multiple displays.

4K Resolution

Supports up to 4K 30Hz and 1080p. HDMI 1.4 and HDCP 2.2 compliant. Supports 2-channel Stereo Audio. Auto adjustment for different cable lengths to produce the best video/audio experience. We recommend using high-performance pure copper Cat6 cables to ensure reliable performance. Note: Good quality Cat cables are essential in delivering quality content. Cat6/7 is recommended over Cat5e.

Network Distribution

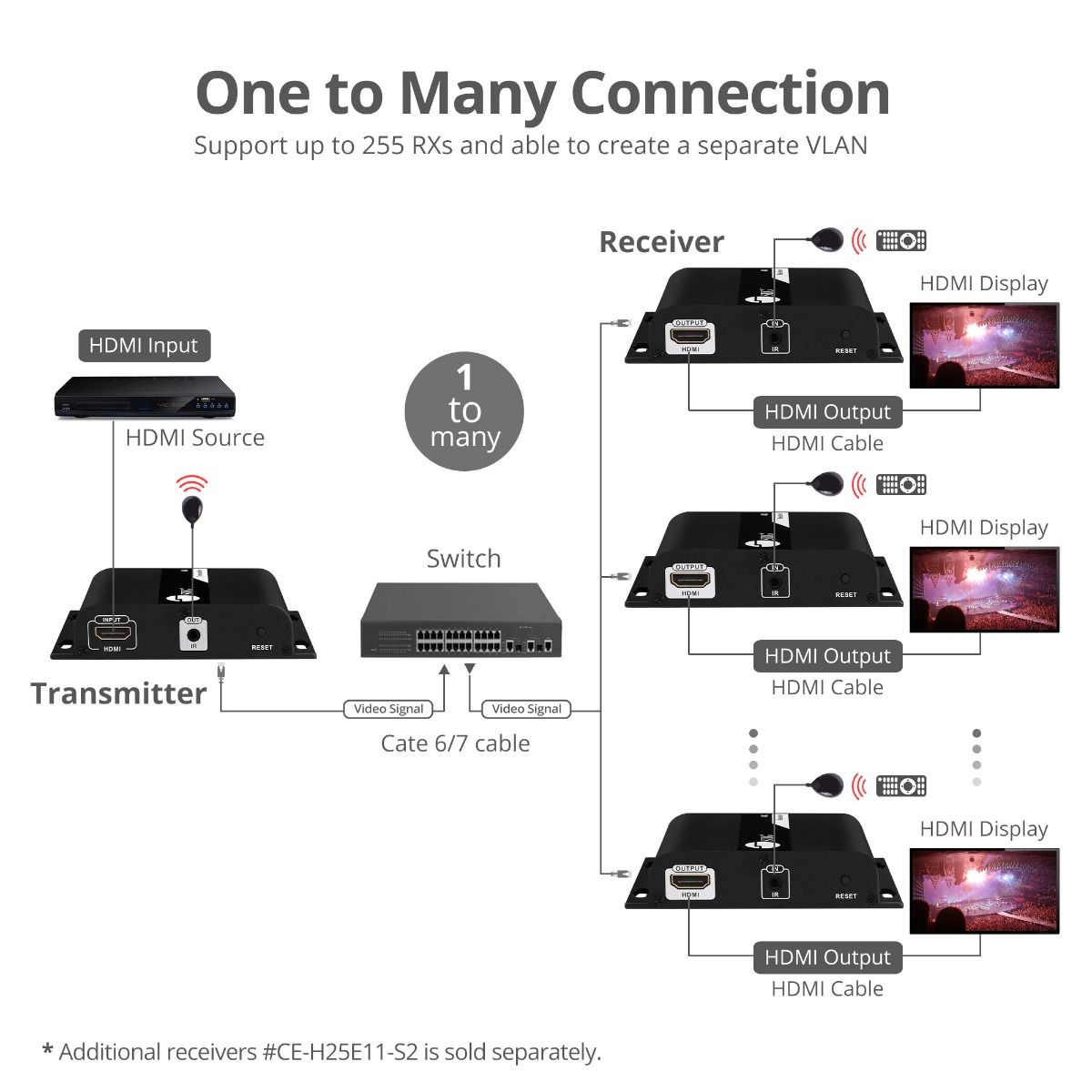

Direct 1-to-1 connection, 1-to-many through unmanaged Gigabit network switches, or many-to-many via VLAN through a Smart Ethernet Switch. With HDBitT transport protocol, connect up to 30 Receivers per Transmitter to not only extend but split HDMI signals to multiple displays.

IR Extension

Allows the source device to recognize remote commands from afar. You can control the HDMI source device at a remote location with the included IR cables that forward commands over a Cat6 cable.

Advanced Features

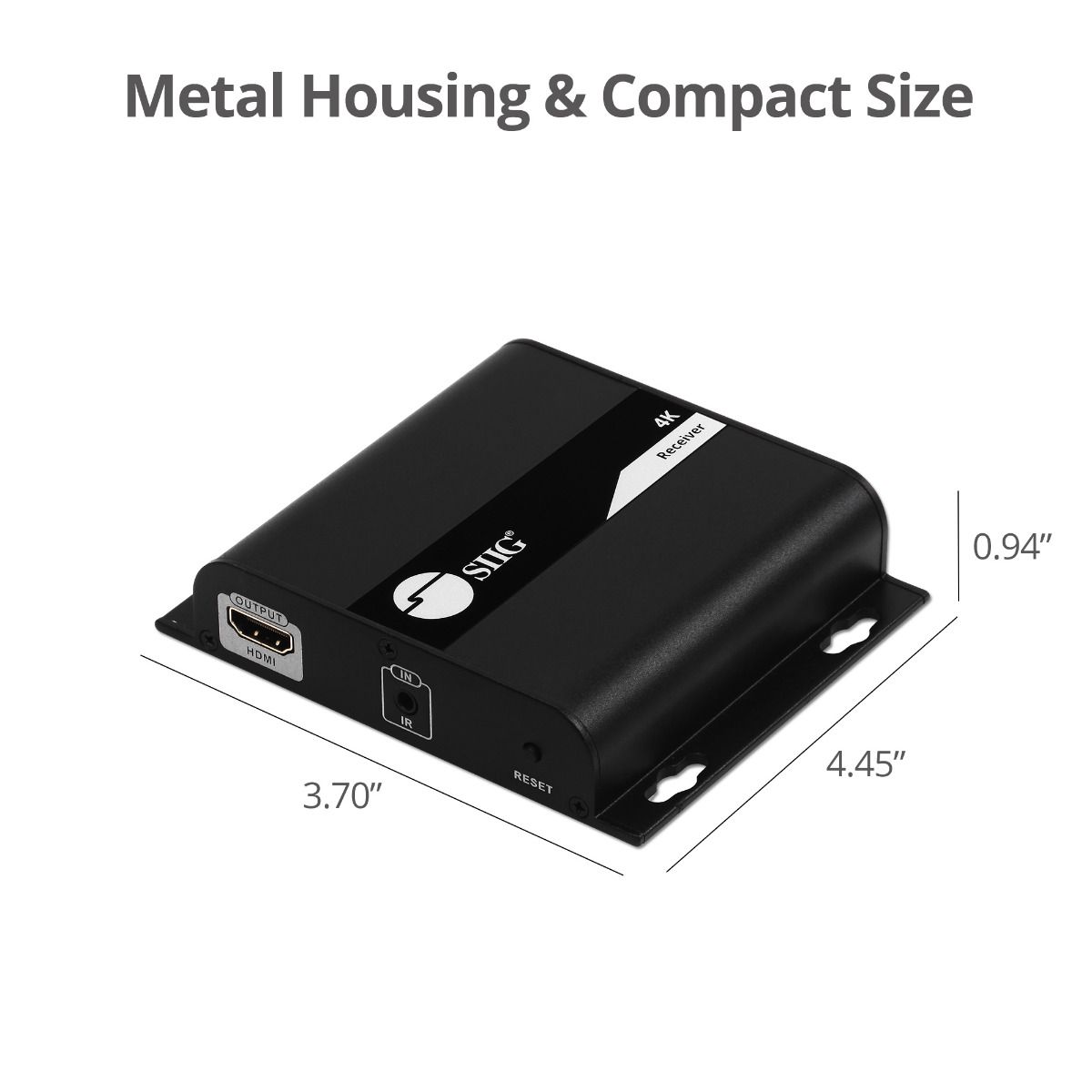

One-directional IR control from RX side to TX side. High-quality surface-mountable metal housing efficiently dissipates heat build-up, to ensure system stability.

  • 45 Days Free Return

  • 2 Years Warranty

  • Lifetime Technical Support

SIIG HDMI 4K30Hz HDbitT over IP Extender - Receiver

    Additional receiver unit for CE-H25D11-S2 kit, adds an additional display to a single transmitter within your network, 4K30Hz, 394ft/120m, HDCP 1.4, One to Many, Many-to-Many, IR Control.
      HDbitT is a new generation audio/video digital connection transmission protocol solution. Provides stable performance, long-distance transmission, and high-definition signal.

      Extend Distance

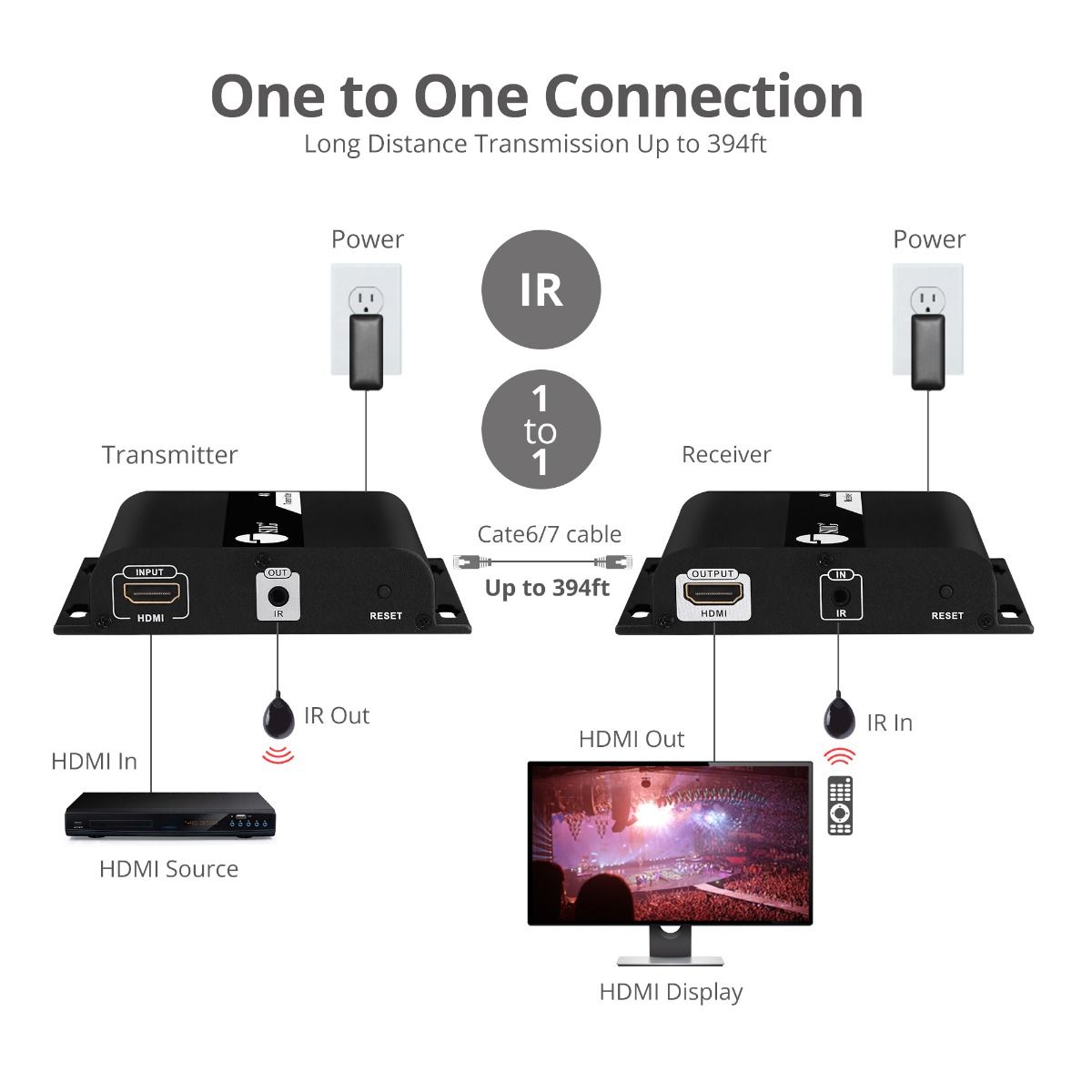

        This HDMI 4K30Hz HDbitT over IP Extender designed for transmission/security, HDMI signals up to 394ft (120m) through HDbitT protocol and Gigabit Ethernet switch to a remote HDMI display.

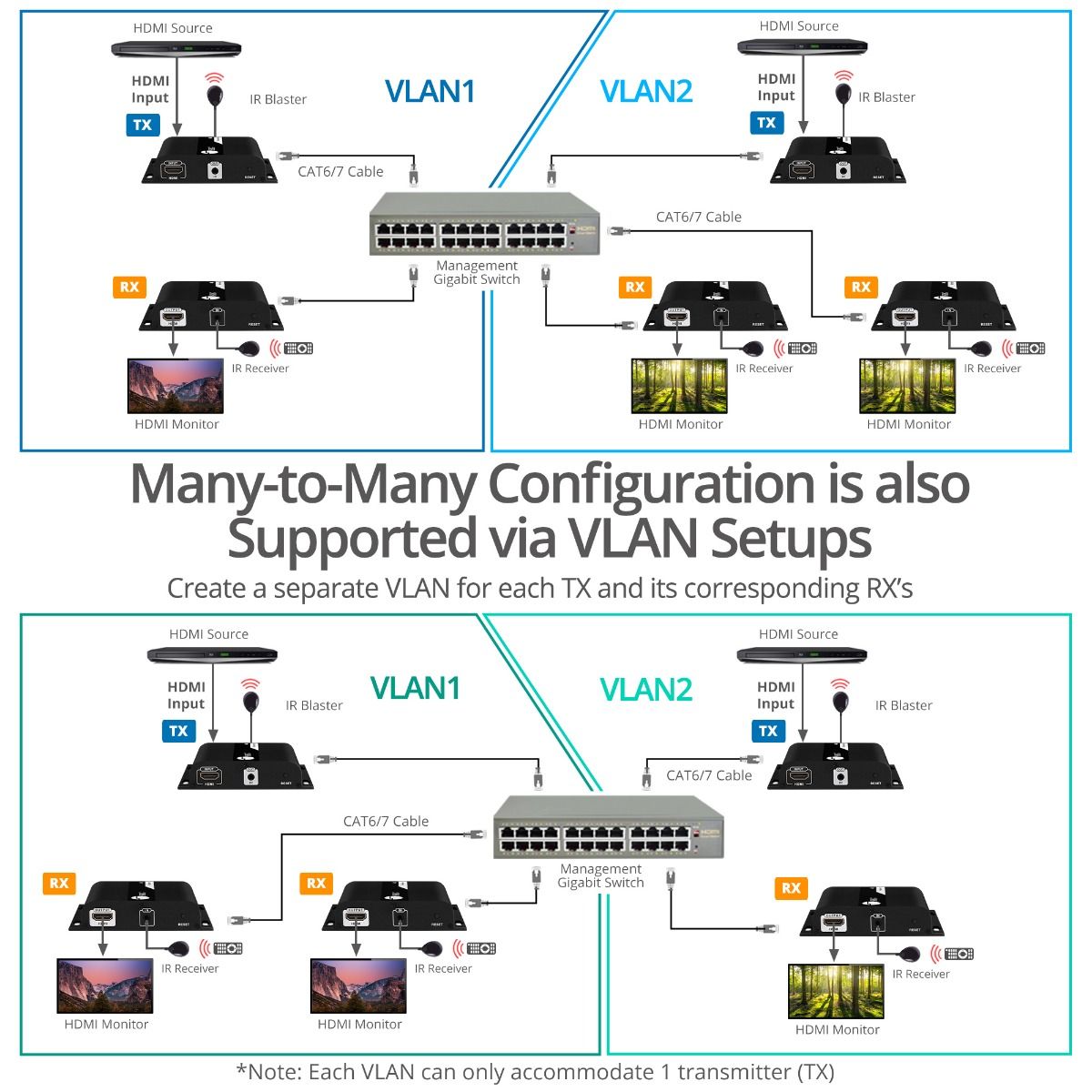

          Supports up to 256 total units (up to 255 RX units) with VLAN configuration for flexible one-to-many distribution. Additional receiver (CE-H25E11-S2) sold separately. IGMP Gigabit Switch recommended for optimal performance and reliability.

          Highly Scalable

          Works as a scalable TX/RX matrix over the dedicated IP network and extends/splits HDMI signals to multiple displays.

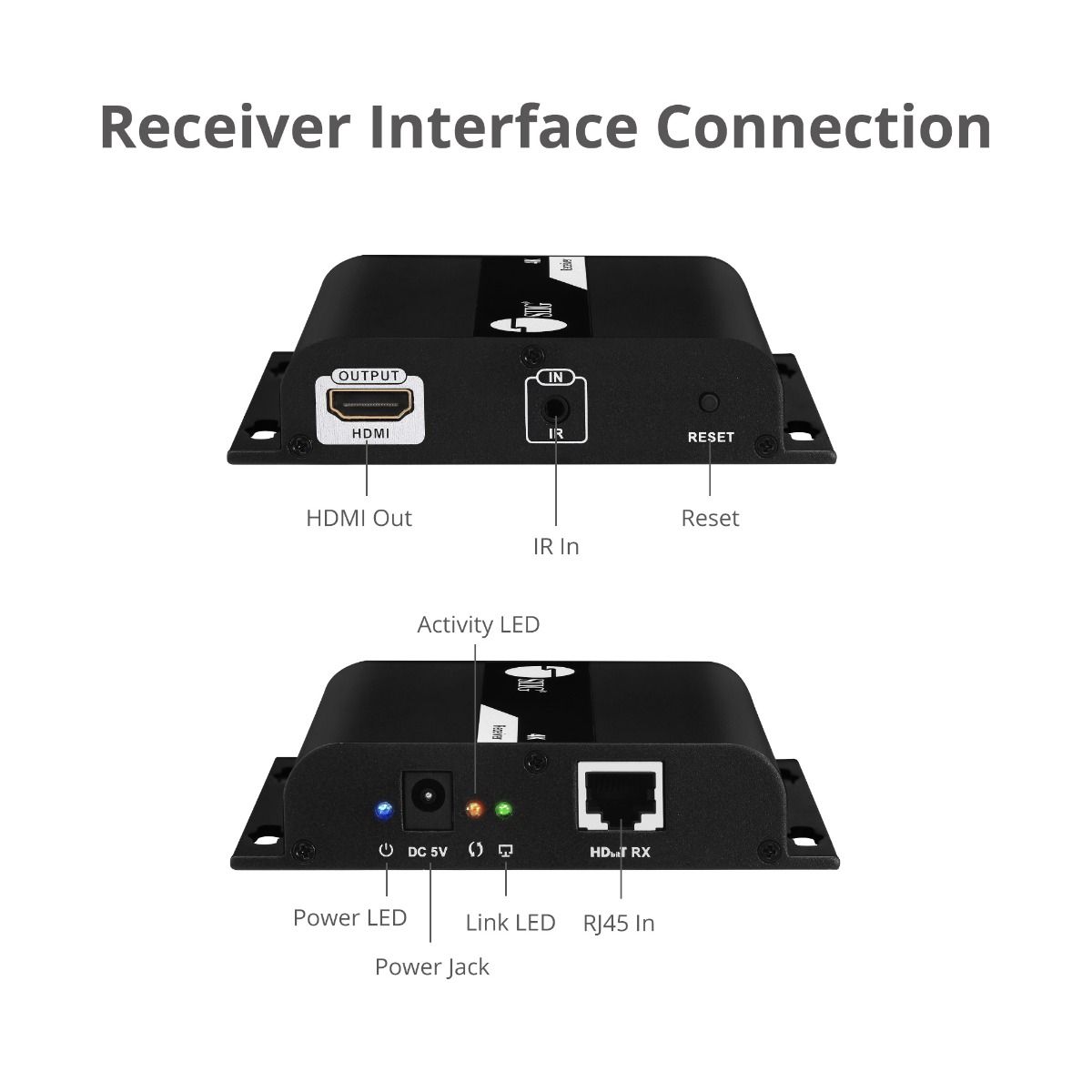

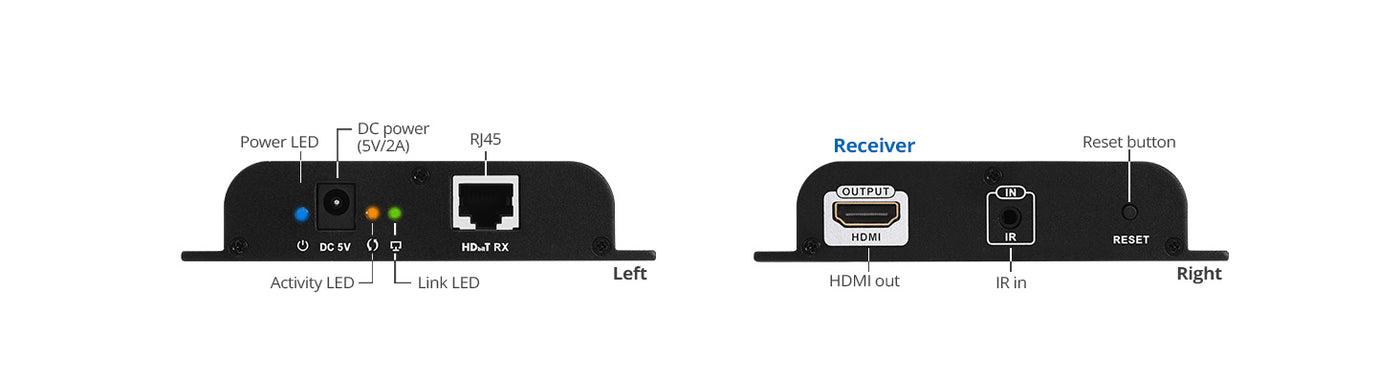

          Multiple Connectivity Ports

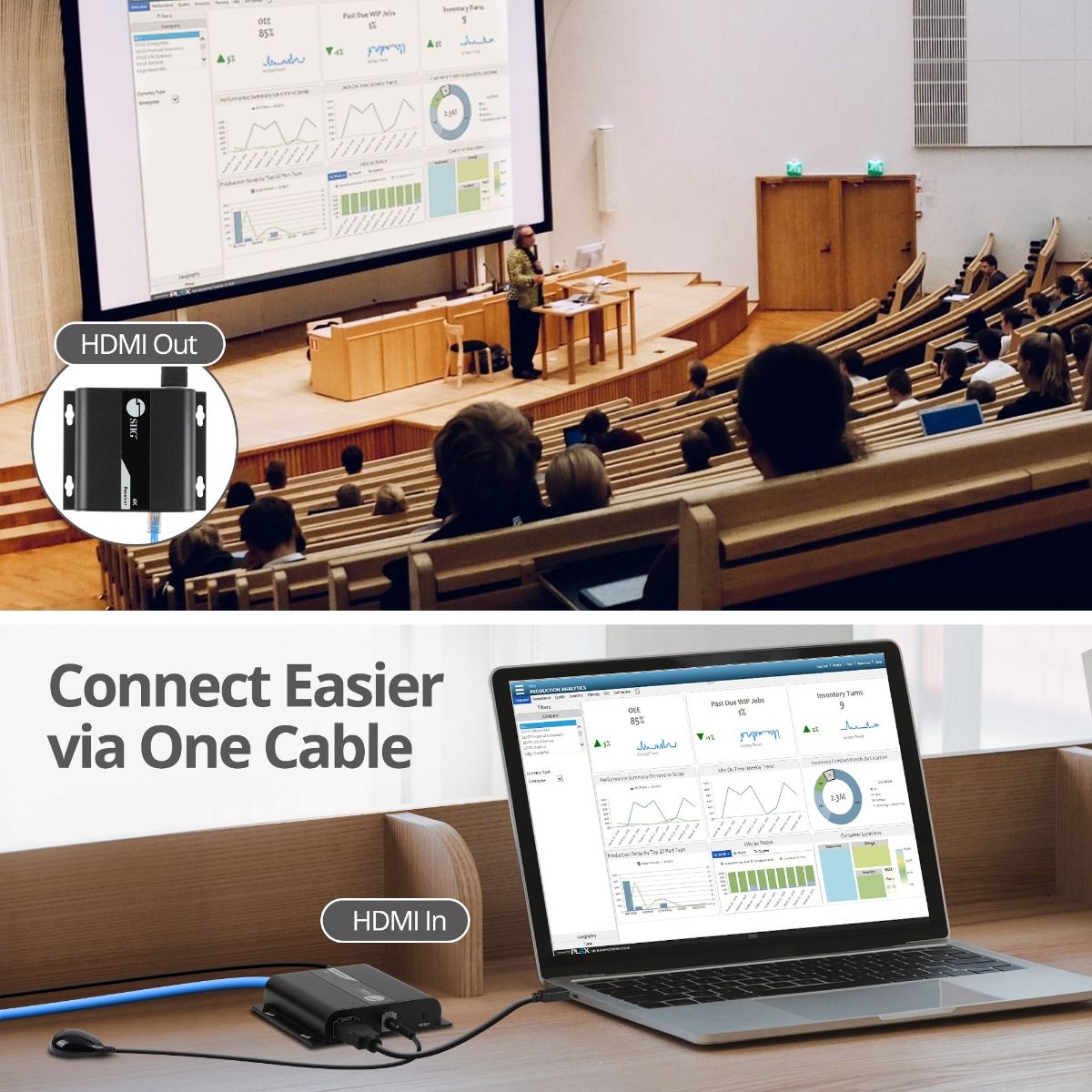

          Applications
