AV-Converter/Adapter |
SKU:
CE-H22J14-S1
HDMI Repeater - 4Kx2K 60Hz
HDMI Repeater
4K60Hz
HDR
USB Power
Up to 99ft (30m)
Regular price
$49.99
Unit price
/
Unavailable
Shipping calculated at checkout.
HDMI Repeater - 4Kx2K 60Hz is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Features
Signal Transmission
Signal Transmission
Video Resolution
Video Resolution

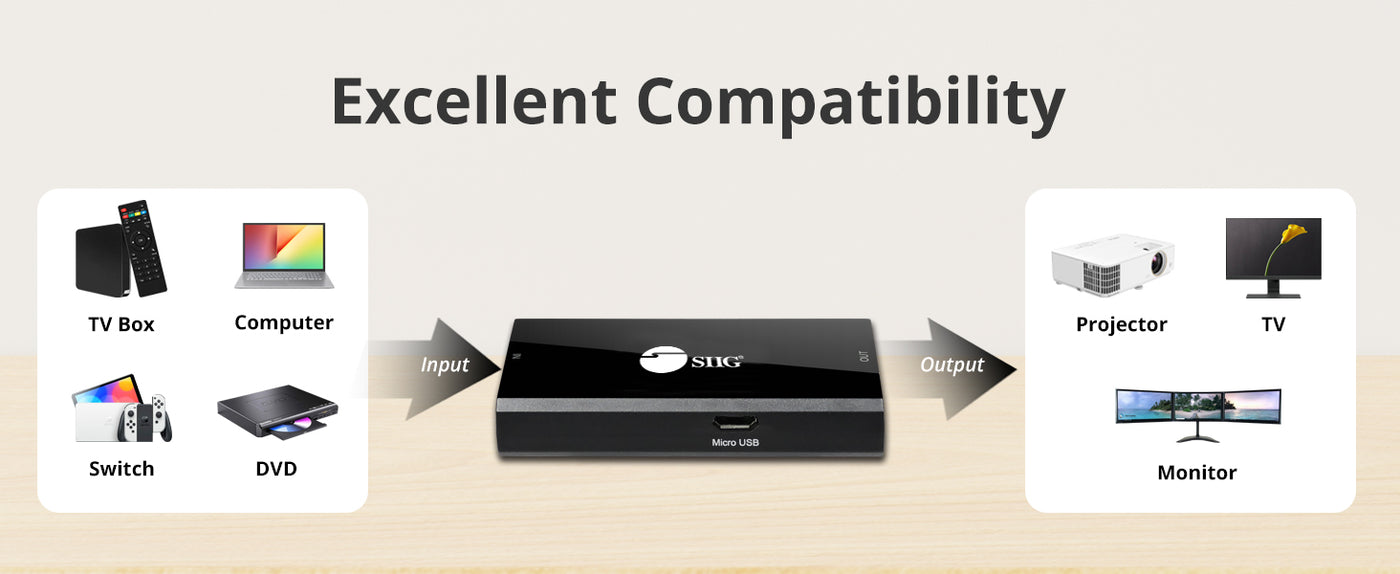

Product Compatibility
Product Compatibility
Advanced Audio Features
Advanced Audio Features
External Power
External Power

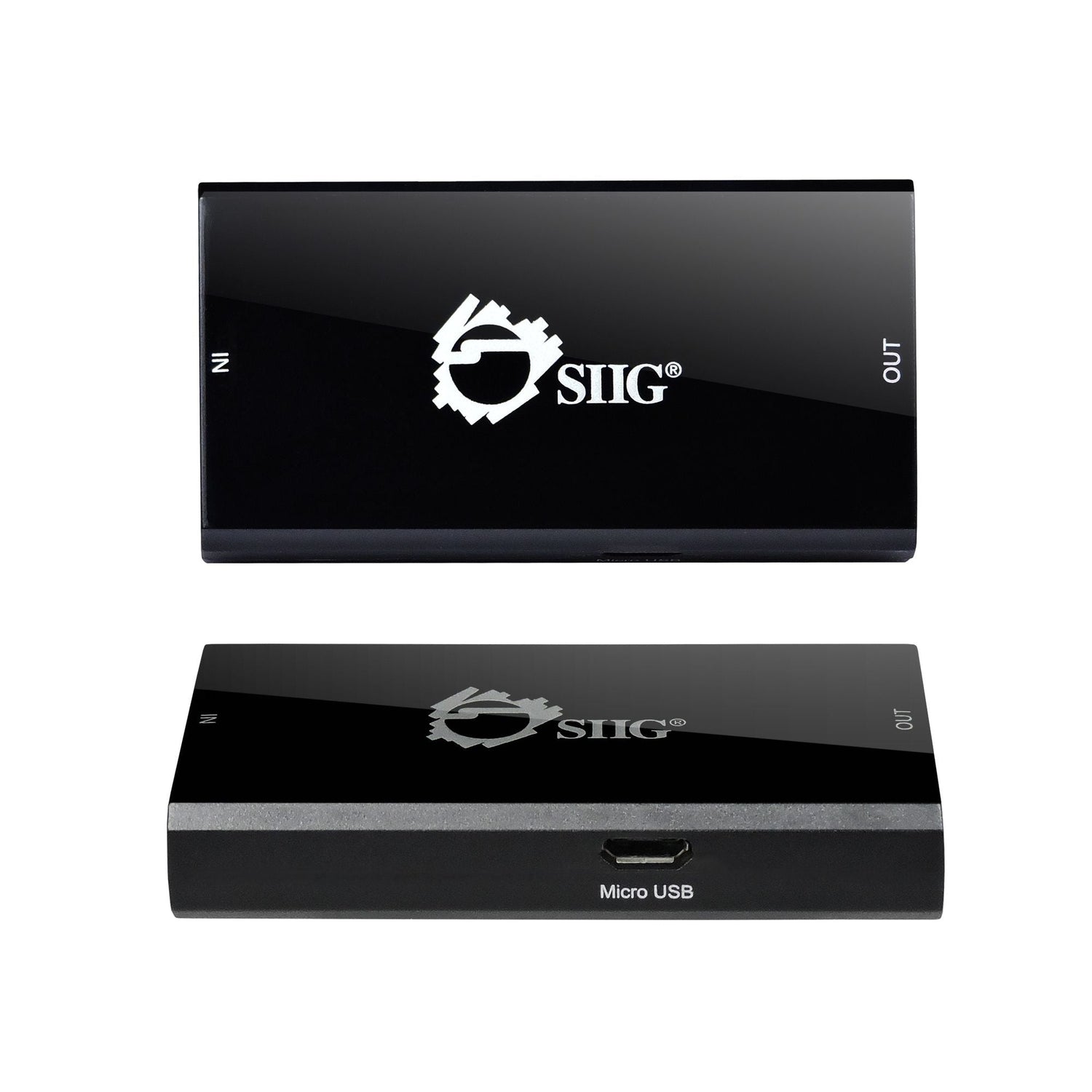

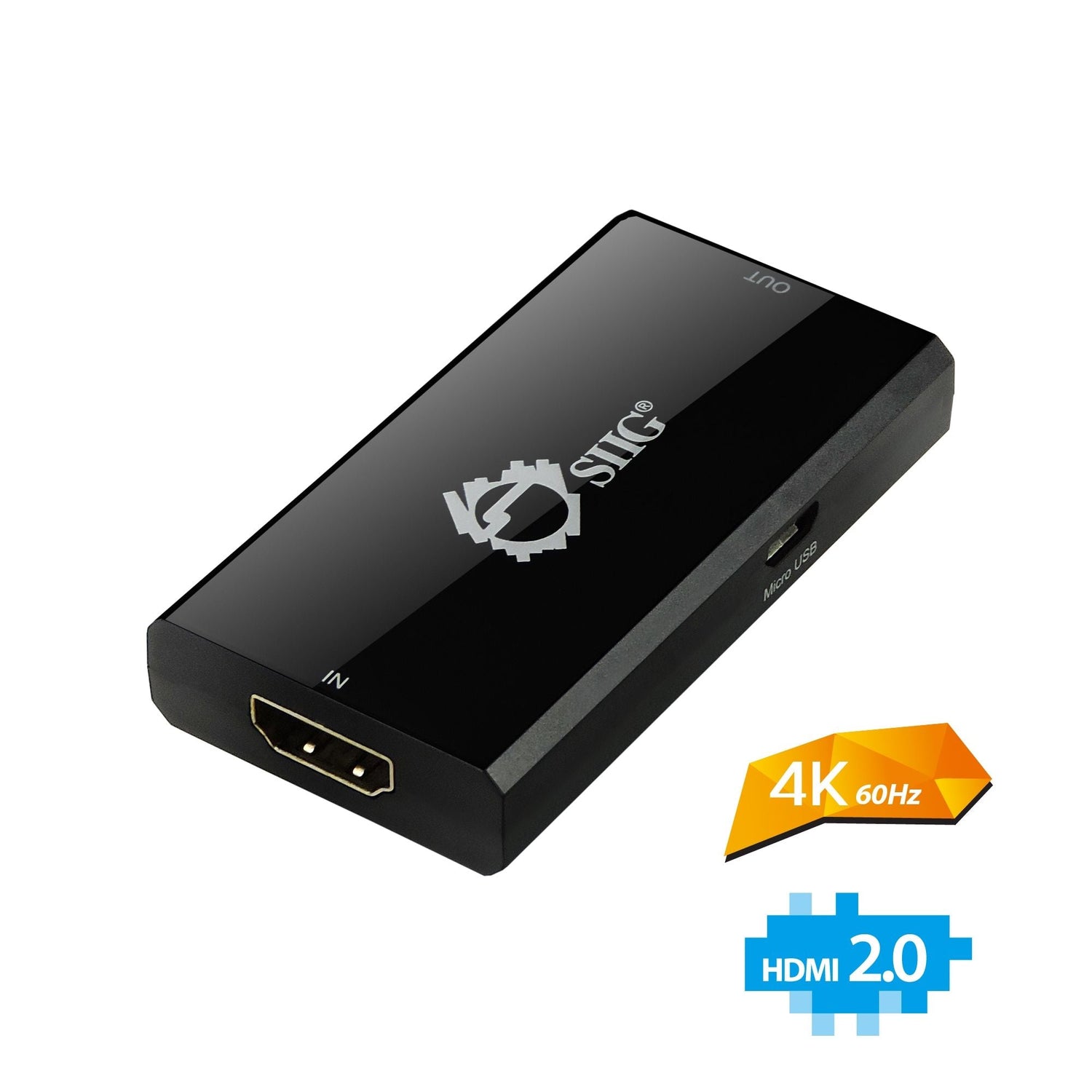

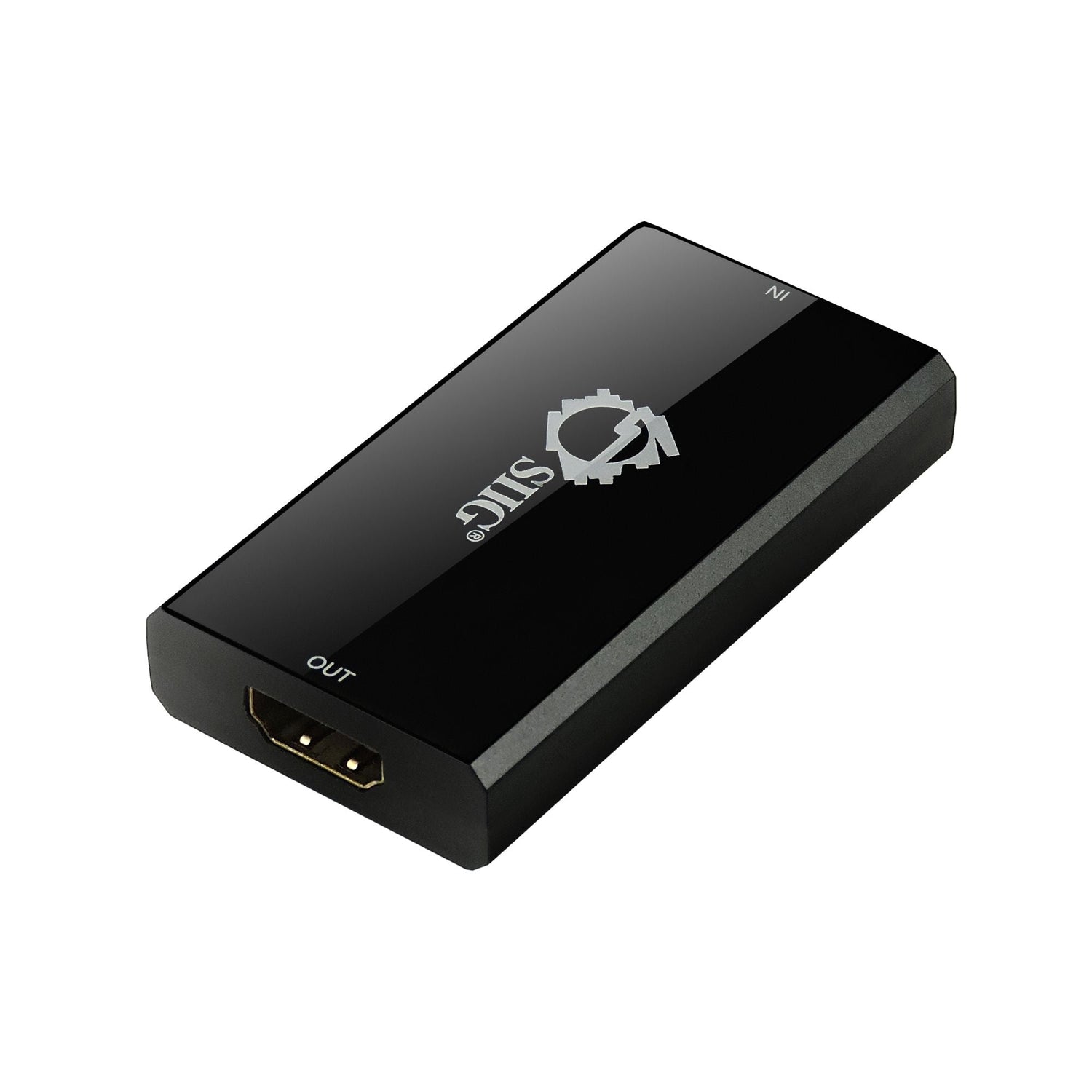

SIIG HDMI Repeater

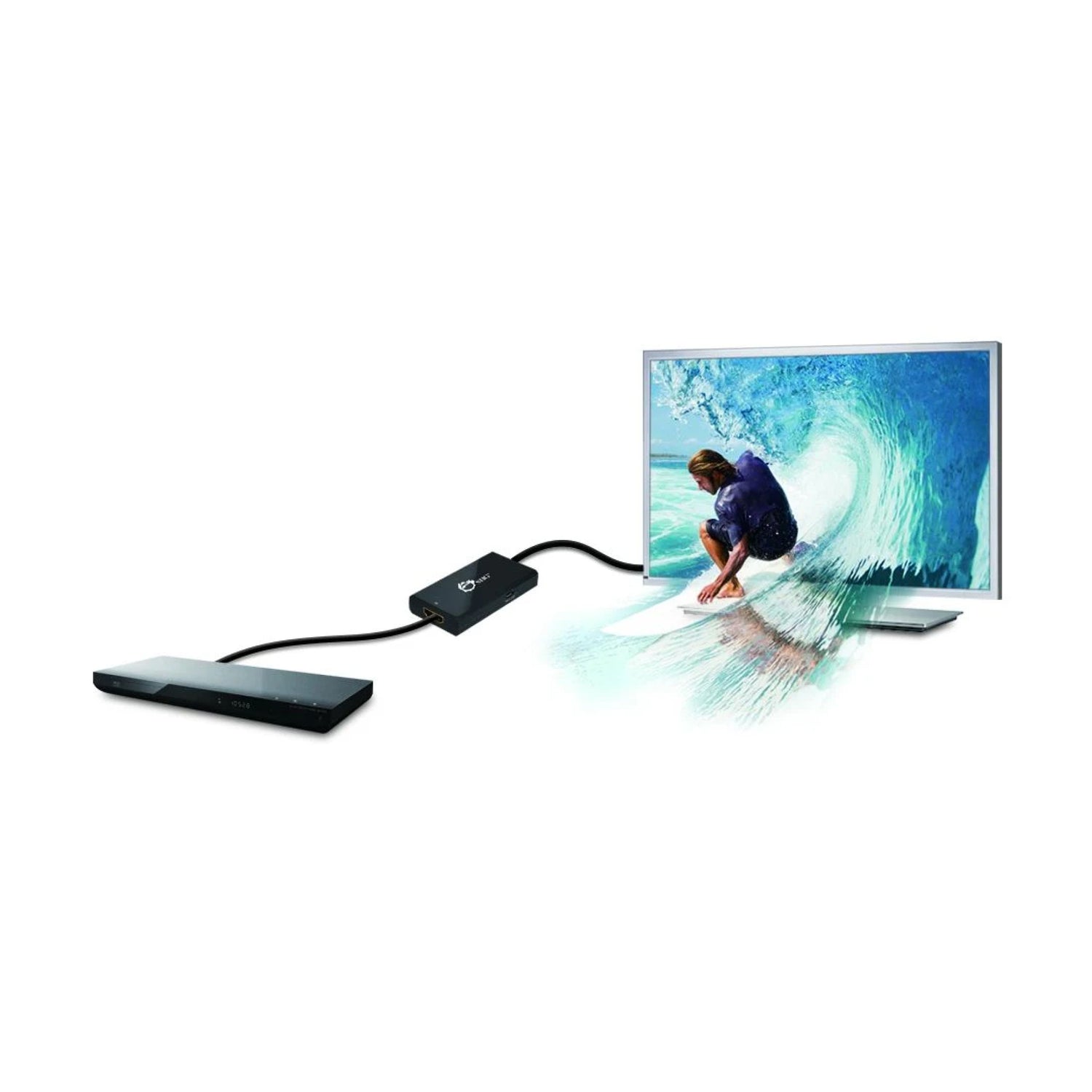

Boost and extend HDMI signals up to 30 meters while maintaining crystal-clear 4K@60Hz video quality. Compliant with HDMI 2.0 and HDCP 2.2, this repeater supports HDR, ARC, 3D, and CEC pass-through for seamless A/V transmission. Designed for stable, long-distance connectivity, it features an optional Micro USB power input to ensure reliable performance in demanding setups.
| Chipset | Texas Insttruments TMDS181 |
| Resolution | Up to 4K (3840x2160) @60Hz (UHD) |
| Transmission Distance* | 24AWG HDMI 2.0 cable |

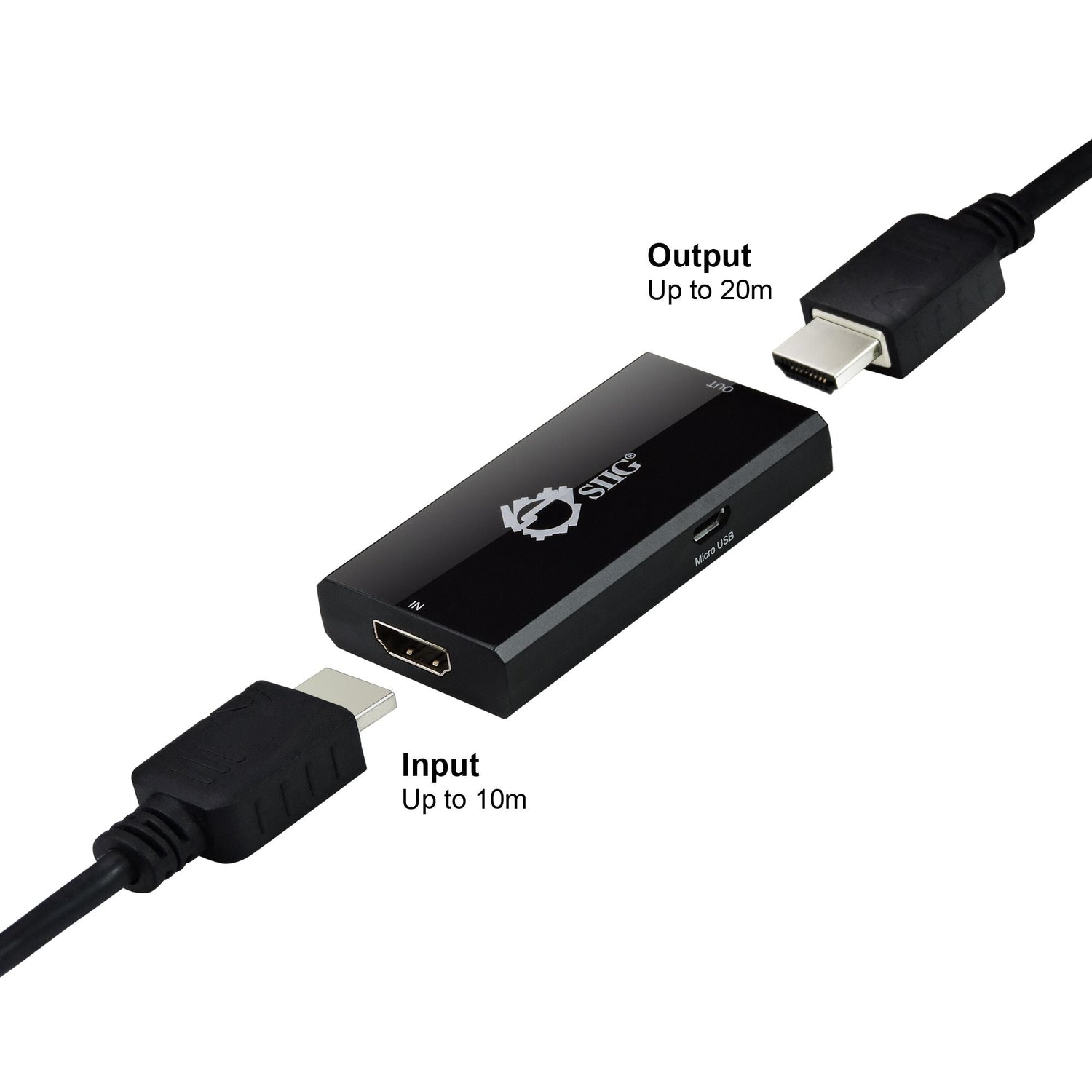

| 4K 60Hz/30Hz | Up to 30 meters (10m [input] + 20m [output]) *Note: Micro USB power input maybe required at 4K resolutions depending on the quality of the HDMI cables |

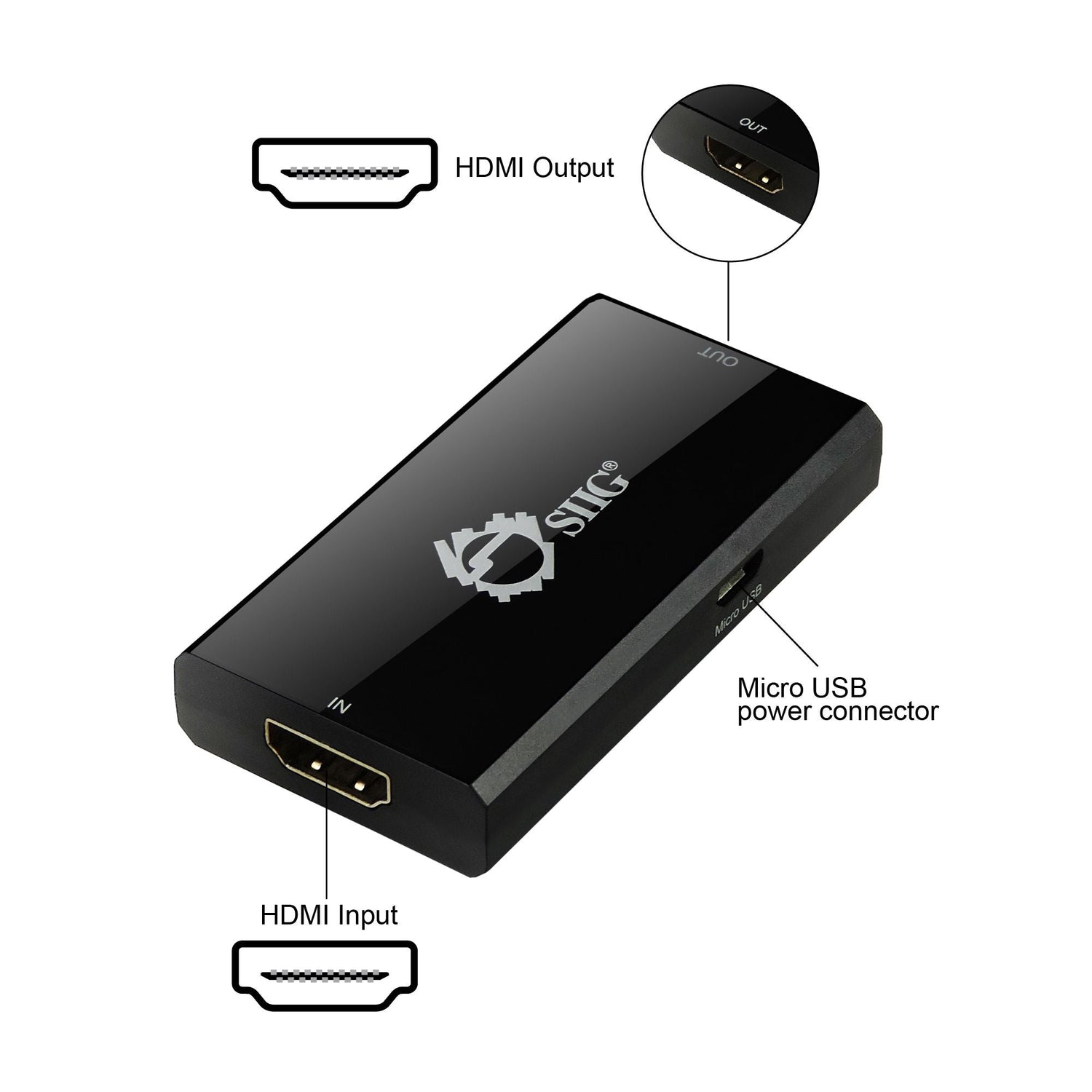

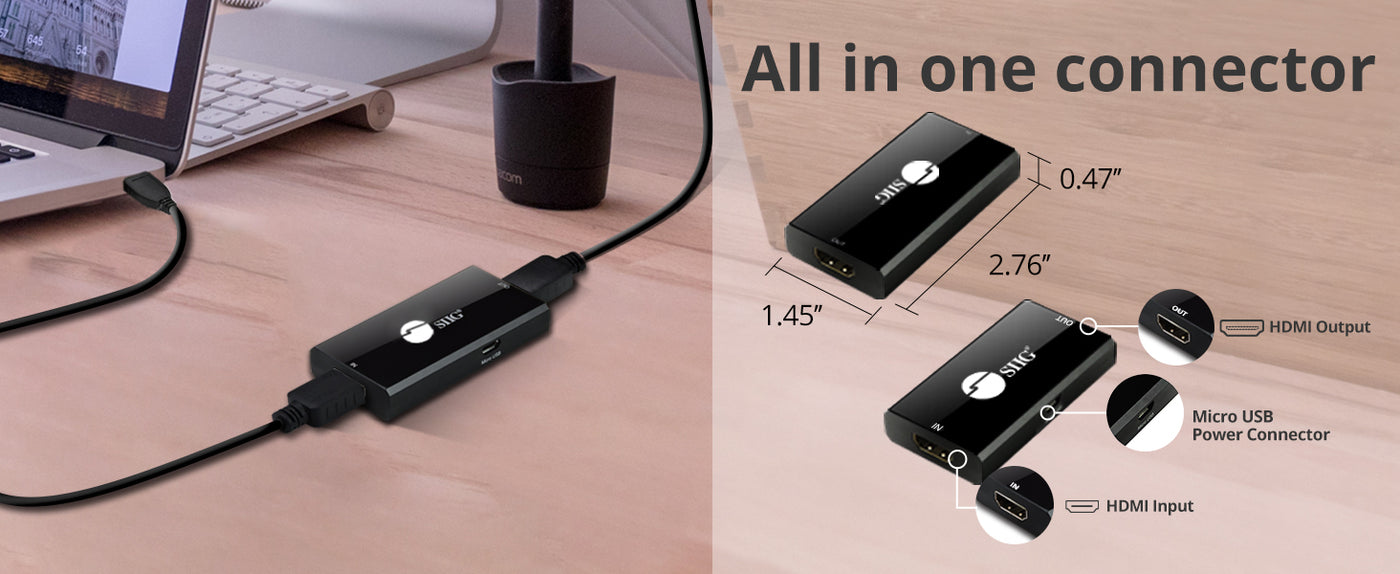

| Connectors | 1x 19-pin, HDMI, Type-A, female, input 1x 19-pin, HDMI, Type-A, female, output 1x 5-pin, Micro USB, female, USB Power-in |

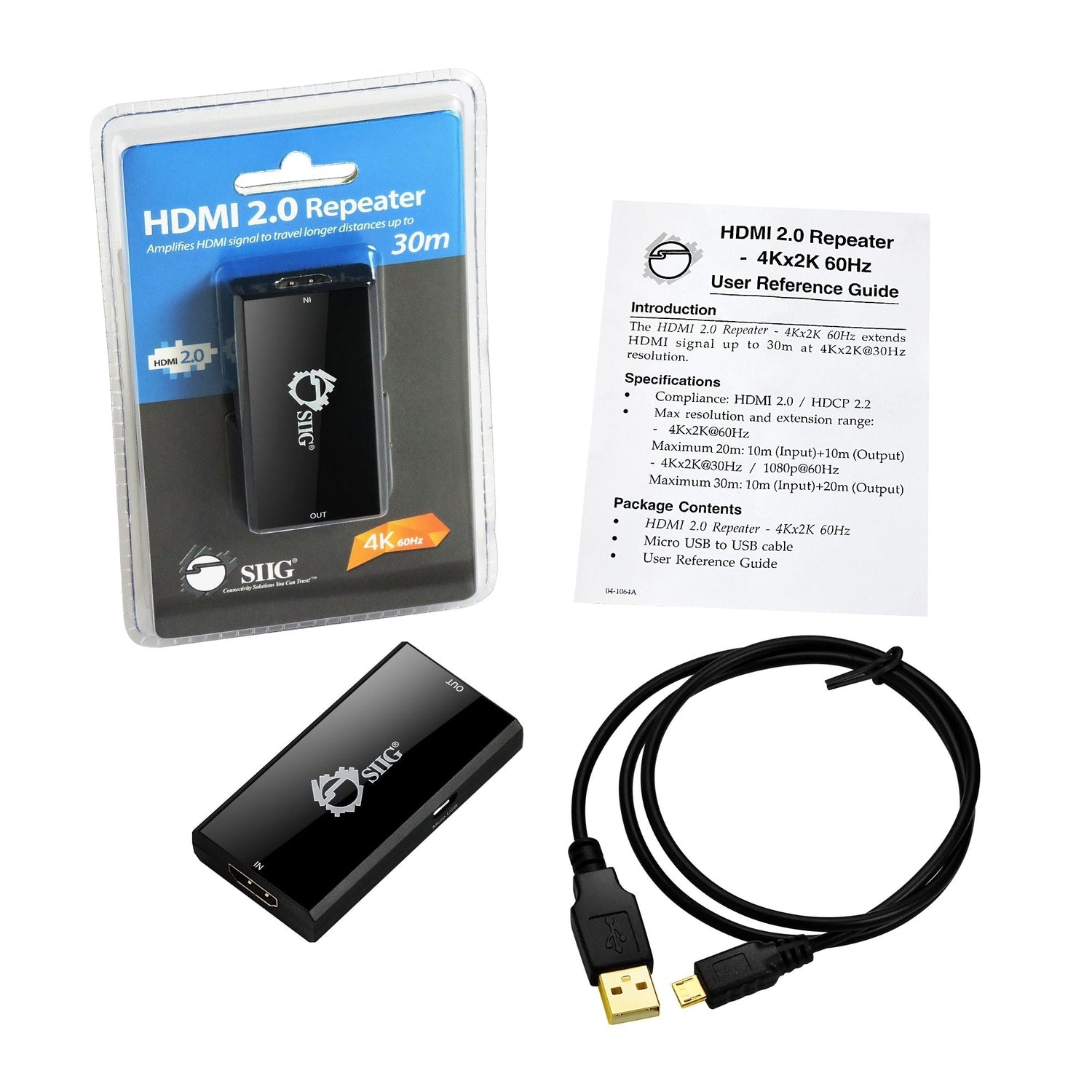

| Package Contents | 1x HDMI Repeater- 4Kx2K 60Hz 1x USB to Micro B cable 1x Installation guide |
| Environmental Conditions | |
| Operating Temperature | 32 to 122 degrees F |
| Storage Temperature | 14 to 140 degrees F |
| Relative Humidity | 5% to 85% RH (non-condensing) |
| Certifications/Standards | FCC, CE, RoHS |
| UPC Code | 662774-040325 |
| Product | |

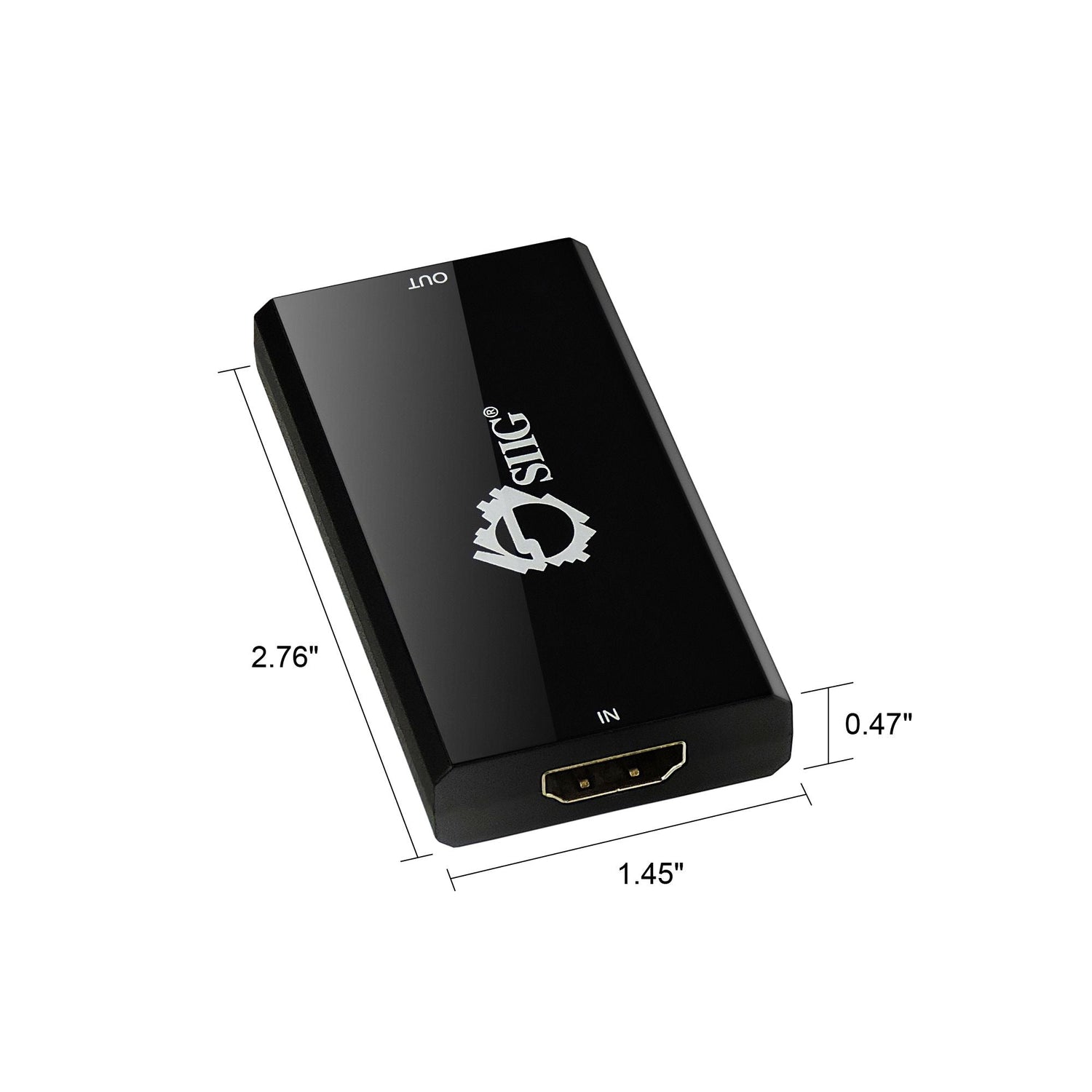

| Dimensions (L) x (H) x (W) | 2.76" x 1.45" x 0.47" 7.01 cm x 3.68 cm x 1.19 cm |
| Weight | 0.04 lbs (0.02 kg) |
| Color | Black |
| Housing Material | ABS plastic |
| Unit Package | |
| Dimensions (L) x (H) x (W) | 6.46″ x4.09″ x2.05″ 16.41 cm x 10.39 cm x 5.21 cm |
| Weight | 0.17 lbs (0.08 kg) |
| Master Carton | |
| Dimensions (L) x (H) x (W) | 15.94″ x 9.25″ x 19.49″ 40.49 cm x 23.50 cm x 49.50 cm |
| Weight | 11.24 lbs (5.10 kg) |
| Quantity | 50pcs/ctn |
| Warranty | 1 year limited |
| Country of origin | China |
