Extender |
SKU:
CE-H25811-S1
HDMI 2.0 AV Over IP SDVoE - Decoder
AV Over IP Decoder
4K60Hz
IR Bi-direction
Up to 100m
SDVoE
Regular price
$2,199.99
Unit price
/
Unavailable
Shipping calculated at checkout.
HDMI 2.0 AV Over IP SDVoE - Decoder is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Features
SDVoE overIP Technology
SDVoE overIP Technology
HDMI Extension
HDMI Extension
AptoVision BlueRiver™ NT+ technology
AptoVision BlueRiver™ NT+ technology
Zero Latency
Zero Latency
Control Methods
Control Methods
No content found
| Video | |
| HDMI | 1x output |

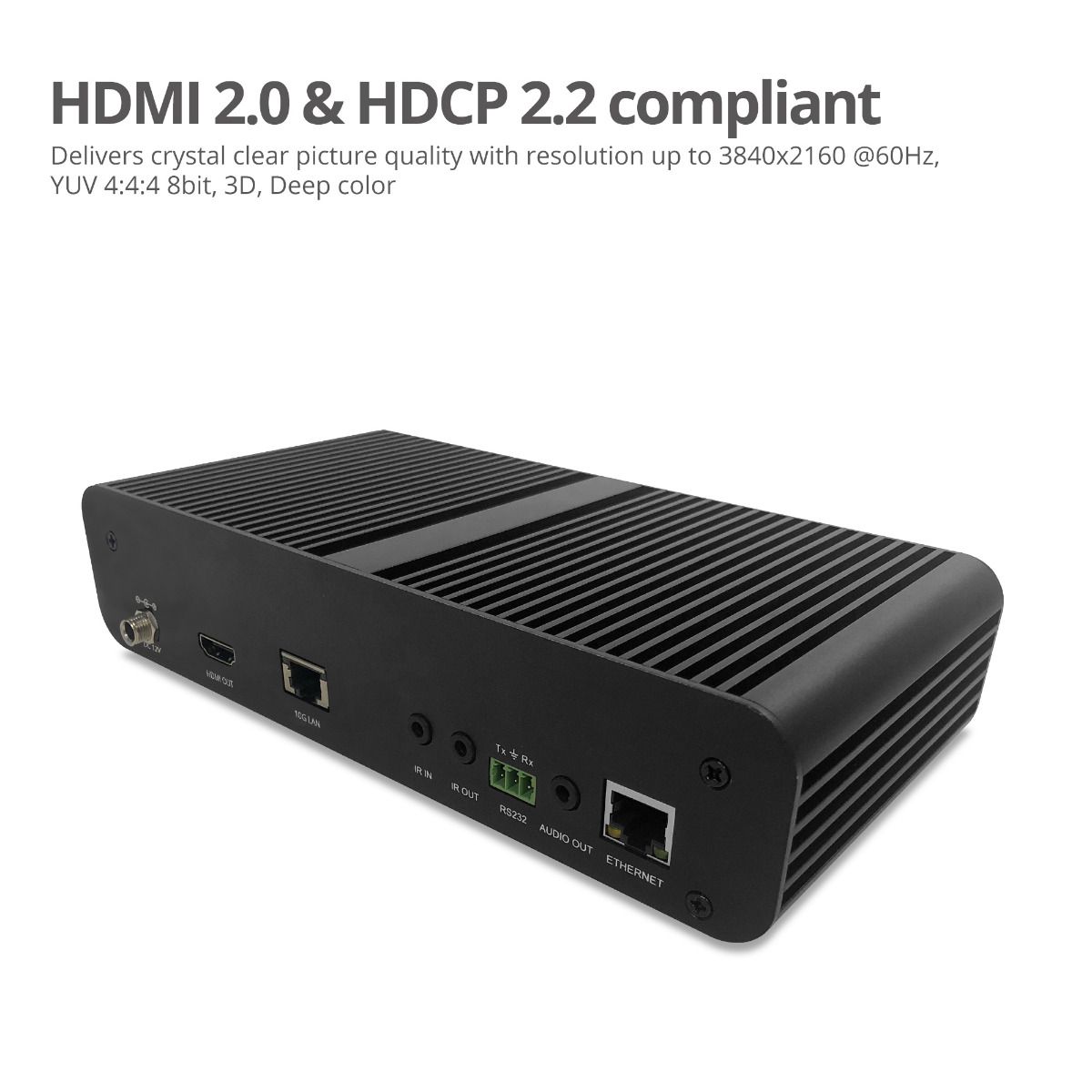

| Standard | HDMI 2.0, HDCP 2.2 compliant SDVoE AV over IP Technology AptoVision BlueRiver NT+ technology solution |
| Video Bandwidth | Up to 18Gbps (600MHz per channel) |
| Resolution | Up to 4Kx2K 60Hz YUV 4:4:4 8bit / YUV 4:2:0 10bit HDR, Deep Color, 3D |
| EDID Management | Yes |
| Audio | LPCM and DTS-HD in Dolby True HD (7.1 CH) |

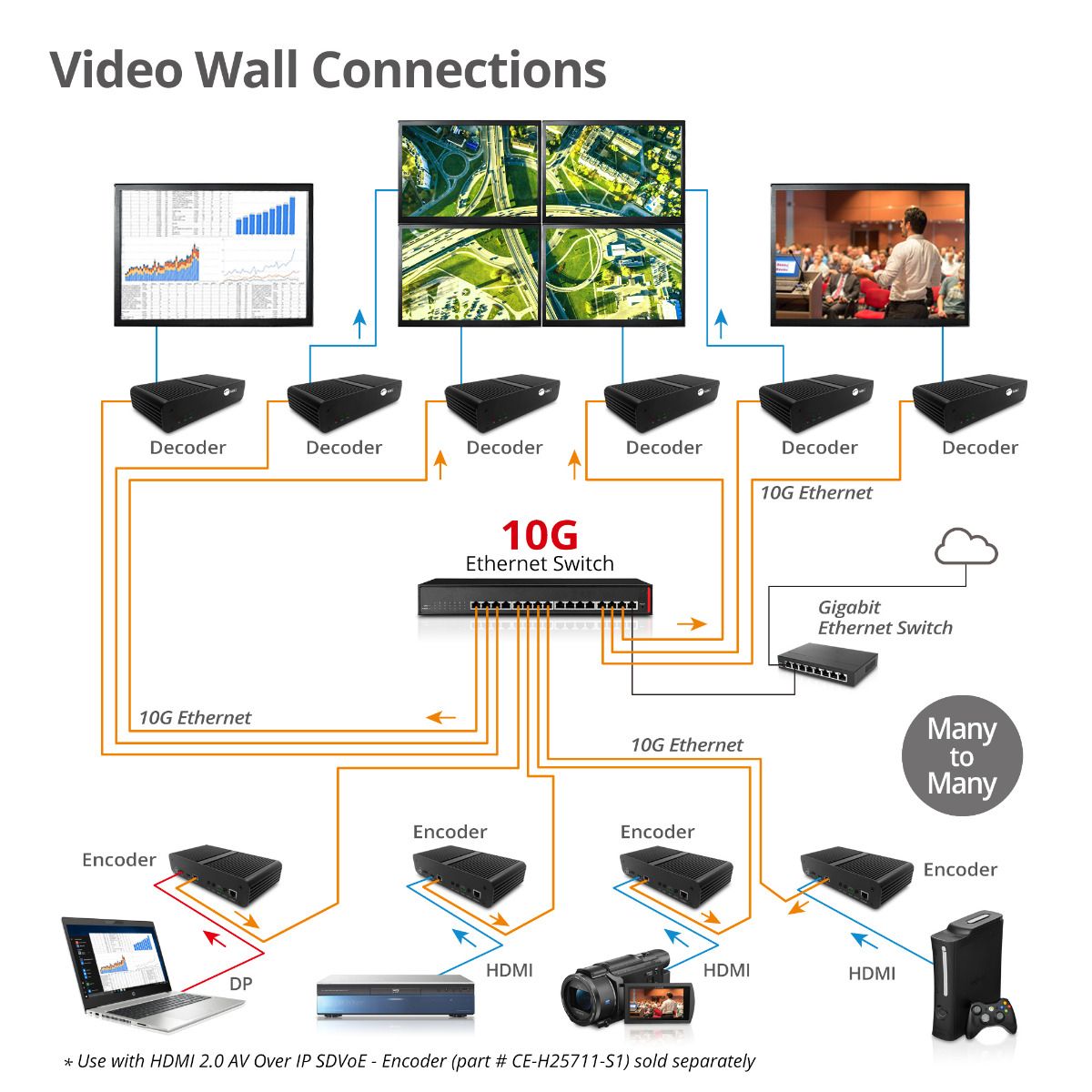

| Applications | One-to-One (Extender) One-to-Many (Splitter) Many-to-Many (Matrix Switcher) |
| IR Signal | Full Frequency: 20KHz to 60KHz |
| RS-232 Control | Full duplex, up to 115,200bps |
| Power Adapter | |
| Input | 100-240V, 50 / 60Hz |
| Output | DC 12V / 2A |
| UL Listed | E335801 / Class VI |
| Interface | 1x 19-pin HDMI, Type A, female, output 1x 8-pin, RJ45, 10G LAN, AV input (to Encoder or 10G switch) 1x 3.5mm jack, IR in 1x 3.5mm jack, IR out 1x 3-Pin, RS-232, Phoenix connector 1x 3.5mm jack, audio output 1x Power jack 1x 8-pin, RJ45 ethernet, PC or network control |
| System Requirements | HDMI 2.0 AV over IP SDVoE - Encoder, part# CE-H25711-S1, sold separately 10Gbps Ethernet Switch for One-to-Many, Many-to-Many, and Video Wall configurations Cat6 / Cat6a / Cat7 solid copper networking cable |
| Product | |

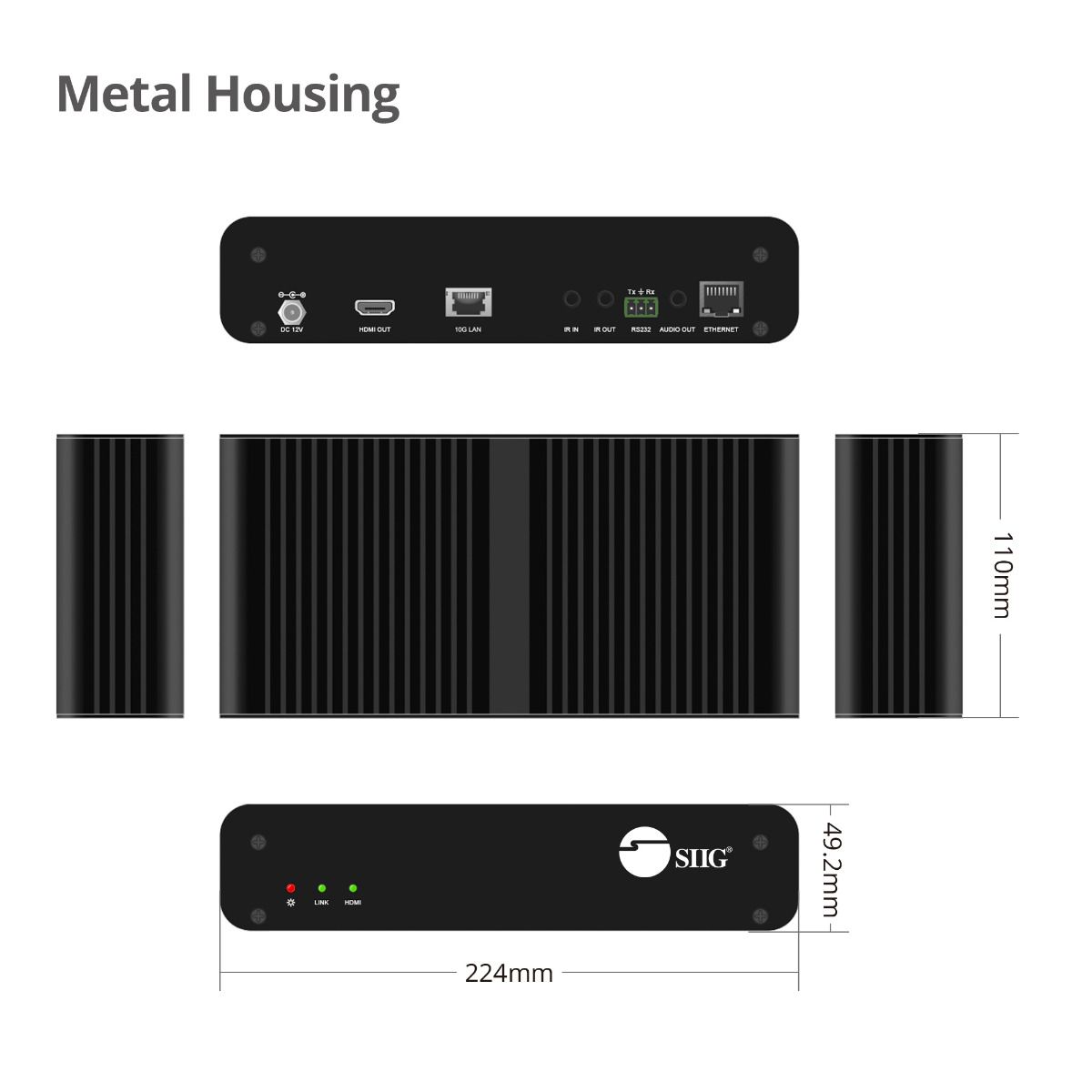

| Dimensions (L) x (H) x (W) | 8.82″ x 1.94″ x 4.33″ 22.40 cm x 4.93 cm x 11.00 cm |
| Weight | 2.54 lbs (1.15 kg) |
| Color | Black |
| Unit Package | |
| Dimensions (L) x (H) x (W) | 10.83″ x 5.32″ x 6.50″ 27.51 cm x 13.51 cm x 16.51 cm |
| Weight | 3.55 lbs (1.61 kg) |
| Package Contents | 1x HDMI 2.0 AV Over IP SDVoE - Decoder 1x Power adapter 1x Terminal block 2x Mounting ears 14x Screw Kit 4x Rubber pad 1x User reference guide |
| Environmental Conditions | |
| Operating Temperature | 14° to 131° F |
| Storage Temperature | -4° to 158° F |
| Relative Humidity | 5% to 90% RH (non-condensing) |
| Certifications/Standards | FCC, CE, RoHS |
| UPC Code | 662774-043012 |
| Warranty | 2 years limited |
| Country of Origin | China |
No content found
Drivers (Hardware Version: 1)
