HDMI 4K HDR with Audio Extractor & ARC
HDMI 4K HDR with Audio Extractor & ARC is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Features

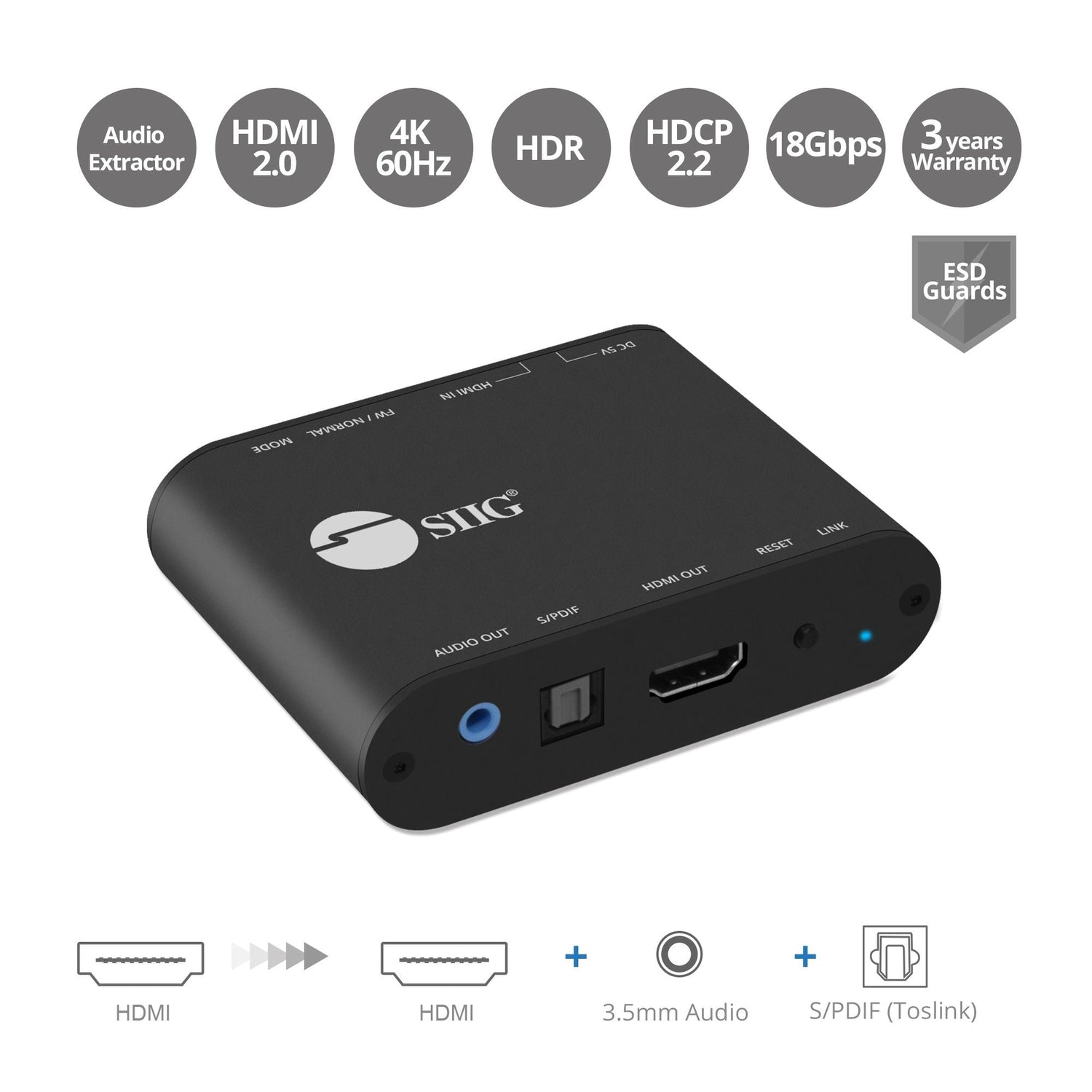

4K HDMI Audio Extractor with ARC
4K HDMI Audio Extractor with ARC
Upgrade Your Audio Experience
Upgrade Your Audio Experience
True 4K60Hz HDR Performance
True 4K60Hz HDR Performance

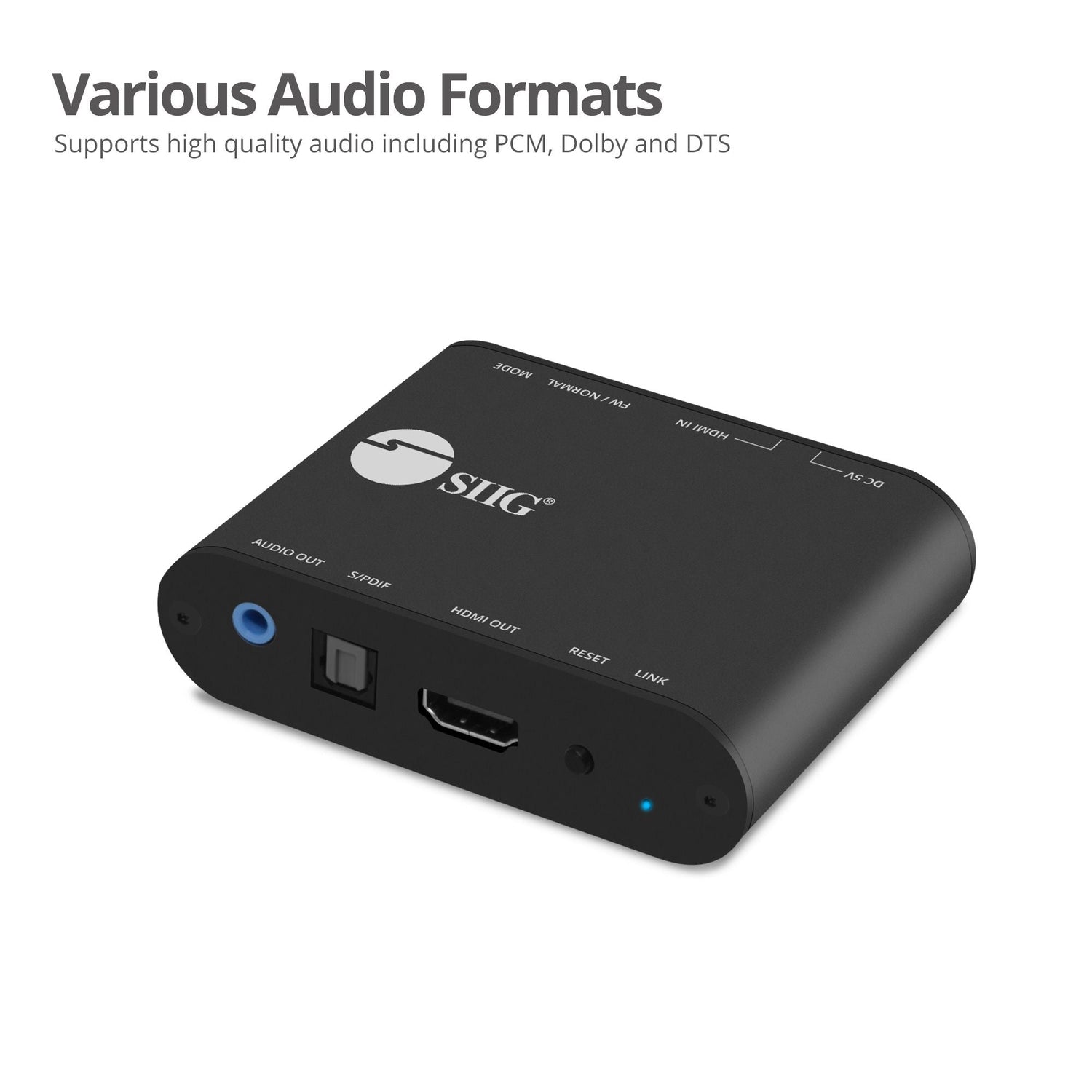

Wide Audio Format Compatibility
Wide Audio Format Compatibility
Wide Audio Format Compatibility
Wide Audio Format Compatibility
-
45 Days Free Return
-
2 Years Warranty
-
Lifetime Technical Support
| Standard | Compliant with HDMI specification |
| Spec | Support HDCP 2.2, HDR and CEC bypass |
| Video bandwidth | Up to 18Gbps (600MHz per channel) |
| Resolution | 480p / 720p / 1080i / 1080p / 4Kx2K 60Hz |

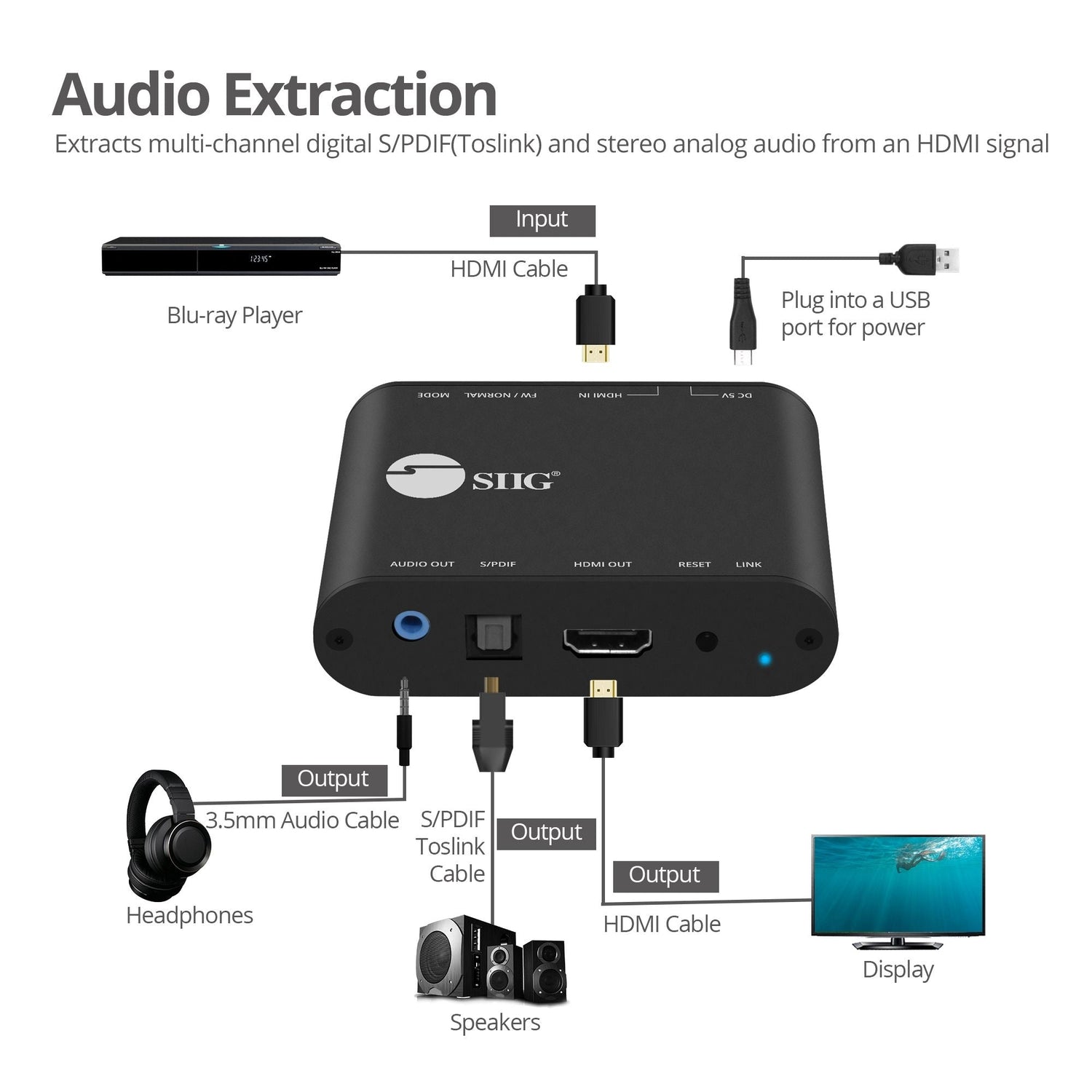

| Audio function | Supports audio extraction via 3.5mm stereo jack and Toslink optical |

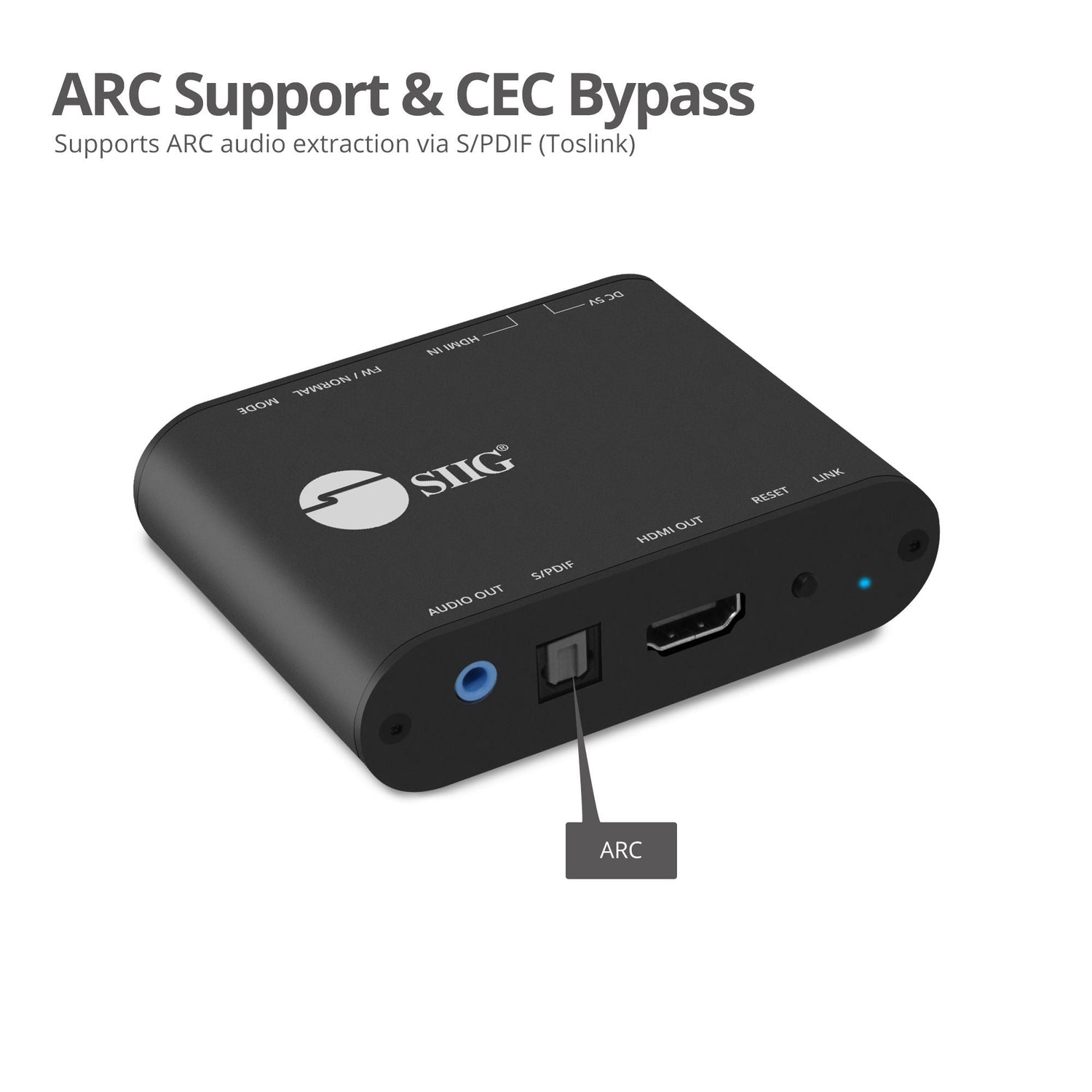

| Audio return channel | Supports ARC audio extraction via Toslink |
| Supports audio format | |
| HDMI | PCM 2 / 5.1 / 7.1, Dolby 5.1 / 7.1, DTS 5.1 / 7.1 |
| Optical audio format | PCM 2, Dolby 5.1 |
| ESD protection | ±15kV Air & ±8kV Contact |
| Product material Matel housing with wall mount design | |
| Power consumption | Up to 3 watts |
| Product | |

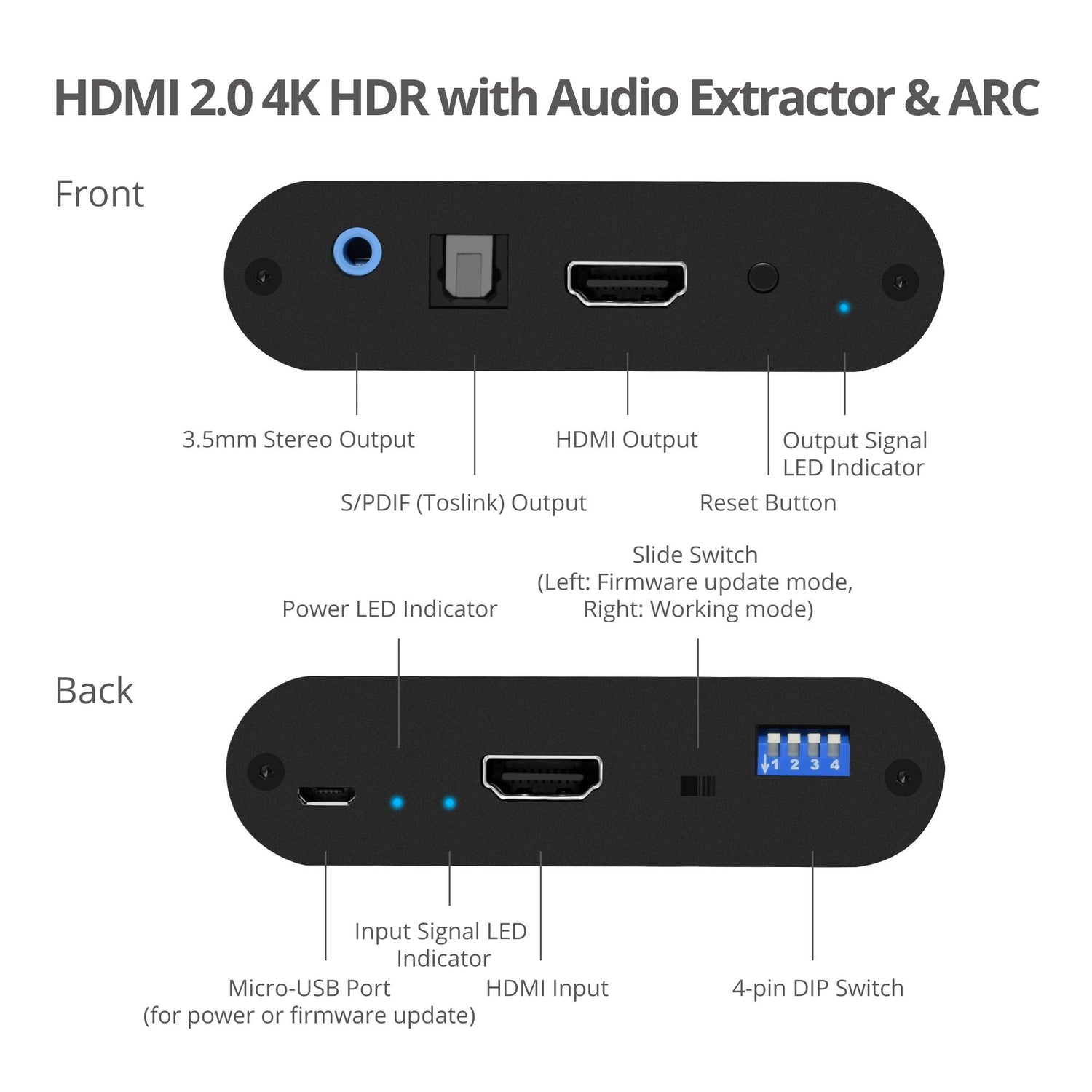

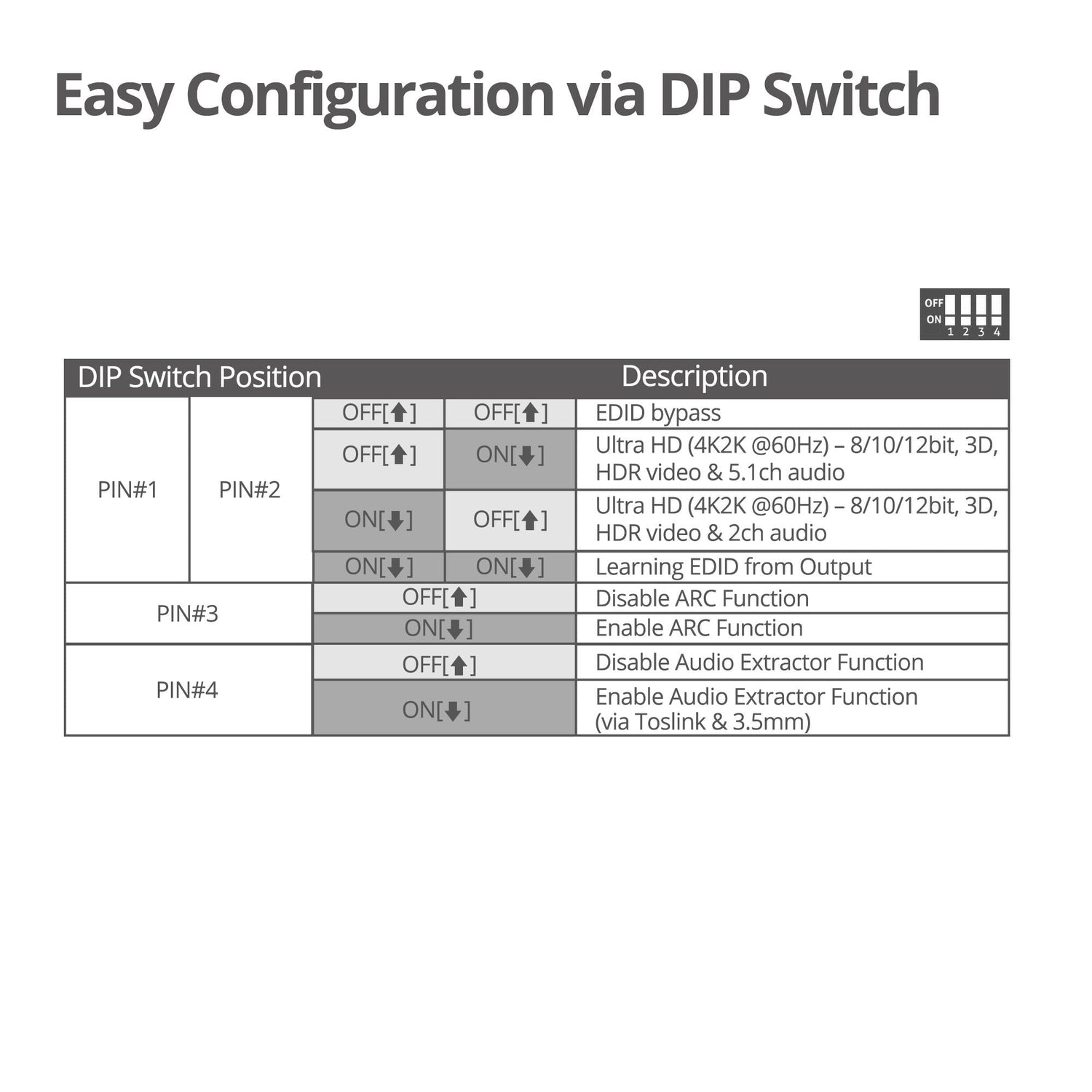

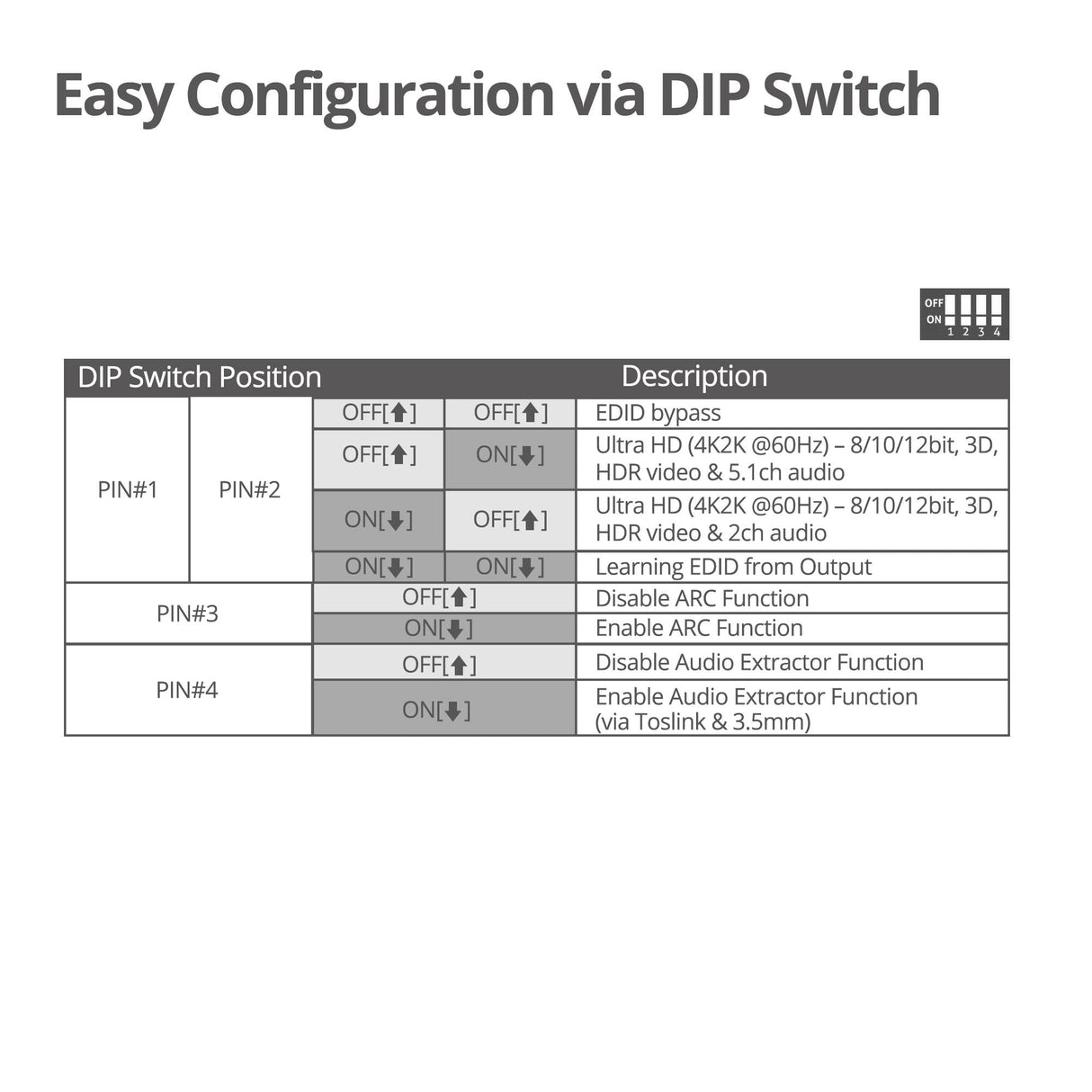

| Connector | 1x 19-Pin HDMI Type A Female Input 1x 19-Pin HDMI Type A Female Output 1x 5-Pin Micro USB Power or Firmware update 1x 3.5mm Stereo audio Output 1x S/PDIF Toslink audio Output 1x 4-4-pin Mode Switch 1x Slider switch Firmware update / Working mode 1x Push button factory reset |
| Product | |

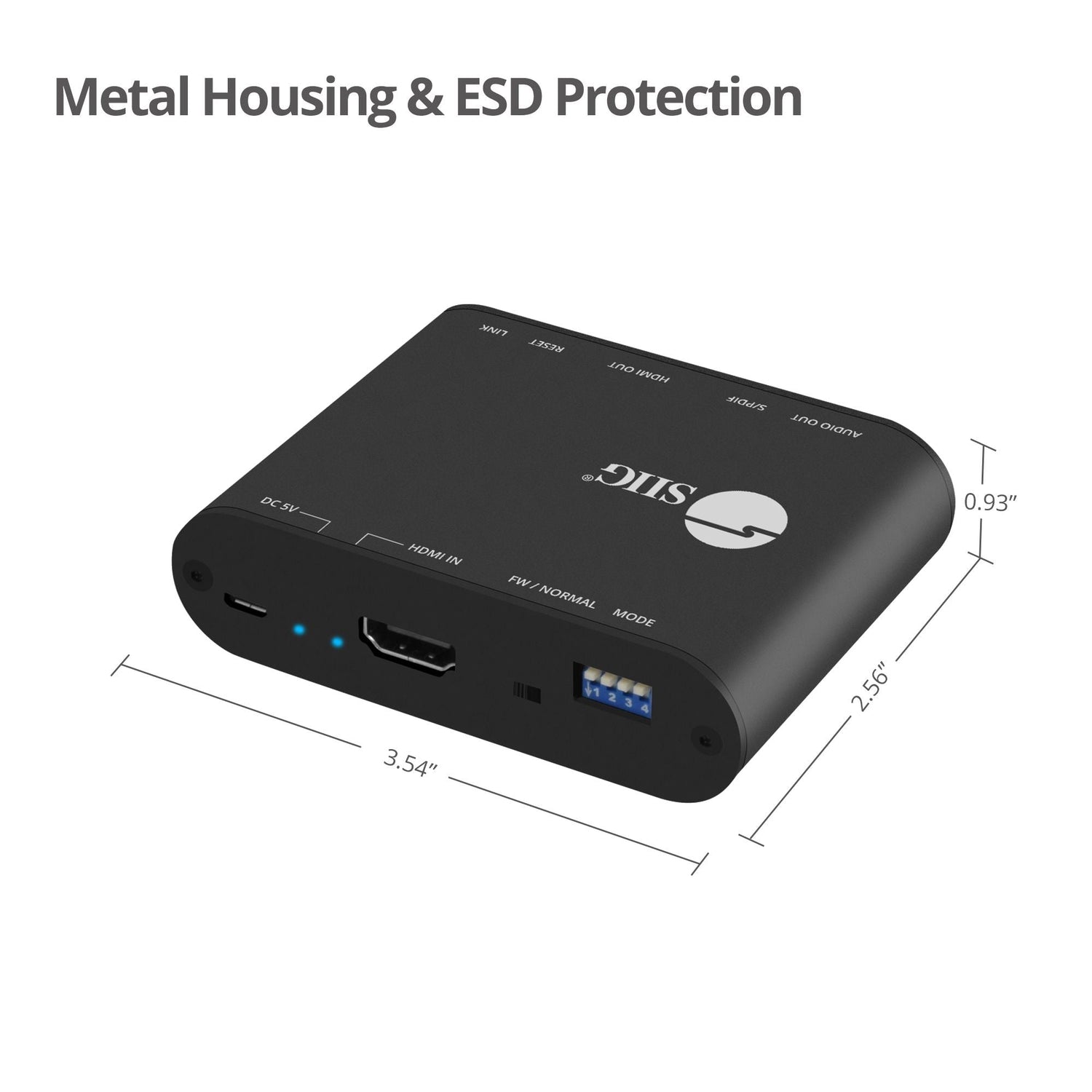

| Dimensions | 3.5″(W) x 0.51″(H) x 2.63″(D) |
| Weight | 0.29 lbs |
| Color | Black |
| Housing Material | Aluminum |
| Unit package | |
| Dimensions | 5.51″(W) x 0.9″(H) x 4.44″(D) |
| Weight | 0.42 lbs |
| Master carton | |
| Dimensions | 19.7″(W) x 10.03″(H) x 11.69″(D) |
| Weight | 22.55 lbs |
| Quantity | 48 pcs/ctn |
| Package contents | HDMI Audio Extractor/Embedder USB Type-A to Micro B Cable Installation guide |
| Environmental Conditions | |
| Operating Temperature | 32 to 104 degrees F |
| Storage Temperature | -4 to 140 degrees F |
| Relative Humidity | 20 to 90% RH (non-condensing) |
| Certifications/Standards | FCC, CE, RoHS, TAA compliant |
| UPC code | 662774042251 |
| Warranty | 3 years limited |
| Country of Origin | Engineered in USA , Manufactured in Taiwan |
Will this also passthrough audio DTS 7.1 or 5.1 from the HDMI out while simultaneously giving stereo to the optical or audio?
Will this also passthrough audio DTS 7.1 or 5.1 from the HDMI out while simultaneously giving stereo to the optical or audio?
