Extender |
SKU:
CE-H24P11-S1

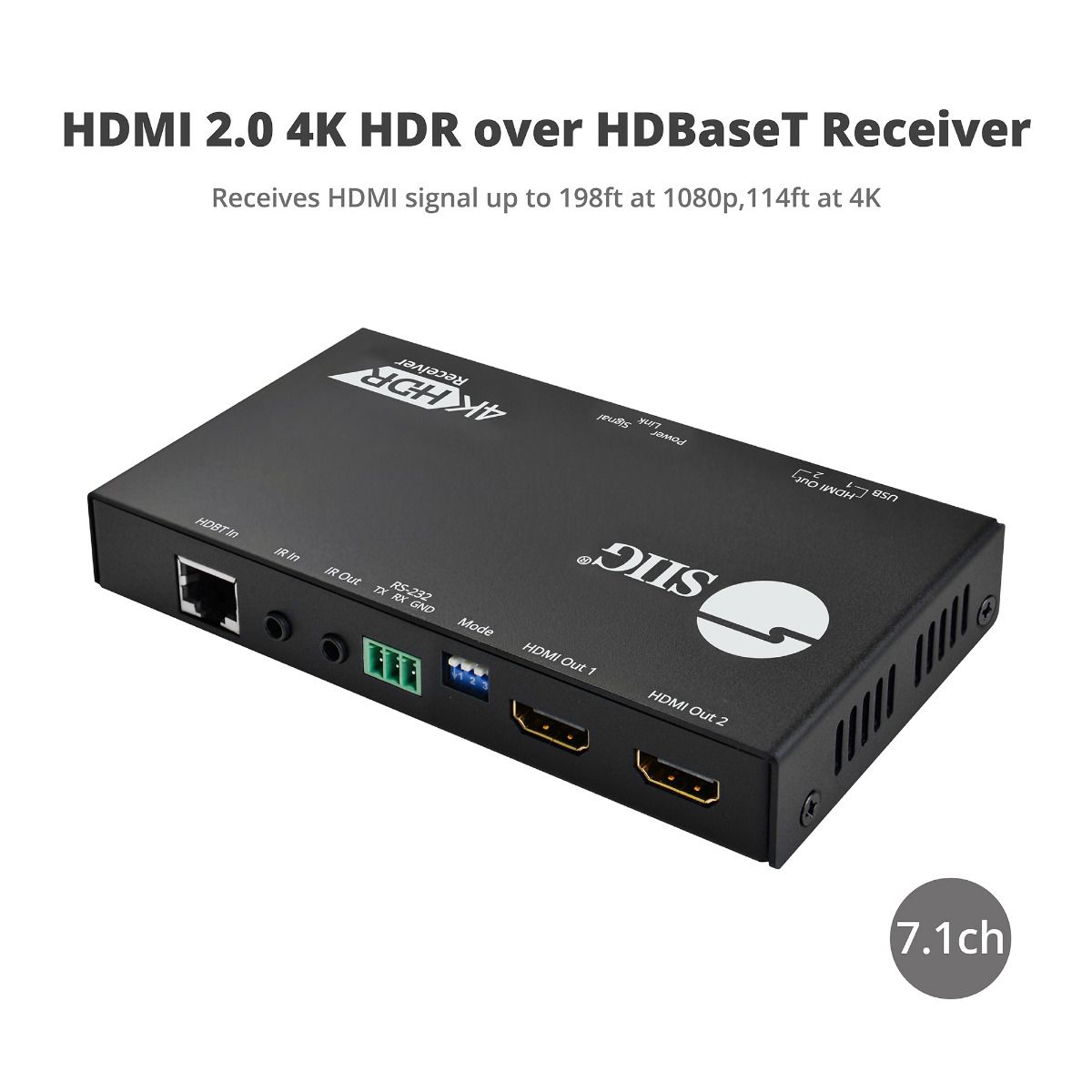

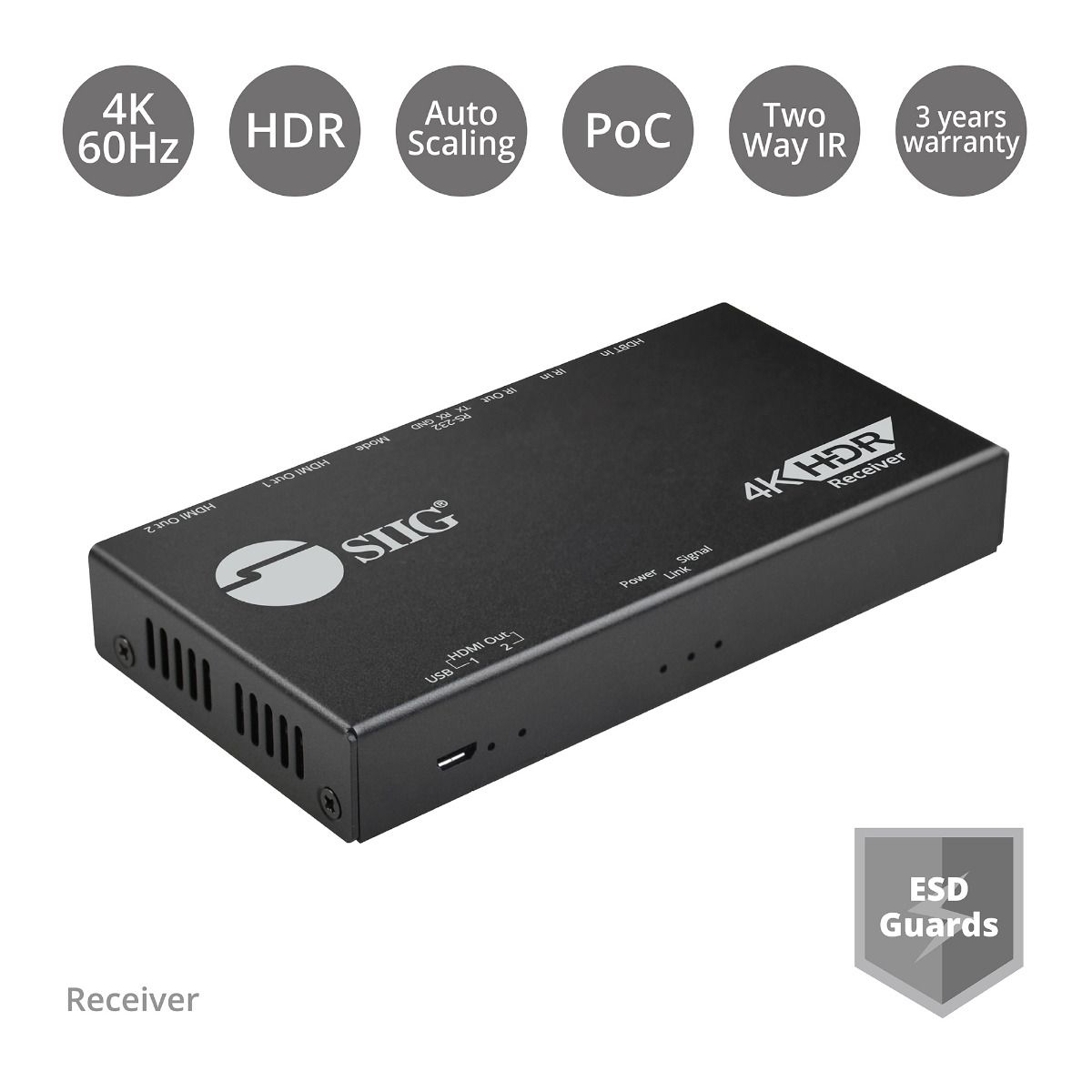

HDMI 4K HDR over HDBaseT Receiver
HDMI HDBaseT Receiver
4K60Hz
IR Bi-direction
Up to 60m
RS-232
Regular price
$399.99
Unit price
/
Unavailable
Shipping calculated at checkout.
HDMI 4K HDR over HDBaseT Receiver is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Features
Long-Range 4K HDR Reception
Long-Range 4K HDR Reception
Dual HDMI Output Support
Dual HDMI Output Support

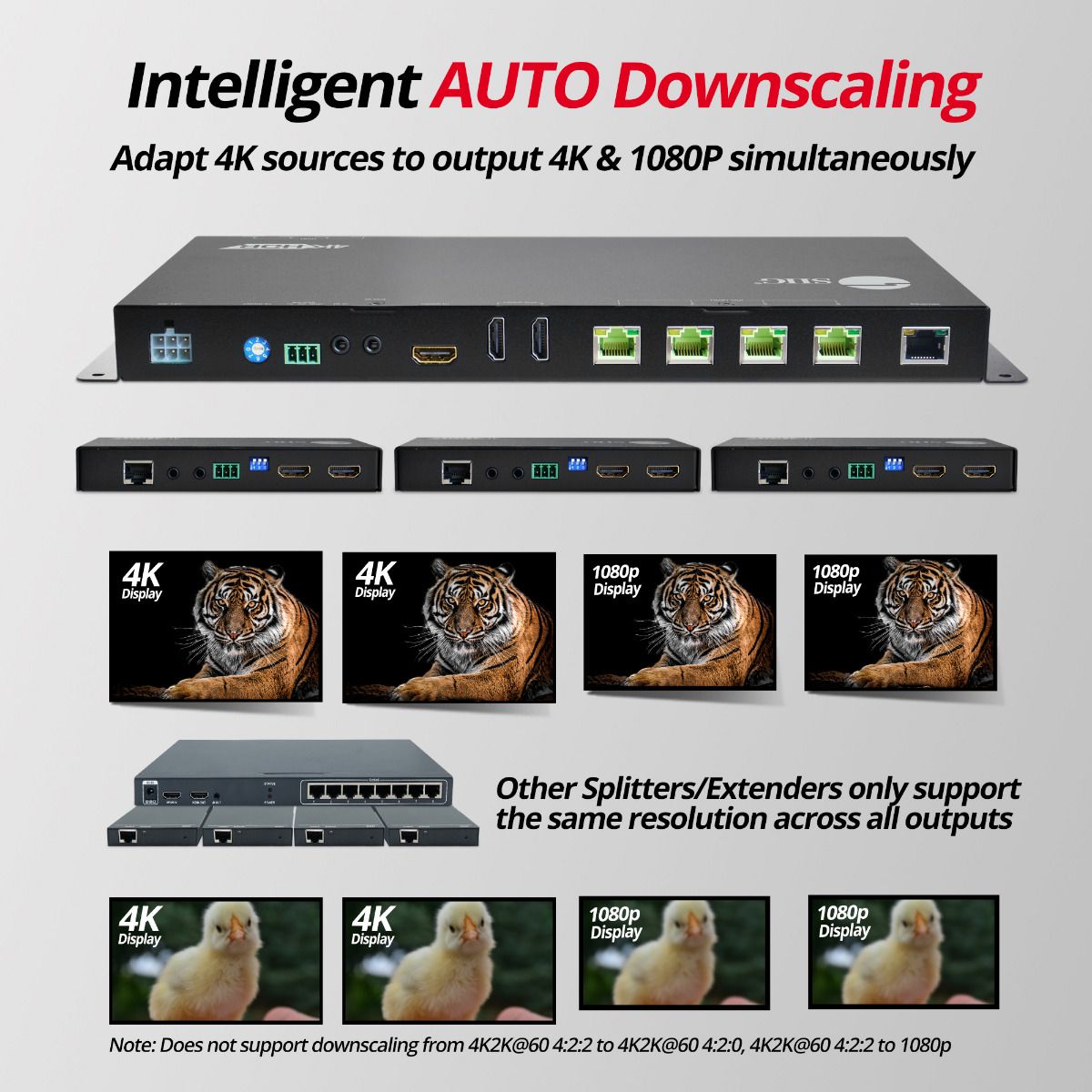

Smart Resolution Auto-Scaling
Smart Resolution Auto-Scaling
Integrated PoC & Bi-Directional IR
Integrated PoC & Bi-Directional IR
Uncompressed 7.1 Surround Sound
Uncompressed 7.1 Surround Sound
-
45 Days Free Return
-
2 Years Warranty
-
Lifetime Technical Support
No content found
| Video | |
| HDMI | 2x output |
| Standard | HDCP bypass |
| Bandwidth | Up to 18Gbps, single-link 600MHz |
| Resolution | Up to 3840 x 2160 60Hz HDR 4Kx2K 60Hz (4:2:0 10-bit) / 4Kx2K 60Hz (4:4:4 8-bit) |
| CAT5e Cable Length | 1080p 60Hz: 198ft (60m) 4K 60Hz (4:4:4 8bit): 114ft (35m) |
| IR Signal | Bi-directional IR pass-through |
| RS-232 Pass-Through | Up to 115,200bps |
| ESD Protection | Human body model — ±15kV [air-gap discharge] & ±8kV [contact discharge] |

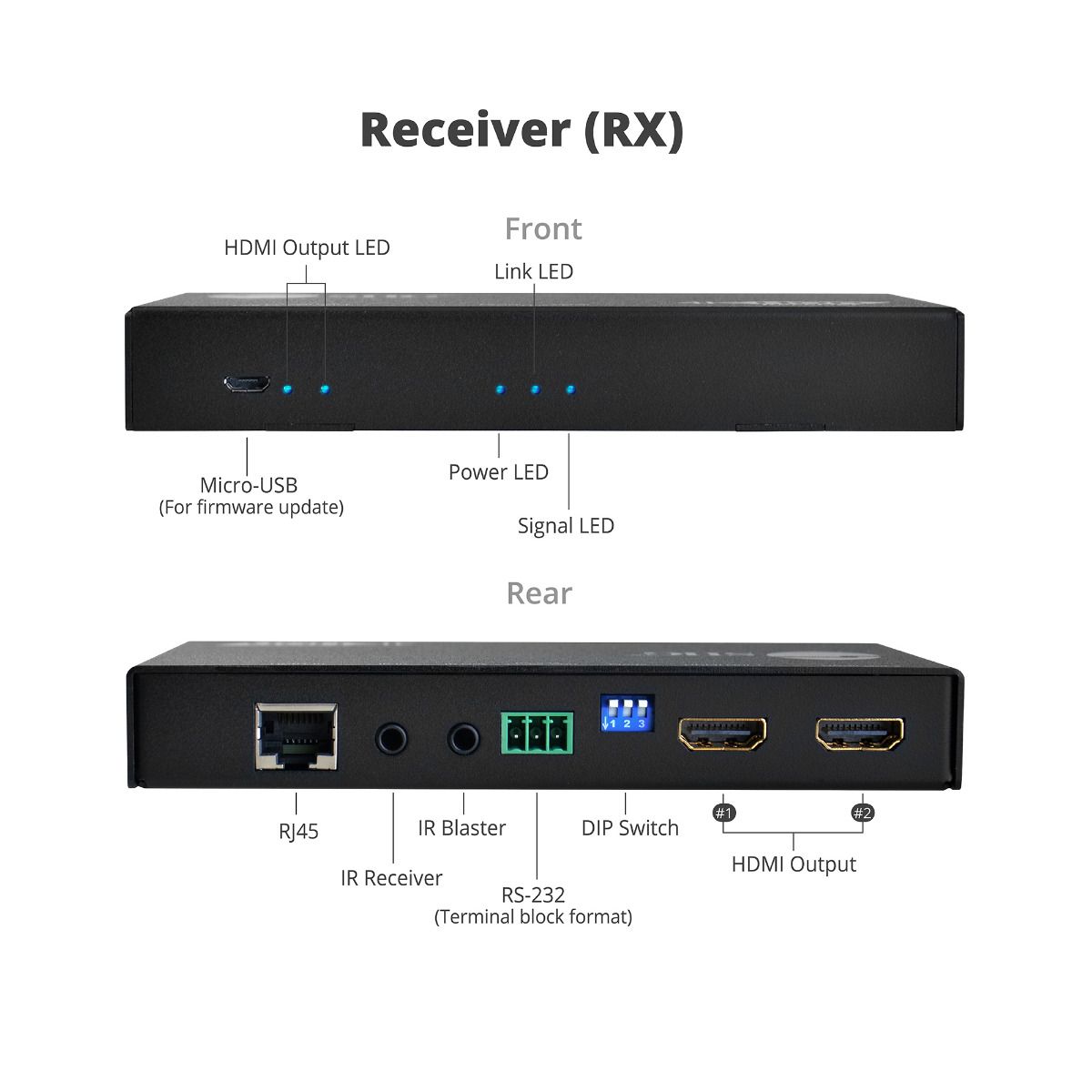

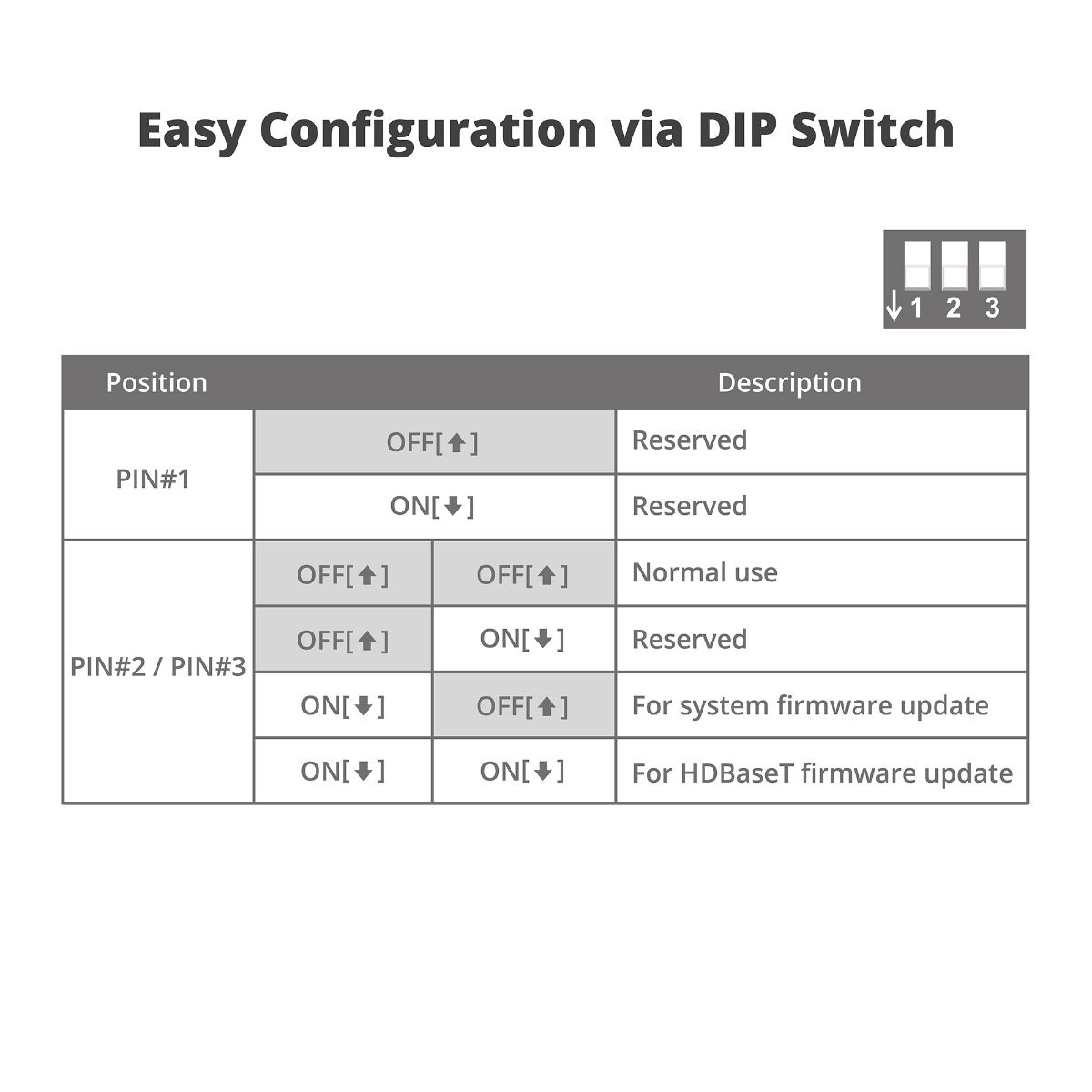

| Interface | 1x 8-pin, RJ45, HDMI signal, input 1x 3.5mm jack, IR, input/ 1x 3.5mm jack, IR, output 1x RS-232, Input/output 1x 3-Pin DIP switch, EDID management 2x 19-pin HDMI, Type A, female, output |

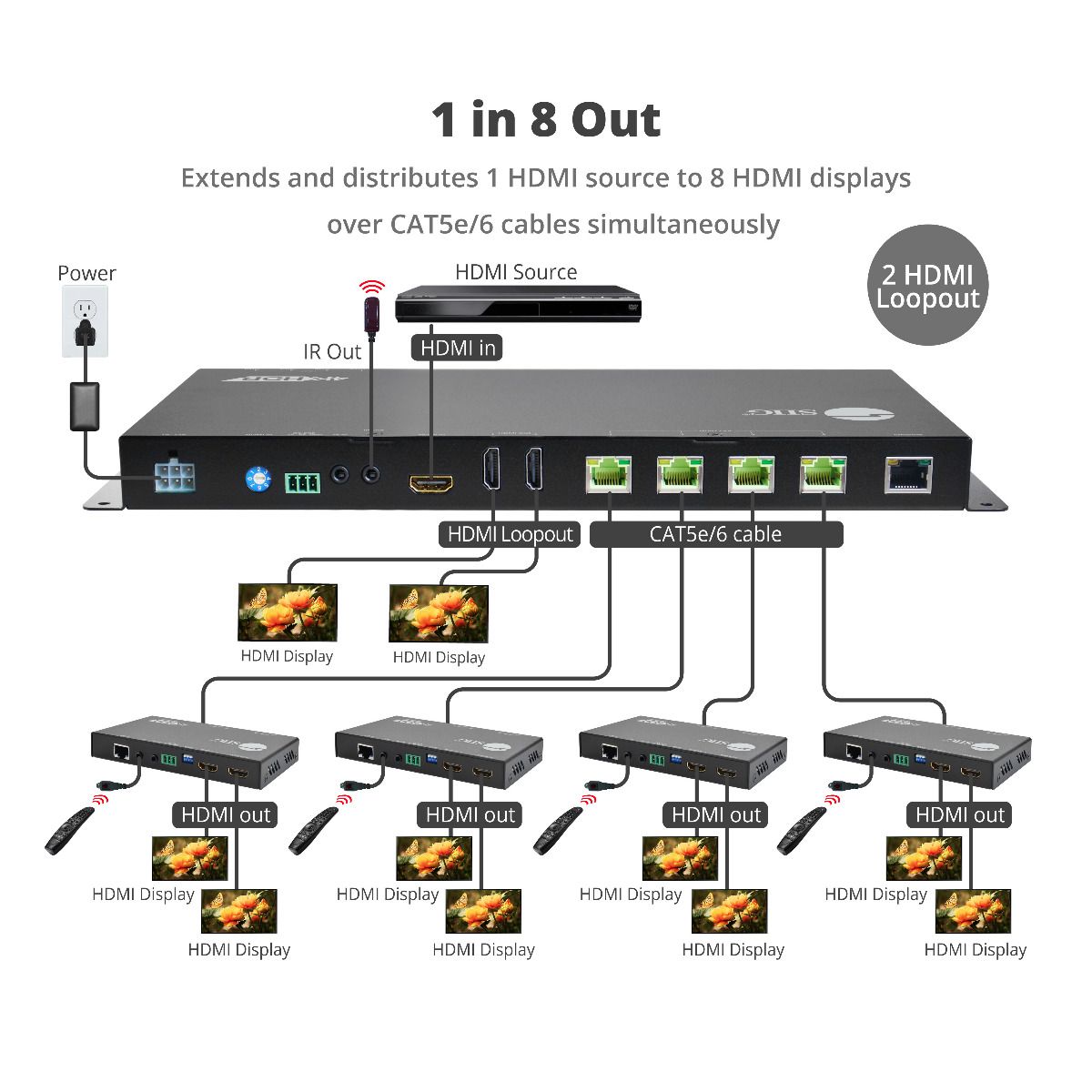

| System Requirements | HDMI 4K HDR 1x4 Splitter HDBaseT Extender with Auto-scaling (part# CE-H24N11-S1) sold separately *Notes: Below are limitations associated with 4K content down scaling - Down scaling to 720p and 480p is not supported - YUV 4:2:2 down scaling is not supported - Frame rate conversion (e.g., 60Hz to 24Hz) is not supported - 4K 30Hz monitors will display in 1080p 60Hz when the source content is 4K 60Hz - The Distribution Amplifier can bypass 4K HDR data content but cannot process it to make 4K HDR content fit 1080p proportionally. |

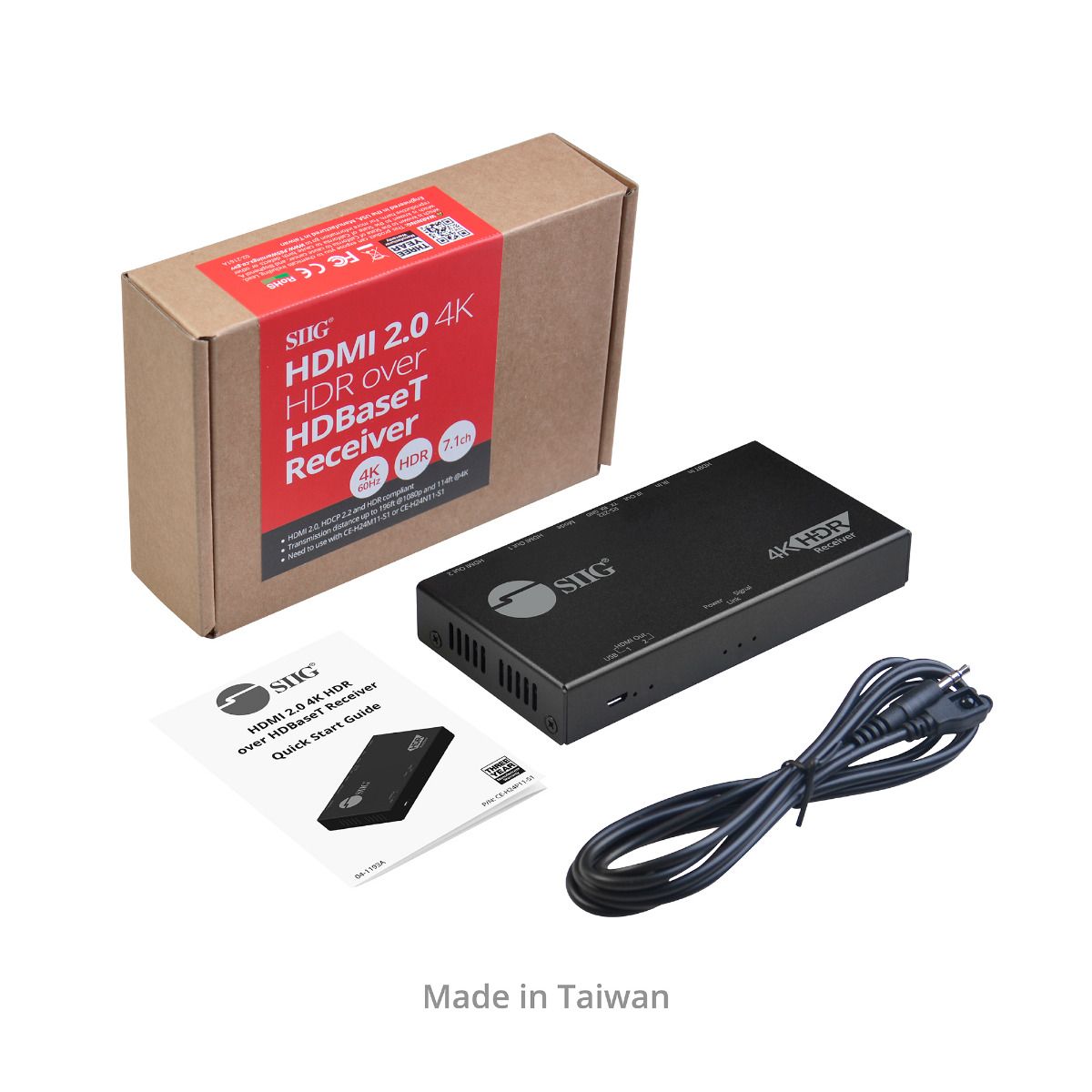

| Package Contents | 1x HDMI 4K HDR over HDBaseT Receiver 1x IR Receiver Cable 1x Terminal block 1x Mounting kit (2x Screw kit: 4x20 mm, 2x Mounting ears, 4x Screw kit: 3x4 mm) 1x Quick start guide |
| Product | |
| Dimensions (L) x (H) x (W) | 5.51″ x 0.79″ x 2.76″ 14.00 cm x 2.01 cm x 7.01 cm |
| Weight | 0.39 lb (0.18 kg) |
| Color | Black |
| Housing Material | Metal |
| Unit Package | |
| Dimensions (L) x (H) x (W) | 6.50″ x 1.57″ x 4.33″ 16.51 cm x 3.99 cm x 11.00 cm |
| Weight | 0.61 lb (0.28 kg) |
| Master Carton | |
| Dimensions (L) x (H) x (W) | 15.75″ x 11.81″ x 16.50″ 40.01 cm x 30.00 cm x 41.91 cm |
| Weight | 48.13 lbs (21.83 kg) |
| Quantity | 72 pcs/ctn |
| Environmental Conditions | |
| Operating Temperature | 32° to 104°F |
| Storage Temperature | -4° to 140°F |
| Relative Humidity | 20% to 90% RH [no condensation] |
| Certifications/Standards | FCC, CE, RoHS, TAA Compliant |
| UPC Code | 662774-042367 |
| Warranty | 3 years limited |
| Country of Origin | Taiwan |
