Extender |
SKU:
CE-H24N11-S1

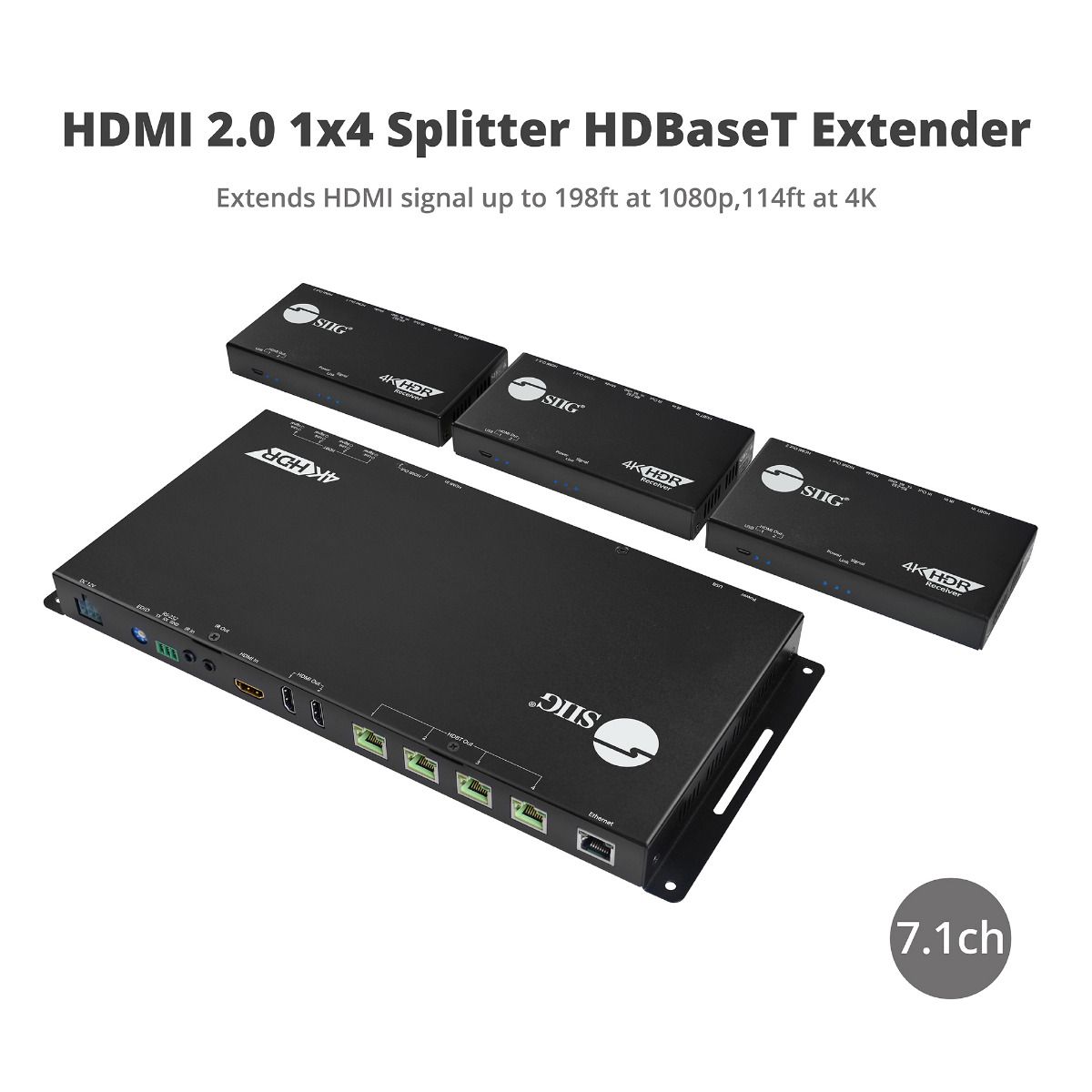

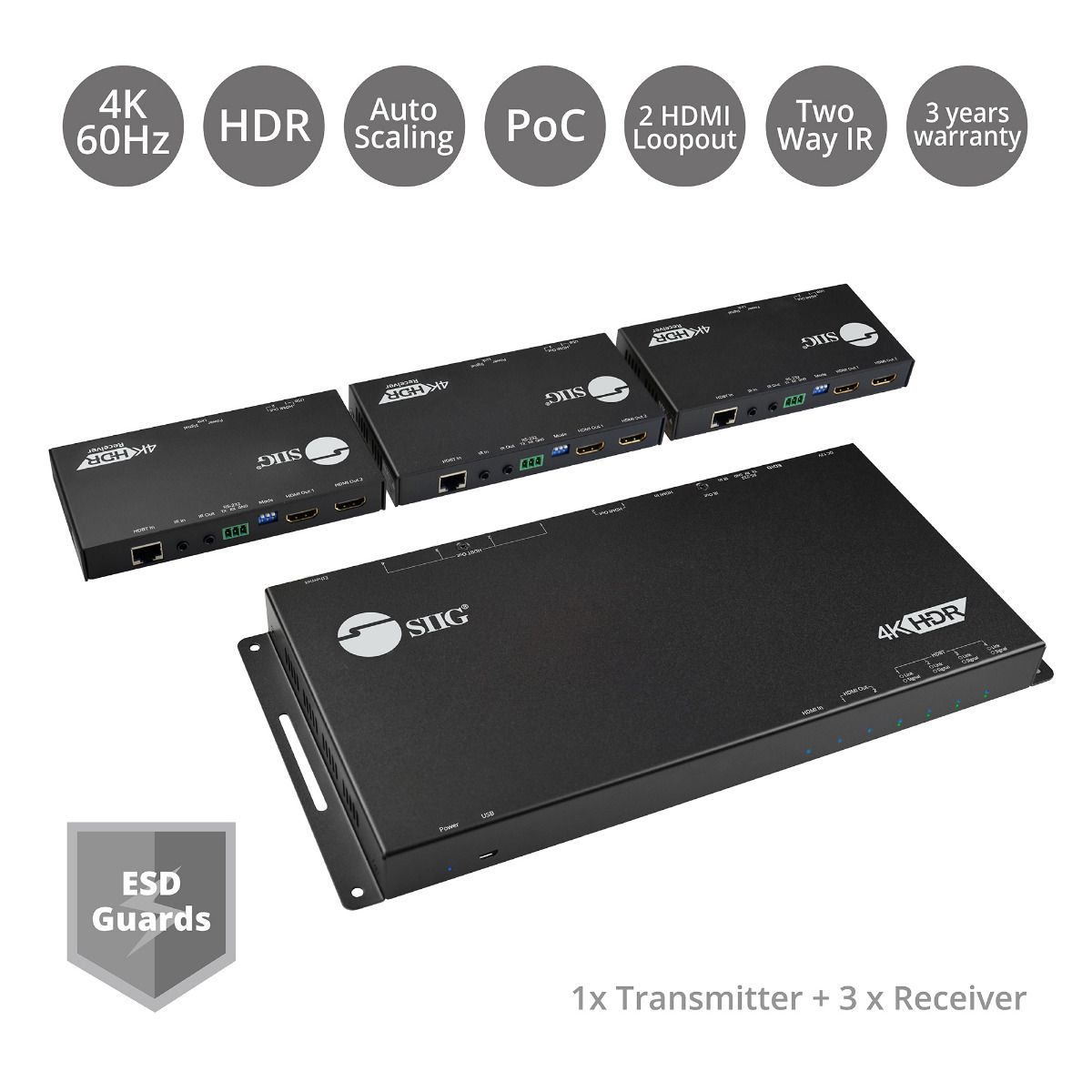

HDMI 4K HDR 1x4 Splitter HDBaseT Extender with Auto-scaling
4K60Hz
Up to 60m
EDID
2x HDMI Loopout
PoC
Regular price
$1,499.99
Unit price
/
Unavailable
Shipping calculated at checkout.
HDMI 4K HDR 1x4 Splitter HDBaseT Extender with Auto-scaling is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Features
Long-Range 4K HDMI Extension
Long-Range 4K HDMI Extension
Single Power Supply with PoC
Single Power Supply with PoC
Flexible Multi-Display Support
Flexible Multi-Display Support

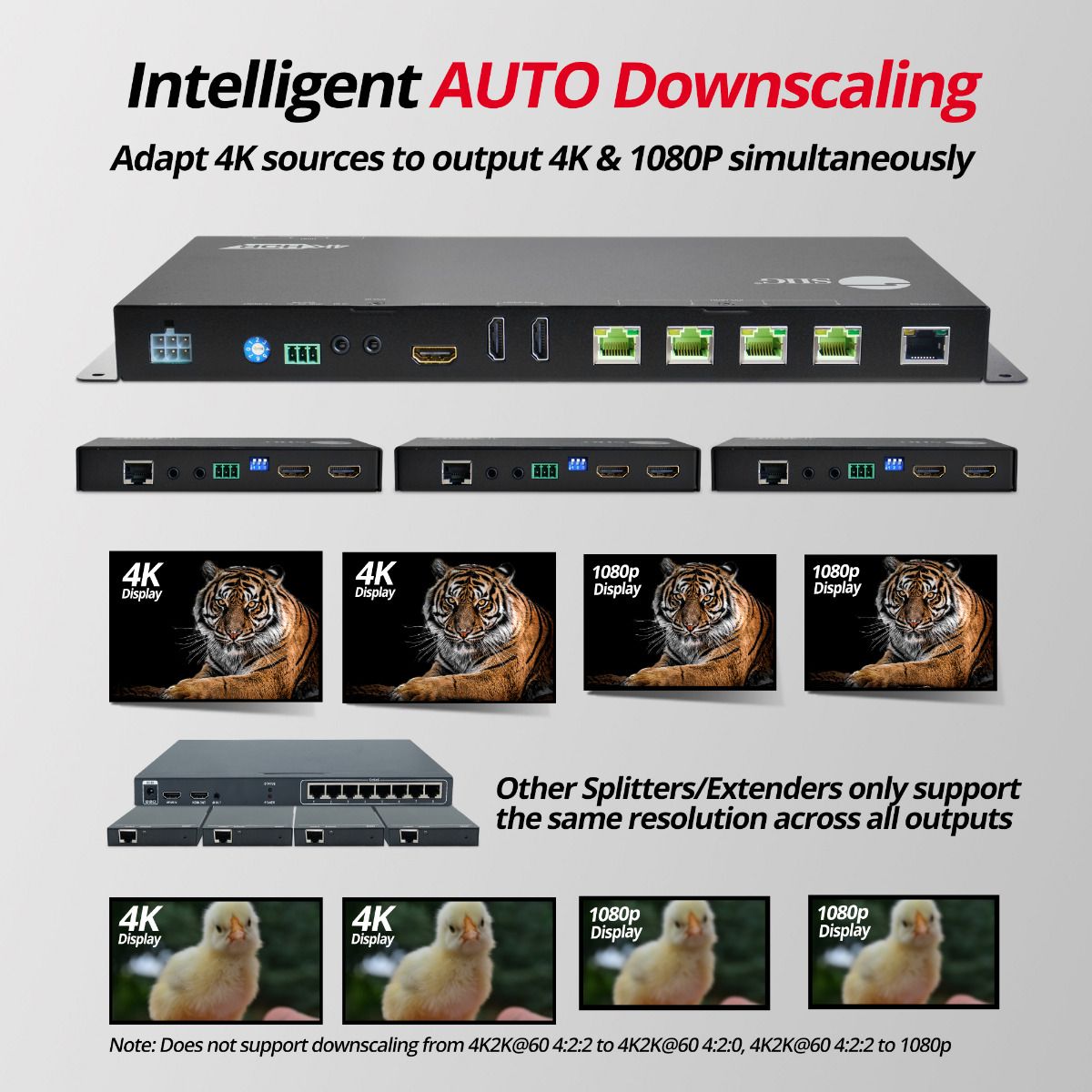

Smart Compatibility & Auto Scaling
Smart Compatibility & Auto Scaling
Premium Audio & IR Control
Premium Audio & IR Control
-
45 Days Free Return
-
2 Years Warranty
-
Lifetime Technical Support
No content found
| Video | |
| HDMI | 1x input, 6x output, 2x loop-out |
| Standard | HDCP bypass |
| Bandwidth | Single-link 600MHz (18Gbps) |
| Resolution | Up to 3840x2160 60Hz HDR 4Kx2K 60Hz (4:2:0 10-bit) / 4Kx2K 60Hz (4:4:4 8-bit) |
| Cat5 Cable Length | 1080p 60Hz: 198ft (60m) 4K 60Hz: 114ft (35m) |
| Auto Skew Equalization | Yes |
| IR Pass-Through | Bi-directional full frequency: 20KHz to 60KHz |
| RS-232 Pass-Through | Up to 115,200bps |
| ESD Protection | Human body model ±15kV (air-gap) & ±8kV (contact) |
| Power Adapter | |
| Input | 100-240VAC, 50 / 60 Hz |
| Output | DC12V / 7.5A |
| UL Listed | E163743 / Class:VI |
| Interface | |

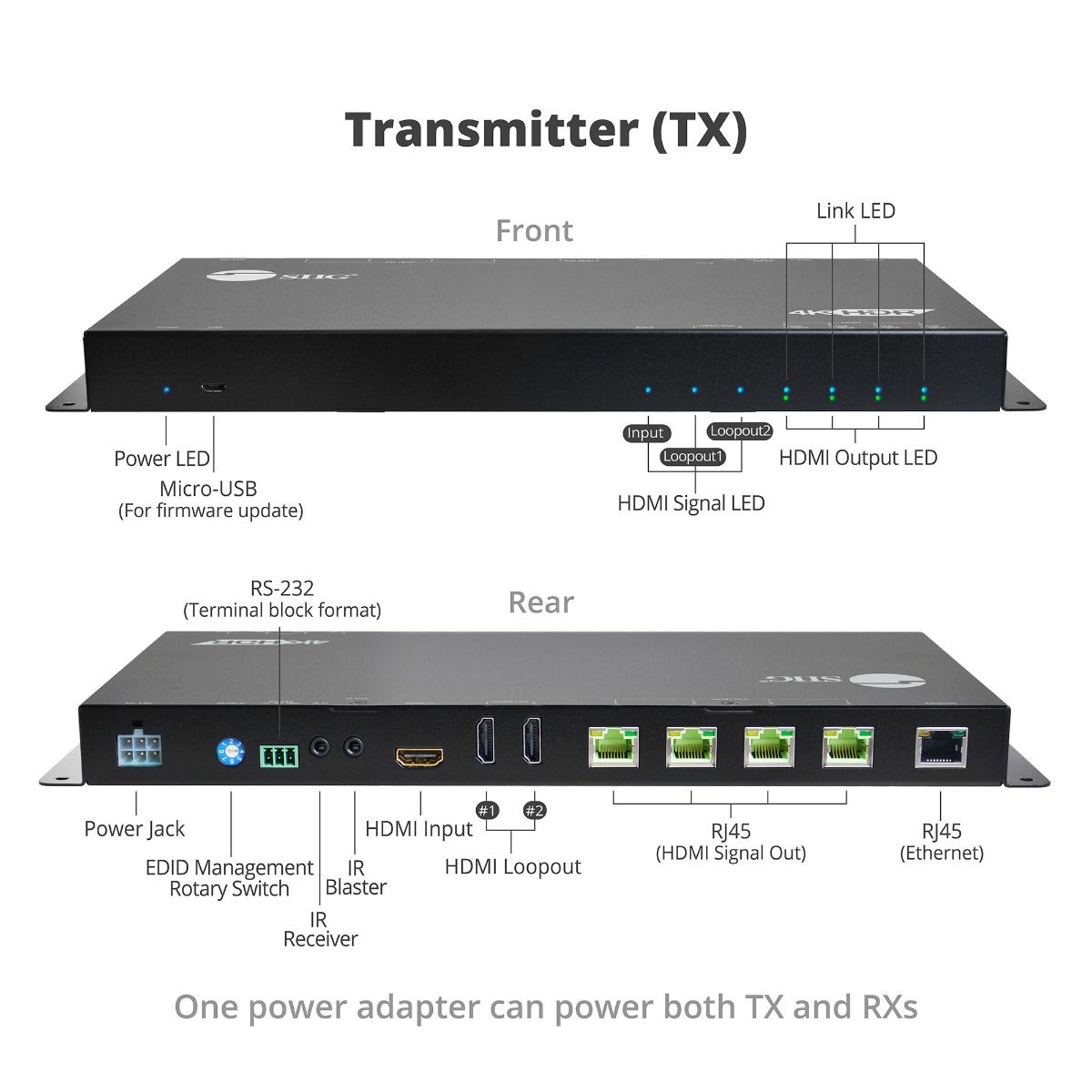

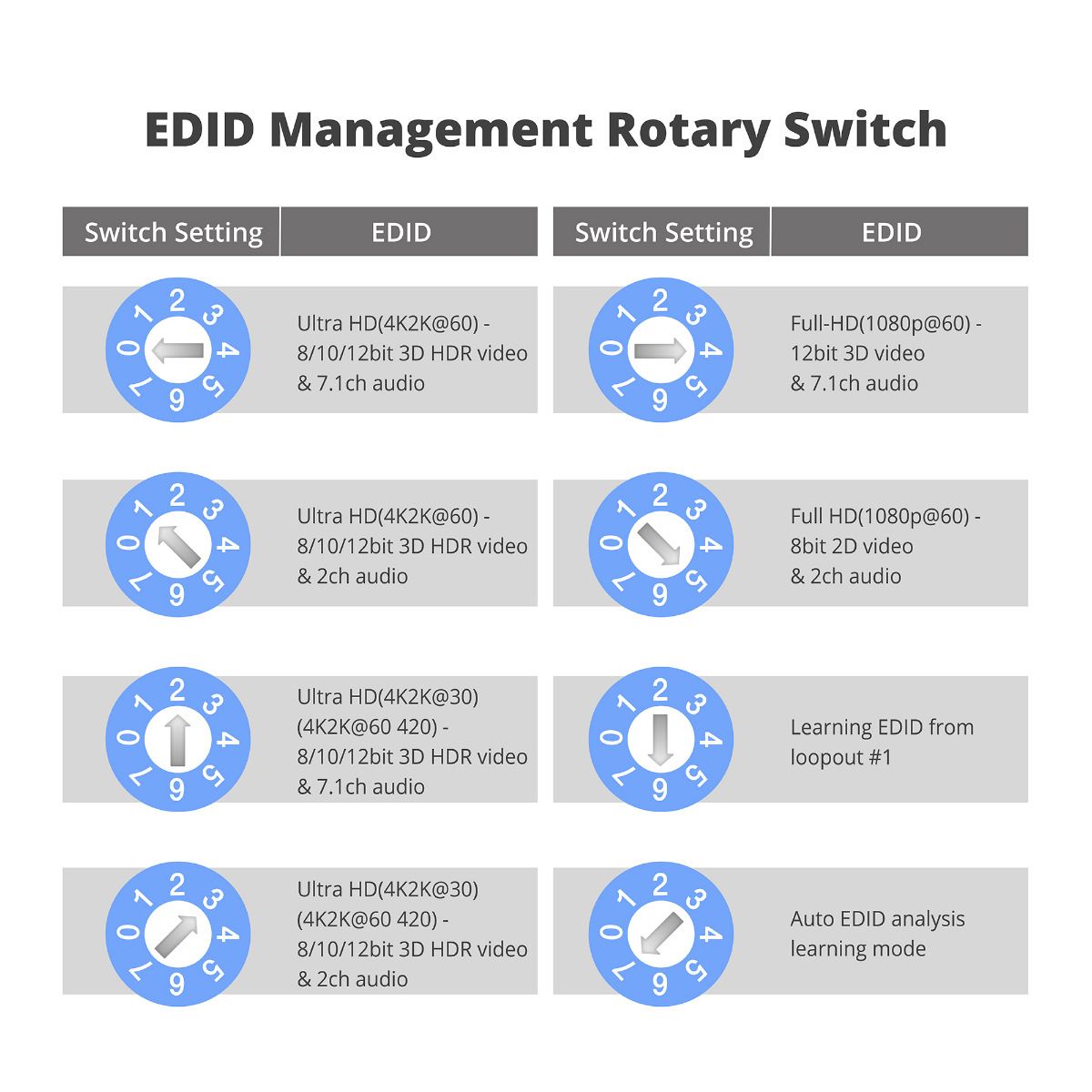

| Transmitter Unit (TX) | 1x 19-pin HDMI, Type A, female, input 1x 3.5mm jack, IR, input/ 1x 3.5mm jack, IR, output 1x Power jack 4x 8-pin, RJ45, HDMI signal, output 2x 19-pin HDMI, Type A, female, loop-out 1x DIP switch, EDID management 1x RS-232, input/output Micro-USB, Firmware update |

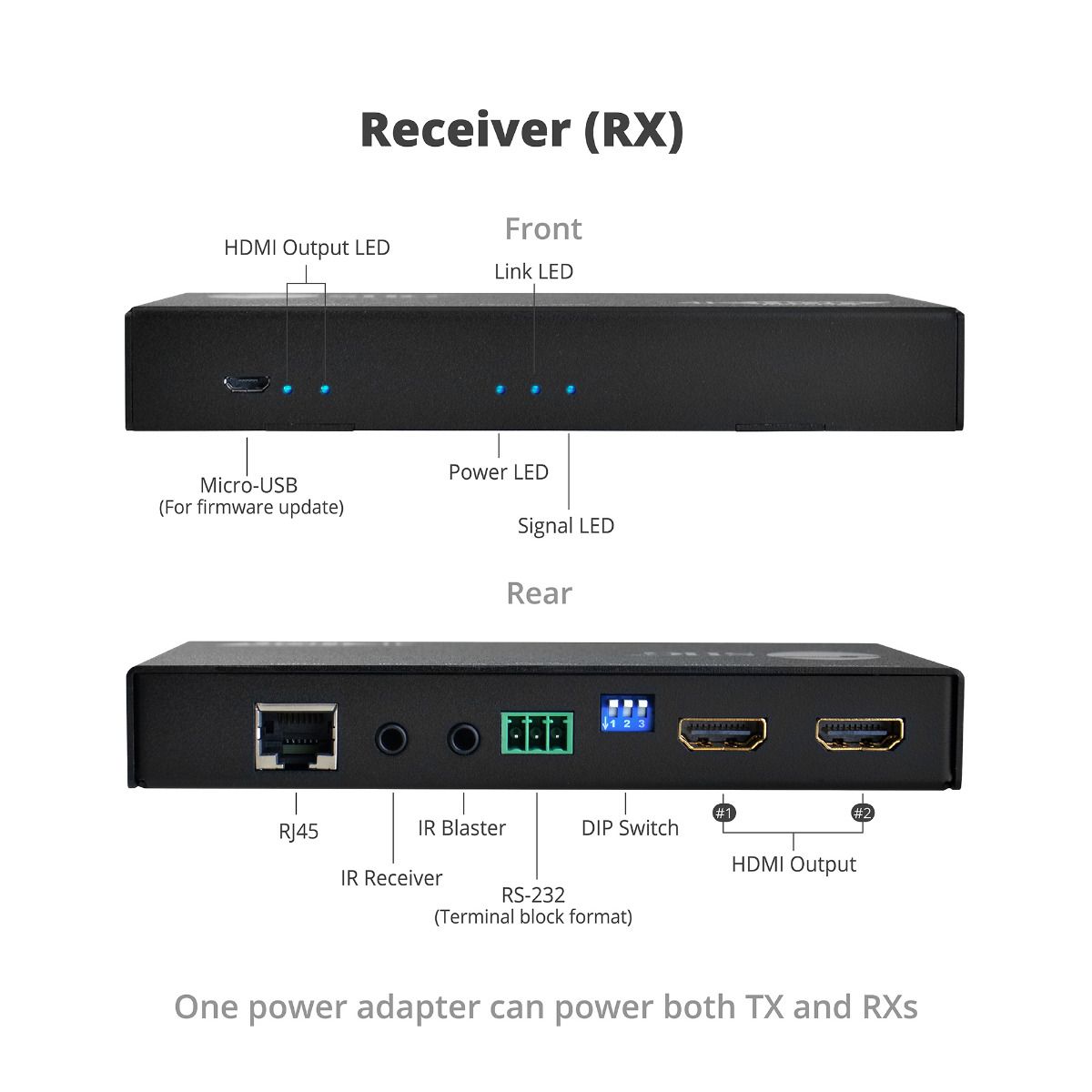

| Receiver Unit (RX) | 1x 8-pin, RJ45, HDMI signal, input 1x 3.5mm jack, IR, Input 1x 3.5mm jack, IR, output 1x RS-232, input/output 1x 3-Pin DIP Switch, EDID management 2x 19-pin HDMI, Type A, female, output |
| System Requirements | - HDMI source device such as computers, game consoles, Blu-ray / DVDplayers, and media players - HDMI displays, monitors, and HD TVs *Notes: Below are limitations associated with 4K content down scaling - Down scaling to 720p and 480p is not supported - YUV 4:2:2 down scaling is not supported - Frame rate conversion (e.g., 60Hz to 24Hz) is not supported - 4K 30Hz monitors will display in 1080p 60Hz when the source content is 4K 60Hz - The Distribution Amplifier can bypass 4K HDR data content but cannot process it to make 4K HDR content fit 1080p proportionally |
| Certifications/Standards | FCC, CE, RoHS, TAA Compliant |
| UPC Code | 662774-042350 |
| Warranty | 3 years limited |
| Country of Origin | Taiwan |
| Product | |
| Transmitter Unit (TX) | |
| Dimensions (L) x (H) x (W) | 12.8″ x 0.98″ x 5.83″ 32.51 cm x 2.49 cm x 14.81 cm |
| Weight | 3.06 lbs (1.39 kg) |
| Color | Black |
| Housing Material | Metal |
| Receiver Unit (RX) | |
| Dimensions (L) x (H) x (W) | 5.47″ x 0.75″ x 2.76″ 13.89 cm x 1.91 cm x 7.01 cm |
| Weight | 0.39 lb (0.18 kg) |
| Color | Black |
| Housing Material | Metal |
| Unit Package | |
| Dimensions (L) x (H) x (W) | 20.67" x 2.95" x 10.43" 52.50 cm x 7.49 cm x 26.49 cm |
| Weight | 6.94 lbs (3.15 kg) |
| Master Carton | |
| Dimensions (L) x (H) x (W) | 16.54″ x 11.81″ x 21.26″ 42.01 cm x 30.00 cm x 54.00 cm |
| Weight | 37.43 lbs (16.98 kg) |
| Quantity | 5 pcs/ctn |

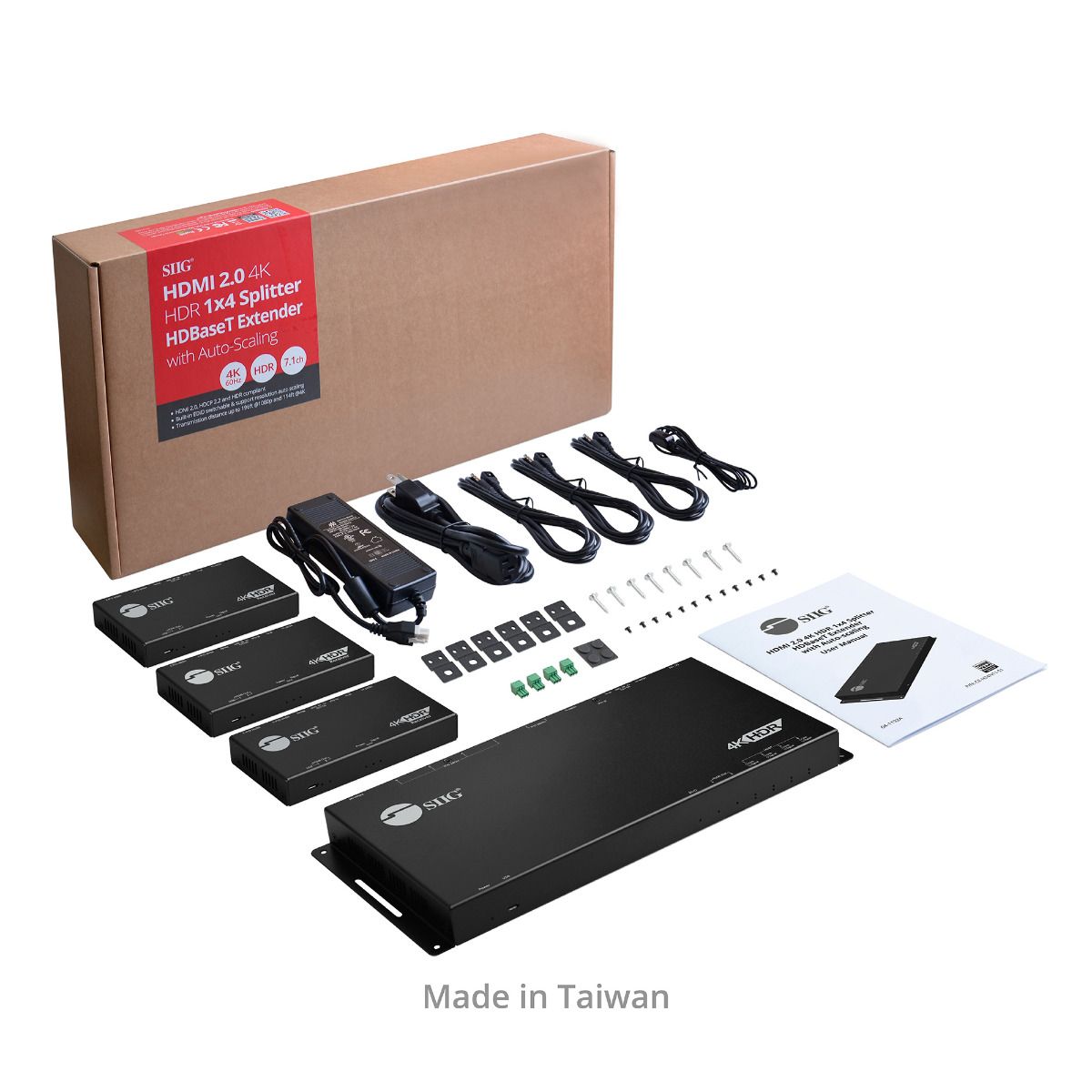

| Package Contents | 1x HDMI 4K HDR 1x4 Splitter HDBaseT Extender Kit (1 Transmitter & 3 Receivers) * Additional Receiver unit (part# CE-H24P11-S1) sold separately 1x Power adapter DC 12V / 7.5A 1x IR blaster 3x IR Receiver 4x Terminal block 1x Mounting kit (8x 20 mm screw, 6x Mounting ears, 12 x4 mm screw) 4x Rubber pad 1x User manual |
| Environmental Conditions | |
| Operating Temperature | 32° to 104° F |
| Storage Temperature | -4° to 140° F |
| Relative Humidity | 20~90% RH [no condensation] |
