Wireless |
SKU:
CE-H26G11-S1
34% off

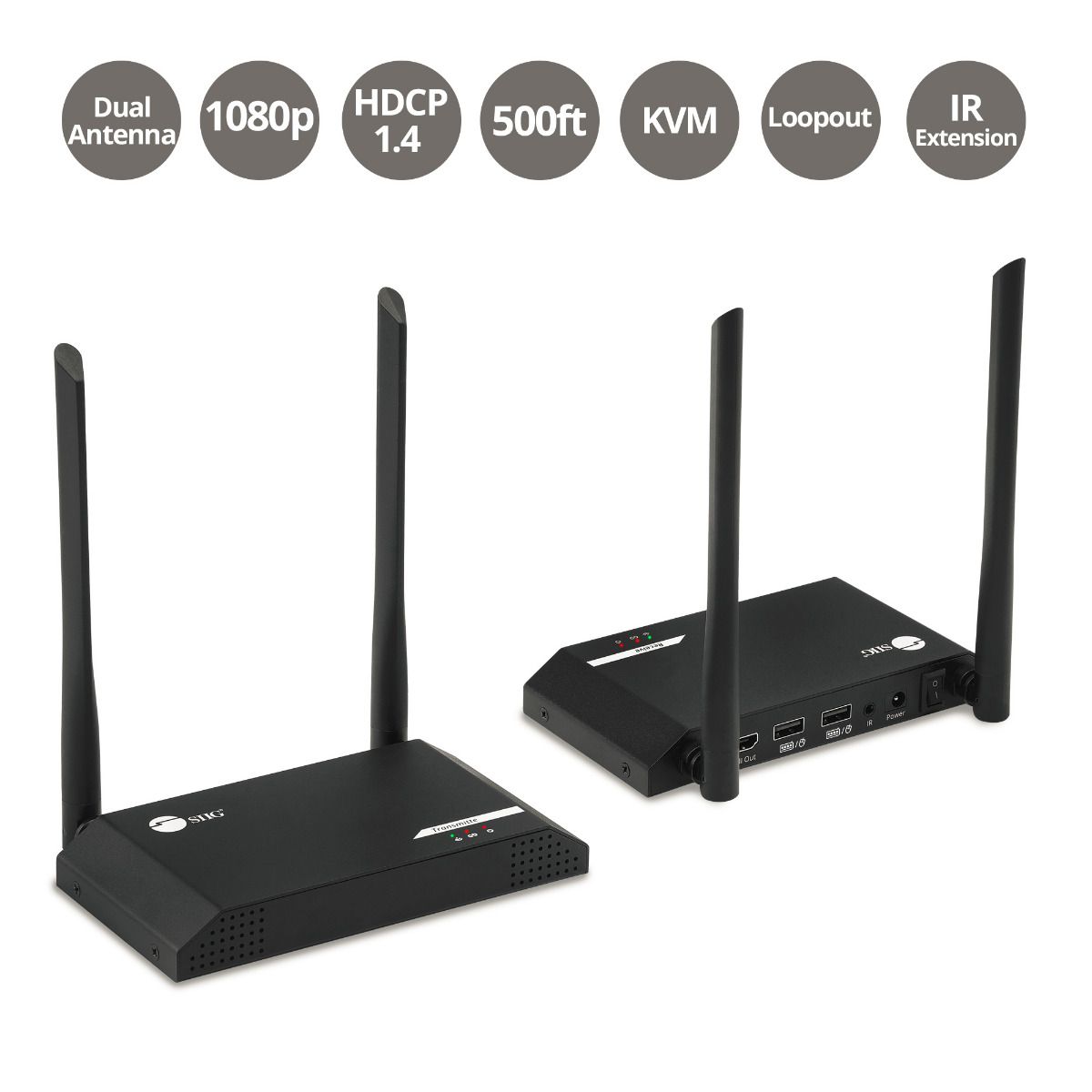

Full HD Wireless HDMI KVM Extender with Loop out
Wireless KVM Extender
1080p 60Hz
500ft (150m)
HDMI Loopout
IR Extension
Sale price
$299.99
Regular price
$455.99
Unit price
/
Unavailable
Shipping calculated at checkout.
Full HD Wireless HDMI KVM Extender with Loop out is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Features
Wireless Extender
Wireless Extender
Data Transmission
Data Transmission
USB Extension
USB Extension
Video Resolution
Video Resolution
HDMI Loopout
HDMI Loopout
No content found
| Wireless | |
| Bandwidth | 2.4GHz |
| Transmission Distance | 500ft (150m) line-of-sight *Note |
| IR Control | |
| Frequency rate | 20-60Hz |
| Video | |
| HDMI | HDCP 1.4 |
| Bandwidth | Up to 10.2Gbps |
| Resolution | 1920x1080 @60Hz |
| Audio | PCM 2-channel stereo audio |
| Power Adapter | |
| Input | AC 100-240V / 50-60Hz |
| Output | DC 5V/2A |
| UL Listed | STD1310:2011/Class: VI |
| Interface | |

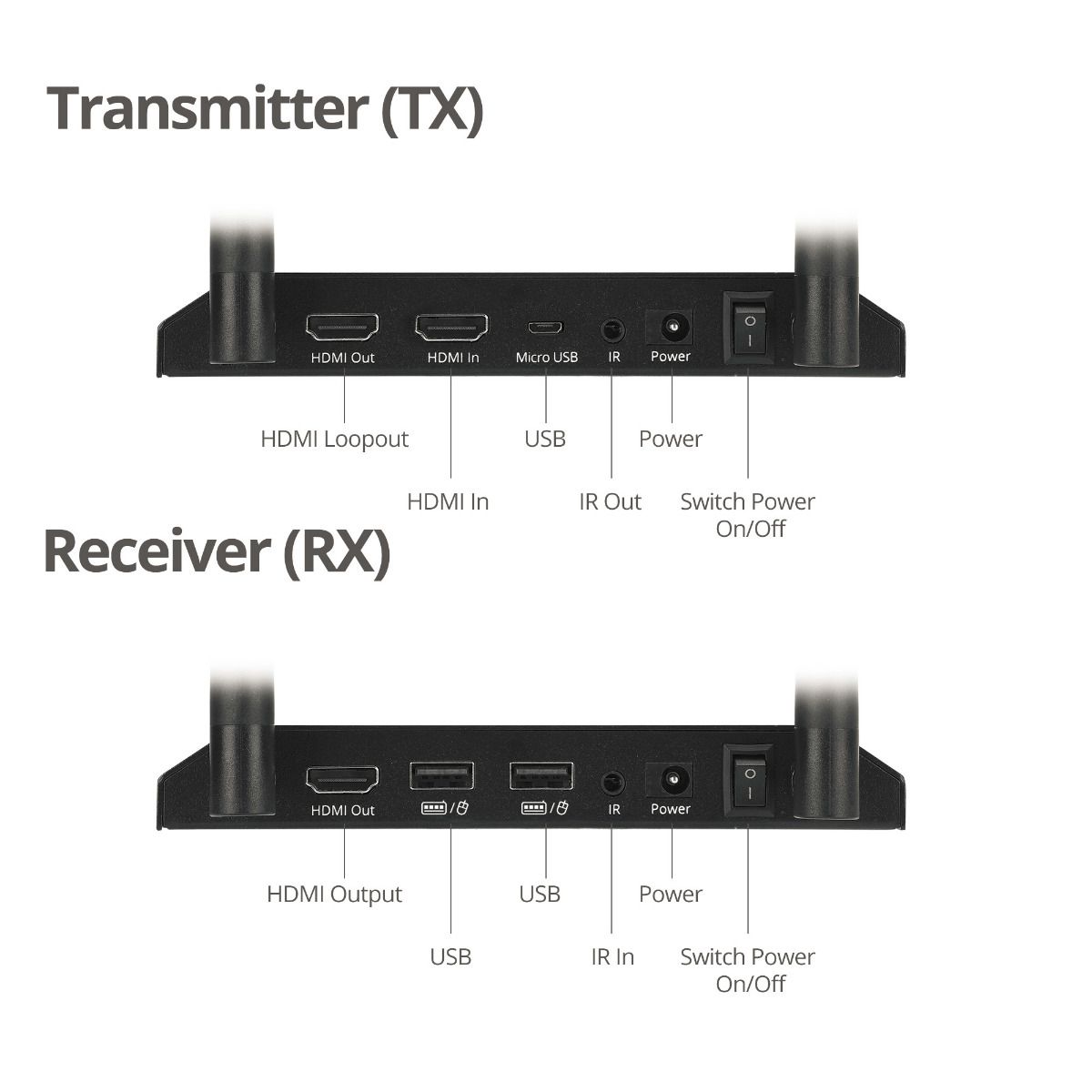

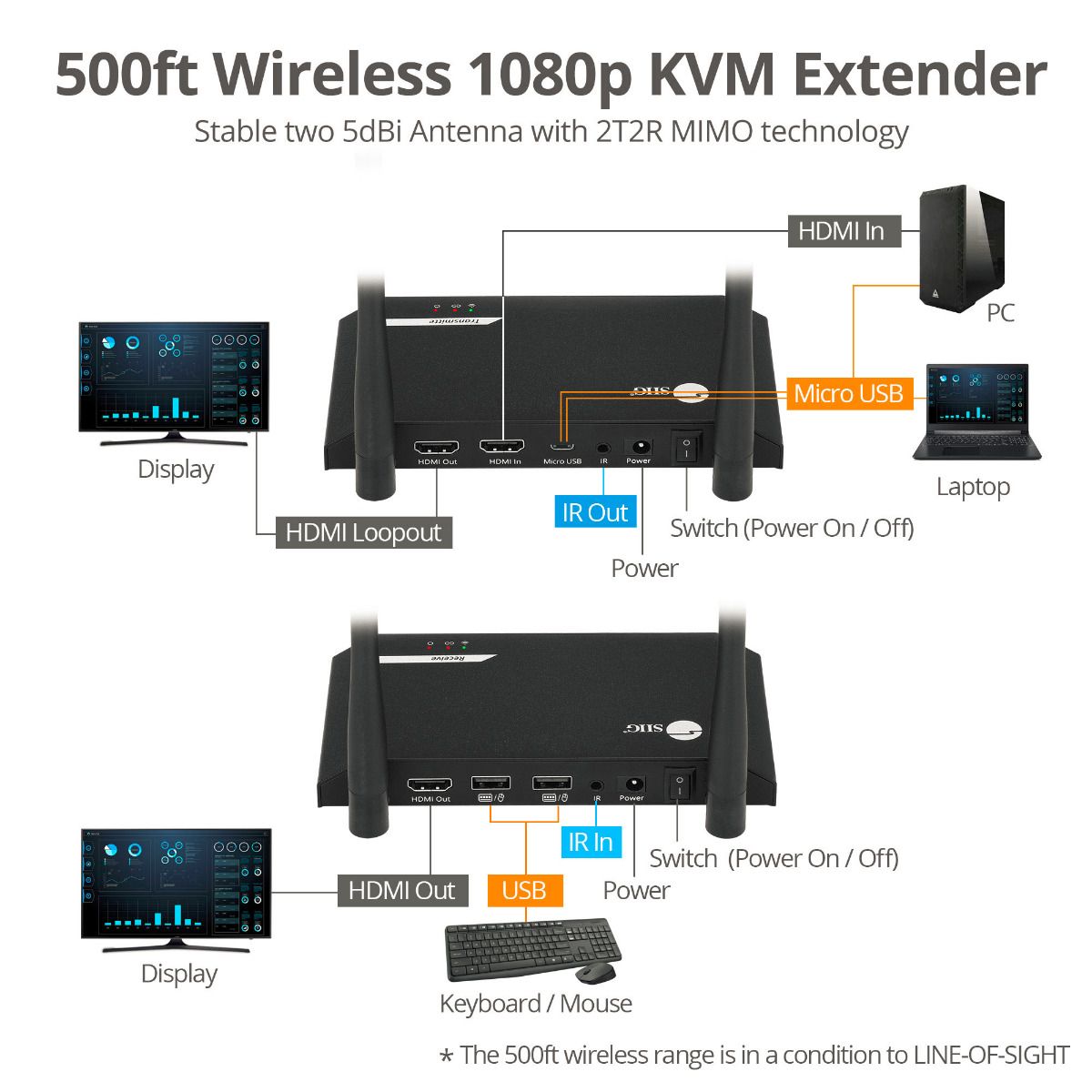

| Transmitter Unit (TX) | 1x 19-pin, HDMI, Female (input) 1x 19-pin, HDMI, Loop out, Female 1x 5-pin, Micro USB, USB 2.0 (for PC USB host) 1x 3.5mm infrared jack (IR output) 1x DC 5V/2A power jack 1x Power button 2x Wi-Fi antenna jack, MIMO 2x2, 2.4G bandwidth |
| Receiver Unit (RX) | 1x 19-pin, HDMI, Female (output) 2x 4-pin, USB 2.0 Type-A, Female (for keyboard & mouse) 1x 3.5mm infrared jack (IR input) 1x DC 5V/2A power jack 1x Power button 2x Wi-Fi antenna jack, MIMO 2x2, 2.4G bandwidth |
| Product | |

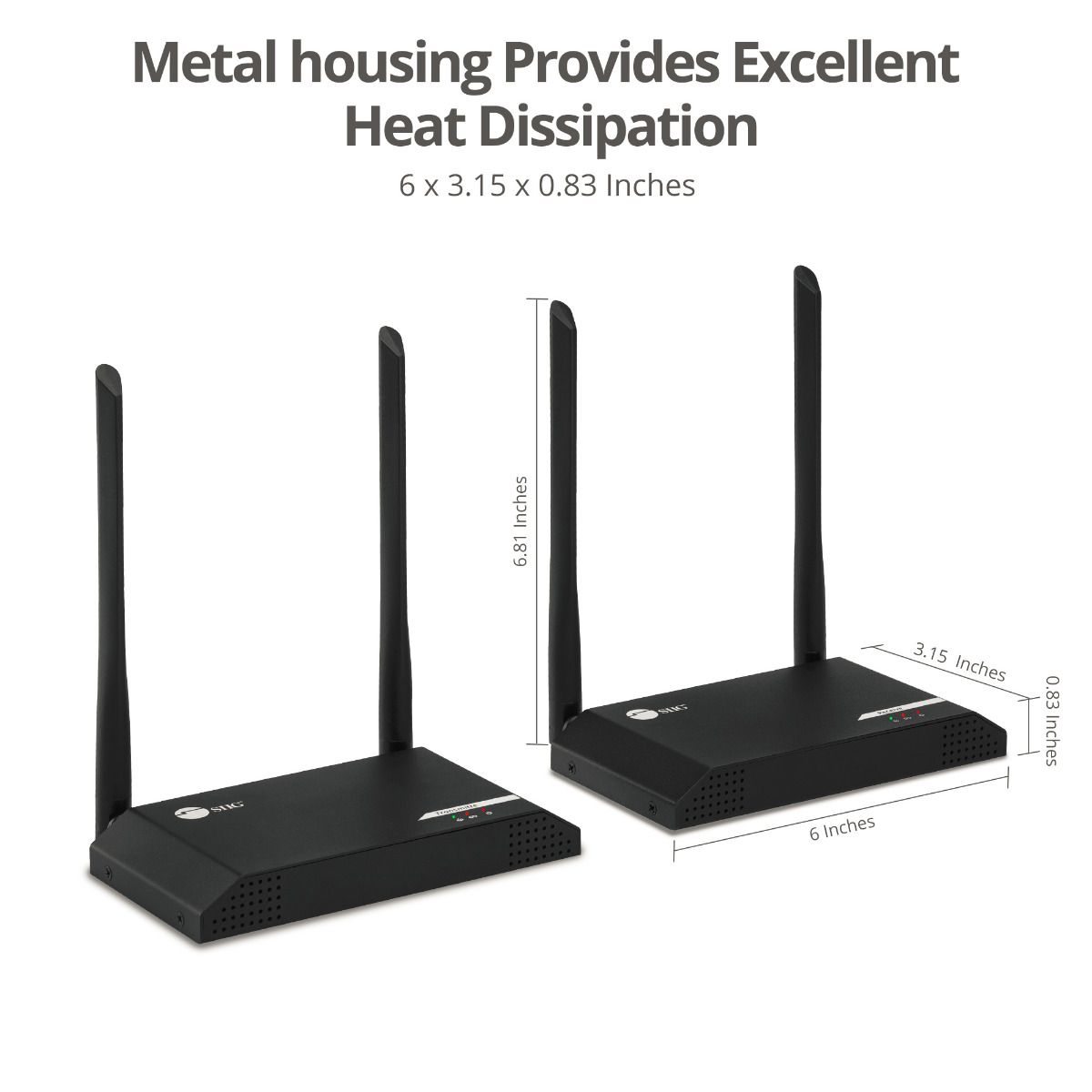

| Dimensions for TX | 6.05" (L) x 0.83" (H) x 3.15" (W) |
| Dimensions for RX | 6.05" (L) x 0.83" (H) x 3.15" (W) |
| Color | Black |
| Housing Material | Metal |
| Unit Package | |
| Dimensions | 11.41″(W) x 2.17″(H) x 9.45″(D) |
| Weight | 2.38 lbs |
| Master Carton | |
| Dimensions | 22.00" (W) x 10.23" (H) x 12.20" (D) |
| Weight | 25.35 lbs |
| Quantity | 10pcs/ctn |

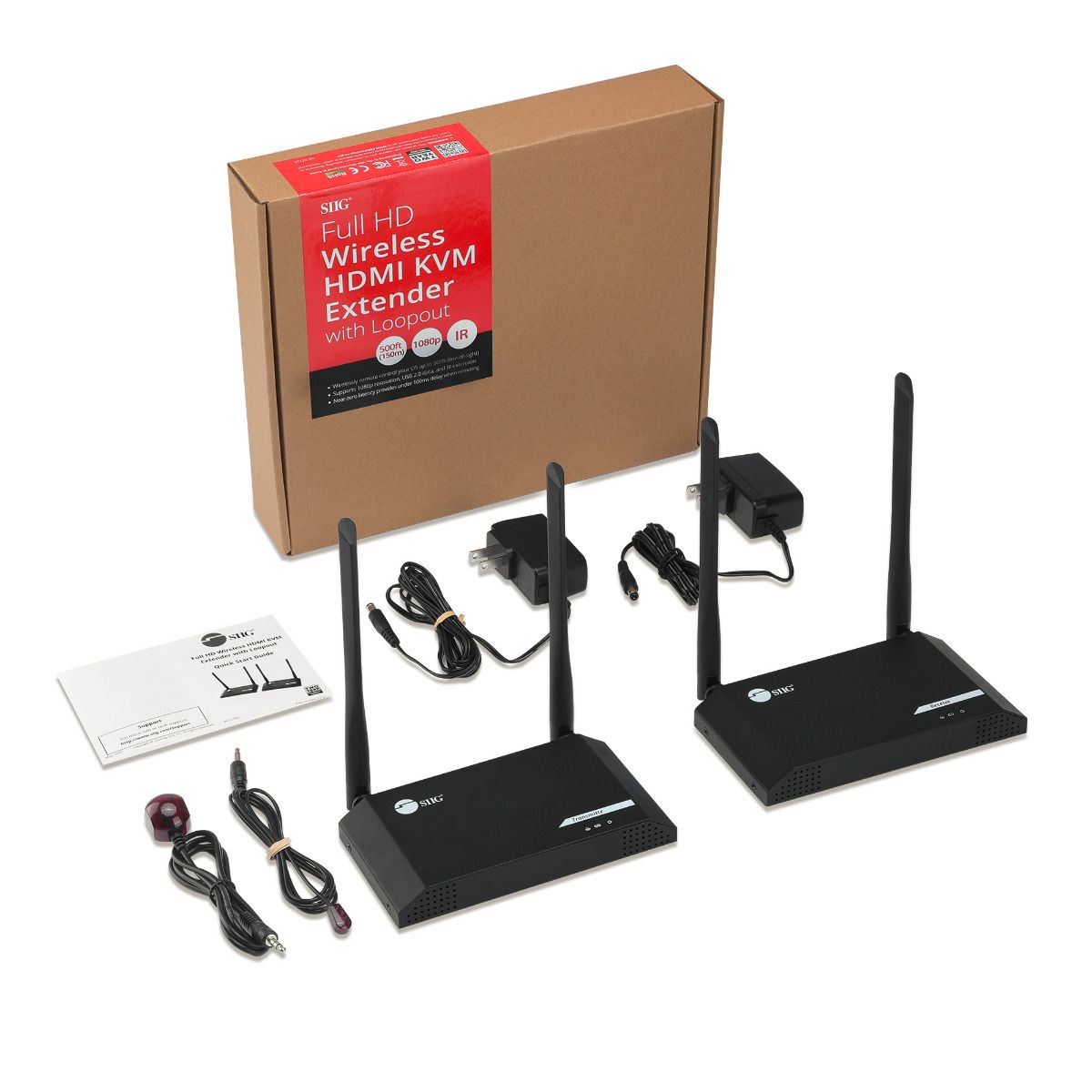

| Package contents | 1x Full HD Wireless HDMI KVM Extender with Loop out (1x TX & 1x RX) 1x IR Blaster Cable 1x IR Receiver Cable 2x DC Power Adapter (5V/2A) 1x User Reference Guide |
| Environmental Conditions | |
| Operating Temperature | 32 to 104 degrees F |
| Storage Temperature | -4 to 158 degrees F |
| Relative Humidity | 0% to 90% RH (non-condensing) |
| Certifications/Standards | FCC, CE, RoHS |
| UPC Code | 662774-044194 |
| Warranty | 2 years limited |
| Country of Origin | China |
