Wireless |
SKU:
CE-H27711-S1

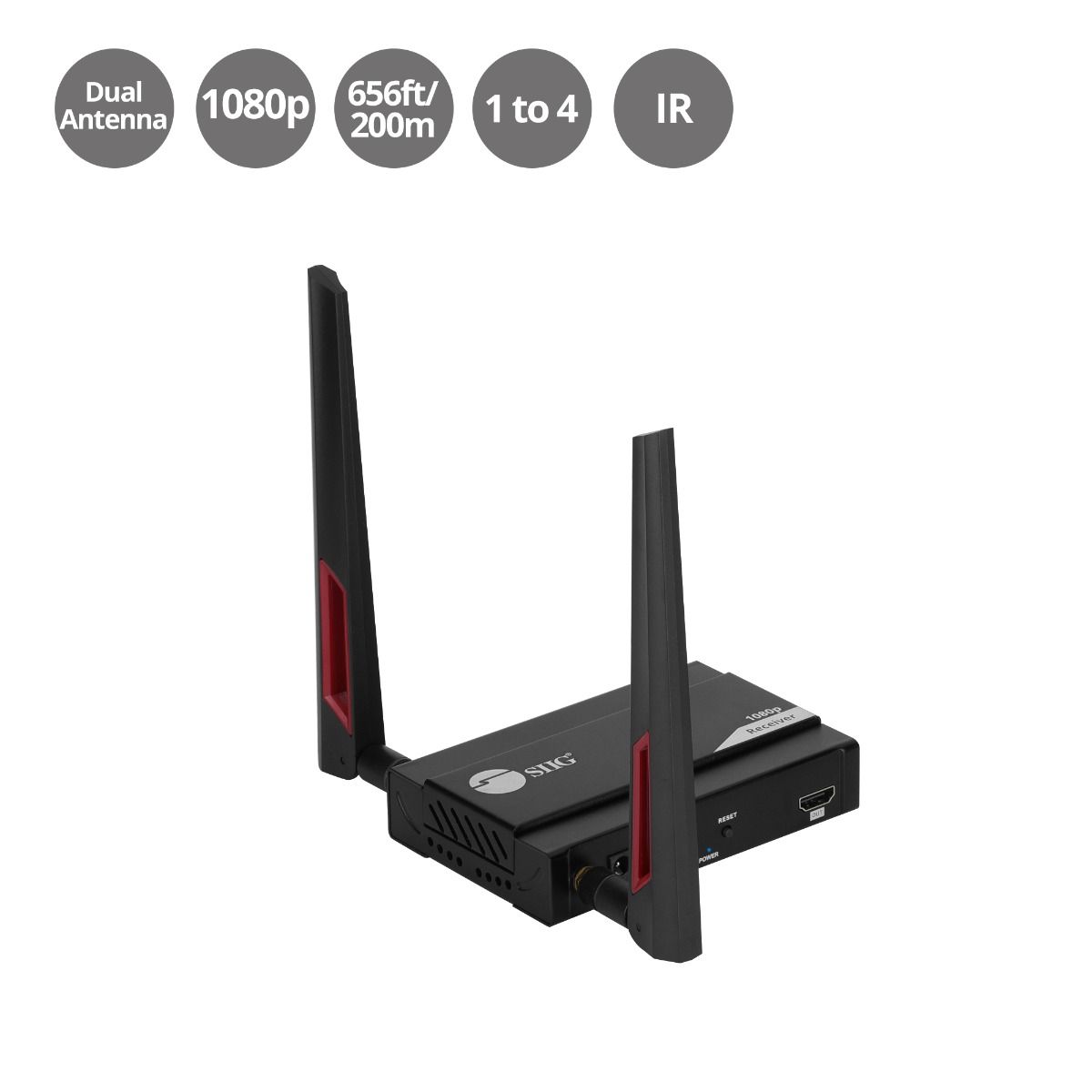

Full HD Wireless HDMI Extender - Receiver
Wireless Extender Receiver
656ft (200m)
1080p 60Hz
1 to 4
IR Extension
Regular price
$219.99
Unit price
/
Unavailable
Shipping calculated at checkout.
Full HD Wireless HDMI Extender - Receiver is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Features
Wireless Long-Range Extension
Wireless Long-Range Extension
Dual Antenna Design
Dual Antenna Design
Flexible Scalable
Flexible Scalable
Full HD Resolution
Full HD Resolution
IR Extension
IR Extension
No content found
| Wireless | |
| Bandwidth | 5GHz |
| Transport protocol | H.264 compression |

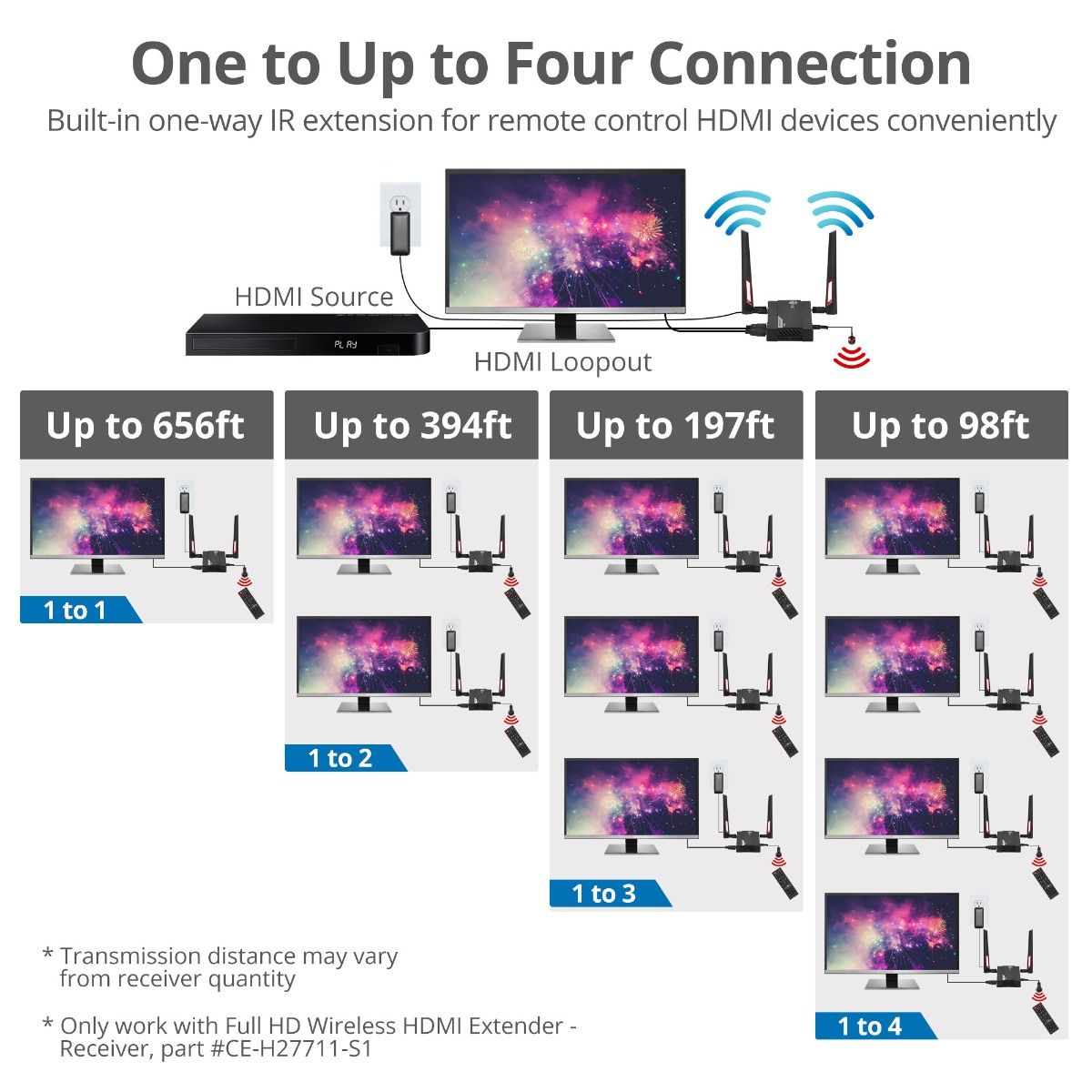

| Transmission distance | 1 to 1: 656ft (200m) line-of-sight 1 to 2: 394ft (120m) line-of-sight 1 to 3: 197ft (60m) line-of-sight 1 to 4: 98ft (30m) line-of-sight *Note: The transmission distance will vary depending on building layout electronic interference walls and partitions other environmental conditions and may be much less than the maximum. |
| Video | HDMI: 1x output |
| Bandwidth | 10.2Gbps |
| Resolution | 1920x1200 60Hz, 1080p / 1080i / 720p / 576p / 576i / 480p / 480i 60Hz |
| Color space | RGB/YCbCr 4:4:4, YCbCr 4:2:2, YUV 4:2:0 |
| Color depth | 8 / 10 / 12-bit |
| HDMI Cable Length | Up to 5m |
| Audio | R/L LPCM 2.0 channel, 32KHz / 44.1KHz / 48KHz stereo audio |
| IR Frequency Rangel | 20-60Hz |
| Power | |
| Input | 100-240V/50-60Hz |
| Output | DC 12V/1A |
| UL Listed | E336751 / Level VI |

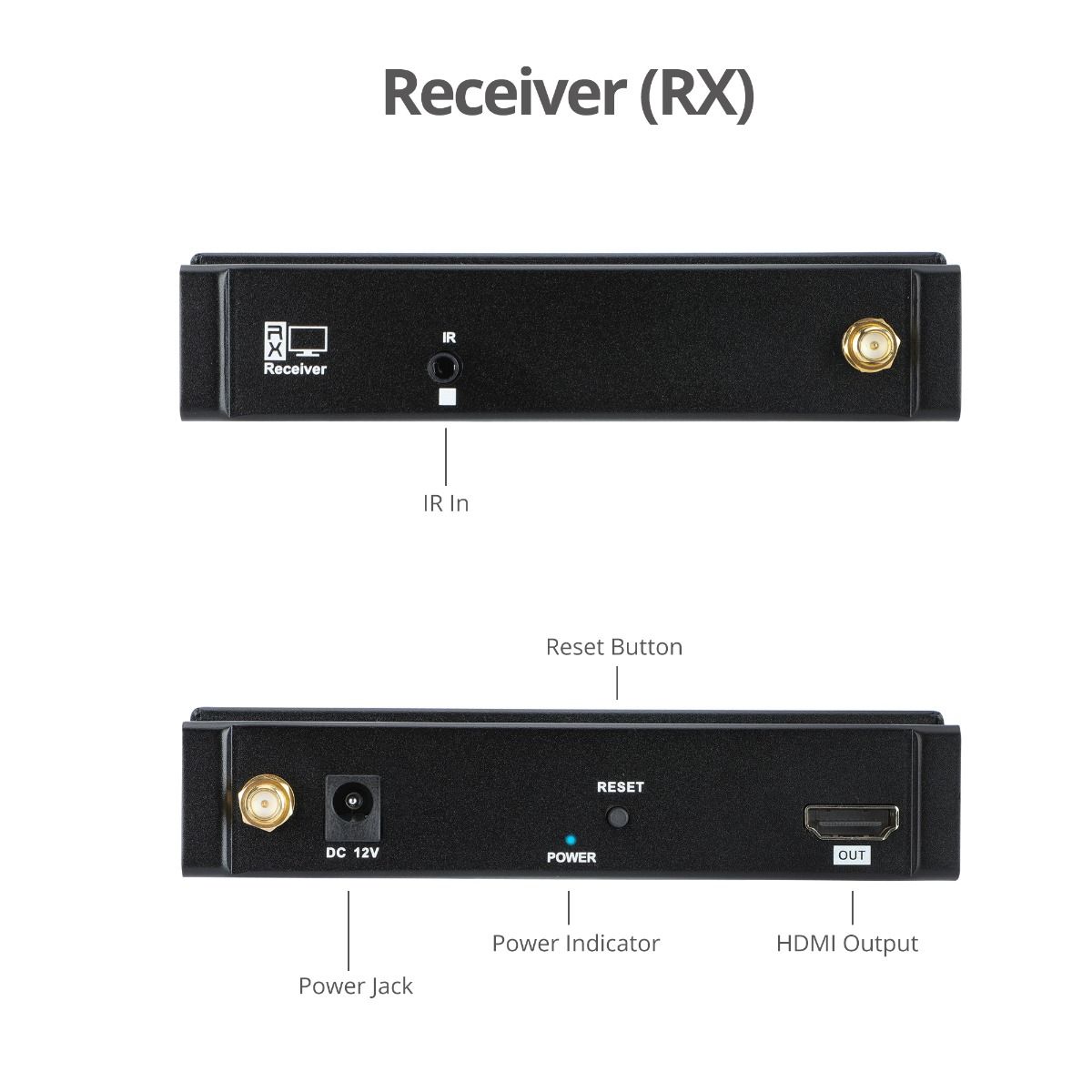

| Interface | 1x 19-pin HDMI, female, output 1x 3.5mm Infrared jack, IR input 2x Wi-Fi antenna jacks (5G bandwidth) 1x Reset button 1x Power jack, DC 12V/1A |
| Product | |

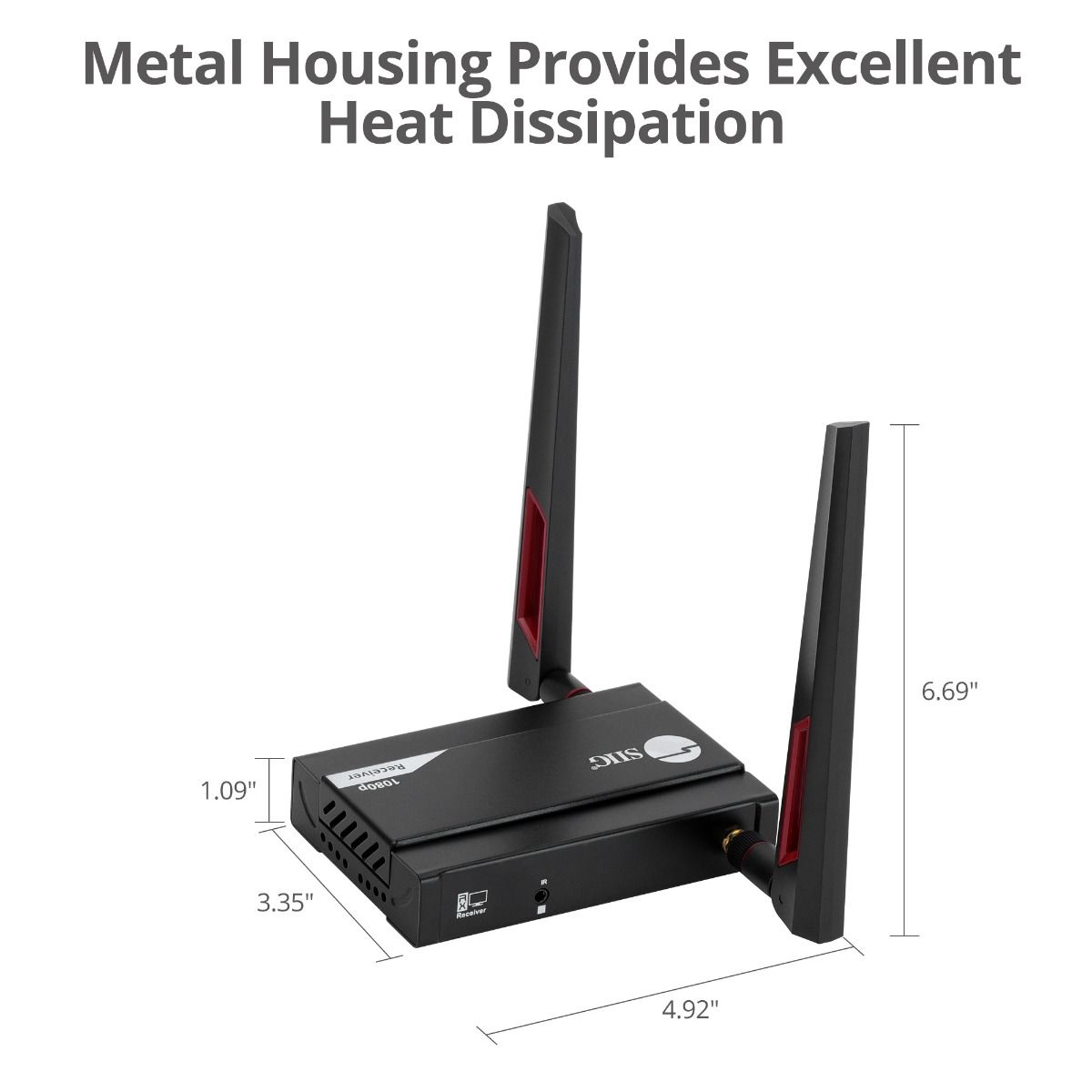

| Dimensions (L) x (H) x (W) | 4.92″ x 1.10″ x 4.02″ 12.50 cm x 2.79 cm x 10.21 cm |
| Weight | 0.33 lb (0.15 kg) |
| Color | Black |
| Housing | Metal |
| Unit package | |
| Dimensions (L) x (H) x (W) | 7.87″ x 2.68″ x 5.98″ 19.99 cm x 6.81 cm x 15.19 cm |
| Weight | 0.88 lb (0.40 kg) |
| Master carton | |
| Dimensions (L) x (H) x (W) | 20.87″ x 11.42″ x 14.57″ 53.01 cm x 29.01 cm x 37.01 cm |
| Weight | 19.49 lbs (8.84 kg) |
| Quantity | 20 pcs/ctn |

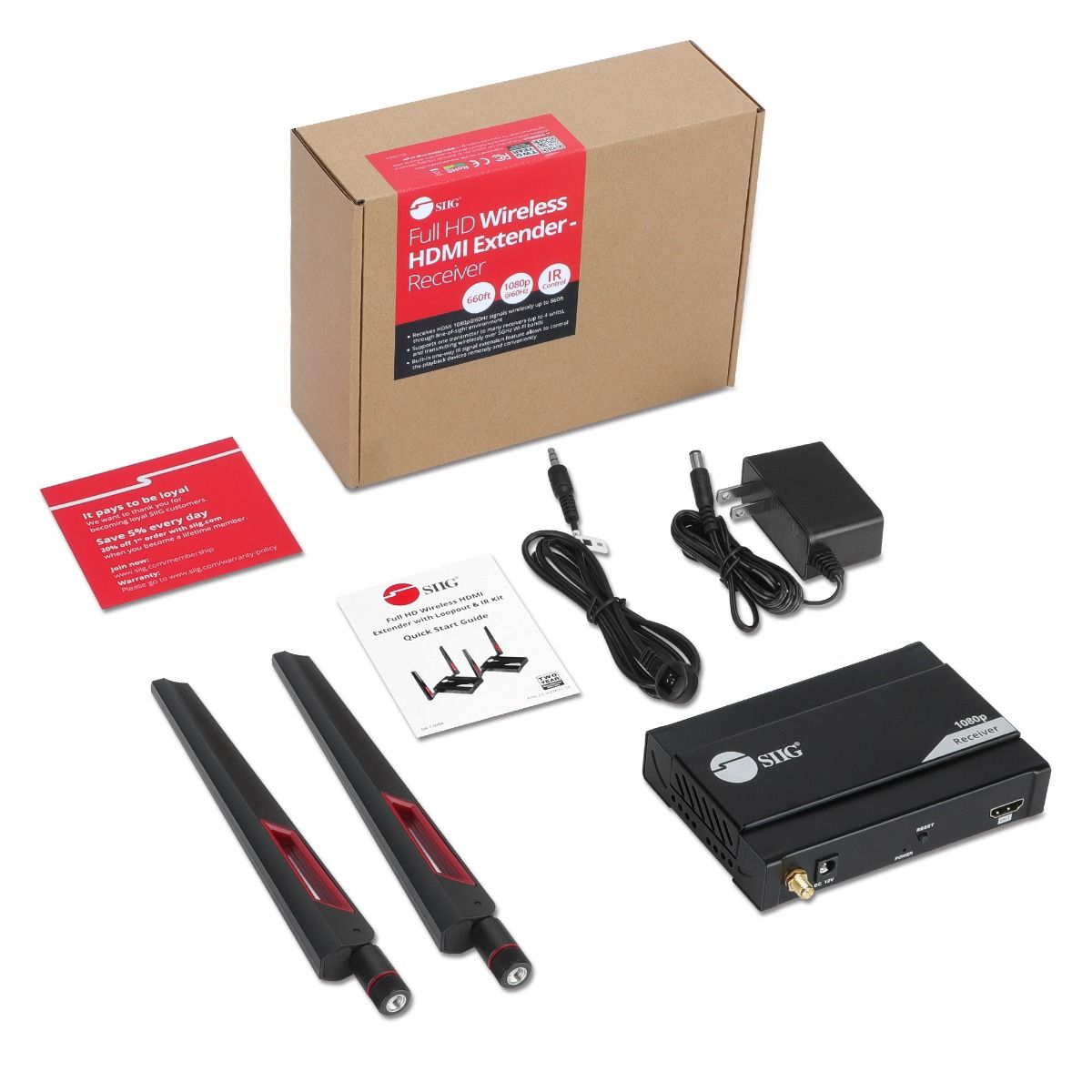

| Package contents | 1x Full HD Wireless HDMI Extender Receiver 1x IR receiver extension cable 1x DC power adapter (12V/1A) 1x User reference guide |
| Environmental Conditions | |
| Operating Temperature | 32° to 104° F |
| Storage Temperature | 23° to 158° F |
| Relative Humidity | 5% to 90% RH (non-condensing) |
| Certifications/Standards | FCC, RoHS, REACH |
| UPC Code | 662774-045245 |
| Warranty | 2 years limited |
| Country of origin | China |
