KVM |
SKU:
CE-KV0A11-S1
Full HD Quad-View HDMI KVM MultiView Processor
HDMI KVM Processor
Up to 1080p 60Hz
HDMI 4 In / 1 Out

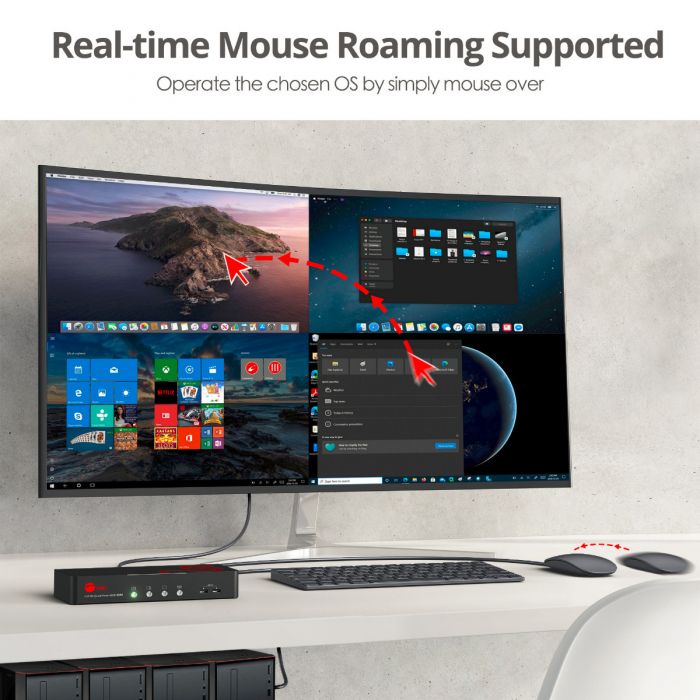

Multiview / Roaming
TAA Compliant
Regular price
$679.99
Unit price
/
Unavailable
Shipping calculated at checkout.
Full HD Quad-View HDMI KVM MultiView Processor is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Features
HDMI KVM Switch
HDMI KVM Switch
1080P Resolution & Audio
1080P Resolution & Audio

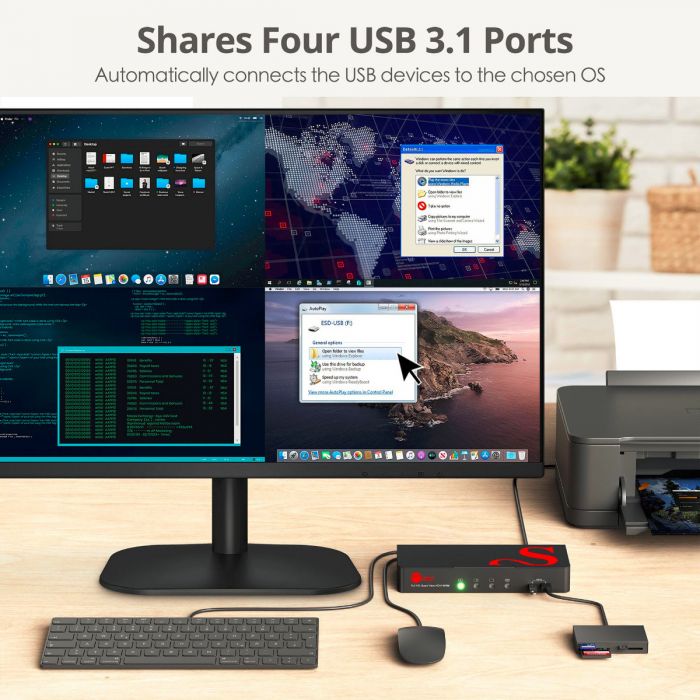

Built-In USB Hub
Built-In USB Hub

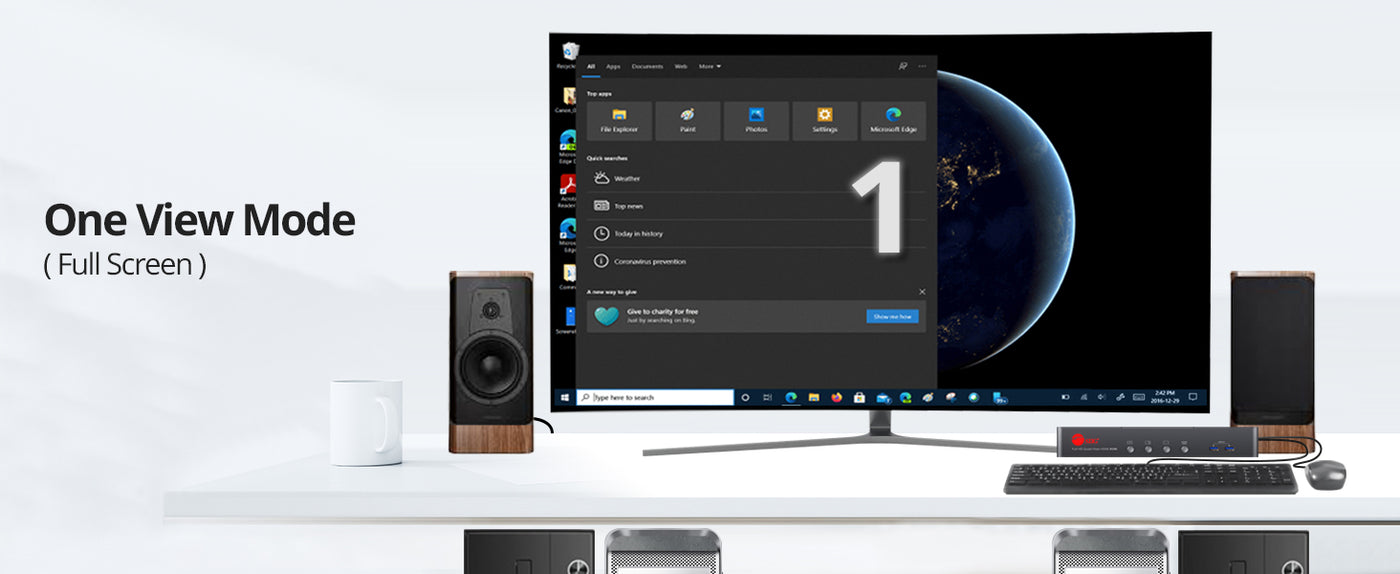

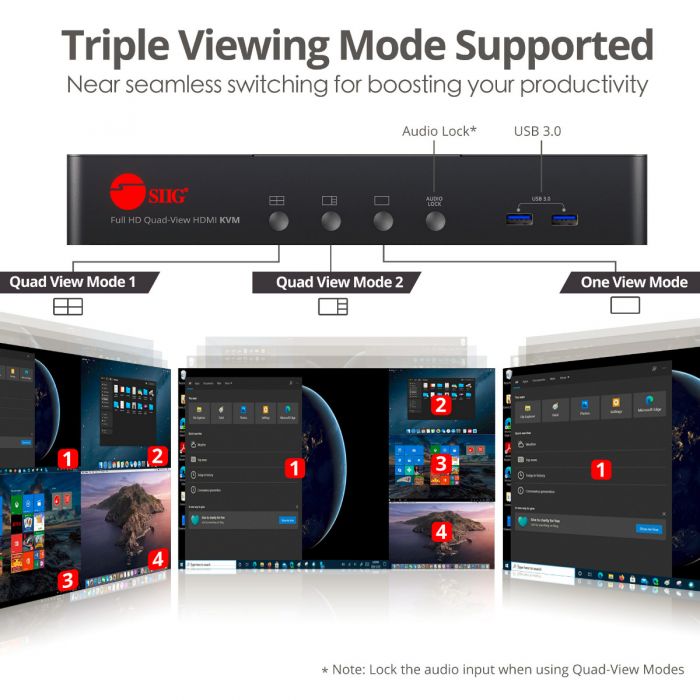

Multiple Display Modes
Multiple Display Modes

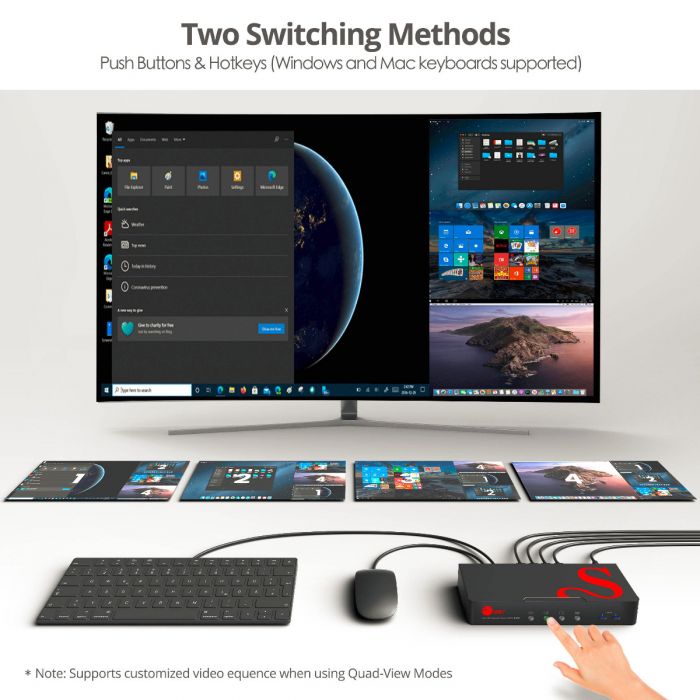

Hotkey Switching
Hotkey Switching
Sharing 4 Views Displayed on One Screen with 4 Full HD HDMI Devices or Computers at The Same Time via One Set of Keyboard & Mouse to Create a Powerful Workstation





-

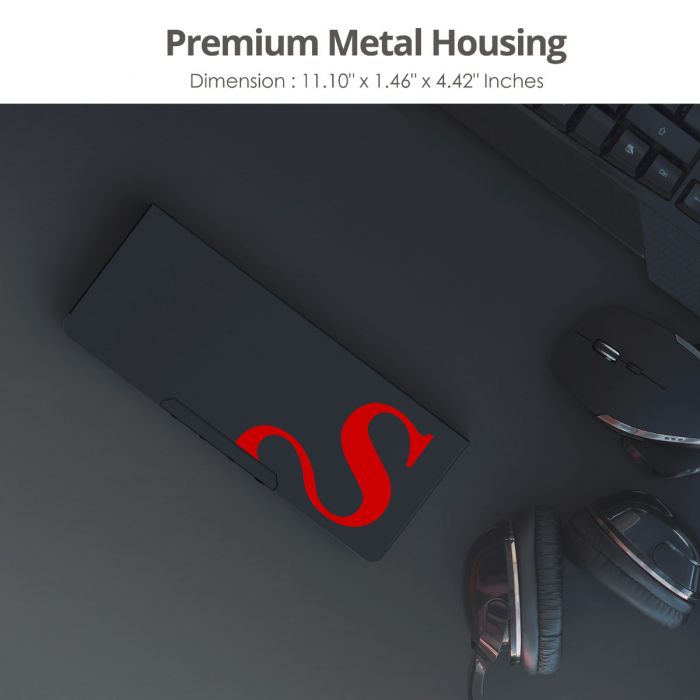

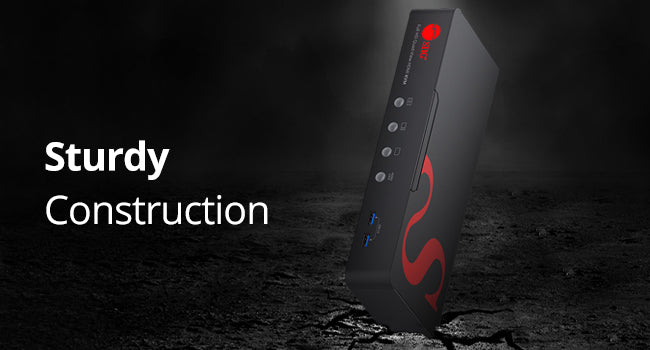

Metal Housing
The metal housing of this product is both drop-resistant and anti-collision, which also helps it dissipate heat better and improve its overall performance and safety. -
Manufactured in TAA Country
Suppose you or your company are involved with GSA Schedules, IDIQ, or DoD contracts.
This kit complies with TAA for businesses seeking to acquire goods wholly made or substantially transformed in trusted countries

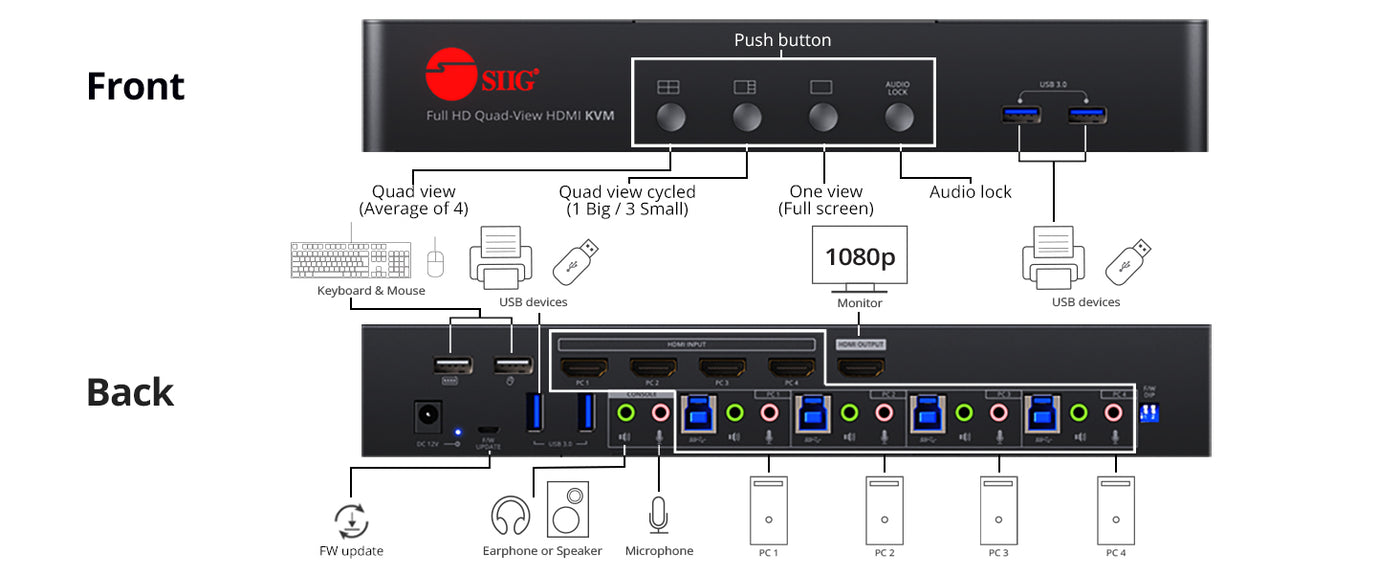

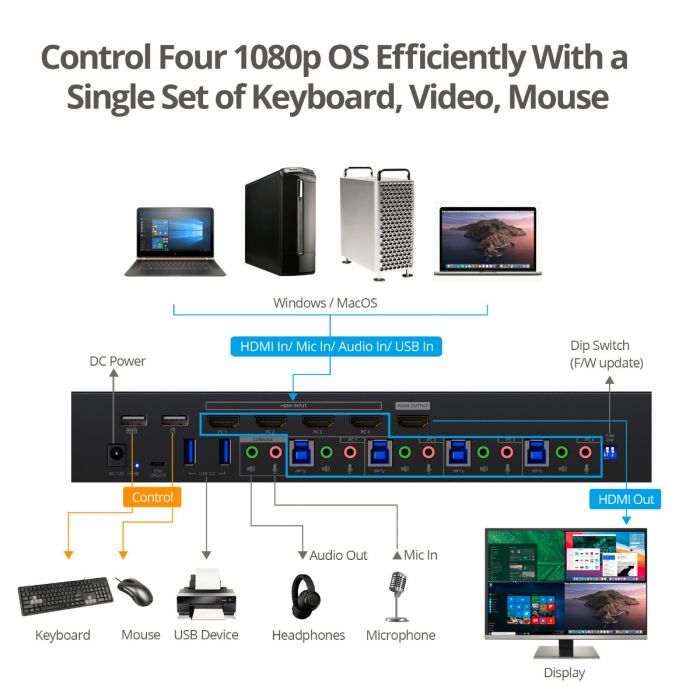

Multiple Connectivity Port
| Video | |
| HDMI | HDCP 1.4 |
| Bandwidth | Up to 6.75Gbps |
| Resolution | 480i / 480p / 576i / 576p / 720p / 1080i / 1080p |
| Display Mode | Single view mode, Quad view mode, and Quad view cycled mode |
| USB Data Transfer Rate | |
| USB 2.0 | Up to 480Mbps |
| USB 3.0 | Up to 5Gbps |
| Audio | - 5.1 channel surround sound from HDMI port - PCM 2.1 channel stereo digital audio for 3.5mm audio jack |
| Power Adapter | |
| Input | AC 100-240V / 50-60Hz |
| Output | DC 12V/2A |
| UL Listed | E263376 / Level: VI |
| Interface | |
| Input | 4x 19-pin, HDMI, Female 4x 9-pin, USB 3.0 Type-B, Female (Host) 4x 9-pin, USB 3.1 Gen 1 Type-A, Female 2x 4-pin, USB 2.0 Type-A, Female (for Keyboard & Mouse) 4x 3.5mm phone jack for stereo audio, Female 1x 3.5mm phone jack for Microphone, Female 1x 5-pin, Micro USB for FW update, Female 1x2-pin, DIP switch (control) 4x Push button (device switching) 1x DC power jack, 12V/2A |
| Output | 1x 19-pin, HDMI, Female 4x 3.5mm phone jack for Microphone, Female 1x 3.5mm phone jack for stereo audio, Female |
| System Requirements | - Desktop or Laptop with an available HDMI, USB 3.0 Type-A, audio and microphone ports - Compliant with Windows or Mac system |
| Product | |
| Dimensions (L) x (H) x (W) | 11.10" x 1.70 x 4.39" 28.19 cm x 4.32 cm x 11.15 cm |
| Weight | 2.23 lbs (1.00 kg) |
| Color | Black |
| Housing Material | Metal |
| Unit Package | |
| Dimensions (L) x (H) x (W) | 13.03" x 6.38" x 8.03" 33.10 cm x 16.20 cm x 20.40 cm |
| Weight | 5.70 lbs (2.59 kg) |
| Master Carton | |
| Dimensions (L) x (H) x (W) | 19.88" x 13.58" x 17.17" 50.50 cm x 34.50 cm x 43.60 cm |
| Weight | 36.66 lbs (16.63 kg) |
| Quantity | 6 pcs/ctn |
| Environmental Conditions | |
| Operating Temperature | 32 to 104 degrees F |
| Storage Temperature | -4 to 140 degrees F |
| Relative Humidity | Not Specified |
| Certifications & Standards | FCC, CE, RoHS, TAA compliant |
| UPC Code | 662774-044552 |
| Warranty | 3 years limited |
| Country of Origin | Taiwan |

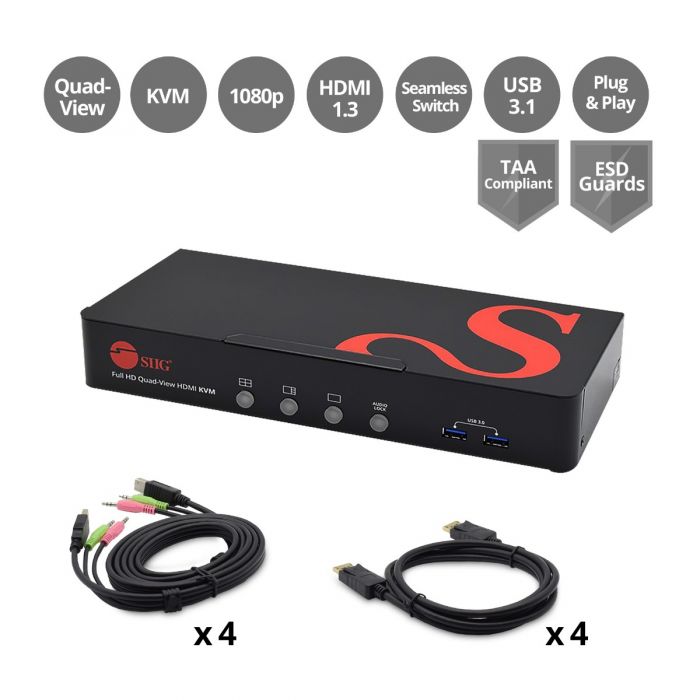

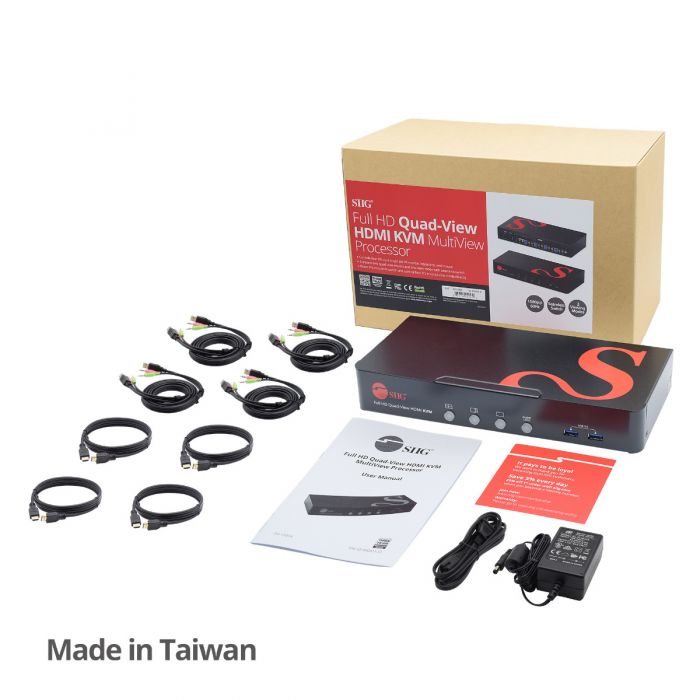

| Package Contents | 1x Full HD Quad-View HDMI KVM MultiView Processor 1x DC Power adapter (12V/2A) 4x HDMI cable (1.8m) 4x 3-in-1 cable (USB+Audio+Mic) 1x User Reference Guide |
