Switch |
SKU:
CE-H24H11-S1

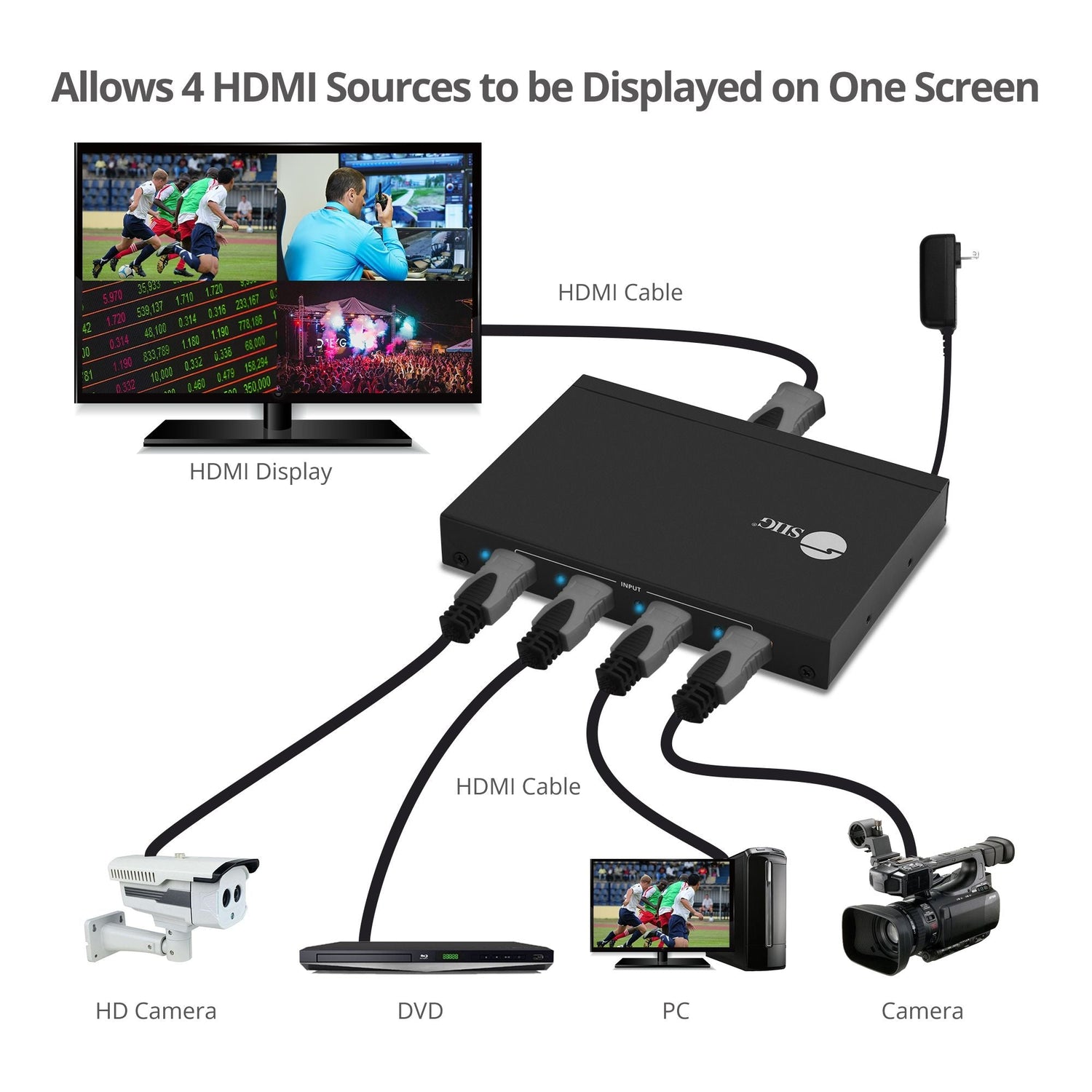

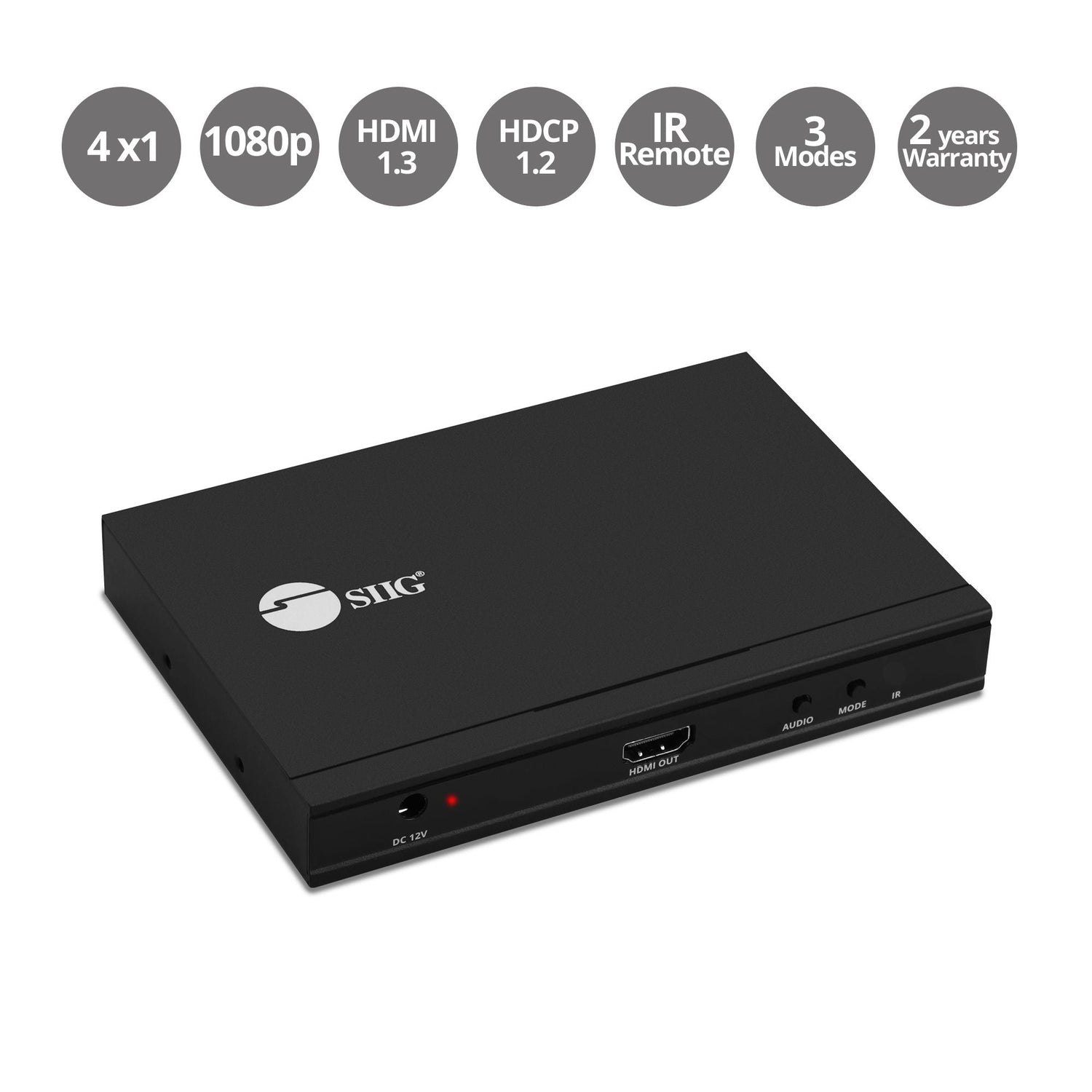

Full HD HDMI Quad-Split Multi-Viewer Switch
4x1 Multi-Viewer Switch
4 In / 1 Out
1080p 60Hz
3 Modes

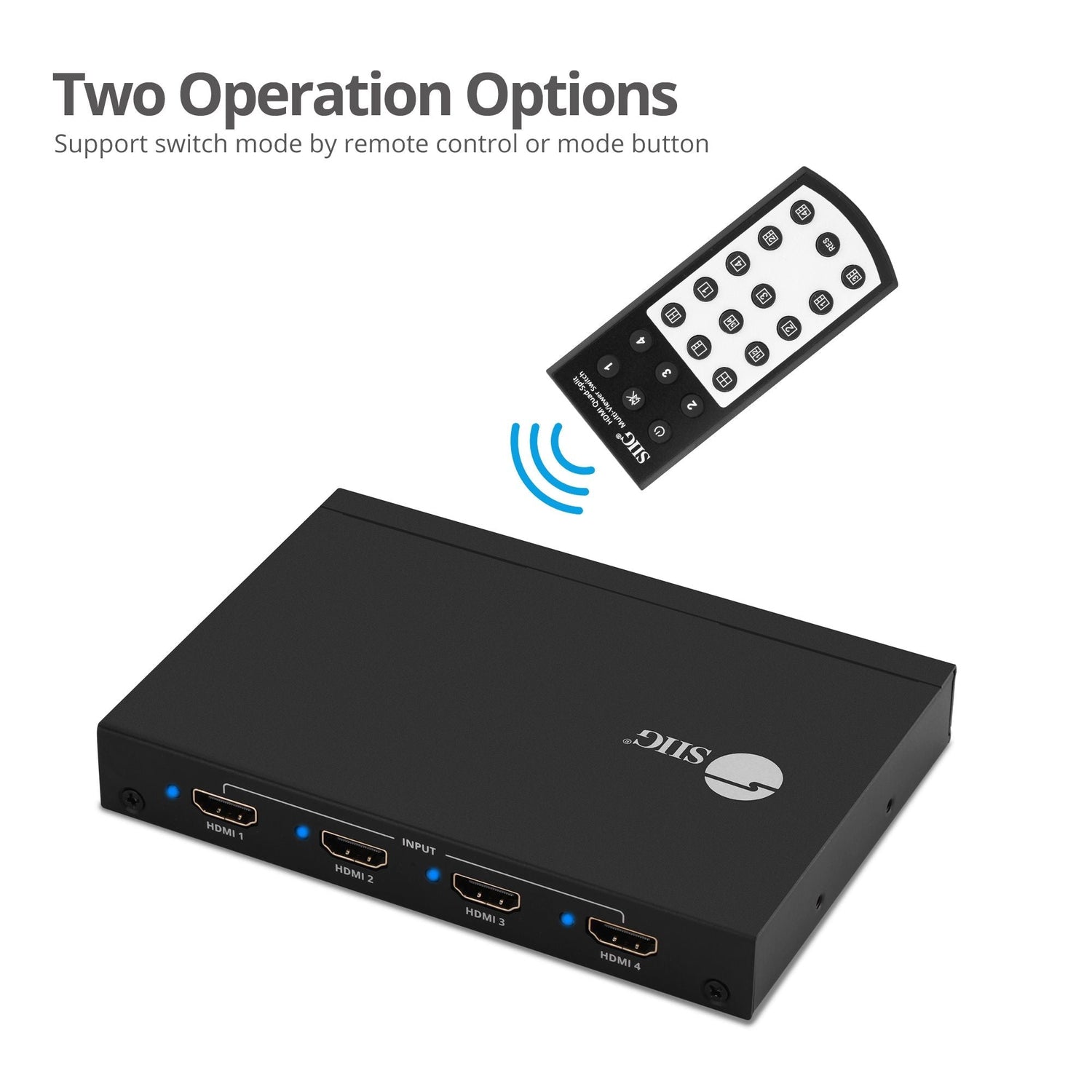

IR Remote
Regular price
$249.99
Unit price
/
Unavailable
Shipping calculated at checkout.
Full HD HDMI Quad-Split Multi-Viewer Switch is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Features
Multi-View Switcher
Multi-View Switcher
Supported Modes
Supported Modes
Seamless Switching
Seamless Switching
Video Resolutions
Video Resolutions
Surface Mounting
Surface Mounting
No content found
| Video | |
| HDMI | 4x input, 1x output |
| Standard | HDMI 1.3, HDCP 1.2 compliant |
| Resolution | 480p / 720p / 1080i / 1080p 60Hz |

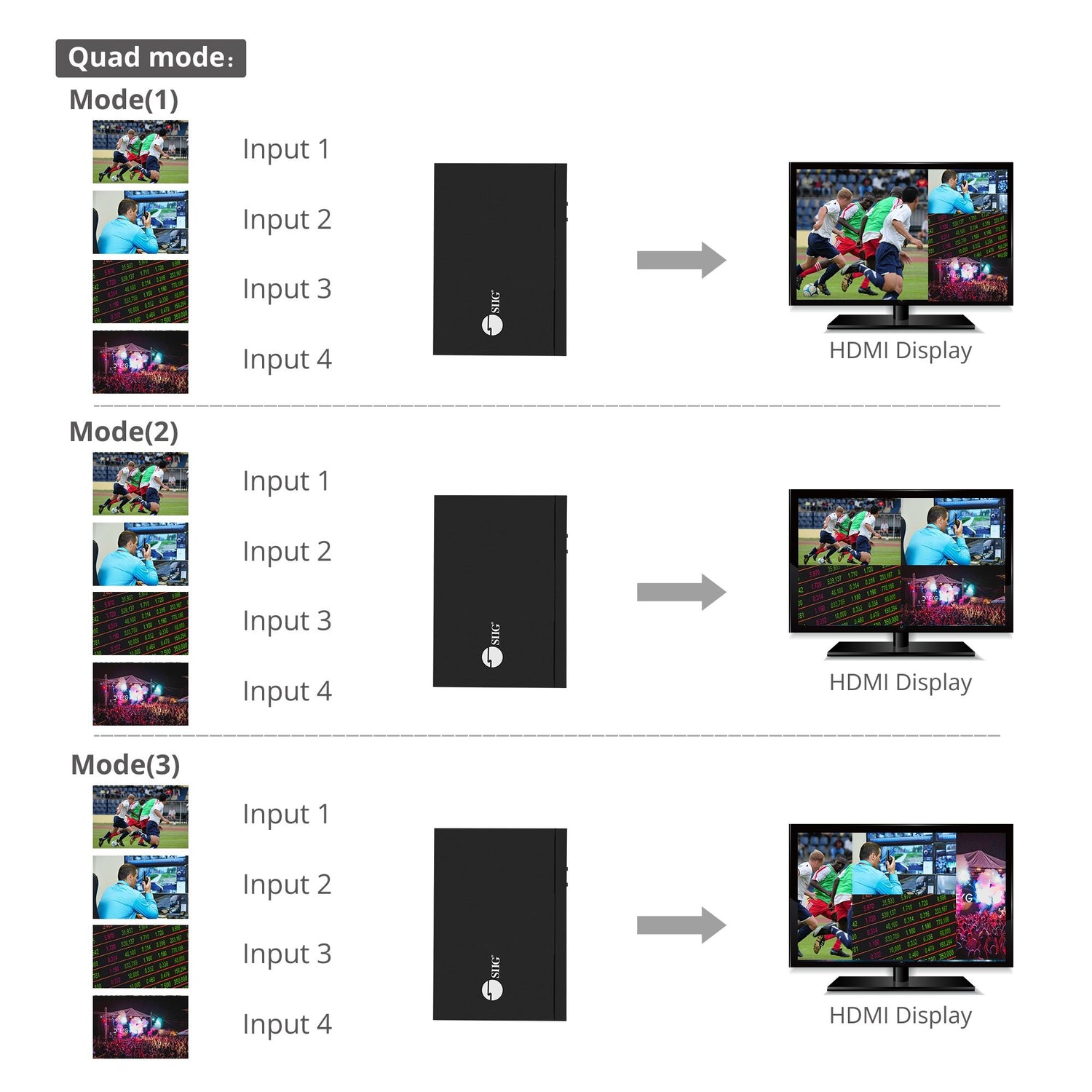

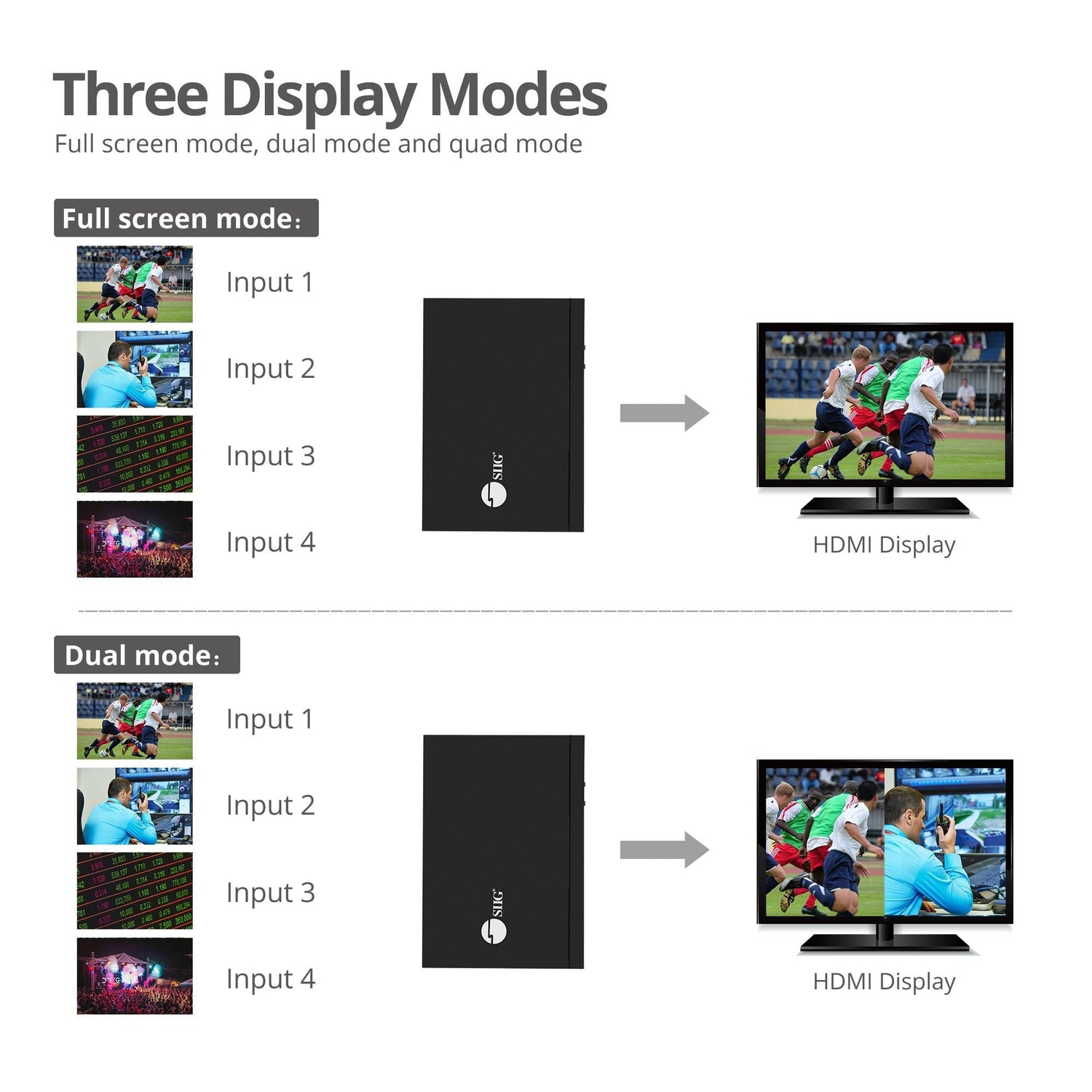

| Display Modes | Quad Mode: 4 HDMI sources displayed on 1 screen Dual Mode: 2 HDMI sources displayed on 1 screen Full Screen Mode: 1 HDMI source displayed on 1 screen |
| HDMI Cable Length | Input: Up to 5 meters Output: Up to 5 meters |
| [[Audio | 2-channel PCM |
| Power Consumption | <10 watts |
| Power Adapter | |
| Input | 100-240V AC, 50 / 60Hz |
| Output | DC 12V / 2A |
| UL Listed | E335801 / Level: VI |

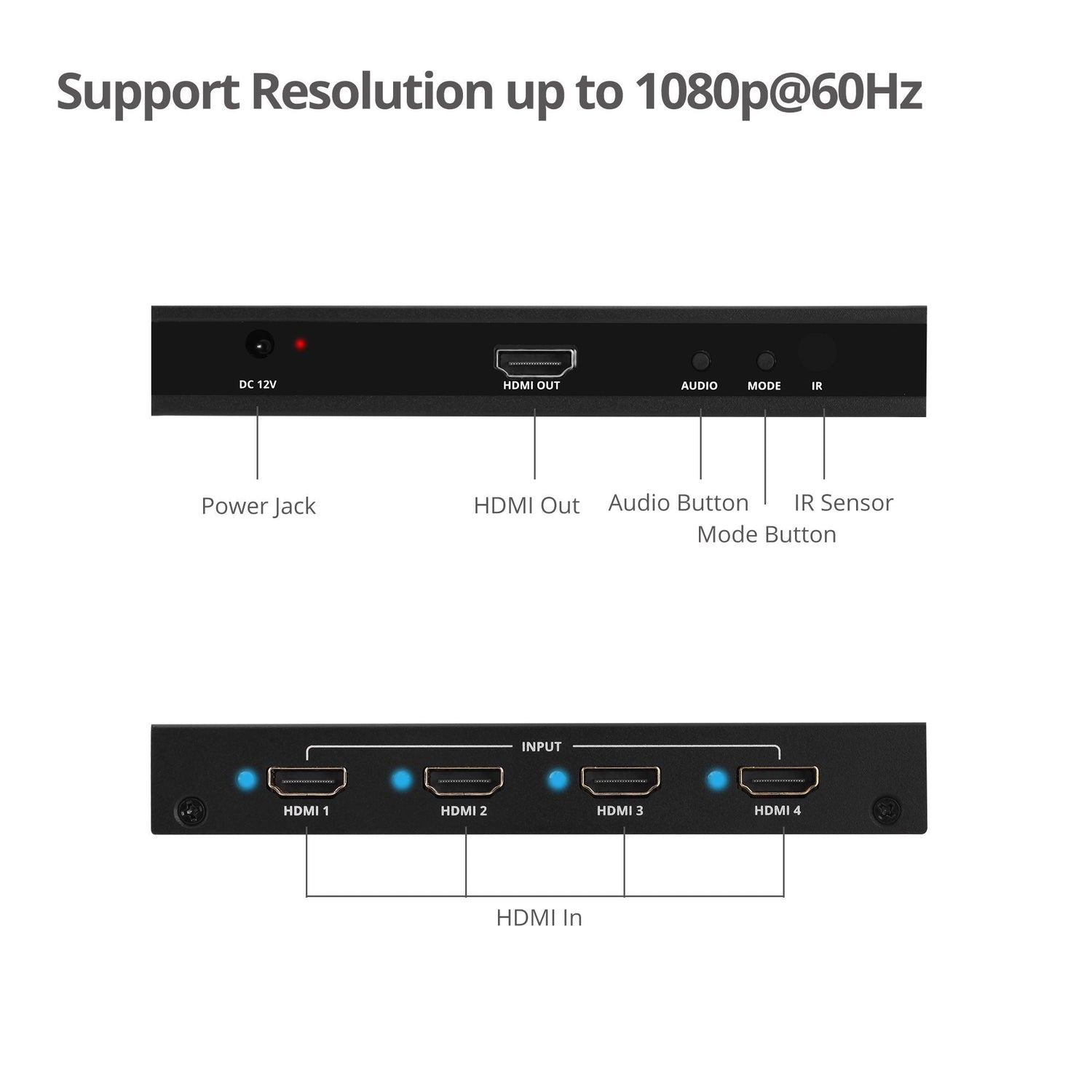

| Interface | 4x 19-pin, HDMI, female, input 1x 19-pin, HDMI, female, output 1x Mode button 1x Audio button 1x Power jack |
| Certifications/Standards | FCC, CE, RoHS |
| UPC Code | 662774-042275 |
| Warranty | 2 years limited |
| Country of Origin | China |
| Product | |
| Dimensions (L) x (H) x (W) | 5.87″ x 0.87″ x 4.06″ 14.91 cm x 2.21 cm x 10.31 cm |
| Weight | 0.75 lb (0.34 kg) |
| Color | Black |
| Housing Material | Metal |
| Unit Package | |
| Dimensions (L) x (H) x (W) | 7.83″ x 3.15″ x 5.87″ 19.89 cm x 8.00 cm x 14.91 cm |
| Weight | 1.53 lbs (0.69 kg) |
| Master Carton | |
| Dimensions (L) x (H) x (W) | 16.73″ x 12.40″ x 16.54″ 42.49 cm x 31.50 cm x 42.01 cm |
| Weight | 31.97 lbs (14.50 kg) |
| Quantity | 20 pcs/ctn |
| Package Contents | 1x Full HD HDMI Quad-Split Multi-Viewer Switch 1x Power adapter 1x Remote control 1x User reference guide |
| Environmental Conditions | |
| Operating Temperature | 32° to 104° F |
| Storage Temperature | -4° to 140° F |
| Relative Humidity | 5% to 90% RH (non-condensing) |
