I/O |
SKU:
NN-400012-S8

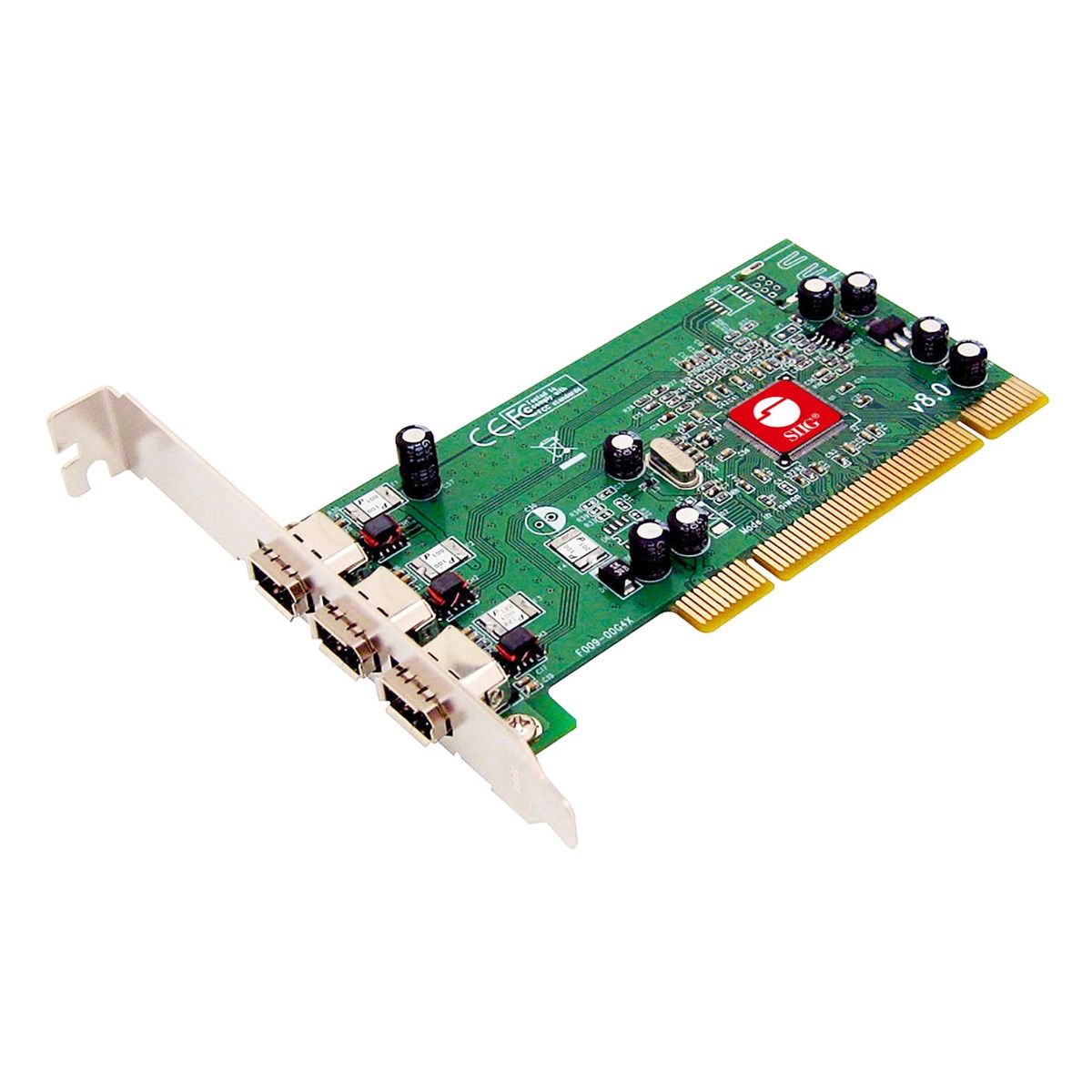

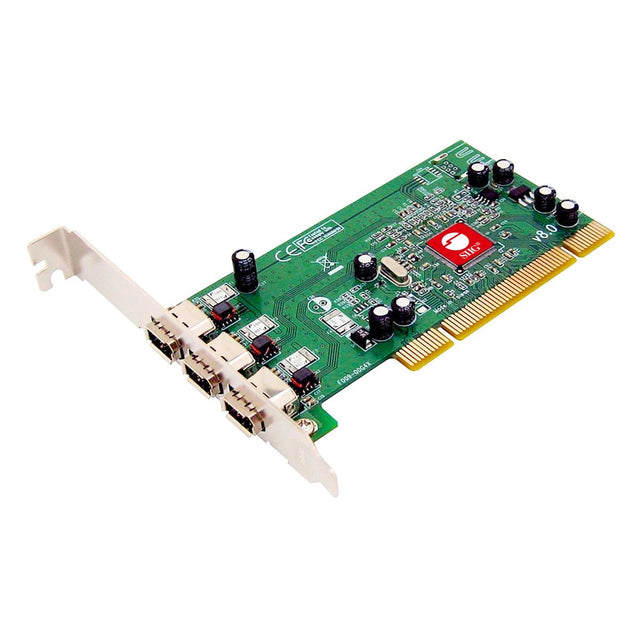

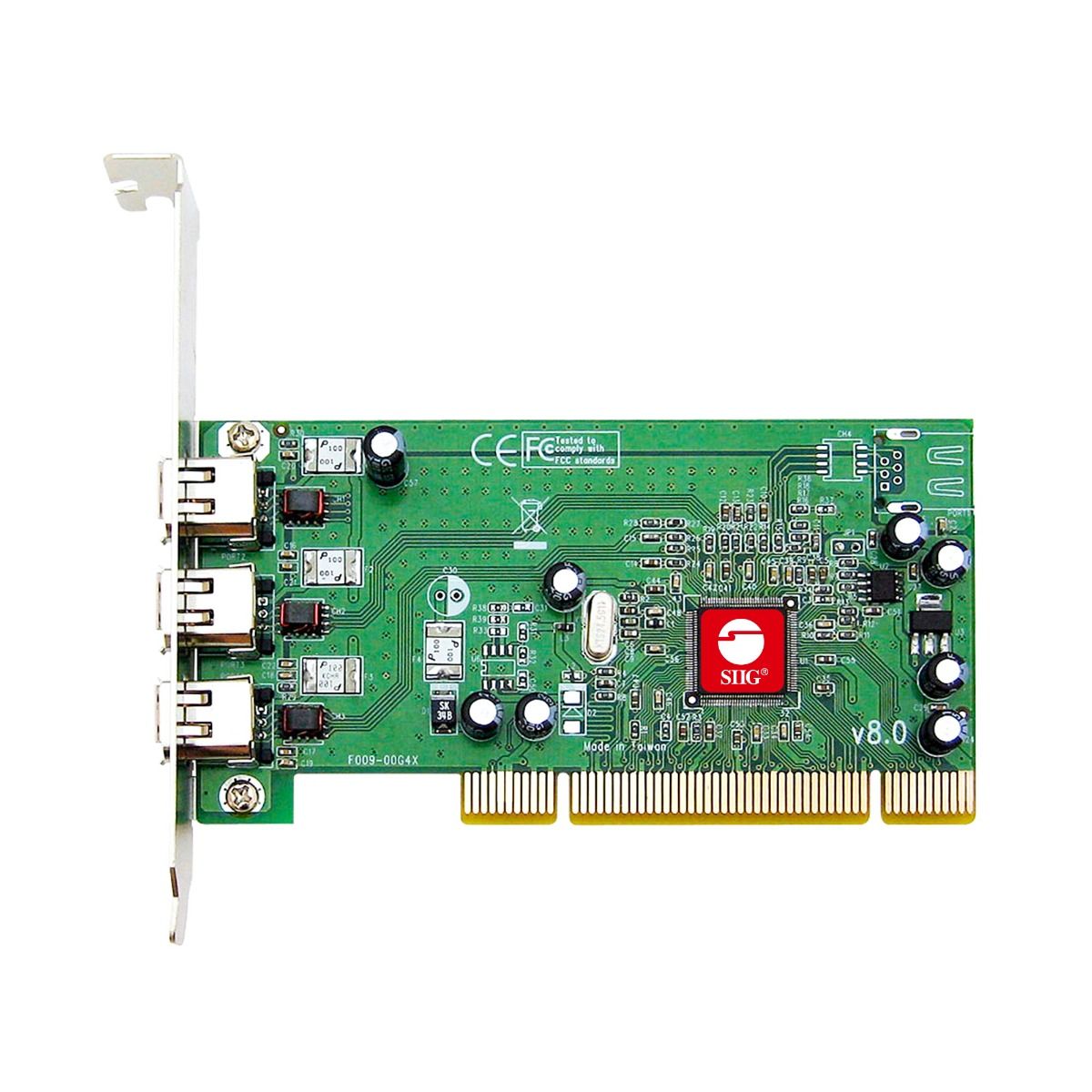

FireWire 3-Port PCI
FireWire PCI
3-Port 1394A
400Mbps
32-bit PCI
TI Single Chipset
Regular price
$69.99
Unit price
/
Unavailable
Shipping calculated at checkout.
FireWire 3-Port PCI is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Features
Triple FireWire Connectivity
Triple FireWire Connectivity
High-Speed Data Transfer
High-Speed Data Transfer
Broad System Compatibility
Broad System Compatibility
Perfect for Digital Video Creation
Perfect for Digital Video Creation
Hot-Swap Convenience
Hot-Swap Convenience
Features
- Three external IEEE 1394 (FireWire) ports support DV camcorders, hard disk, removable drives, scanners, printers and other 1394 audio/video devices including TV, VCR, DVD with data transfer rates up to 400Mb/s.
- Supports both PC and Mac.
- Works with Sony, Panasonic, Cannon, Sharp, JVC and many other DV camcorders for digital video creating/editing.
- Hot-swapping feature allows you to connect/disconnect devices without powering down the system.
| Chipset | TSB43AB23 (TI single chip) |
| Bus Type | 32-bit PCI |
| Port Type | 3, IEEE 1394a, External, Female |
| Compliance | IEEE 1394-1995, 1394a-2000 and OHCI 1.1 standards PCI Plug-n-Play 2.2 |
| Features | Supports serial bus data transfer rates of 100, 200 and 400Mb/sec |
| Cable Length | 16.4 ft / 5m (max) |
| Environmental Conditions | |
| Operating Temperature | 32 to 122 degrees F |
| Storage Temperature | -4 to 140 degrees F |
| Operating Humidity | 20% to 80% RH |
| Storage Humidity | 10% to 90% RH |
| System Requirements | PC or Mac® computer with an available PCI slot Windows® 10 (32-/64-bit) / 8.x (32-/64-bit) / 7 (32-/64-bit) / Vista (32-/64-bit) / XP (32-/64-bit) / Server 2003 & 2008 (32-/64-bit) / Server 2008 R2 / 2000 / ME / 98SE Mac OS X® 10.14 to 10.4 |
| Product | |
| Dimensions (L) x (H) x (W) | 5.12" x 4.72" x 0.79" 13.00 cm x 12.00 cm x 2.00 cm |
| Weight | 0.13 lb (0.06 kg) |
| Unit Package | |
| Dimensions (L) x (H) x (W) | 8.70" x 6.30" x 1.50" 22.10 cm x 16.00 cm x 3.80 cm |
| Weight | 0.34 lb (0.15 kg) |
| Master Carton | |
| Dimensions (L) x (H) x (W) | 17.88" x 13.50" x 16.69" 45.42 cm x 34.29 cm x 42.40 cm |
| Weight | 14.77 lbs (6.70 kg) |
| Quantity | 40pcs/ctn |
| Certifications/Standards | FCC, CE, RoHS |
| UPC Code | 662774-026817 |
| Warranty | Lifetime limited |
| Country of Origin | China |
| Package Contents | 1x FireWire 3-Port PCI 1x Installation guide |
Q1: Is it necessary to use the power supply cable?
Q1: Is it necessary to use the power supply cable?
A1: The on board power connection is optional and only needed when bus-powered 1394 devices requiring more than 6W power in total are connected to the card, please connect the Molex power connector to the computer's power supply.
