Extender |
SKU:
CE-D20012-S1

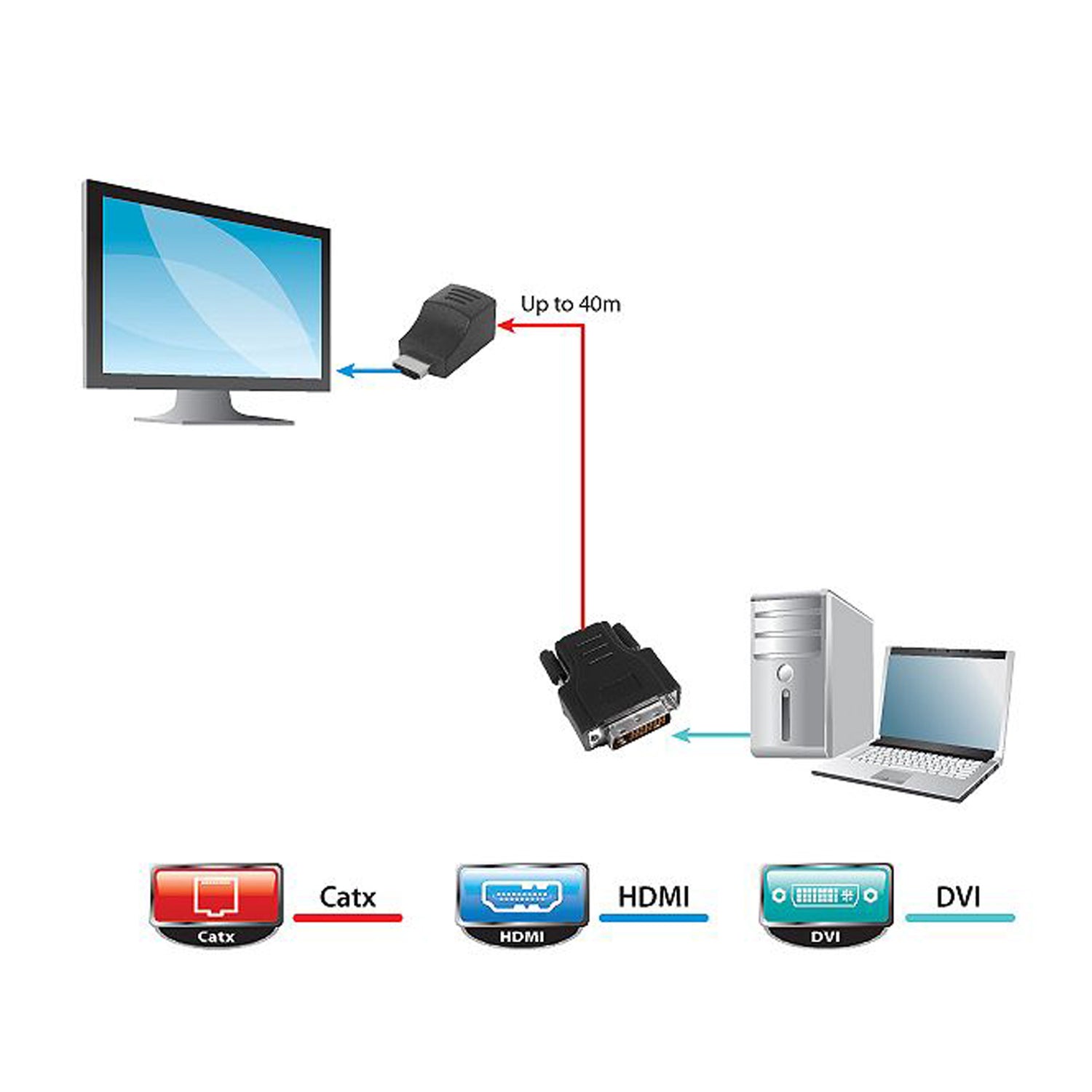

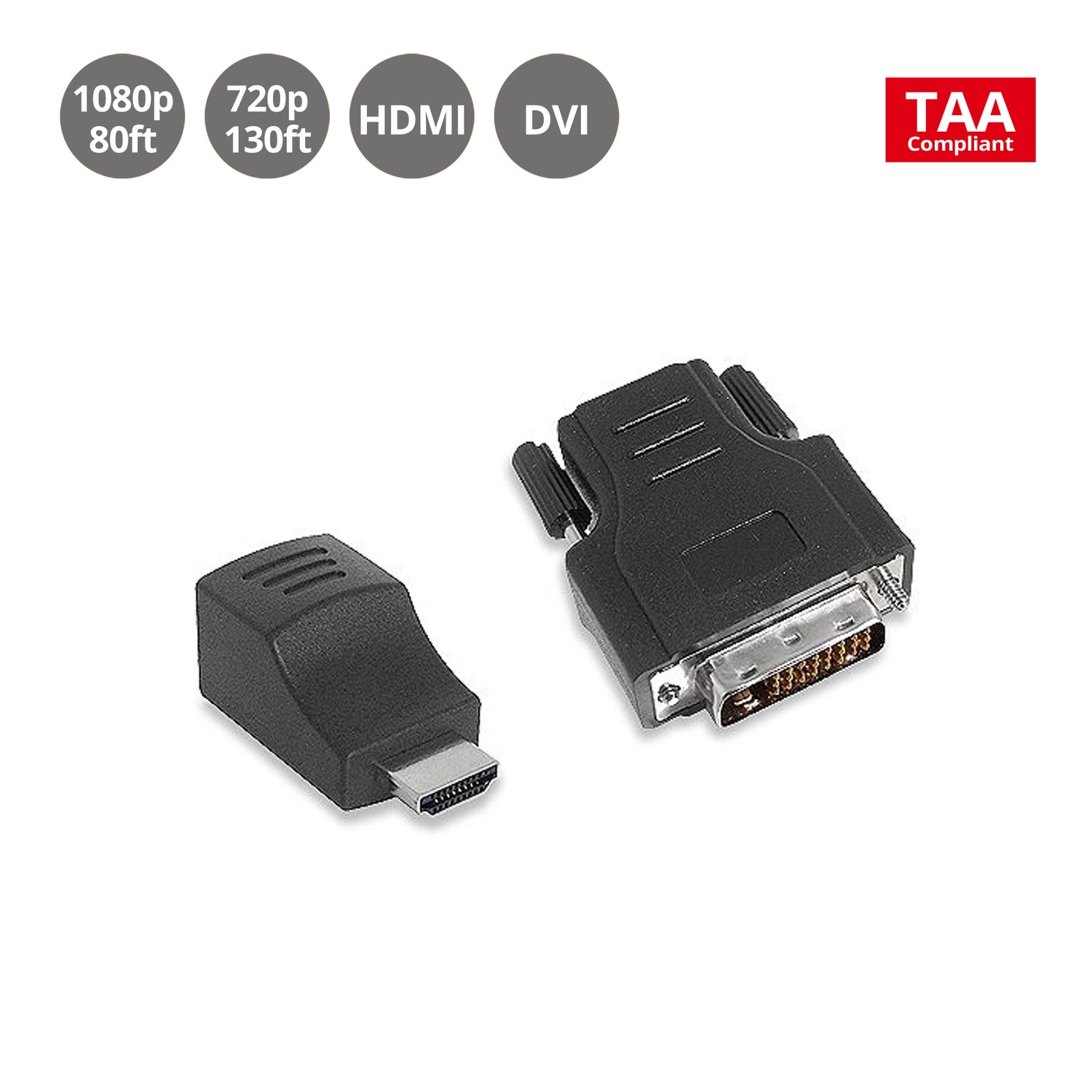

DVI to HDMI over CAT5e Mini-Extender
DVI to HDMI Extender
1080p 60Hz
1.65Gbps
1080p 25m / 720p 40m
TAA Compliant
Regular price
$69.99
Unit price
/
Unavailable
Shipping calculated at checkout.
DVI to HDMI over CAT5e Mini-Extender is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Features
DVI to HDMI Extender
DVI to HDMI Extender
Compact Transmitter
Compact Transmitter
Compact Receiver
Compact Receiver
Bus-powered
Bus-powered
Video Resolution
Video Resolution
No content found
| Standard | DVI 1.1 compliant, single-link DV |
| Video Bandwidth | 1.65 Gbps |
| Resolution and Distance | 720p / 1080i |
| 1080p | 80ft / 25m |
| Transmitter Unit (TX) | 1x DVI-D (digital only), male 1x RJ-45 |
| Receiver Unit (RX) | 1x RJ-45 1x HDMI, 19-pin, male |
| Power Consumption | 5 Watts (max) |
| Package Contents | 1x DVI Mini-Transmitter (TX) 1x HDMI Mini-Receiver (RX) 1x Installation guide |
| Unit Package | |
| Dimensions (L) x (H) x (W) | 6.44″ x 4.31″ x 1.63″ 16.36 cm x 10.95 cm x 4.14 cm |
| Weight | 0.31 lb (0.14 kg) |
| Master Carton | |
| Dimensions (L) x (H) x (W) | 19.29″ x 16.77″ x 13.86″ 49.00 cm x 42.60 cm x 35.20 cm |
| Weight | 15.17 lbs (6.88 kg) |
| Quantity | 72 pcs/ctn |
| Product | |
| Transmitter Unit (TX) | |
| Dimensions (L) x (H) x (W) | 1.97″ x 1.57″ x 0.87″ 5.00 cm x 3.99 cm x 2.21 cm |
| Weight | 0.15 lb (0.07 kg) |
| Color | Black |
| Housing Material | PVC |
| Receiver Unit (RX) | |
| Dimensions (L) x (H) x (W) | 1.77″ x 0.98″ x 0.87″ 4.50 cm x 2.49 cm x 2.21 cm |
| Weight | 0.15 lb (0.07 kg) |
| Color | Black |
| Housing Material | PVC |
| Certifications/Standards | RoHS, TAA compliant |
| UPC Code | 662774-006123 |
| Warranty | 3 years limited |
| Country of Origin | Taiwan |
