SKU:
LB-GE0014-S1

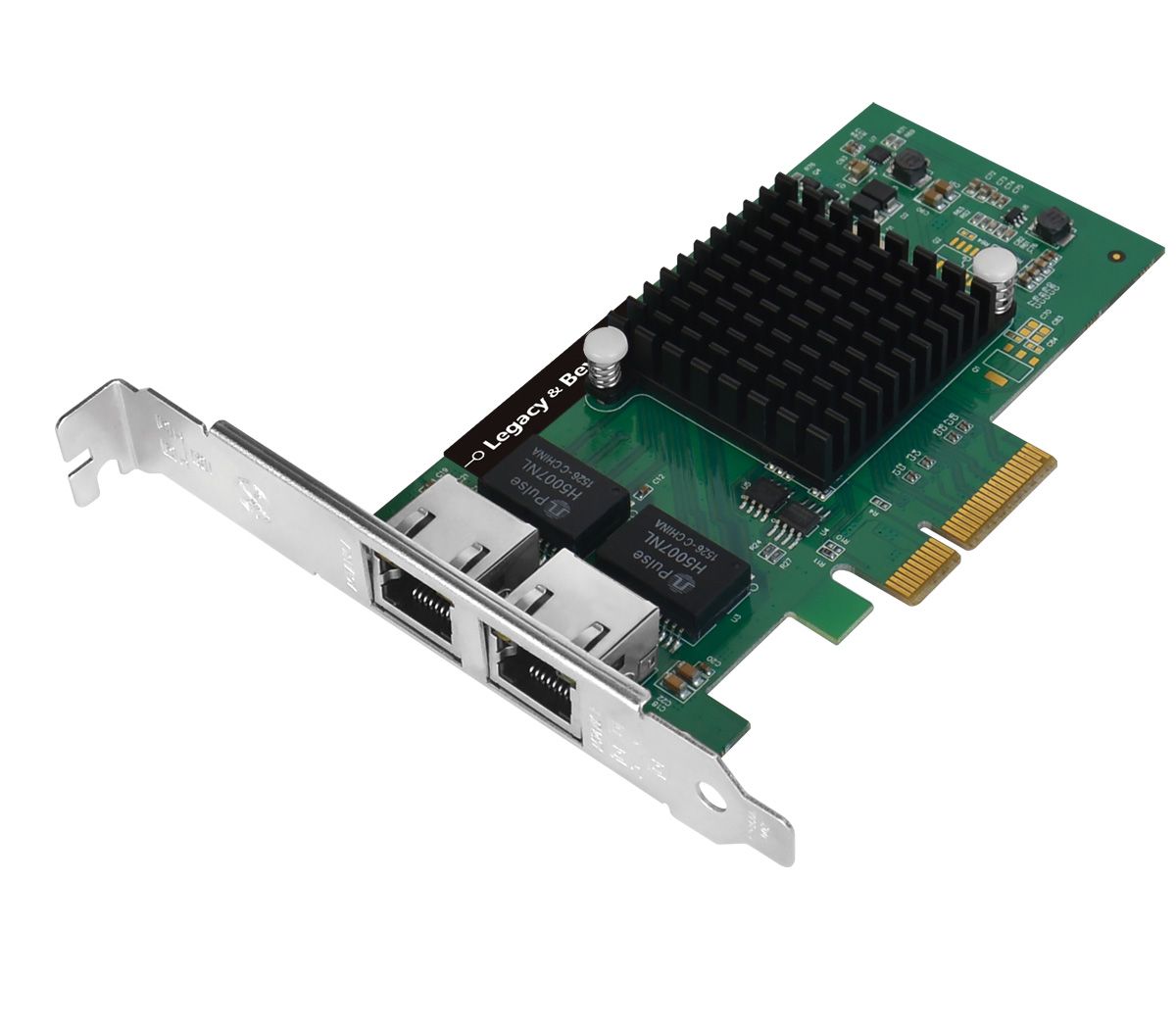

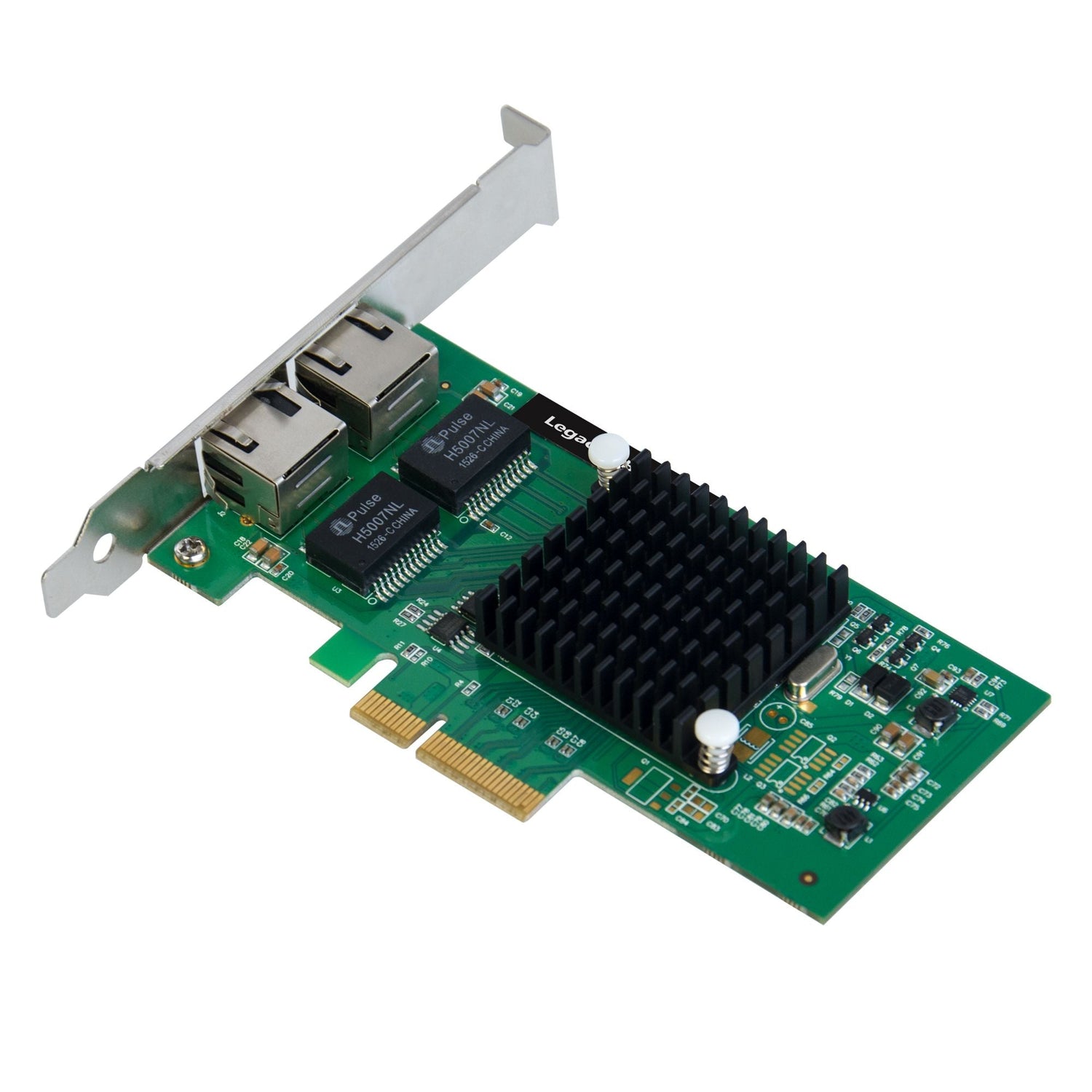

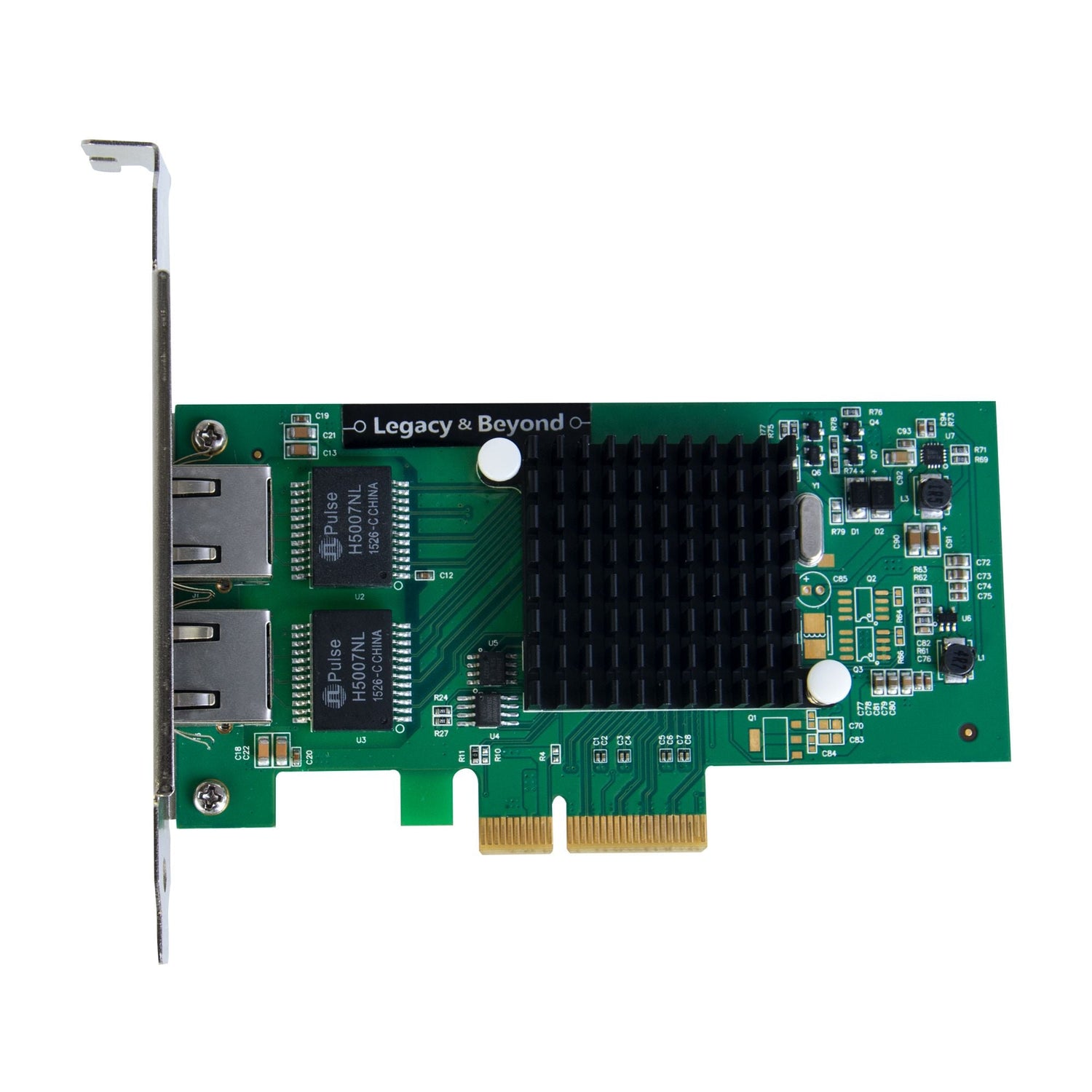

Dual-Port Gigabit Ethernet PCIe 4-Lane Card - I350-T2
Gigabit PCIe Card
Dual RJ45 Port
PCIe x4
Wan On LAN
Dual Profile
Regular price
$192.99
Unit price
/
Unavailable
Shipping calculated at checkout.
Dual-Port Gigabit Ethernet PCIe 4-Lane Card - I350-T2 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Features
Adds Two Independent Gigabit Ethernet Ports
Adds Two Independent Gigabit Ethernet Ports
Industry-Recognized Chipset
Industry-Recognized Chipset
Bandwidth
Bandwidth
Compliant
Compliant
Hassle-Free Installation
Hassle-Free Installation
Features

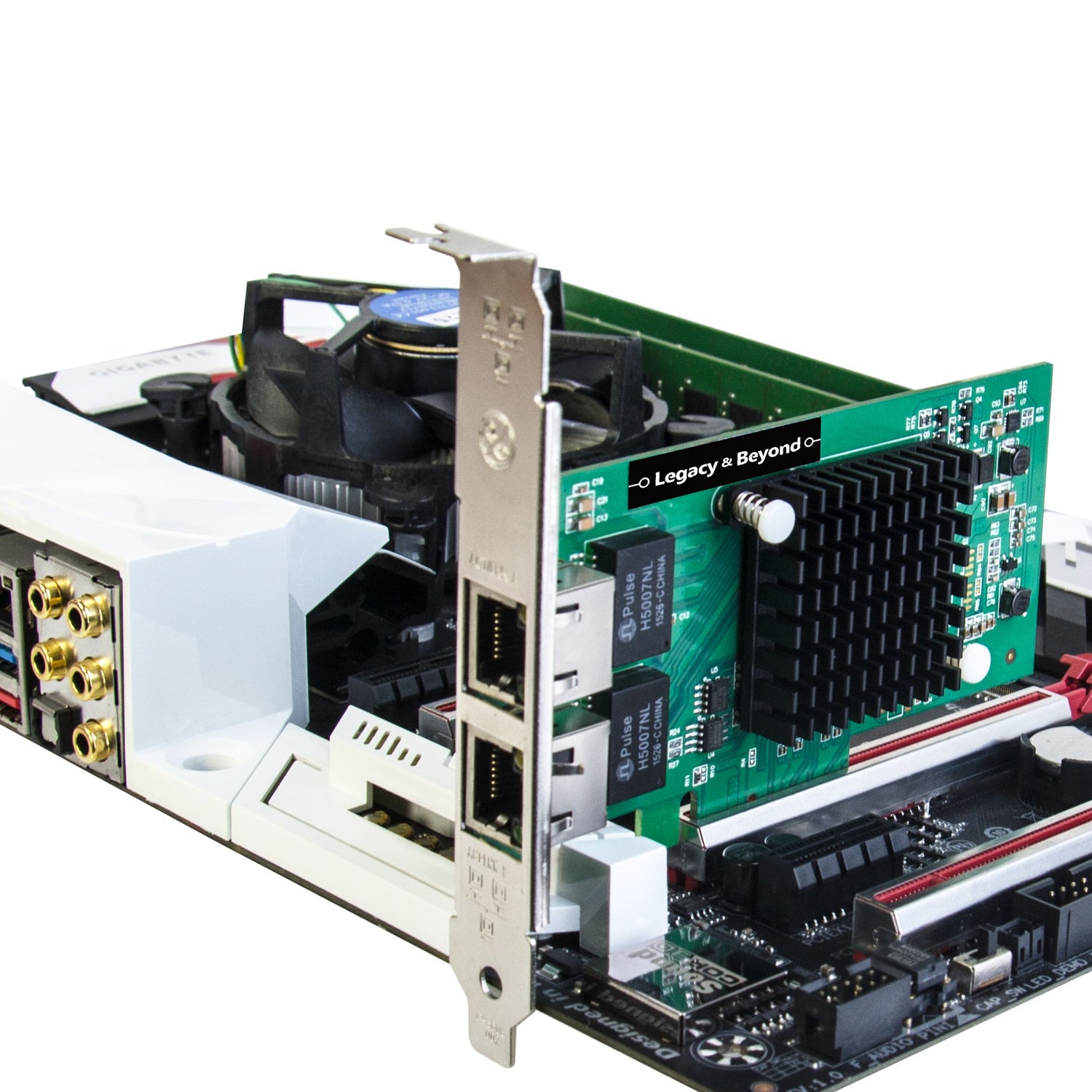

- Quickly adds two independent Gigabit Ethernet ports through an available PCI Express slot to server or desktop systems
- Intel I350-T2 chipset supports reliable and advanced network connectivity
- Compliant with IEEE 802.3, 802.3u, 802.3ab with full duplex and Wake-on-LAN support
- Features innovative power management including Energy Efficient Ethernet (EEE) and DMA Coalescing to increase efficiency and reduce power consumption
- Fits both standard and low profile system chassis with the included spare low profile bracket
| Chipset | Intel I350 |
| Bus Connector | PCI Express x4 |
| PCI Express Version | 2.1 |
| Network Transfer Rate | 10/100/1000 Mbps |
| Connectors | 2x 8-pin RJ-45, Female |
| Environmental Conditions | |
| Operating temperature | 32 to 140 degrees F |
| Storage temperature | 14 to 158 degrees F |
| Relative humidity | 5 to 90% RH (non-condensing) |
| Certifications/Standards | FCC, CE, RoHS |
| UPC Code | 662774-040080 |
| Warranty | 1 year limited |
| Country of Origin | China |
| System Requirements | - Desktop PC with one available PCI Express (PCIe) slot - Windows® 11 (64-bit) / 10 (32-/64-bit) / 8.x (32-/64-bit) / 7 (32-/64-bit) - Windows® Server 2016 (32-/64-bit) / 2012 R2 / 2012 (32-/64-bit) / 2008 R2 - Linux kernel 2.3.2 and later, Note: Works with Linux but not supported |
| Product | |
| Dimensions (L) x (H) x (W) | 5.43" x 0.79" x 4.72" 13.80 cm x 2.00 cm x 12.00 cm |
| Weight | 0.17 lbs (0.08 kg) |
| Color | Green |
| Unit Package | |
| Dimensions (L) x (H) x (W) | 7.28" x 5.43" x 1.30" 18.50 cm x 13.80 cm x 3.30 cm |
| Weight | 0.40 lbs (0.18 kg) |
| Master Carton | |
| Dimensions (L) x (H) x (W) | 22.44" x 12.20" x 11.69" 57.00 cm x 31.00 cm x 29.70 cm |
| Weight | 22.49 lbs (10.20 kg) |
| Quantity | 50pcs/ctn |
| Package Contents | 1x Dual-Port Gigabit Ethernet PCIe 4-Lane Card - I350-T2 1x Spare Low profile bracket 1x Driver CD 1x Installation guide |
No content found
Manuals
Drivers (Hardware Version: 1)
- Windows® 8.x (32-/64- bit) / 7 (32-/64-bit); Windows Server 2012 R2 / 2012 (32-/64- bit) / 2008 R2 / 2008 & 2003 (32-/64-bit)Software release: 18.3
- Windows® 10 32bitSoftware release: 27.7
- Windows® 10 64bitSoftware release: 27.7
- Windows® 11Software release: 27.7
- Windows® server 2016Software release: 27.7
- Windows® server 2019Software release: 27.7
