Wireless |
SKU:
CE-H23711-S1

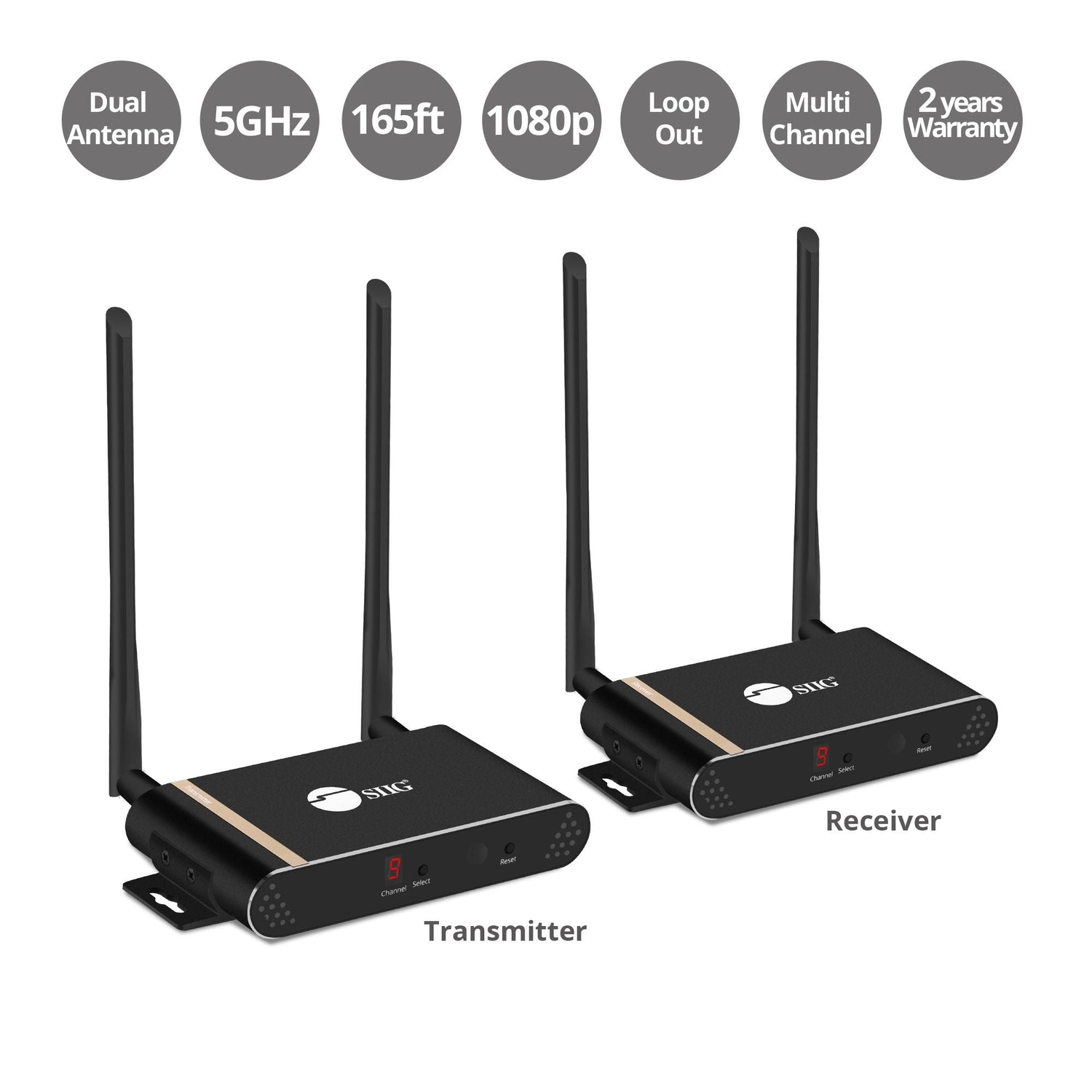

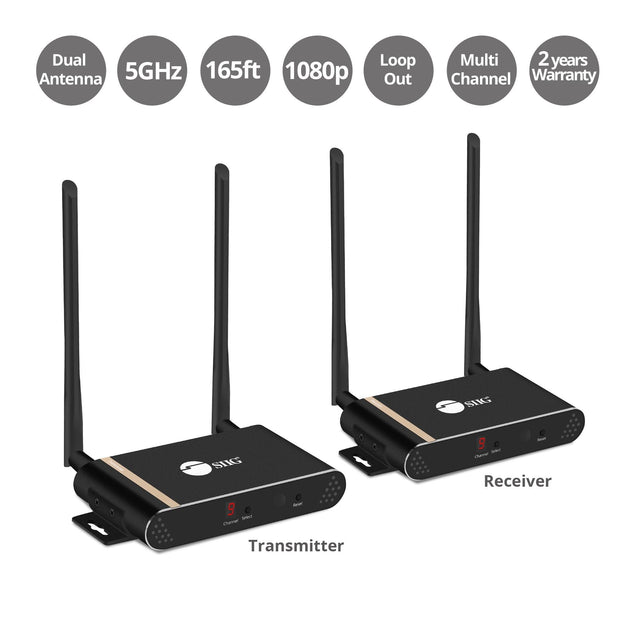

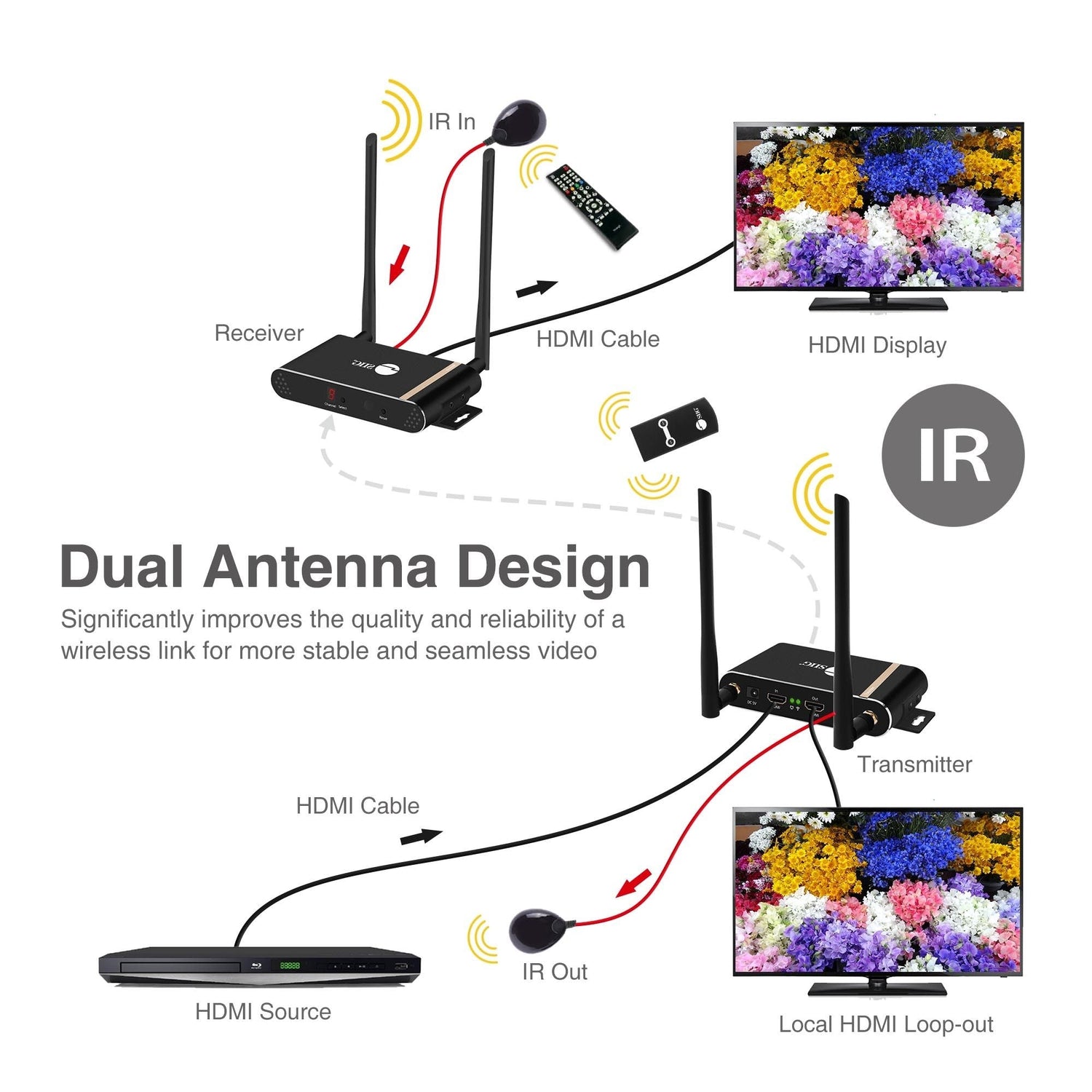

Dual Antenna Wireless Multi-Channel Expandable HDMI Extender with Loop-out Kit
HDMI Wireless Extender
165ft (50m)
1080p 60Hz
IR extension
Matrix Connections
Regular price
$299.99
Unit price
/
Unavailable
Shipping calculated at checkout.
Dual Antenna Wireless Multi-Channel Expandable HDMI Extender with Loop-out Kit is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Features
Wireless 5GHz Technology
Wireless 5GHz Technology
Supports up to 2
Supports up to 2
10 Selectable Channels
10 Selectable Channels
HDMI Loopout
HDMI Loopout
High Quality Design
High Quality Design
No content found
| Wireless Technology | 5GHz |
| Wireless Channels | Channel 0: 5.180 GHz (20MHz) Channel 1: 5.220 GHz (20MHz) Channel 2: 5.240 GHz (20MHz) Channel 3: 5.240 GHz (40MHz) Channel 4: 5.745 GHz (20MHz) Channel 5: 5.765 GHz (20MHz) Channel 6: 5.745 GHz (40MHz) Channel 7: 5.765 GHz (40MHz) Channel 8: 5.825 GHz (20MHz) Channel 9: 5.805 GHz (20MHz) |
| Wireless transmission distance | Up to 165ft (line of sight) *Note: The transmission distance will vary depending on building layout, electronic interference, walls and partitions, other environmental conditions, and may be much less than the maximum. |
| Video Compression Technology | H.26 |
| Wireless latency | <200ms |
| Video | |
| HDMI | 1x input, 1x output, 1x loop-out |
| Standard | HDCP 1.2 compliant |
| Resolution | 480p / 720p / 1080i / 1080p 60Hz *Note: Samsung UltraHD Blu-ray model UBD-M7500 must be downscaled to 720p output to display properly on ASUS VE248 monitor |
| HDMI Cable Length | Up to 5m (input & output) |

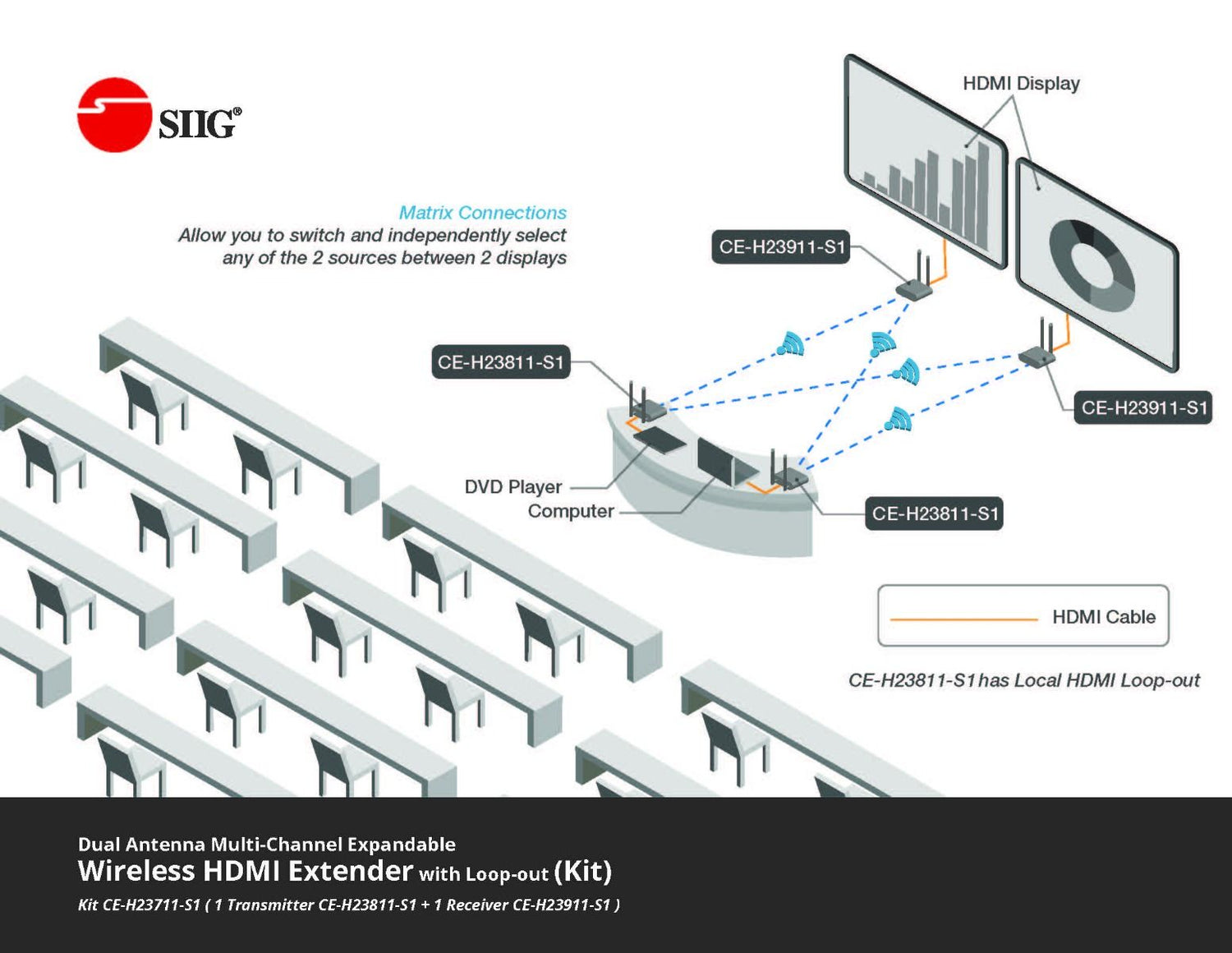

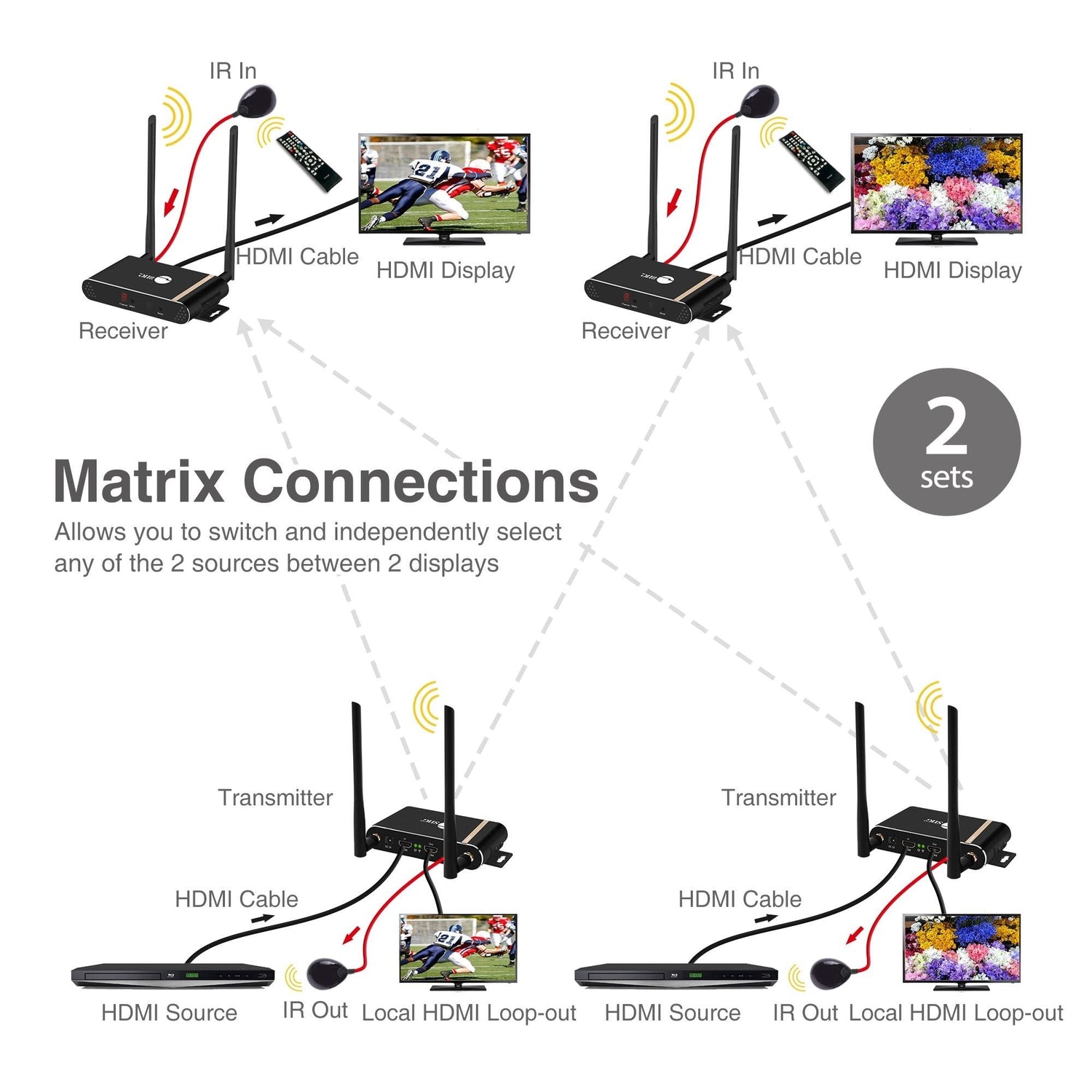

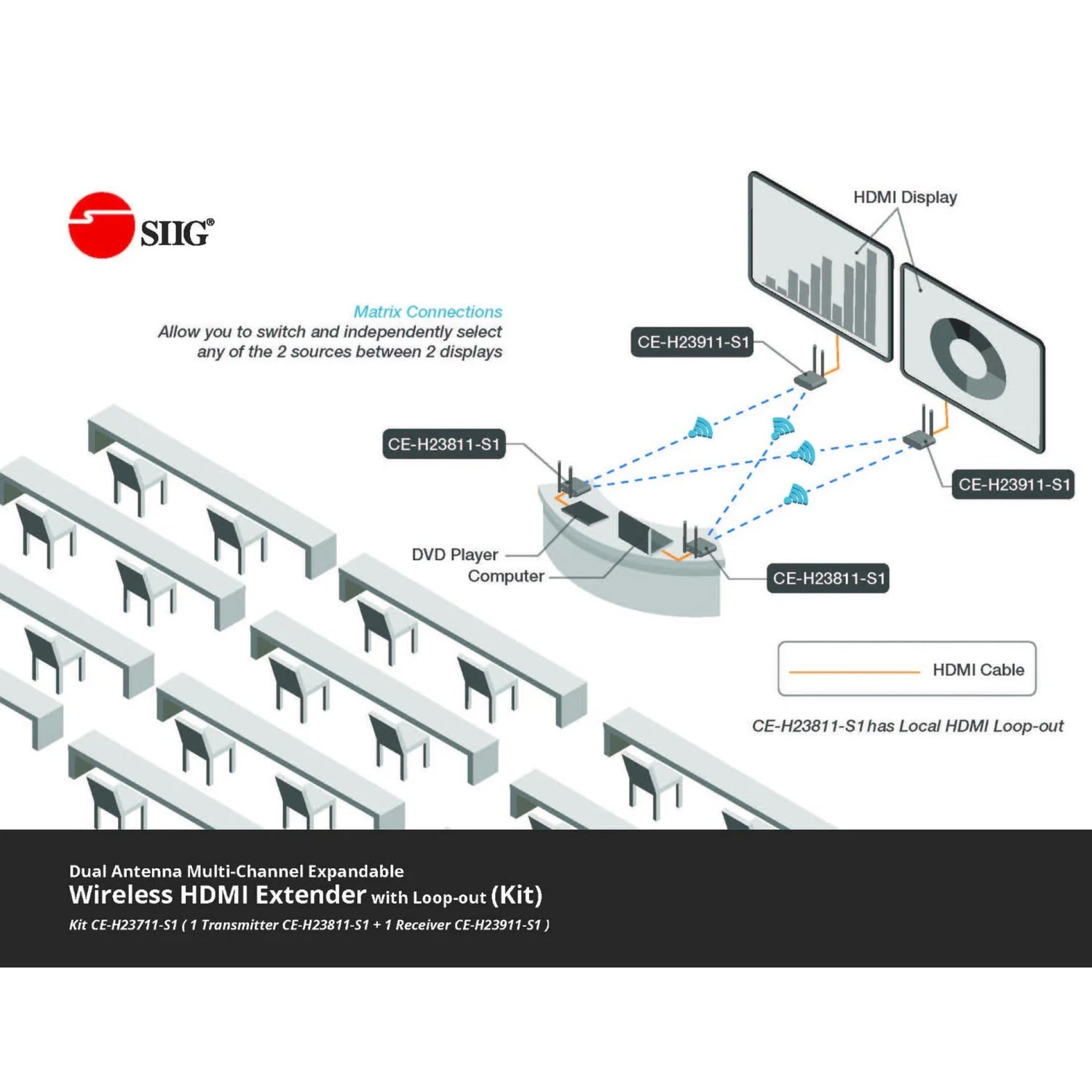

| Supported Topology | Extender: 1 Transmitter (TX) to 1 Receiver (RX) Splitter: 1 Transmitter (TX) to 2 Receivers (RX) Switch: 2 Transmitters (TX) to 1 Receiver (RX) / 2 Transmitters (TX) to 2 Receivers (RX) Additional transmitter (part#CE-H23811-S1) and receiver (part# CE-H23911-S1) purchased separately |
| Audio | 2-Ch PCM stereo audio |
| IR Signal | Full Frequency: 20KHz to 60KHz |
| Power Adapter | |
| Input | AC 100-240V, 50 / 60Hz |
| Output | DC 5V / 2A |
| UL Listed | E335801 / Class VI |
| Interface | |

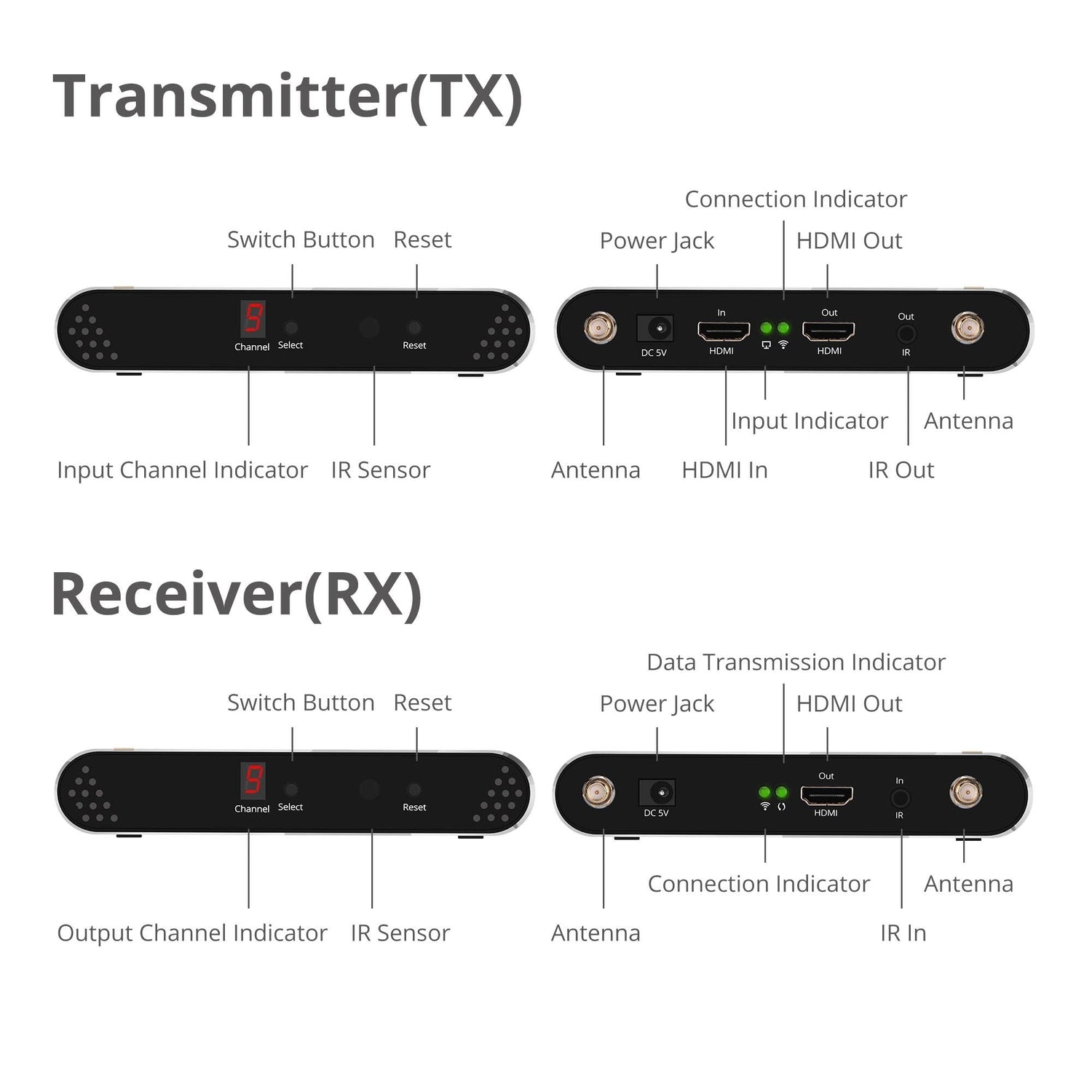

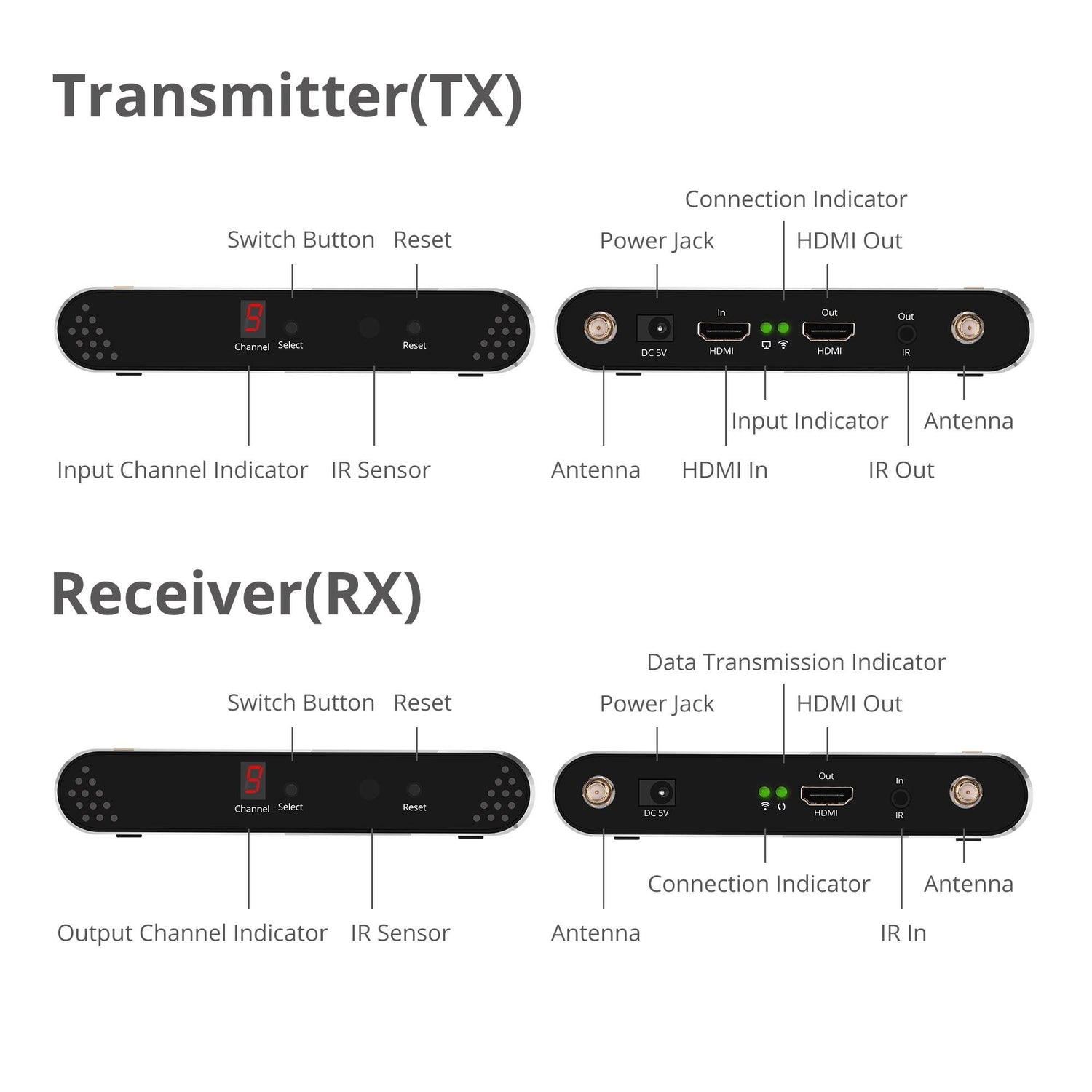

| Transmitting Unit (TX) | 1x 19-pin HDMI, Type A, female, input 1x 19-pin HDMI, Type A, female, output 1x 3.5mm jack, IR blaster 2x Antenna 1x Power jack 1x Switch button 1x Reset button |
| Receiving Unit (RX) | 1x 19-pin HDMI, Type A, female, output 1x 3.5mm jack, IR receiver 2x Antenna 1x Switch button 1x Power jack 1x Reset button |
| System Requirements | - HDMI source device, such as computer PCs, Blu-ray players, and media players HDMI displays, monitors, and HDTVs - 2x HDMI cables |
| Product | |
| Transmitter Unit (TX) | |

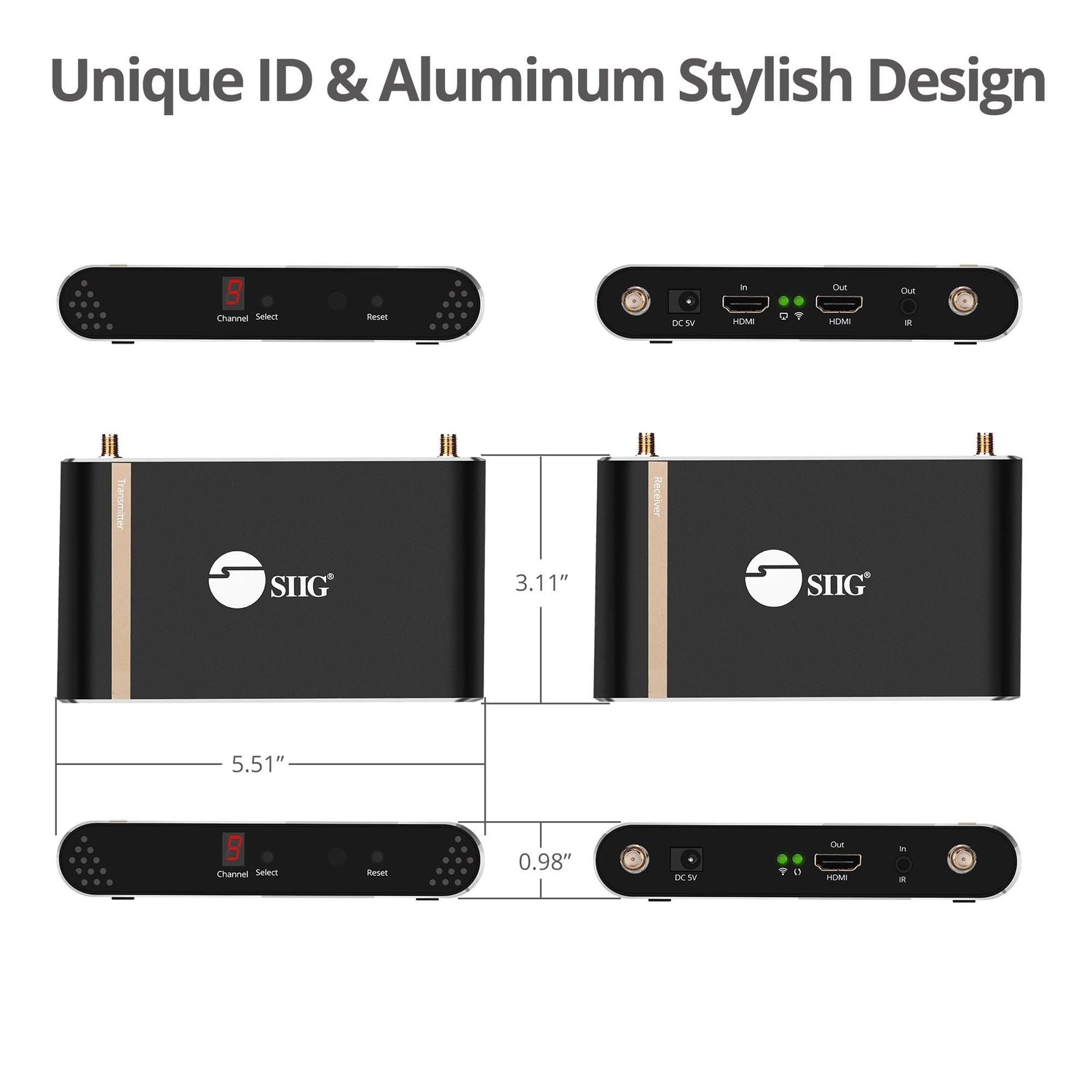

| Dimensions (L) x (H) x (W) | 5.51" x 1.06" x 3.10" 14.00 cm x 2.69 cm x 7.87 cm |
| Weight | 0.61 lbs (0.28 kg) |
| Color | Black |
| Housing | Aluminum |
| Receiver Unit (RX) | |
| Dimensions (L) x (H) x (W) | 5.51" x 1.06" x 3.10" 14.00 cm x 2.69 cm x 7.87 cm |
| Weight | 0.61 lbs (0.28 kg) |
| Color | Black |
| Housing | Aluminum |
| Unit Package | |
| Dimensions (L) x (H) x (W) | 9.45″ x 3.15″ x 6.93″ 24.00 cm x 8.00 cm x 17.60 cm |
| Weight | 2.47 lbs (1.12 kg) |
| Master Carton | |
| Dimensions (L) x (H) x (W) | 14.96″ x 10.63″ x 16.54″ 38.00 cm x 27.00 cm x 42.01 cm |
| Weight | 25.86 lbs (11.73 kg) |
| Quantity | 10 pcs/ctn |

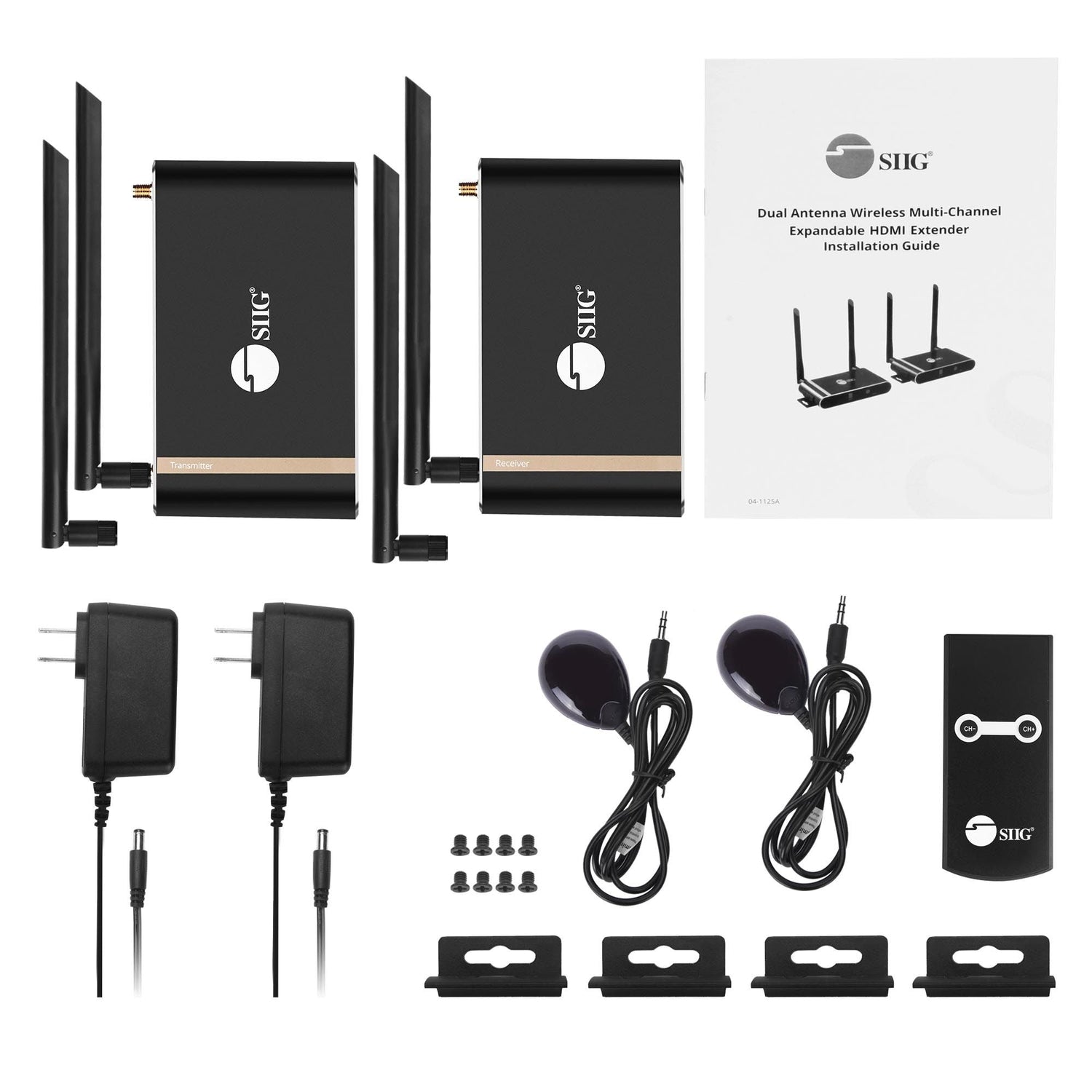

| Package Contents | 1x Dual Antenna Wireless Multi-Channel Expandable HDMI Extender Transmitter 1x Dual Antenna Wireless Multi-Channel Expandable HDMI Extender Receiver 2x Power adapters 1x IR Blaster extension cable 1x IR Receiver extension cable 4x Antennas 4x Mounting ears 8x Screws 1x Remote control 1x User reference guide |
| Environmental Conditions | |
| Operating Temperature | 32° to 122° degrees F |
| Storage Temperature | 14° to 140° F |
| Operating Humidity | 0% to 90% RH (non-condensing) |
| Certifications/Standards | FCC, CE, RoHS |
| UPC Code | 662774-041193 |
| Warranty | 2 years limited |
| Country of Origin | China |
