Network |
SKU:
CN-WR0811-S2

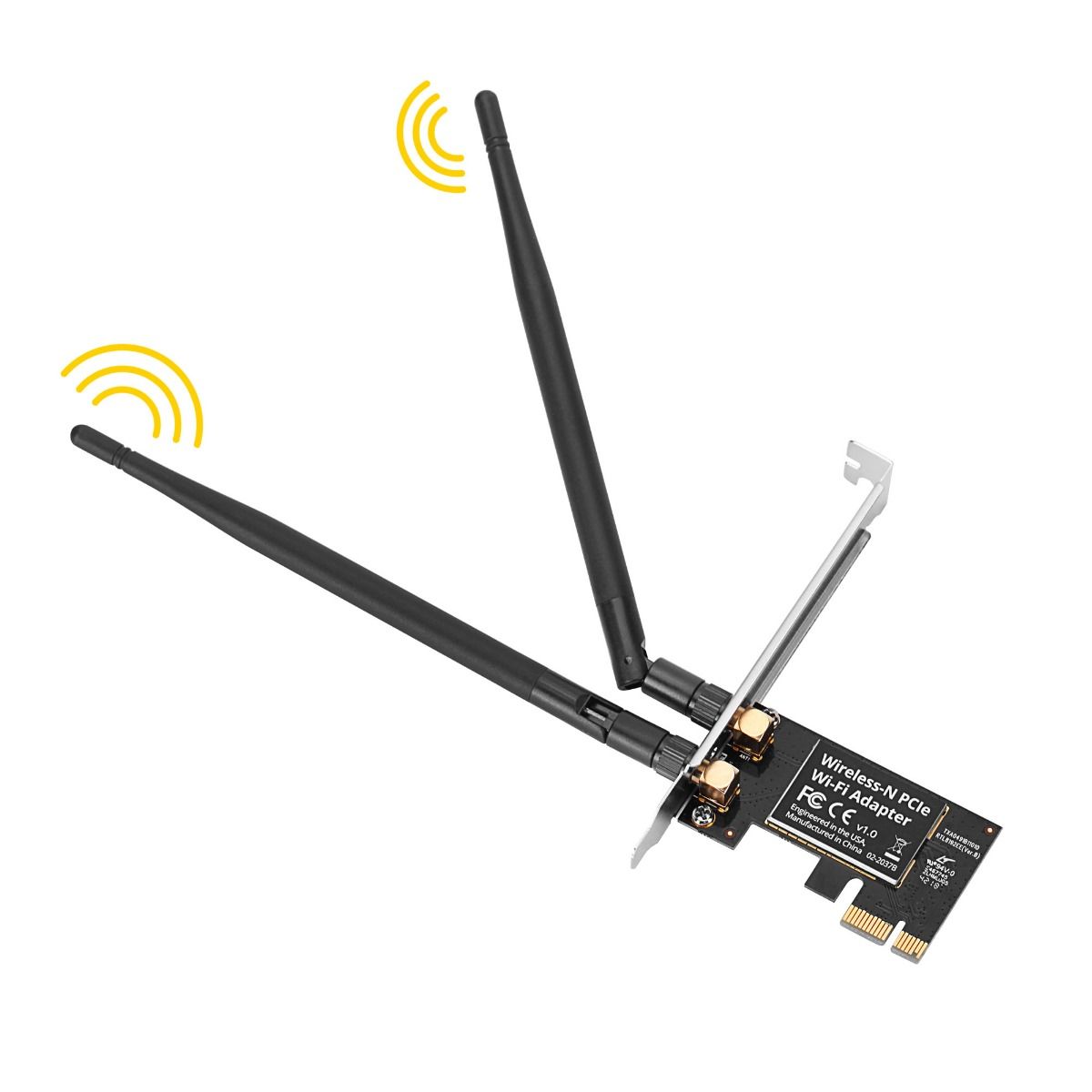

DP Wireless-N PCI Express Wi-Fi Adapter Dual Antenna 2.4GHz
Wireless-N PCIe
2.4GHz
Dual 5dBi Antenna
Dual Profile
2x2 MIMO
Regular price
$39.99
Unit price
/
Unavailable
Shipping calculated at checkout.
DP Wireless-N PCI Express Wi-Fi Adapter Dual Antenna 2.4GHz is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Features
Compliance Standards
Compliance Standards
MIMO Technology
MIMO Technology
Data Rates
Data Rates
Backward Compatibility
Backward Compatibility
Installation
Installation
Features
- Complies with 2.4GHz IEEE 802.11 b/g/n standards
- 2x2 MIMO technology for dependable reception and exceptional throughput
- Maximum data rate up to 150Mbps using 20MHz bandwidth and 300Mbps using 40MHz bandwidth
- Backward compatible with 802.11a/b/g devices while operating at 802.11n data rates

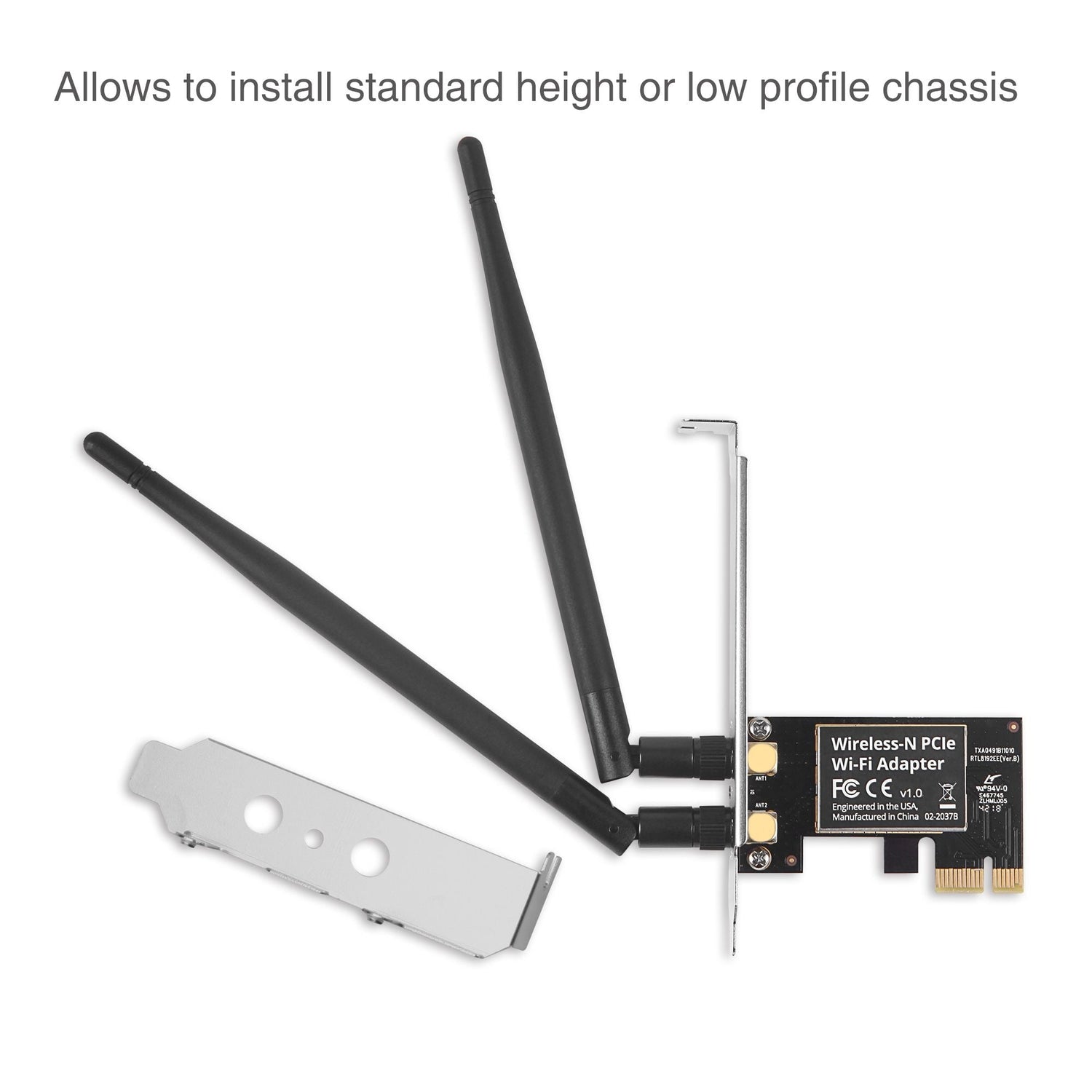

- Installs in standard height or low profile chassis with included brackets
| Chipset | Realtek RTL8192EE |
| Interface | PCI Express, 32-bit |
| Maximum Data Rate | 54Mbps in 802.11g, and 300Mbps in 802.11n |
| WLAN Standard | IEEE 802.11a/b/g/n compatible WLAN IEEE 802.11e QoS Enhancement (WMM, WMM-SA Client mode) IEEE 802.11i (WPA, WPA2). Open, shared key, and pair-wise key authentication services IEEE 802.11n draft 2.0 MIMO OFDM |
| Features | Wake-On-WLAN via Magic Packet and Wake-up frame Hardware antenna diversity |
| Frequency Band | 2.400GHz - 2.483.5GHz |
| Channel | 11 for 802.11b, 802.11g, draft 802.11n (20MHz) 7 for draft 802.11n (40MHz) |
| Modulation Type | CCK, DQPSK, DBPSK for DSSS 64QAM, 16QAM, QPSK, BPSK for OFDM |
| Transfer Data Rate | 802.11b: Up to 11Mbps 802.11g: Up to 54Mbps Draft 802.11n (20MHz, 800ns GI): Up to 130Mbps Draft 802.11n (40MHz, 800ns GI): Up to 270Mbps Draft 802.11n (20MHz, 400ns GI): Up to 144.44Mbps Draft 802.11n (40MHz, 400ns GI): Up to 300Mbps |

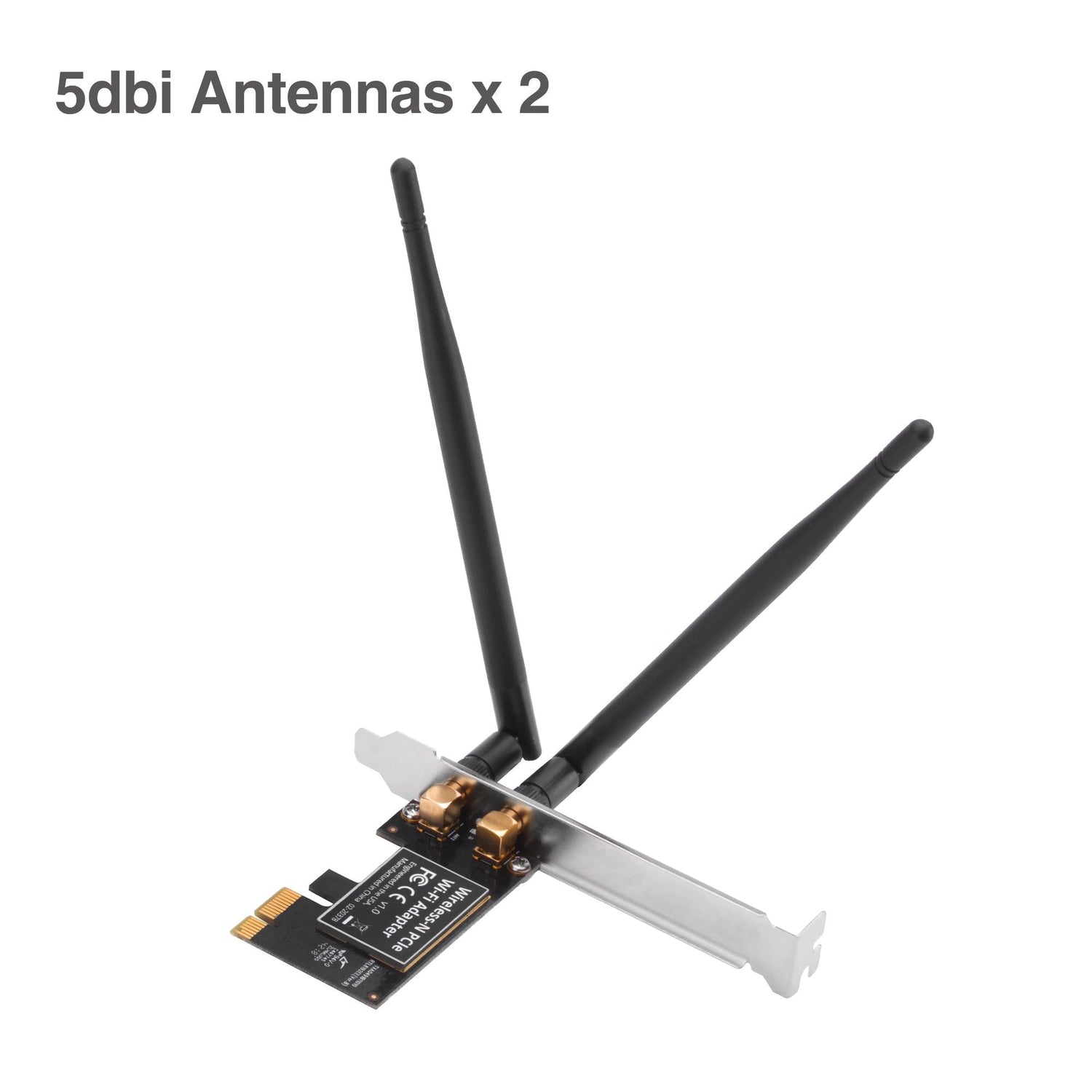

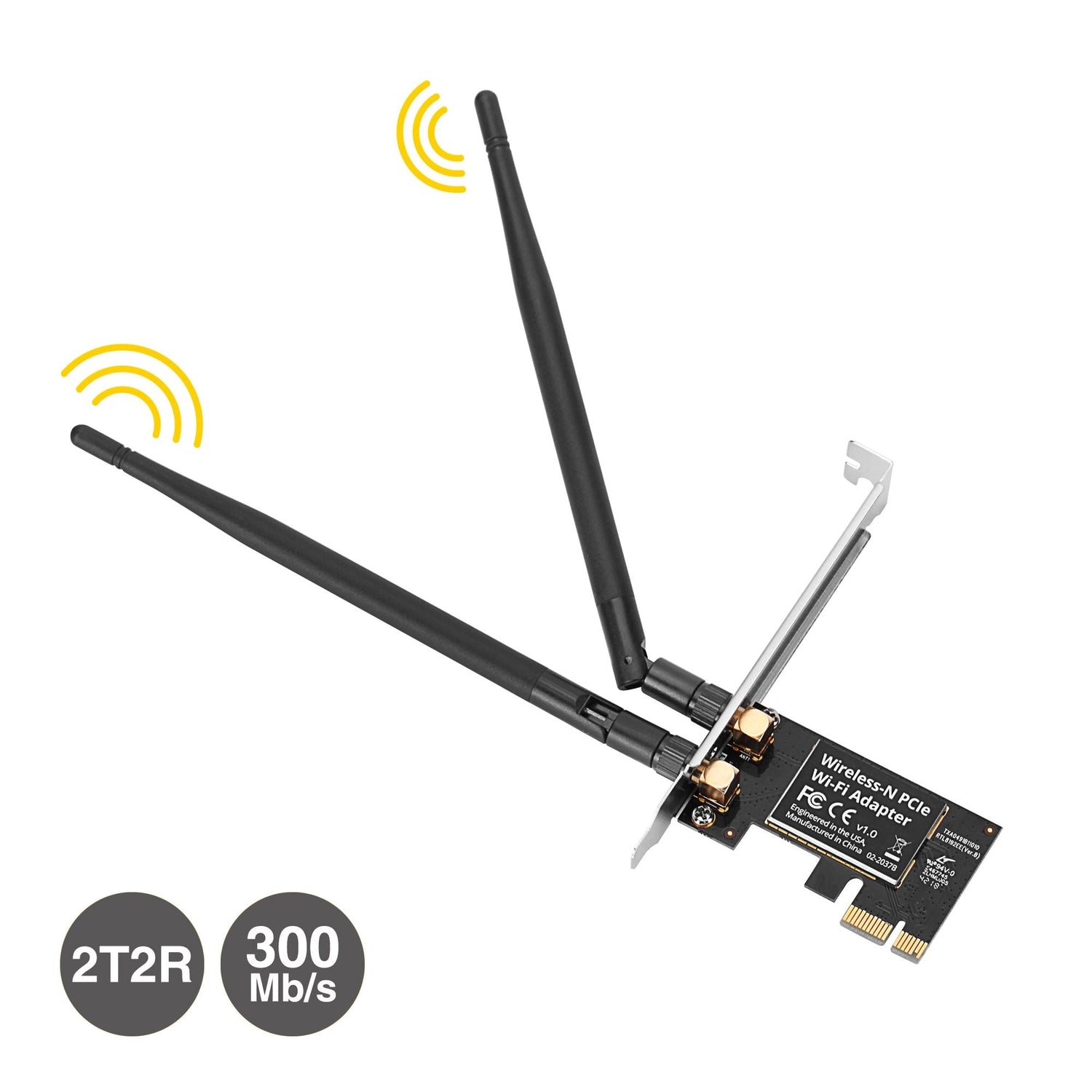

| Antennas | Two RP-SAM detachable 5dBi antennas Two Transmit and Two Receive paths (2T2R) 20MHz and 40MHz bandwidth transmission |
| Form Factor | Full profile / Low profile |
| Certifications/Standards | FCC, CE, RoHS |
| UPC Code | 662774-040301 |

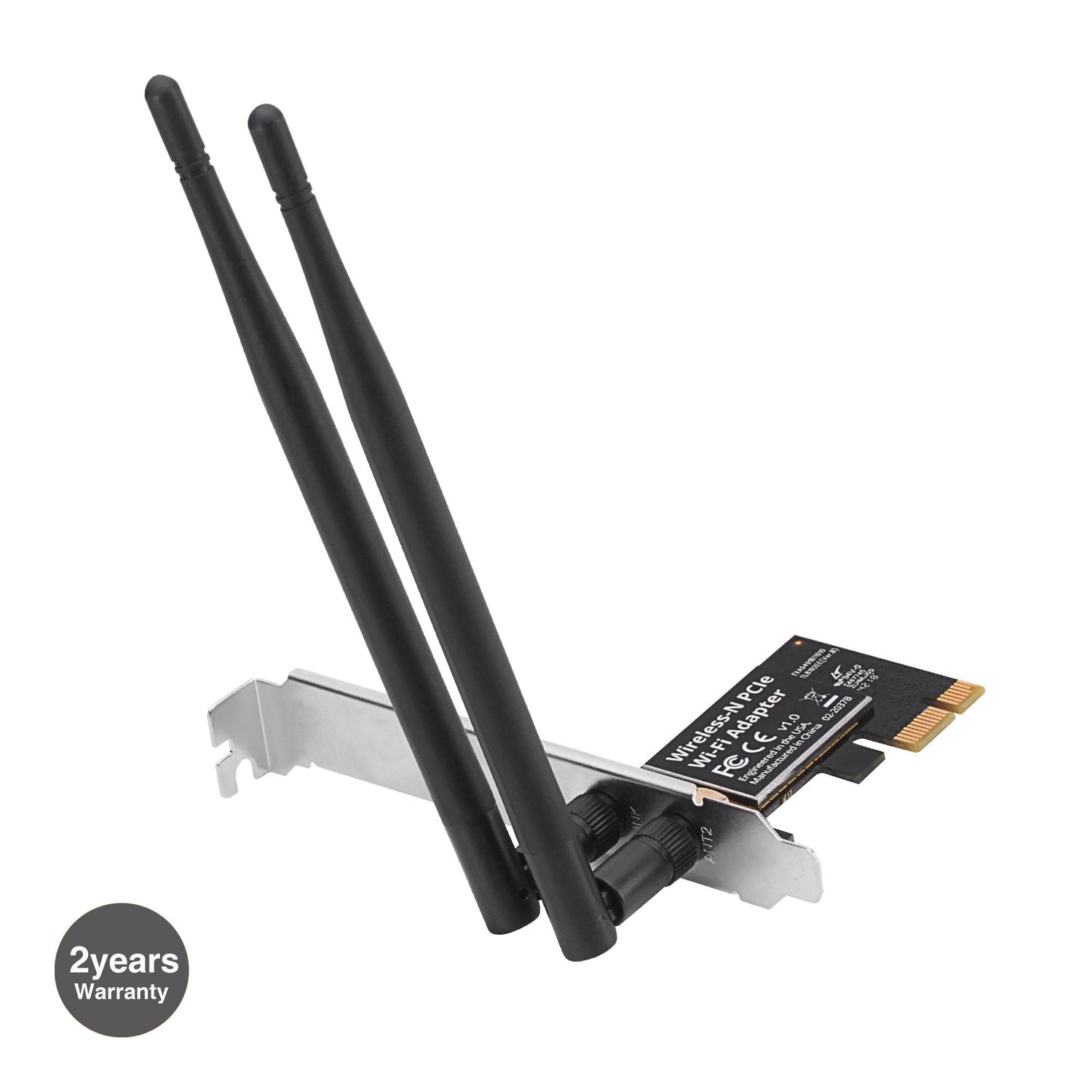

| Warranty | 2 years limited |
| Country of Origin | China |
| Product | |
| Dimensions (L) x (H) x (W) | 3.07" x 0.79" x 4.72" 7.80 cm x 2.00 cm x 12.00 cm |
| Weight | 0.12 lbs (0.05 kg) |
| Color | Black |
| Unit Package | |
| Dimensions (L) x (H) x (W) | 8.67" x 1.22" x 4.96" 22.00 cm x 3.10 cm x 12.60 cm |
| Weight | 0.31 lbs (0.14 kg) |
| Master Carton | |
| Dimensions (L) x (H) x (W) | 22.44" x 11.69" x 12.20" 57 cm x 29.70 cm x 31.00 cm |
| Weight | 15.62 lbs (7.09 kg) |
| Quantity | 50pcs/ctn |
| Environmental Conditions | |
| Operating Temperature | 32 to 131 degrees F |
| Storage Temperature | -4 to 158 degrees F |
| Relative Humidity | < 80% RH (non-condensing) |
| System Requirements | Desktop PC with an available PCIe slot Windows® 10 / 8 / 7 / Vista / XP (32-/64-bit) Windows® Server 2003, 2008, 2008 R2 |

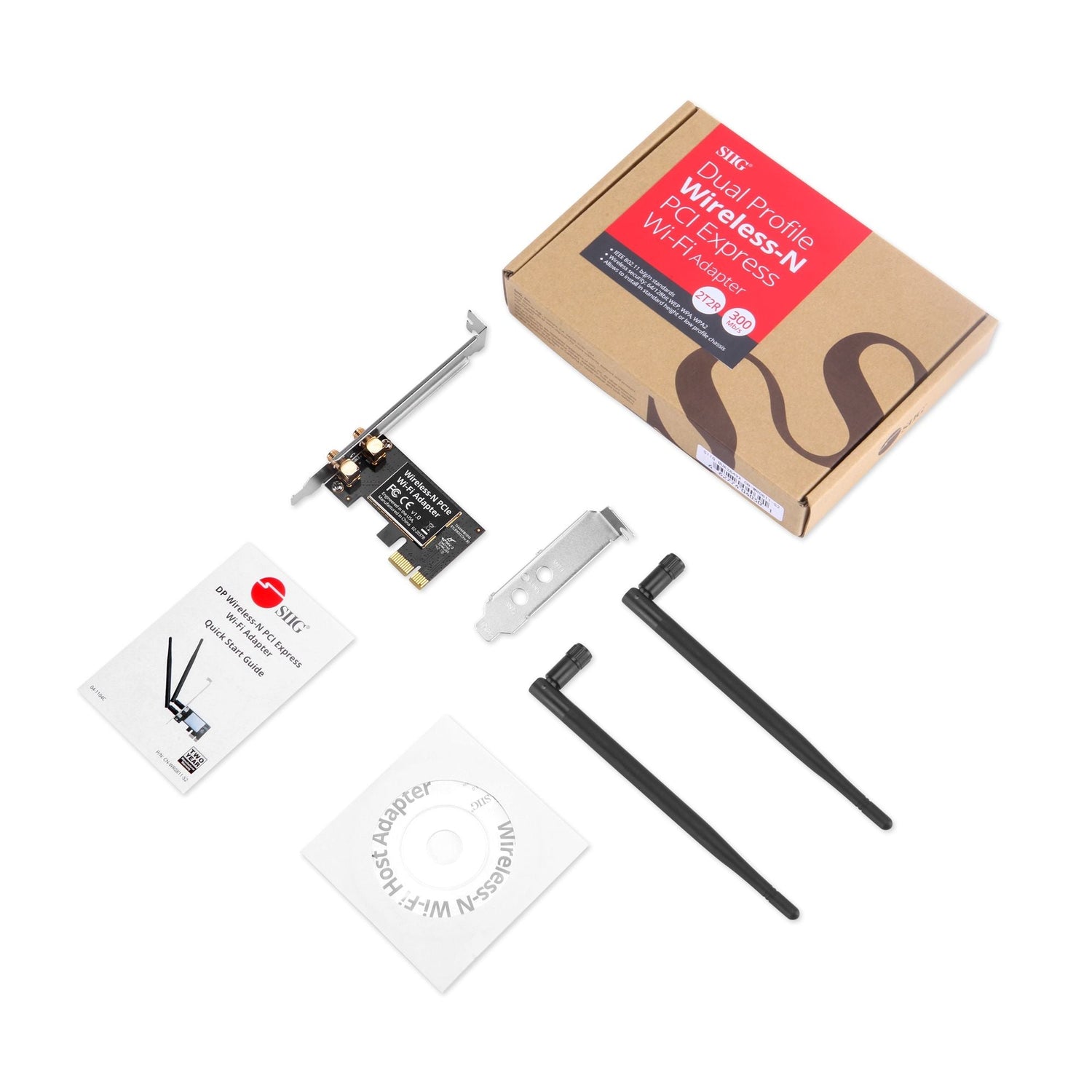

| Package Contents | 1x DP Wireless-N PCI Express Wi-Fi Adapter 1x Spare low profile bracket 2x Antennas 1x Software CD 1x Quick start guide |
No content found
Drivers (Hardware Version: 3)
Drivers (Hardware Version: 2)
