SKU:
NN-FW0012-S1

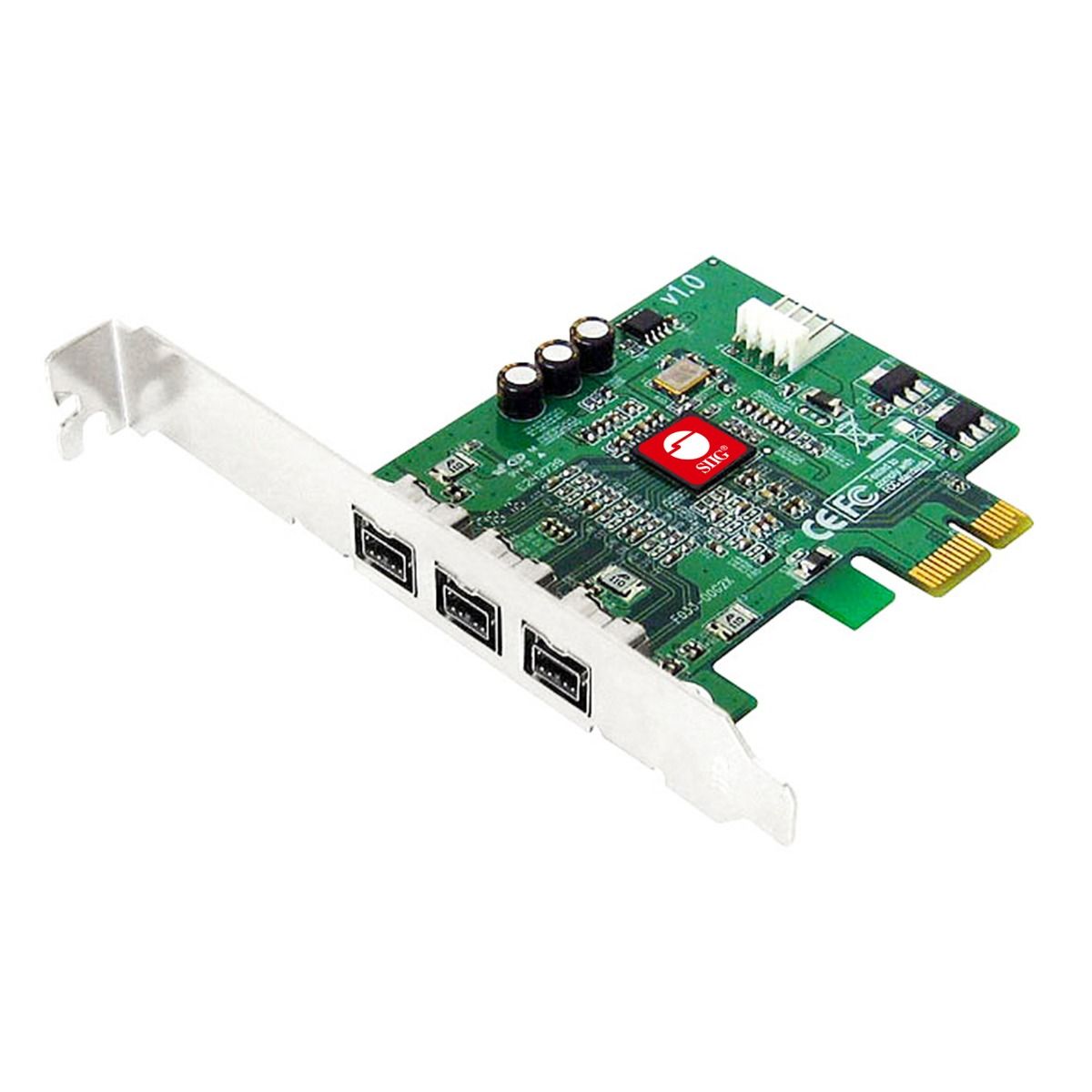

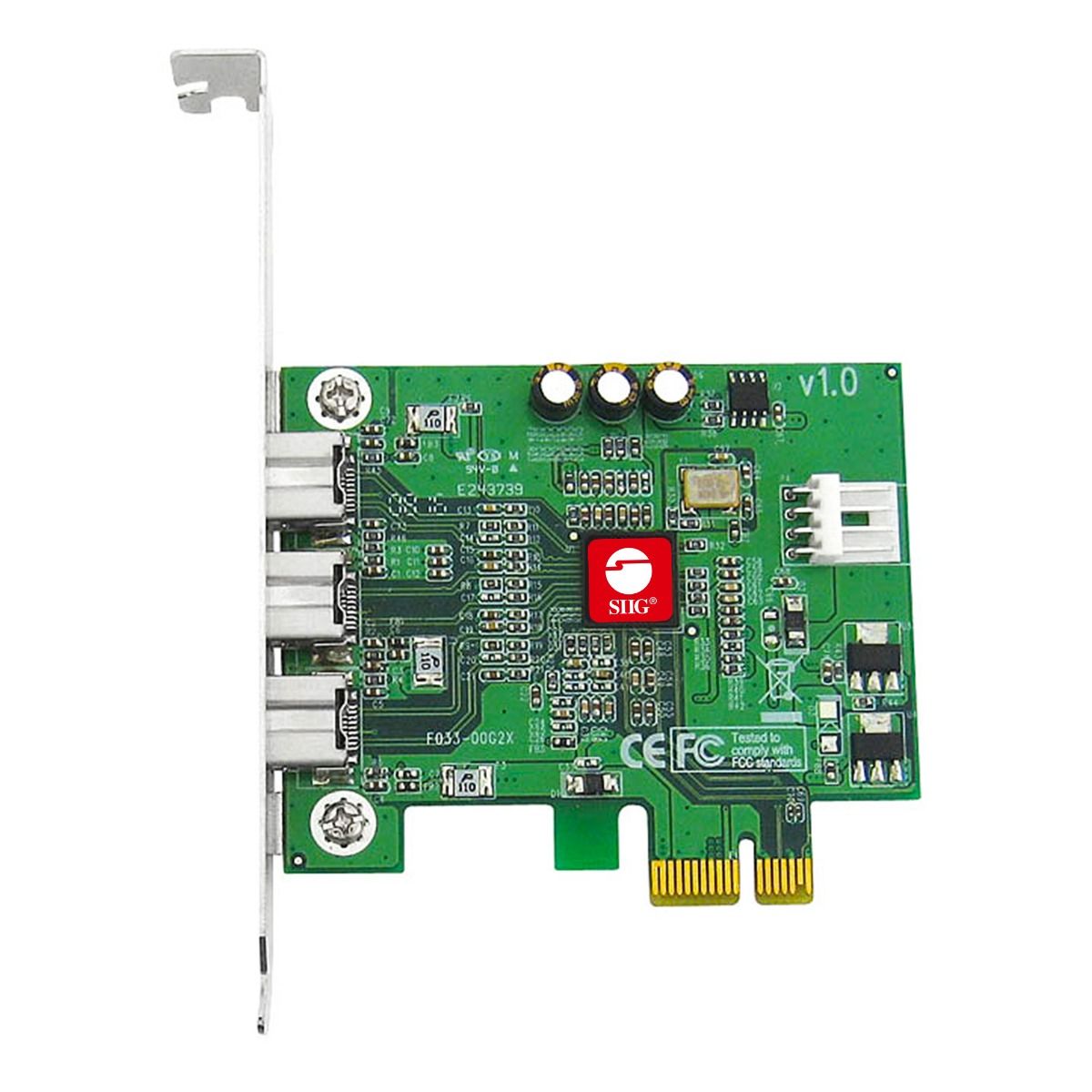

DP FireWire 800 PCIe
FireWire 800 PCIe
3x 9-Pin 1394b
800Mbps
PCIe x 1
Dual Profile
Regular price
$133.99
Unit price
/
Unavailable
Shipping calculated at checkout.
DP FireWire 800 PCIe is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Features
Triple FireWire 800 Expansion
Triple FireWire 800 Expansion
High-Speed 1394b Performance
High-Speed 1394b Performance
Wide OS Compatibility
Wide OS Compatibility
Hot-Swap Convenience
Hot-Swap Convenience
Stable Power Delivery
Stable Power Delivery
-
45 Days Free Return
-
2 Years Warranty
-
Lifetime Technical Support
Features
- PCI Express 1-lane (x1) FireWire adapter works with PCI Express slots with different lane width
- Installs in any available PCI Express slot and supports data rates up to 800Mbps
- Standard height and low profile brackets are included to work in different chassis form factors
- Works with various FireWire devices including DV camcorder, CD-RW/DVD-ROM, portable hard disk, digital camera, and other audio/video devices
- Works with Sony, Panasonic, Cannon, Sharp, JVC and many other DV camcorders for digital video creating/editing
| Chipset | Texas Instruments TI XIO2213BZAY |
| Compliance | IEEE 1394b and backward compatible with 1394a-2000 and 1394-1995 standards PCI Express Base Specification Revision 1.0a |
| Features | - Installs in any available PCI Express slot and supports serial bus data transfer rates of 100, 200, 400, 800 Mbps - Hot-swapping allows you to connect/detach devices without first turning your system off - Onboard power connector to provide more reliable power source |
| Cable Length | 16.4 ft / 5m (max) |
| Interfaces/Ports | 3, Firewire 800, 9-Pin, Female, External |
| Environmental Conditions | |
| Operating Temperature | 32 to 122 F (0 to 50 C) |
| Storage Temperature | -4 to 140 F (0 to 60 C) |
| Operating Humidity | 10% to 90% RH |
| Storage Humidity | 10% to 90% RH |
| System Requirements | - PCI Express enabled PC or Mac® desktop with an available PCI Express slot - Windows® 11 (64-bit) / 10 (32-/64-bit) / 8.x (32-/64-bit) / 7 (32-/64-bit) / Vista (32-/64-bit) / XP (32-/64-bit) - Windows® Server 2003 & 2008 (32-/64-bit) / Server 2008 R2 / 2000 - macOS X® 10.14 to 10.4 |
| Product | |
| Dimensions (L) x (H) x (W) | 4.72" x 3.62" x 0.79" 12.00 cm x 9.20 cm x 2.00cm |
| Weight | 0.09 lb (0.04 kg) |
| Unit Package | |
| Dimensions (L) x (H) x (W) | 8.70" x 6.30" x 1.50" 22.1 cm x 16.00 cm x 3.80 cm |
| Weight | 0.42 lb (0.19 kg) |
| Master Carton | |
| Dimensions (L) x (H) x (W) | 17.88" x 13.50" x 16.69" 45.42 cm x 34.30 cm x 42.40 cm |
| Weight | 18.08 lbs (8.2 kg) |
| Quantity | 40pcs/ctn |
| Certifications/Standards | FCC, CE, RoHS |
| UPC Code | 662774-005614 |
| Warranty | 2 years limited |
| Country of Origin | China |
| Package Contents | 1x DP FireWire 800 PCIe 1x Spare Low Profile Bracket 1x "Y" split power cable 1x Installation Guide |
