I/O | SKU: JJ-E02211-S1

DP CyberParallel Dual PCIe

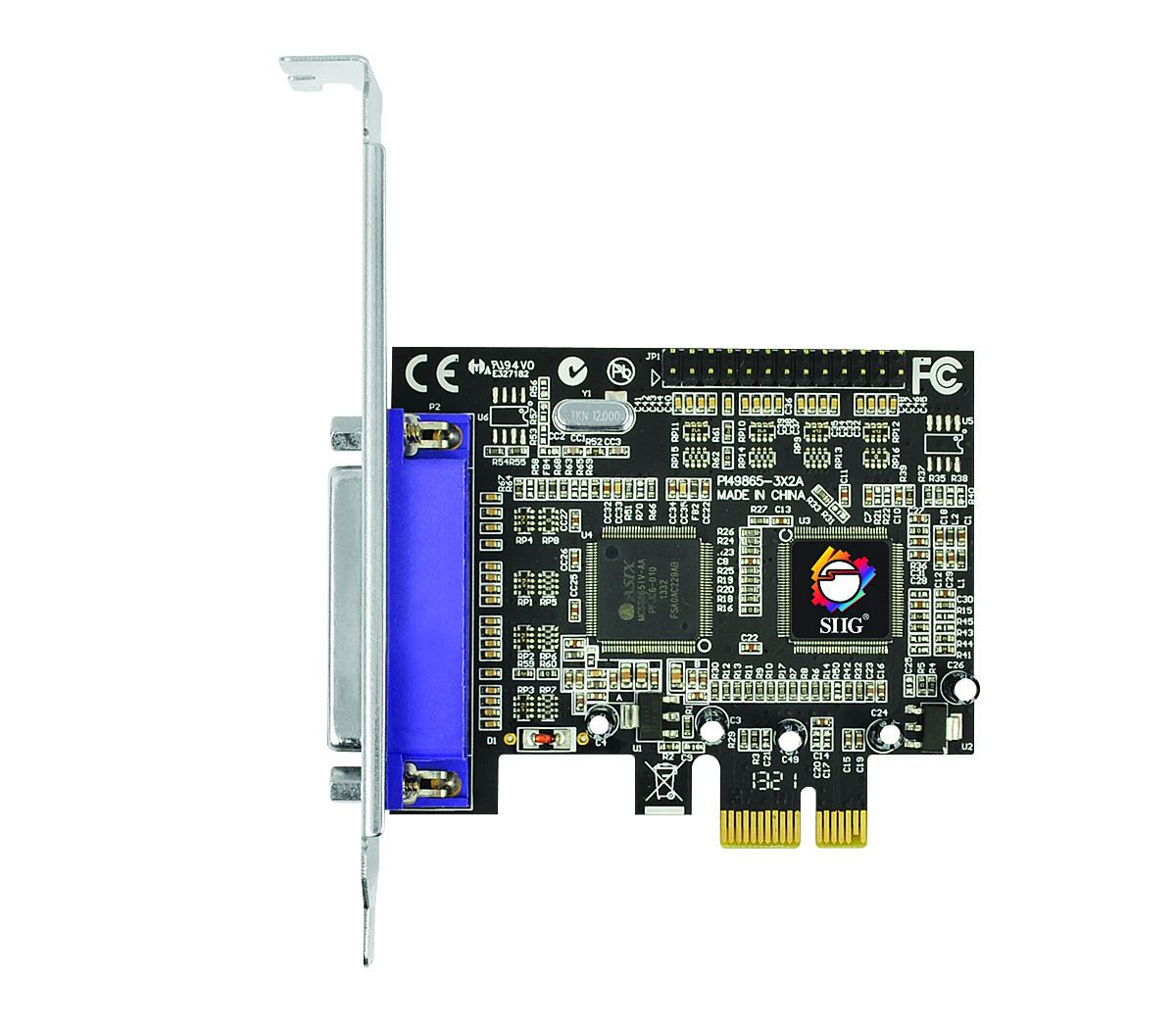

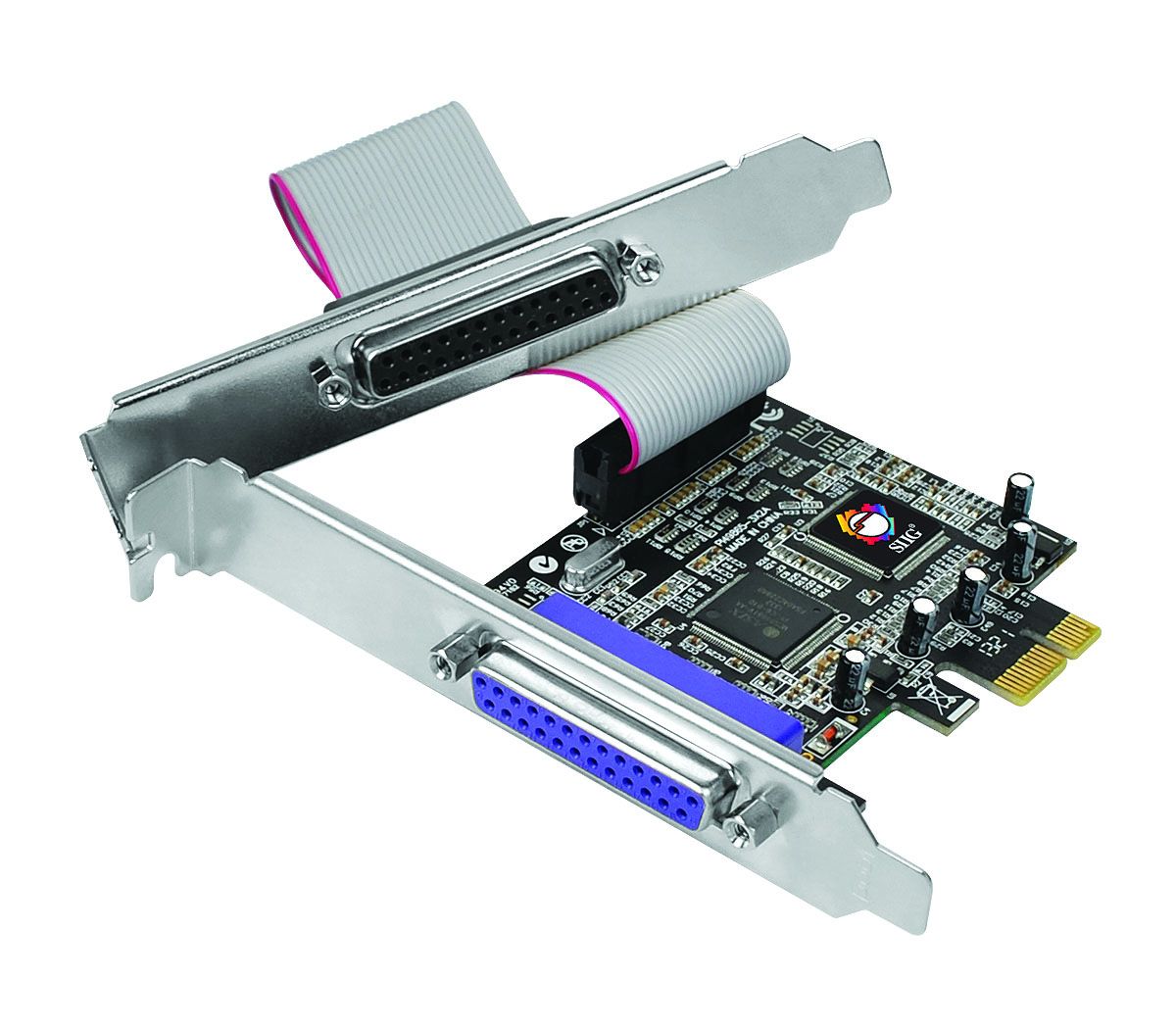

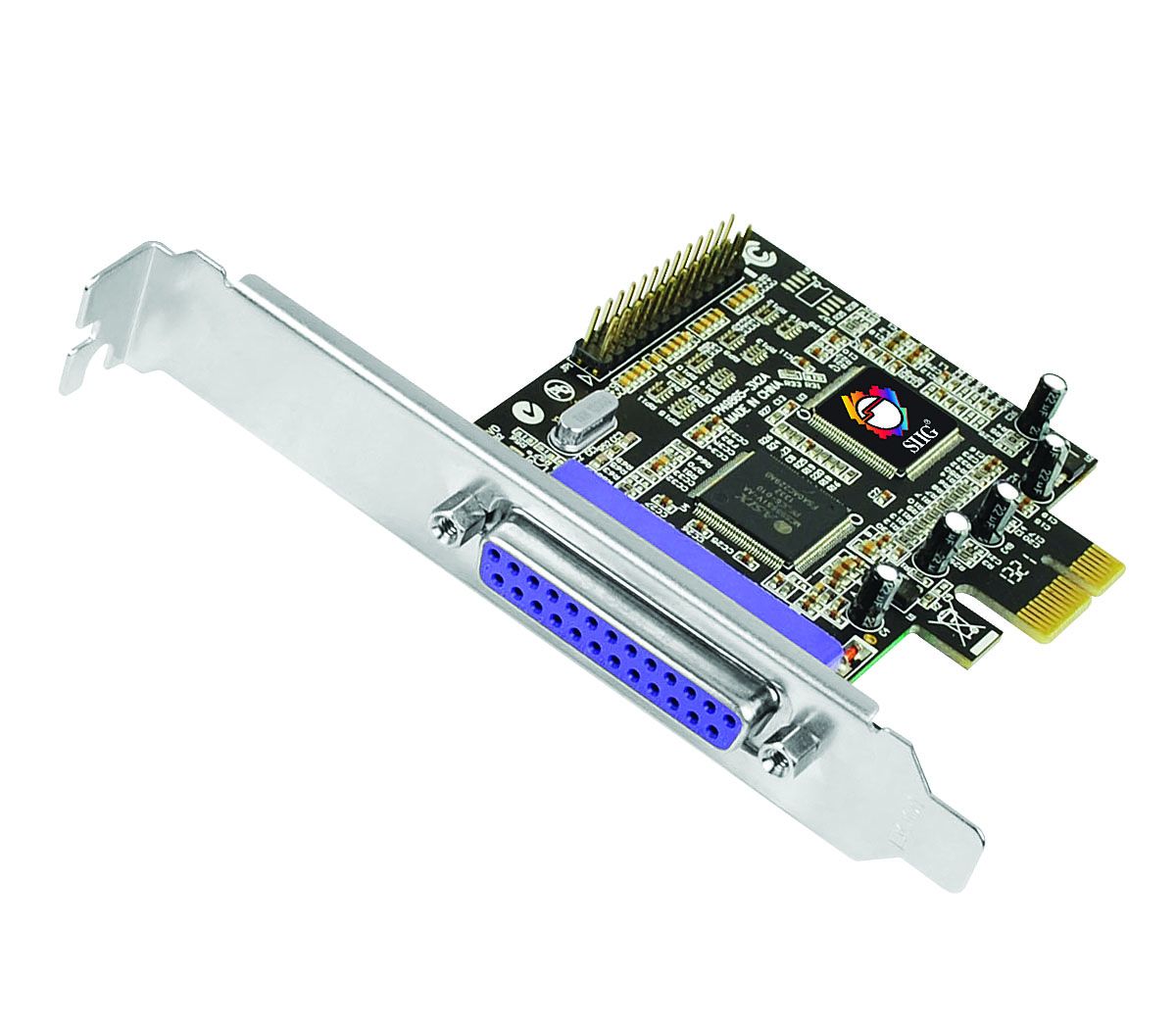

Name: DP CyberParallel Dual PCIe
Brand: SIIG INC
SKU: JJ-E02211-S1
Price: 49.99 USD
Availability: InStock

Parallel PCIe Card

2-Port DP25 Parallel

Up to 1.5Mbps

ECP/EPP/PS2/SPP Mode

Dual Profile

$49.99

Shipping calculated at checkout.

Dual Parallel Port Expansion

Adds two high-speed DB25 parallel ports to your PCIe-enabled desktop. Ideal for connecting legacy printers, scanners, and industrial devices.

Supports ECP, EPP, PS/2, and SPP parallel port modes. Ensures compatibility with a wide range of legacy peripherals.

Provides parallel data transfer rates up to 1.5 MB/s. Delivers reliable and efficient communication with connected devices.

PCI Express x1 interface works with PCIe slots of different lane widths. Installs easily into most desktop computer systems.

Includes full-height and low-profile brackets for various PC cases. Fully compatible with Windows-based software and applications.

Add two high-speed parallel (DB25) ports to your PCI-Express enabled desktop
Supports ECP, EPP, PS2 and SPP parallel port modes
1-lane (x1) PCI-Express adapter to work with all PCI-Express slots with different lane widths
Full support for Windows-based software and applications
Dual profile design to work with full height and low profile chassis with included brackets
Fast data rates up to 1.5 MB/s

Chipset	ASMedia ASM1083 + ASIX MCS9865
Compliance	PCI Express Base Specification revision 1.1
Bus Connector	PCI Express 1-lane (x1)
Support Modes	Supports ECP/EPP/SPP/PS2 parallel port
Connectors	2x Parallel, 25-pin, Female
Environmental Conditions
Operating temperature	32 to 122 degrees F (0 to 50 C)
Storage temperature	-4 to 140 degrees F (-20 to 60 C)
Operating humidity	20% to 80% RH (non-condensing)
Storage humidity	10% to 90% RH (non-condensing)
Certifications/Standards	FCC, CE, RoHS
UPC Code	662774-021201
Warranty	Lifetime limited
Country of Origin	China
System Requirement	- PCI Express enabled system with an available PCI Express slot - Windows 10 (32-/64-bit) / 8.x (32-/64-bit) / 7 (32-/64-bit) / Vista (32-/64-bit) / XP (32-/64-bit) / Server 2003 & 2008 (32-/64-bit) / Server

Product
Dimensions (L) x (H) x (W)	3.62" x 4.72" x 0.79" 9.20 cm x 12.00 cm x 2.00 cm
Weight	0.20 lbs (0.09 kg)
Unit Package
Dimensions (L) x (H) x (W)	8.66" x 6.18" x 1.50" 22.00 cm x 15.70 cm x 3.80 cm
Weight	0.51 lbs (0.23 kg)
Master Carton
Dimensions (L) x (H) x (W)	17.95" x 13.27" x 16.93" 45.60 cm x 33.70 cm x 43.00 cm
Weight	22.49 lbs (10.20 kg)
Quantity	40 pcs/ctn

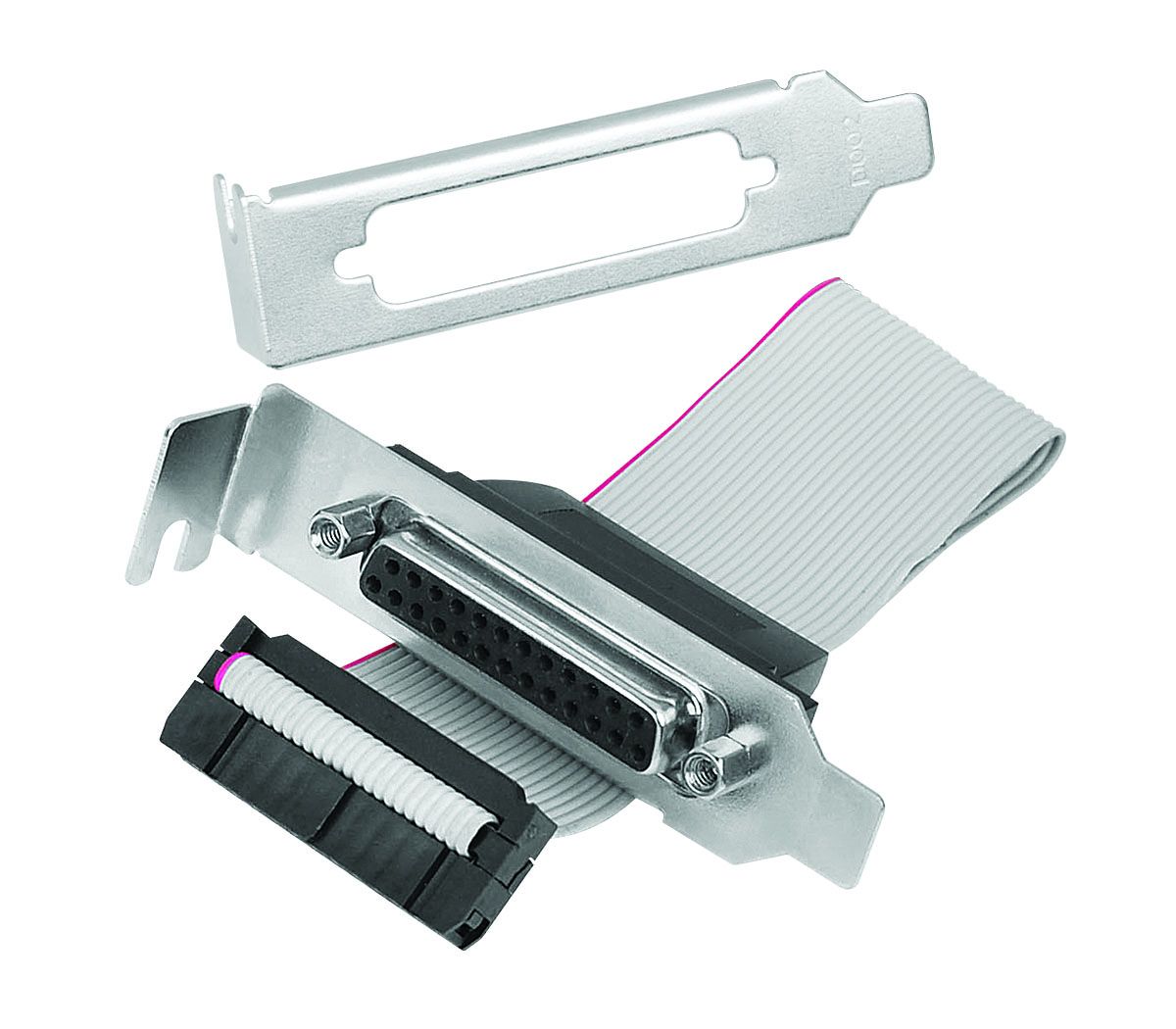

Package Contents	1x DP CyberParallel Dual PCIe 1x LP bracket DB25 ribbon cable 1x Spare low profile bracket 1x Driver CD 1x Installation guide
