I/O | SKU: JJ-E20411-S1

DP Cyber 2S1P PCIe Card

2S1P PCIe Card
Up to 250Kbps
SPP/ECP Mode
5V/12V Serial Power
Dual Profile
$69.99
Shipping calculated at checkout.
Product Features

PCIe Multi-Port Expansion

Adds two RS-232 serial ports and one parallel port through a PCI Express slot. Ideal for POS systems, printers, scanners, and industrial equipment.

Reliable Serial Communication

16C650 UART supports serial transfer rates up to 250Kbps. Includes full modem control with hardware and software flow control.

Flexible Power Output for Devices

Serial ports can operate as standard RS-232 or provide 5V/12V power output. Perfect for handheld scanners, POS displays, and powered serial devices.

Advanced Data Handling

Built-in 256-byte FIFO buffers improve transmission efficiency. Supports multiple serial formats and parity configurations.

Flexible System Compatibility

Compliant with PCI Express 2.0 Gen 1 and IEEE 1284 parallel standard. Includes full-height and low-profile brackets for easy installation.

  • 45 Days Free Return

  • 2 Years Warranty

  • Lifetime Technical Support

Features

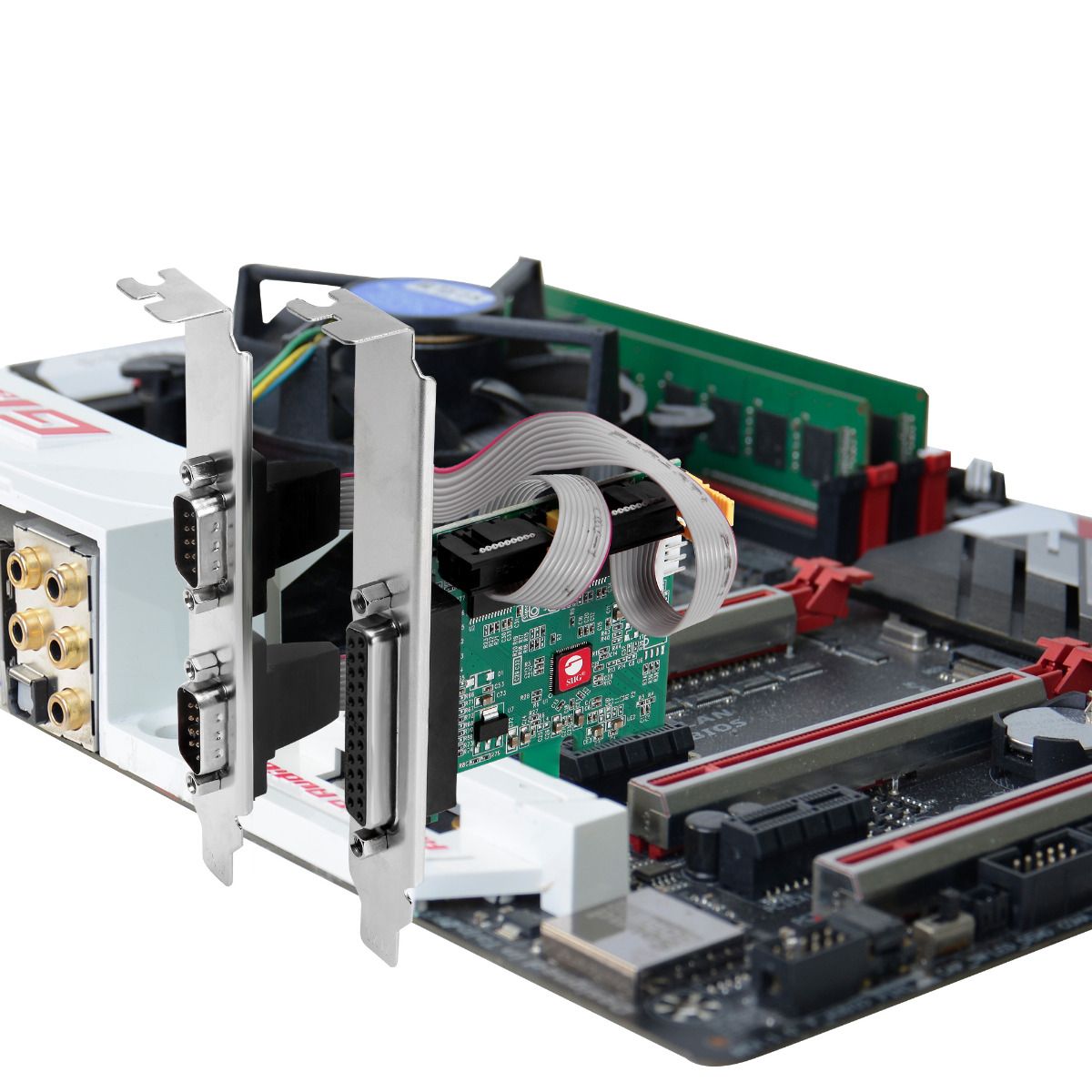

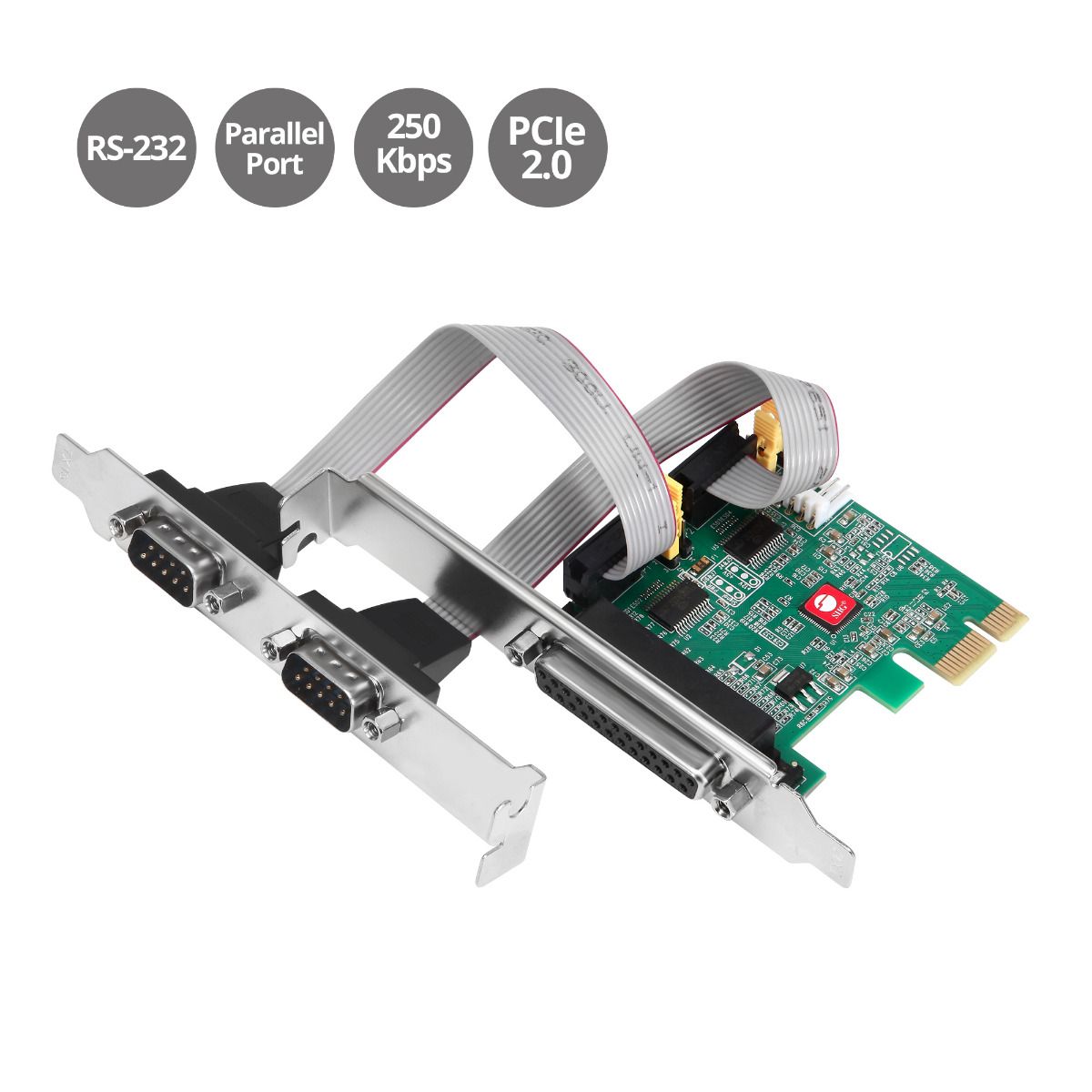

    • Easily adds two serial ports and one parallel port through an available PCI Express slot

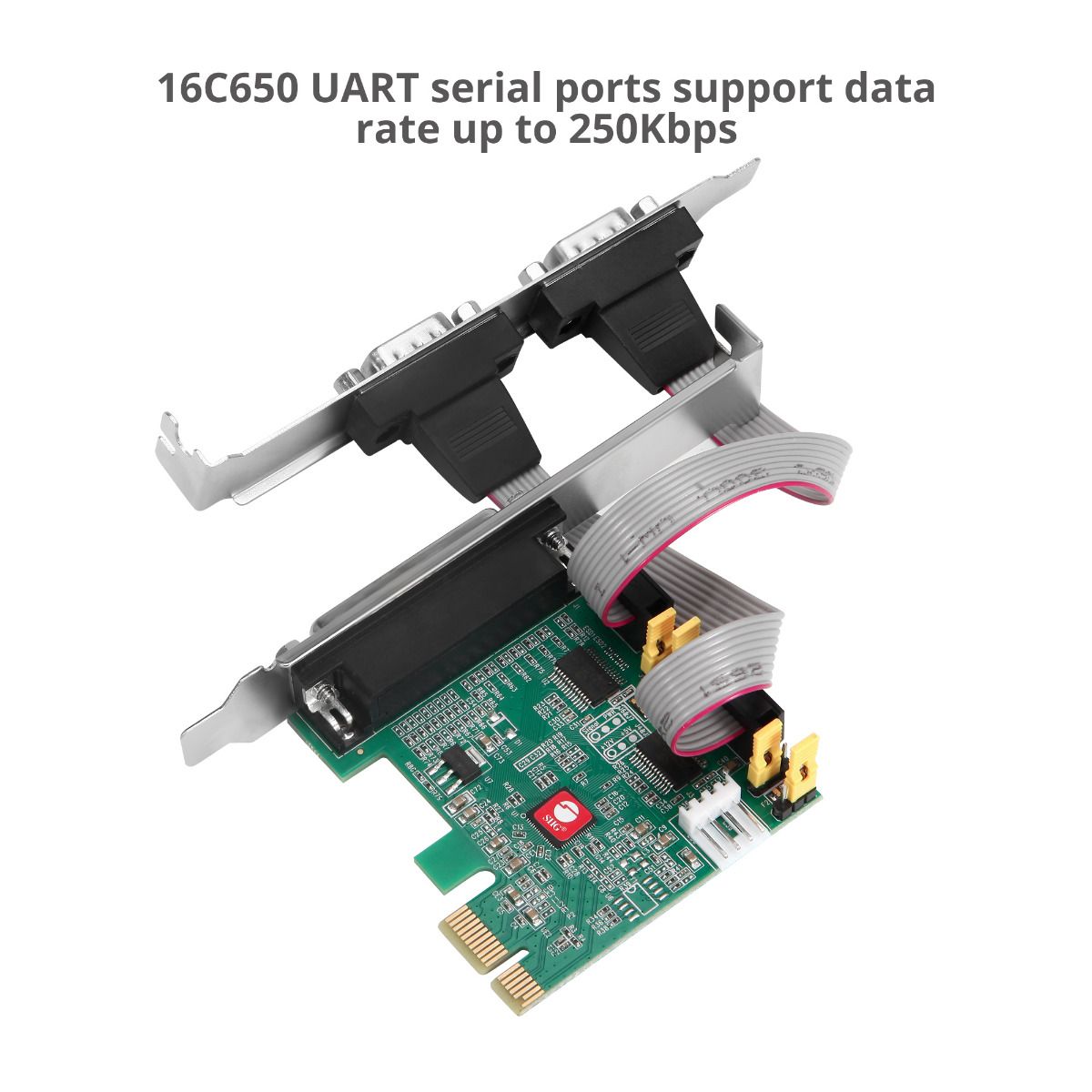

    • 16C650 UART serial port with data transfer rate up to 250Kbps
    • Compliant with PCI Express 2.0 Gen 1
    • Compatible with IEEE 1284 -1994 parallel port standard for SPP/Byte/ECP Mode
    • Single-lane (X1) PCI Express end-point controller with PHY integrated
    • Full serial modem control
    • Hardware and software flow control
    • 5, 6, 7, 8 and 9-bit serial format
    • Even, odd, none, space and mark parity
    • On chip 256 byte depth FIFO buffers in transmit, receive path of each serial port

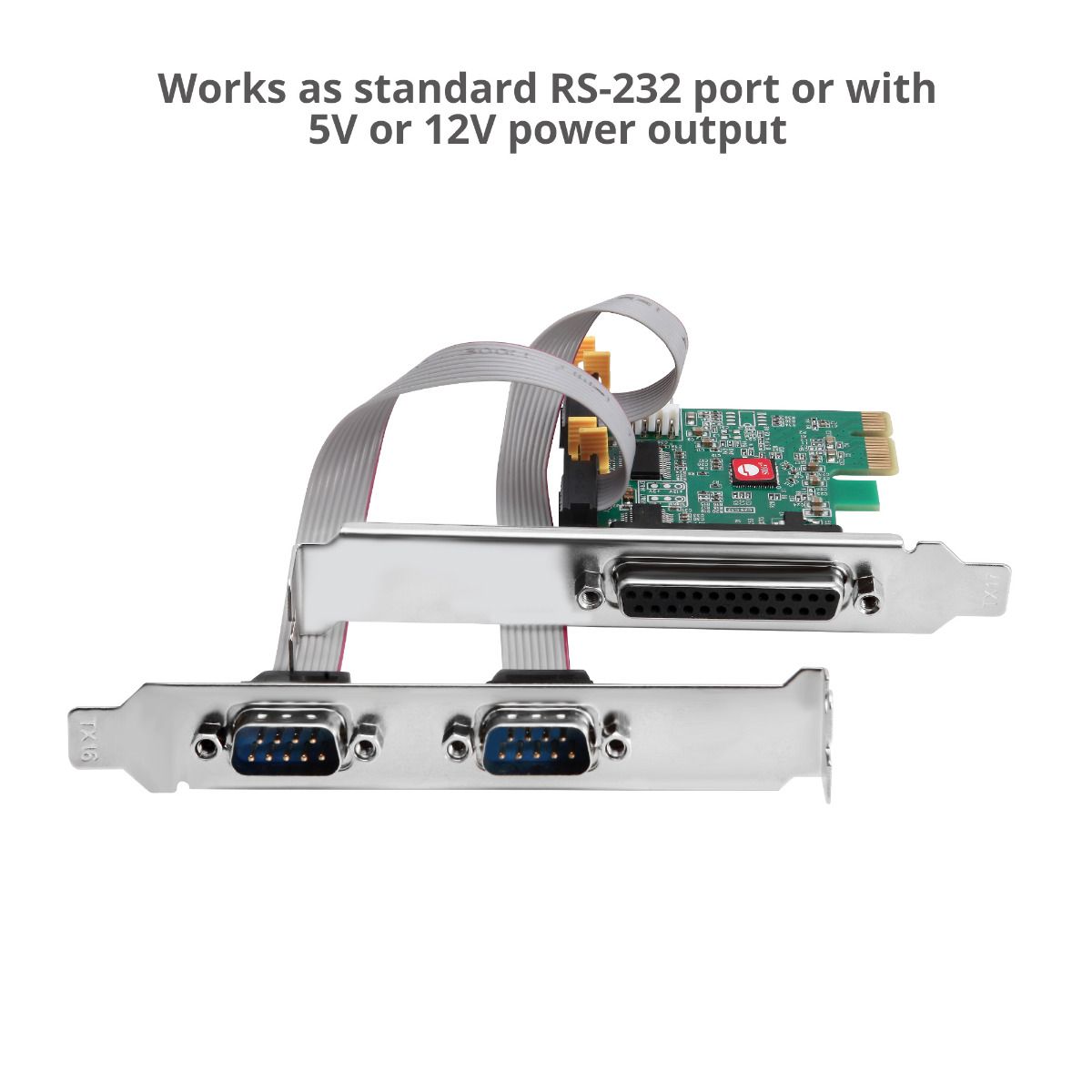

    • Works as standard RS-232 port or with 5V or 12V power output for devices that require power (such as handheld scanners, table scanners, POS displays, etc.), power output configurable via jumpers
    • Complies with PCI bus Power Management Interface Specification Revision 1.2

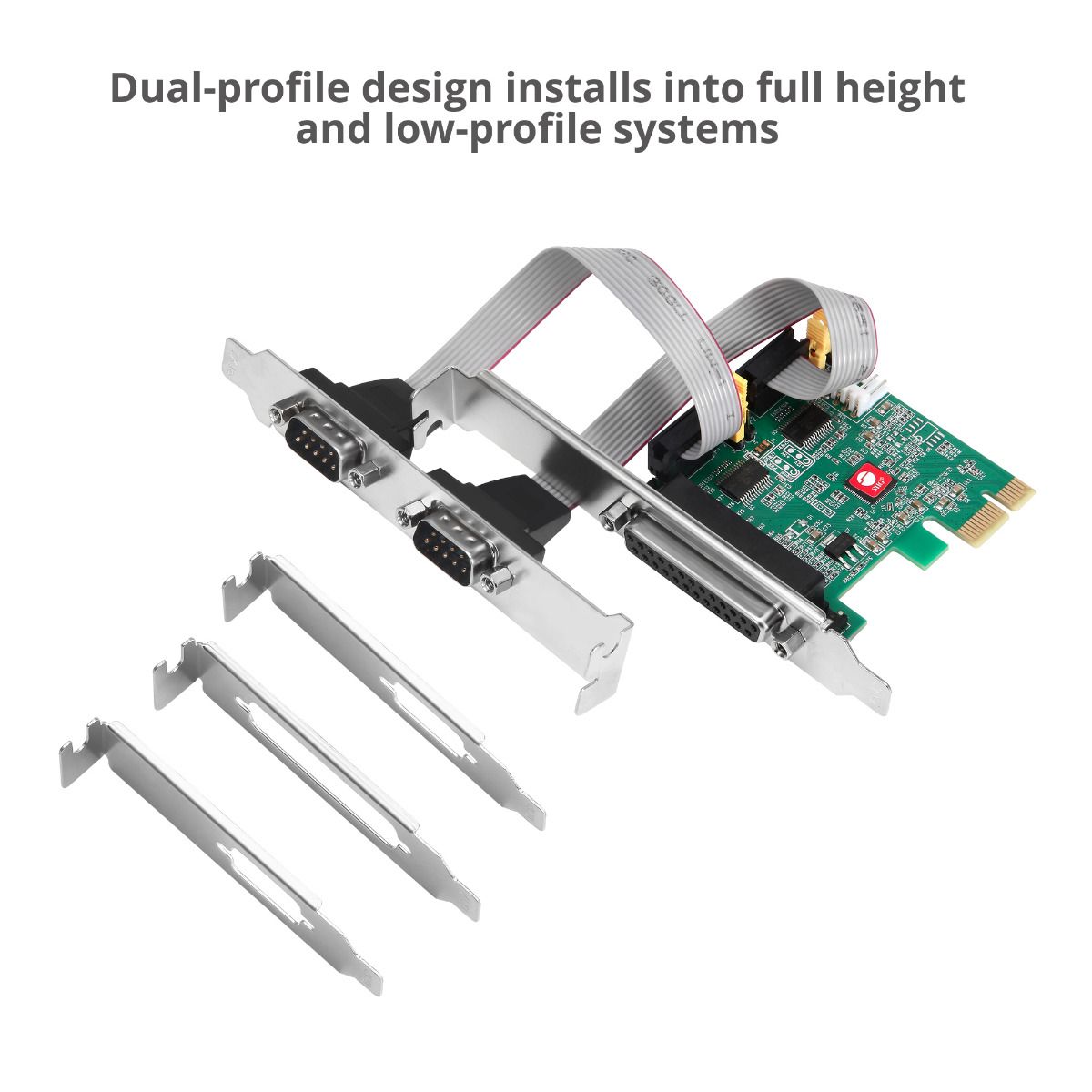

    • Dual-profile design fits full height and low-profile system chassis with the included spare low-profile brackets
    • Perfect solution to connect with POS systems, industrial testing and control devices, security systems, logistic management equipment, printers, scanners, etc.
