I/O | SKU: JJ-E20311-S1

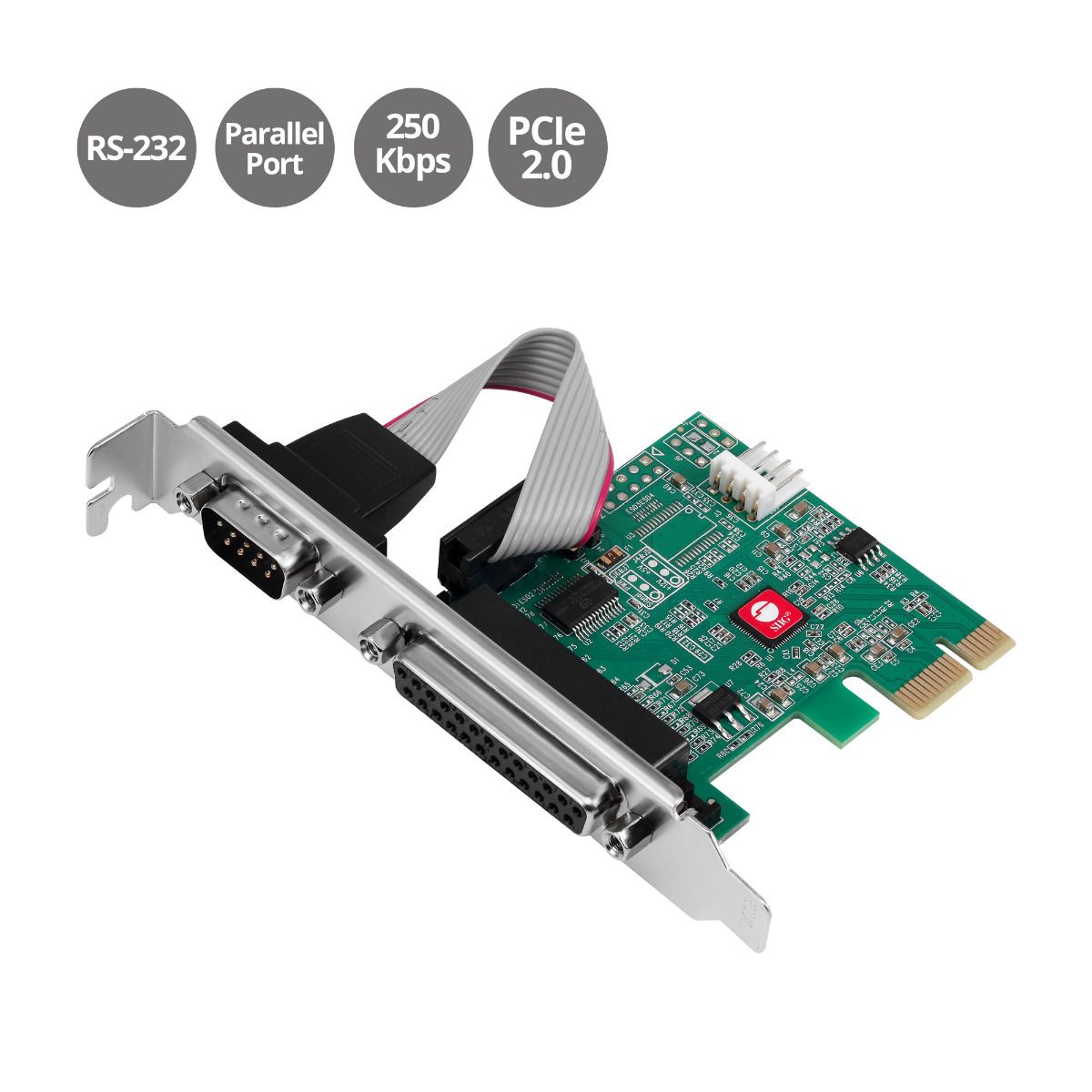

DP Cyber 1S1P PCIe Card

1S1P PCIe Card
250Kbps
5V/12V Serial Power
SPP/ECP Mode
Dual Profile
$42.99
Shipping calculated at checkout.
Product Features

SERIAL AND PARALLEL PORT

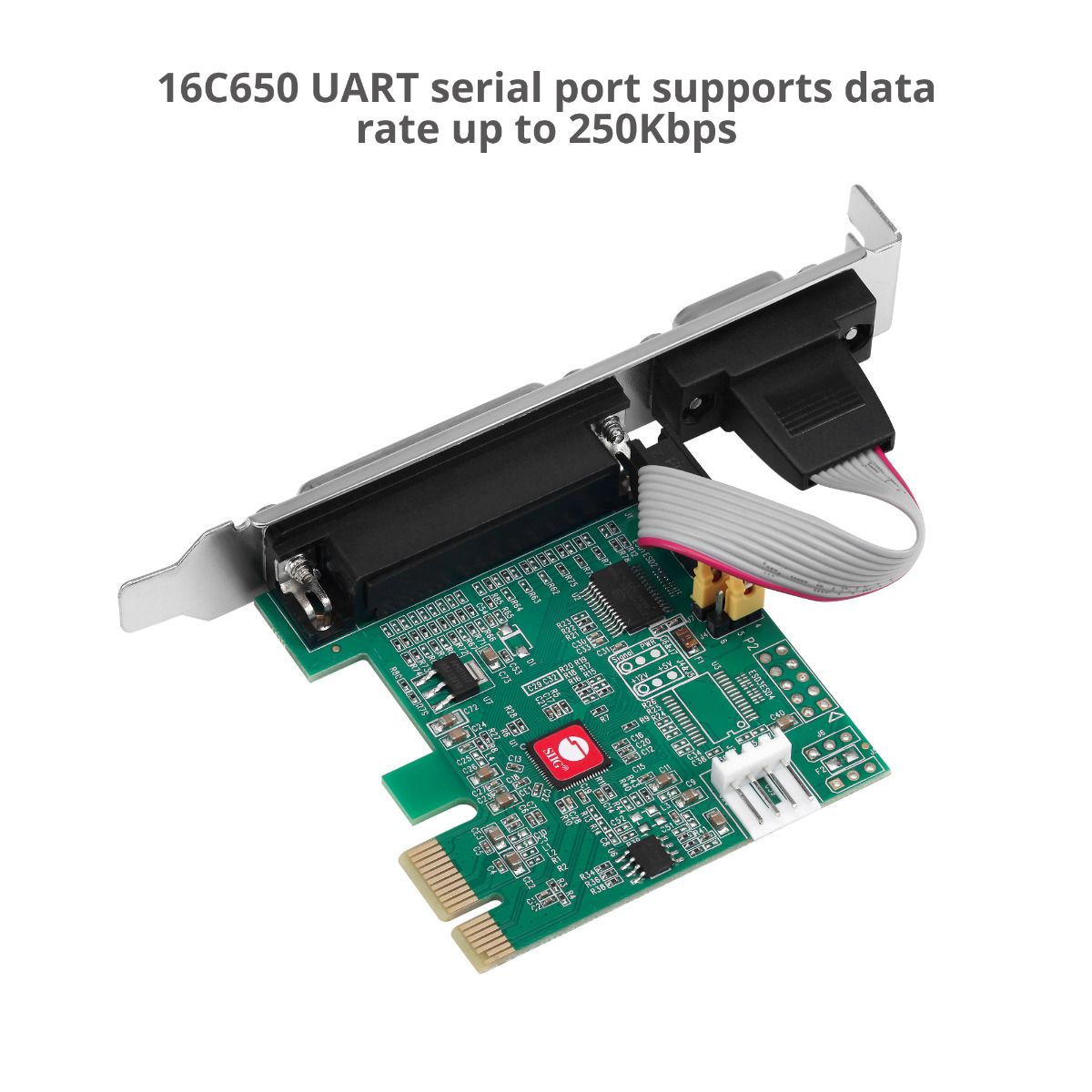

Easily adds one serial port and one parallel port through an available PCI Express slot. 16C650 UART serial port with data transfer rates of up to 250Kbps. Compliant with PCI Express 2.0 Gen 1. Compatible with IEEE 1284 -1994 parallel port standard for SPP/Byte/ECP Mode

PHY INTEGRATION

Single-lane (X1) PCI Express end-point controller with PHY integrated. Full serial modem control. Hardware and software flow control

SERIAL FORMAT

5, 6, 7, 8 and 9-bit serial format. Even, odd, none, space and mark parity. On chip 256 byte FIFO buffers in transmit, receive path

RS-232

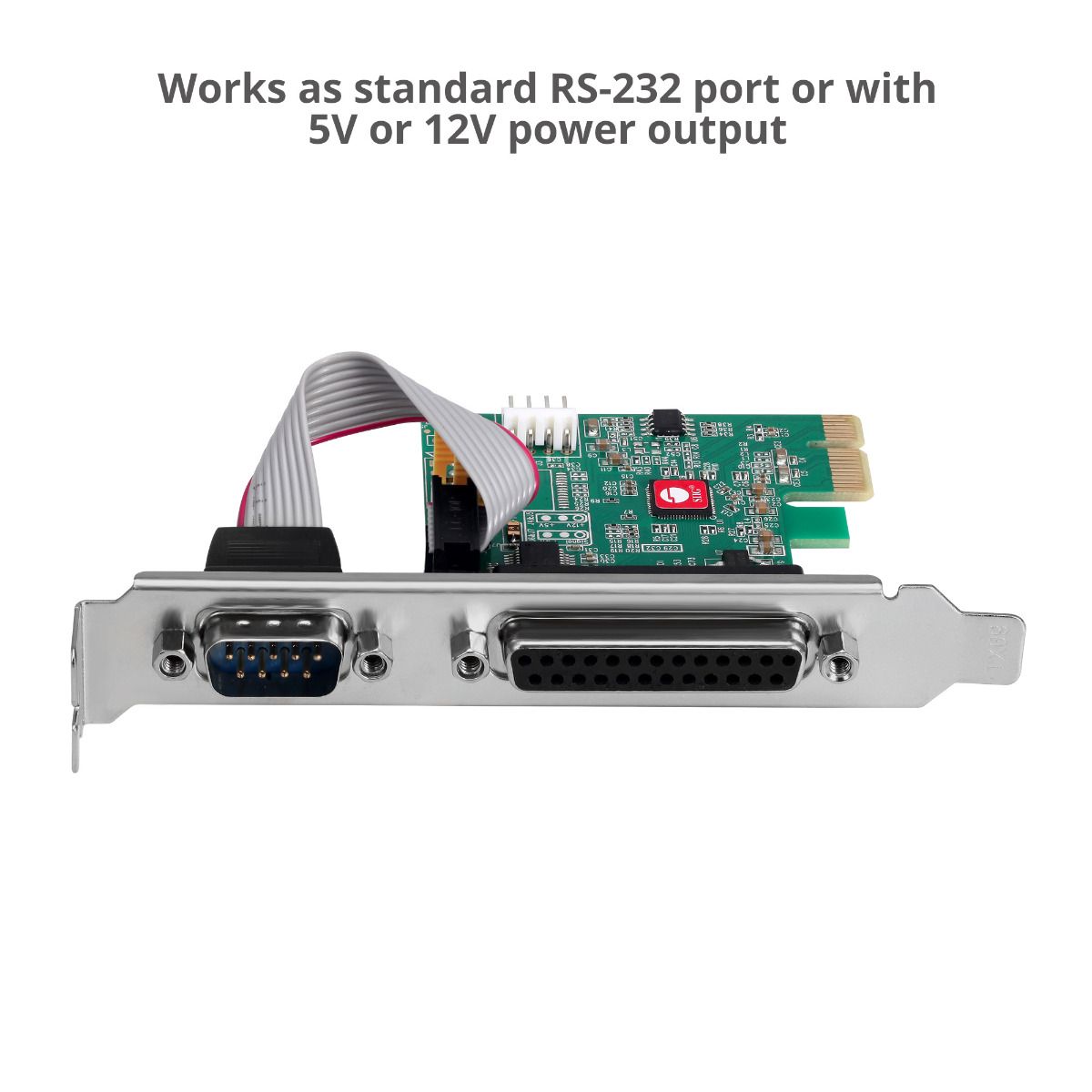

Works as standard RS-232 port or with 5V or 12V power output for devices that require power (such as handheld scanners, table scanners, POS displays, etc.), power output configurable via jumpers. Supports PCI bus Power Management Interface Specification Revision 1.2

DUAL PROFILE

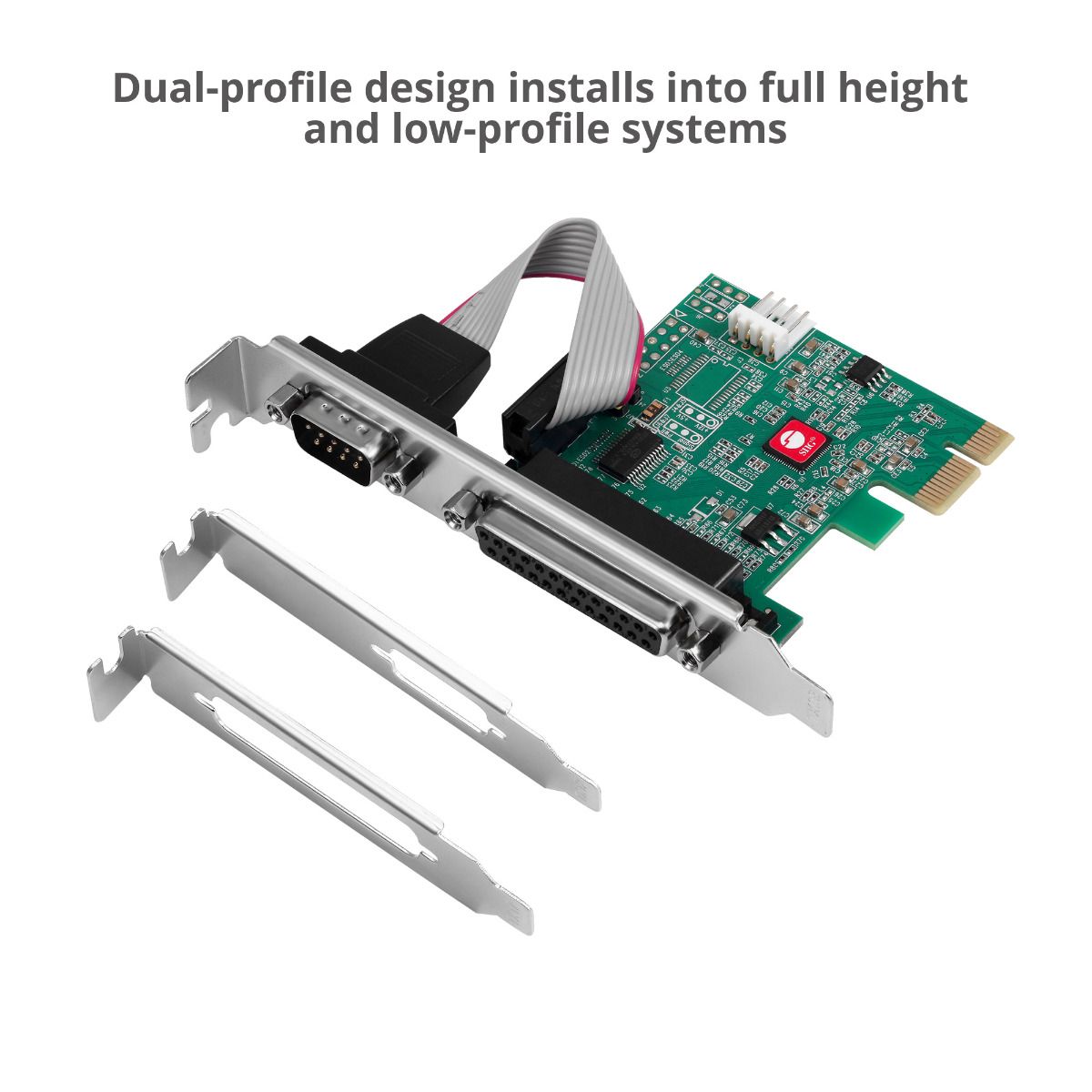

Dual-profile design fits full height and low-profile system chassis with the included spare low-profile brackets. Perfect solution to connect with POS systems, industrial testing and control devices, security systems, logistic management equipment, printers, scanners, etc.

  • 45 Days Free Return

  • 2 Years Warranty

  • Lifetime Technical Support

SIIG Single Serial RS-232 & Single Parallel Port PCIe Card (JJ-E20311-S1)

    Need to Upgrade Your System? PCIe serial card is the most convenient and low budget solution.

    Features

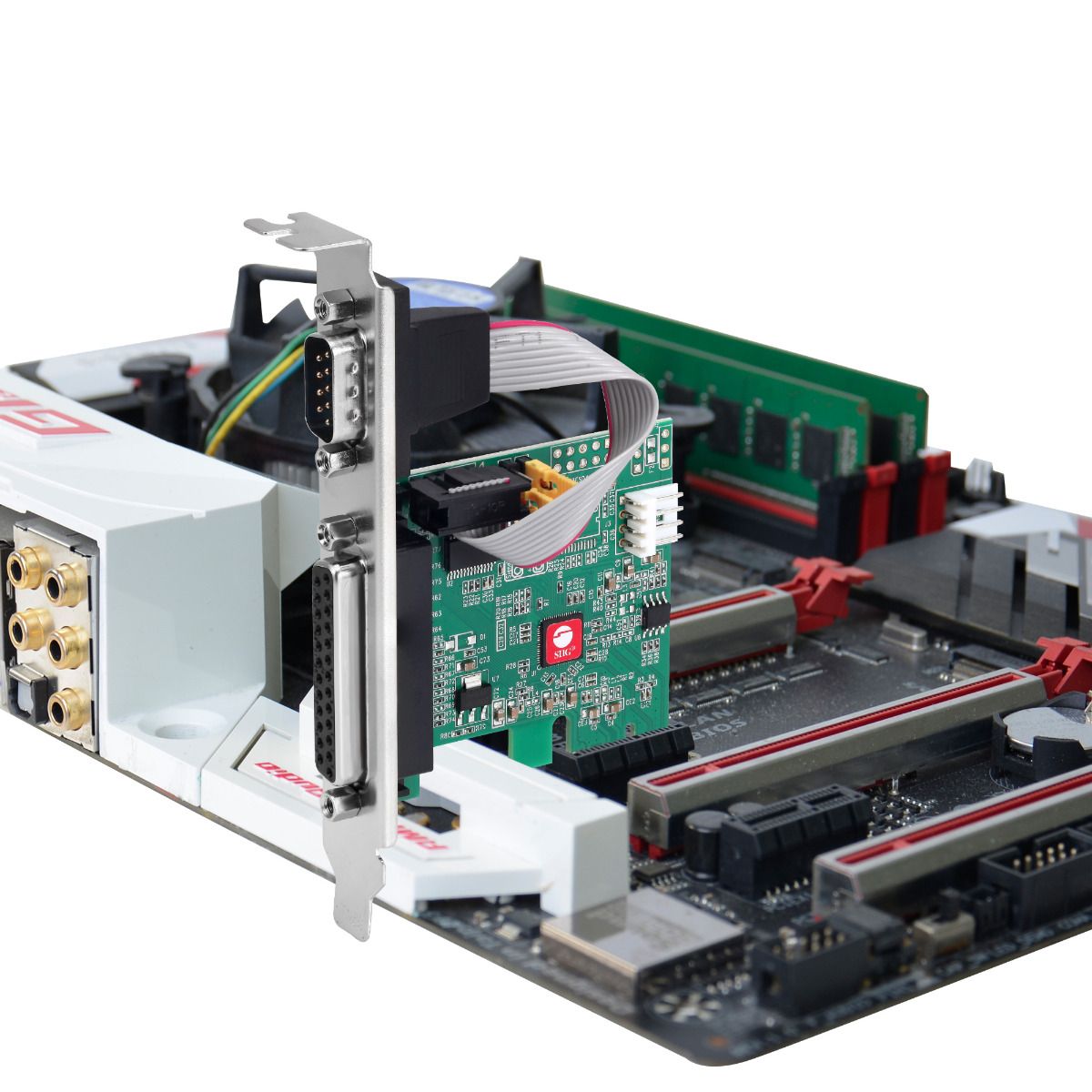

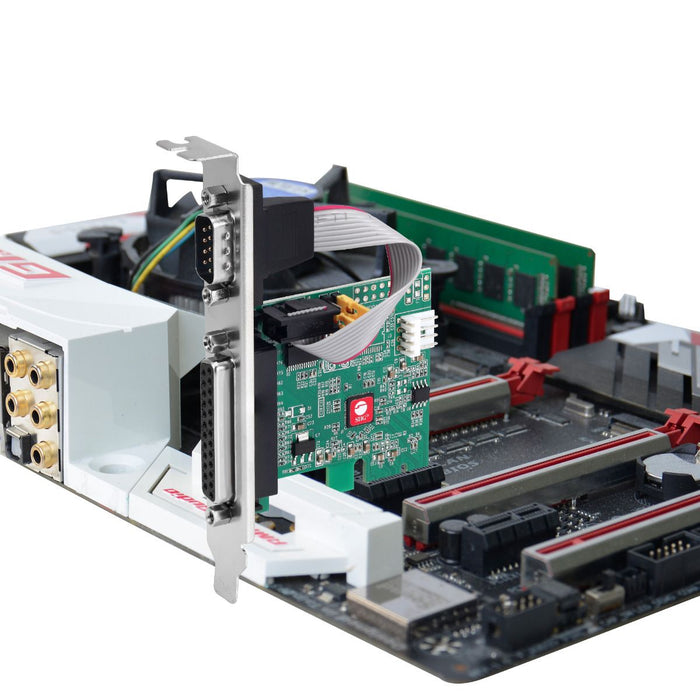

    The SIIG's PCIe serial card JJ-E20311-S1 can be installed into an available PCI Express slot on the computer's motherboard, to provide one serial port and one parallel port. It offers a convenient solution for connecting modern or legacy equipment to newer computer systems that do not have RS232 or parallel ports.

    - The 16C650 UART serial port with data transfer rate up to 250Kbps.
    - The card is compatible with IEEE 1284 -1994 parallel port standard for SPP/Byte/ECP Mode.
    - It works as standard RS-232 port or with 5V or 12V power output for devices that require power (such as handheld scanners, table scanners, POS displays, etc.), power output configurable via jumpers.

    Benefits
    - The PCIe serial card can decrease the loading on CPU activity which helps ensure optimal system performance and keep errors from happening.
    - The card is with dual-profile design which fits full height and low-profile system chassis with the included spare low-profile brackets.
    - It is a great solution to connect with POS systems, industrial testing and control devices, security systems, logistic management equipment, vinyl cutter, printers, scanners, and etc.

    • Hassle Free Installation

      This serial card is easy to install and configure, plus support for a wide range of Windows OS. It comes with a standard-profile bracket installed, and also an optional low-profile bracket included in the package.

    • Solution to Connect

      Connect legacy serial devices to modern Windows PCs with this cost-effective PCIe card. Ideal for CNC machines, POS systems, printers, scanners, and industrial control applications.

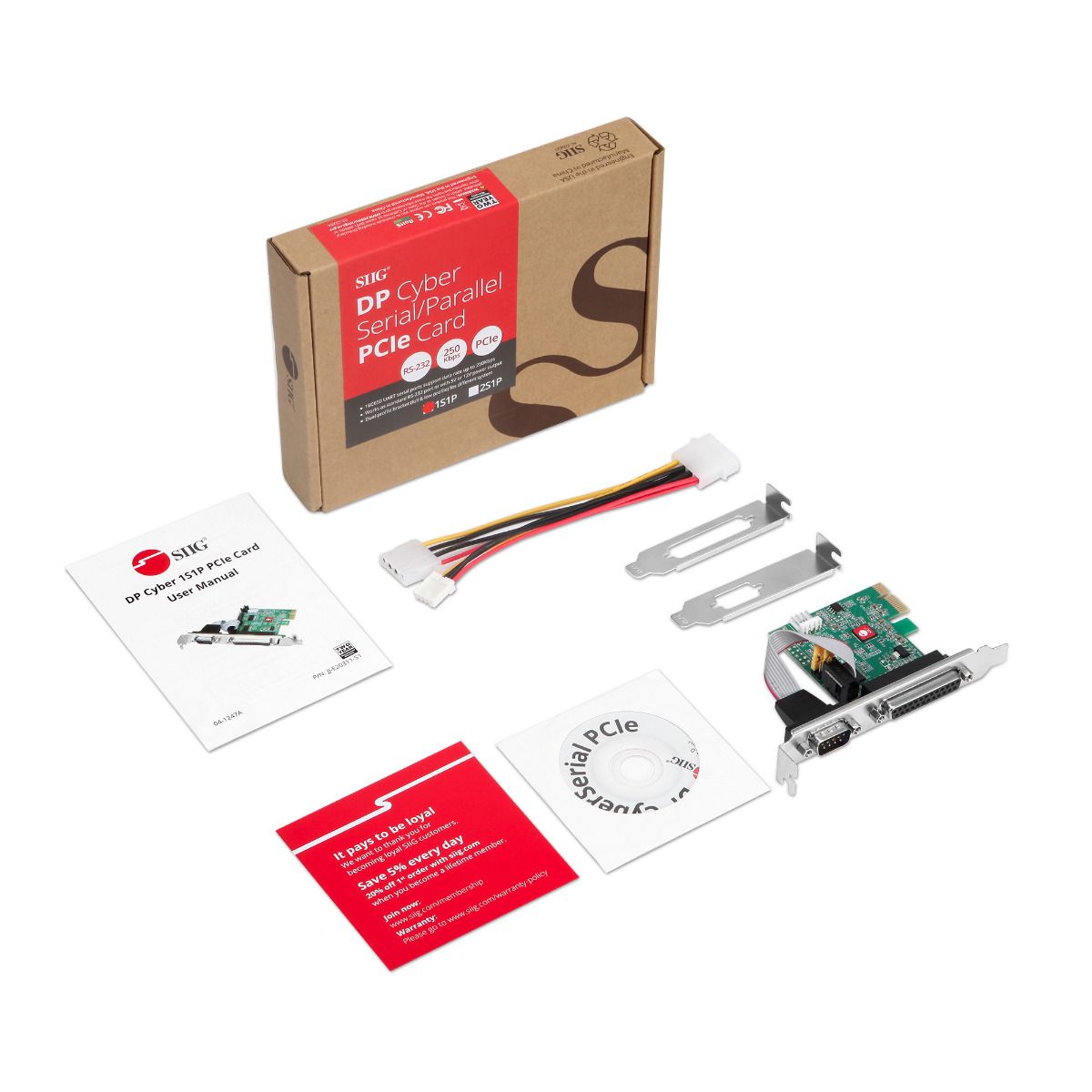

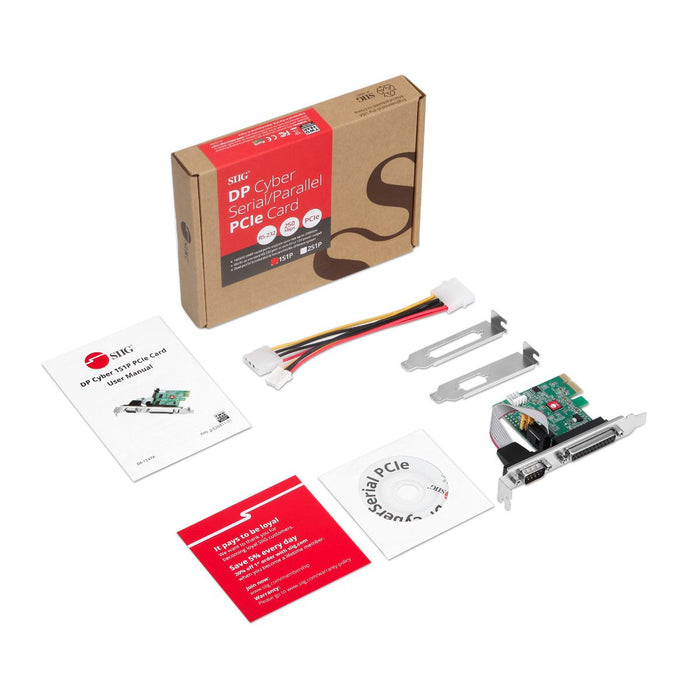

    • What is in the Box?

      - DP Cyber 1S1P PCIe Card
      - Low-profile bracket (2pcs)
      - Y-Split power cable
      - Voltage Jumper (2pcs)
      - Software CD (Latest driver can be found on SIIG website)
      - User manual
