Extender |
SKU:
CE-DP0611-S1

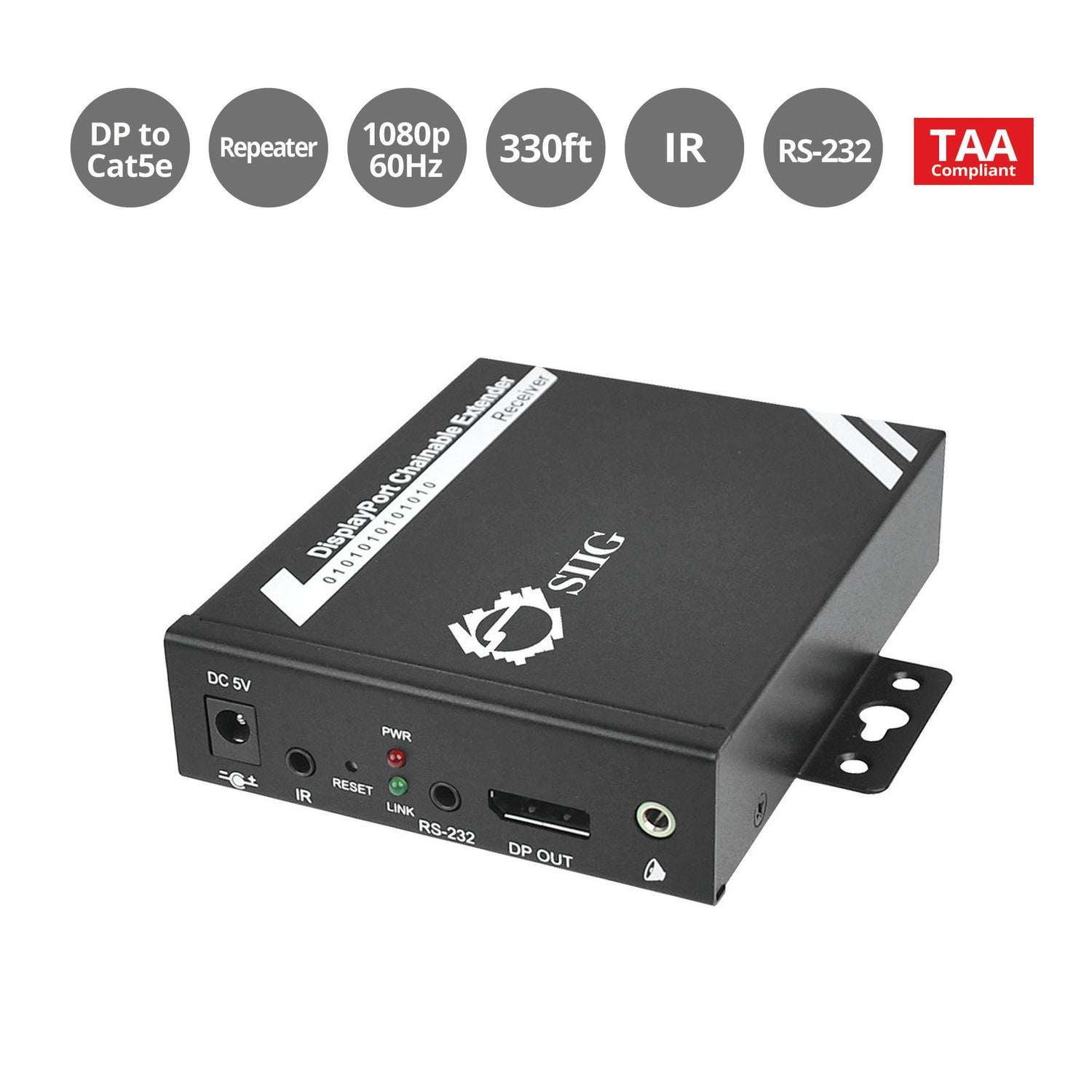

DisplayPort to CAT5e Daisy Chain HD with RS-232 & IR - Repeater
DisplayPort Receiver / Repeater
330ft (100m)
1080p 60Hz
IR extension
RS-232 connection
Regular price
$279.99
Unit price
/
Unavailable
Shipping calculated at checkout.
DisplayPort to CAT5e Daisy Chain HD with RS-232 & IR - Repeater is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Features
DisplayPort Extension
DisplayPort Extension
Cascading Receivers
Cascading Receivers
Video Resolution
Video Resolution
DisplayPort Loopout
DisplayPort Loopout
RS-232 & IR
RS-232 & IR
No content found
| Hardware | |
| Chipset | TF-680 |
| Video | |
| DisplayPort | 1x output |
| Resolution | 480p / 720p / 1080i / 1080p 60Hz |
| Transmission Distance | Each pair (TX & RX) extends the signals up to 100m (330 feet) |
| LED Status Indicators | Power / Link |
| IR Signal | Unidirectional enabled |
| RS-232 Control | Up to 115,200 bps |
| ESD Protection | 8KV |
| Power Adapter | |
| Input | 100-240VAC / 0.5A |
| Output | 5V / 2A |

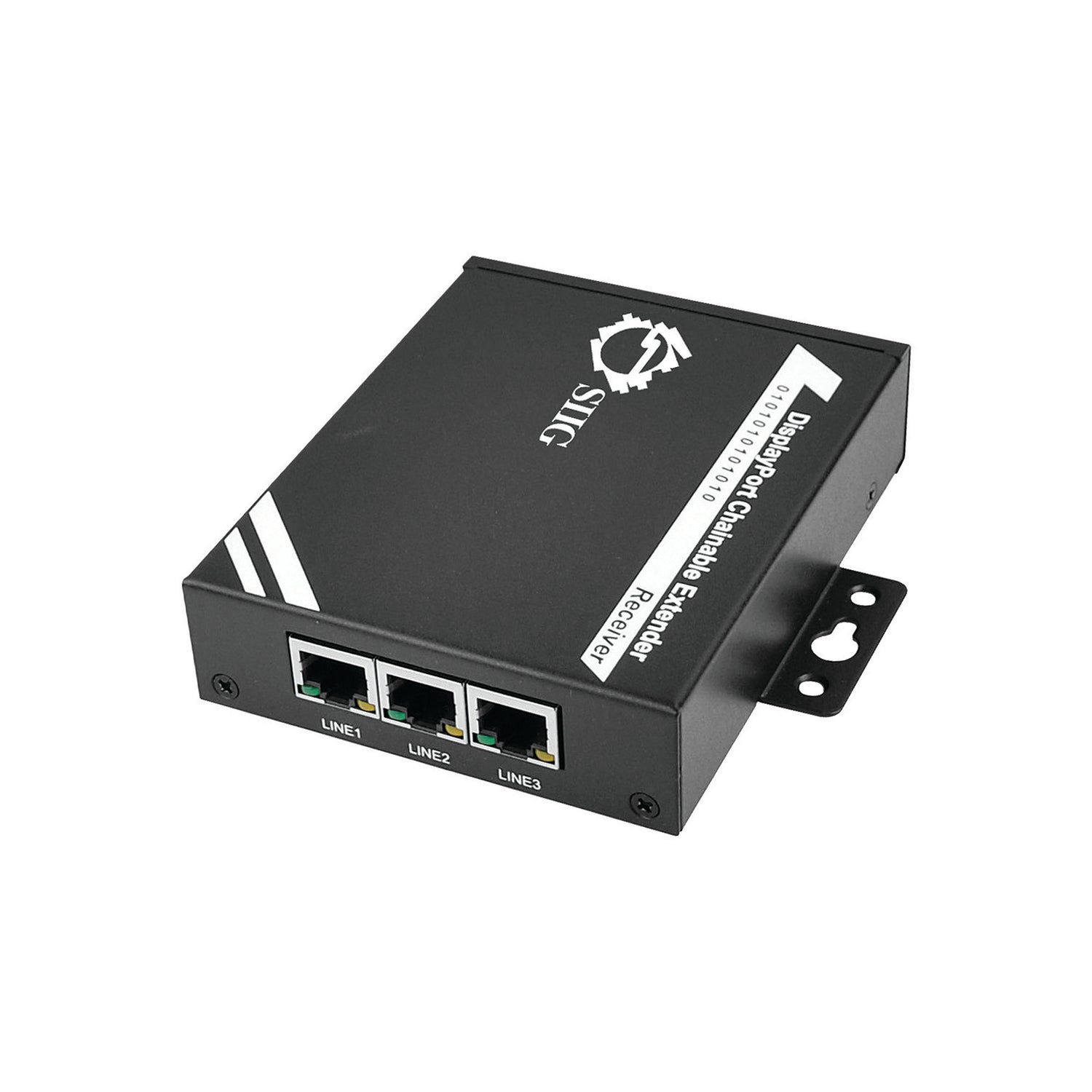

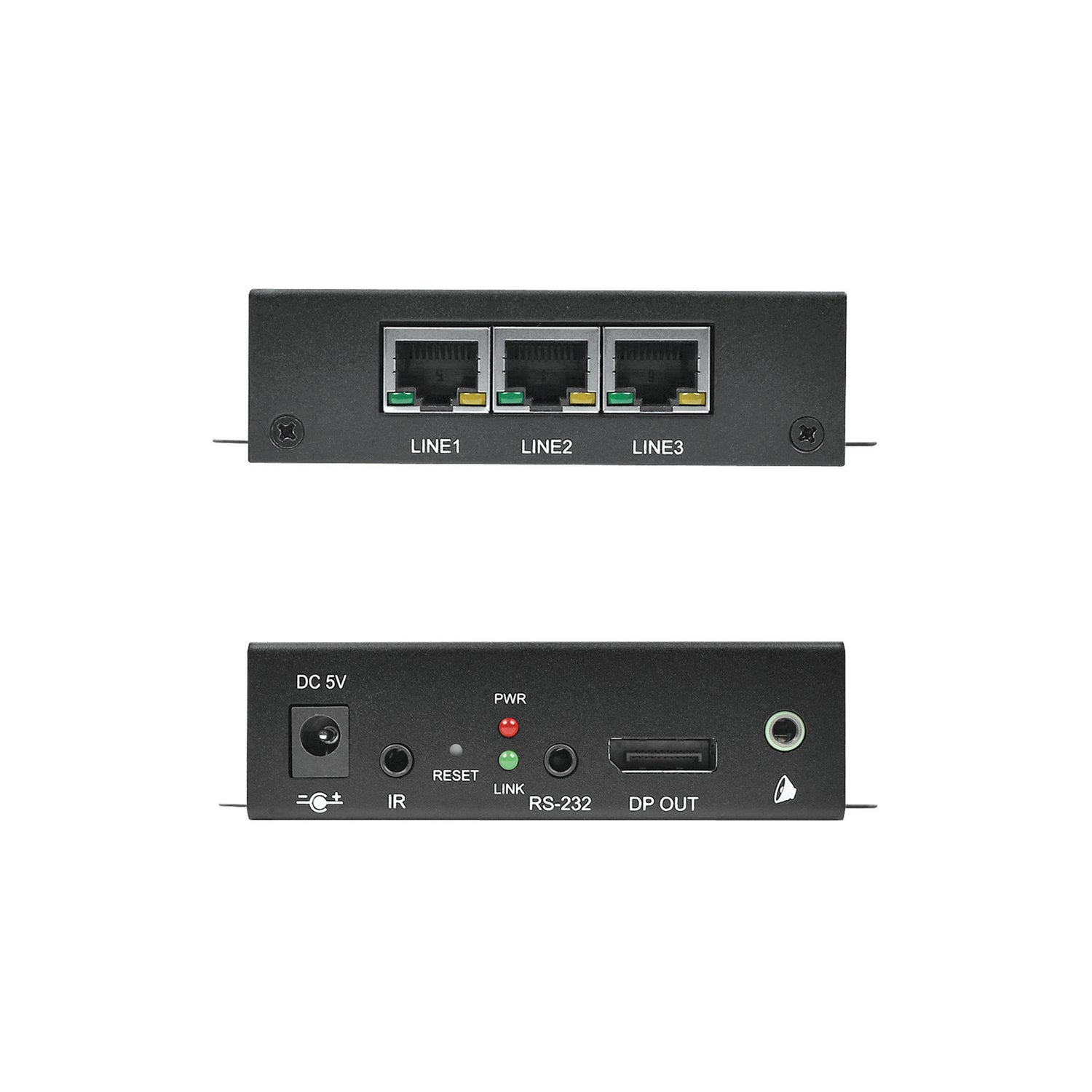

| Interface | 1x 20-pin DisplayPort, female, output 1x 3.5mm jack, IR receiver 1x 3.5mm jack, RS-232, output 1x 3.5mm jack, audio, output 3x 8-pin RJ45 with 2 LED indicators, input/output |

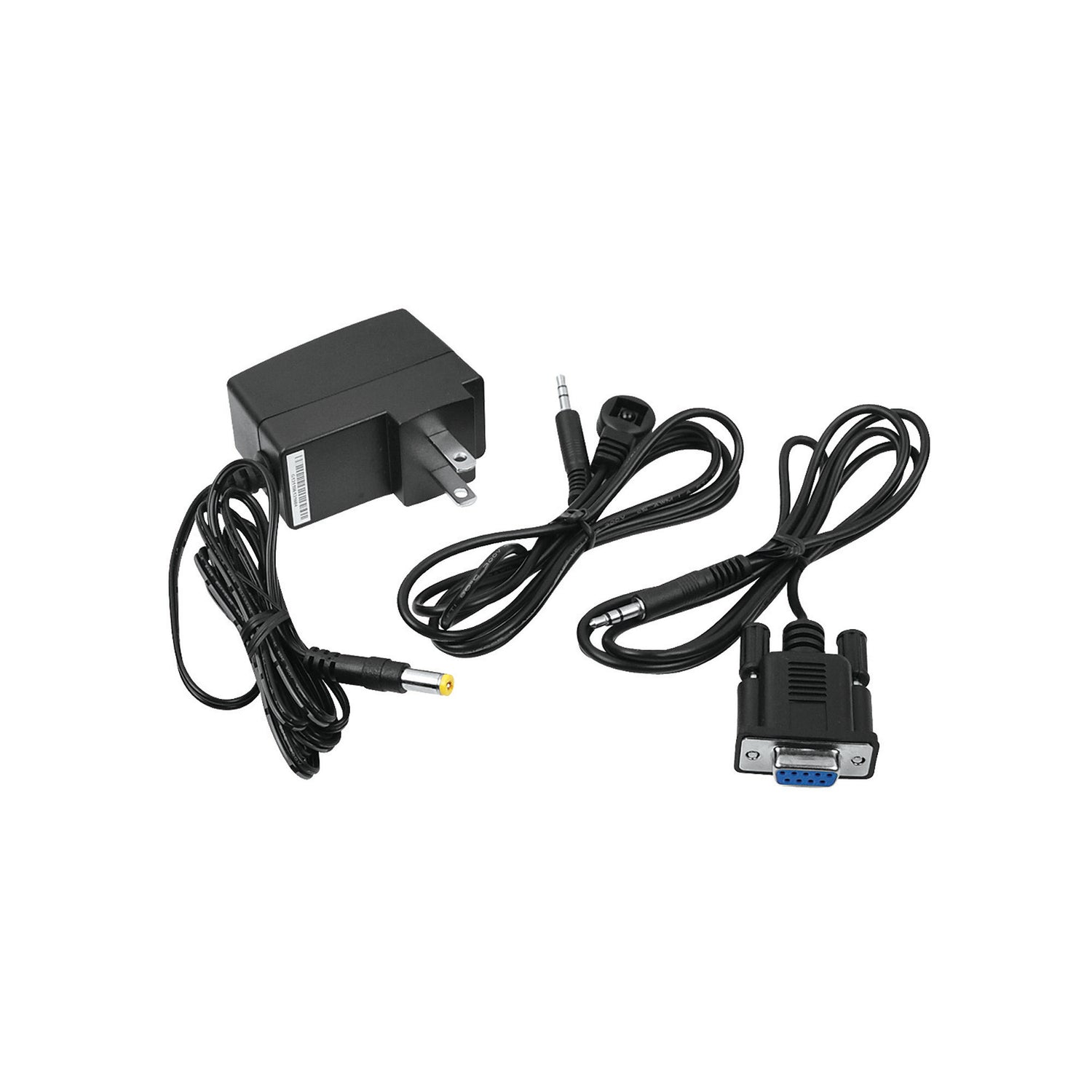

| Package Contents | 1x DisplayPort to CAT5e Daisy Chain HD Extender Kit with RS-232 & IR - Repeater 1x Power adapter 5V/2A 1x 3.5mm to RS-232 cable 1x IR receiver cable 1x Installation guide |
| Certifications/Standards | FCC, CE, RoHS, TAA Compliant |
| UPC Code | 662774-020846 |
| Warranty | 2 years limited |
| Country of Origin | Taiwan |
| Product | |
| Dimensions (L) x (H) x (W) | 4.53" x 3.58" x 1.10" 11.51 cm x 9.09 cm x 2.79 cm |
| Weight | 0.86 lbs (0.39 kg) |
| Color | Black |
| Housing | Metal |
| Unit Package | |
| Dimensions (L) x (H) x (W) | 9.29″ x 6.10″ x 2.48″ 23.60 cm x 15.49 cm x 6.30 cm |
| Weight | 1.43 lbs (0.65 kg) |
| Master Carton | |
| Dimensions (L) x (H) x (W) | 13.39″ x 9.72″ x 13.15″ 34.01 cm x 24.69 cm x 33.40 cm |
| Weight | 16.54 lbs (7.50 kg) |
| Quantity | 10 pcs/ctn |
| Environmental Conditions | |
| Operating Temperature | 32° to 122° F |
| Storage Temperature | -4° to 140° F |
| Relative Humidity | < 80% RH (non-condensing) |
