DisplayPort 1.4 AOC Cable - 20m
DisplayPort 1.4 AOC Cable - 20m is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Features
8K DisplayPort 1.4 Performance
8K DisplayPort 1.4 Performance
Ultra-High Bandwidth
Ultra-High Bandwidth
Active Optical Cable Technology
Active Optical Cable Technology

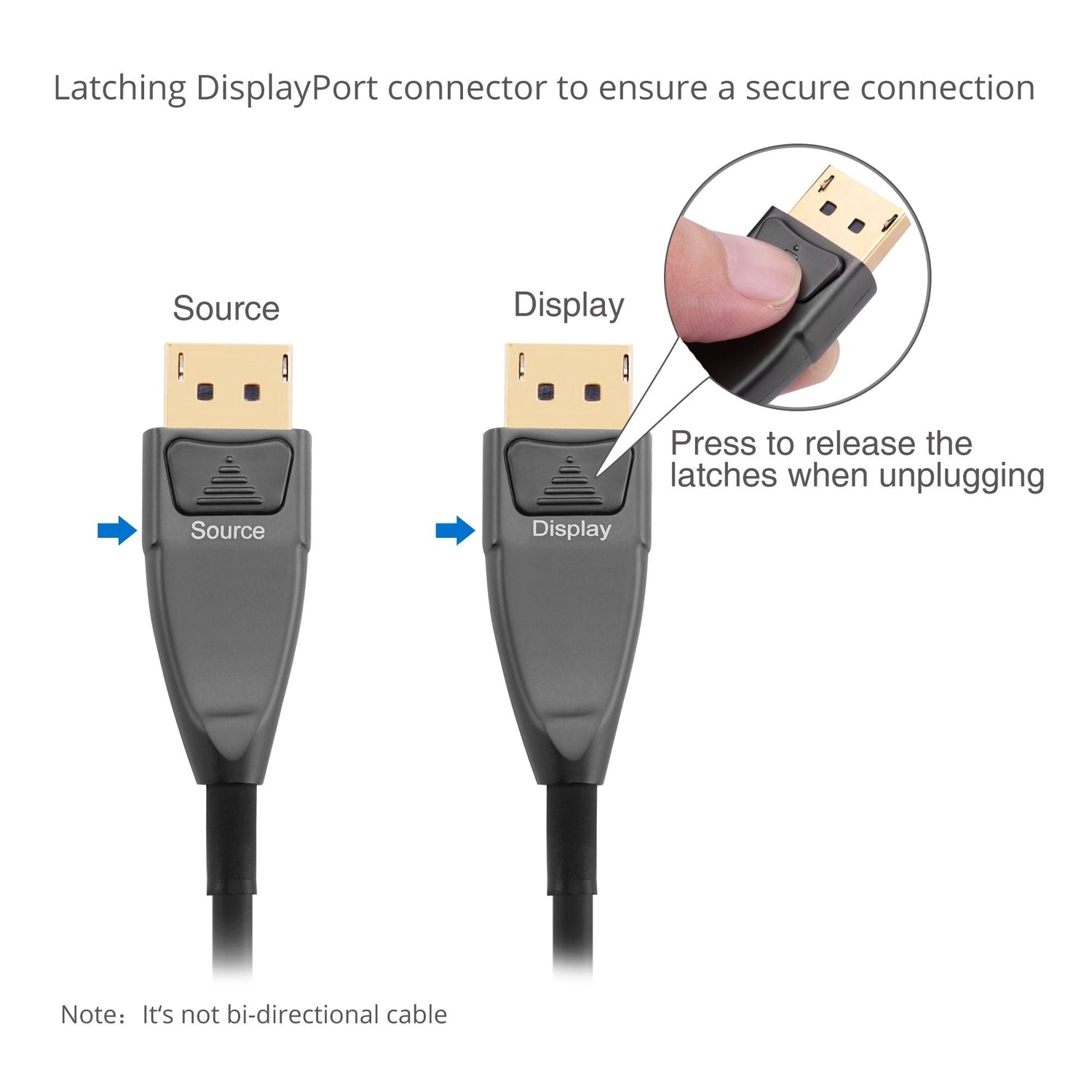

Secure Latching Design
Secure Latching Design
Easy Plug & Play Setup
Easy Plug & Play Setup
-
45 Days Free Return
-
2 Years Warranty
-
Lifetime Technical Support
| Standard | DisplayPort 1.4, HDCP 2.2 and 1.4 compliant |
| Resolution | Up to 8K 60Hz Supports High Dynamic Range (HDR) video signals |

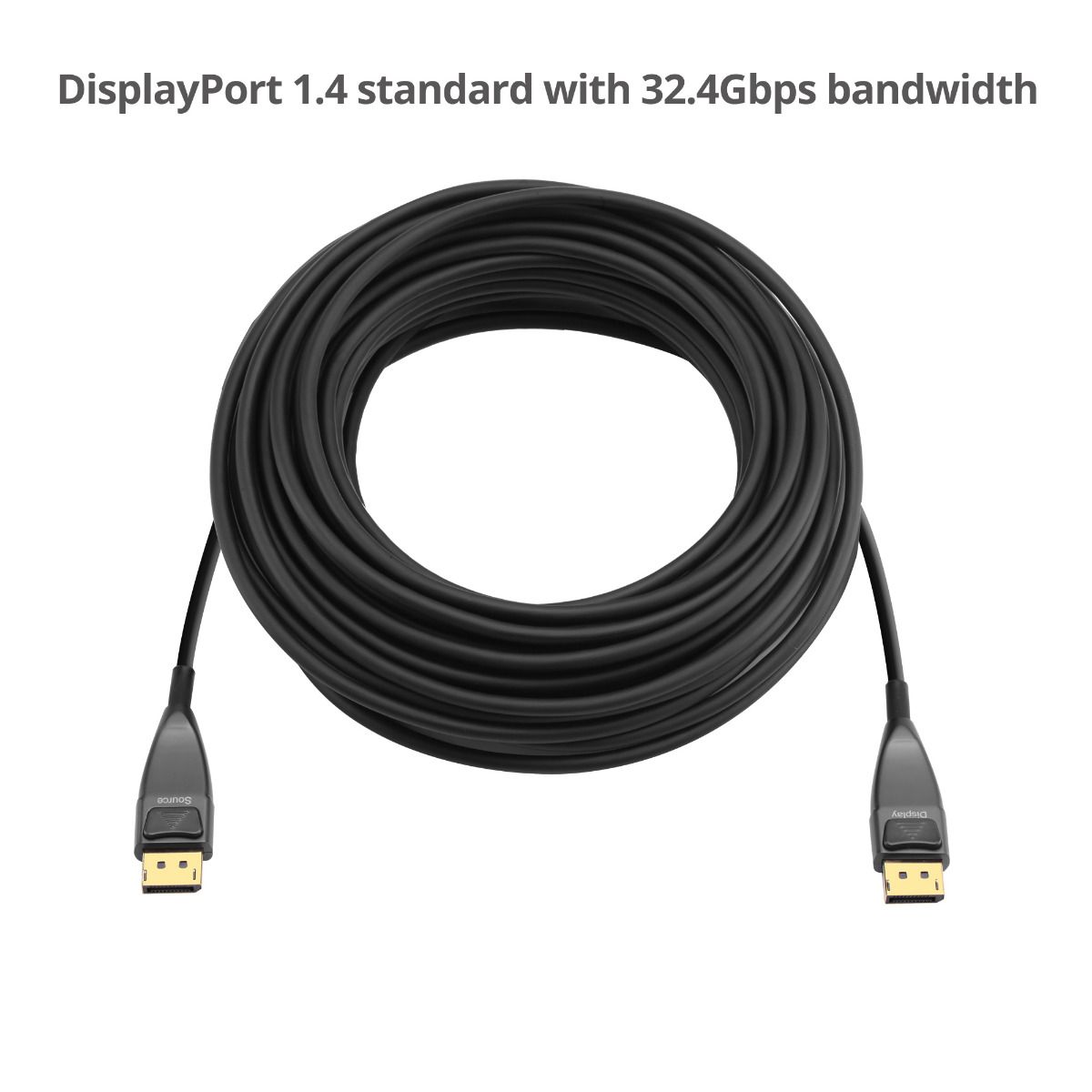

| Bandwidth | Up to 32.4Gbp, High Bit Rate 3 (HBR3) |
| AOC Technology | Active Optical Cable 4x Discrete Optical Channels, 10GHz, 850nm Uni-directional cable connection |
| Connectors | 1 x 20-Pin, DisplayPort, Latching, male, source 1 x 20-Pin, DisplayPort, Latching, male, display |

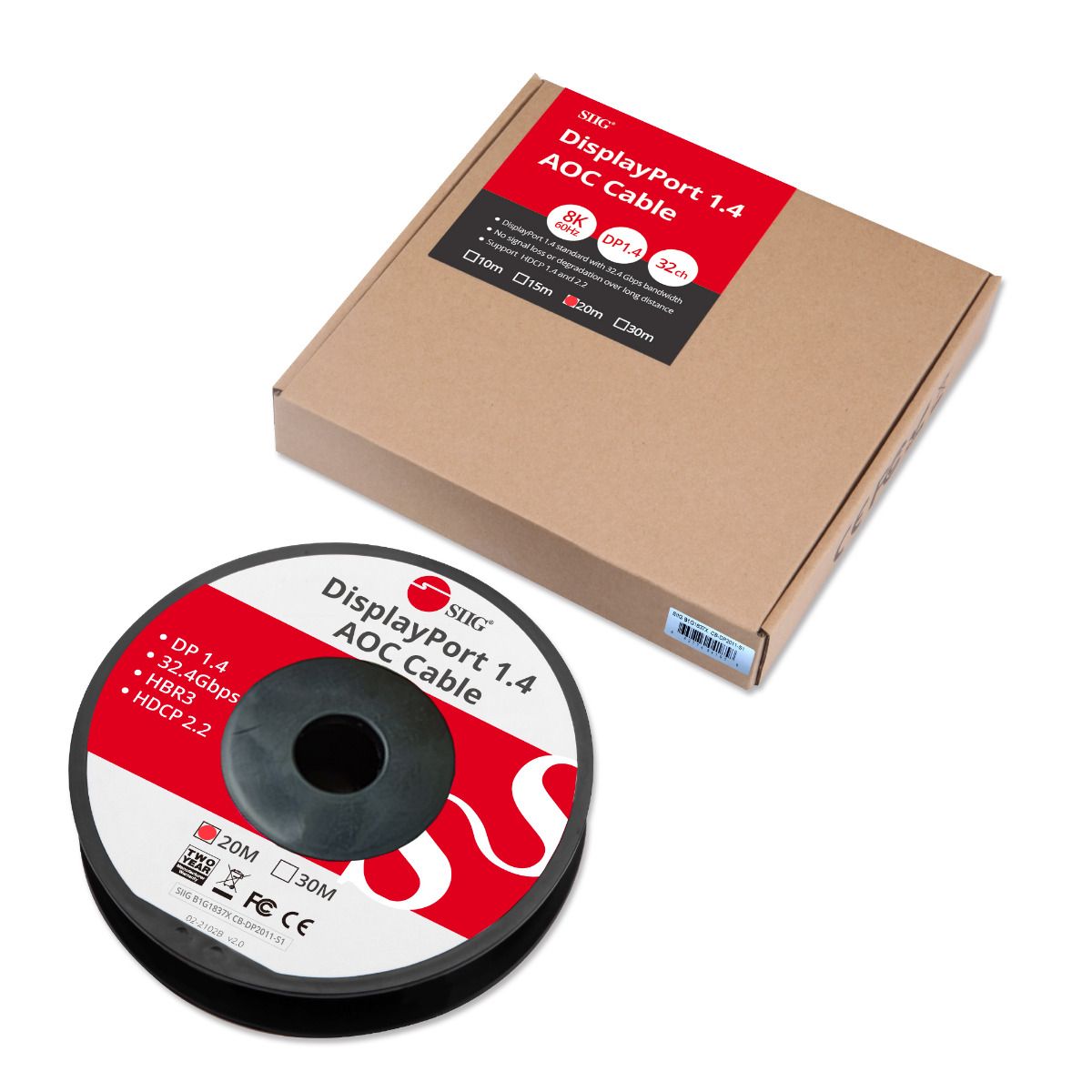

| Package Contents | 1x DisplayPort 1.4 AOC Cable - 20m |
| Environmental Conditions | |
| Operating Temperature | 32° to 122° F |
| Storage Temperature | -4° to 158° F |
| Relative Humidity | < 5% to 85% (non-condensing) |
| Certifications/Standards | FCC, CE, RoHS |
| UPC Code | 662774-041858 |
| Warranty | 2 years limited |
| Country of Origin | China |
| Product | |
| Cable Length | 66ft (20m) |
| Weight | 1.71 lbs (0.78 kg) |
| Color | Matte black |
| Hood Material | Zinc alloy |
| Connector Plating | Gold-plated |
| Unit Package | |
| Dimensions (L) x (H) x (W) | 9.25″ x 2.87″ x 8.82″ 23.50 cm x 7.29 cm x 22.40 cm |
| Weight | 2.38 lbs (1.08 kg) |
| Master carton | |
| Dimensions (L) x (H) x (W) | 18.50″ x 10.04″ x 15.16″ 46.99 cm x 25.50 cm x 38.51 cm |
| Weight | 22.92 lbs (10.40 kg) |
| Quality | 10 pcs/ctn |
