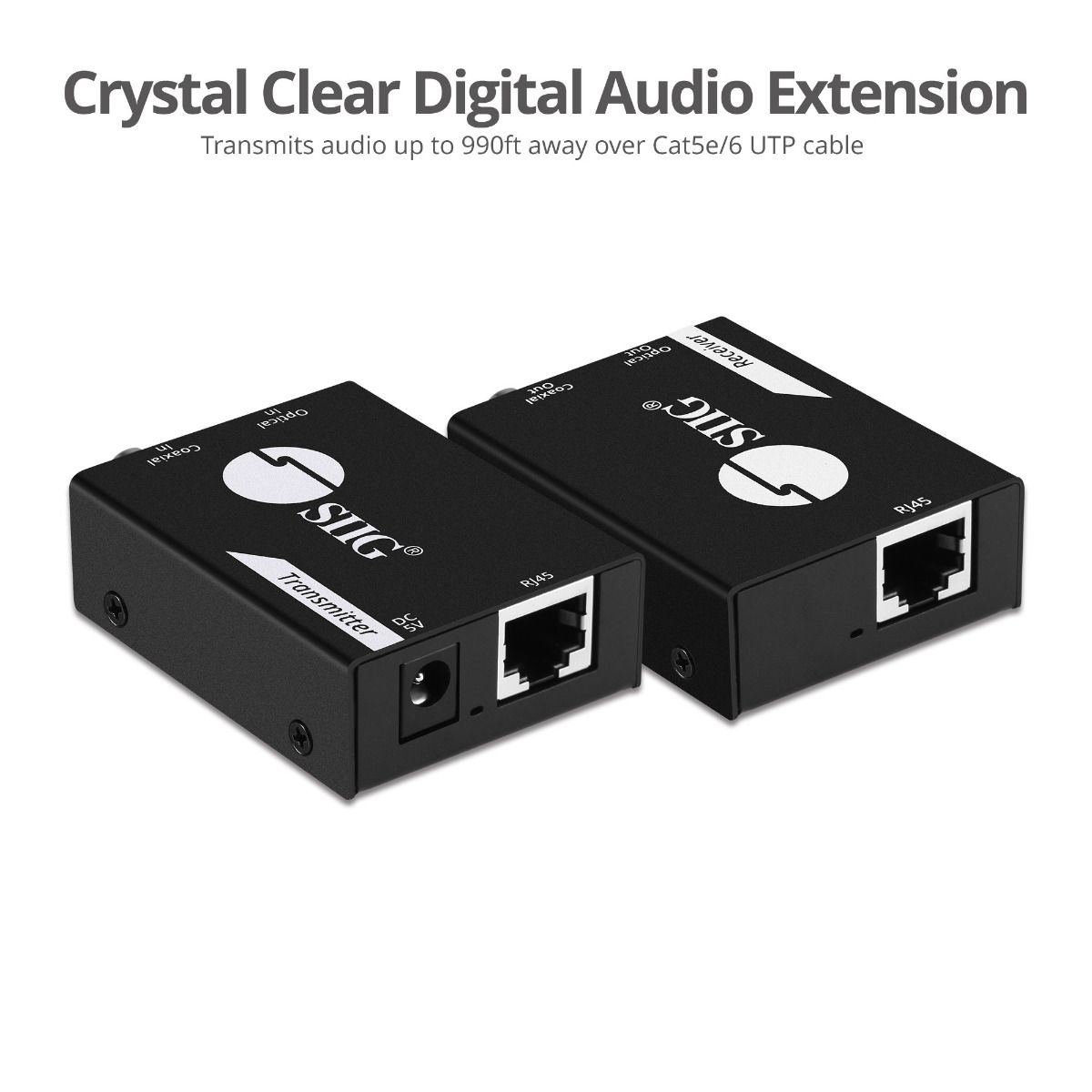

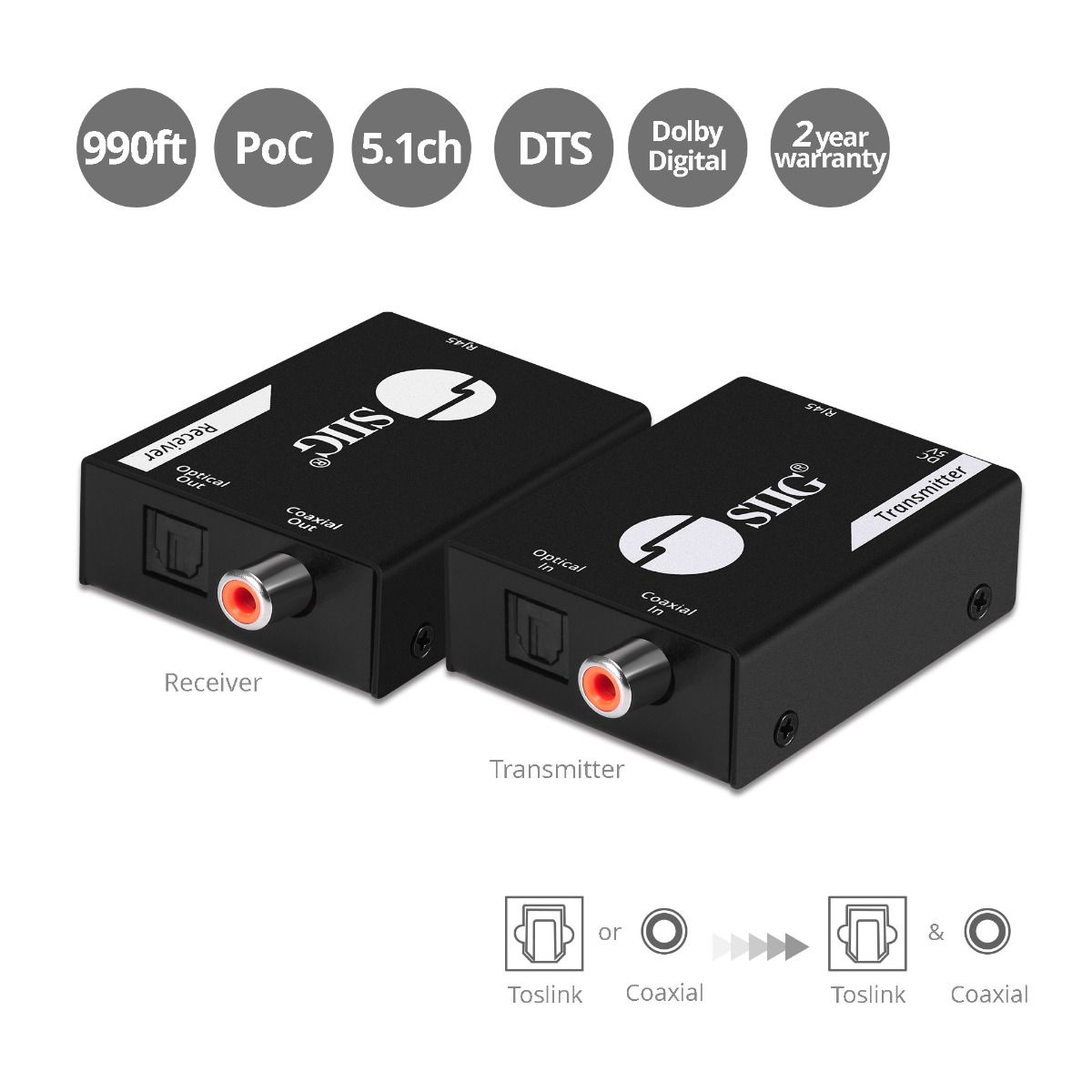

Digital Audio Extender Over Cat5e/6 Cable with PoC - Audio Signals up to 990ft
Digital Audio Extender Over Cat5e/6 Cable with PoC - Audio Signals up to 990ft is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Features
Long-Range Audio Extension
Long-Range Audio Extension
Dual Output Audio Support
Dual Output Audio Support
5.1 Surround Sound Ready
5.1 Surround Sound Ready
Power over Cable (PoC)
Power over Cable (PoC)
Flexible & Professional Use
Flexible & Professional Use
-
45 Days Free Return
-
2 Years Warranty
-
Lifetime Technical Support
| Audio | |
| Outputs | Coaxial & Toslink simultaneously |
| Audio Format | Dolby Digital, DTS 5.1, DTS-HD, 2ch PCM |
| Data Transfer Rate | Up to 12.8 Mbps |
| S/PDIF (Digital Coaxial) | Up to 96 KHz |
| Transmission Distance | Up to 990ft (300 meters) via Cat5e/6 cable |
| Power | |
| Power Consumption | 1 Watt (max) |
| Power Transmission | Power over Cable (PoC) |
| Power Adapter | |
| Input | 100-240V, 50 / 60Hz |
| Output | DC 5V / 1A |
| UL Listed | E305498 / Level: VI |
| Interface | |

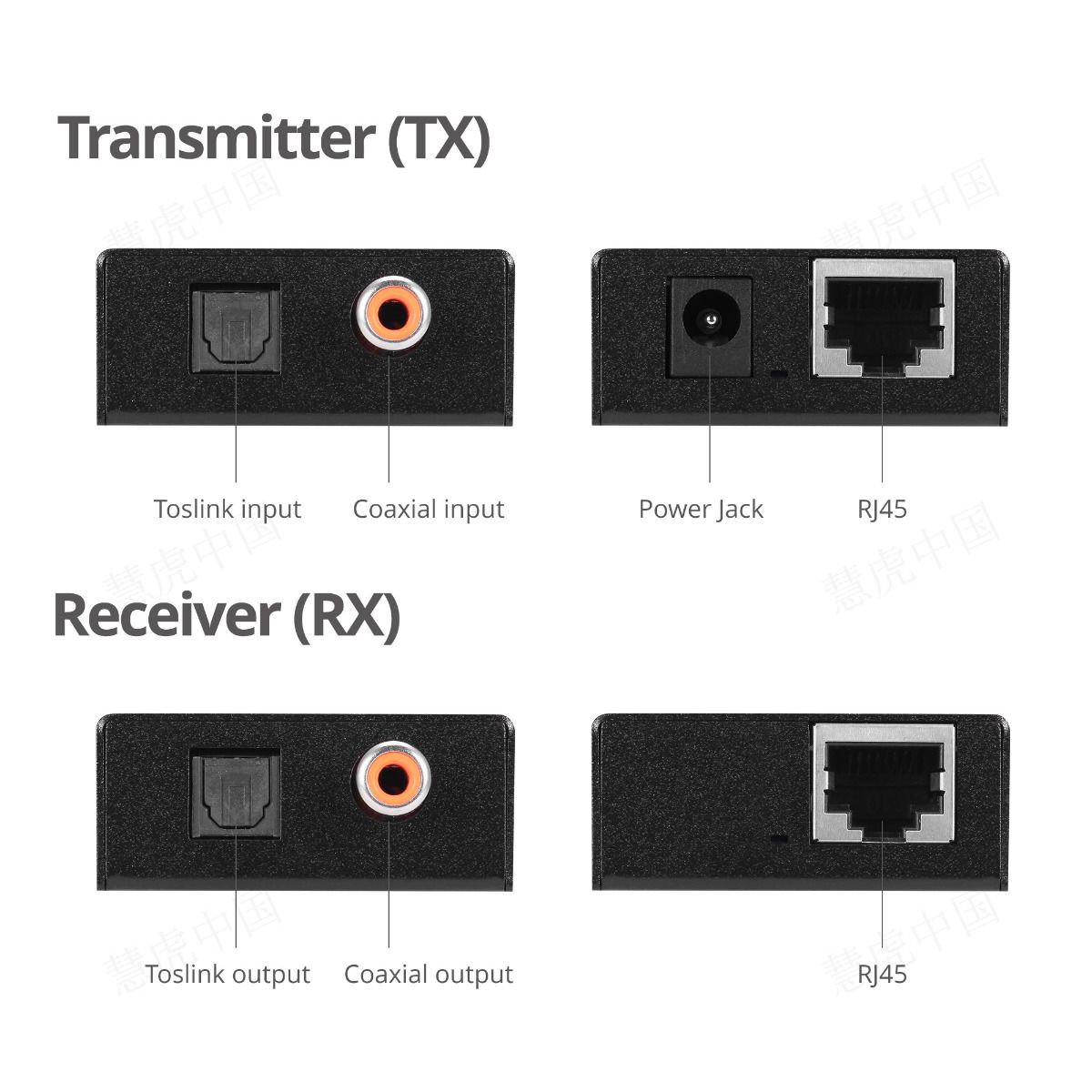

| Transmitting Unit (TX) | 1x Coaxial, Digital Audio, female, input 1x TOSLINK, Digital Audio, input 1x 8-Pin RJ-45, signal output 1x Power jack |
| Receiving Unit (RX) | 1x Coaxial, Digital Audio, output 1x TOSLINK, Digital Audio, output 1x 8-Pin RJ-45, signal input |
| Certifications/Standards | FCC, CE, RoHS |
| UPC Code | 662774-043531 |
| Warranty | 2 years |
| Country of Origin | China |
| Product | |
| Transmitter Unit (TX) | |

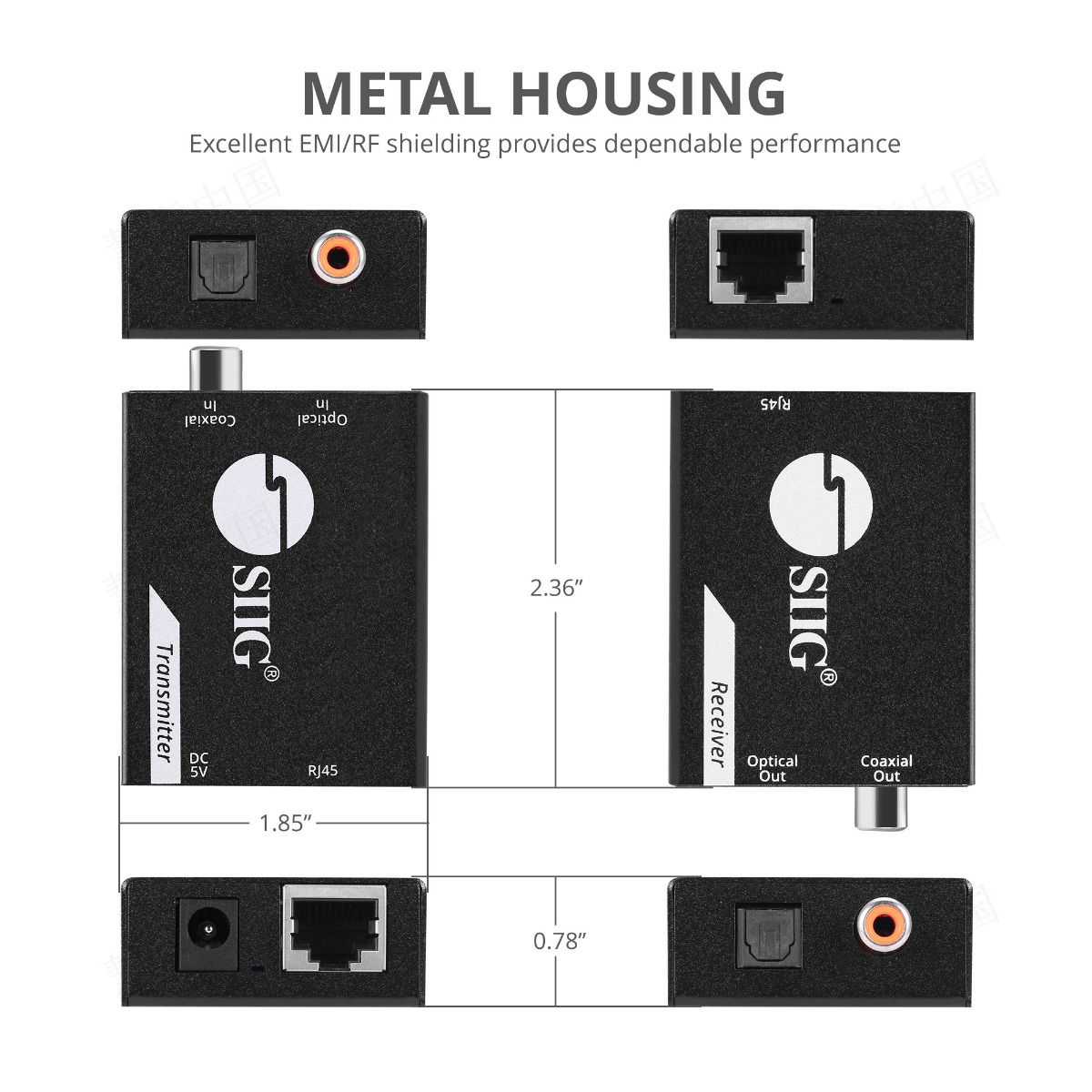

| Dimensions (L) x (H) x (W) | 2.38" x 1.83" x 0.79" 6.05 cm x 4.65 cm x 2.01 cm |
| Weight | 0.33 lb (0.15 kg) |
| Receiver Unit (RX) | |
| Dimensions (L) x (H) x (W) | 2.38" x 1.83" x 0.79" 6.05 cm x 4.65 cm x 2.01 cm |
| Weight | 0.33 lb (0.15 kg) |
| Color | Black |
| Housing Material | Metal |
| Unit package | |
| Dimensions (L) x (H) x (W) | 8.07" x 5.91" x 2.17" 20.50 cm x 15.01 cm x 5.51 cm |
| Weight | 0.98 lb (0.44 kg) |
| Master carton | |
| Dimensions (L) x (H) x (W) | 16.93″ x 12.60″ x12.20″ 43.00 cm x 32.00 cm x 30.99 cm |
| Weight | 19.56 lbs (8.87 kg) |
| Quantity | 20 pcs / ctn |
| Environmental Conditions | |
| Operating Temperature | 32° to 104° F |
| Storage Temperature | - 4° to 158° F |
| Relative Humidity | 5% to 90% RH (non-condensing) |

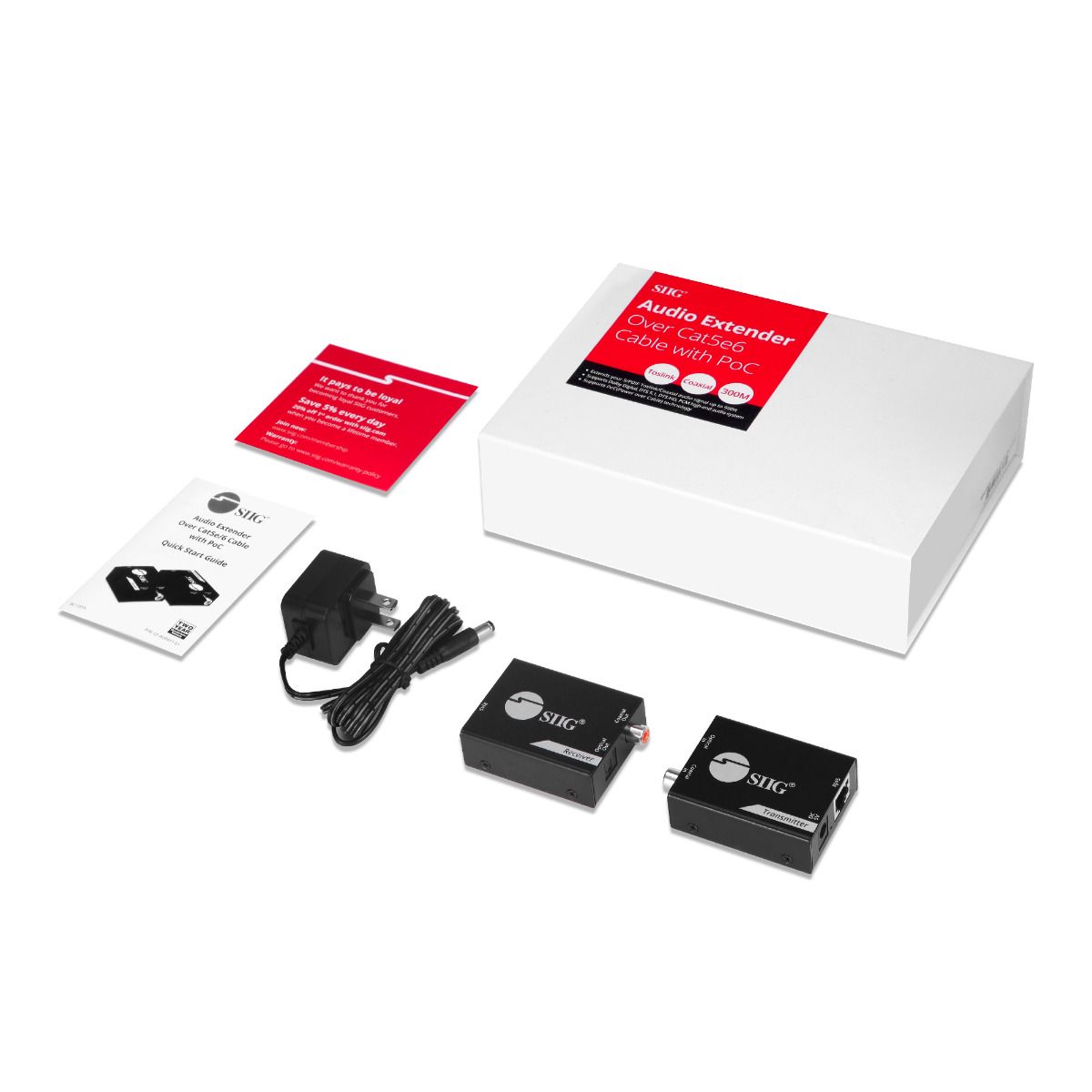

| Package Contents | 1x Audio Extender Over Cat5e/6 Cable with PoC 1x Power adapter 1x Quick start guide |
