CE-MT0Q11-S1

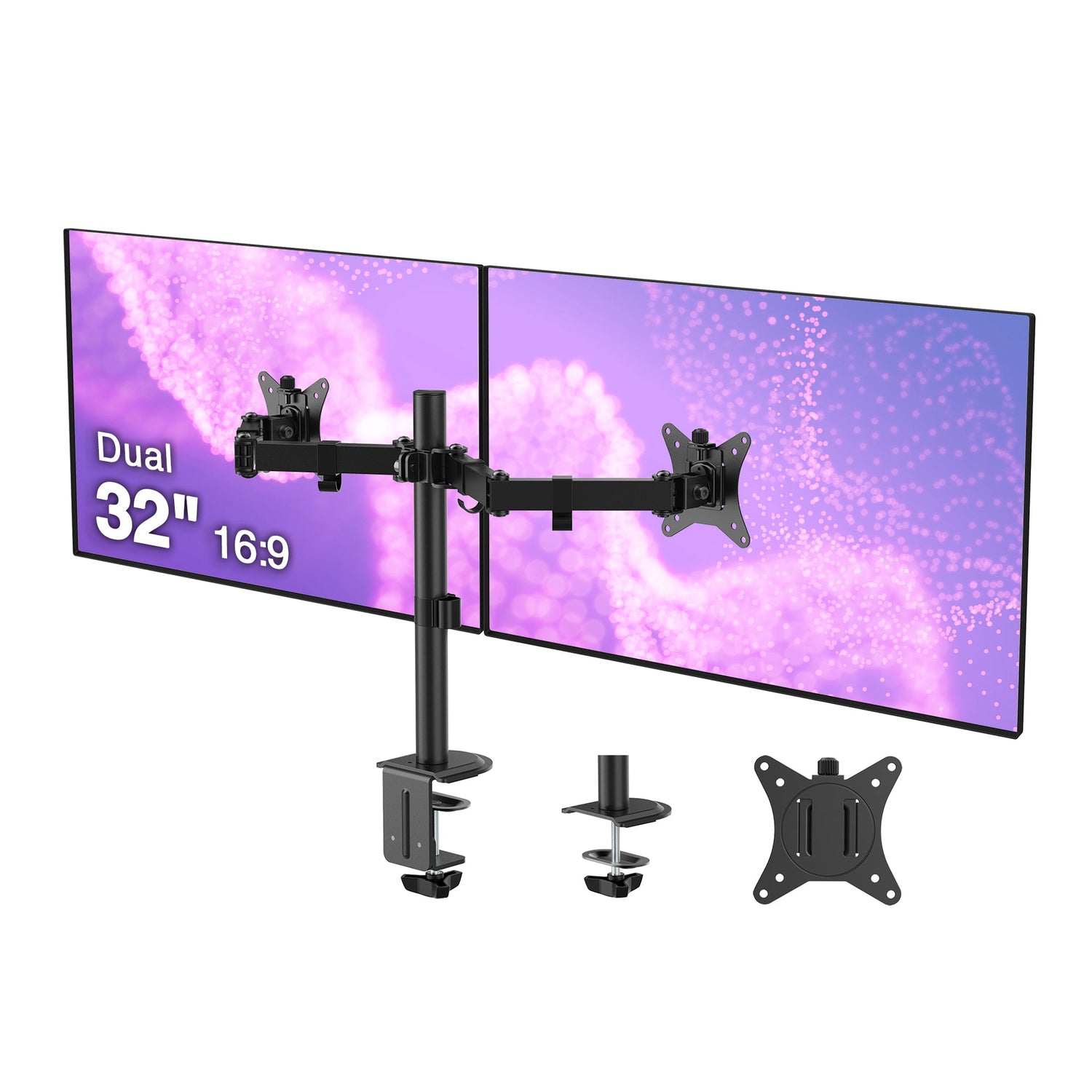

Articulating Dual Monitor Desk Mount - 17" to 32" - Max Load 19.8 lbs(each) - VESA Plate 75x75mm/100x100mm
Up to Two 32" Monitor
Max Load 19.8 lbs (each)
Detachable VESA Plate
Full-Motion Adjustment
C-clamp/Grommet
Regular price
$99.99
Unit price
/
Unavailable
Shipping calculated at checkout.
Articulating Dual Monitor Desk Mount - 17" to 32" - Max Load 19.8 lbs(each) - VESA Plate 75x75mm/100x100mm is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Features
Dual 32" Monitor Compatibility
Dual 32" Monitor Compatibility
Flexible Full-Motion Adjustments
Flexible Full-Motion Adjustments
Space-Saving Desk Mount
Space-Saving Desk Mount
Tool-Free Vesa Mounting
Tool-Free Vesa Mounting
Height Sync for Both Screens
Height Sync for Both Screens
Quick & Easy Setup For A Collaborative Workspace

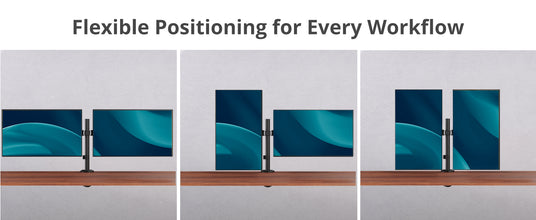

Rotate monitors freely to view content as originally intended and increase productivity.
-

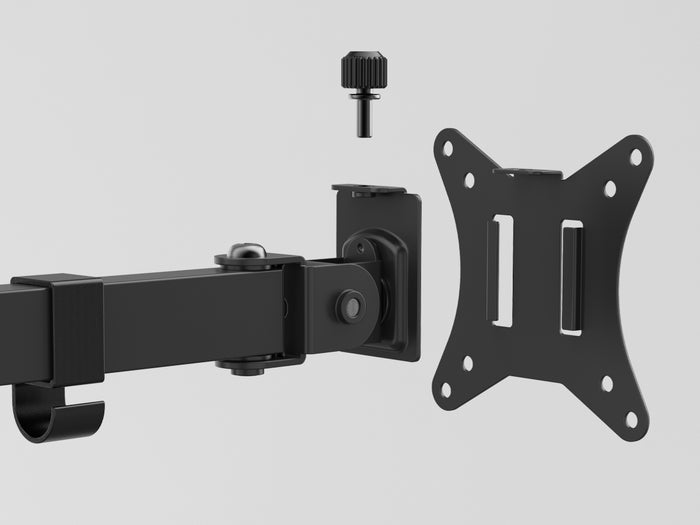

Detachable VESA Plate
Installing the VESA plate onto your monitor allows easy hooking up to the monitor mount. Includes fine height adjustment to level identical monitors. -

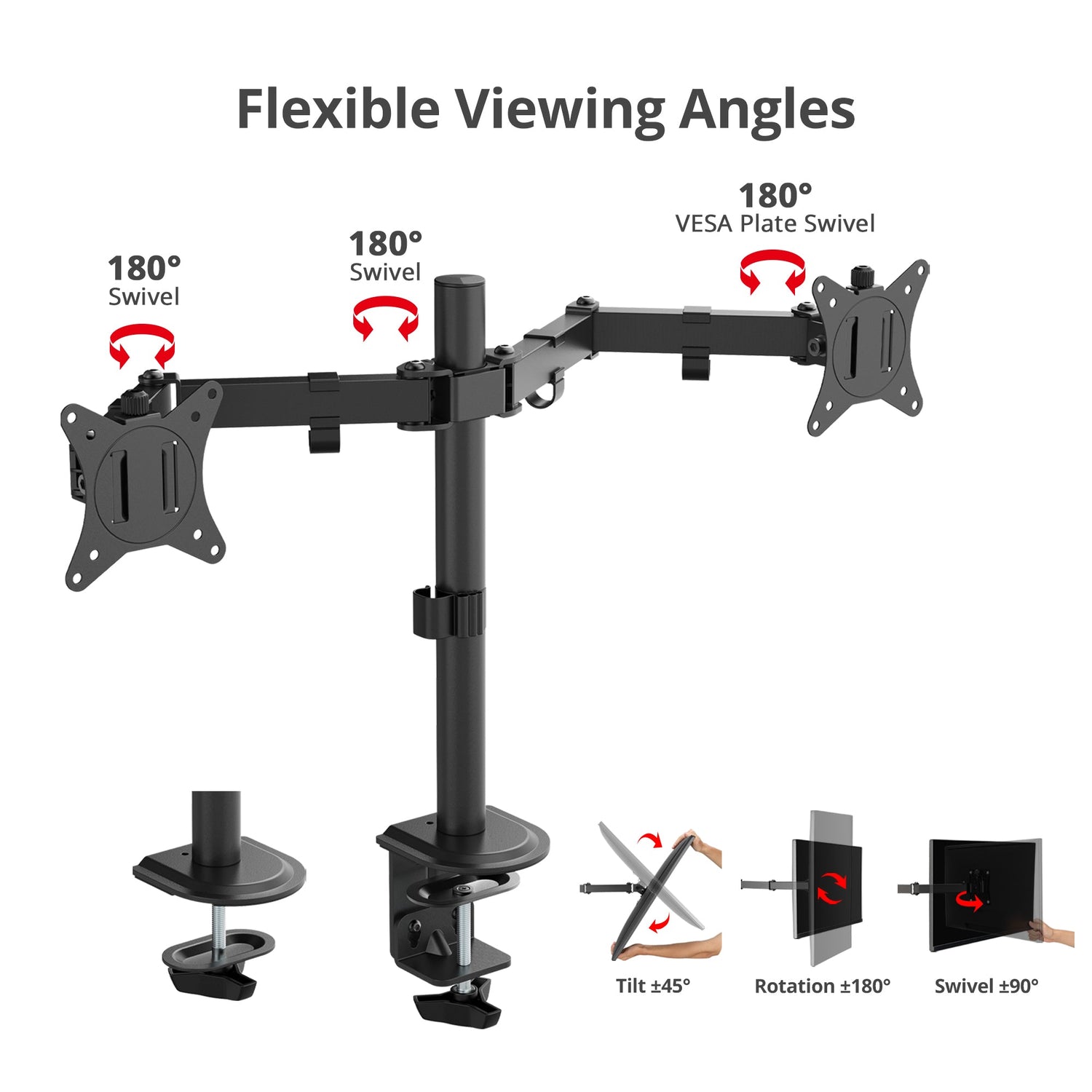

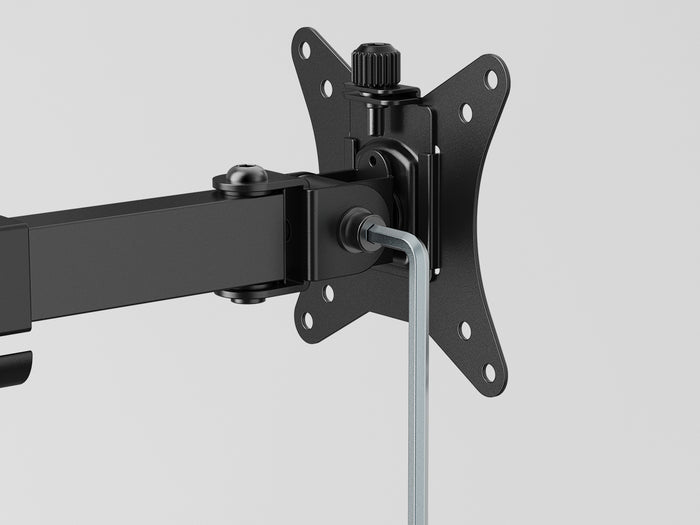

Adjustable Tilt
Find the best screen color reproduction and reduce glare with monitor tilt. -

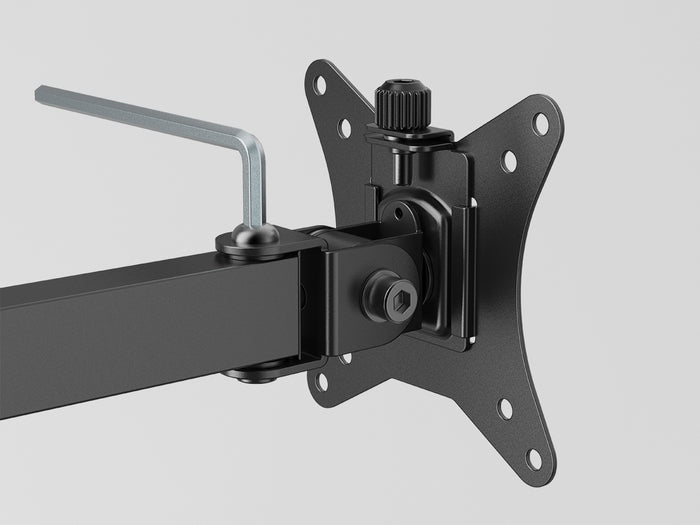

Adjustable Swivel
Maximize desk space by arranging the horizontal placement of both monitors. -

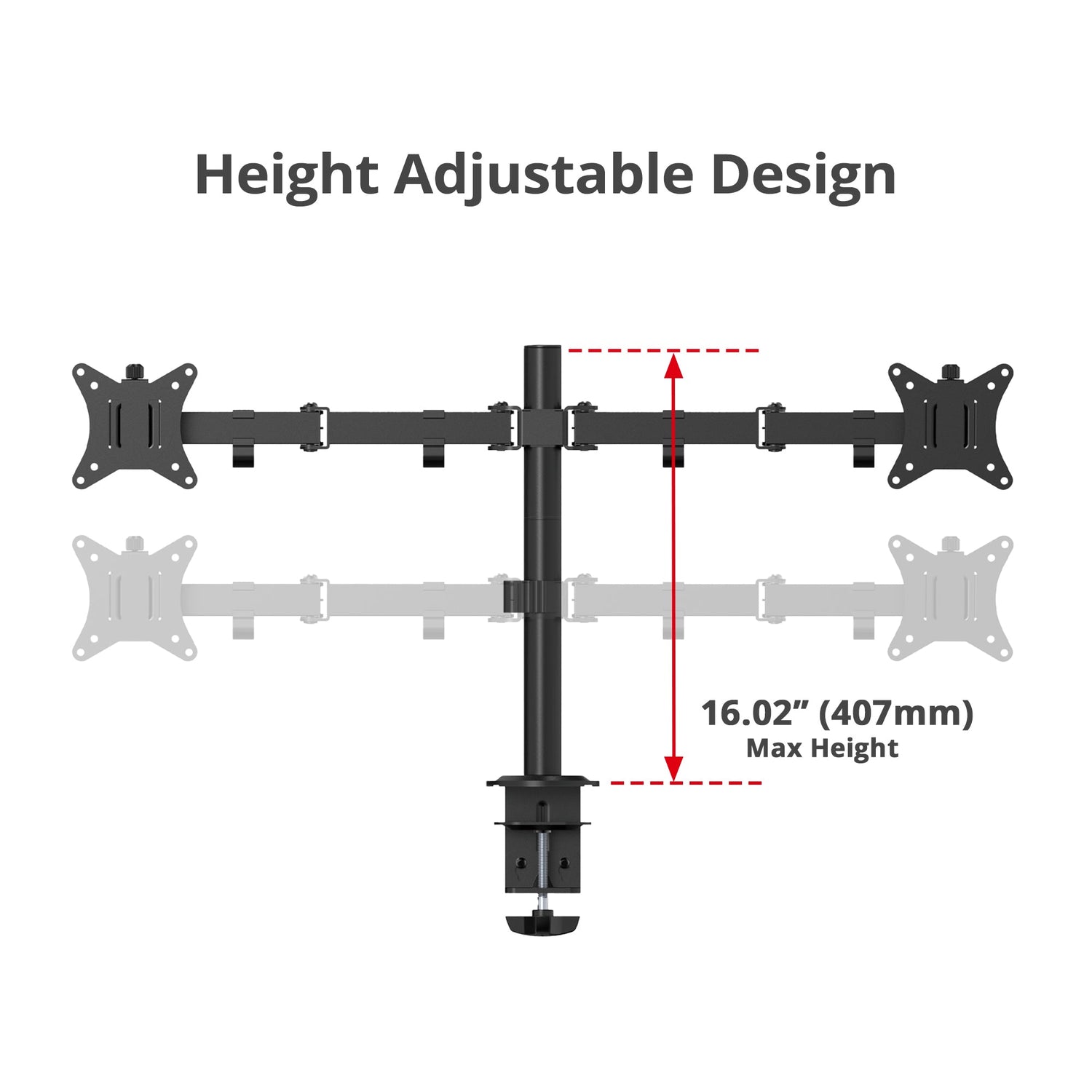

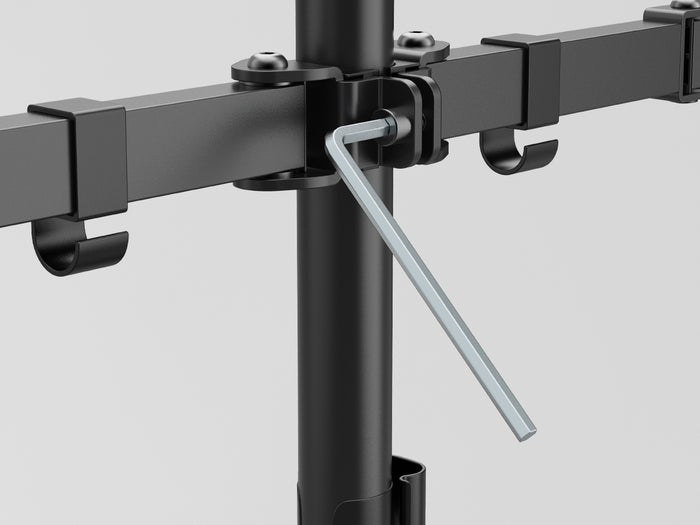

Leveled Adjustable Height
A single adjustment allows both monitor height to be adjusted simultaneously.
Save Desk Space With Compact Base Footprint
-

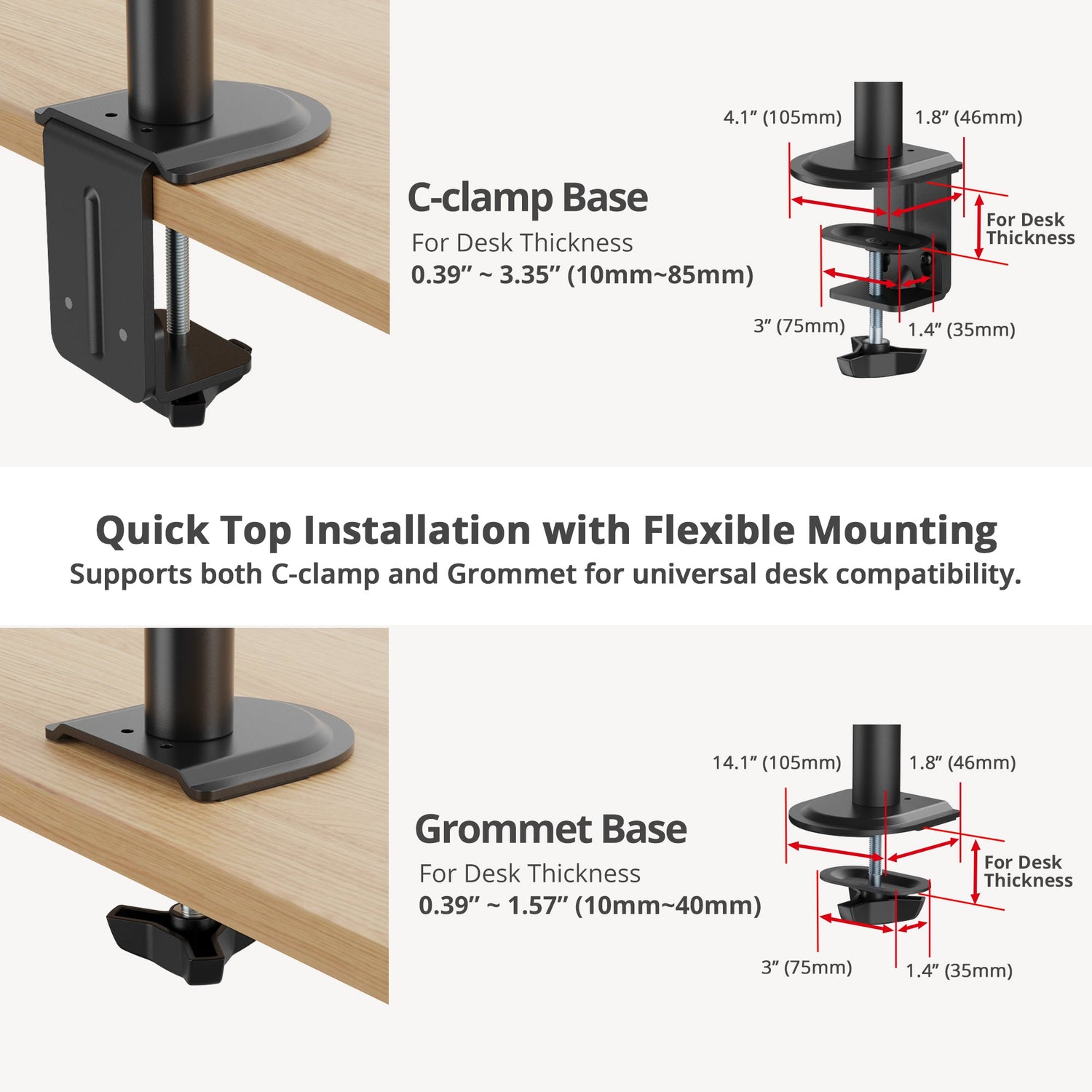

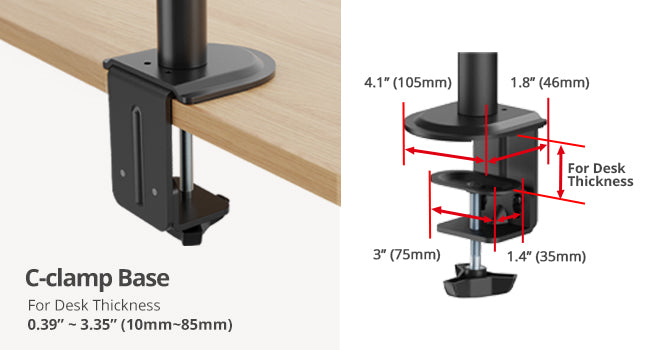

C-clamp Base Supported Thickness
C-clamp base fits most desktops from 0.39” to 3.35” (10mm to 85mm) thick with a needed 1.4" (35mm) depth. -

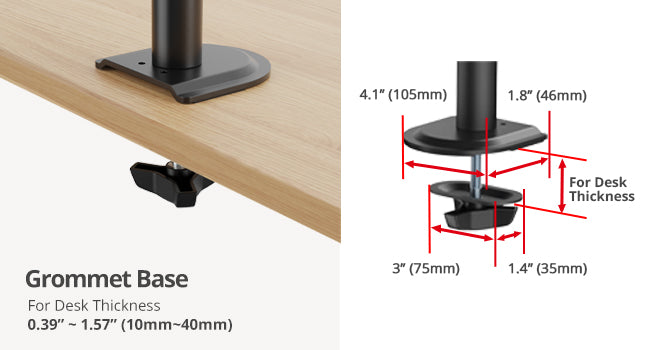

Grommet Base Supported Thickness
Grommet base fits most desktops up to 1.57" (40mm) thick with Grommet hole diameter between 0.39” to 2.36” (10mm to 60mm).

| Monitor Support | Up to 19.8 lbs (9 kgs) |
| Screen Size Compatibility | 17" to 32" |
| VESA Compatibility | 75x75mm, 100x100mm patterns |
| VESA Tilt | +/-45° |
| VESA Swivel | 180° |
| VESA Rotation | 360° |
| Height Adjustment | Up to 16.02" (407 mm) |

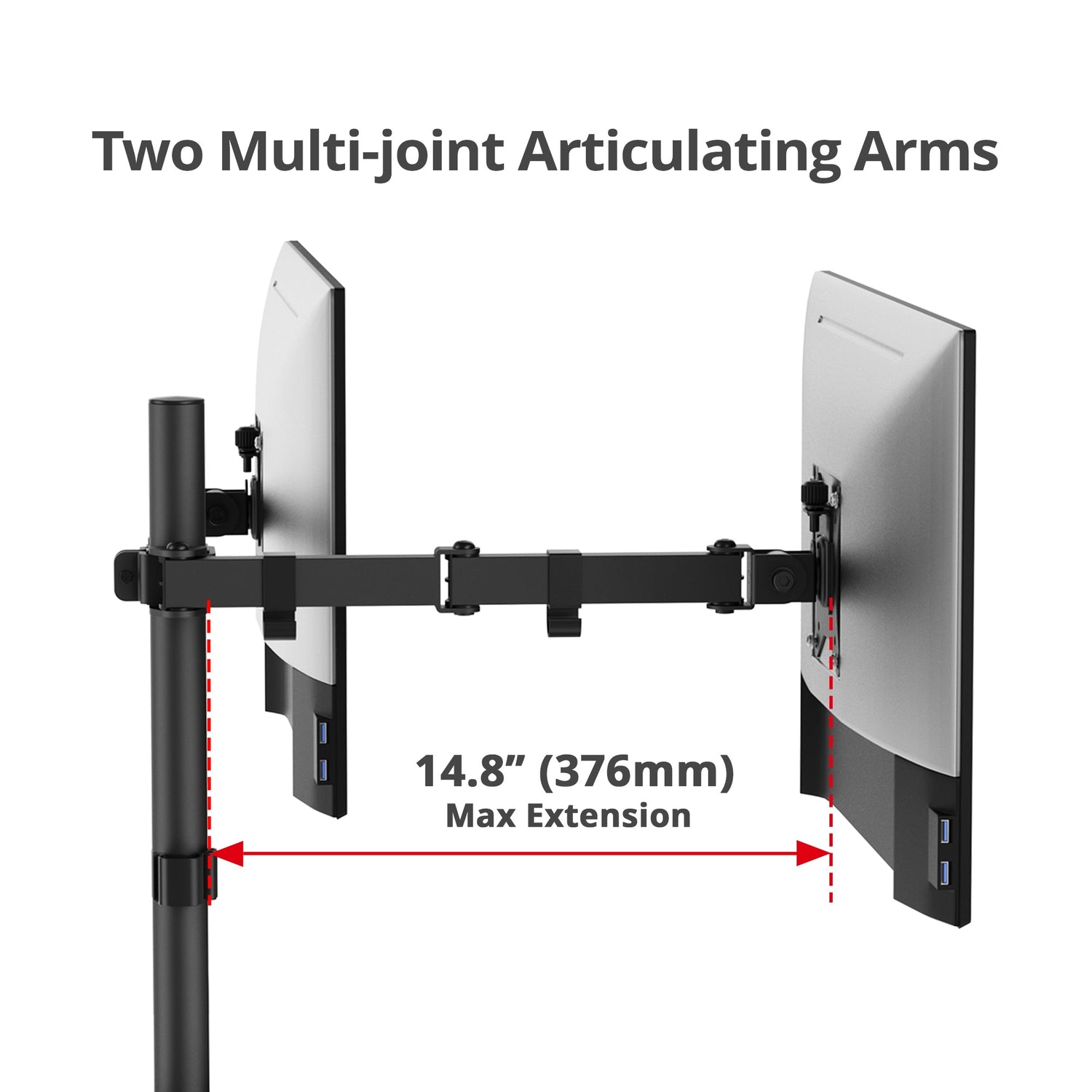

| Arm Extension | Up to 14.8" (376 mm) |
| C-Clamp Mounting | Desktop thickness: 0.39" to 3.35" (10mm to 85mm) Desktop depth: 1.4" (35mm) |
| Grommet Mounting | Desktop thickness: Up to 1.57" (40mm) Hole diameter: 0.39" to 2.36" (10mm to 60mm) |
| Certifications | RoHS |
| UPC | 662774-009773 |
| Warranty | 2 years limited |
| Country of Origin | China |
| Product | |
| Dimensions (L) x (H) x (W) | 34.21" x 22.09" x 4.41" (86.89 cm x 56.11 cm x 11.20 cm |
| Weight | 7.61 lbs (3.45 kg) |
| Color | Black |
| Material | Metal |
| Unit Package | |
| Dimensions (L) x (H) x (W) | 16.77 x 4.21 x 7.48 in 42.60 cmx 10.69 cm x 19.00 cm |
| Weight | 8.60 lbs (3.90 kg) |
| Master Carton | |
| Dimensions (L) x (H) x (W) | 17.32 x 9.17 x 15.75 in 44.00 cm x 23.29 cm x 40.00 cm |
| Weight | 35.94 lbs (16.30 kg) |
| Quantity | 4pcs/ctn |

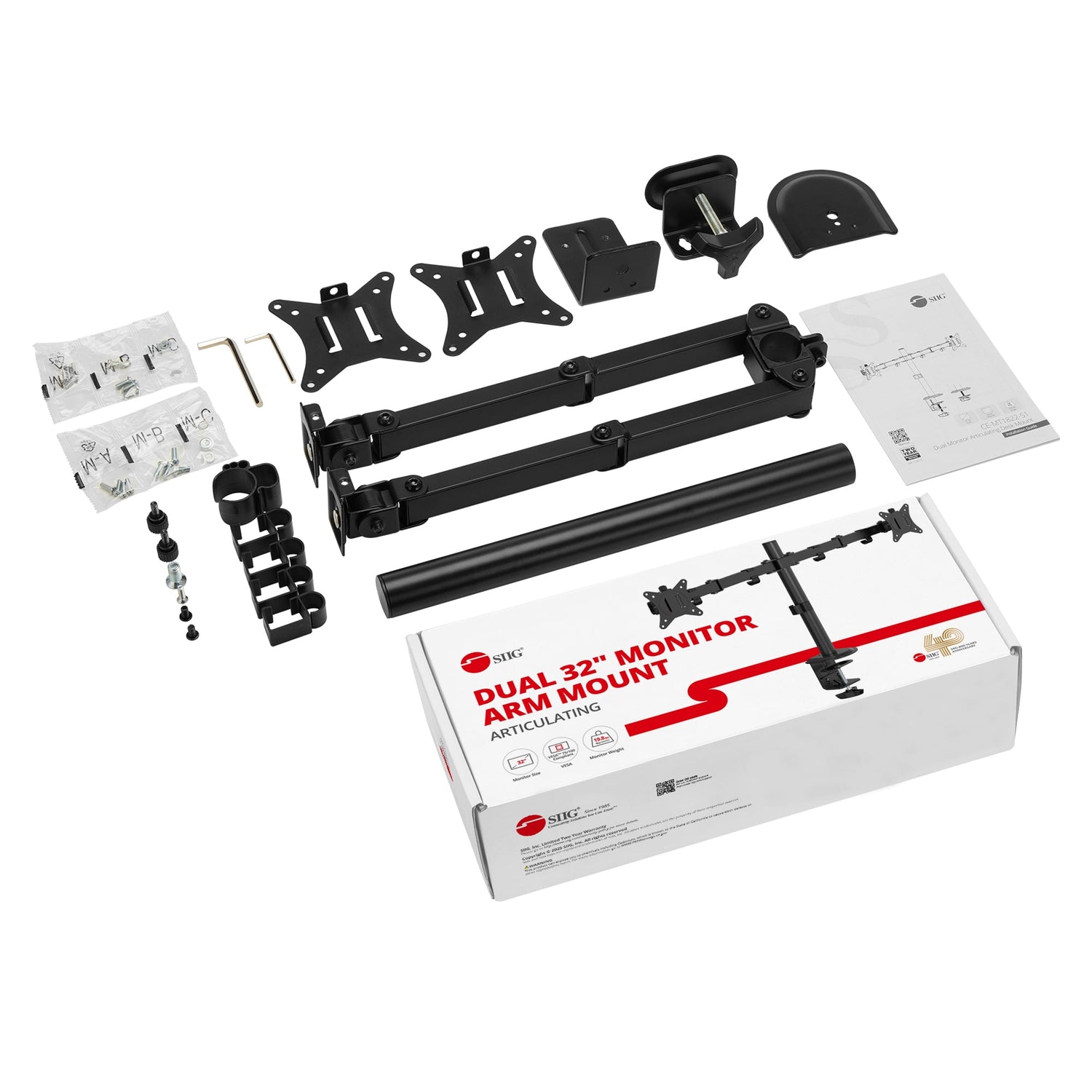

| Package Contents | 1x Articulating Dual Monitor Desk Mount - 17" to 32" 1x Installation kit 1x Installation guide |
How to Tighten Monitor Desk Mount Tilt Mechanism
How to Tighten Monitor Desk Mount Tilt Mechanism
Applies to the Following Products:
- Articulating Dual Monitor Desk Mount - 13" to 27" (CE-MT0Q11-S1)
- Articulating Monitor Desk Mount - 13" to 27" (CE-MT0P11-S1)
- Articulating Quad Monitor Desk Mount - 13" to 27" (CE-MT0S12-S1)
- Articulating Triple Monitor Desk Mount - 13" to 27" (CE-MT0R12-S1)
- Full-Motion Monitor Desk Mount - 13" to 27" (CE-MT0N11-S1)
- Monitor Desk Mount - 13" to 27" (CE-MT0M11-S1)
Description:
My monitor will not stay in upright position.
Solution:
The bolt that adjusts the tension of the tilt mechanism is loose. The bolt is located directly behind the monitor plate (under the plastic cap). Remove the plastic cap & tighten the bolt with the included allen wrench. Please see the attachment with the correct bolt circled for your reference. It may also help to completely remove the bolt, wipe any excess oil off the bolt & other parts then reinstall the bolt.
- Articulating Dual Monitor Desk Mount - 13" to 27" (CE-MT0Q11-S1)
- Articulating Monitor Desk Mount - 13" to 27" (CE-MT0P11-S1)
- Articulating Quad Monitor Desk Mount - 13" to 27" (CE-MT0S12-S1)
- Articulating Triple Monitor Desk Mount - 13" to 27" (CE-MT0R12-S1)
- Full-Motion Monitor Desk Mount - 13" to 27" (CE-MT0N11-S1)
- Monitor Desk Mount - 13" to 27" (CE-MT0M11-S1)
Description:
My monitor will not stay in upright position.
Solution:
The bolt that adjusts the tension of the tilt mechanism is loose. The bolt is located directly behind the monitor plate (under the plastic cap). Remove the plastic cap & tighten the bolt with the included allen wrench. Please see the attachment with the correct bolt circled for your reference. It may also help to completely remove the bolt, wipe any excess oil off the bolt & other parts then reinstall the bolt.
