Extender |
SKU:
CE-H24311-S1

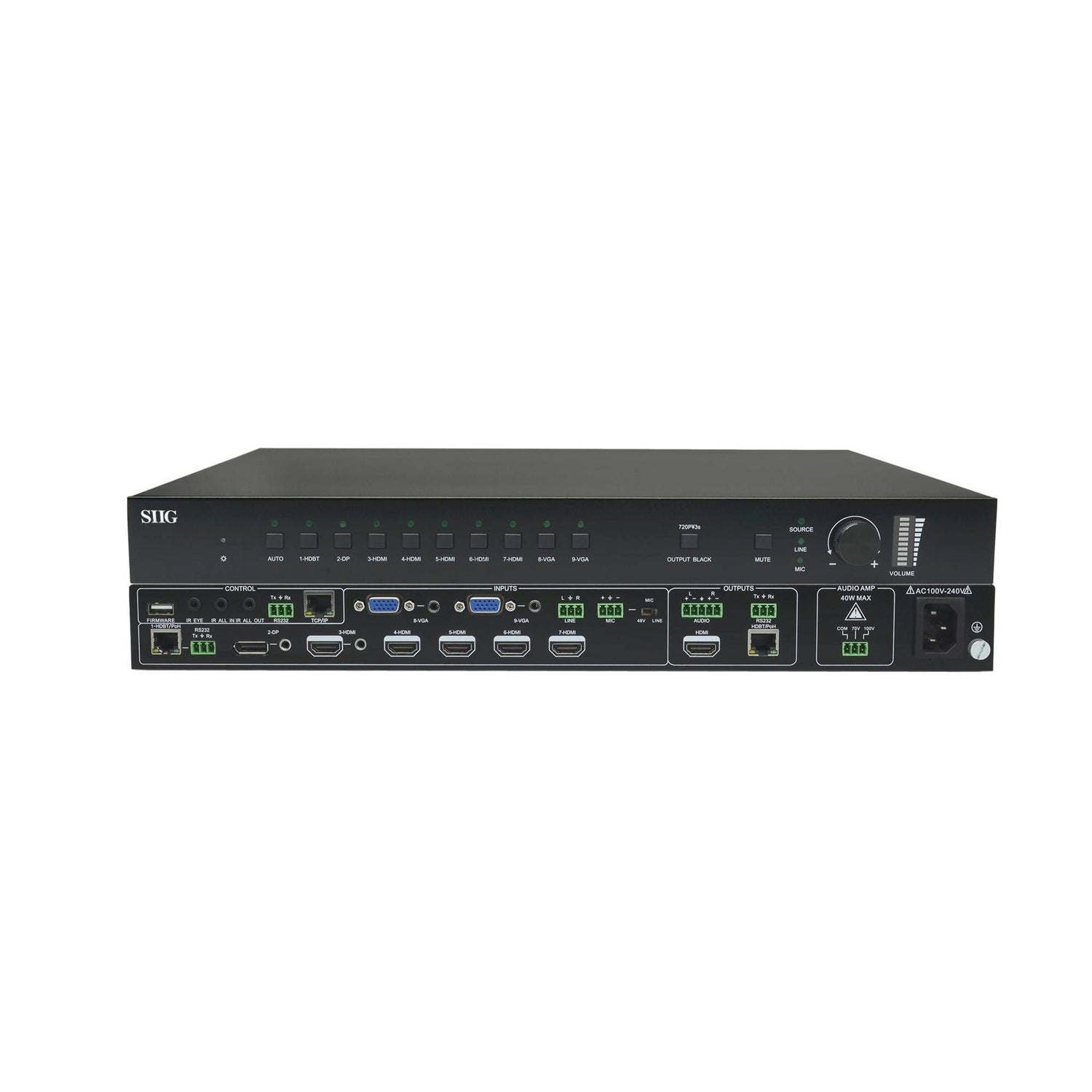

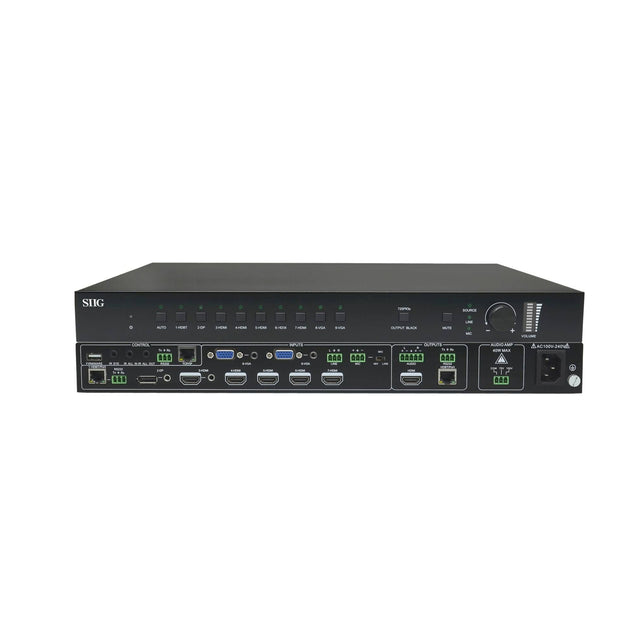

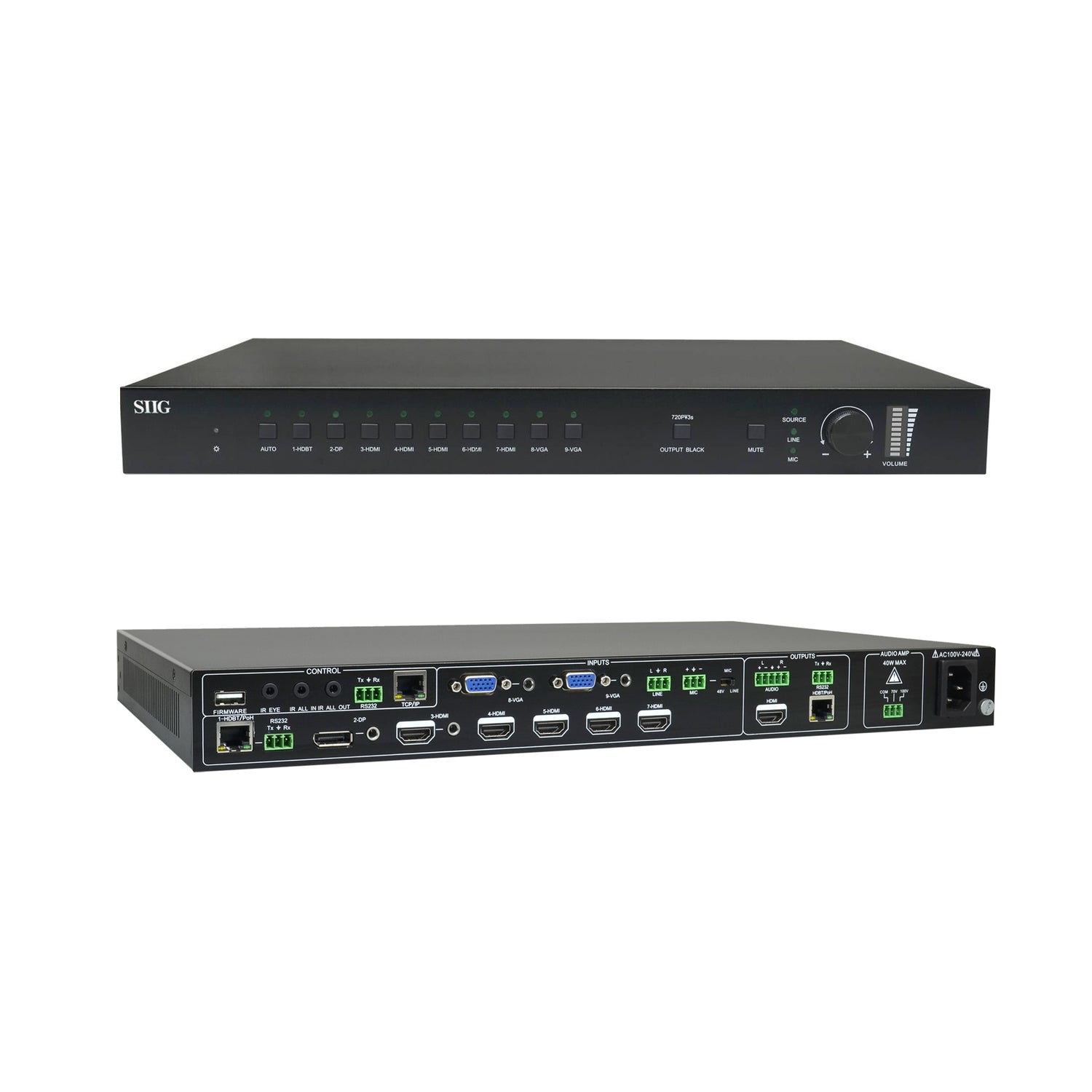

9x1 HDBaseT 4K Scaler Switcher
9x1 Video Switch
5x HDMI / 2x VGA / DP / HDBaseT In
4K60Hz
RS-232
IR Extension
Regular price
$2,499.99
Unit price
/
Unavailable
Shipping calculated at checkout.
9x1 HDBaseT 4K Scaler Switcher is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Features
9x1 Scaler/Switcher
9x1 Scaler/Switcher
Output Resolutions
Output Resolutions
HDBaseT Technology
HDBaseT Technology
Control Methods
Control Methods
IR & RS232 Extension
IR & RS232 Extension
-
45 Days Free Return
-
2 Years Warranty
-
Lifetime Technical Support
No content found
| Transport Protocol | HDBaseT |
| Video | |
| DisplayPort | 1x input |
| HDMI | 5x input (1x HDMI with external audio), 1x output |
| VGA | 2x input |
| Standard | HDMI 1.4, HDCP 2.2 compliant |
| Resolutions | 1280x720 (default), 1920x1080, 1024x768, 1360x768, 3840x2160 30Hz, 3840x2160 60Hz Video source auto-switching function |
| Transmission Distances | Input: Up to 70m (230ft) at 1080p and 40m (131ft) at 4K on a single CAT5e/6/7 cable Output: Up to 100m (328ft) at 1080p and 70m (230ft) at 4Kx2K on a single CAT5e/6/7 cable |
| Audio | Supports Line or Mic audio inputs, and MIC port supports balance/unbalance signal, suppress the external noise effectively |
| IR /RS-232 Signal | Bi-directional pass-through |
| Power Input | 100-240V AC |
| Interface | 4x 19-pin HDMI, Type A, female, input 1x 19-pin HDMI with 3.5mm jack external audio, input 1x 20-pin DP with 3.5mm jack external audio, input 1x 8P8C RJ-45, HDBaseT signal with 48V PoH, input 2x 15-pin VGA D-sub with 3.5mm jack external audio, input 1x 3-pin Line audio, input 1x 3-pin MIC audio, input 1x 19-pin HDMI Type-A, output 1x 8P8C RJ-45, HDBaseT signal with 48V PoH, output 1x 4-pin USB Type-A, Firmware update 1x 3.5mm IR EYE with IR receiver 1x 3.5mm IR with IR receiver, input 1x 3.5mm IR with IR emitter, output 1x 3-pin terminal block RS-232, control device 1x 8P8C RJ-45, TCP/IP control switcher via GUI 1x 5-pin terminal block audio, output 1x 3-pin terminal block RS-232, pass-through function 1x 3-pin terminal block Audio AMP, output 1x 3-pin power port |
| Certifications/Standards | FCC, CE, RoHS |
| UPC Code | 662774-042039 |
| Warranty | 3 years limited |
| Country of Origin | China |
| Product | |
| Dimensions (L) x (H) x (W) | 17.18″ x 1.74″ x 10.89″ 43.64 cm x 4.42 cm x 27.66 cm |
| Weight | 7.72 lbs (3.50 kg) |
| Color | Black |
| Housing | Metal |
| Unit Package | |
| Dimensions (L) x (H) x (W) | 20.67″ x 4.72″ x12.79″ 52.50 cm x 11.99 cm x 32.49 cm |
| Weight | 11.25 lbs (5.10 kg) |
| Master Carton | |
| Dimensions (L) x (H) x (W) | 14.18″ x 24.41″ x 22.44″ 36.02 cm x 62.00 cm x 57.00 cm |
| Weight | 47.62 lbs (21.60 kg) |
| Quantity | 4 pcs/ctn |

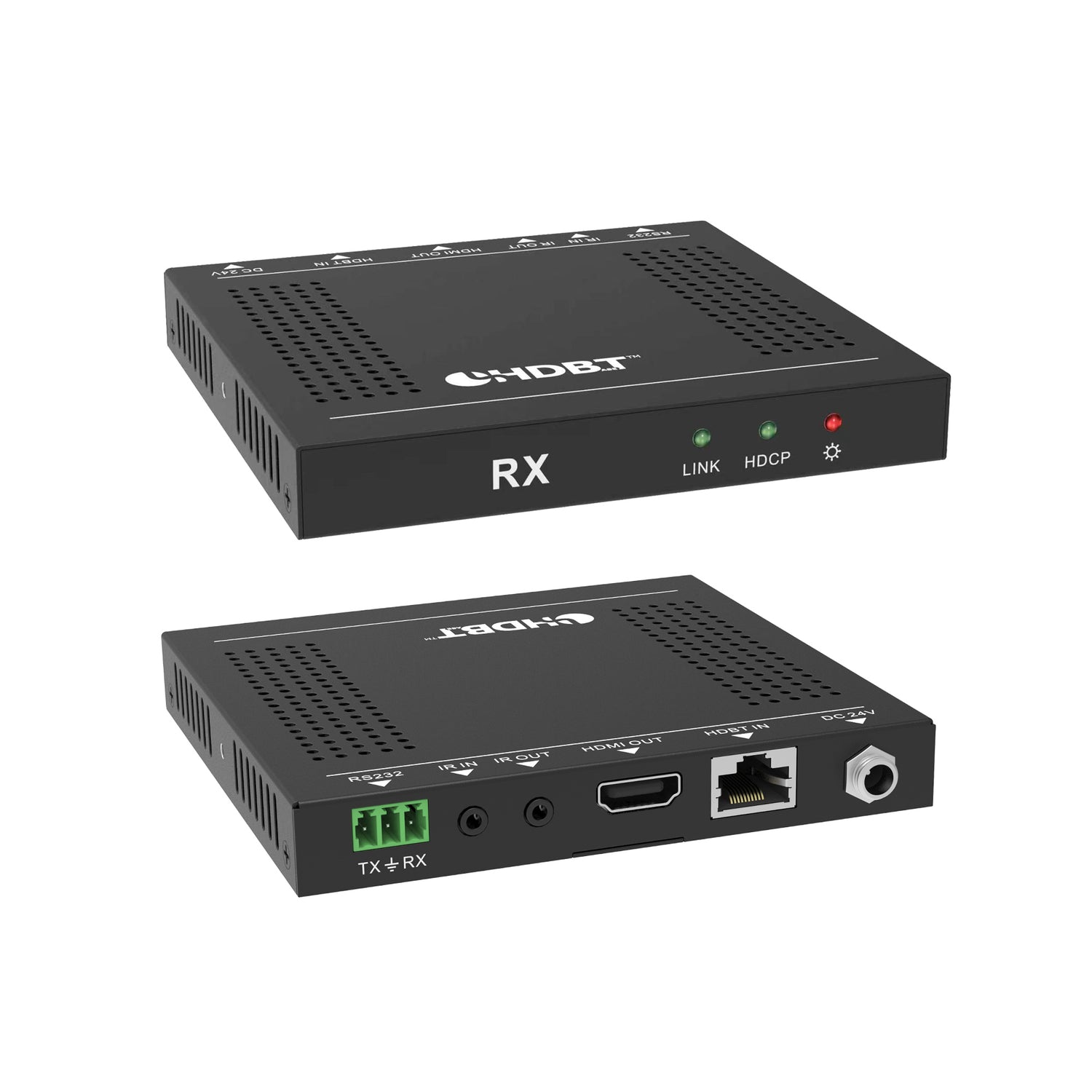

| Package Contents | 1x 9x1 HDBaseT 4K Scaler Switcher 1x HDBaseT Receiver 1x IR receiver cable 1x IR emitter cable 1x IR remote control 1x Power cord 4x Switcher plastic cushions 4x Receiver plastic cushions 2x Switcher mounting ears with 6x screws 2x Receiver mounting ears with 2x Screws 6x 3-Pin Phoenix connectors 1x 5-Pin Phoenix connector 2x RS-232 Cable (3-pin to DB9) 1x User manual |
| Environmental Conditions | |
| Operating Temperature | 14° to 131° F |
| Storage Temperature | -4° to 158° F |
| Relative Humidity | 20 to 90% RH (non-condensing) |
