Switch |
SKU:
CE-H24W11-S1

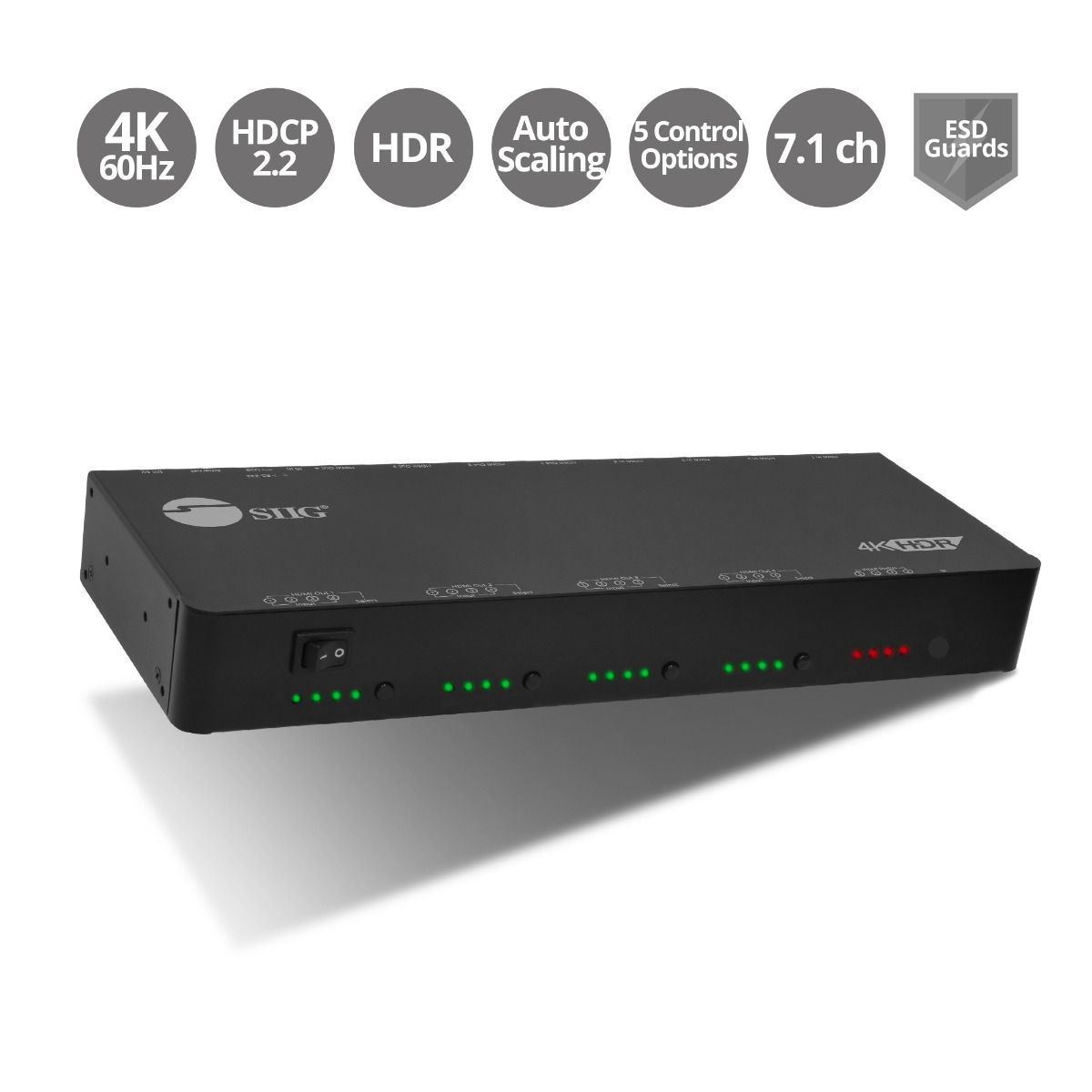

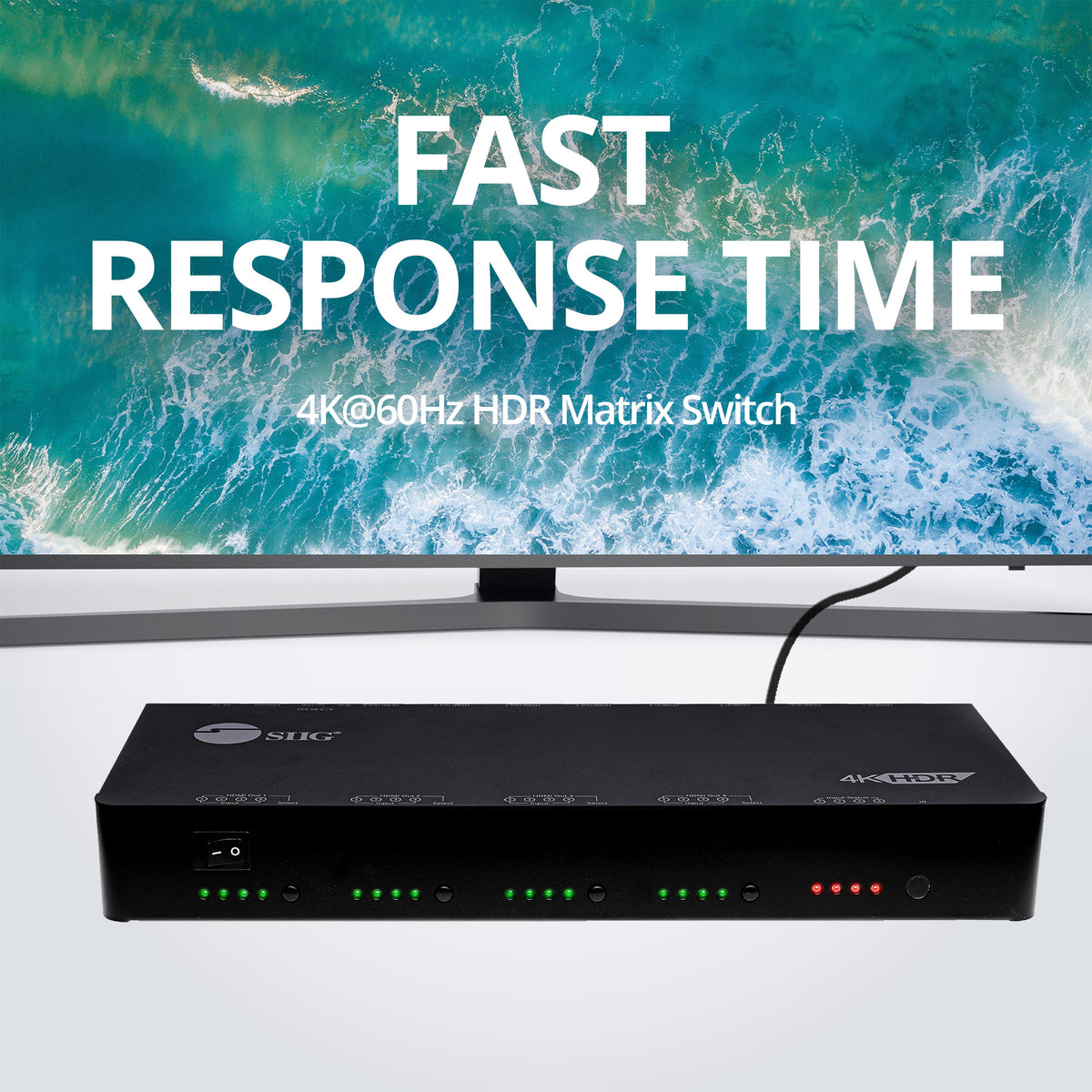

4x4 HDMI 4K HDR Matrix Switch with Cloud Control
4x4 Matrix Switch
Auto Scaling
4K60Hz

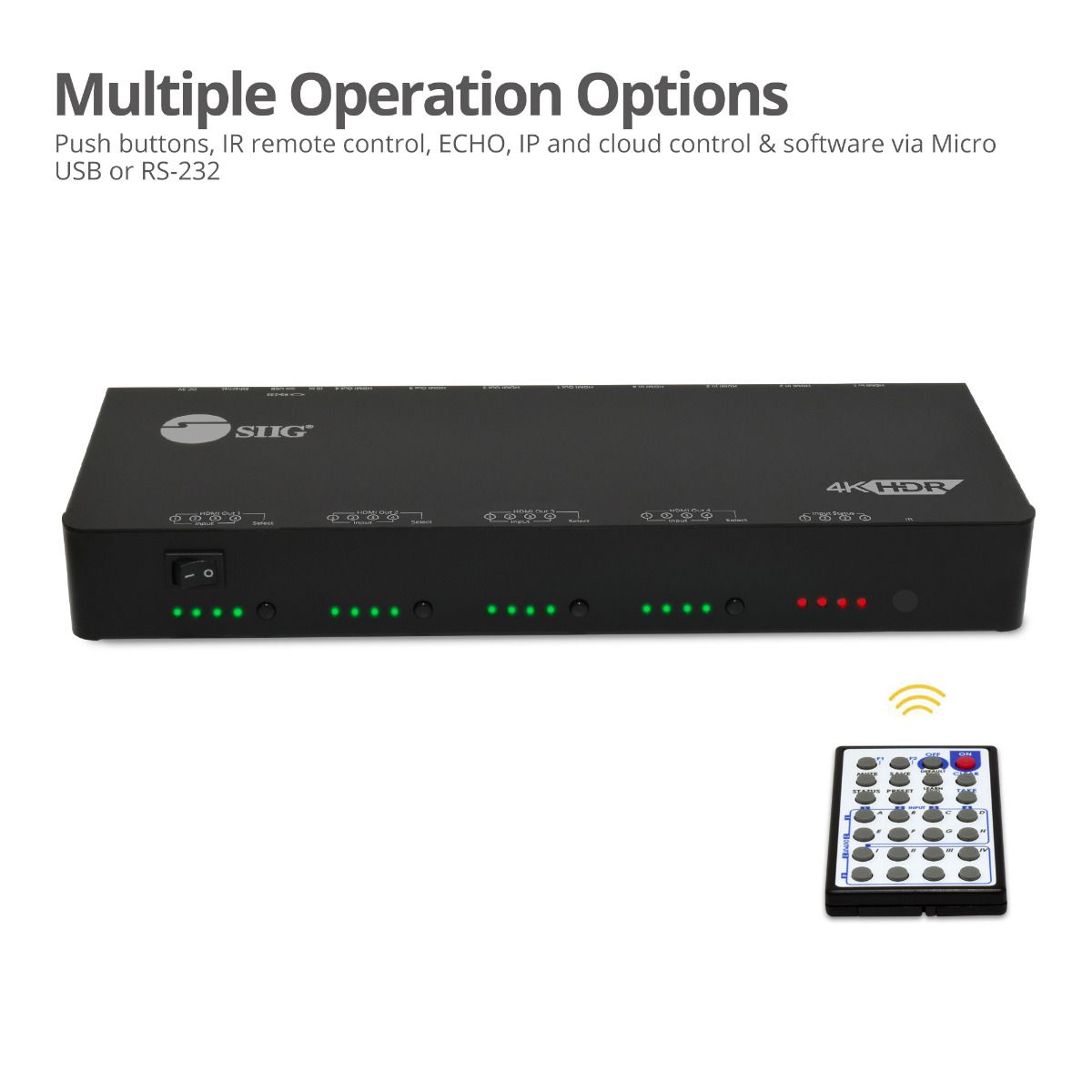

5 Control Options
TAA Compliant
Regular price
$639.99
Unit price
/
Unavailable
Shipping calculated at checkout.
4x4 HDMI 4K HDR Matrix Switch with Cloud Control is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Features
4 HDMI Inputs & Outputs
4 HDMI Inputs & Outputs

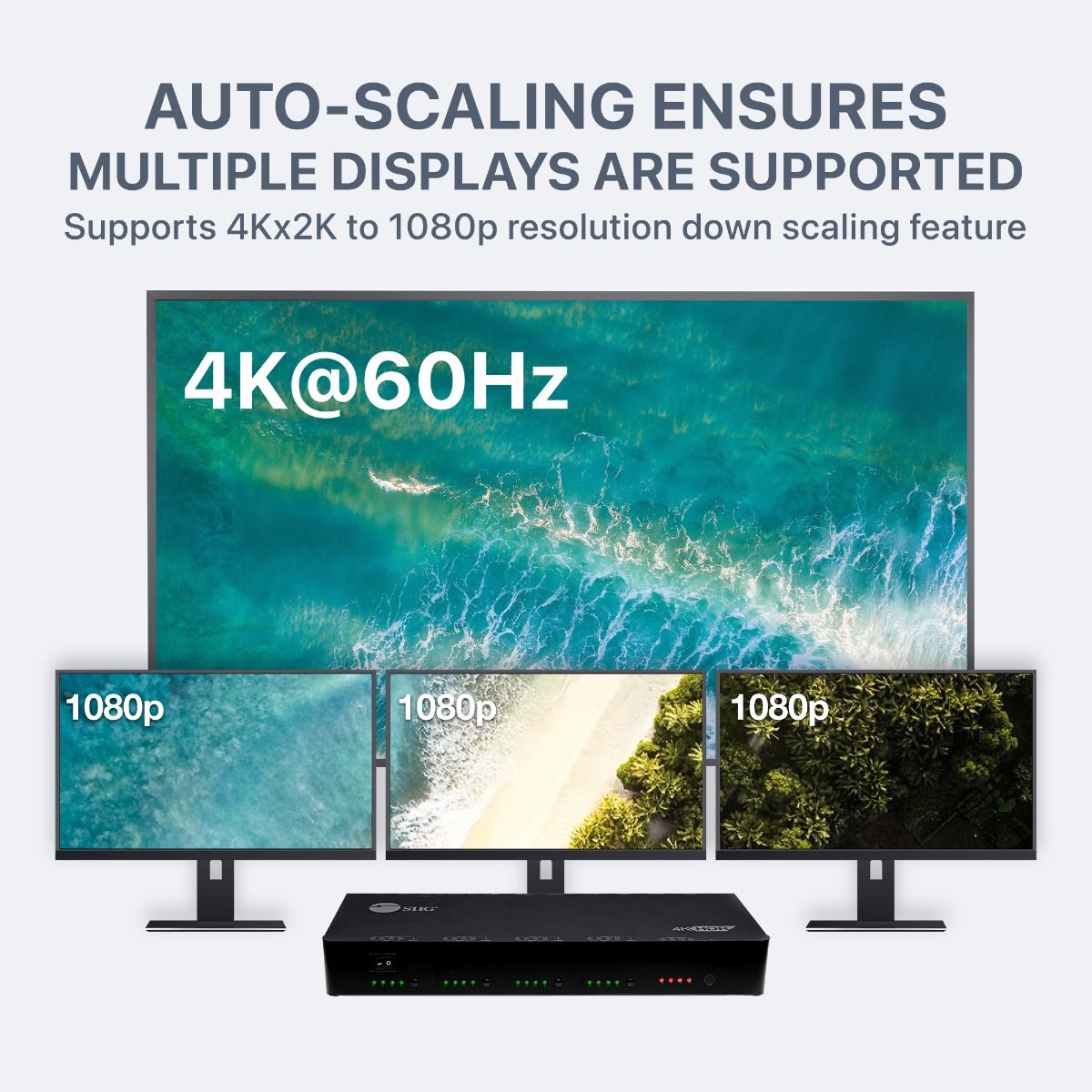

Auto Scaling
Auto Scaling
EDID Management
EDID Management
HDMI Standards
HDMI Standards
Metal Housing
Metal Housing
No content found
| Video | |

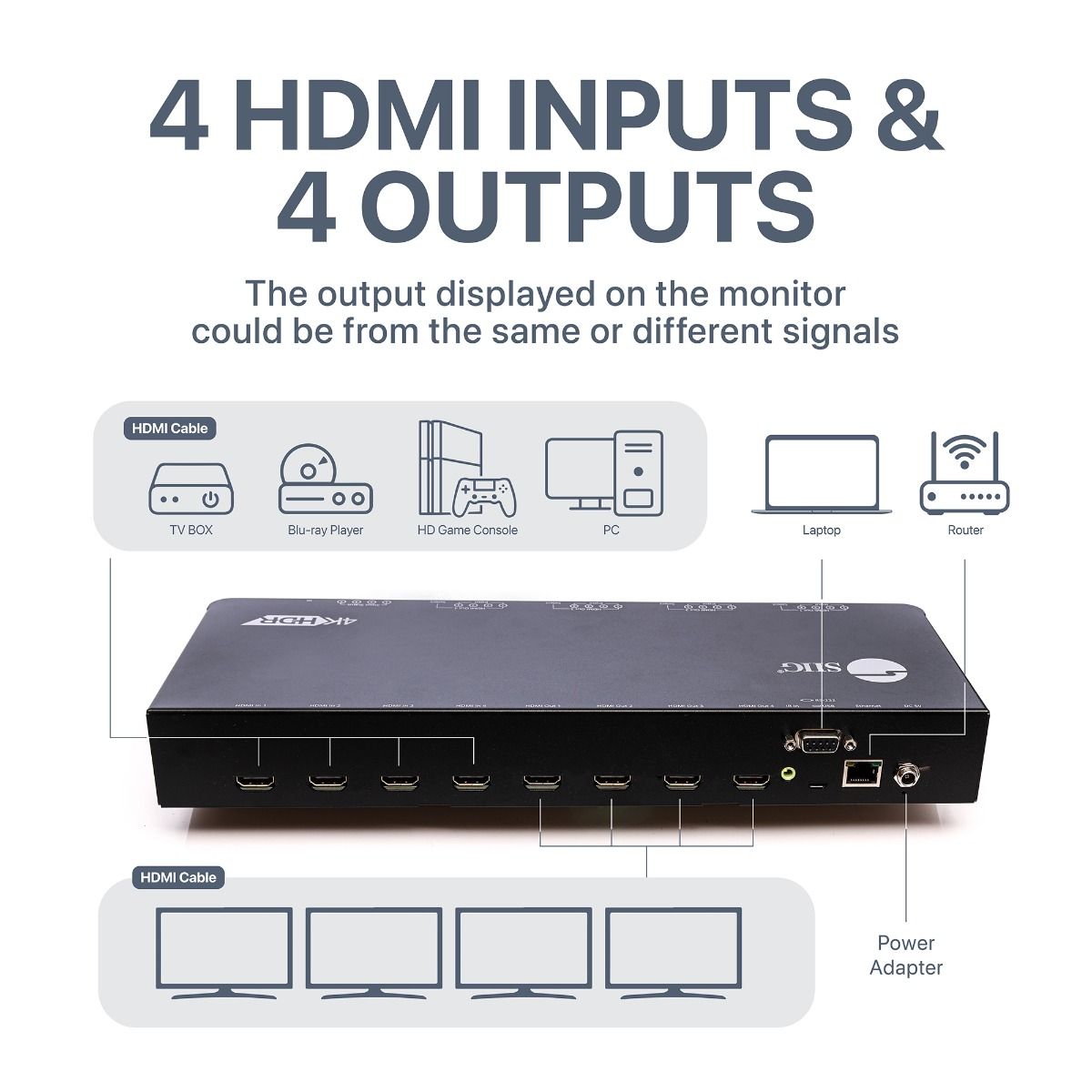

| HDMI | 4x input, 4x output |
| Standard | HDMI 2.0, HDCP 2.2 / 1.4 compliant |
| Bandwidth | Up to 18Gbps (single-link 594MHz) |
| Resolution | Up to 4Kx2K 60Hz YUV 4:4:4, 8bit and 4Kx2K 60Hz YUV 4:2:0 HDR 10bit 480i / 480p / 720p / 1080i / 1080p |
| HDMI Cable Length | Up to 5 meters each direction (Input 5m / Output 5m) |
| Audio | Dolby Digital, DTS-HD and Dolby TrueHD audio |
| ESD Protection | Air 5KV, Contact 8kV |
| Power Consumption | 12 Watts (Max) |
| Power Adapter | |
| Input | 100-240VAC, 50 / 60 Hz |
| Output | 5V / 4A |
| UL Listed | E163743 / Level: VI |

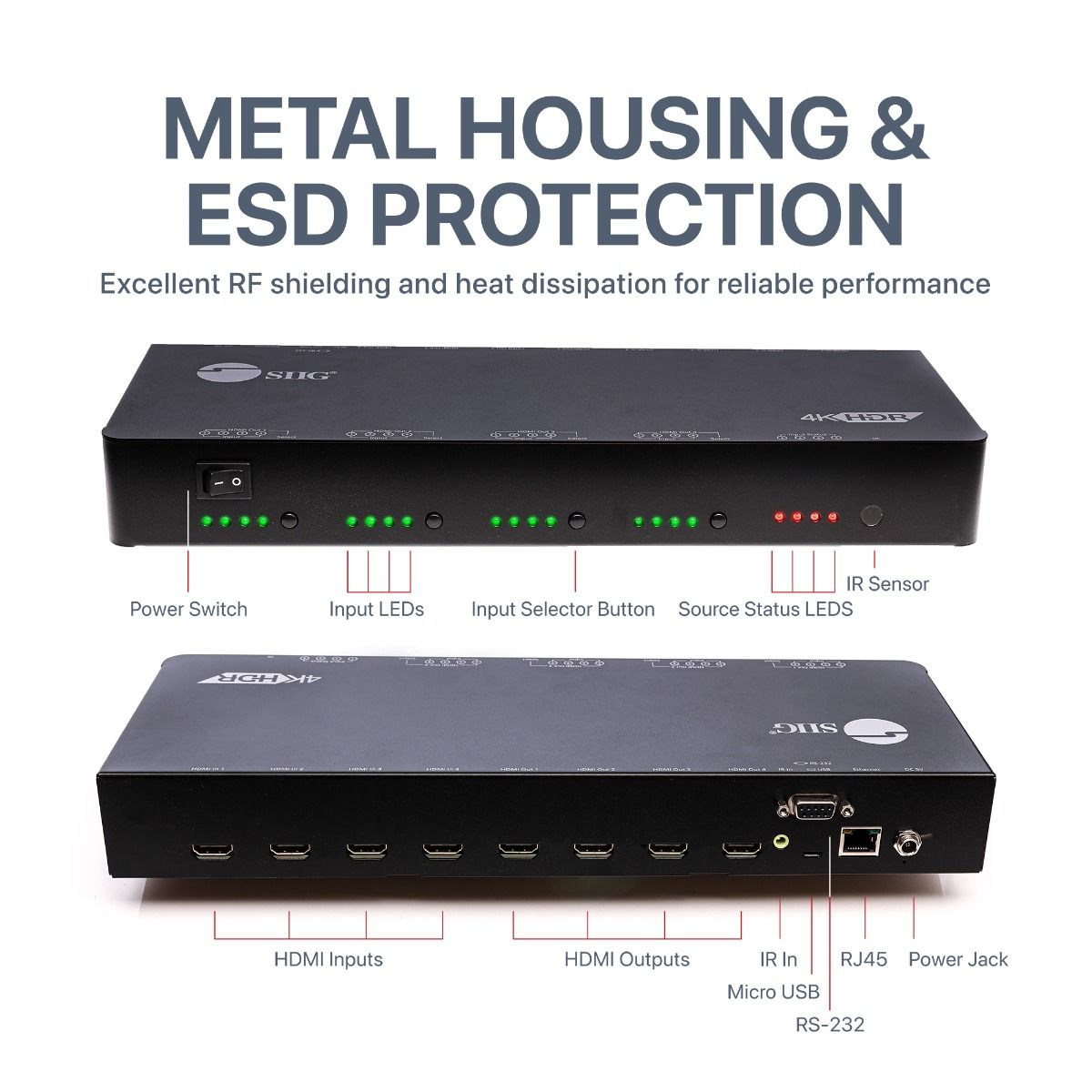

| Interface | 4x 19-Pin, HDMI, Type A, female, input 4x 19-pin, HDMI, Type A, female, output 1x Power switch, On/Off 4x Push button, select input channel 1x 9-Pin, RS-232, D-Sub, software control / Firmware update 1x 5-pin, Micro USB, Firmware update 1x 8-Pin, RJ45 Ethernet, Ethernet control 1x 3.5mm, IR Receiver 1x Power jack, Power input |

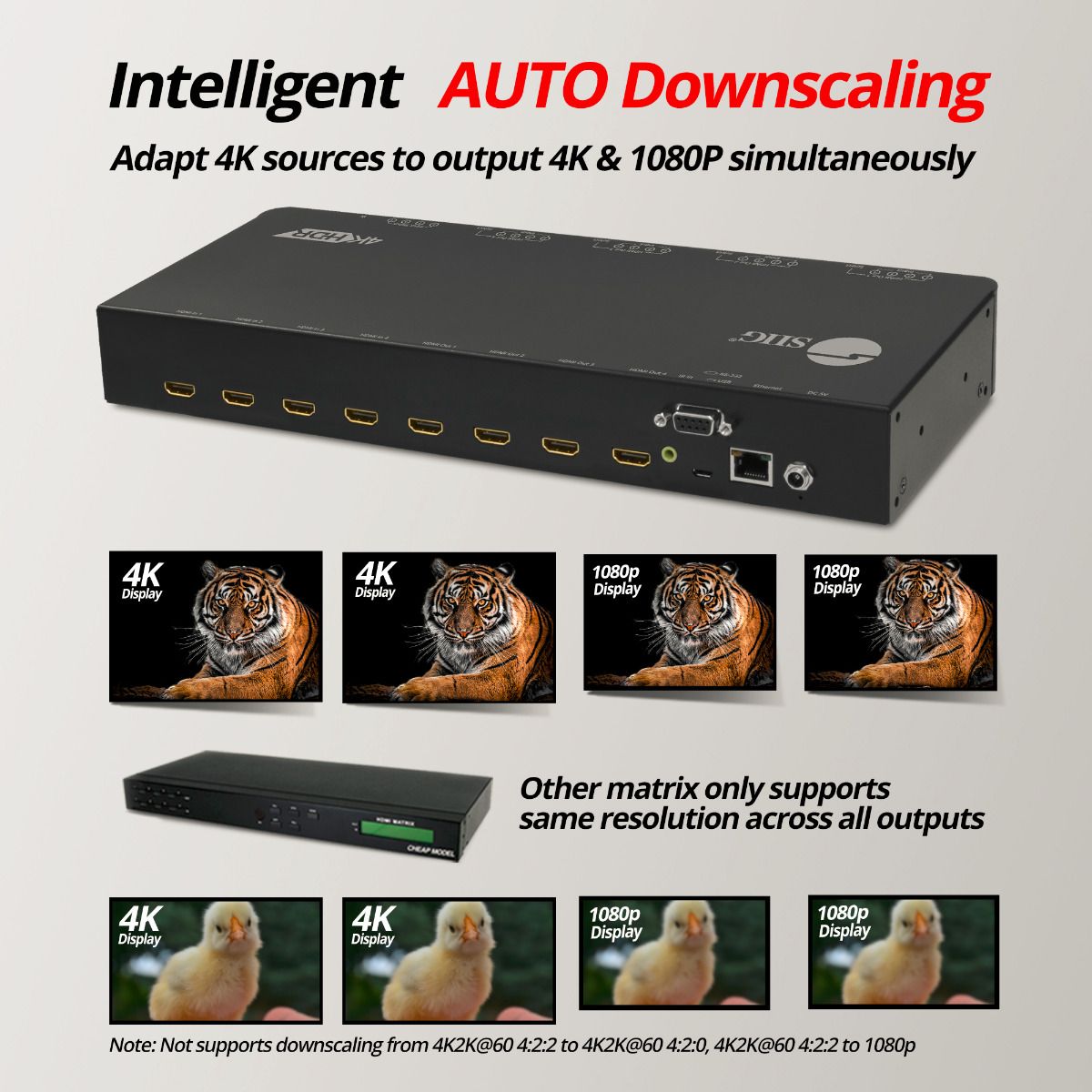

| System Requirements | - HDMI source device, such as computers, game consoles, Blu-ray/DVD players, and media players - HDMI displays, monitors, and HD TVs - Limitations associated with 4K content *Note: 1. Down scaling to 720p and 480p is not supported 2. YUV 4:2:2 down scaling is not supported 3. Frame rate conversion (e.g., 60Hz to 24Hz) is not supported 4. 4K 30Hz monitors will display in 1080p 60Hz when the source content is 4K 60Hz 5. 1080i monitors will display in 720p when source content in 4K 6. The Matrix Switch can bypass 4K HDR data content but cannot process it to make 4K HDR content fit 1080p proportionally |

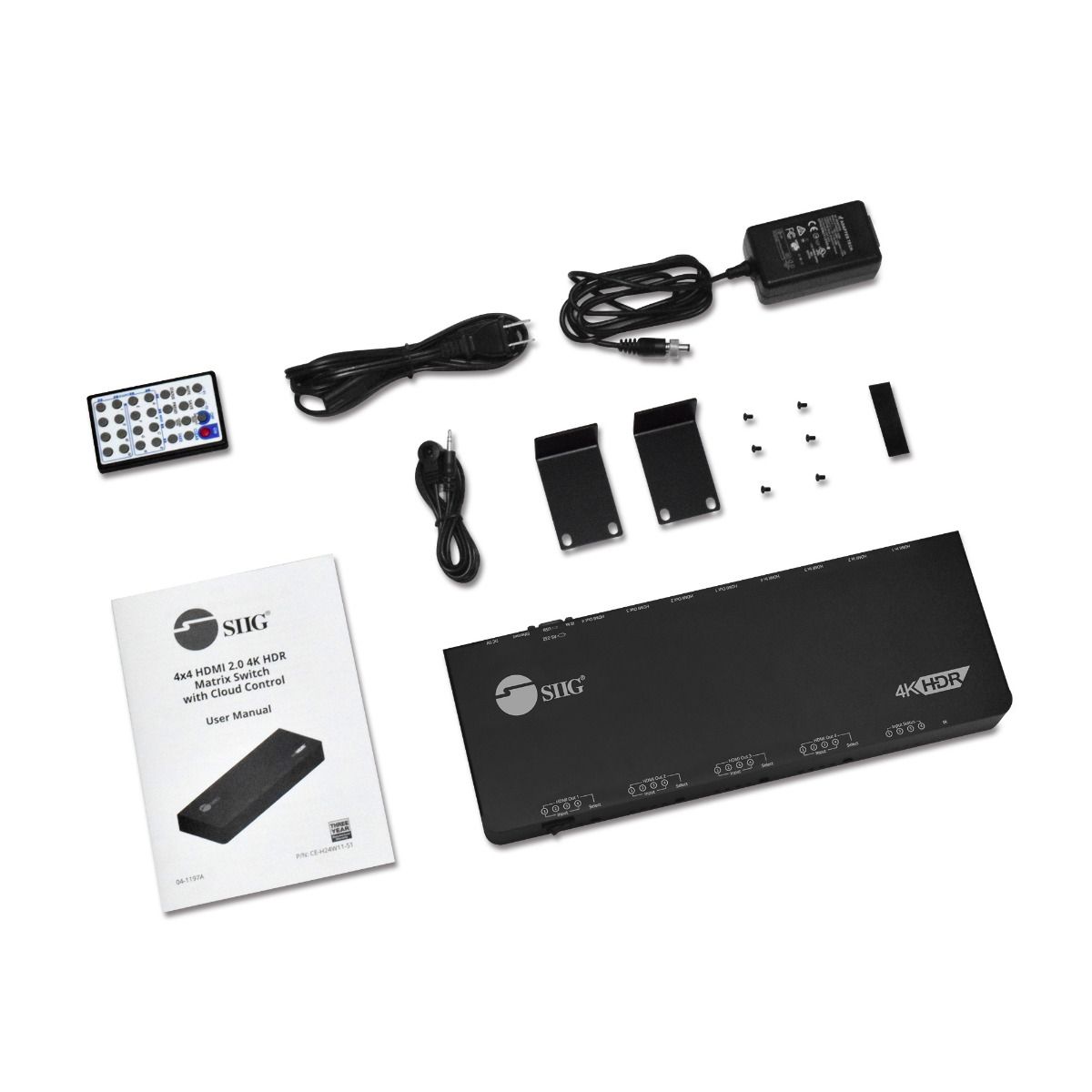

| Package Contents | 1x HDMI 4x4 4K HDR Matrix Switch with Cloud Control 1x IR Receiver 1x IR remote control 1x Mounting kit 1x Power adapter (5V/4A) 1x User's manual |
| Product | |

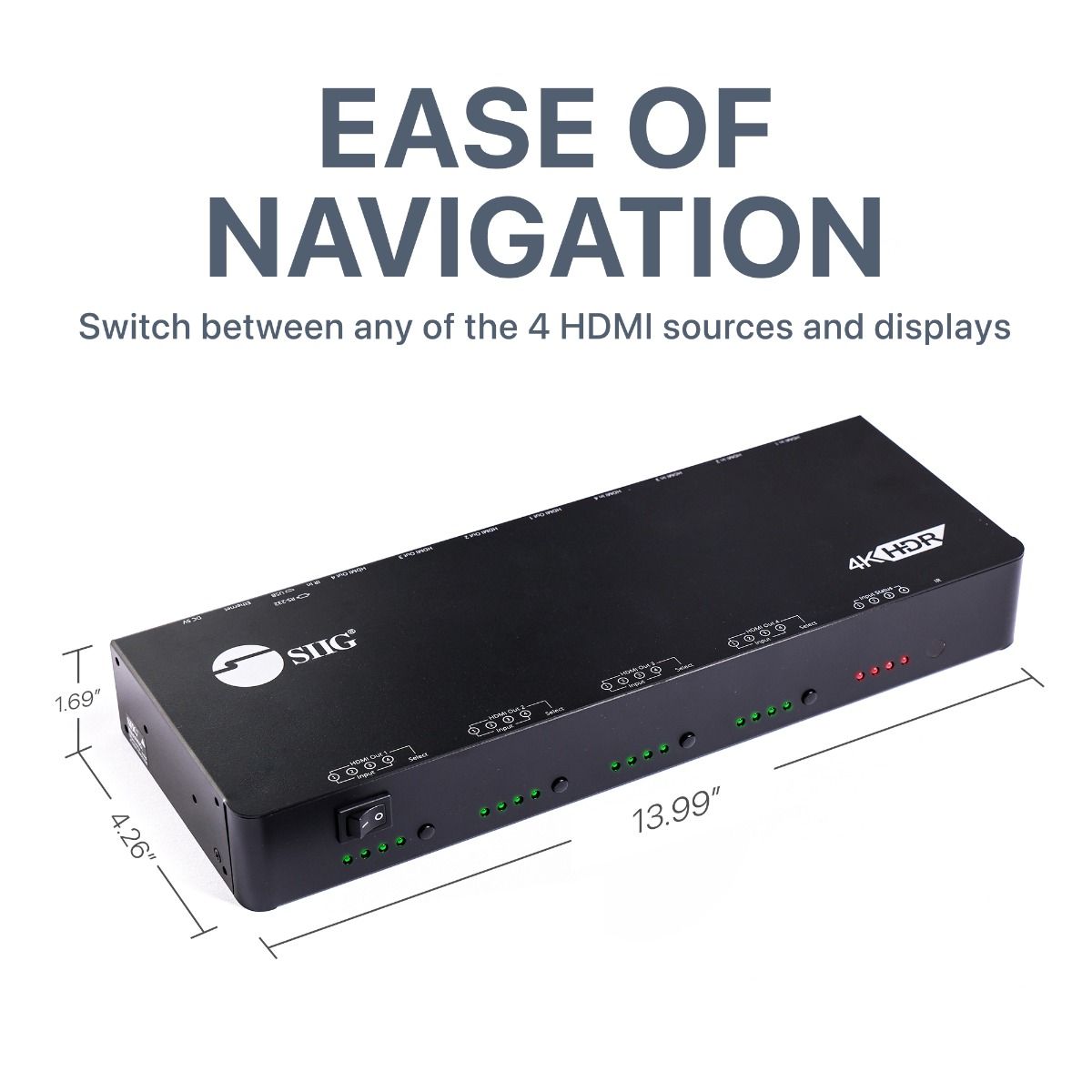

| Dimensions (L) x (H) x (W) | 13.39″ x 1.69″ x 4.26″ 34.01 cm x 4.29 cm x 10.82 cm |
| Weight | 2.58 lbs (1.17 kg) |
| Color | Black |
| Housing | Metal |
| Unit Package | |
| Dimensions (L) x (H) x (W) | 19.45″ x 2.68″ x 8.86″ 49.40 cm x 6.81 cm x 22.50 cm |
| Weight | 4.46 lbs (2.02 kg) |
| Master Carton | |
| Dimensions (L) x (H) x (W) | 20.08″ x 9.92″ x 14.96″ 51.00 cm x 25.20 cm x 38.00 cm |
| Weight | 24.71 lbs (11.21 kg) |
| Quantity | 5 pcs/ctn |
| Environmental Conditions | |
| Operating Temperature | 32° to 104° F |
| Storage Temperature | -4° to 140° F |
| Relative Humidity | 20 to 90% RH (non-condensing) |
| Certifications/Standards | FCC, CE, RoHS, TAA Compliant |
| UPC Code | 662774-042596 |
| Warranty | 3 years limited |
| Country of Origin | Taiwan |
