KVM |
SKU:
CE-KV0D11-S1

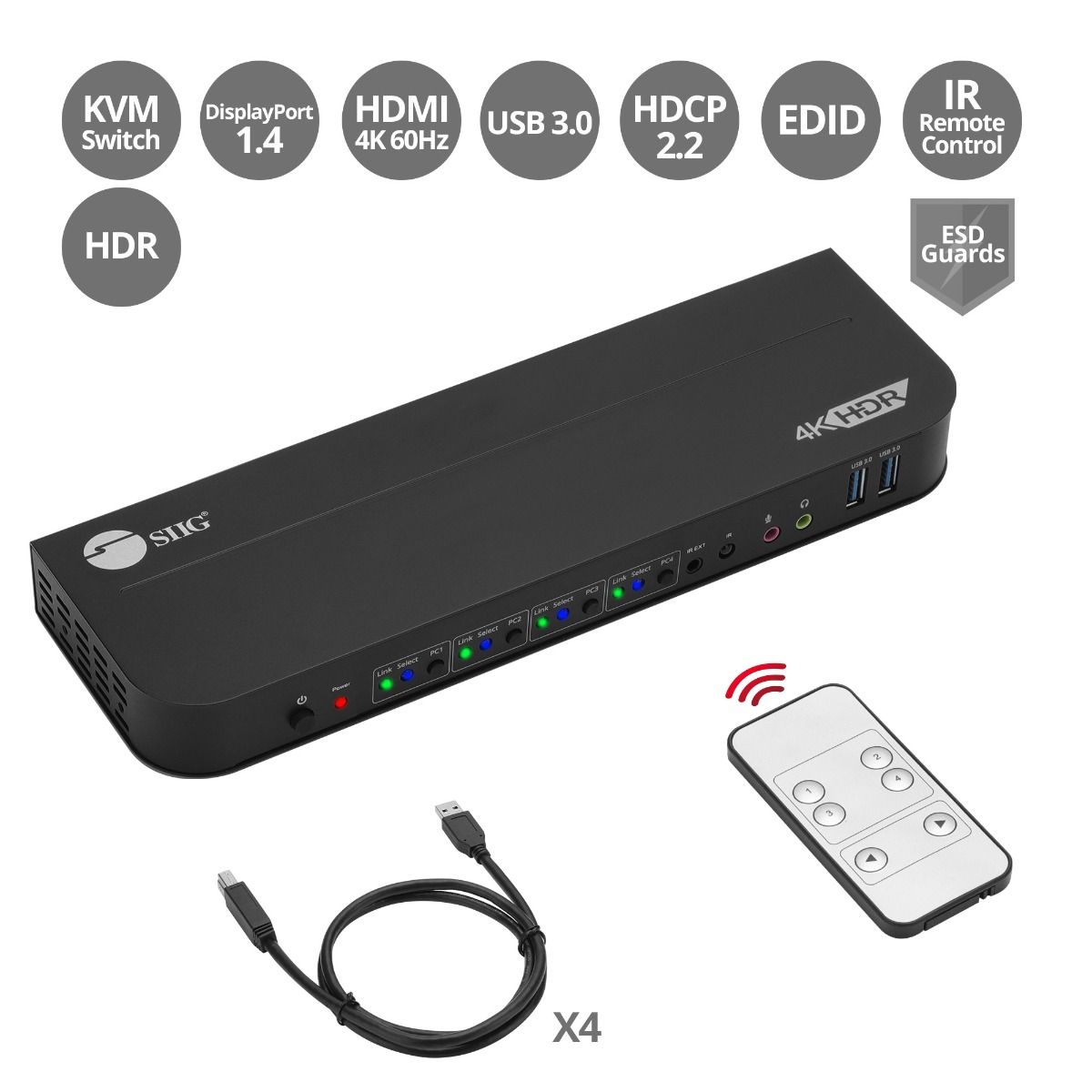

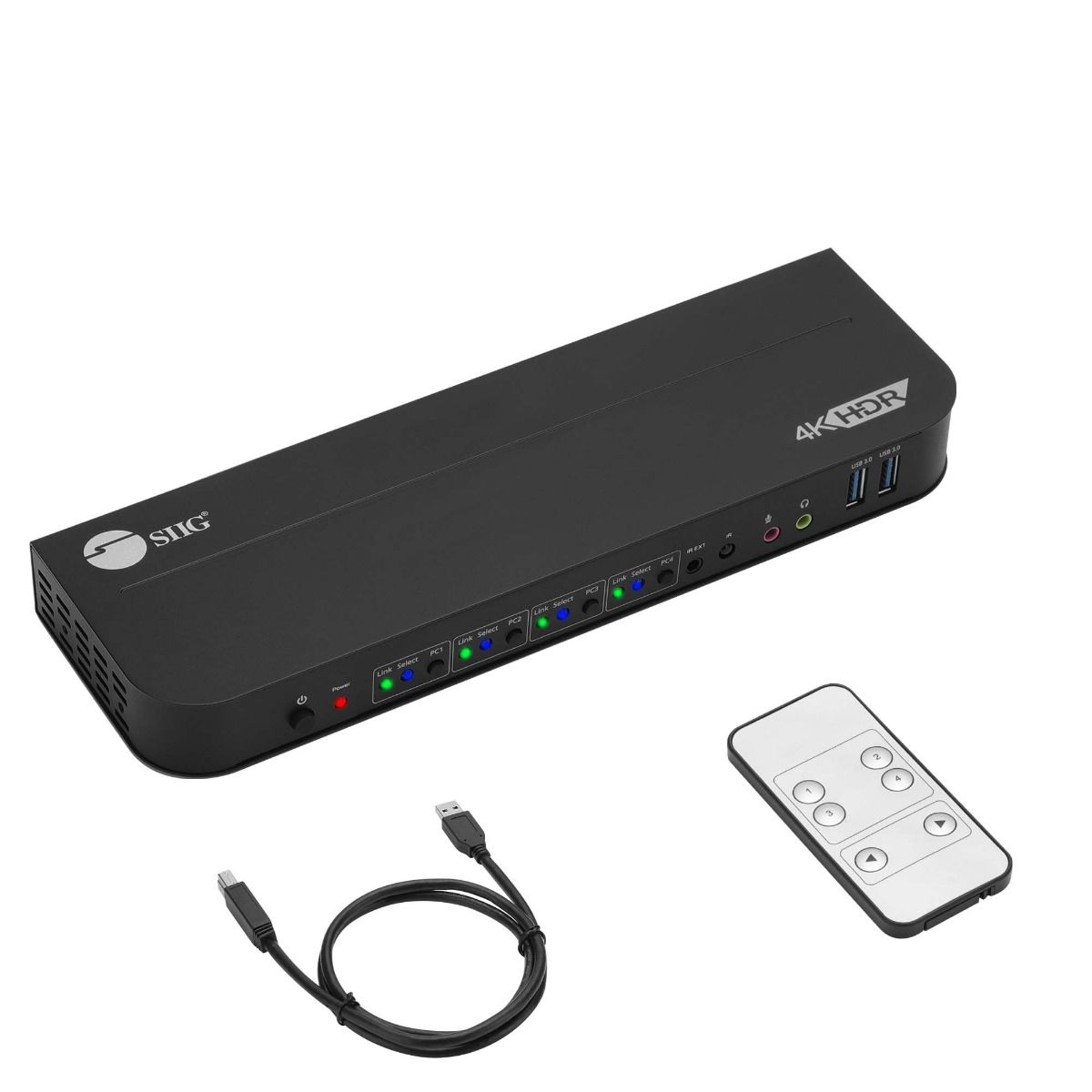

4x1 DisplayPort 4K KVM USB 3.0 Switch with Remote Control
4x1 DisplayPort KVM
4K60Hz
DP / HDMI Out
USB 5Gbps
IR Remotr Control
Regular price
$289.99
Unit price
/
Unavailable
Shipping calculated at checkout.
4x1 DisplayPort 4K KVM USB 3.0 Switch with Remote Control is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Features
4-Port DisplayPort KVM Switch
4-Port DisplayPort KVM Switch
Effortlessly Switch
Effortlessly Switch
4K Ultra HD Resolution
4K Ultra HD Resolution
High Performance
High Performance
Metal Housing Design
Metal Housing Design
4x1 DisplayPort 4K KVM USB 3.0 Switch with Remote Control
Estimated shipping by May 25, 2026
Regular price
$289.99
Unit price
/
Unavailable
-
45 Days Free Return
-
2 Years Warranty
-
Lifetime Technical Support

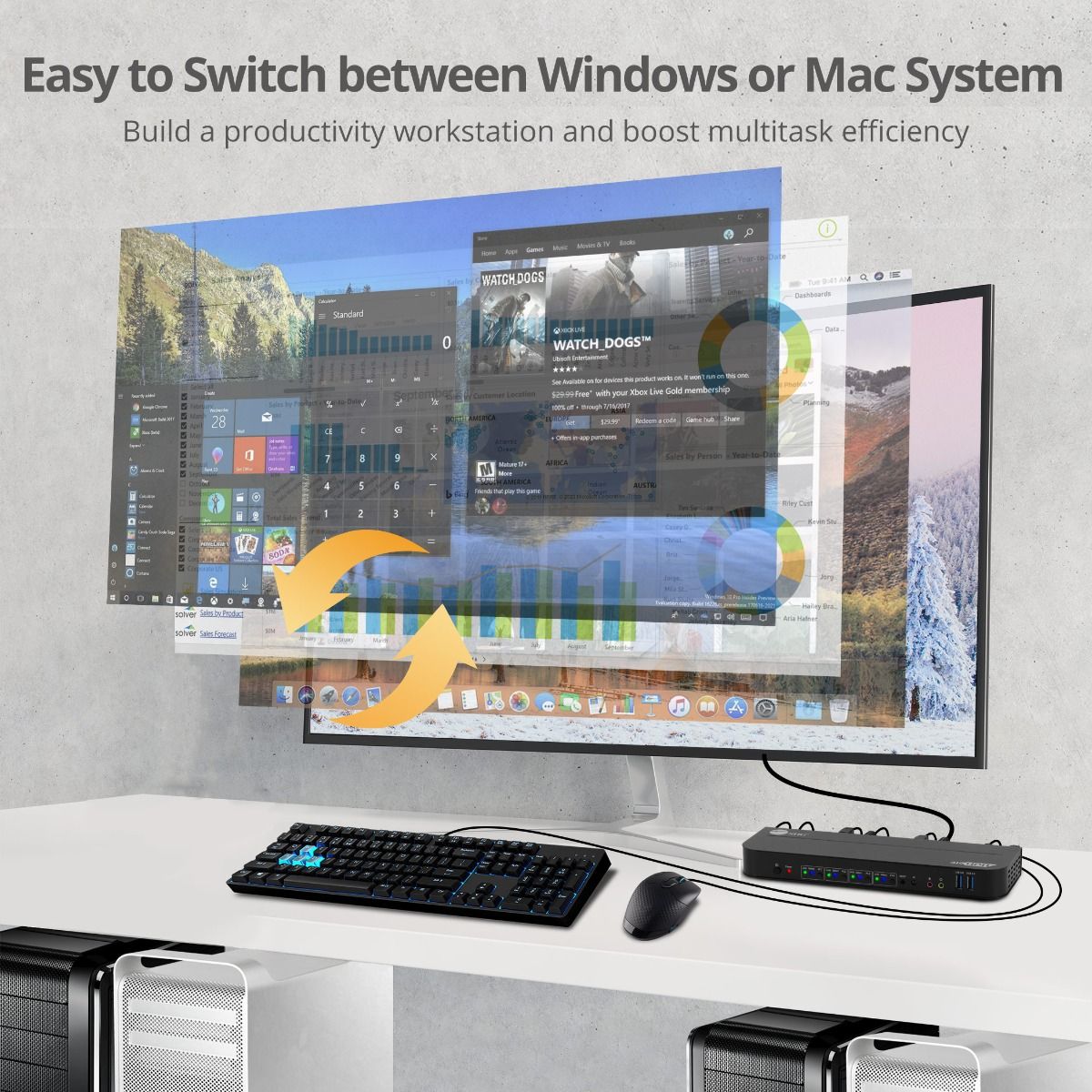

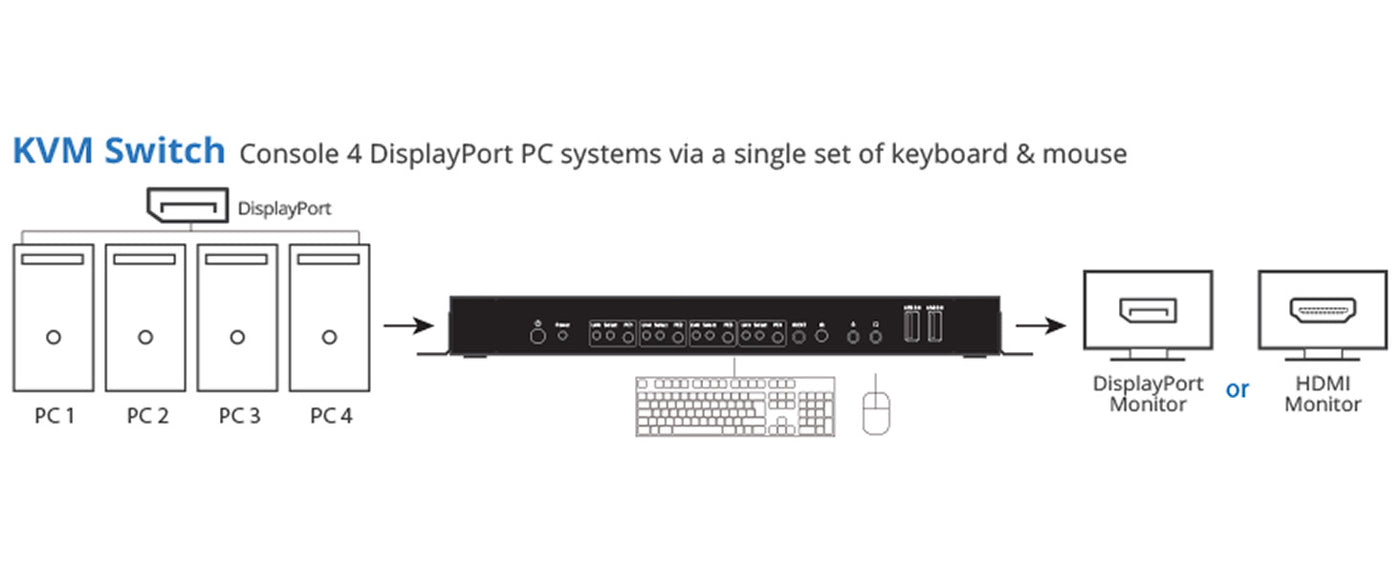

Allows you to Control 4 DisplayPort Computers Using One Keyboard and Mouse

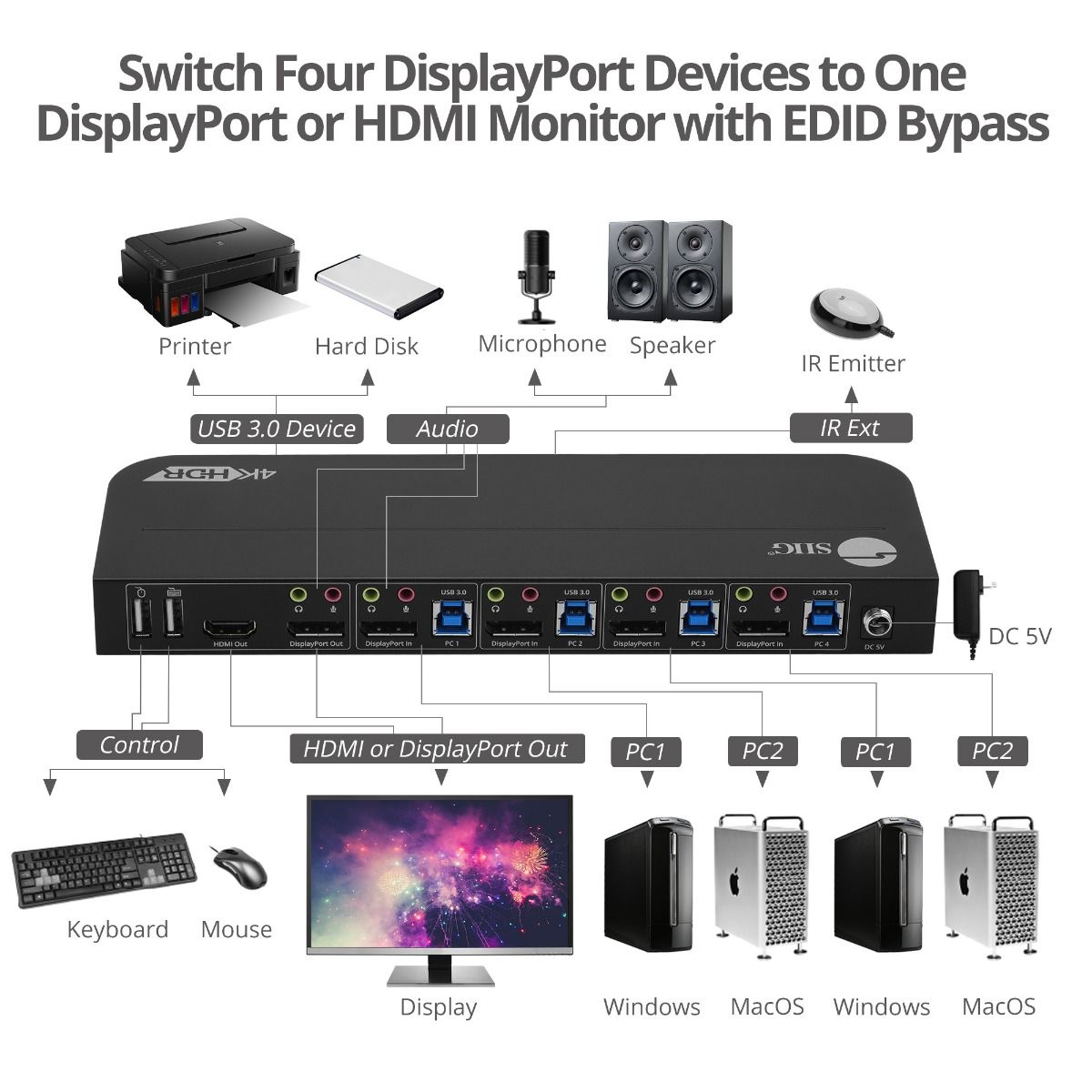

Improve Your Work Efficiently - Easily control 4 DisplayPort computers and switch a DisplayPort or HDMI display/monitor with one set of keyboard & mouse

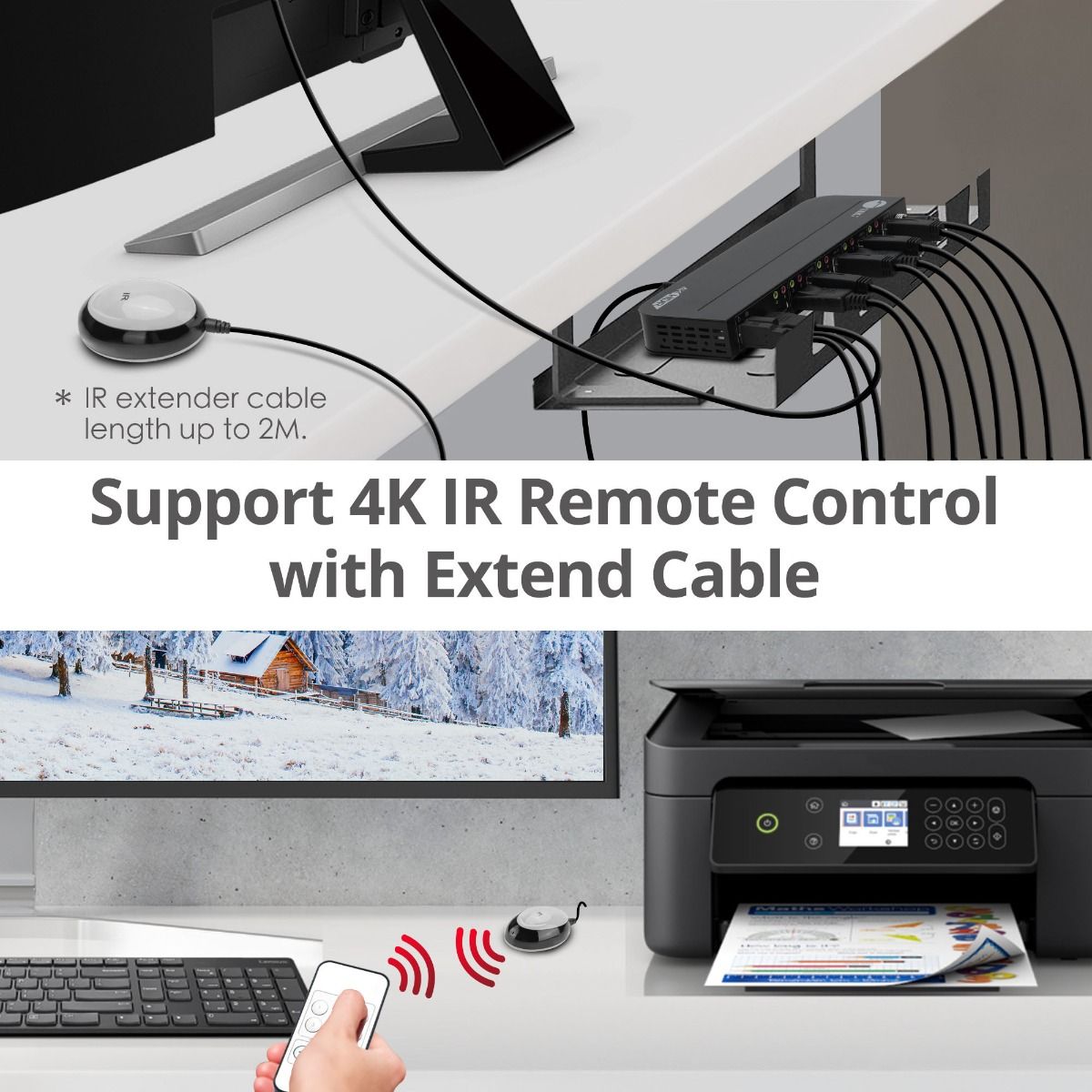

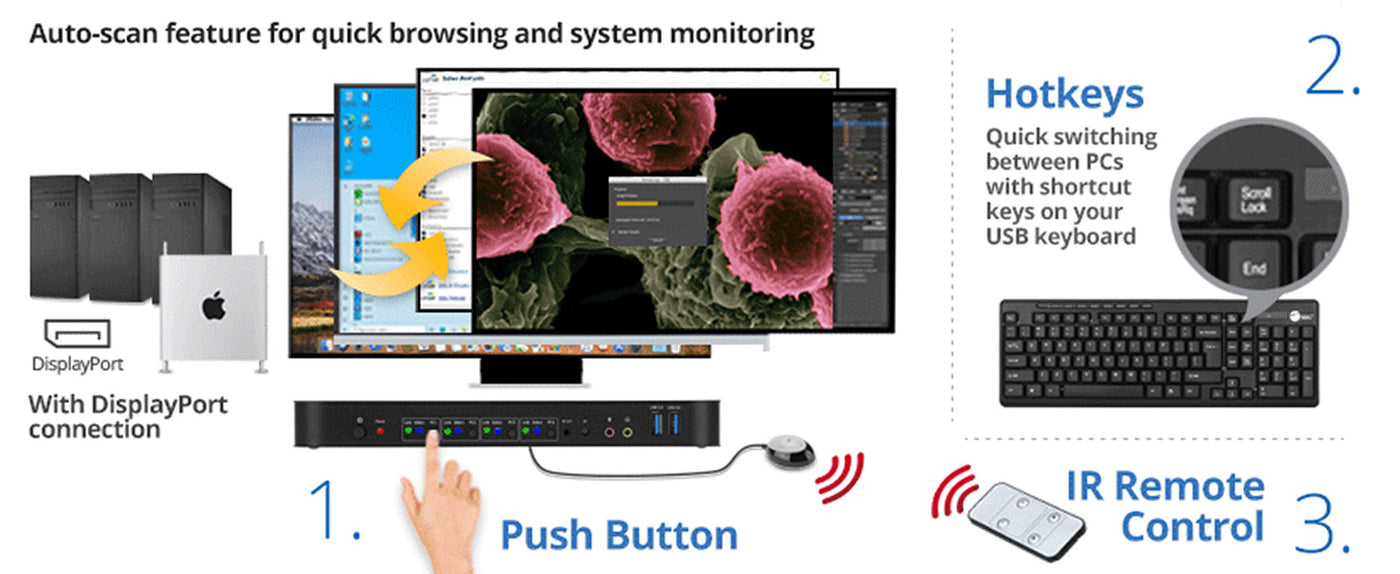

Multiple Switching Modes - Include the front panel push button, USB keyboard hotkeys or IR remote control

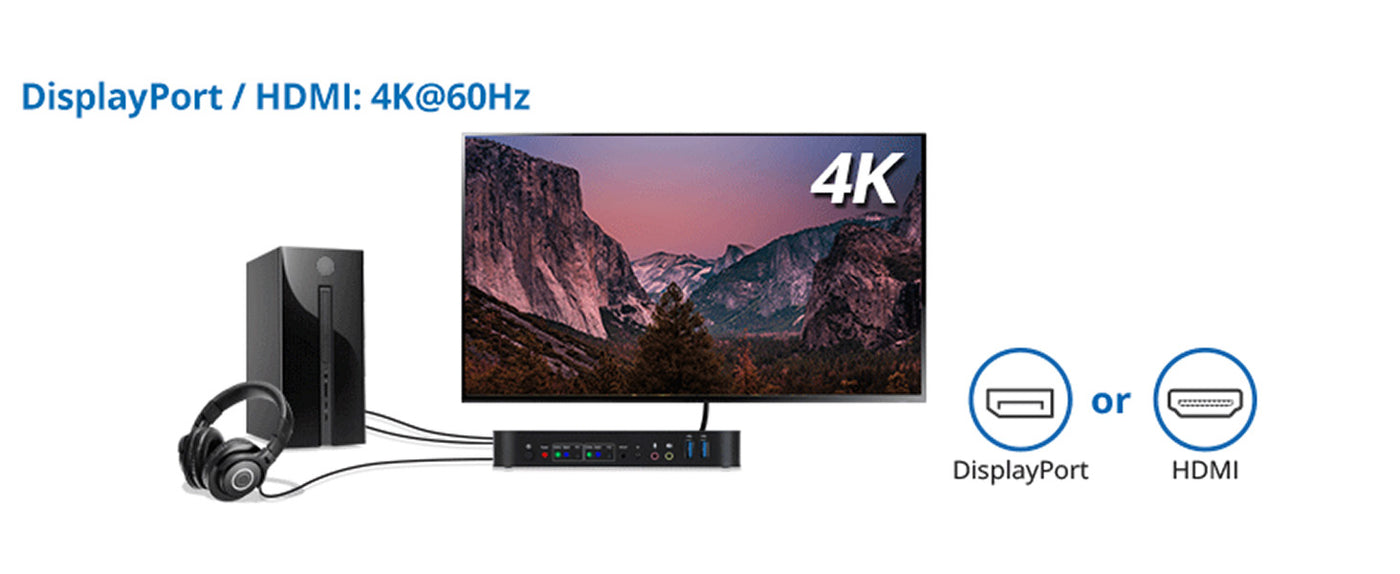

DP or HDMI Output up to 4K@60Hz Resolution, Supports 3D and Deep Color

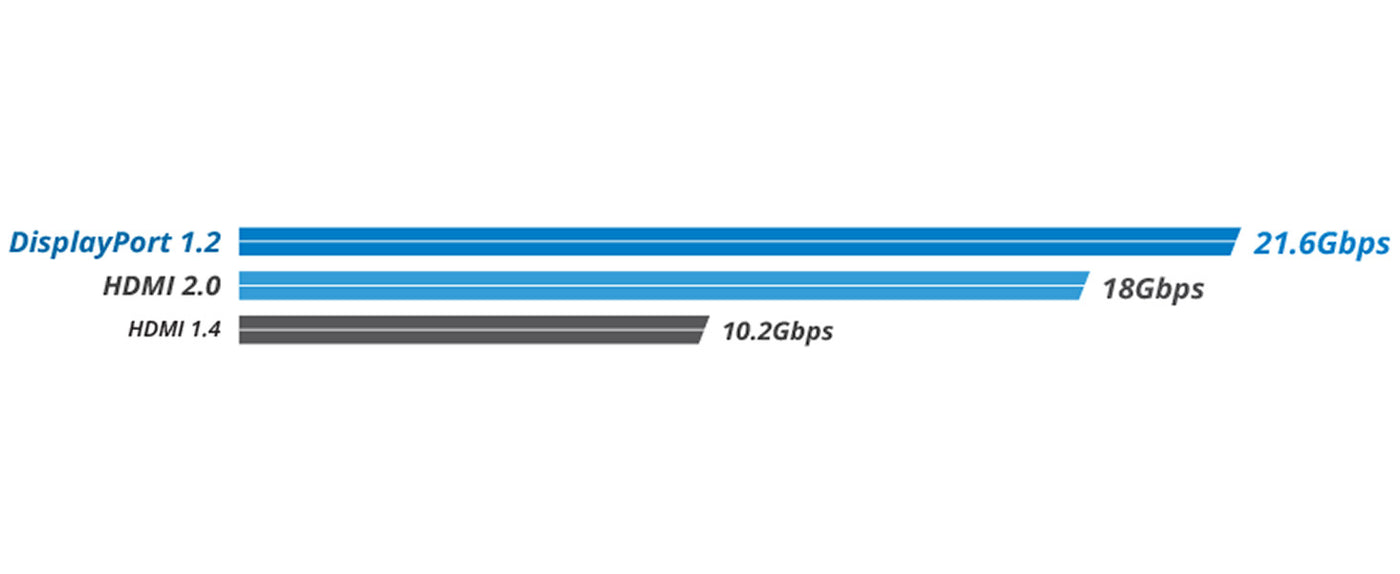

High Performance - Offers a true DisplayPort 1.2 21.6Gbps & HDMI 2.0 18Gbps video bandwidth

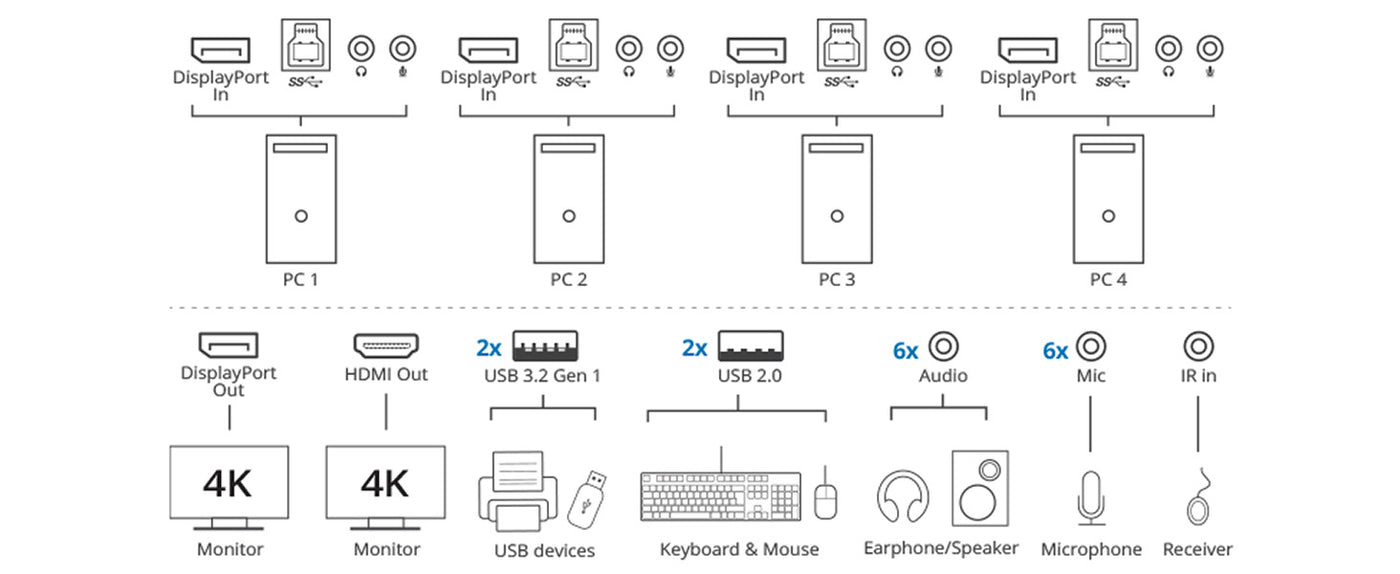

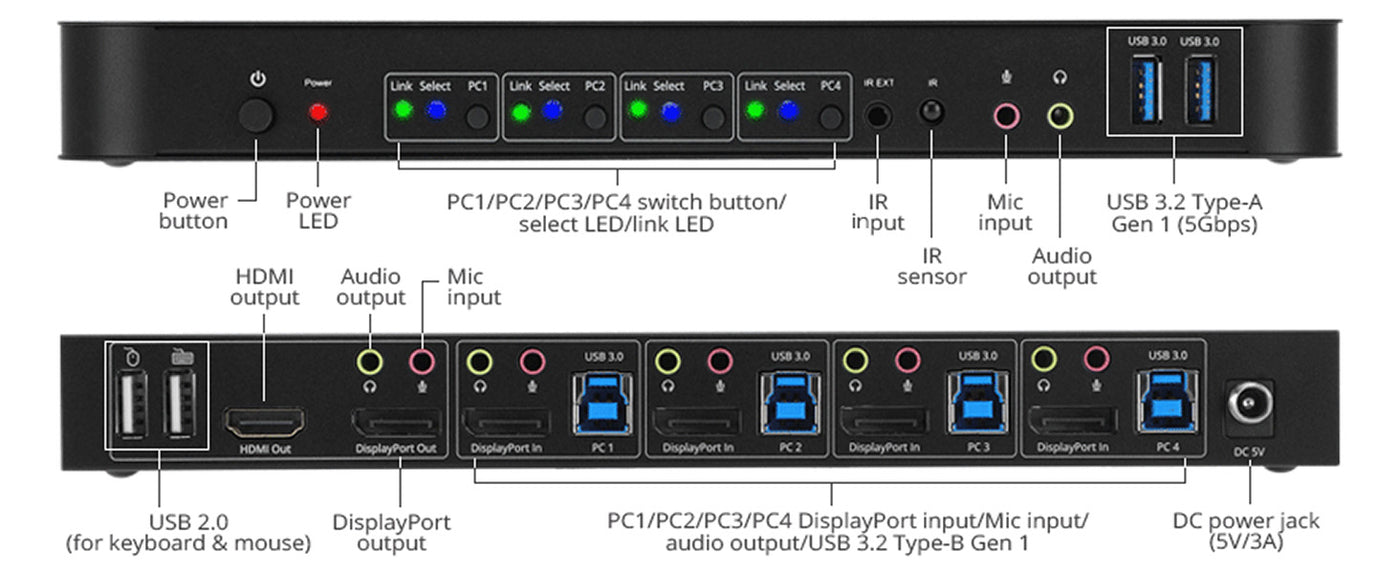

Multiple Connectivity Ports
Connection
| Video | |

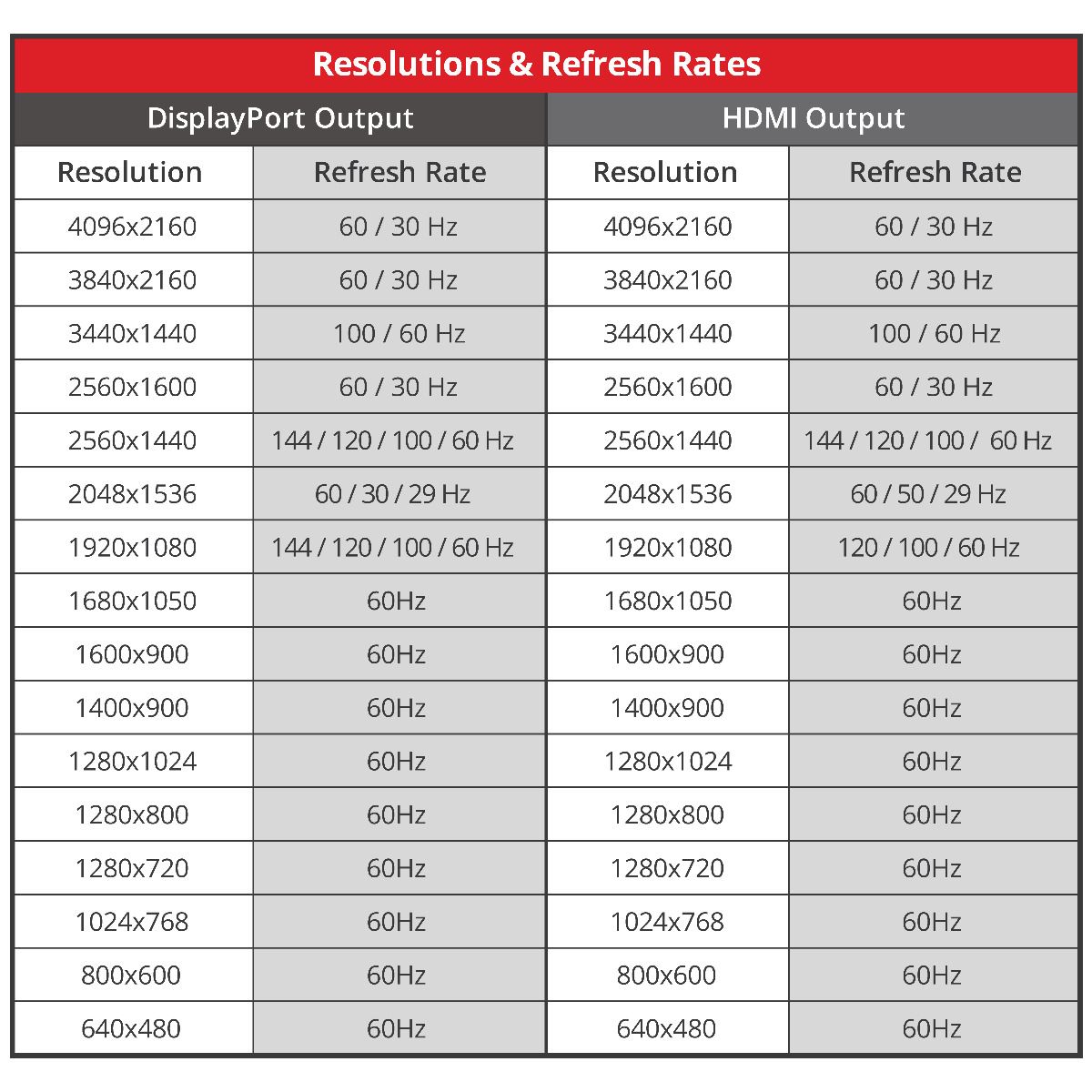

| DisplayPort 1.4 | Resolution: 4096x2160 / 3840x2160 @60 / 30Hz 3440x1440 @100 / 60Hz 2560x1600 @60 / 30Hz 2560x1440 / 1920x1080 @144 / 120 / 100 / 60Hz 2048x1536 @60 / 30 / 29Hz 1680x1050 / 1600x900 / 1400x900 / 1280x1024 / 1280x800 / 1280x720 / 1024x768 / 800x600 / 640x480 @ 60Hz |
| HDMI | HDCP 2.2, HDR Video bandwidth: 18Gbps Resolution: 4096x2160 / 3840x2160 @60 / 30Hz 3440x1440 @100 / 60Hz 2560x1600 @60 / 30Hz 2560x1440 @144 / 120 / 100 / 60Hz 2048x1536 @60 / 50 / 29Hz 1920x1080 @120 / 100 / 60Hz 1680x1050 / 1600x900 / 1400x900 / 1280x1024 / 1280x800 / 1280x720 / 1024x768 / 800x600 / 640x480 @ 60Hz |
| Audio | 7.1 channel surround sound from DisplayPort/HDMI port PCM 2.1 channel stereo digital audio for 3.5mm audio jack |
| USB Data Transfer Rate | |
| USB 3.2 Gen 1 | 2x Type-A, up to 5Gbps, 5V/900mA |
| USB HID | 2x Type-A, for Keyboard hot key & Mouse traversal switch Note: Direct to plug-in the mouse the front panel to disable the traversal switch feature |
| Interface | |

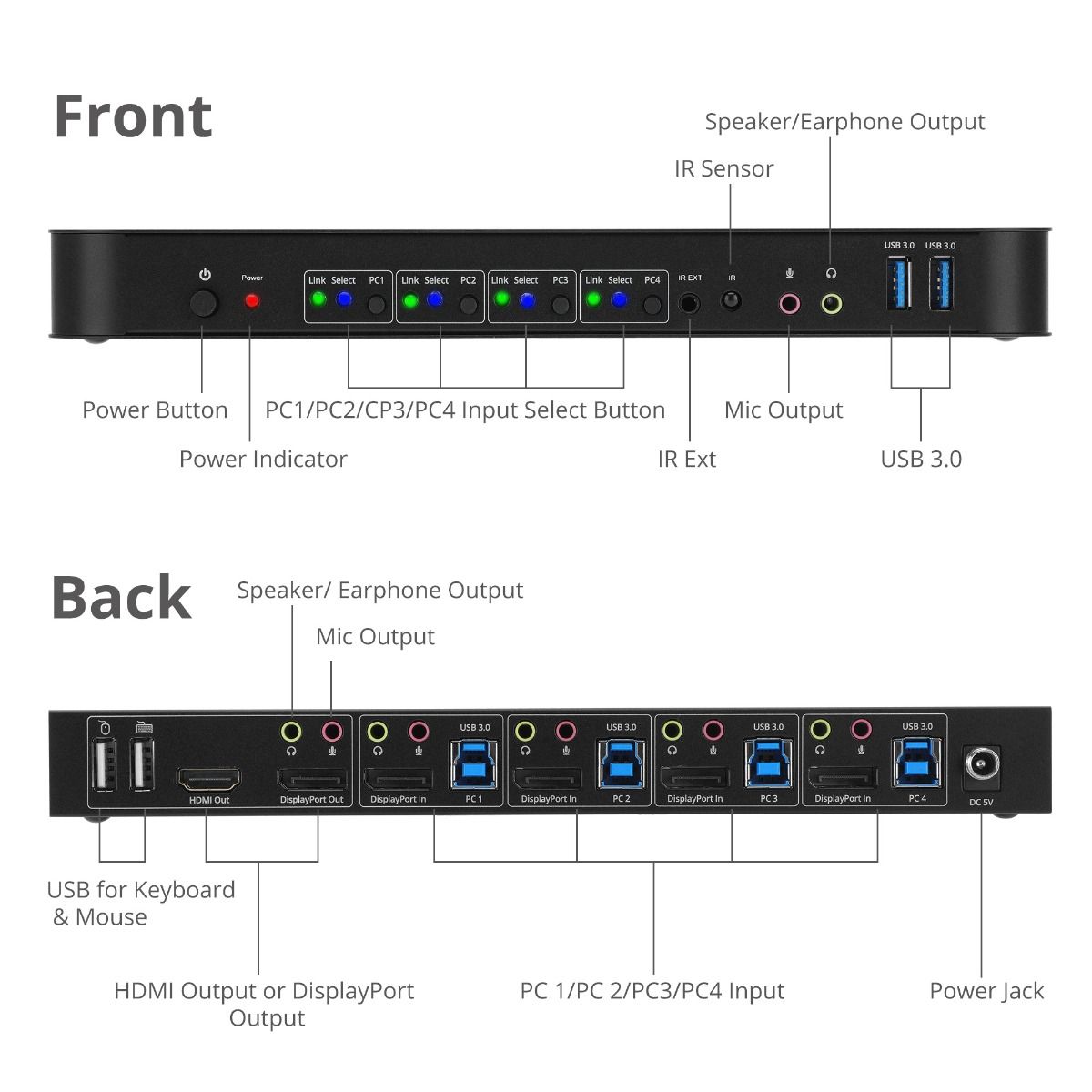

| Input | 4x 20-pin, DisplayPort, Female 4x 9-pin, USB 3.2 Gen 1 Type-B, Female 6x 3.5mm phone jacks, for microphone, Female 2x 4-pin, USB 2.0 Type-A, for Keyboard & Mouse 1x 3.5mm Infrared jack, IR 1x IR sensor 4x Switch buttons, for PC1/PC2/PC3/PC4 switching 1x Power button, on/off 1x DC power jack, 5V/3A |
| Output | 1x 20-pin, DisplayPort, Female 1x 19-pin, HDMI, Female 2x 9-pin, USB 3.2 Gen 1 Type-A, for USB devices 4x 3.5mm phone jacks, for stereo audio, Female |
| Product | |

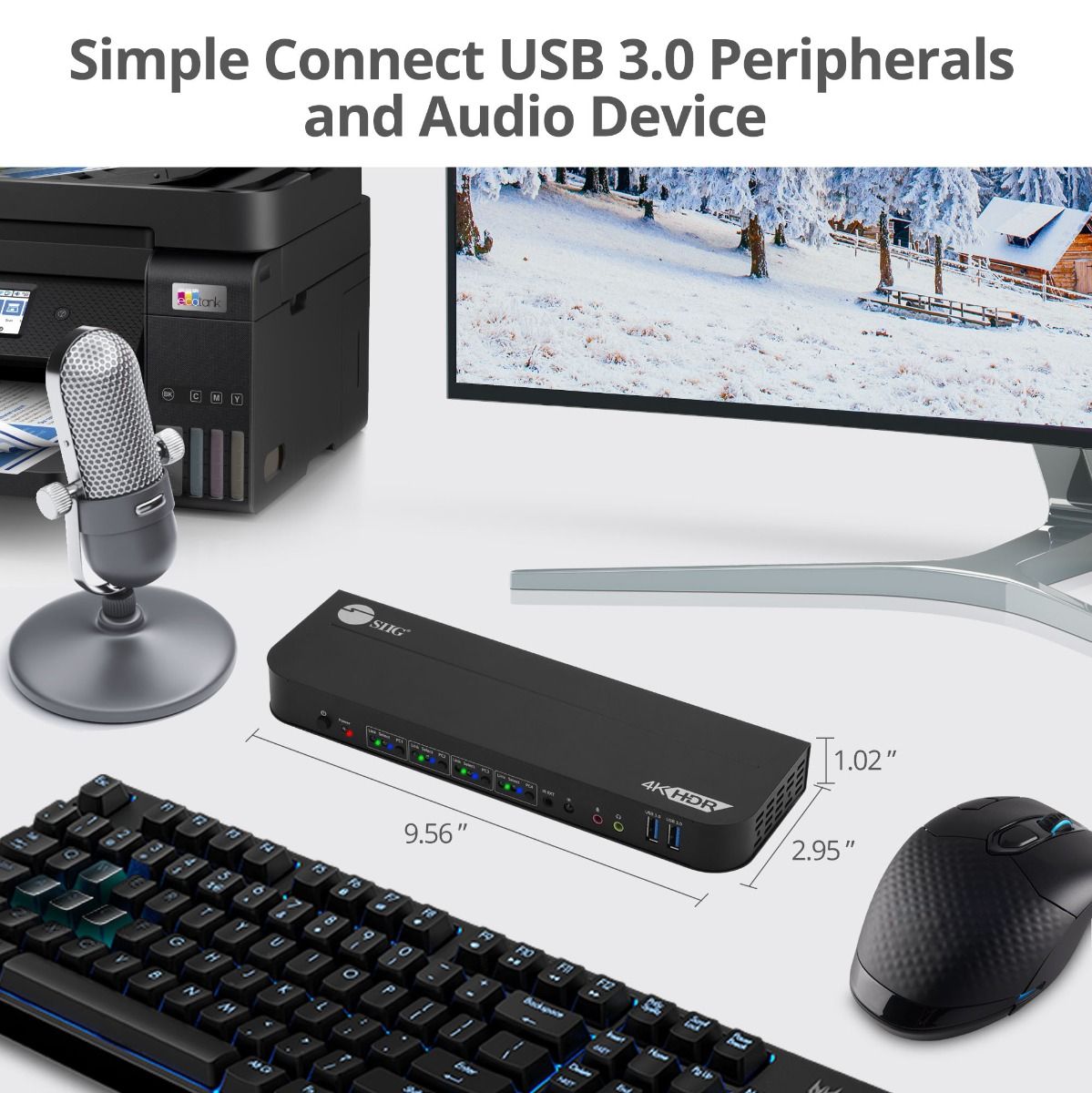

| Dimensions (L) x (H) x (W) | 9.53" x 1.02" x 2.76" 24.21 cm x 2.59 cm x 7.00 cm |
| Weight | 1.11 lbs (0.5 kg) |
| Color | Black |
| Housing Material | Metal |
| Unit Package | |
| Dimensions (L) x (H) x (W) | 11.02" x 2.56" x 7.09" 28.00 cm x 6.50 cm x 18.00 cm |
| Weight | 2.38 lbs (1.08 kg) |
| Master Carton | |
| Dimensions (L) x (H) x (W) | 14.96" x 11.81" x 13.58" 38.00 cm x 30.00 cm x 34.50 cm |
| Weight | 26.00 lbs (11.79 kg) |
| Quantity | 10 pcs/ctn |
| Power Adapter | Input: AC 100-240V / 50-60Hz Output: DC 5V/3A ETL P/N: 4006448 |
| Environmental conditions | |
| Operating temperature | 32 to 114 degrees F |
| Storage temperature | 14 to 178 degrees F |
| Relative humidity | 5% to 90% RH (non-condensing) |
| Certifications/Standards | FCC, CE, RoHS, REACH |
| UPC Code | 662774-045153 |
| Warranty | 2 years limited |
| Country of Origin | China |
| System Requirements | - PC or laptop with available DisplayPort, USB 3.2 Gen 1 Type-A, and audio/mic ports - Windows® 11 / 10 - Mac OS® 12.x to 10.13 |

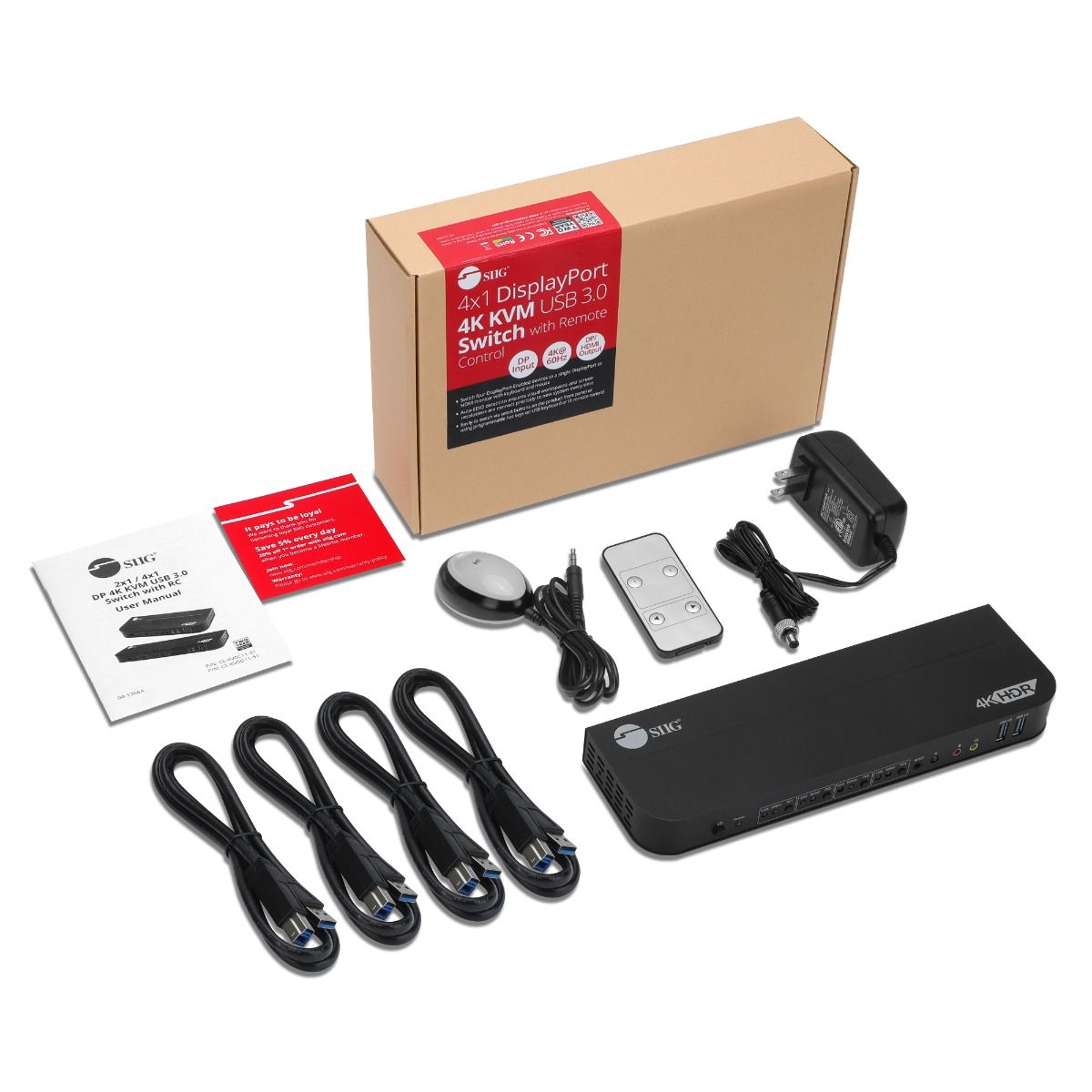

| Package contents | 1x 4x1 DisplayPort 4K KVM USB 3.0 Switch with Remote Control 4x USB 3.2 Gen 1 Type-A to B cable 1x IR extender cable 1x IR remote control 1x DC power adapter, 5V/3A 1x User reference guide |
Q1: Does this KVM support 3440x1440 and if so, what refresh rate?
Q1: Does this KVM support 3440x1440 and if so, what refresh rate?
A1 : Yes, this KVM supports 21:9 monitors and 3440X1440 resolutions with refresh rates up to 100Hz, but we recommend 60Hz for best performance.
Q2: Does this KVM support special multimedia keys on a keyboard like buttons for play/pause, volume control, mute etc.?
Q2: Does this KVM support special multimedia keys on a keyboard like buttons for play/pause, volume control, mute etc.?
A2: Yes, it supports the special multimedia keys on a keyboard, such as play/pause, volume control, mute etc.
Q3: Can I use it to share a HD Webcam between computers?
Q3: Can I use it to share a HD Webcam between computers?
A3: Yes, it can share a USB Webcam, but the video will disconnect when switching. It can only be connected to one PC at once.
Q4: I have an extra display, why my mouse can't cross over to the extra display?
Q4: I have an extra display, why my mouse can't cross over to the extra display?
A4: You're using a single display KVM switch, which means it can only handle one monitor at a time. That's why your mouse cursor can't seem to move to the extra display.
Try connecting your mouse directly to a USB port on the front of your computer instead of using the KVM switch.
Note: If you connect your keyboard to a front USB port as well, you might lose some hotkey functionality.
Try connecting your mouse directly to a USB port on the front of your computer instead of using the KVM switch.
Note: If you connect your keyboard to a front USB port as well, you might lose some hotkey functionality.
Q5: How can I to disable the mouse traversal function?
Q5: How can I to disable the mouse traversal function?
A5: For CE-KV0C11-S1 or CE-KV0E11-S1 models:
Visit the download page for your KVM switch and update the firmware to disable the mouse traversal function.
For CE-KV0D11-S1 or CE-KV0F11-S1 models or if you don't want to update the firmware:
Try connecting your mouse to a USB port on the front of your computer. This might prevent the mouse traversal from being triggered.
Note: Connecting your keyboard to a front USB port might cause you to lose some hotkey functionality.
Visit the download page for your KVM switch and update the firmware to disable the mouse traversal function.
For CE-KV0D11-S1 or CE-KV0F11-S1 models or if you don't want to update the firmware:
Try connecting your mouse to a USB port on the front of your computer. This might prevent the mouse traversal from being triggered.
Note: Connecting your keyboard to a front USB port might cause you to lose some hotkey functionality.
Q6: How do I disable the function that switches to next PC when my mouse bumps the edge of the screen?
Q6: How do I disable the function that switches to next PC when my mouse bumps the edge of the screen?
A6: Hello, Plug the mouse into one of the front facing USB 3.0 ports instead of using the rear facing USB port designed for the mouse.
