4K60Hz HDMI Video Capture Device with Loopout, USB-C 5Gbps Capture, Low Latency, Line/MIC Audio In, Plug & Play
4K60Hz HDMI Video Capture Device with Loopout, USB-C 5Gbps Capture, Low Latency, Line/MIC Audio In, Plug & Play is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Features

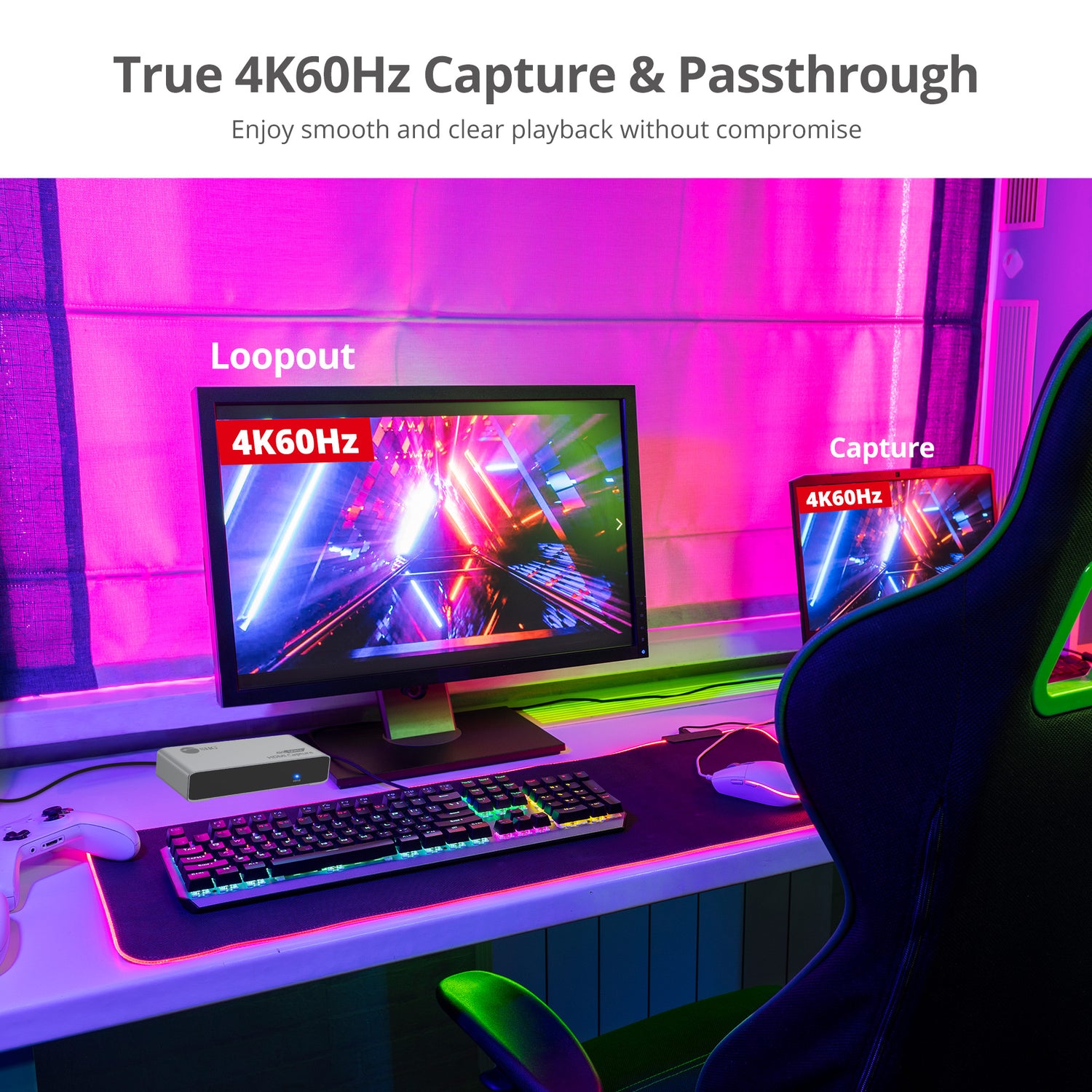

True 4K60 Capture & Passthrough
True 4K60 Capture & Passthrough

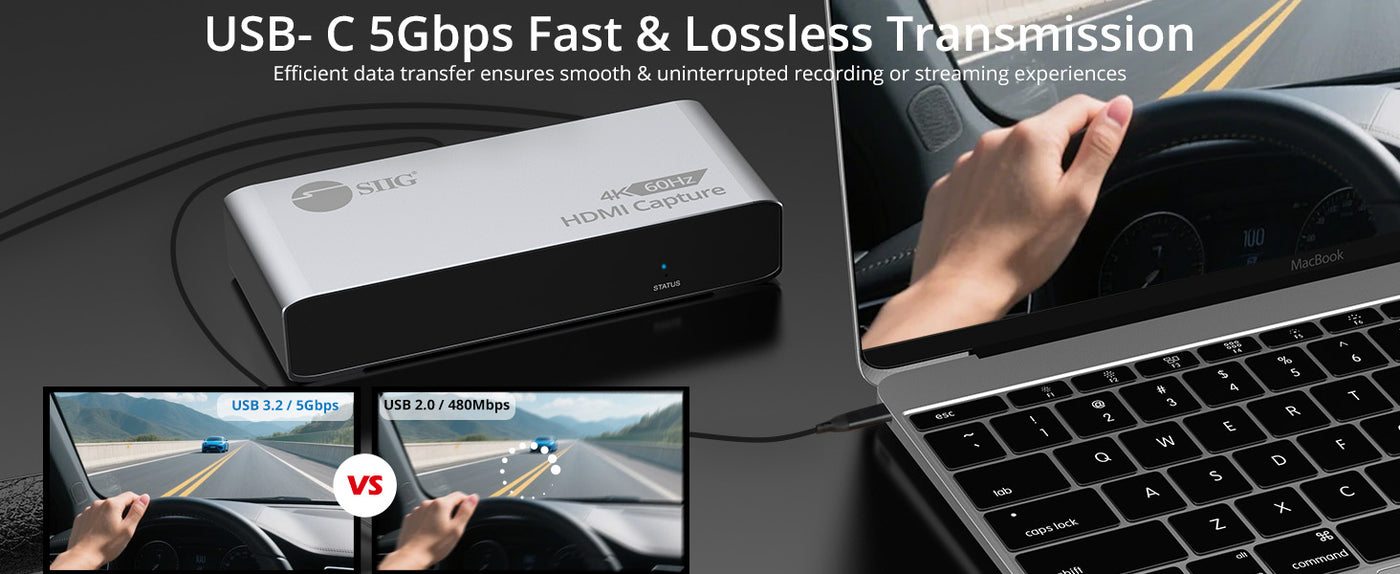

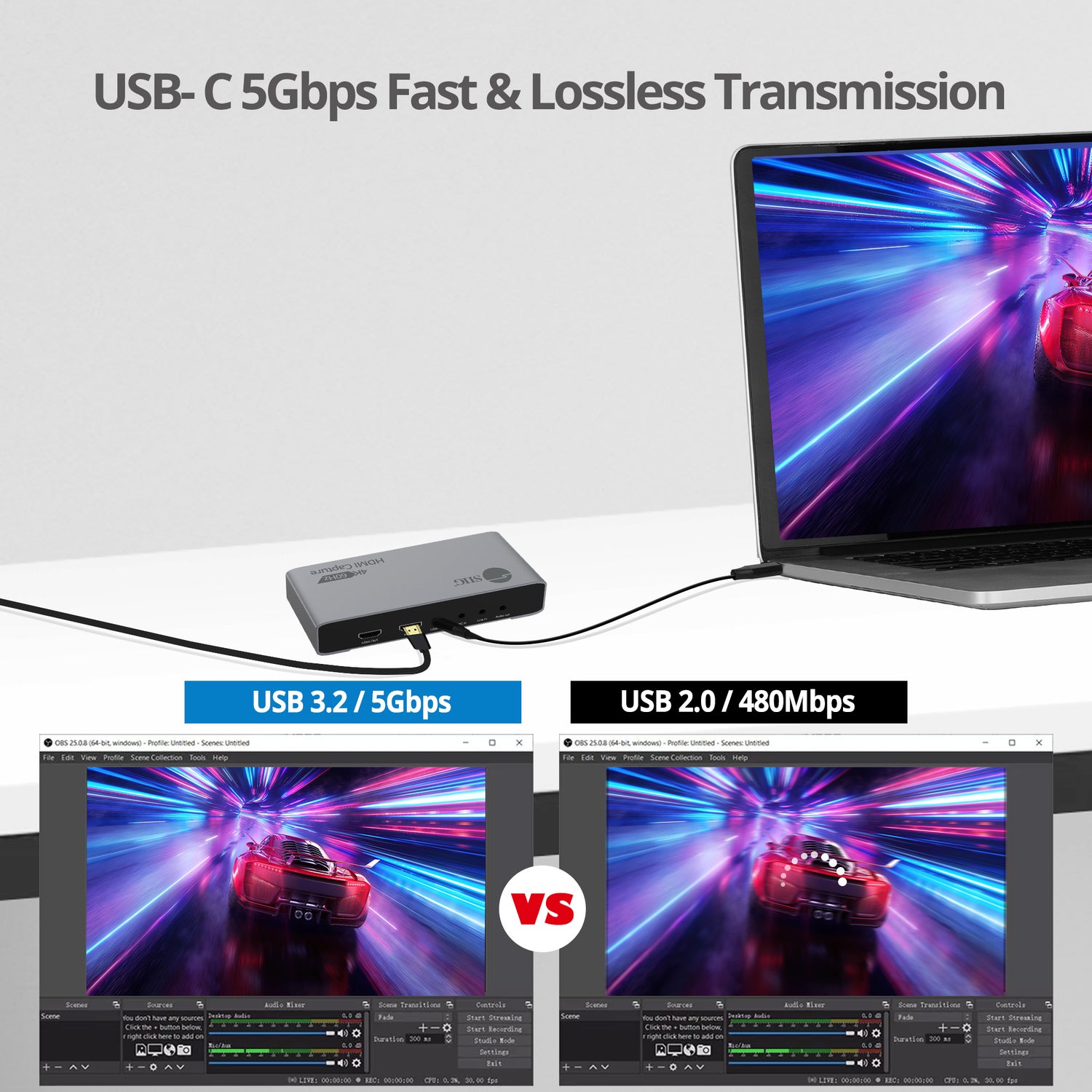

High-Speed USB-C Performance
High-Speed USB-C Performance

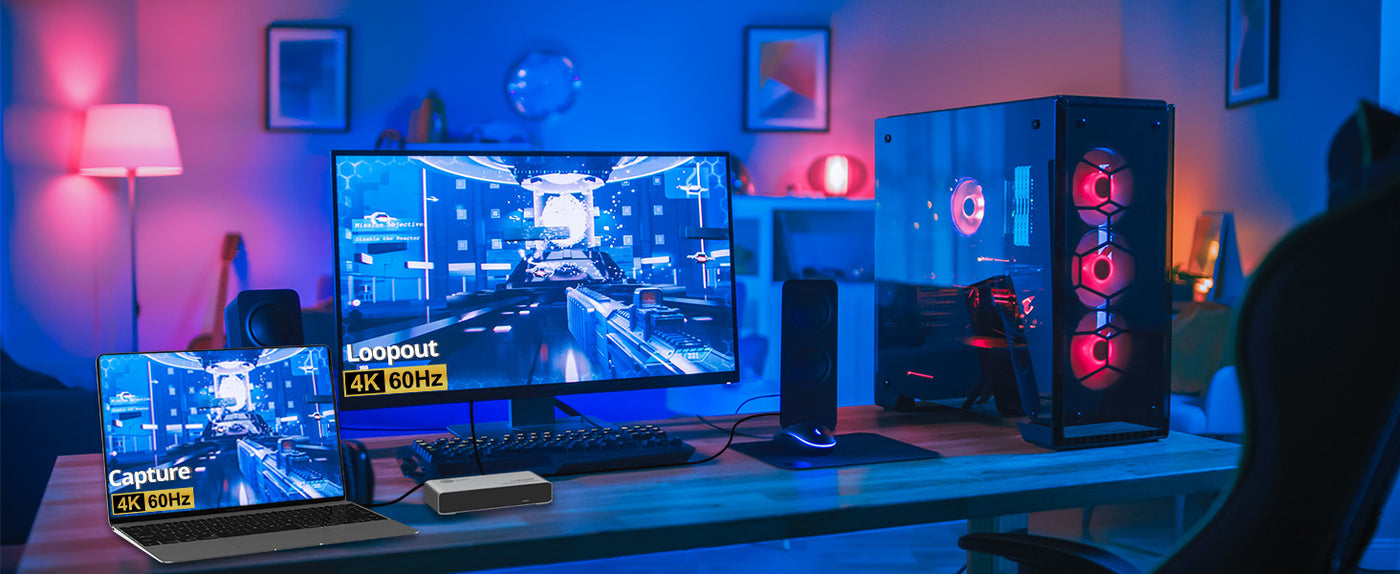

Built-in HDMI Loop-Out
Built-in HDMI Loop-Out
Flexible Audio Input Options
Flexible Audio Input Options
Wide Software Compatibility
Wide Software Compatibility
Made for Creators, Gamers, and Professionals


Overview
This USB-C HDMI Capture Card lets you capture and record true 4K video at 60fps while simultaneously outputting zero-latency 4K60Hz passthrough to your display—no splitter required. Play and capture at the same time with uncompromised quality. Featuring a high-speed USB Type-C connection, it delivers stable video and audio performance. Supports HDMI audio, microphone input, and line-in for flexible audio mixing. Compatible with OBS Studio, AMCap, and Windows, Mac and Linux OS, it’s ideal for streaming, gaming, online meetings, and training.
True 4K60 Capture & Passthrough
Professional-Grade USB-C Performance
No Splitter Needed, No Extra Cost
Flexible Audio for Any Workflow
| USB Version | USB 3.2 Gen 1 5Gbps |
| USB Bandwidth | - USB 3.0: Maximum bandwidth up to 3 Gbps - USB 2.0: Maximum bandwidth up to 331 Mbps |
| HDMI Bandwidth | Single-link 600MHz (18Gbps) Input video up to 4K60Hz |
| Audio Support | HDMI audio extraction |
| Recording Video Format | MJPEG / YUY2 |
| Software Compatibility | OBS Studio (Windows, Linux), AMCap (Windows), Potplayer (Windows)¸VLC (OS X, Linux) |
| ESD Protection | Human body model ±8KV (air-gap), ±4KV (contact) |

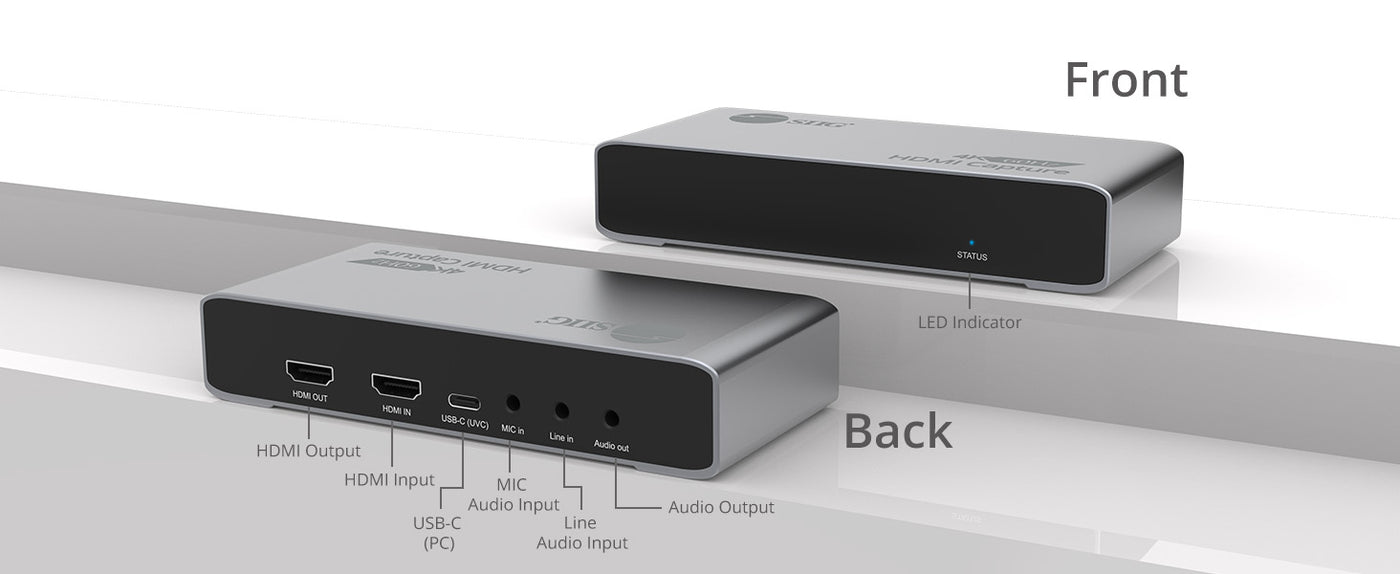

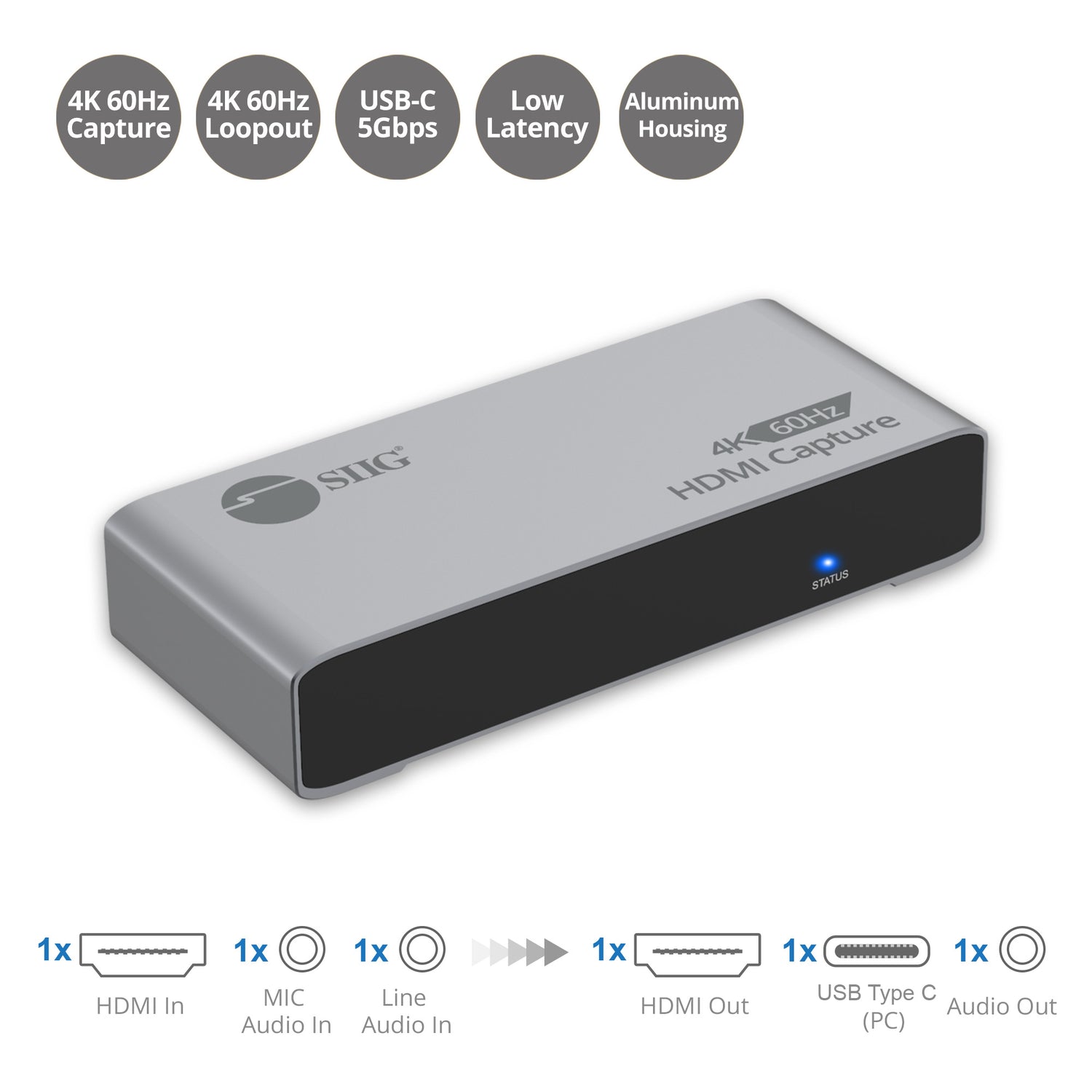

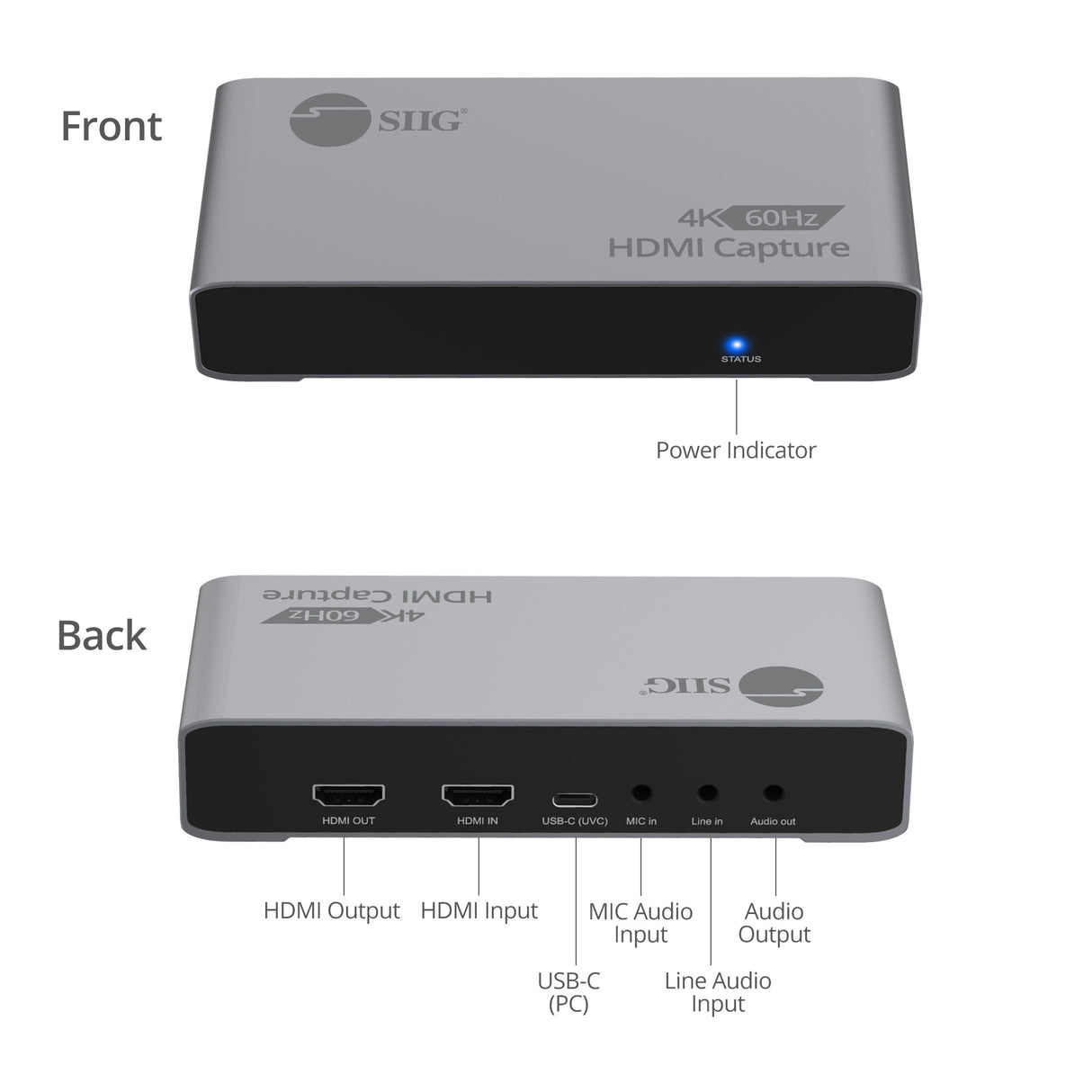

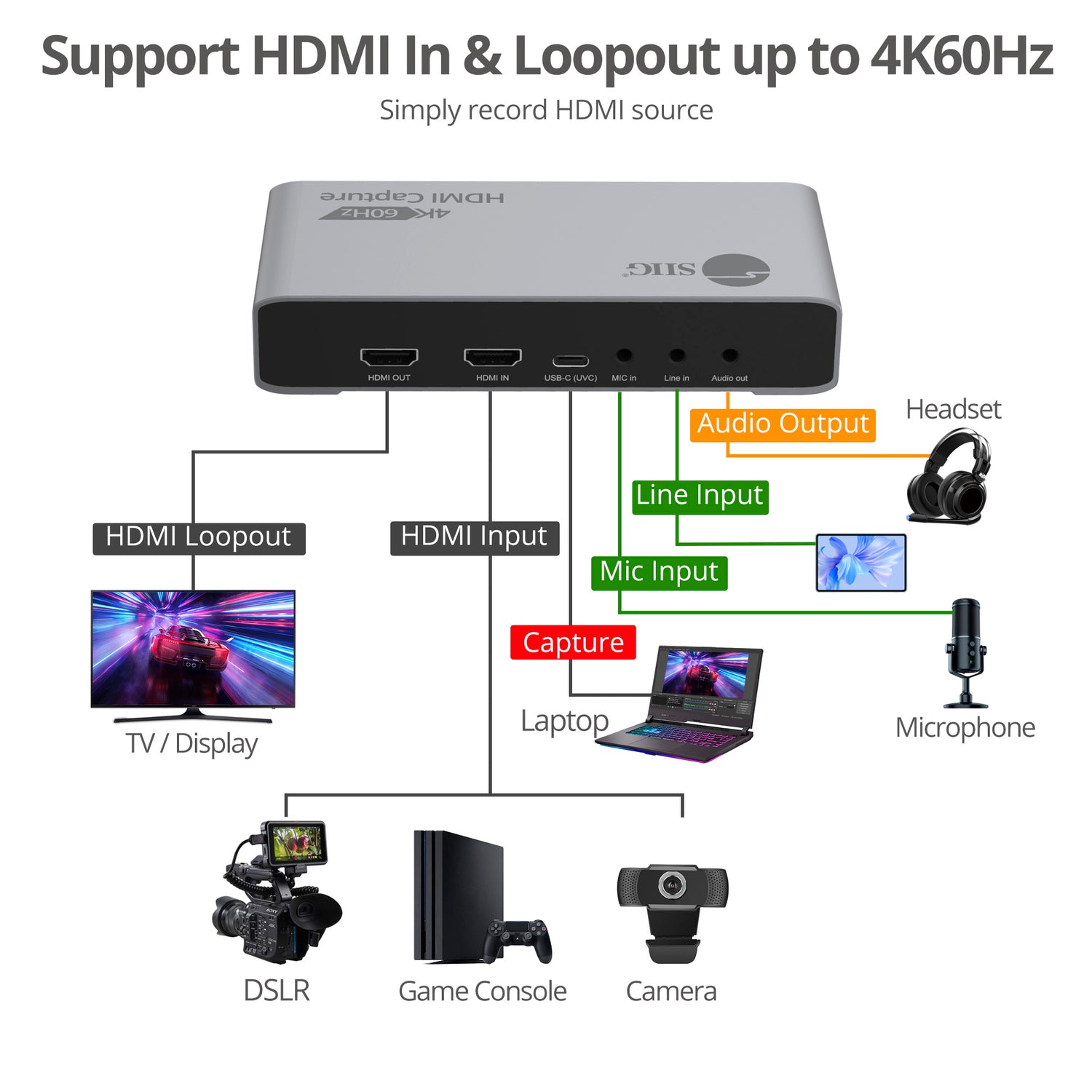

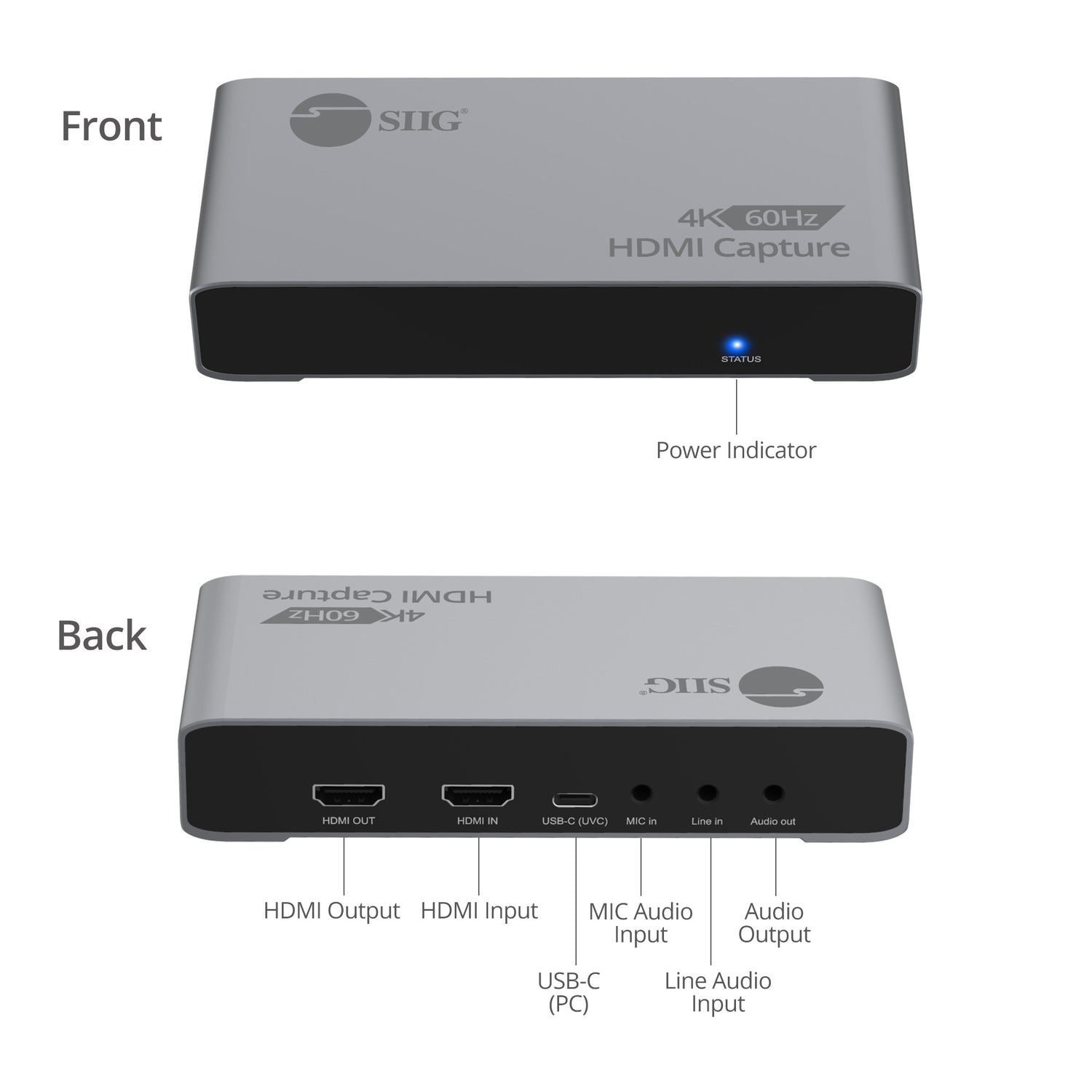

| Connectors | 1x 19-pin HDMI Female, Video input 1x 19-pin HDMI Female, Video Loop-out 1x 24-pin USB Type-C Female, UVC Output 1x 3.5mm Audio, Line input 1x 3.5mm MIC, input 1x 3.5mm Audio, Output |
| Power Supply | USB-C bus power |
| Environmental Conditions | Operating Temp: 32 to 104°F Storage Temp: -4 to 140°F Humidity: 20 to 90% RH (non-condensing) |
| System Requirements | - Desktop PC or Laptop with one available USB 3.2 Gen 1 Type-A or C port - Windows 7 / 8.1 / 10 / 11 (32/64-bit) - Mac and Linux OS |
| Product | |

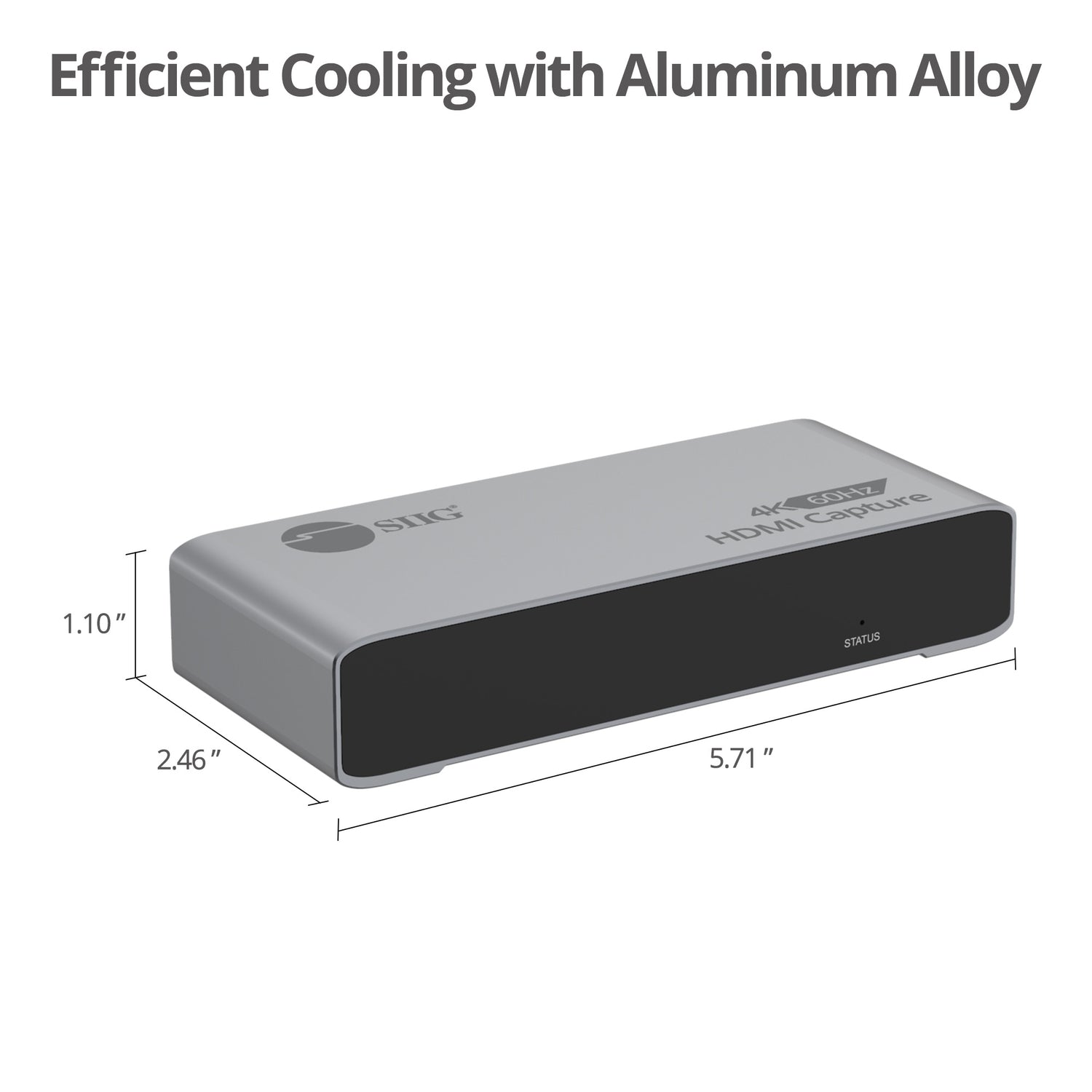

| Dimensions (L) x (H) x (W) | 5.70" x 1.16" x 2.52" 14.48 cm x 2.95 cm x 6.40 cm |
| Weight | 0.60 lbs (0.27 kg) |
| Color | Gray |
| Housing materia | Aluminum |
| Unit Package | |
| Dimensions (L) x (H) x (W) | 6.30" x 2.20" x 2.83" 16.00 cm x 5.60 cm x 7.19 cm |
| Weight | 0.83 lbs (0.38 kg) |
| Master Carton | |
| Dimensions (L) x (H) x (W) | 13.78" x 9.84" x 12.20" 35.00cm x 25.00 cm x 31.00 cm |
| Weight | 26.17 lbs (11.87 kg) |
| Quantity | 30 pcs/ctn |
| Certifications/Standards | FCC, CE, RoHS |
| UPC Code | 662774-047812 |
| Warranty | 2 years limited |
| Country of Origin | China |

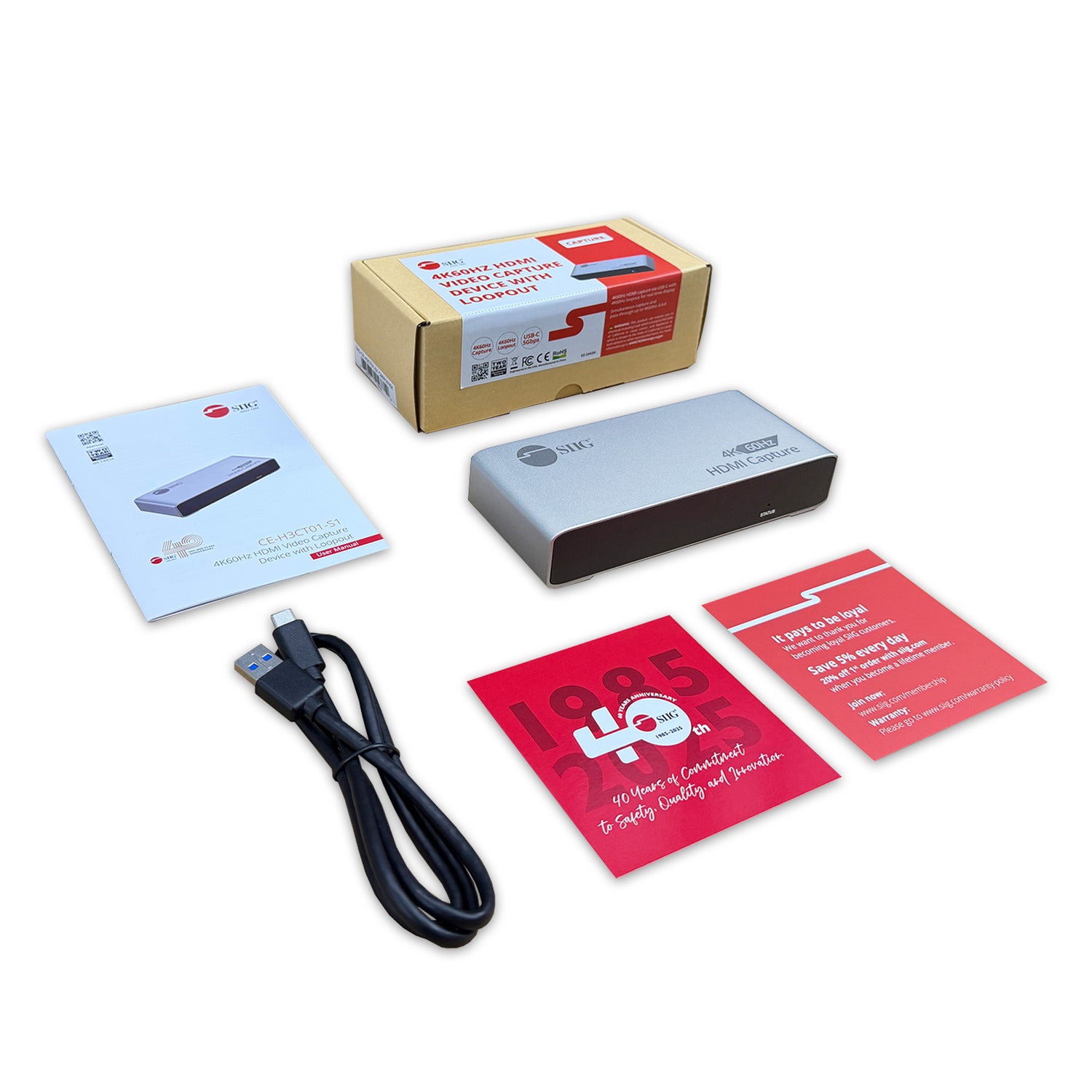

| Package Contents | 1x 4K60Hz HDMI Video Capture Device with Loopout 1x USB A to C cable 1x User manual |
