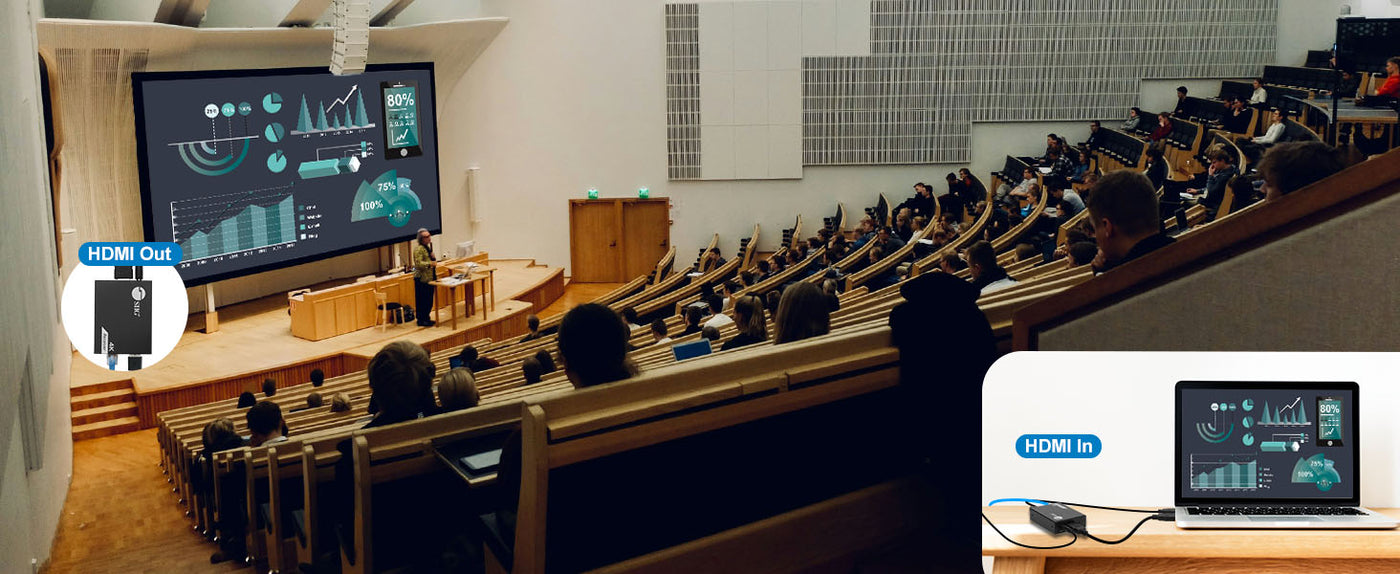

Professional AV Installations Long Distance Digital Signage Education/Training For Home

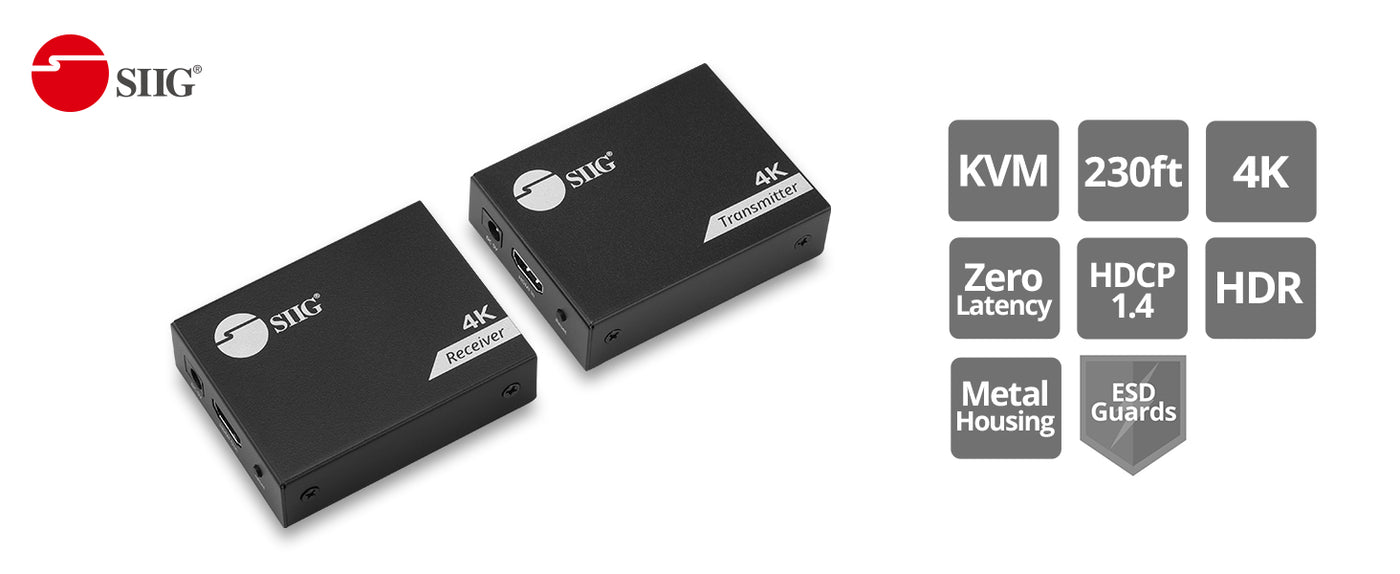

SIIG 4K HDMI USB KVM Extender over Cat6

Transmit 4K@30Hz HDMI, audio, and USB signals up to 394ft (120m) over Cat6. Features HDMI loop-out, downscaler, low-latency performance, and HDCP 1.4 support. Ideal for remote control of PCs, servers, and media devices with plug-and-play setup.

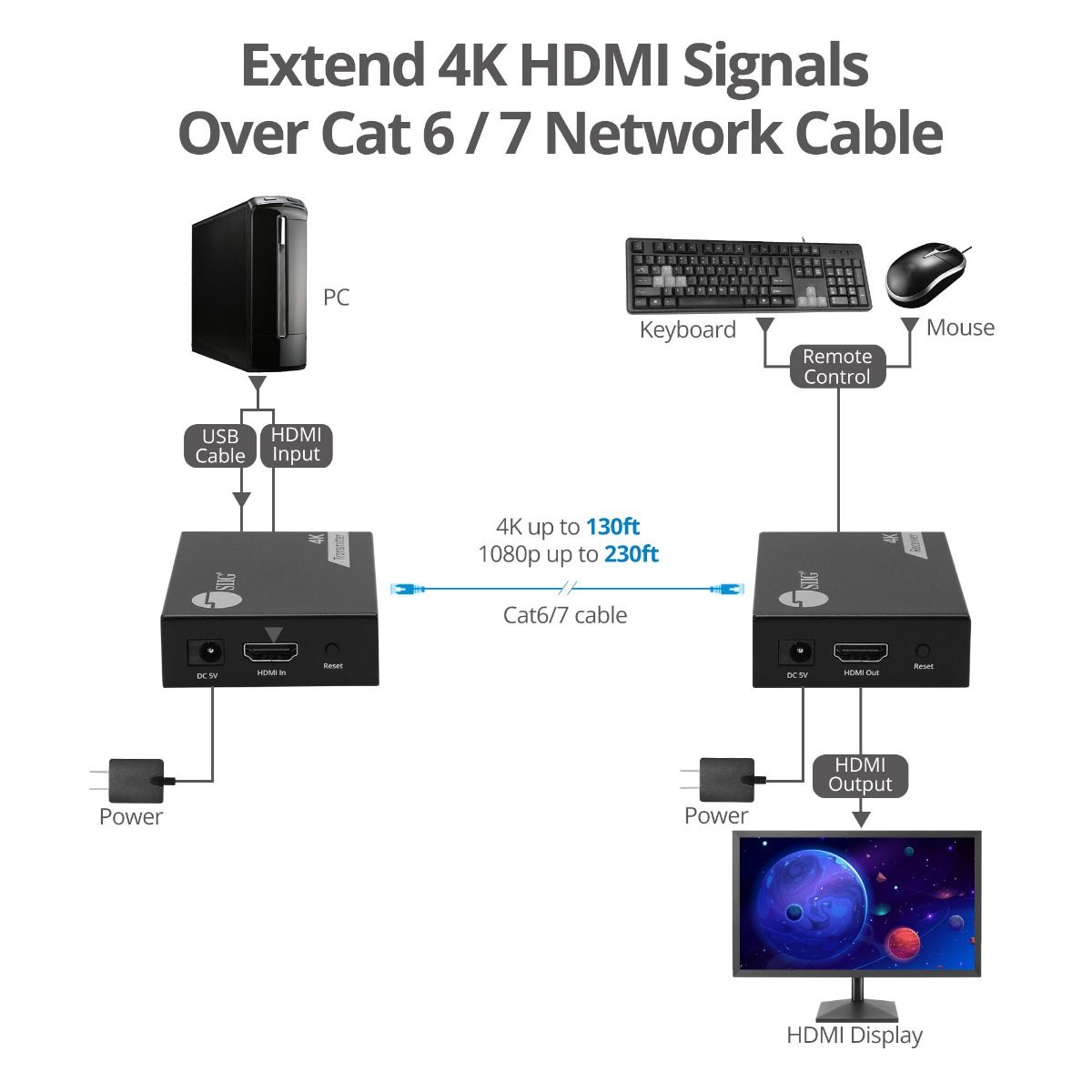

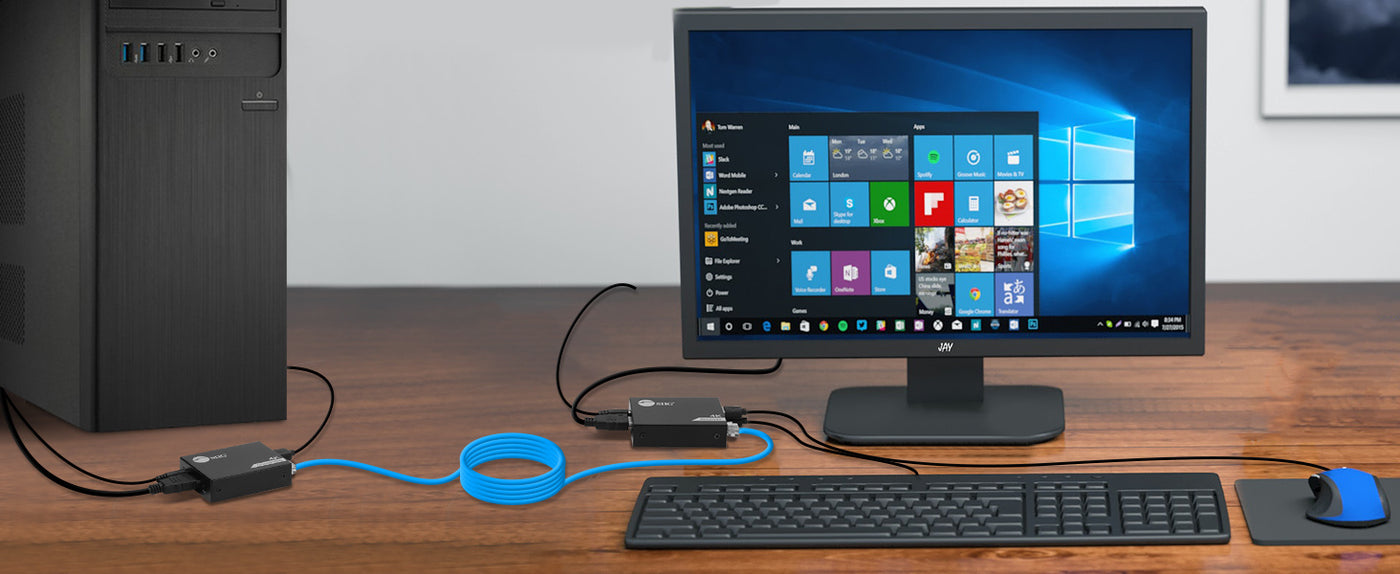

Extending HDMI and USB Signals

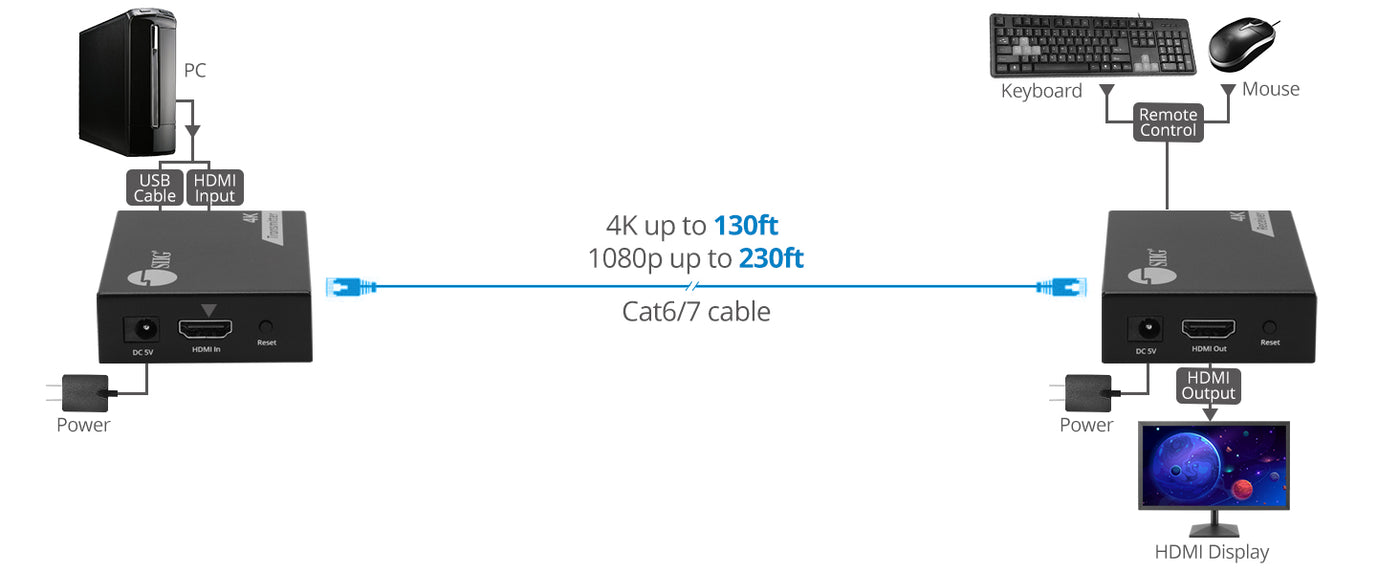

Easily extend HDMI audio/video and USB signals up to 230ft (70m) through a Cat6/7 network cable to remote 1080p display with zero latency and 4K@30Hz transmission distance is up to 130ft (40m), allow you to use a one set of keyboard & mouse for remote control.

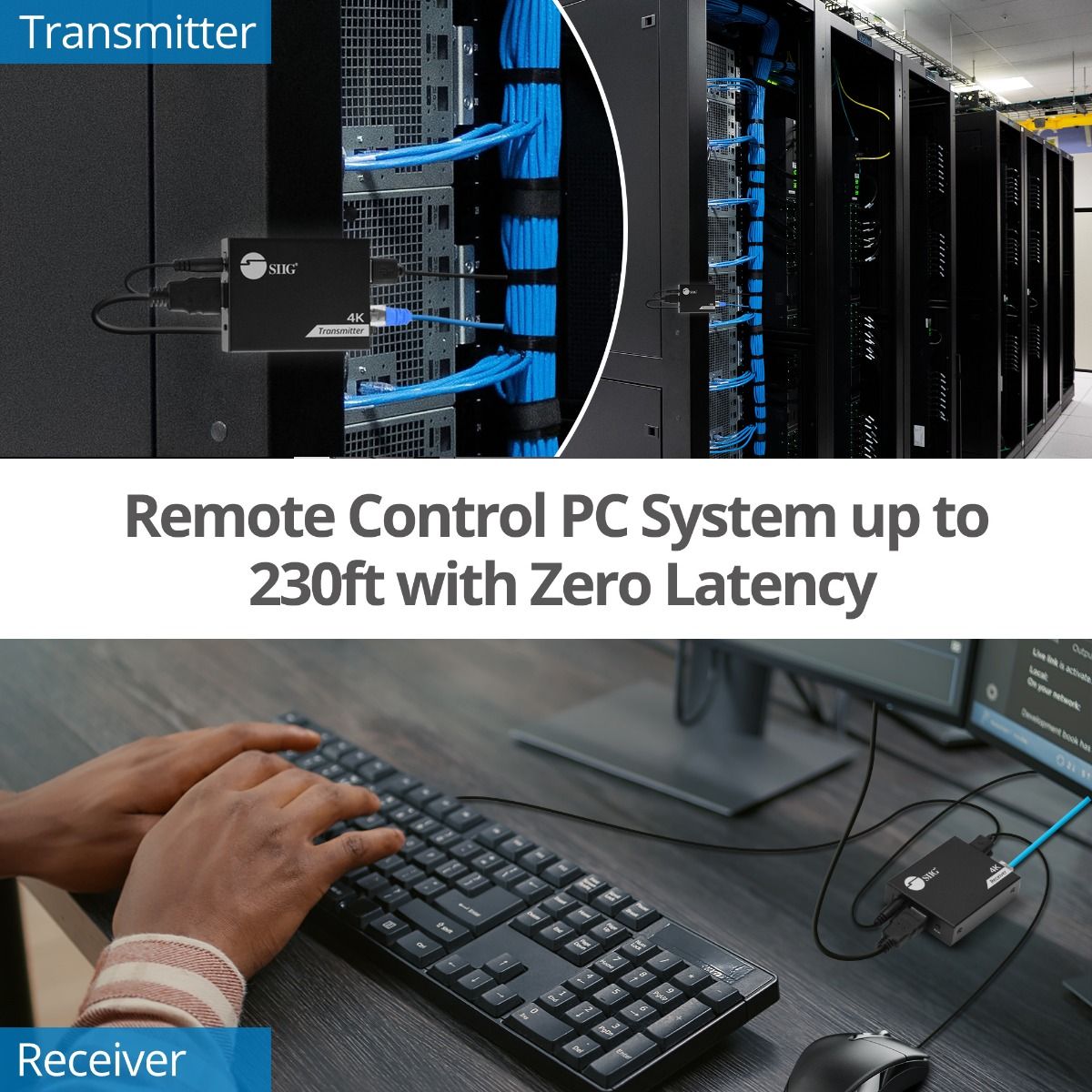

Keyboard and Mouse Control

Delivers three USB Type-A ports, two for independent HID keyboard & mouse to control your PC system from a remote location and one for Host connection such as Laptop or Desktop. It also supports wireless keyboard and mouse with a dongle plugged into the USB port.

•

  4K UHD Video Resolution

  Supports video resolution up to 1080p (1920x1080) @60Hz, 4K@30Hz, HDCP 1.4, HDR 10, YUV 4:4:4 8-bit to deliver a clear picture quality
•

  High Performance

  Offers a true 10.2Gbps video bandwidth and supports PCM 2/5.1/7.1-ch, Dolby 5.1/7.1-ch, DTS 5.1/7.1-ch audio formats
•

  Protection Components

  Supports ESD protection, lightning protection, and surge protection to safe your electronic equipment
•

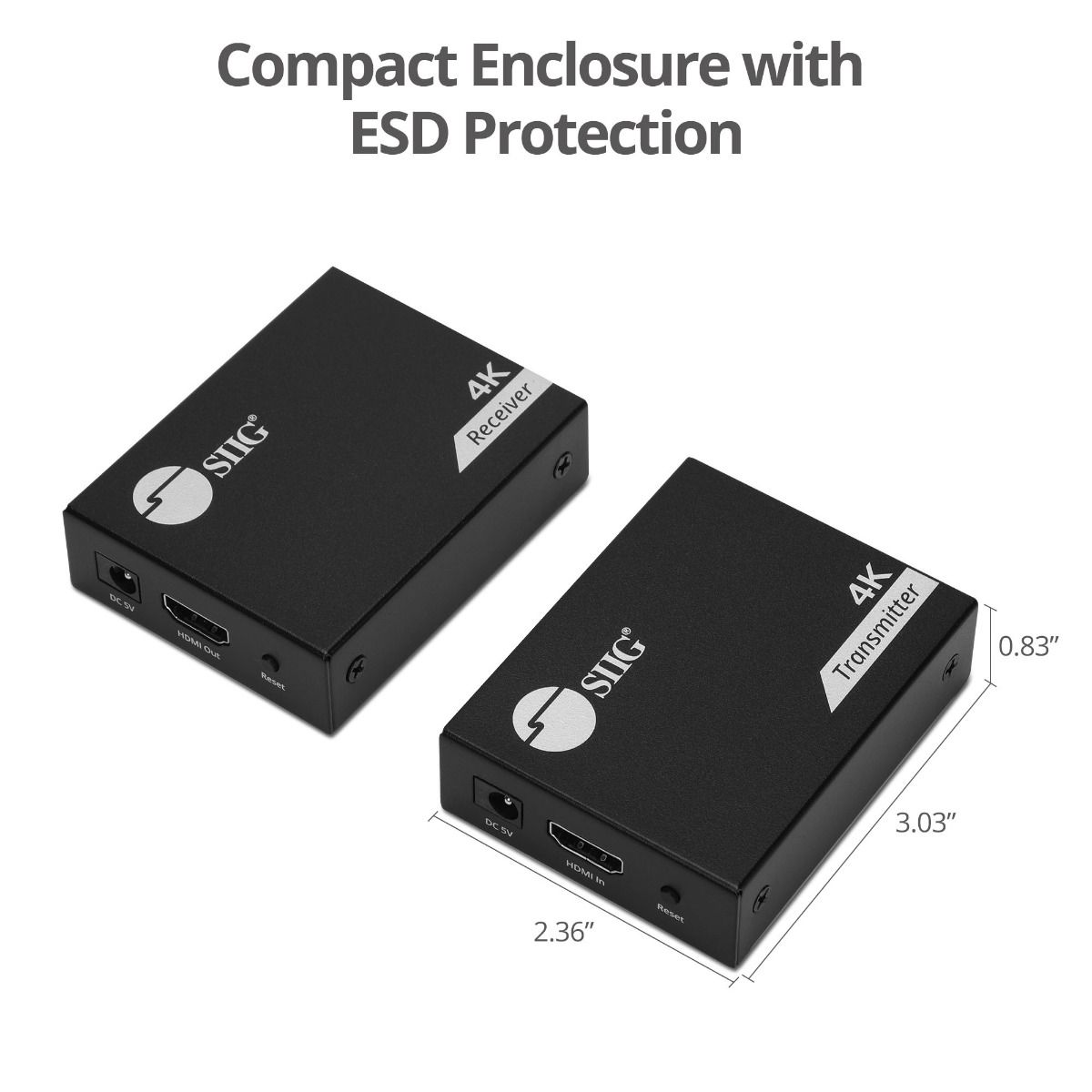

  Compact Metal Housing Design

  Features a high-quality surface metal housing that efficiently dissipates heat, ensuring system stability and trouble-free operation

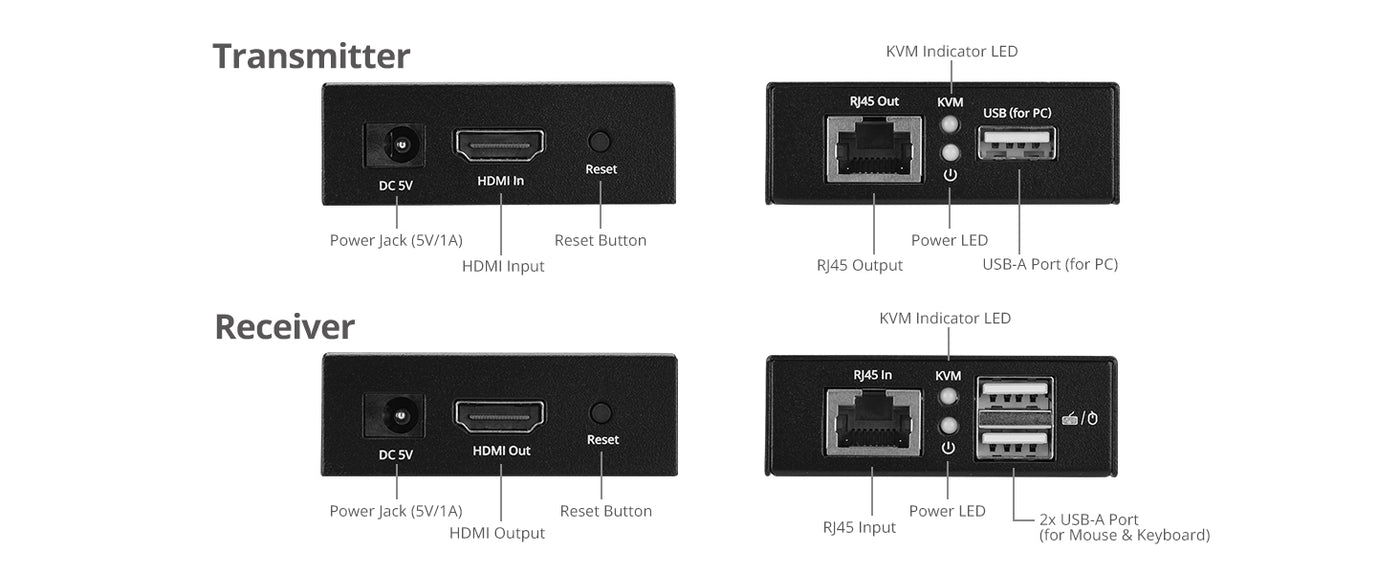

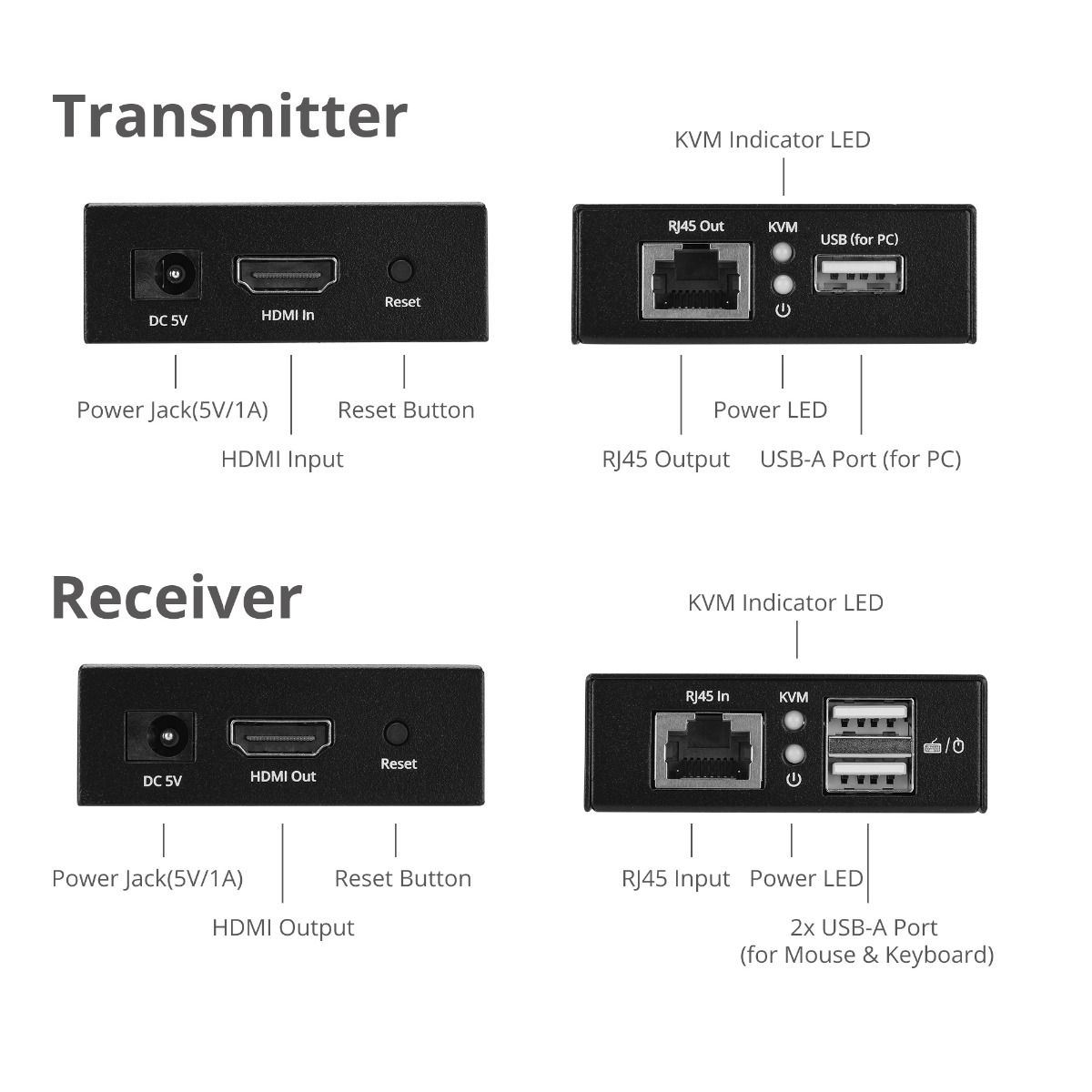

Multiple Connectivity Ports

Comparison Table

A table comparing the facets of 4 products

Facet	4K HDMI USB KVM Extender over Cat6 - Up to 230 feet - Zero Latency - ESD Protection - Metal Housing View details	HDMI 4K30Hz KVM Over IP Extender - 120m(394ft) - Over IP KVM Extender - One to Many - HDMI Loop-out - Downscaler - Low-latency View details	4K 60Hz HDR HDMI KVM Over Cat6 Extender with S/PDIF & Touch Screen Support View details	HDMI USB KVM Over Cat6 Extender - 70m View details
SKU
SKU	CE-H28411-S1	CE-H27R11-S1	CE-H27811-S1	CE-H27411-S1
Connection port
Connection port	3x HDMI, 3x USB-A, 2x RJ45	3x HDMI, 3x USB-A, 2x RJ45	3x HDMI, 3x USB-A, 3.5mm, 2x RJ45, 2x Power Jack	3x HDMI, 3x USB-A, 3.5mm, 2x RJ45, 2x Power Jack
Data Transfer (Max)
Data Transfer (Max)	10.2Gbps	10.2Gbps	18Gbps	10.2Gbps
Additional function
Additional function	KVM	KVM, HDMI Loopout, One to many, Downscale	Audio Extractor, KVM, Support Touch Screen	Audio Extractor, KVM
Housing material
Housing material	Metal	Metal	Metal	Metal
Color
Color	Black	Black	Black	Black
Dimensions
Dimensions	TX/RX: 3.03" (W) x 0.83" (H) x 2.36" (D (7.7 cm x 2.11 cm x 5.99 cm)	TX/RX: 4.09" (W) x 0.91" (H) x 4.41" (D) (10.39 cm x 2.31 cm x 11.20 cm)	TX/RX: 6.02” (L) x 0.87” (H) x 4.15" (W) (15.29 cm x 2.21 cm x 10.54 cm)	TX/RX: 3.35” (W) x 0.79” (H) x 2.95" (D) (8.51 cm x 2 cm x 7.49 cm)
Weight
Weight	TX/RX: 0.27 lbs	TX/RX:0.47 lbs	TX/RX:0.77 lbs	TX/RX:0.29 lbs
Mountable
Certification/ Standards
Certification/ Standards	FCC / CE / RoHS	FCC / CE / RoHS	FCC / CE / RoHS	FCC / CE / RoHS
Warranty
Warranty	2 years	2 years	2 years	2 years
Country of Origin
Country of Origin	China	China	China	China
Resolution
Resolution	Up to 4K30Hz	Up to 4K30Hz	Up to 4K60Hz	Up to 1080p 60Hz
Audio spec
IR function
Remote control
EDID button
Distance
Antenna spec
Reset key
Bandwidth
Bandwidth	10.2Gbps	10.2Gbps	18Gbps	10.2Gbps
Power Output (Max)
Power Indicator
Power Indicator	Yes	Yes	-	-
Protection
Protection	ESD	ESD	ESD	ESD
Protocol
Protocol	Passthrough	TCP/IP	USB, HDMI	USB, HDMI
Power Adapter
Power Adapter	5V/1A	5V/1A	5V/2A	5V/1A
Spec
Spec	USB 1.1, HDMI 1.4, HDCP 1.4	USB 1.1, HDMI 1.4, HDCP 1.4	HDMI 2.0, HDCP 2.2, USB 2.0	HDMI 1.3, HDCP 1.4, USB 1.1
