Extender |
SKU:
CE-H23F11-S1

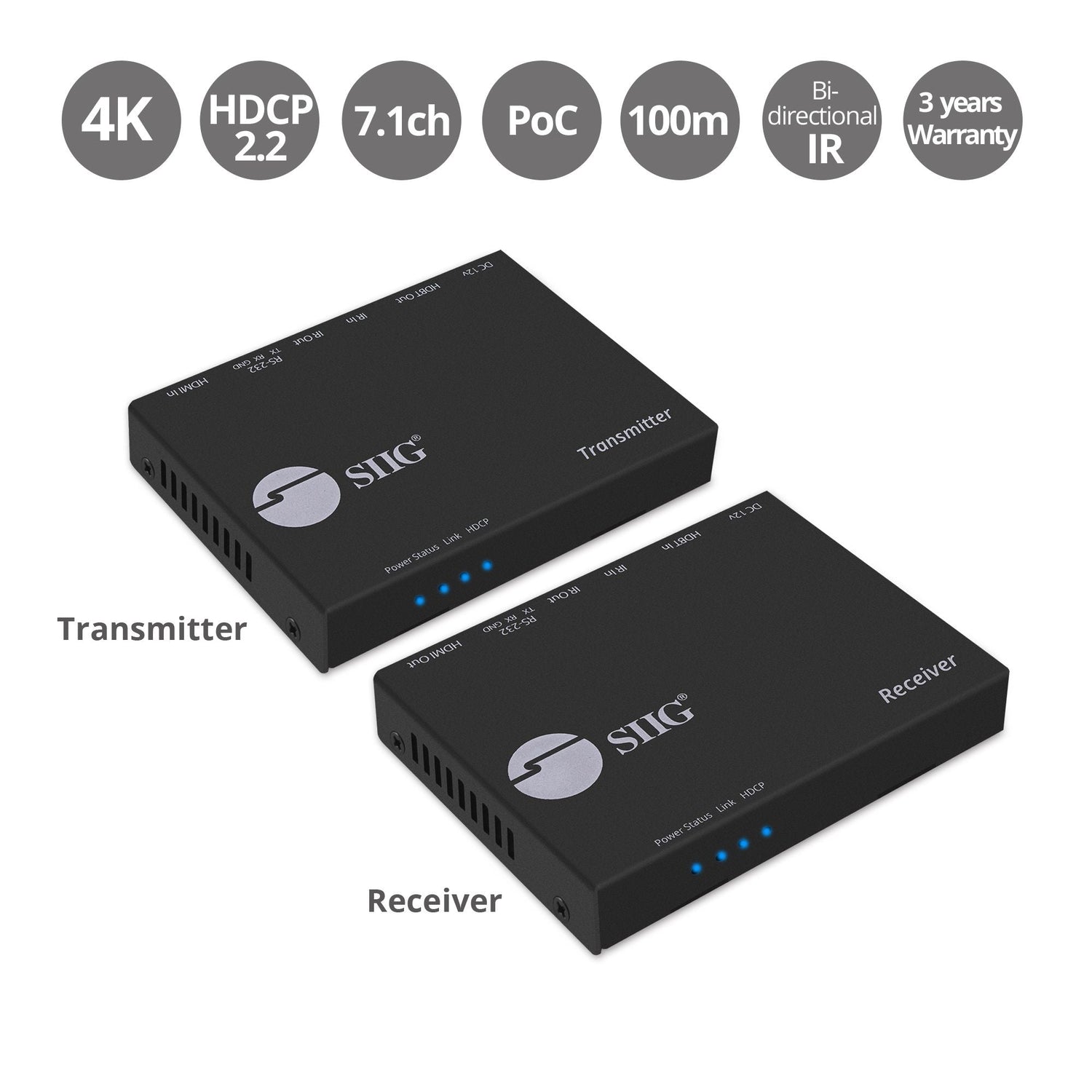

4K HDMI HDBaseT Extender Over Single Cat5e/6 with RS-232, IR & PoC - 100m
HDBaseT Extender
330ft (100m)
4K30Hz
PoC
RX-232
Regular price
$719.99
Unit price
/
Unavailable
Shipping calculated at checkout.
4K HDMI HDBaseT Extender Over Single Cat5e/6 with RS-232, IR & PoC - 100m is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Features
Advanced Freatures
Advanced Freatures
Delivers Crystal
Delivers Crystal
Bi-directional IR
Bi-directional IR
Full Dupless RS-232 & PoC
Full Dupless RS-232 & PoC
Recommendation & Quality Components
Recommendation & Quality Components
No content found
| Transmission Protocol | HDBaseT technology *Note: Does not support connecting to Router or Switch |
| Video | |
| HDMI | 1x input, 1x output |
| Standard | HDMI 1.4, HDCP 2.2 / 1.4 compliant |
| Bandwidth | Up to 10.2Gbps (340MHz per channel) |
| Latency | < 20us |

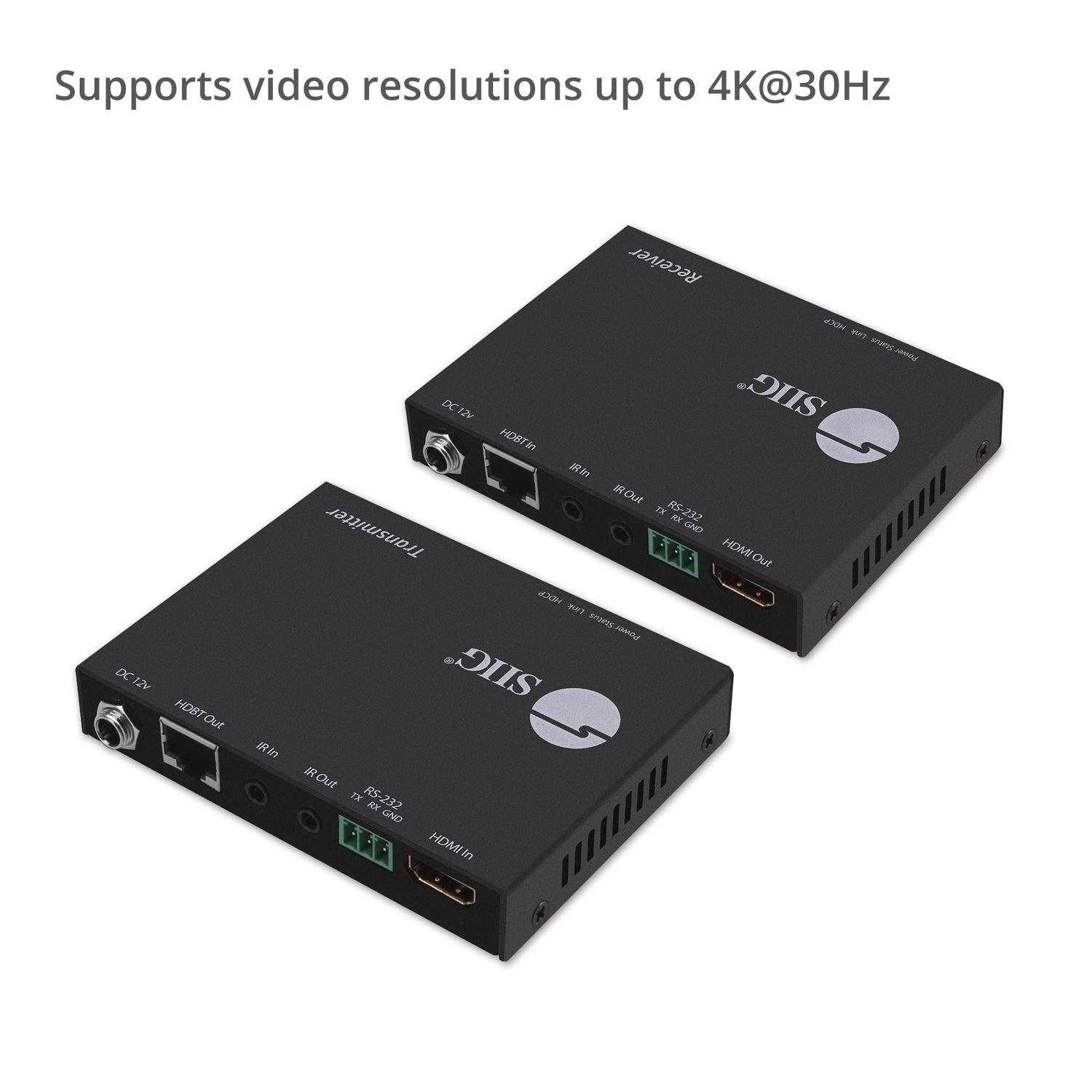

| Resolution | 480p / 720p / 1080i / 1080p 60Hz / 3840x 2160p 30Hz (YUV 4:4:4 8-bit / YUV 4:2:0 10-bit) Deep Color and full 3D |
| Transmission Distance | The transmission distance will vary depending on cable quality, 100% copper and IEEE-T568B wiring standard recommended 1080p 60Hz: up to 330ft (100 meters) 3840x2160 30Hz: up to 230ft (70 meters) |
| CEC | Yes |
| EDID | bypass |
| Audio | Surround sound (up to 7.1ch), stereo digital, DTS-HD Master Audio and Dolby TrueHD high bit rate |
| IR Signal | Bi-directional IR pass-through Full Frequency: 20KHz to 60KHz |

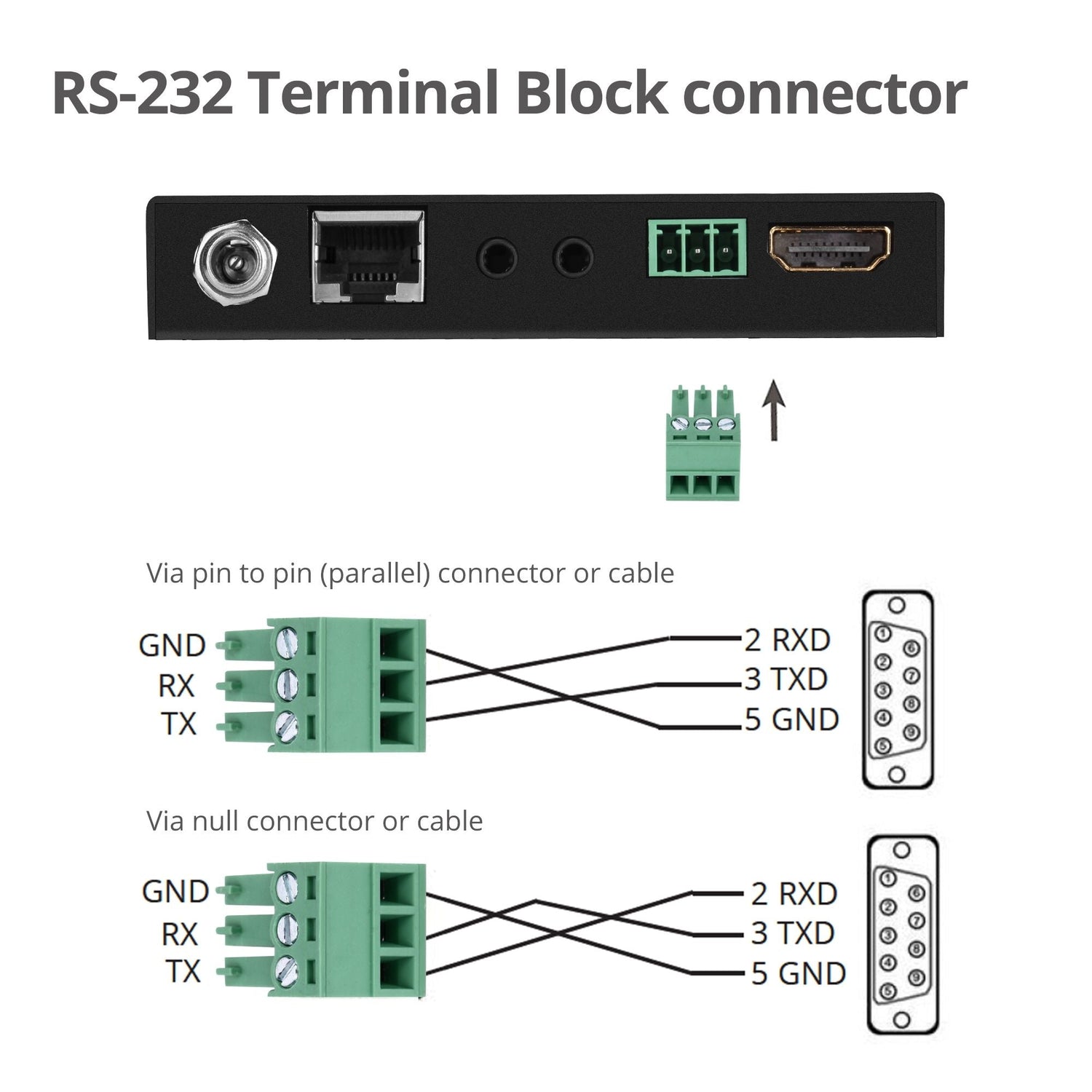

| Full Duplex RS-232 pass-through | up to 115,200bps through Phoenix connector |

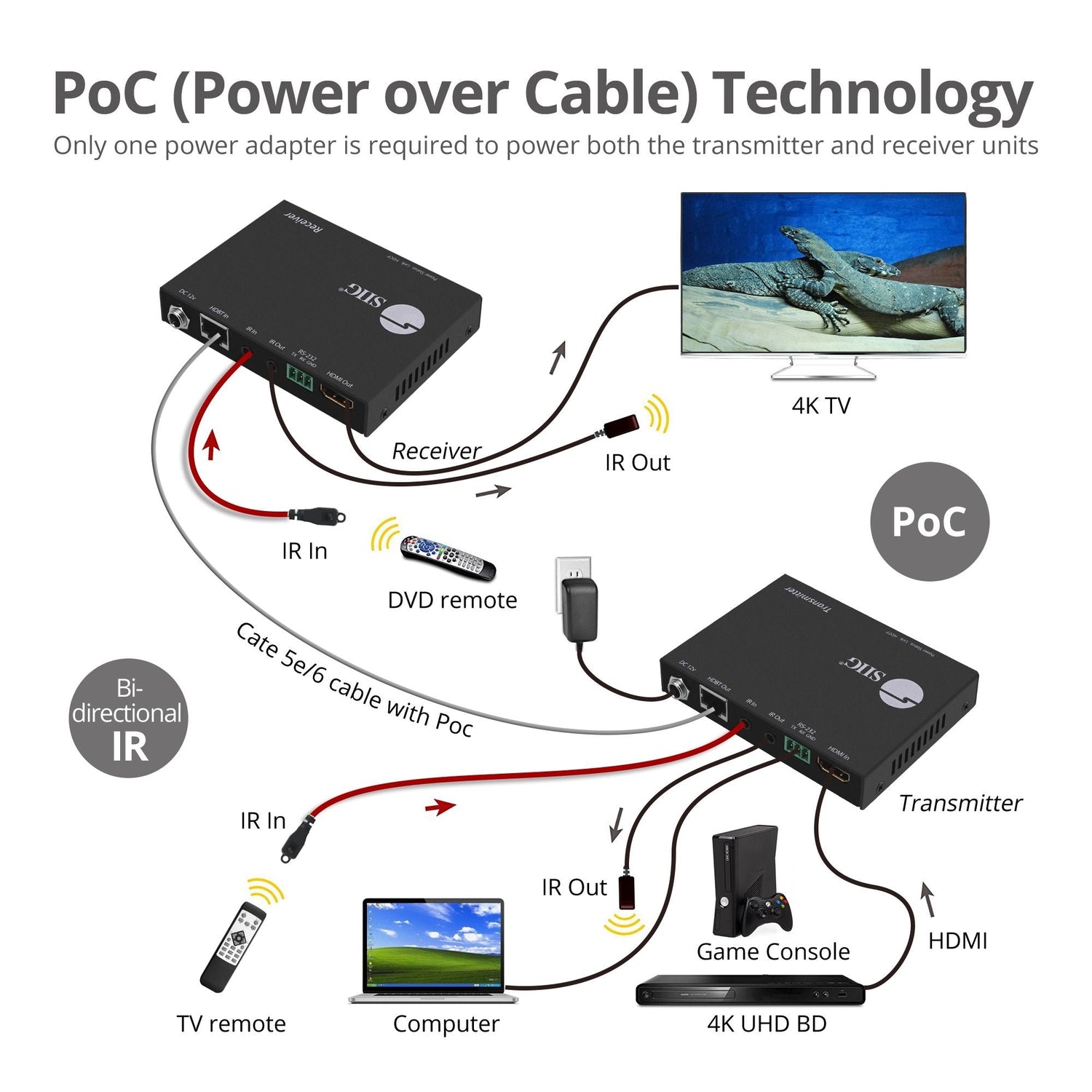

| PoC (Power over Cable) | Allows a single power supply connected to either the TX or RX unit to power both units |
| ESD Protection | ±15kV Air / ±8kV Contact |
| Auto Skew Equalization | Yes |
| Power Adapter | |
| Input | 100-240V, 50 / 60Hz |
| Output | DC 12V / 2A |
| UL Listed | E163743 / Class VI |
| Interface | |

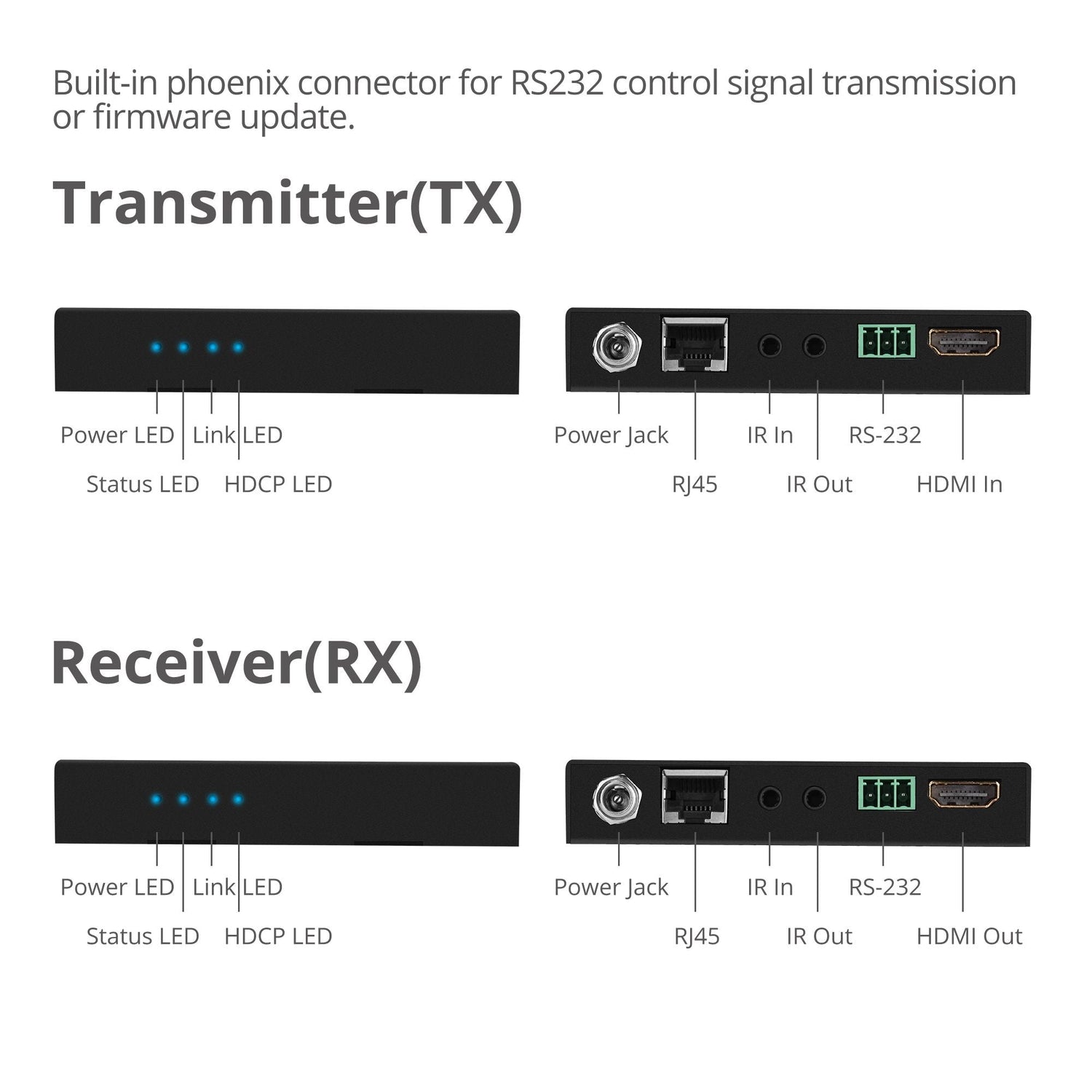

| Transmitting unit (TX) | 1x 19-pin HDMI, Type A, Female, Input 1x 8-pin, RJ45, output 1x 3.5mm jack, IR In 1x 3.5mm jack, IR Out 1x Power LED indicator 1x 3-Pin, RS-232, Pass-through, Phoenix connector 1x Power jack |
| Receiving unit (RX) | 1x 19-pin HDMI, Type A, Female, Output 1x 8-pin, RJ45, Input 1x 3.5mm jack, IR In 1x 3.5mm jack, IR Out 1x Power LED indicator 1x 3-Pin, RS-232, Pass-through, Phoenix connector 1x Power jack |
| System Requirements | - HDMI source device, such as computers, game consoles, Blu-ray/DVD players, and media players - HDMI displays, monitors, and HD TVs - HDMI cables |
| Product | |
| Transmitting Unit (TX) | |

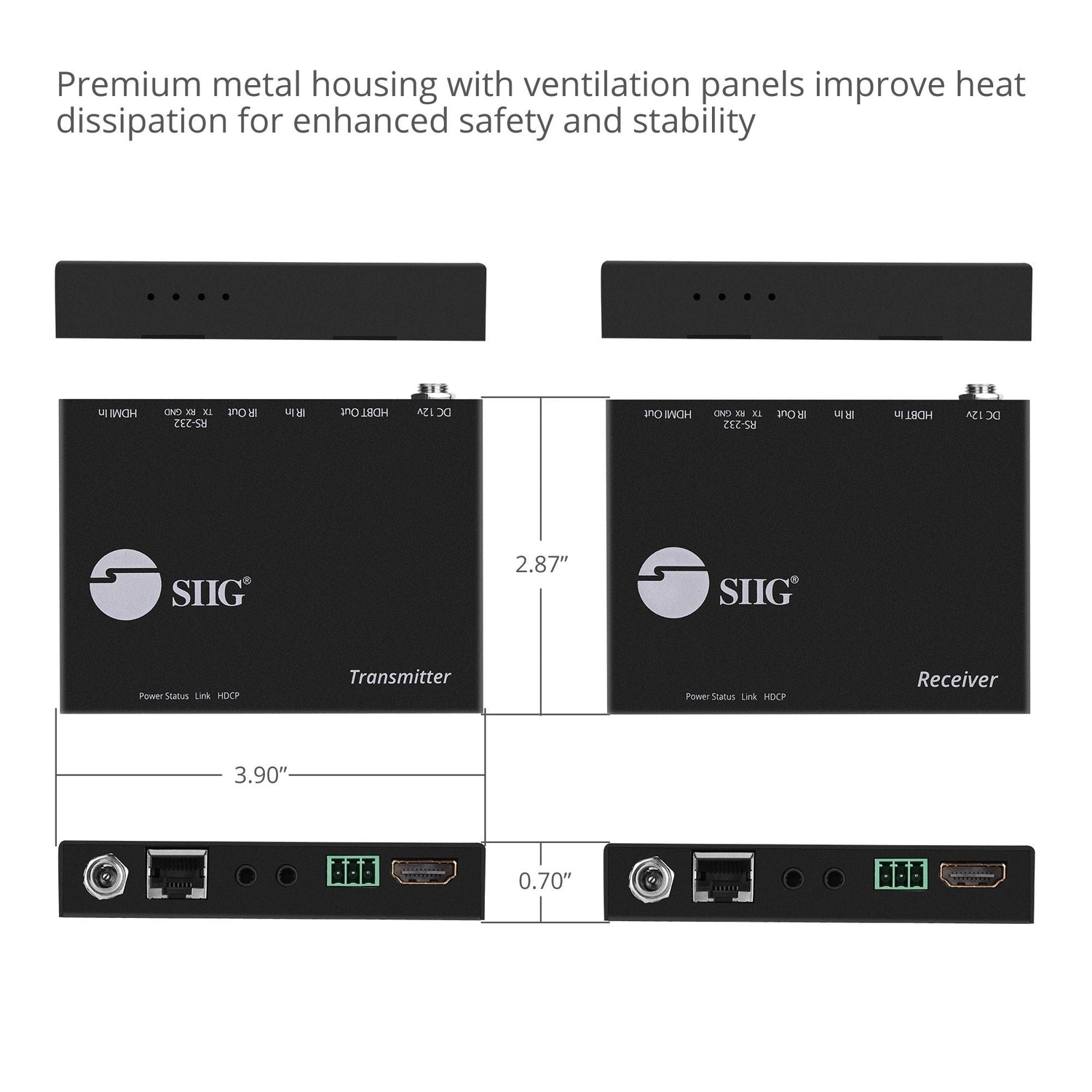

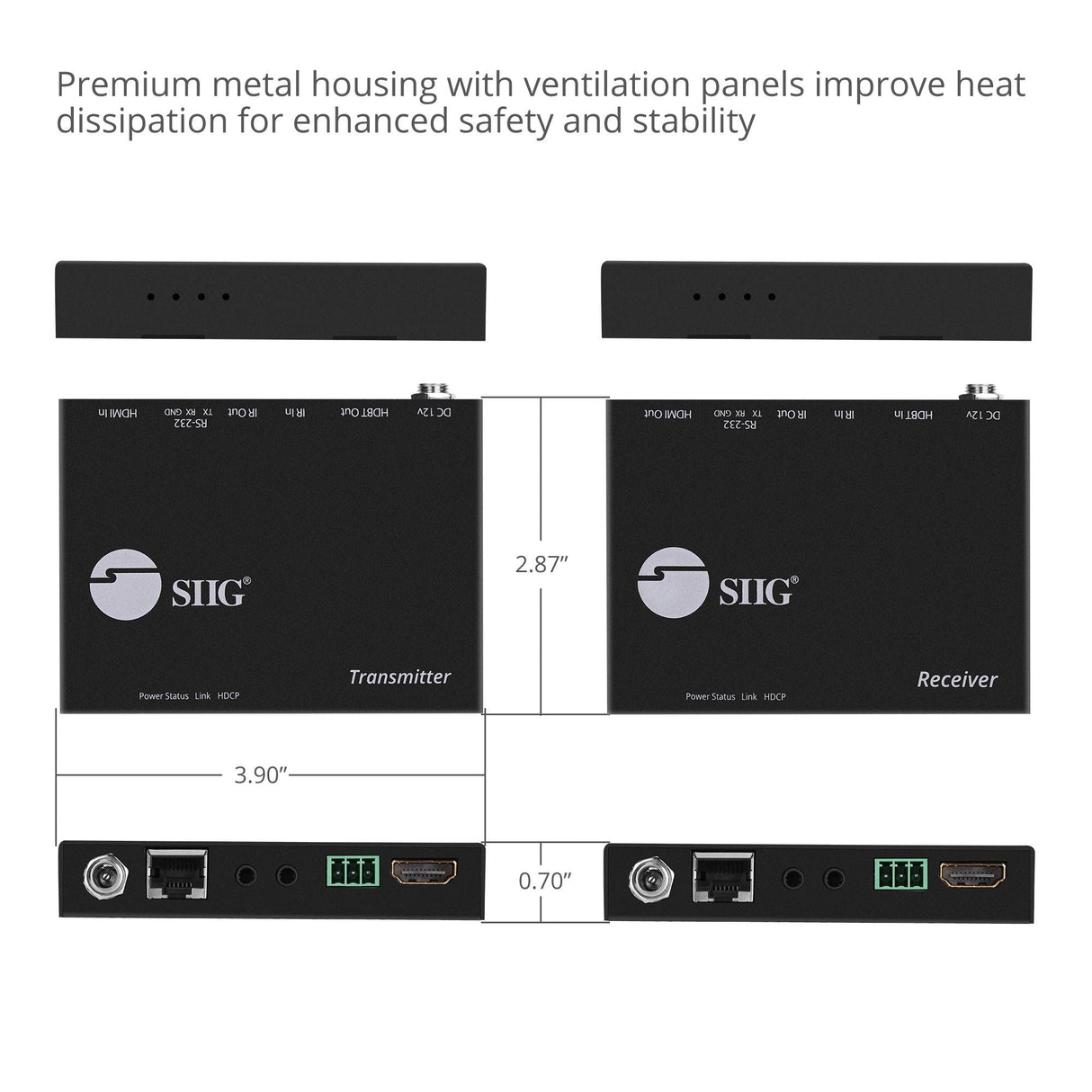

| Dimensions (L) x (H) x (W) | 4.06" x 0.83" x 2.87" 10.31 cm x 2.11 cm x 7.29 cm |
| Weight | 0.24 lbs (0.11 kg) |
| Housing Material | Aluminum (housing with wall mount design) |
| Receiving Unit (RX) | |
| Dimensions (L) x (H) x (W) | 4.06" x 0.83" x 2.87" 10.31 cm x 2.11 cm x 7.29 cm |
| Weight | 0.25 lbs (0.11 kg) |
| Housing Material | Aluminum (housing with wall mount design) |
| Unit Package | |
| Dimensions (L) x (H) x (W) | 10.39″ x 3.03″x 6.69″ 26.39 cm x 7.70 cm x 16.99 cm |
| Weight | 1.61 lbs (0.73 kg) |
| Master Carton | |
| Dimensions (L) x (H) x (W) | 16.93″ x 11.46″ x 14.10″ 43.00 cm x 29.11 cm x 35.81 cm |
| Weight | 18.3 lbs (8.30 kg) |
| Quantity | 10 pcs/ctn |

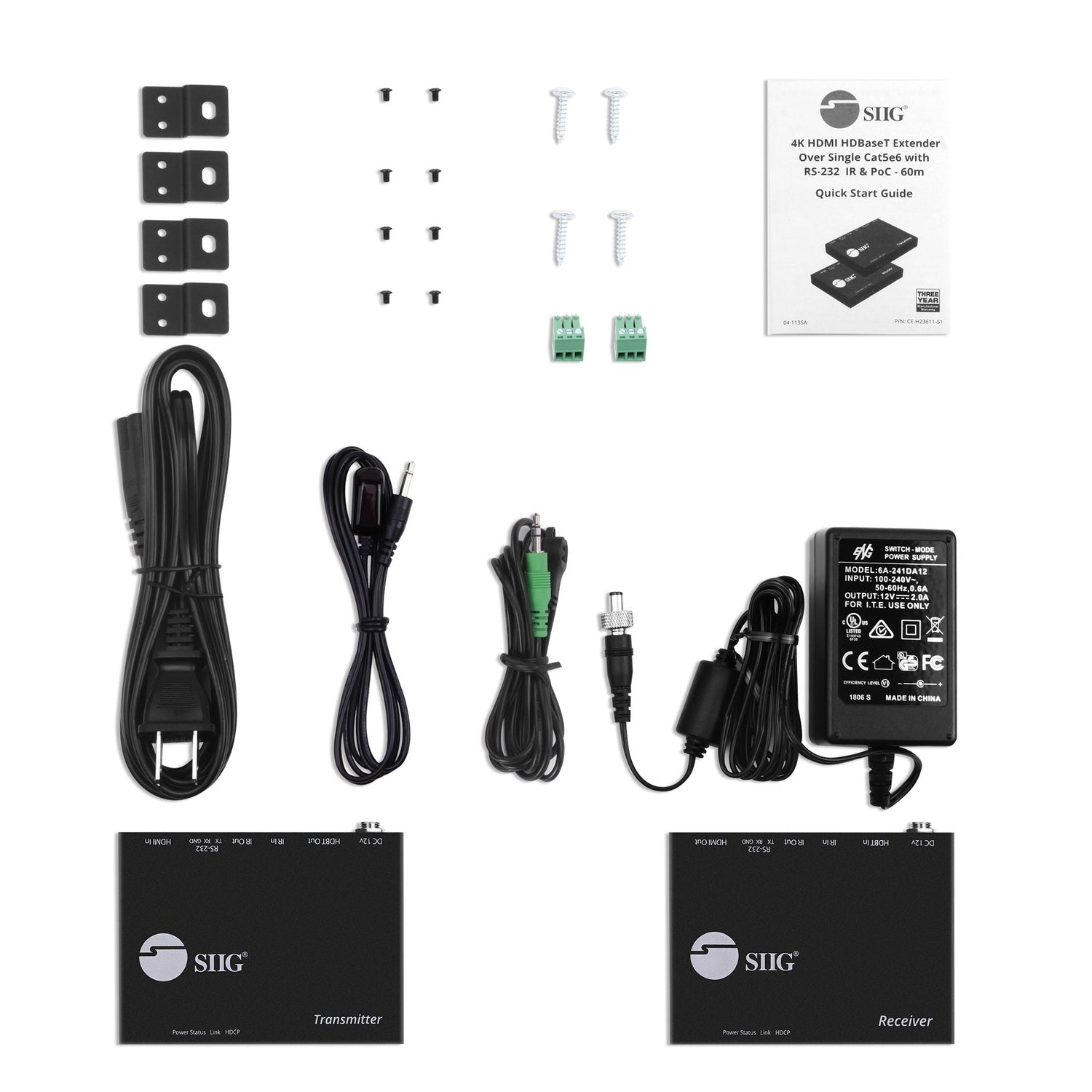

| Package Contents | 1x 4K HDMI HDBaseT Extender Over Single Cat5e/6 with RS-232, IR & PoC - 100m 1x ower adapter 1x IR Blaster extension cable 1x IR receiver extension cable 4x Mounting ears 1x Screw kit (4pcs + 8pcs) 2x Terminal block kit 1x User reference guide |
| Environmental Conditions | |
| Operating Temperature | 32° to 104° F |
| Storage Temperature | 14° to 158° F |
| Operating Humidity | 5% to 90% RH (non-condensing) |
| Certifications/Standards | FCC, CE, RoHS, TAA compliant |
| UPC Code | 662774-041407 |
| Warranty | 3 years limited |
| Country of Origin | Taiwan |
