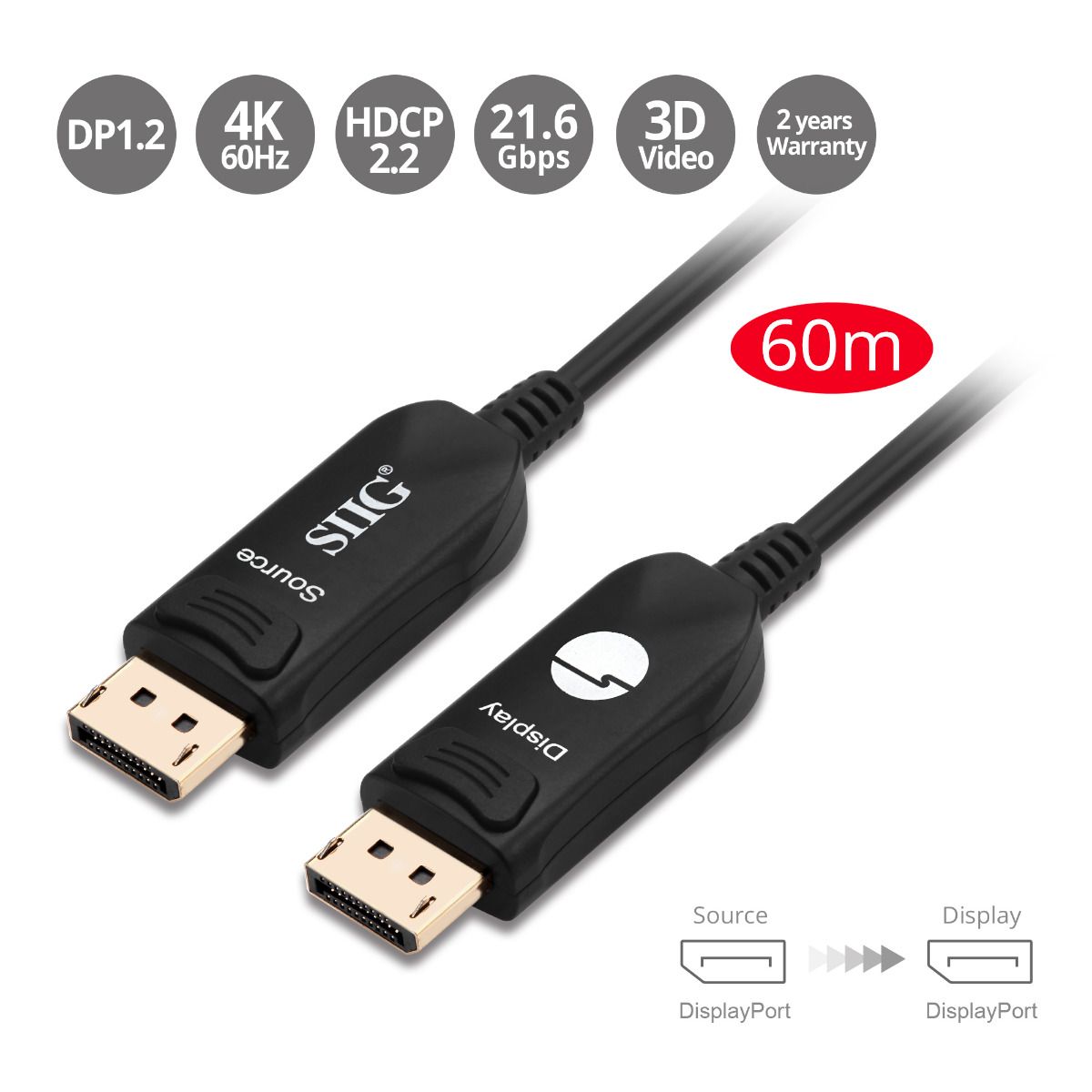

4K DP 1.2 AOC Cable - 60M
4K DP 1.2 AOC Cable - 60M is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Features

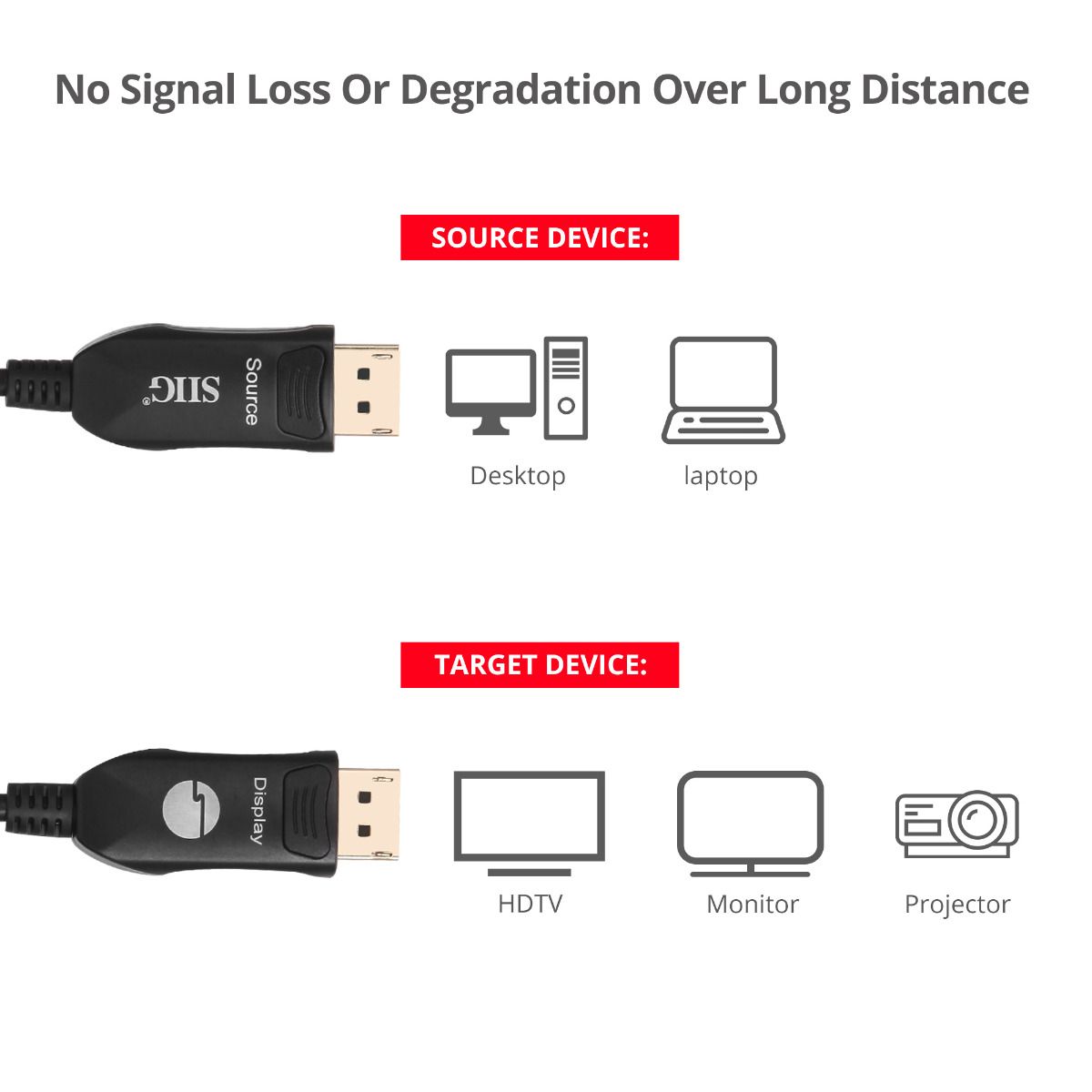

Long-Distance 4K Transmission
Long-Distance 4K Transmission
4K60Hz Ultra HD Performance
4K60Hz Ultra HD Performance
Active Optical Cable Technology
Active Optical Cable Technology
Low Interference Design
Low Interference Design

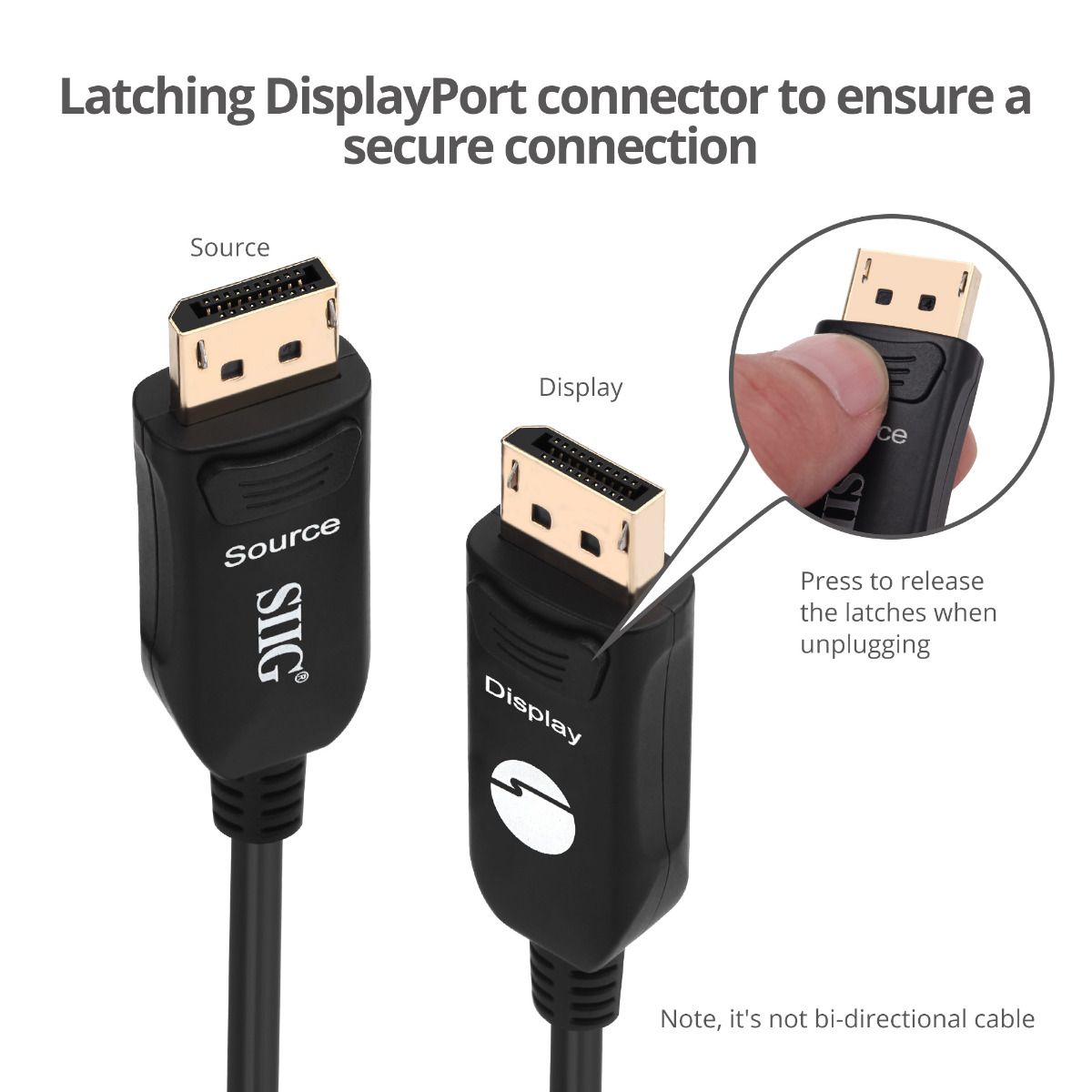

Secure & Directional Connection
Secure & Directional Connection
-
45 Days Free Return
-
2 Years Warranty
-
Lifetime Technical Support
| Standard | DisplayPort 1.2, HDCP 2.2 and 1.4 compliant |
| Resolution | Up to 4Kx2K 60Hz YUV 4:4:4 |

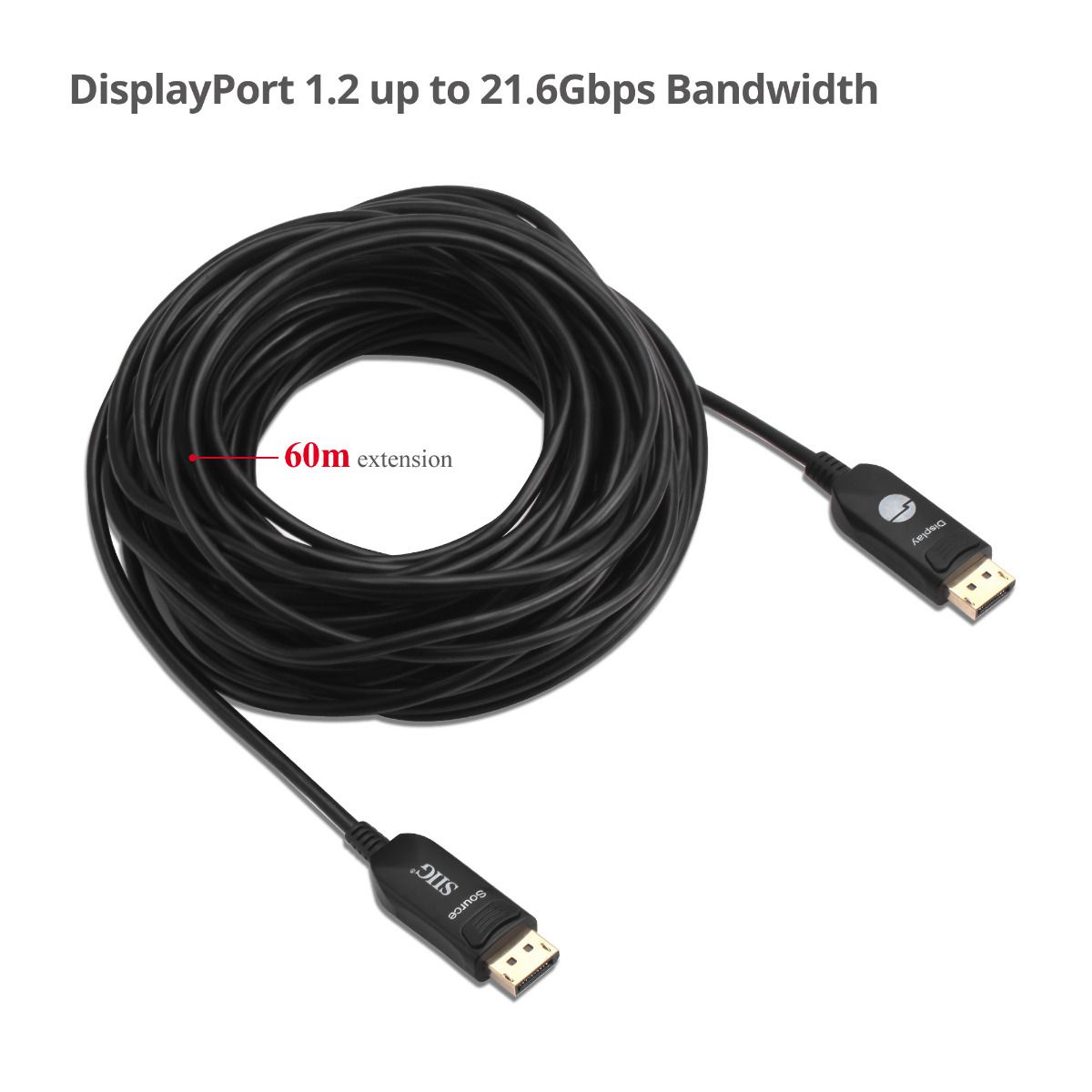

| Bandwidth | Up to 21.6Gbps (5.4Gbps per channel) |
| AOC Technology | Active Optical Cable 4x Discrete Optical Channels, 10GHz, 850nm |
| Connectors | 1 x 20-Pin, DisplayPort, Latching, male, source 1 x 20-Pin, DisplayPort, Latching, male, display *Note: This cable features unidirectional design, which requires the cable to be installed in a specific direction. Each DisplayPort connector is labeled for easy cable orientation to ensure proper device connection. |
| Package contents | 1x 4K DP 1.2 AOC Cable - 20M |
| Environmental | |
| Operating Temperature | 32° to 122° F |
| Storage Temperature | -10° to 158° F |
| Relative Humidity | < 5% to 85% (non-condensing) |
| Certifications/Standards | FCC, CE, RoHS |
| UPC Code | 662774-043265 |
| Warranty | 2 years limited |
| Country of origin | China |
| Product | |
| Length | 197ft (60m) |
| Weight | 3.92 lbs (1.78 kg) |
| Color | Black |
| Hood Material | Zinc alloy |

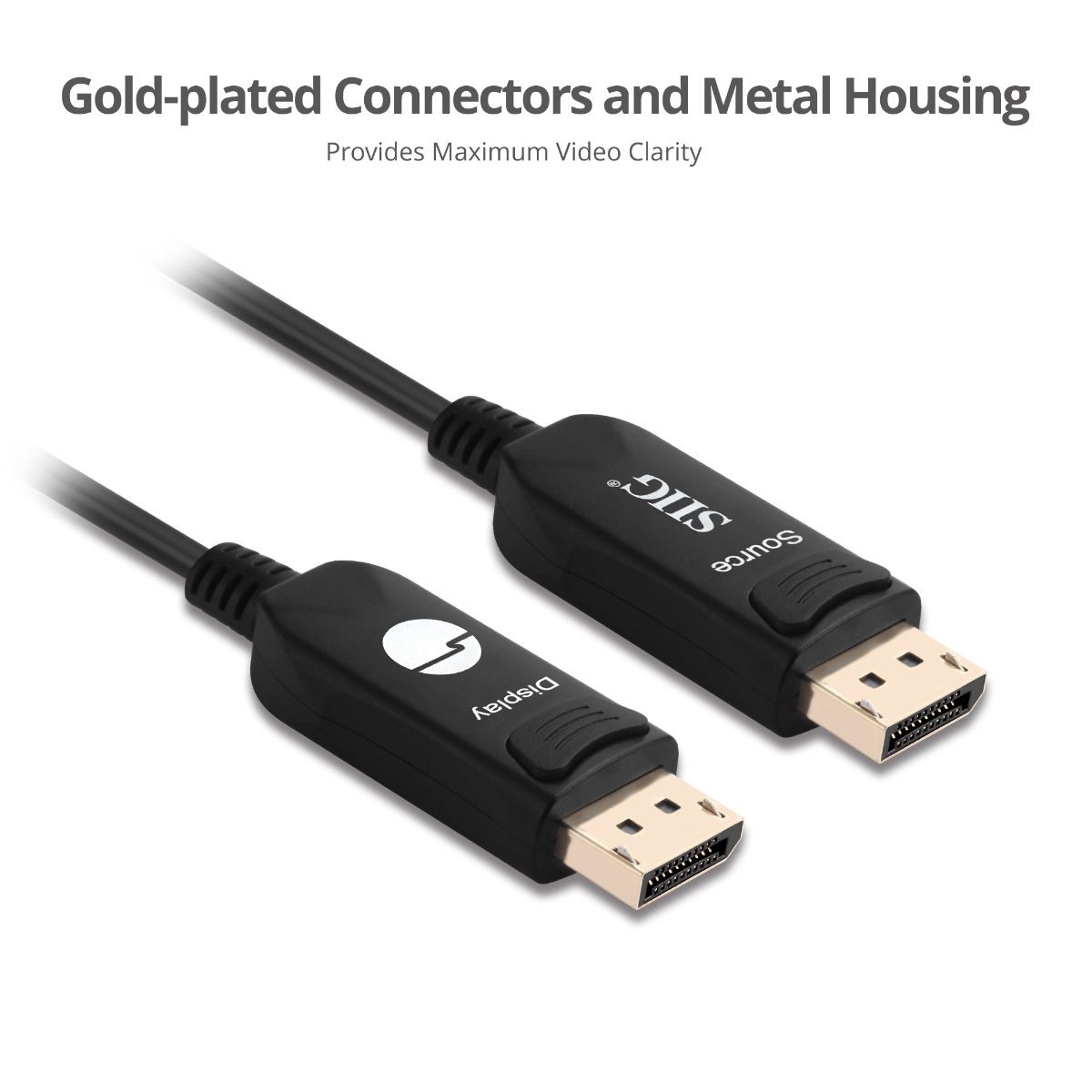

| Connector Plating | Gold-plated |
| Wire Gauge | 26AWG |
| Cable outside diameter | 4.5mm |
| Cable Jacket Material | PVC Flame retardance: UL VW-1 |
| Unit Package | |
| Dimensions (L) x (H) x (W) | 8.19" x 5.31" x 8.19" 20.80 cm x 13.49 cm x 20.80 cm |
| Weight | 4.15 lbs (1.88 kg) |
| Master Carton | |
| Dimension (L) x (H) x (W) | 18.11″ x 9.84″ x 17.52″ 46.00 cm x 24.99 cm x 44.50 cm |
| Weight | 43.66 Ibs (19.80 kg) |
| Quantity | 10 pcs/ctn |
