Extender |
SKU:
CE-H27G11-S1
4K 60Hz HDMI over IP Matrix - Decoder (RX)
HDMI IP Extender

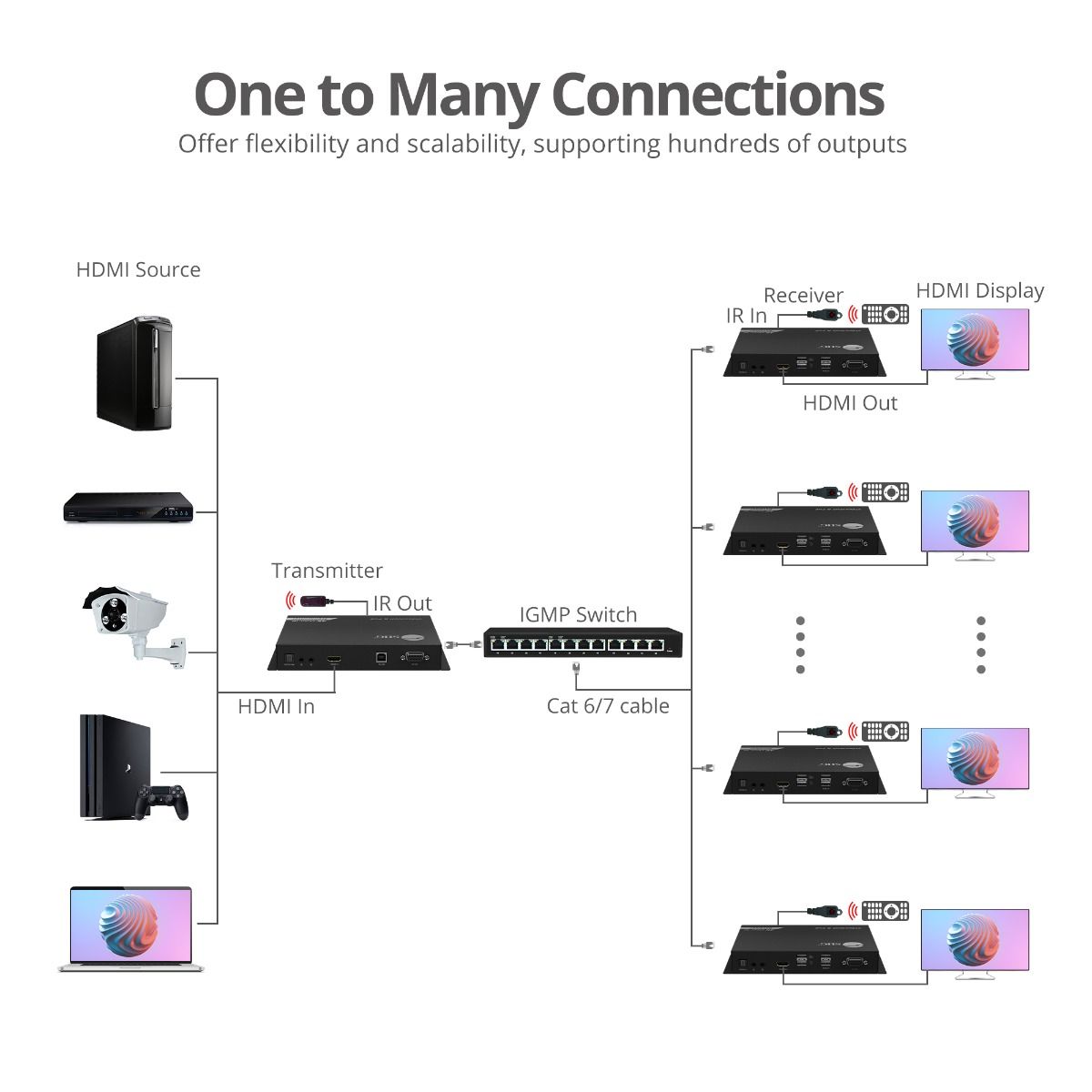

One to Many
4K 60Hz
Up to 394ft (120m)
TAA
Regular price
$689.99
Unit price
/
Unavailable
Shipping calculated at checkout.
4K 60Hz HDMI over IP Matrix - Decoder (RX) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Features
Advanced Receiver
Advanced Receiver
Superior Picture Quality
Superior Picture Quality
Easy To Set Up And Use
Easy To Set Up And Use
Reliable Performance
Reliable Performance
Scalable And Cost-Effective
Scalable And Cost-Effective

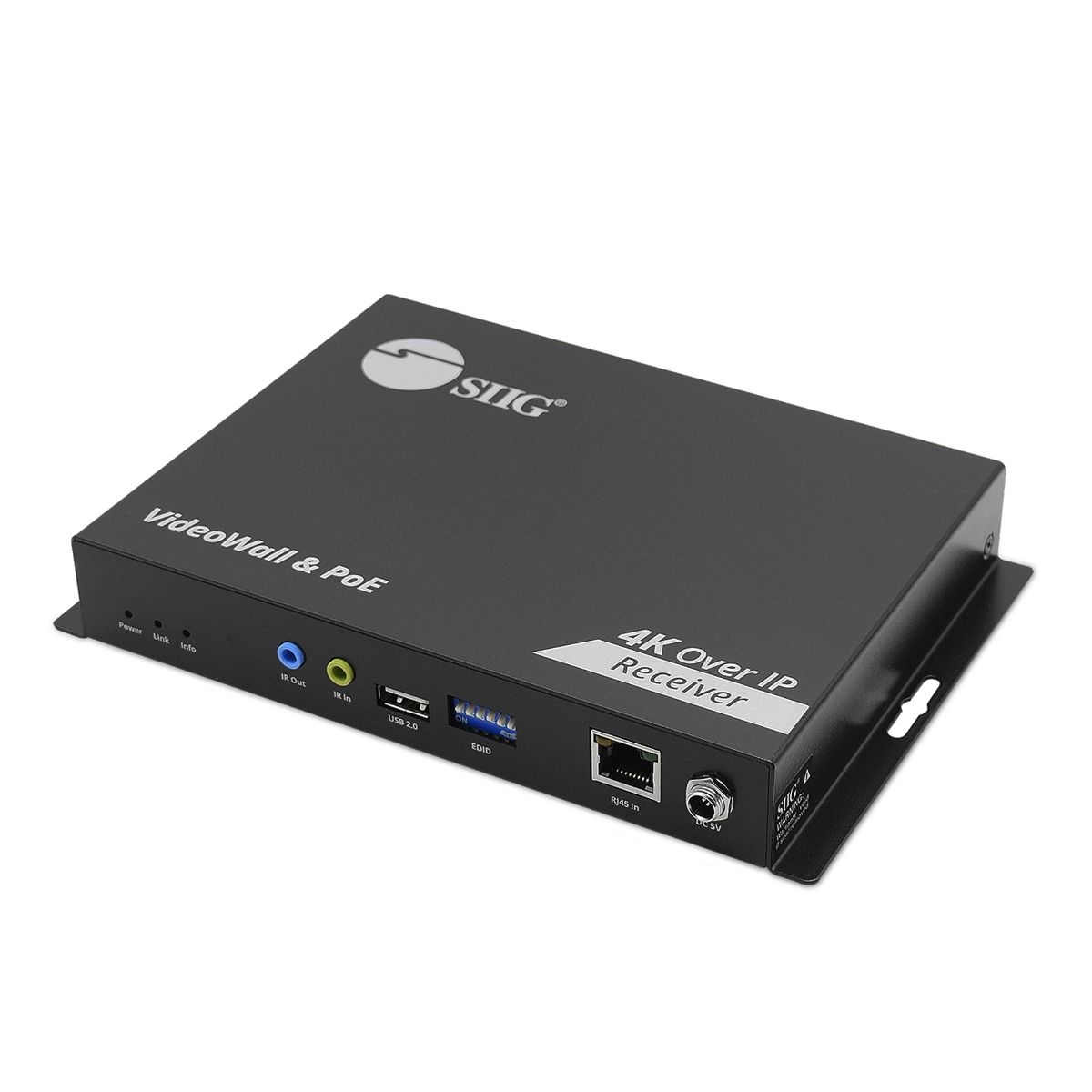

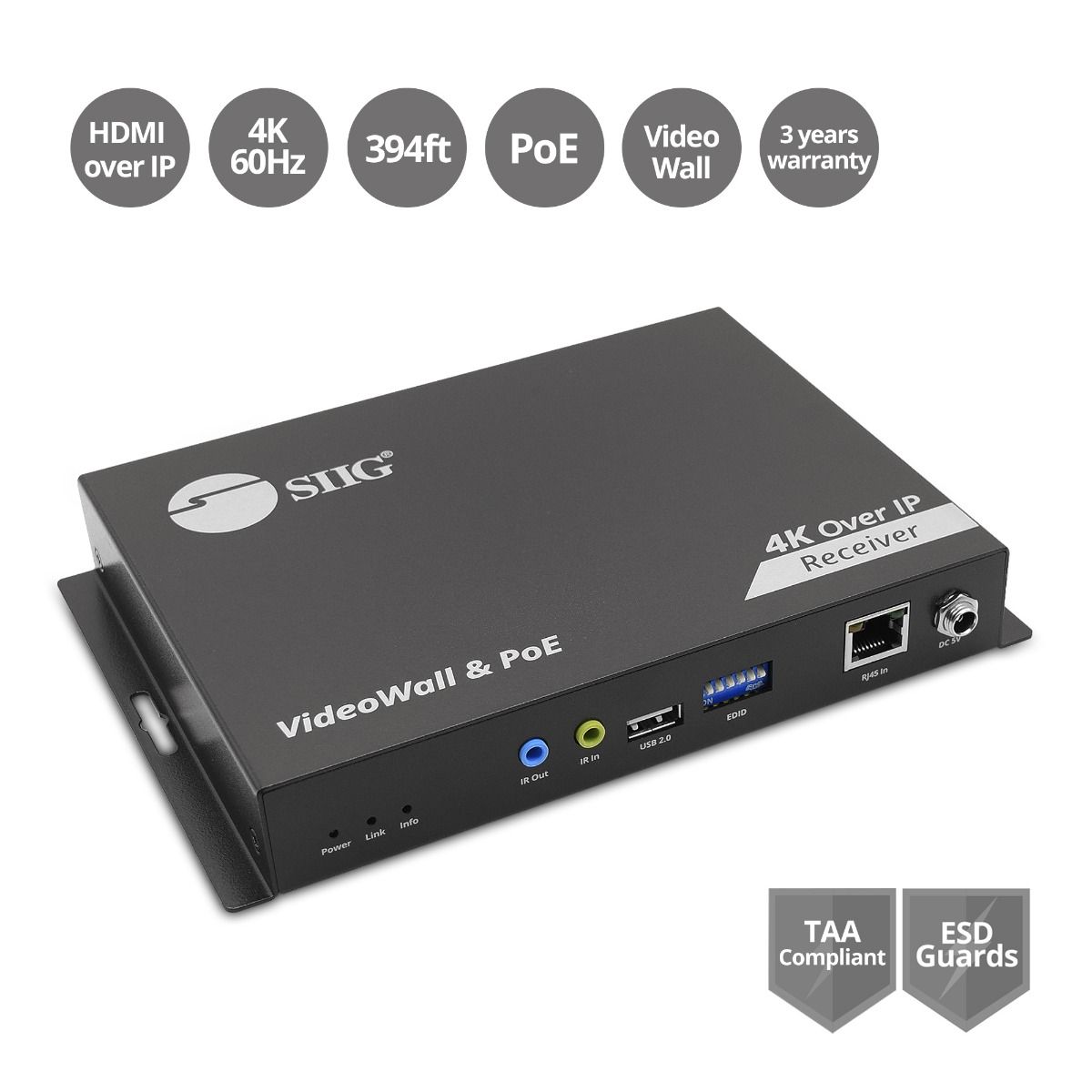

SIIG 4K 60Hz HDMI over IP Matrix - Decoder (RX)
Receives 4K@60Hz HDMI signal up to 394ft (120m) over a single Cat6/7 cable, PoE, One to One, One to Many, Multi-casting, Video Wall, KVM, 18Gbps, HDCP 2.2, HDR 10, 7.1ch, Bi-directional IR, RS-232 Control, TAA Compliant, Kit (CE-H28A11-S1), Encoder (TX) (CE-H27F11-S1). TAA compliant.
Additional Features
-
Control Software
With the control software, this device enables mapping to multiple displays on multiple source devices, video wall, and OSD. To download and set up the software, visit the SIIG website and follow the instructions. -
Manufactured in TAA Country
Suppose you or your company are involved with GSA Schedules, IDIQ, or DoD contracts. This kit complies with TAA for businesses seeking to acquire goods wholly made or substantially transformed in trusted countries.

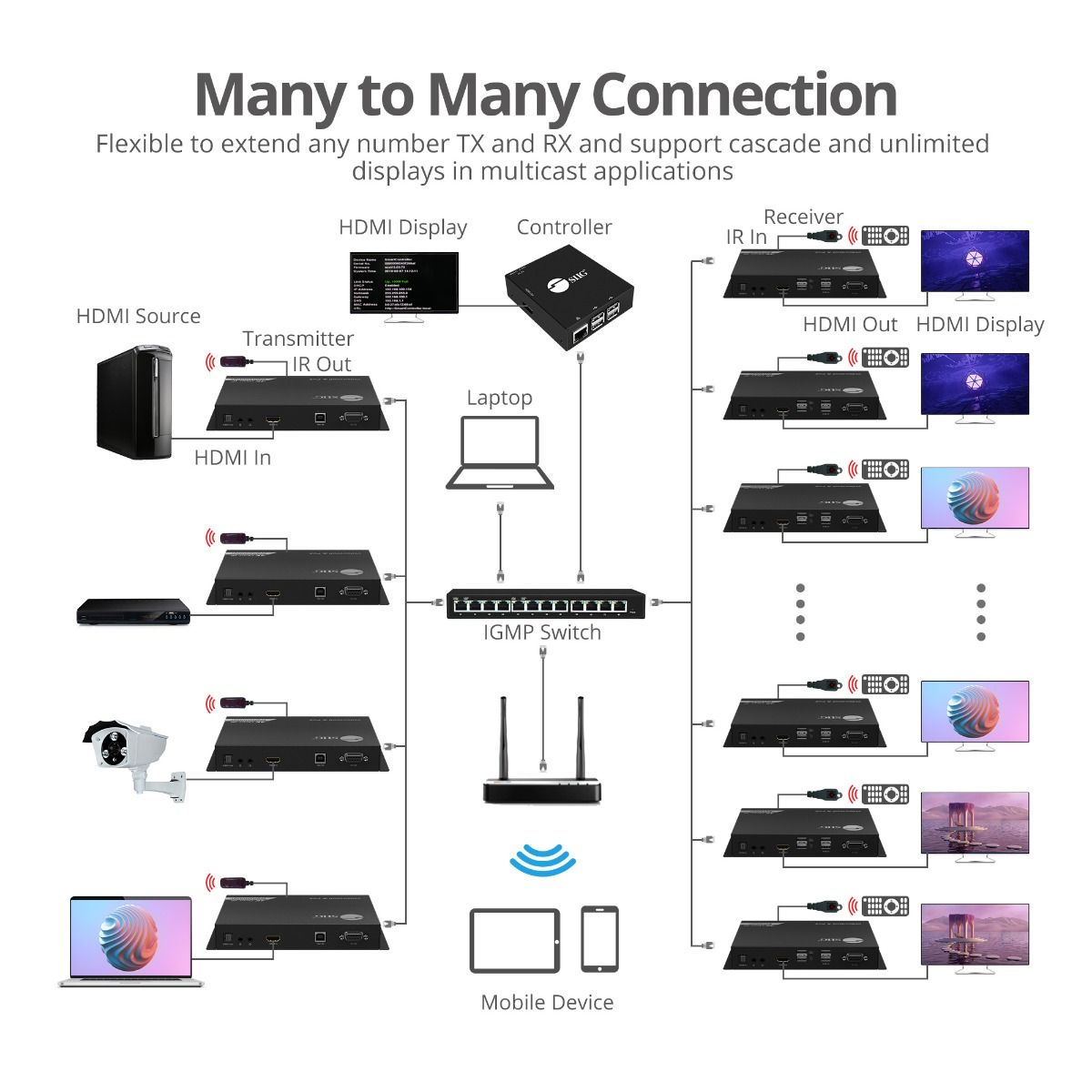

Many to Many Application
The Many to Many application for HDMI of IP Matrix Kit is a solution for distributing HDMI signals over long distances with multiple configurations.
| Video | |
| HDMI | 1x output |
| Resolution | 4K (4096x2160) / 4K (3840x2160) / 1080p / 1080i / 720p / 480i / 480p @60Hz, HDCP 2.2, 4:4:4, HDR 10 |
| Image rotation | 90°, 180°, and 270° clockwise in video wall mode *Note: need to be enabled by the controller (part# CE-H25411-S2) |
| Bandwidth | Up to 18Gbps |
| Transport Protocol | |
| TCP/IP Protocol | Audio/video digital connection transmission protocol |
| Audio | - 7.1-ch surround sound from HDMI port, audio format: PCM 2.0/5.1/7.1, Dolby 5.1/7.1, and DTS 5.1/7.1 - 5.1-ch surround sound from S/PDIF port, audio format: PCM 2.0, Dolby 5.1, and DTS 5.1 - 2-ch stereo audio from 3.5mm audio jack, audio format: PCM 2.0 *Note: S/PDIF and microphone input ports need to be enabled by the controller (part# CE-H25411-S2) |
| IR Pass-through | - Bi-directional IR allows remote control of the HDMI source device and playback function at the remote display - Full frequency: 20KHz to 60KHz |

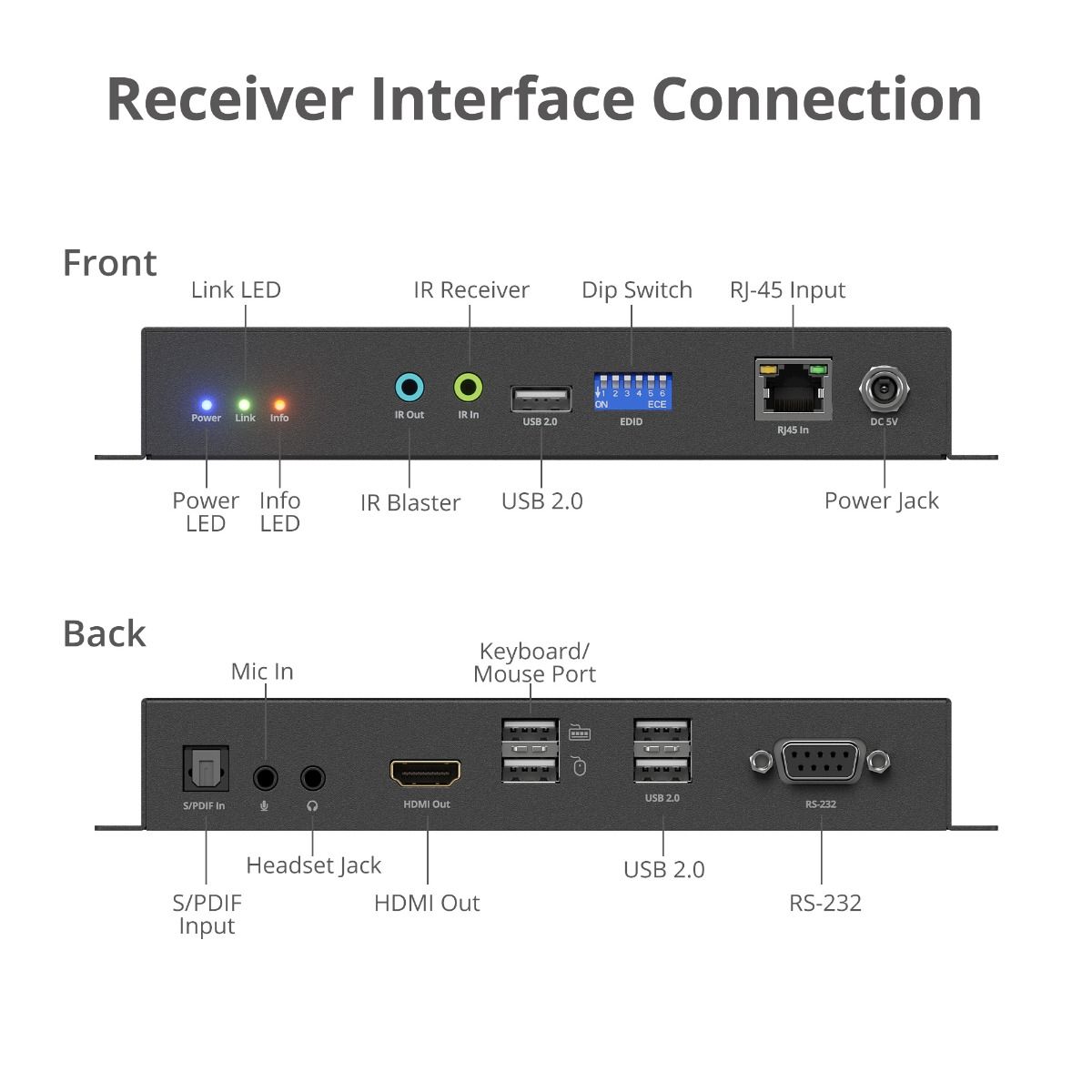

| Interface | 1x 19-pin, HDMI, female (output) 1x 4-pin, USB 2.0 Type-A, for webcam connection only 2x 4-pin, USB 2.0 Type-A, for USB devices 2x 4-pin, USB 1.1 Type-A, for Keyboard & mouse 1x 3.5mm infrared jack, IR receiver (input) 1x 3.5mm infrared jack, IR emitter (output) 1x 8-pin, Gigabit Ethernet, RJ45 (input) 1x 6-pin, DIP switch for video channel selection 1x S/PDIF (Toslink) digital audio (output) *Note: need to be enabled by the controller (part# CE-H25411-S2) 1x 3.5mm phone jack for microphone (input) *Note: need to be enabled by the controller (part# CE-H25411-S2) 1x 3.5mm phone jack for audio (output) 1x 9-pin, RS-232, Serial port for control (input) 1x DC power jack, 5V/2A |
| Certifications/Standards | FCC, CE, RoHS, REACH, TAA compliant |
| UPC code | 662774-045573 |
| Product | |
| Dimensions (L) x(H) x (W) | 6.81″ x 1.09″ x 5.19″ 17.30 cm x 2.77 cm x 13.18 cm |
| Weight | 1.44 lbs (0.65 kg) |
| Color | Black |

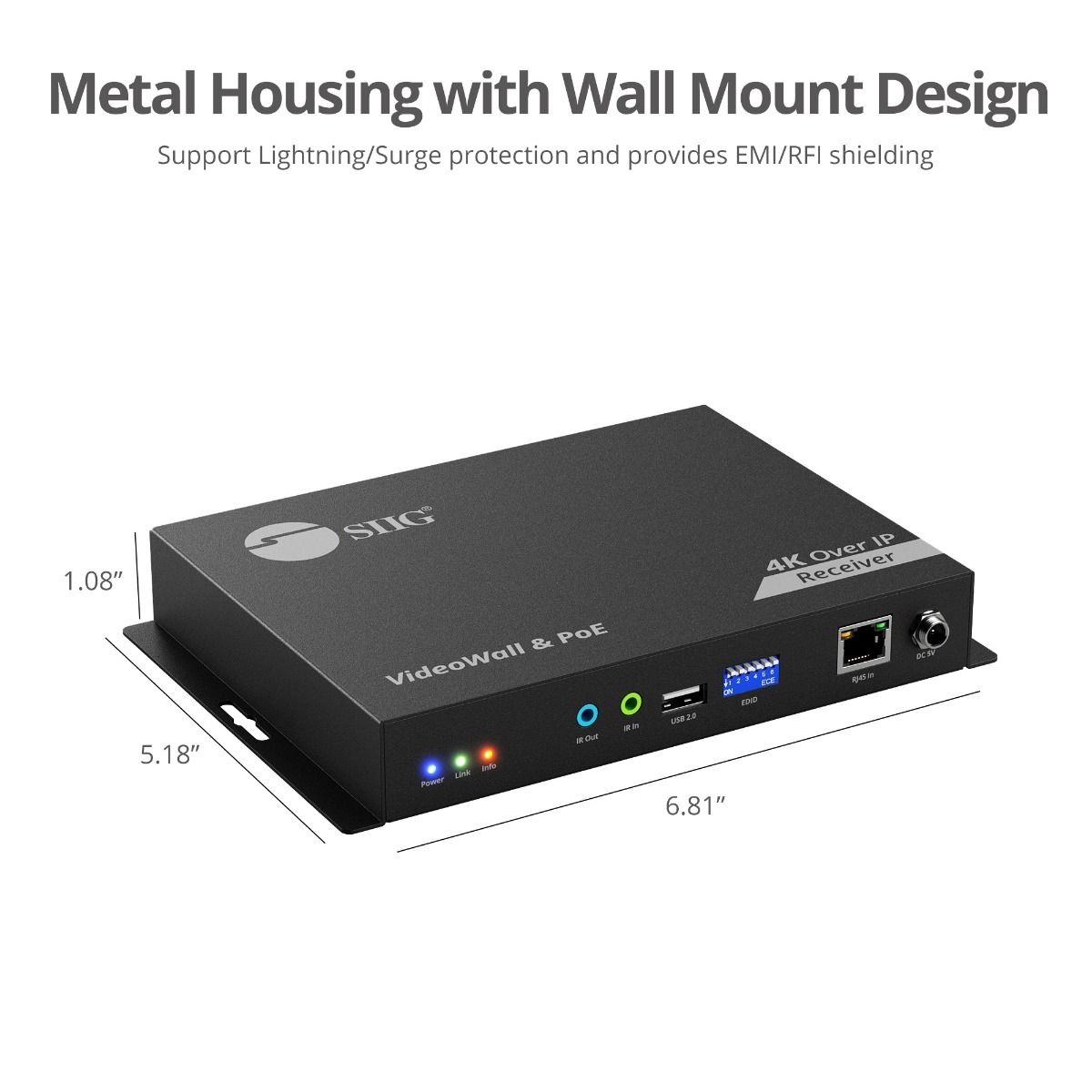

| Housing material | Metal (Housing with wall mount design) |
| Unit package | |
| Dimensions (L) x(H) x (W) | 10.39" x 3.03" x 6.85" 26.39 cm x 7.70 cm x 17.40 cm |
| Weight | 1.87 lbs (0.85 kg) |
| Master carton | |
| Dimensions (L) x(H) x (W) | 16.54″ x 11.46″ x 14.09″ 42.01 cm x 29.11 cm x 35.79 cm |
| Weight | 19.84 lbs (9.00 kg) |
| Quantity | 10pcs/ctn |
| Power Adapter | |
| Input | AC 100-240V/50-60Hz |
| Output | DC 5V/2A |
| UL Listed | E135856/Level: VI |
| PoE (Power over Ethernet) | 48V |

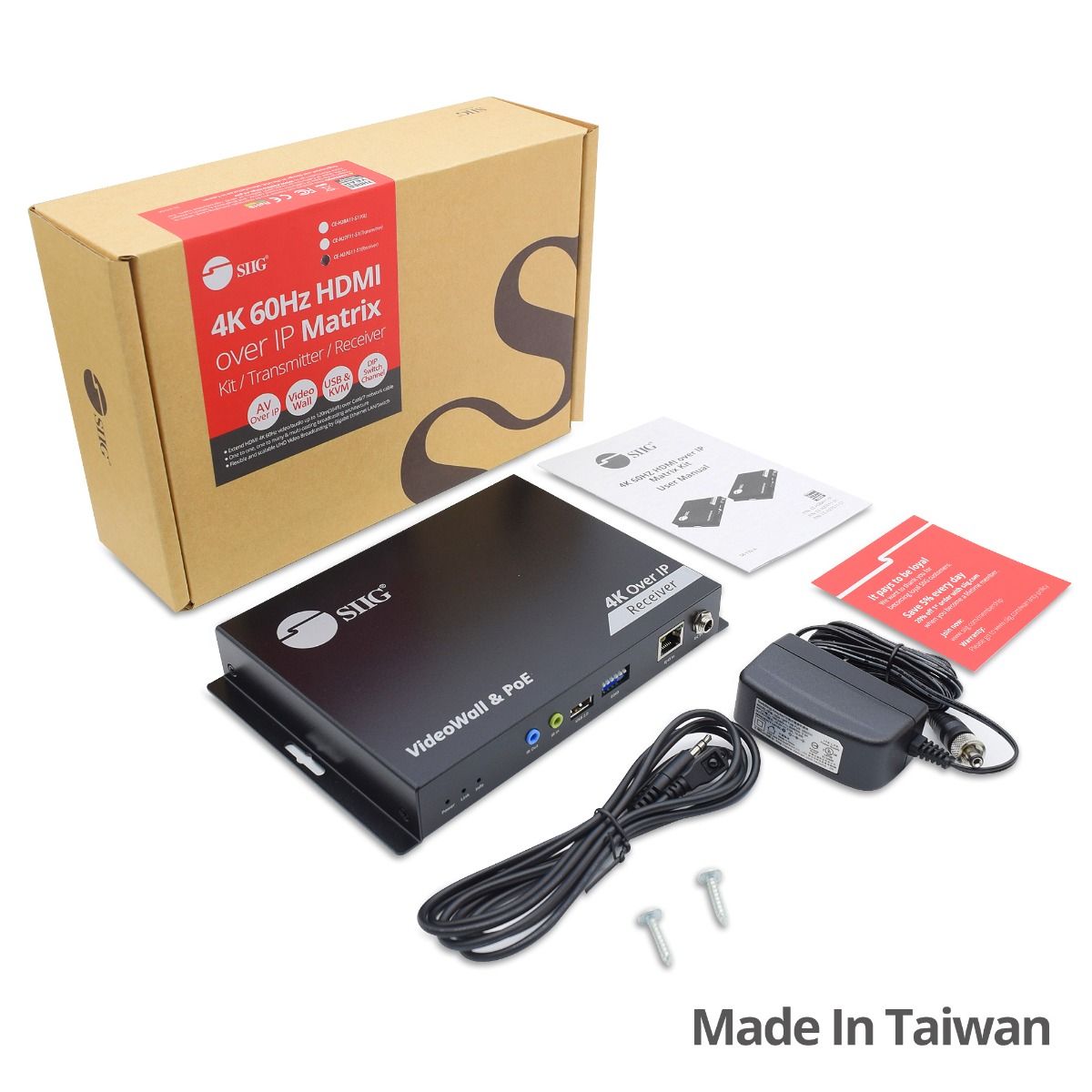

| Package Contents | 1x 4K 60HZ HDMI over IP Matrix- Decoder (RX) 1x 3.5mm IR receiver extension cable 1x DC power adapter, 5V/2A 1x User reference guide |
| Environmental Conditions | |
| Operating Temperature | 32 to 104 degrees F |
| Storage Temperature | -4 to 140 degrees F |
| Relative Humidity | 5% to 90% RH (non-condensing) |
| Warranty | 3 years limited |
| Country of origin | Taiwan |
Q1: Why the Over IP extender video can not cross the Router? A1: The Over IP extender are using Multicast Protocol, please check do the Switch and Router can support Multicast packet pass through.
Q1: Why the Over IP extender video can not cross the Router? A1: The Over IP extender are using Multicast Protocol, please check do the Switch and Router can support Multicast packet pass through.
