SKU:
JU-EX0411-S1

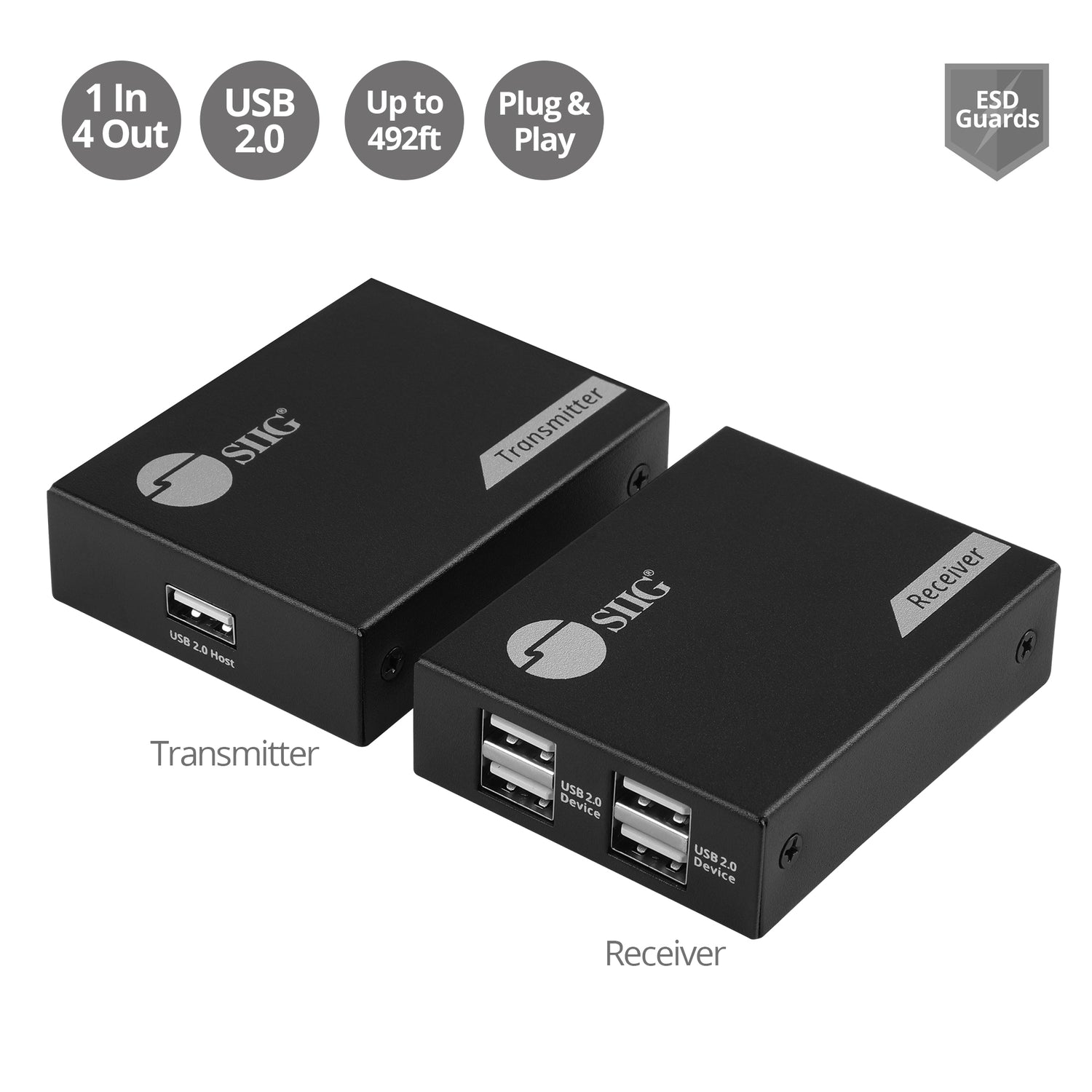

4-Port USB 2.0 Hub Extender
USB Extender Hub
USB-A 480Mbps
492ft (150m)
1 In / 4 Out
ESD Protection
Regular price
$172.99
Unit price
/
Unavailable
Shipping calculated at checkout.
4-Port USB 2.0 Hub Extender is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Features

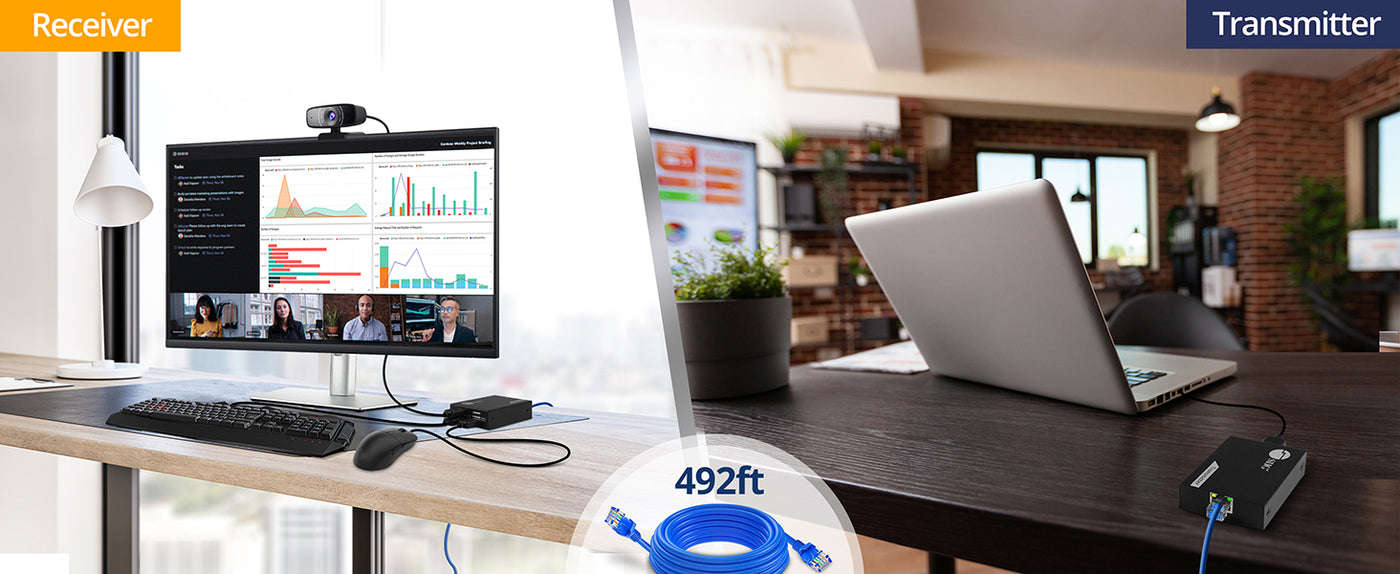

Long-Distance Transmission
Long-Distance Transmission
Cascading Connection
Cascading Connection
USB-A Data Transfer
USB-A Data Transfer
Protection Components
Protection Components

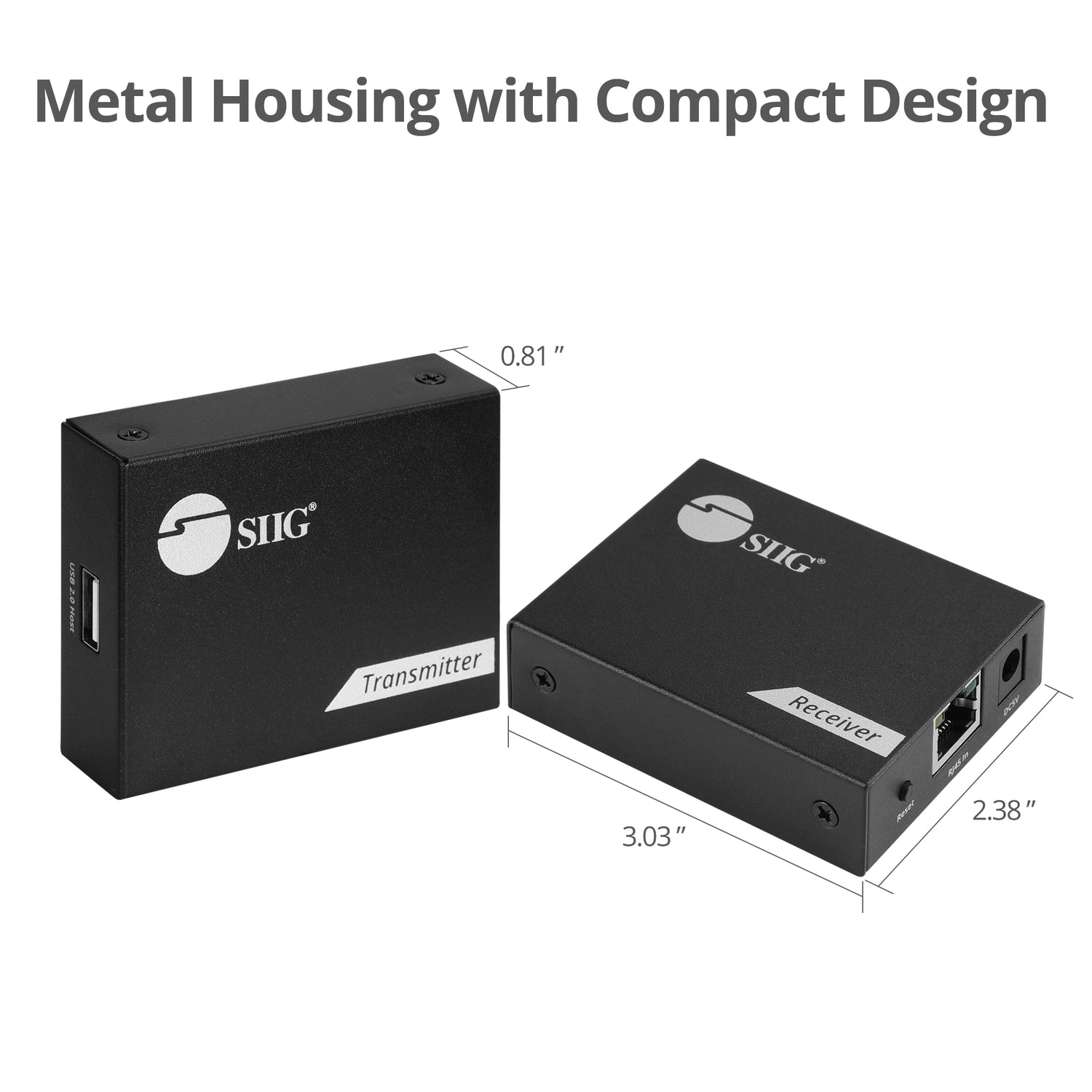

Metal Housing Design
Metal Housing Design

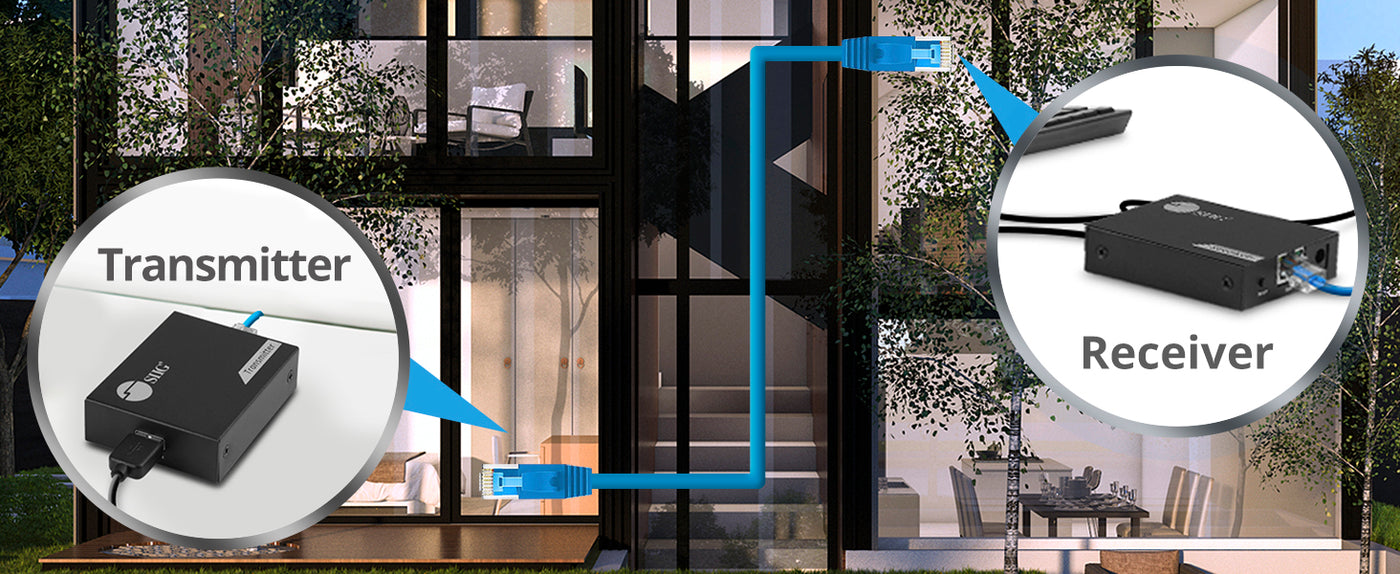

The Range Limit of the USB Cable is About 16ft, So Use the Extender to Expand the Distance

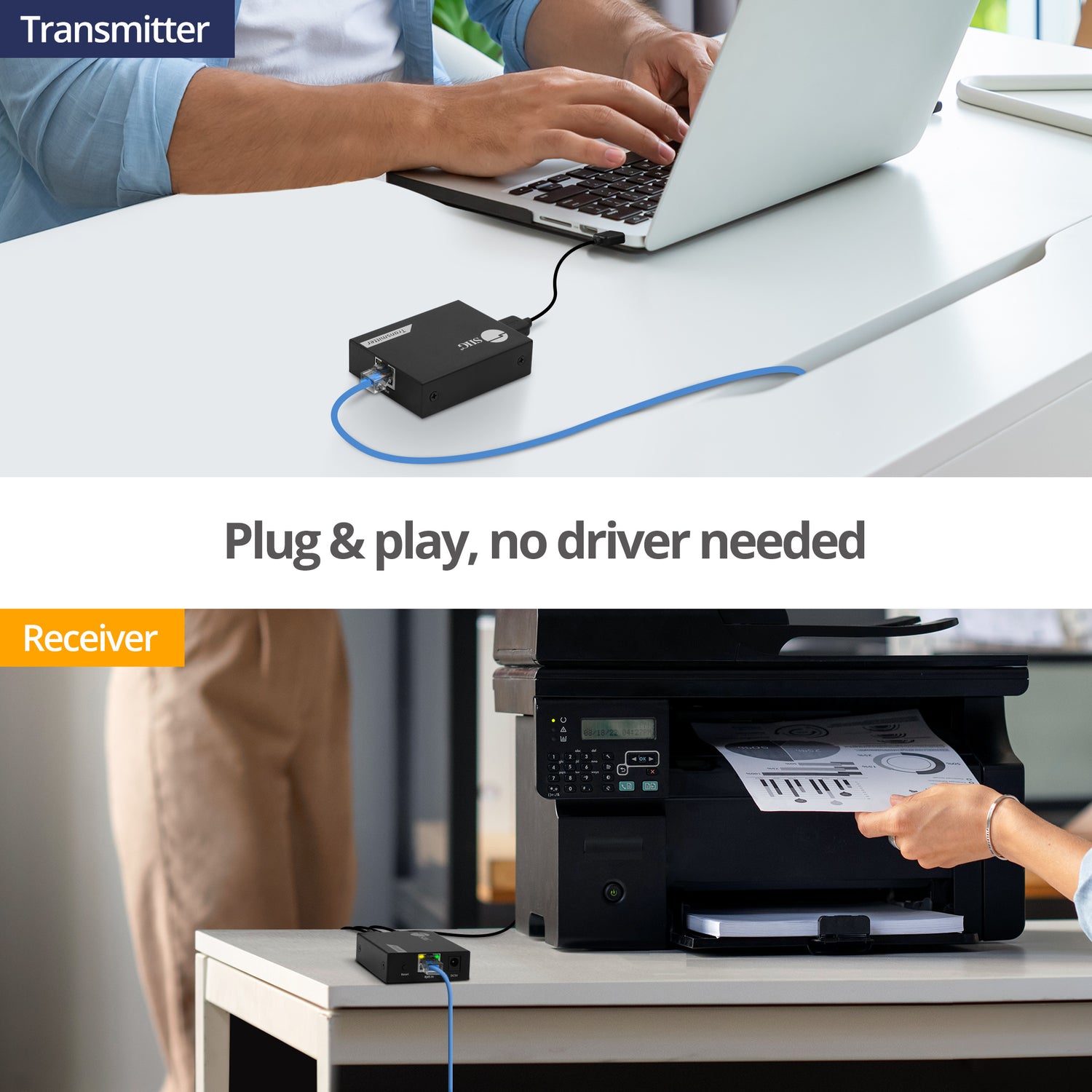

USB Extender Applications

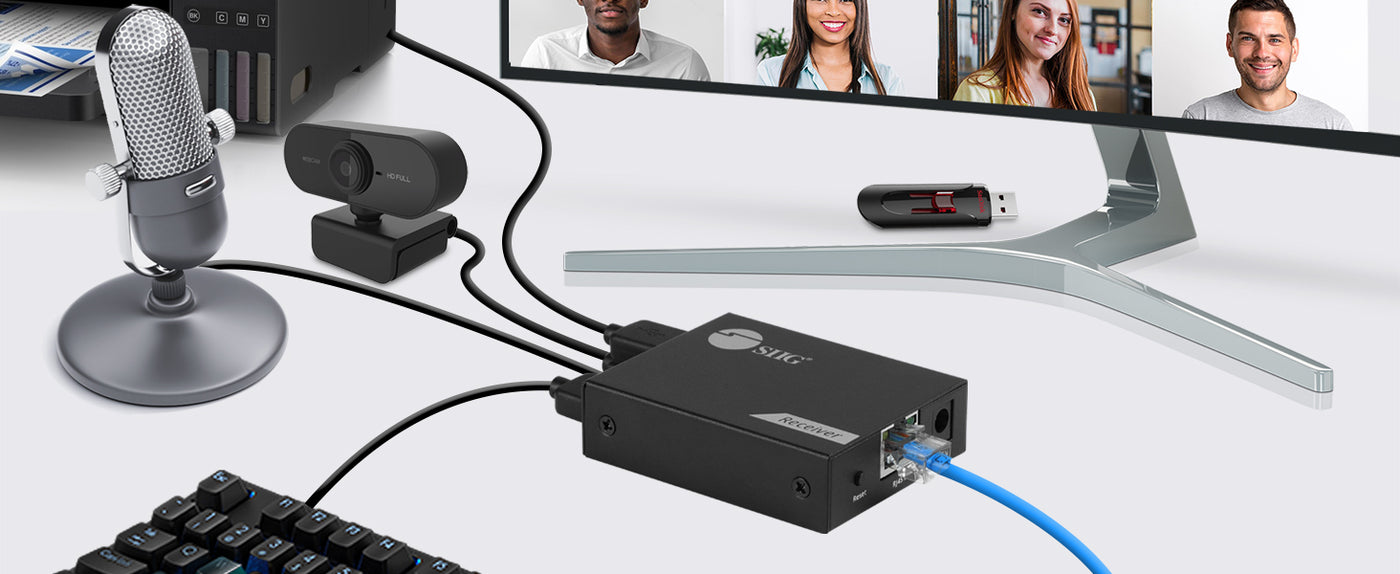

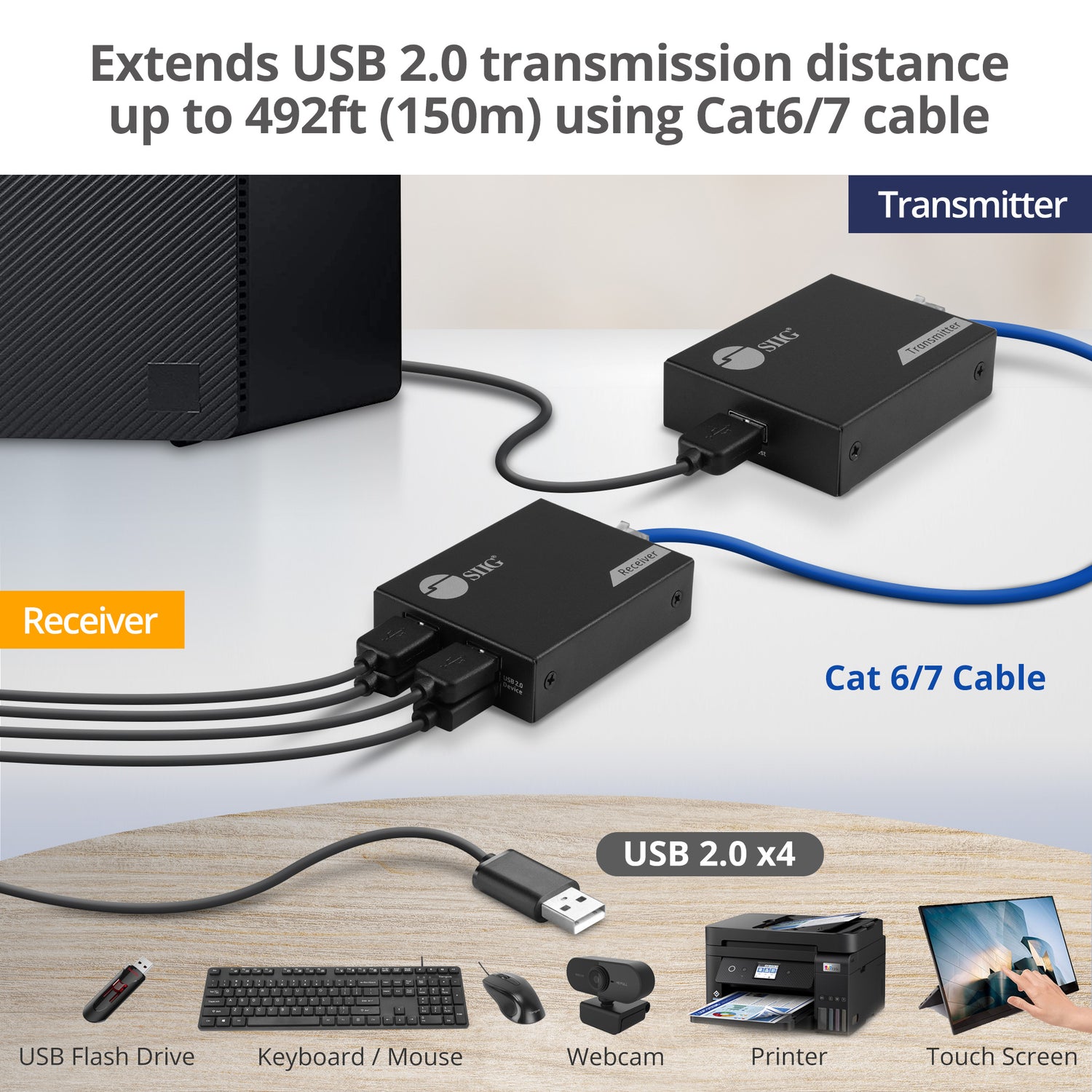

Designed to Extend the Connection of USB Devices, Such as a Keyboard/Mouse/Webcam/Flash

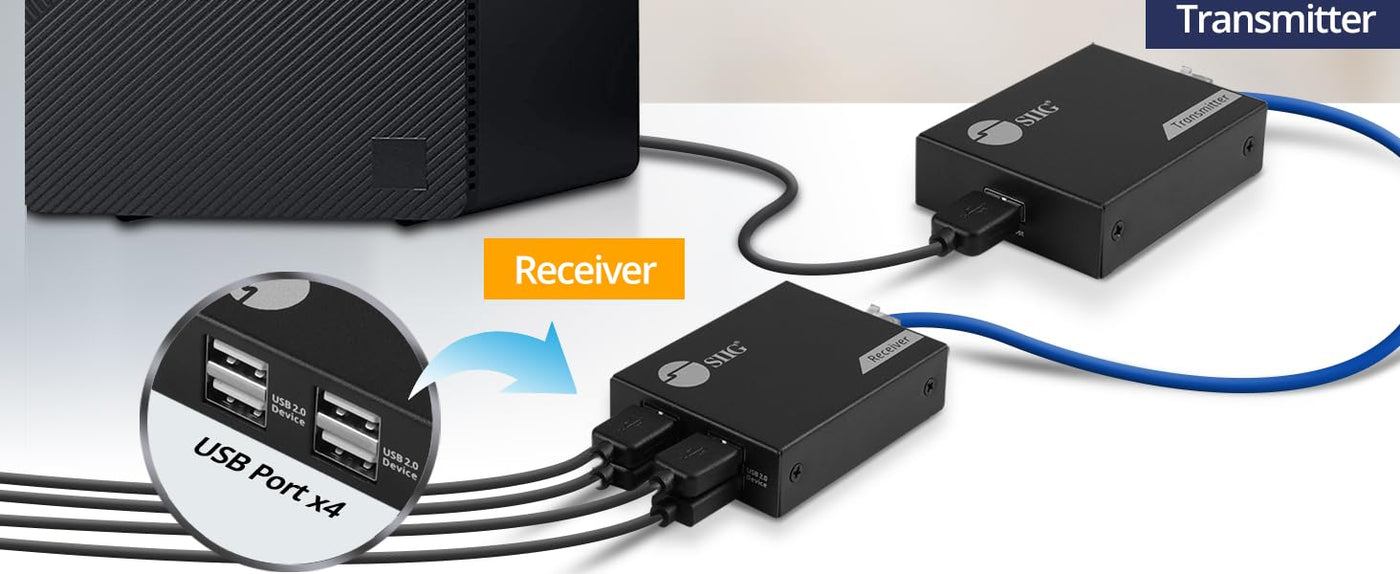

Multiple Connectivity Ports
| USB | |
| USB-A | 1x input, 4x output |
| Data Transfer Rate | Up to 480Mbps |

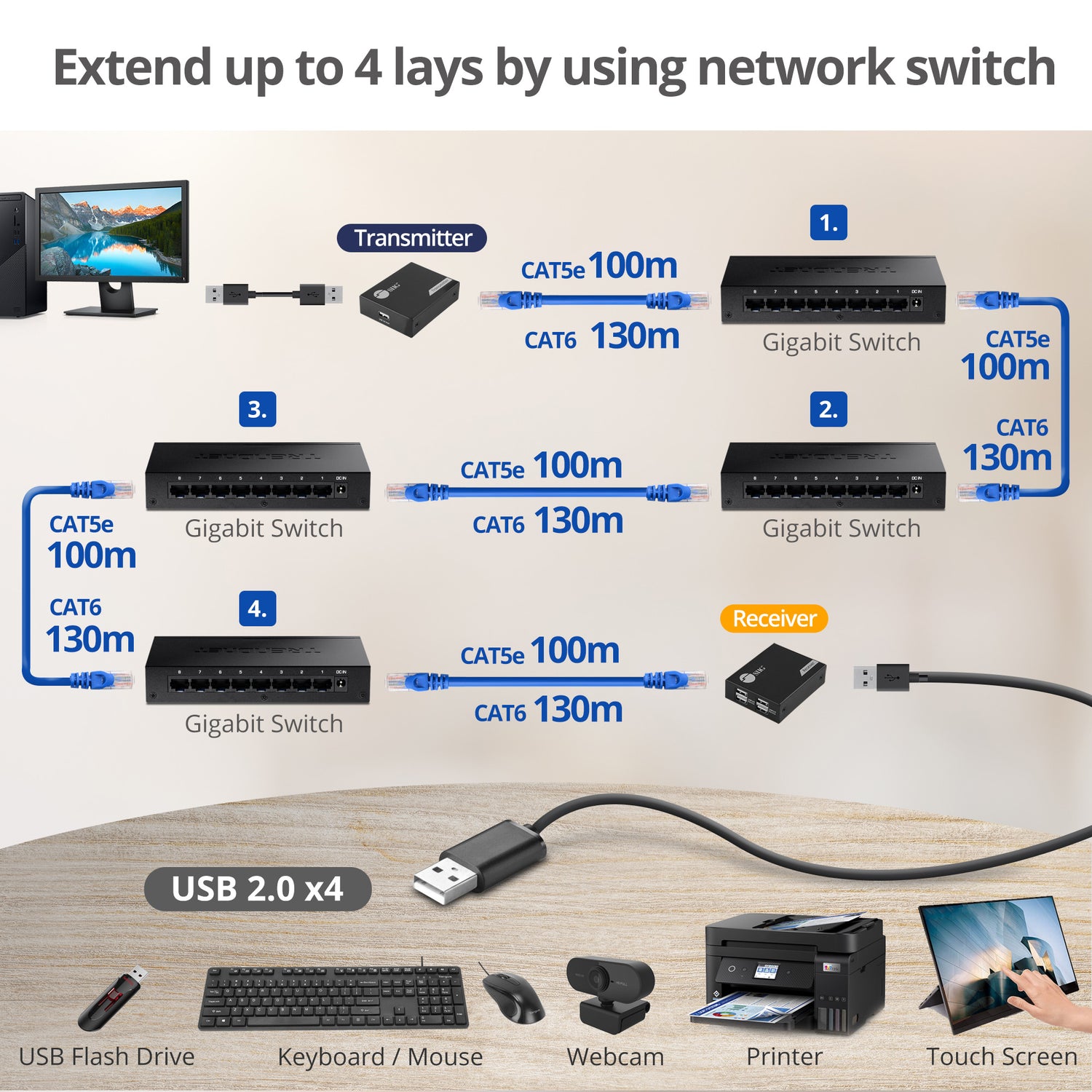

| Transmission Distance | Up to 330ft (100m) via Cat5e network cable Up to 492ft (150m) via Cat6/7 network cable * When cascading, the receiving unit must be connected to the last switch, otherwise it will not work |
| Power Adapter (on RX unit) | |
| Input | AC 100-240V/50-60Hz |
| Output | DC 5V/2A |
| UL Listed | E335801/Level: VI |
| Protection Components | Supports lightning protection, surge protection, and ESD protection |

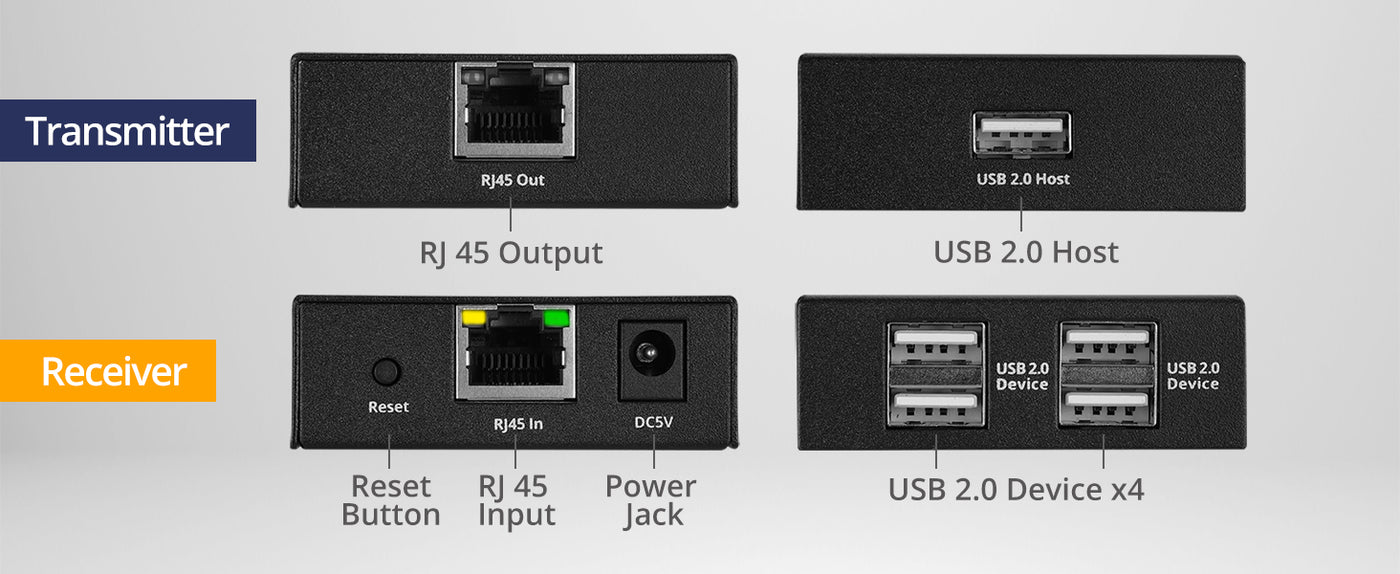

| Interface | |
| Transmitter (TX) | 1x 4-pin, USB-A, up to 480Mbps data transfer, for Host & power, Female (input) 1x 8-pin, RJ45 network, Female (output) |
| Receiver (RX) | 4x 4-pin, USB-A, up to 480Mbps data transfer, Female (output) 1x 8-pin, RJ45 network, Female (input) 1x Reset button 1x DC power jack, 5V/2A |
| Environmental conditions | |
| Operating temperature | 14 to 140 degrees F |
| Storage temperature | -4 to 158 degrees F |
| Relative humidity | <0% to 90% RH (non-condensing) |
| System Requirements | Desktop or laptop with an available USB-A 2.0 port |
| Product | |
| Dimensions for TX (L) x (H) x (W) | 2.99" x 0.83" x 2.36" 7.59 cm x 2.11 cm x 6.00 cm |
| TX Weight | 0.27 lbs (0.12 kg) |
| Dimensions for RX (L) x (H) x (W) | 2.99" x 0.83"x 2.36" 7.59 cm x 2.11 cm x 6.00 cm |
| RX Weight | 0.28 lbs (0.13 kg) |
| Color | Black |
| Housing materia | Metal |
| Unit Package | |
| Dimensions (L) x (H) x (W) | 5.91" x 3.03" x 4.61" 15.00cm x 7.70 cm x 11.70 cm |
| Weight | 1.08 lbs (0.49 kg) |
| Master Carton | |
| Dimensions (L) x (H) x (W) | 16.93" x 14.96" x 12.99" 43.00 cm x 38.00 cm x 33.00 cm |
| Weight | 33.78 lbs (15.32 kg) |
| Quantity | 30 pcs/ctn |
| Certifications/Standards | FCC, CE, RoHS 2.0, REACH |
| UPC Code | 662774-045740 |
| Warranty | 2 years limited |
| Country of Origin | China |

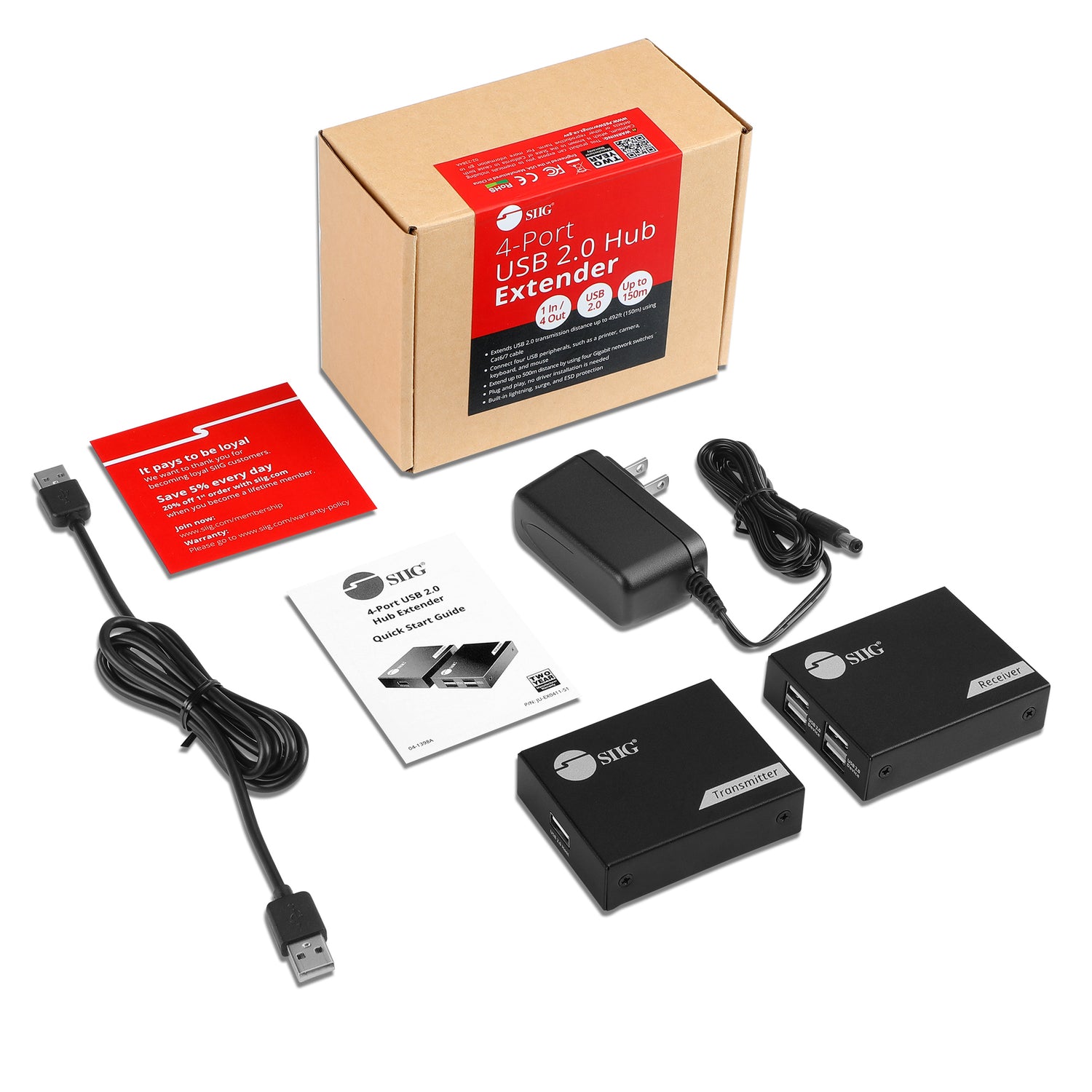

| Package Contents | 1x 4-Port USB 2.0 Hub Extender 1x USB 2.0 Type A to A cable 1x DC power adapter, 5V/2A (for receiver unit) 1x User reference guide |
