USB |
SKU:
JU-EX0311-S1
4-Port USB 2.0 Extender
USB Extender
4-Port USB-A
480Mbps
Up to 264ft (80m)
TAA Compliant
Regular price
$172.99
Unit price
/
Unavailable
Shipping calculated at checkout.
4-Port USB 2.0 Extender is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Features
Long-Distance USB Extension
Long-Distance USB Extension
Multi-Device USB Connectivity
Multi-Device USB Connectivity
High-Speed USB Compatibility
High-Speed USB Compatibility
Plug-and-Play Convenience
Plug-and-Play Convenience
Durable Metal Housing
Durable Metal Housing
Features

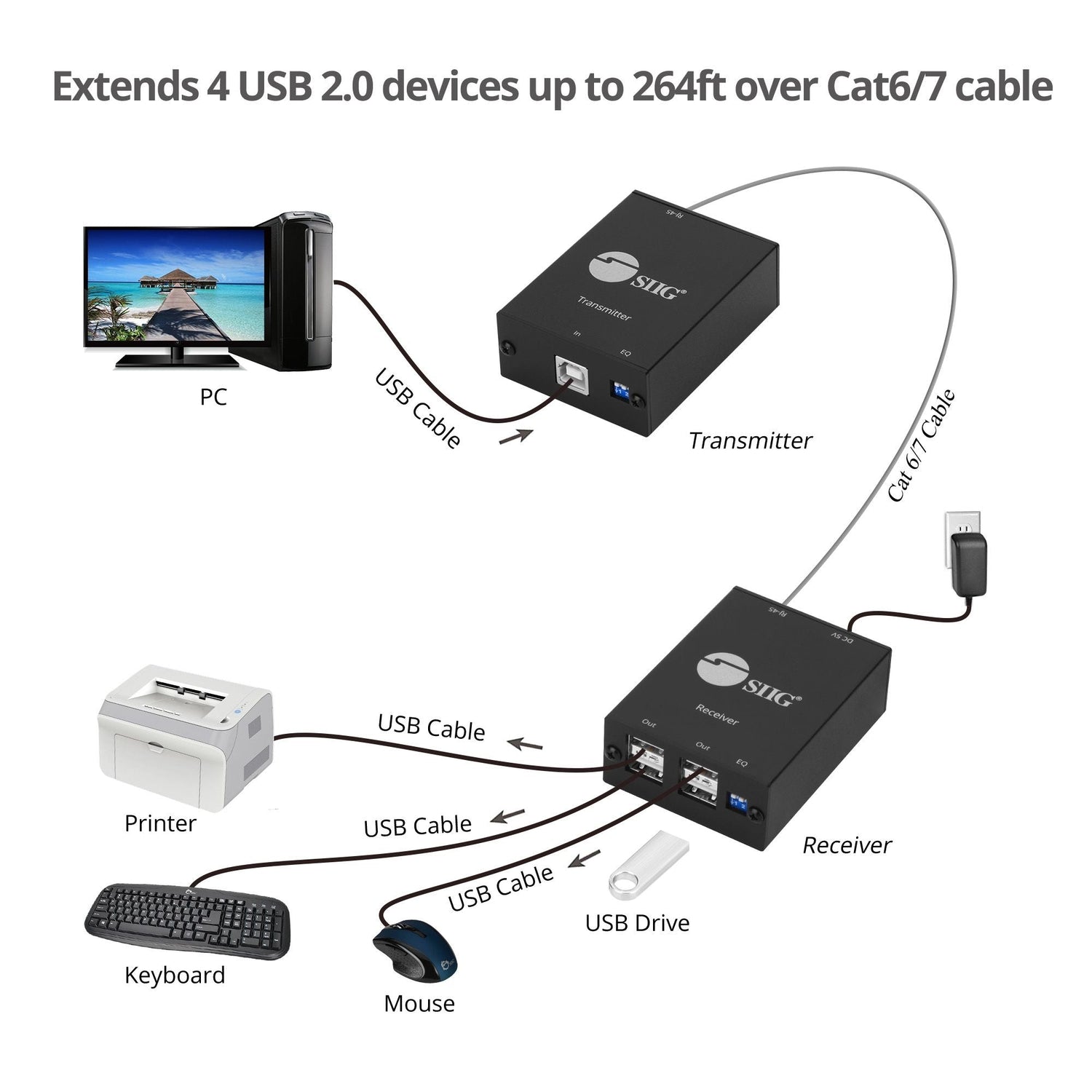

- Extends USB 2.0 transmission distance up to 264 feet (80 meters) to connect to far away USB devices
- Connect up to four USB peripheral devices, such as USB printers, USB camera, USB storage devices, USB card-readers, and more
- Supports USB 1.0 (low-speed), USB 1.1(full-speed), and USB 2.0 (high-speed) data transfer rates
- Supports USB hot-swap, Plug-and-Play, and suspend/resume features
- No driver installation needed for the extender, the USB driver is installed automatically by the operating system
- Metal housing for better RF shielding, efficient cooling, dependable performance
| USB Standard | Compliant with USB 2.0 specification |
| Data Transfer Rate | Up to 480Mbps |
| DIP Switch | DIP switch adjusts cable skew for different length CAT6 cable. Note: The DIP switch must match on both Transmitter and Receiver Under 160ft: DIP Up, Up 160ft to 230ft: DIP Up, Down 200ft to 264ft: DIP Down, Up |
| Integrated Equalizer | Compensates for different cable types |
| LED Indicators | Power LED indicators |
| ESD Protection | Air: ±19kV, Contact: ±12kV |

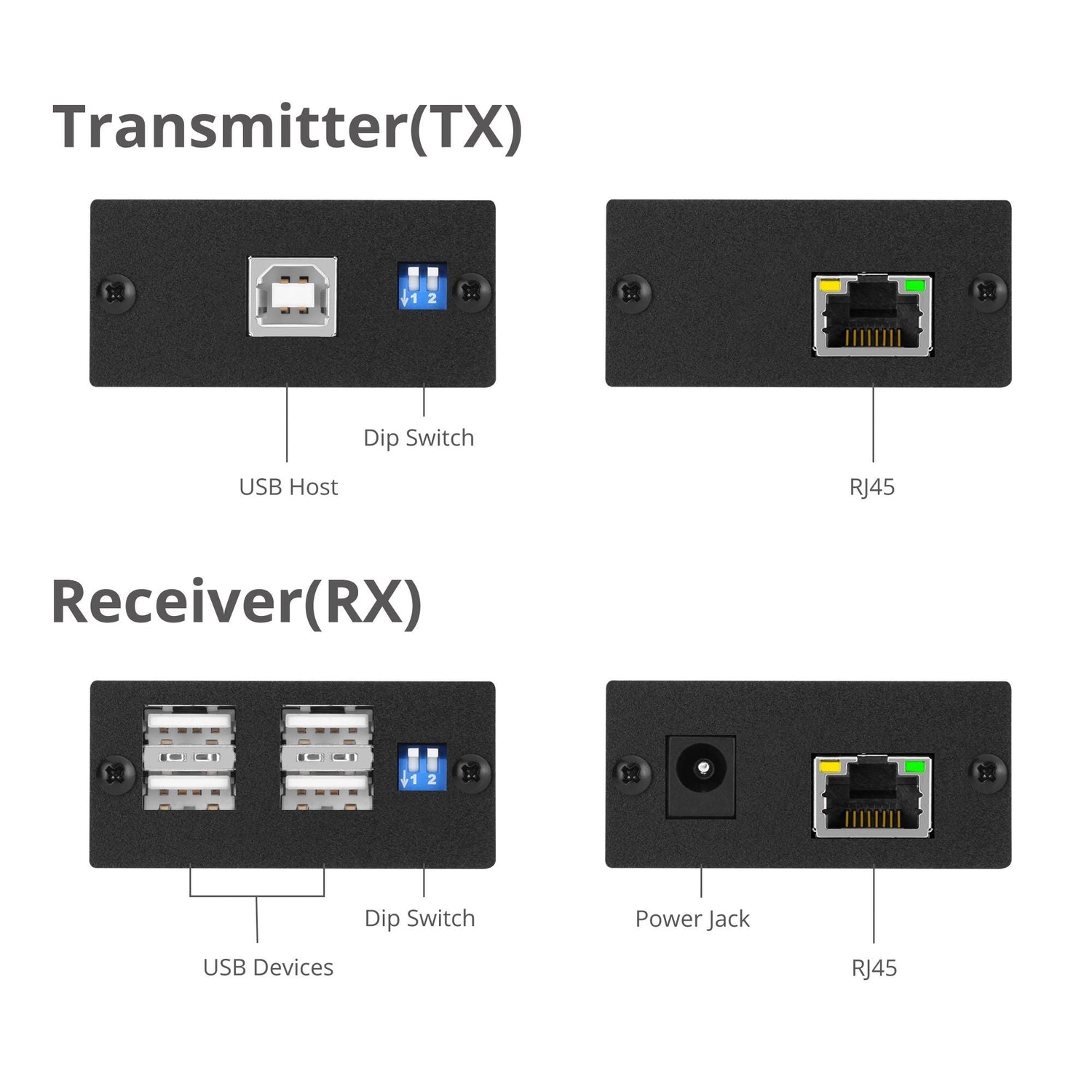

| TX Connectors | 1x 4-pin, USB Type-B, Female, Input 1x 8P8C with 2 LED indicators, RJ45, Female, Output 1x 2-pin DIP switch for cable equalization |
| RX Connectors | 1x 8P8C with 2 LED indicators, RJ45, Female, Input 4x 4-pin, USB Type-A, Female, Output 1x 2-pin DIP Switch for cable equalization 1x Power jack, power input |
| Power Adapter | Input: 100-240VAC, 50/60Hz Output: DC 5V/2A UL listed: E135856 / Level: VI |
| System Requirements | Notebook or Desktop PC with available USB 2.0 port Cat 6 cable using T-568B wiring standard |
| Certifications/Standards | FCC, CE, RoHS, TAA compliant |
| UPC Code | 662774-042374 |
| Warranty | 3 years limited |
| Country of Origin | Taiwan |
| Product | |

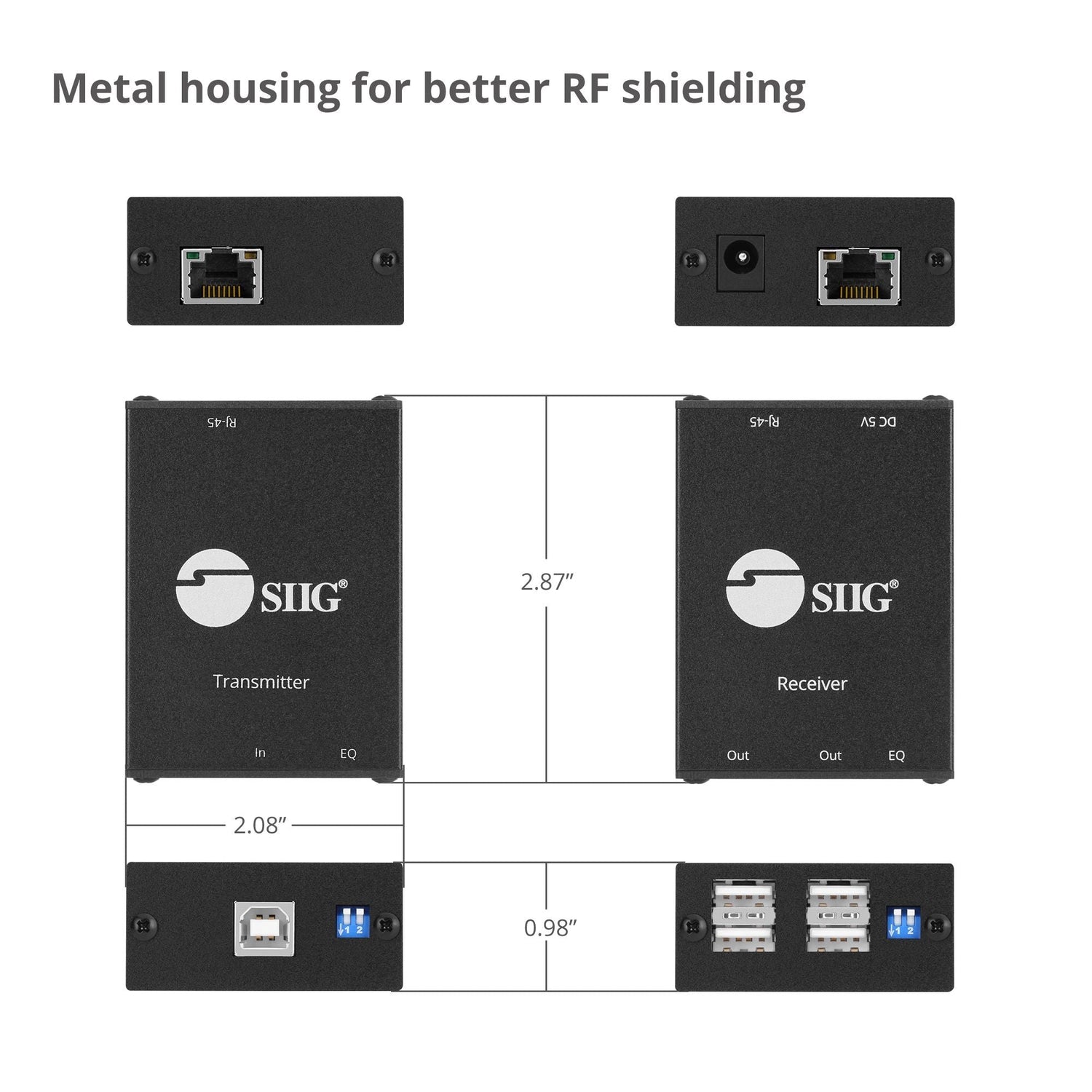

| Transmitting (TX) Dimensions | 2.13" x 0.98" x 2.76" 5.40 cm x 2.49 cm x 7.00 cm |
| Receiving (RX) Dimensions | 2.13" x 0.98"x 2.76" 5.40 cm x 2.49 cm x 7.00 cm |
| Weight | TX: 0.21 lbs (0.10 kg) ; RX: 0.22 lbs (0.10 kg) |
| Color | Black |
| Metal Housing | Metal |
| Unit Package | |
| Dimensions | 7.80" x 2.91" x 5.55" 19.80 cm x 7.40 cm x 14.10 cm |
| Weight | 0.99 lbs (0.45 kg) |
| Master Carton | |
| Dimensions | 16.53"x 11.81" x 15.74" 42.00 cm x 30.00 cm x 40.00 cm |
| Weight | 22.85 lbs (10.36 kg) |
| Quantity | 20pcs/ctn |
| Environmental Conditions | |
| Operating Temperature | 32 to 104 degrees F |
| Storage Temperature | -4 to 140 degrees F |
| Relative Humidity | 20 to 90% RH (non-condensing) |

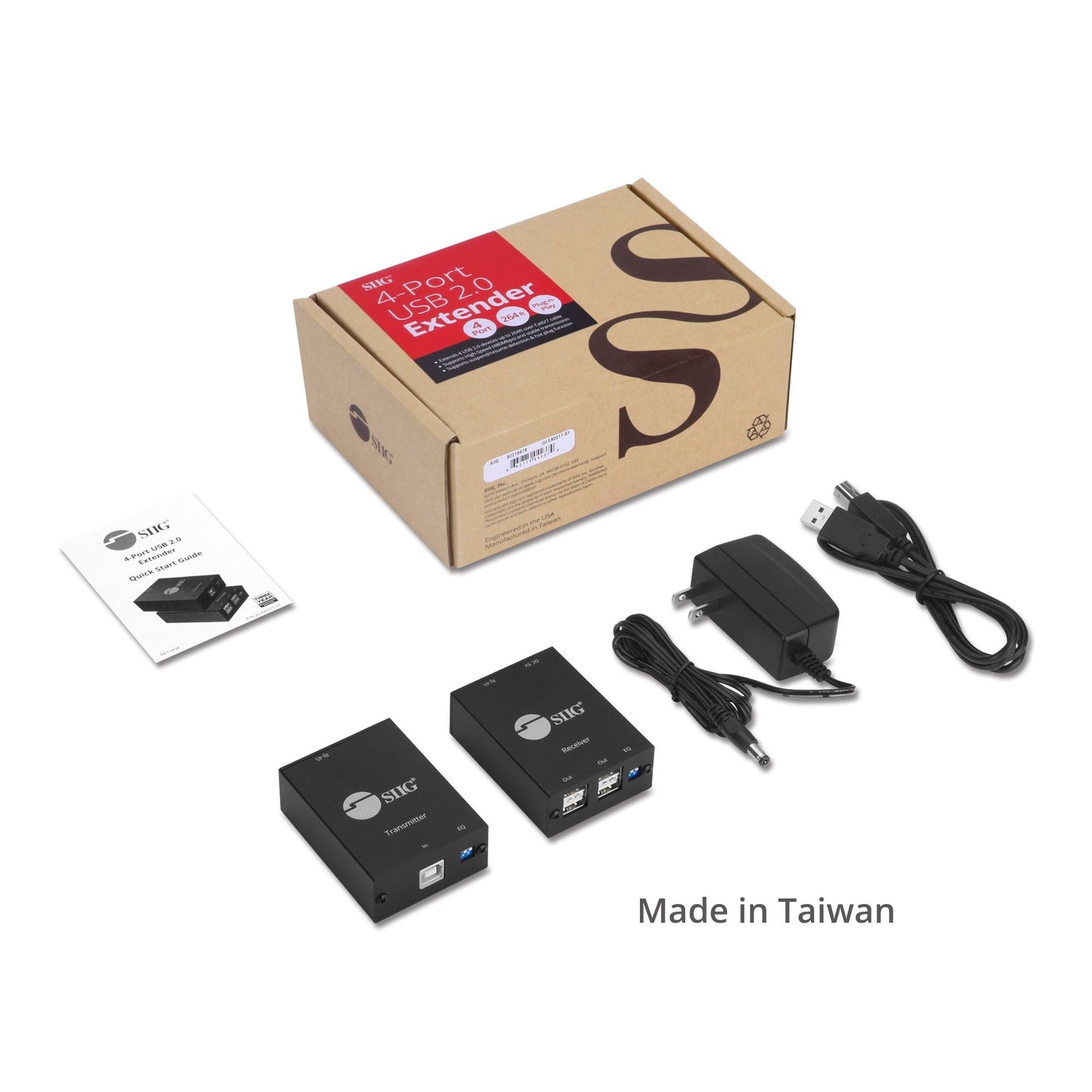

| Package Contents | 1x 4-Port USB 2.0 Extender (1 TX & 1 RX) 1x Power adapter 1x USB 2.0 Type A to B cable (3.3ft/1m) 1x Quick start guide |
