4-Port HDMI 4K HDR Smart Console KVM Switch with USB 3.0 and Multimedia Ports
4-Port HDMI 4K HDR Smart Console KVM Switch with USB 3.0 and Multimedia Ports is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Features

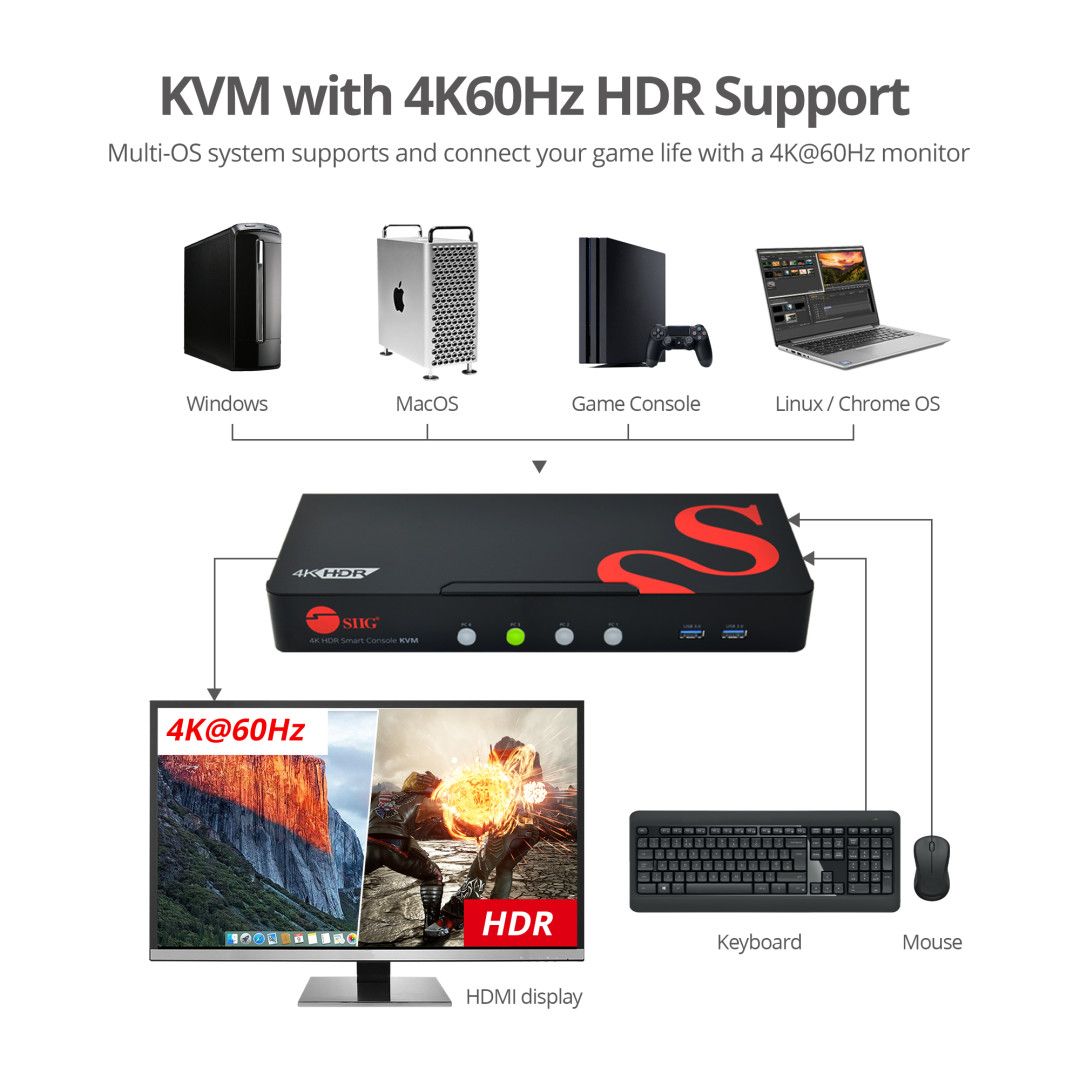

Control 4 HDMI Computers via 1 Set of Keyboard and Mouse
Control 4 HDMI Computers via 1 Set of Keyboard and Mouse
Ultra HD 4K60Hz & Auto EDID
Ultra HD 4K60Hz & Auto EDID
Advanced Features
Advanced Features
ESD Protection
ESD Protection
Metal Housing Design
Metal Housing Design



Maximum Compatibility

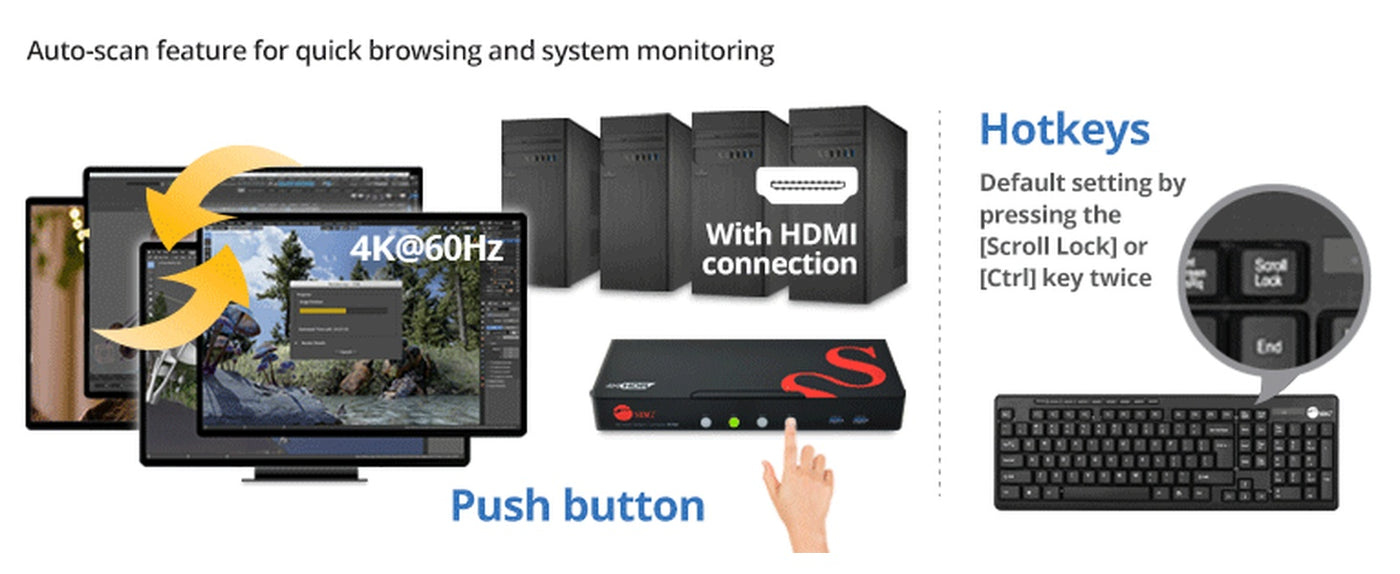

Auto EDID (bypass) design maximizes the compatibility from OS to display. Auto-scan feature for quick browsing and system monitoring. Supports Plug-n-play and no driver installation required
TAA Compliant
Completely manufactured in a TAA designated country

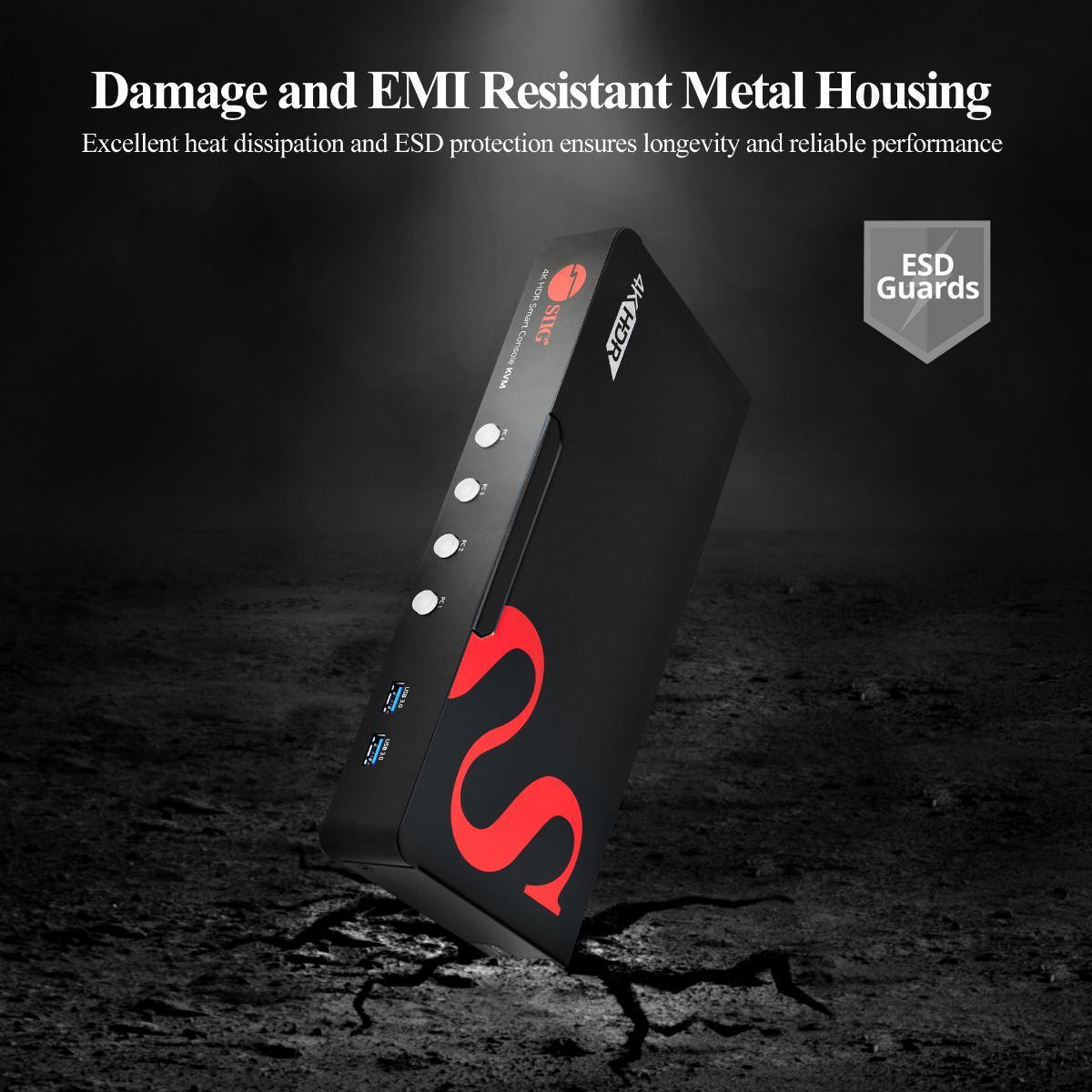

Metal Housing Design
Protects the inside PCBA, also enhance the heat dissipation for better performance. Military-grade component and ESD protection for long service life
ESD Protection
An ESD protection device protects a circuit from an Electrostatic discharge (ESD), in order to prevent a malfunction or breakdown of an electronic device

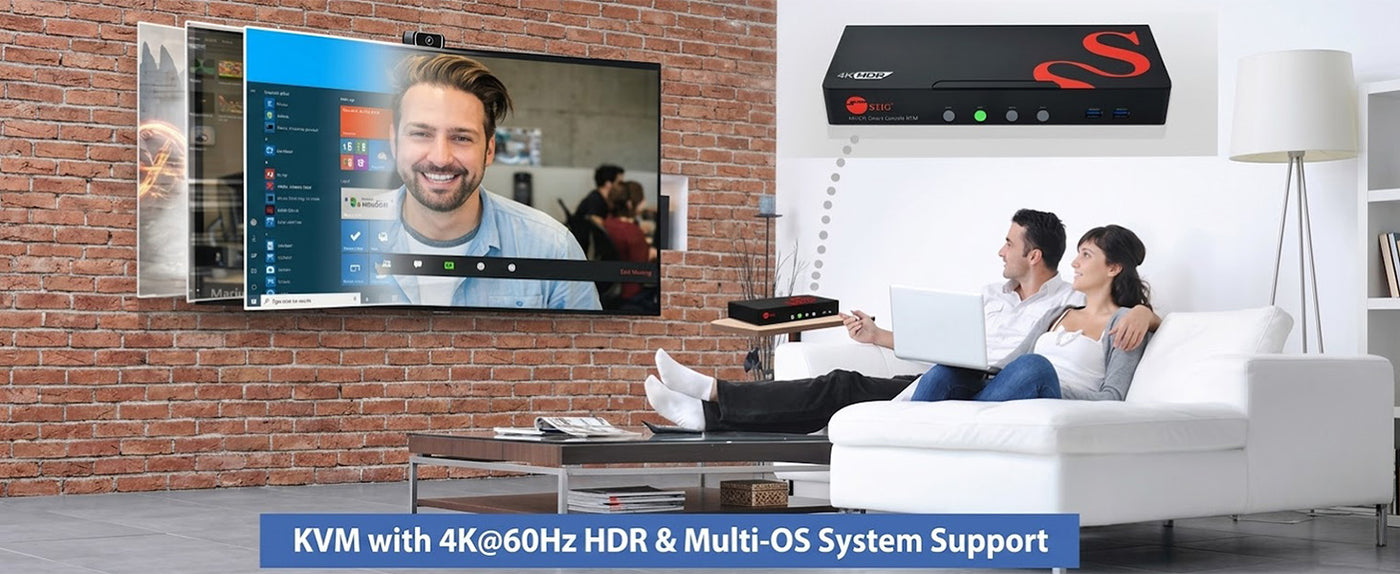

The Best KVM Solution for Working at Home

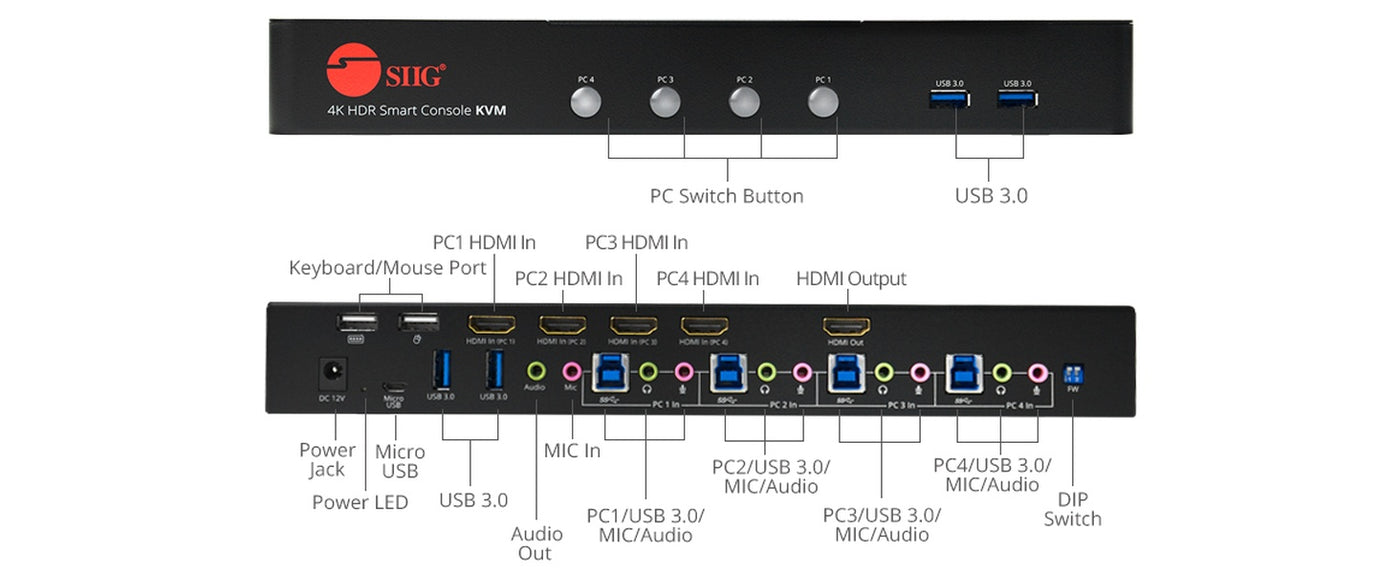

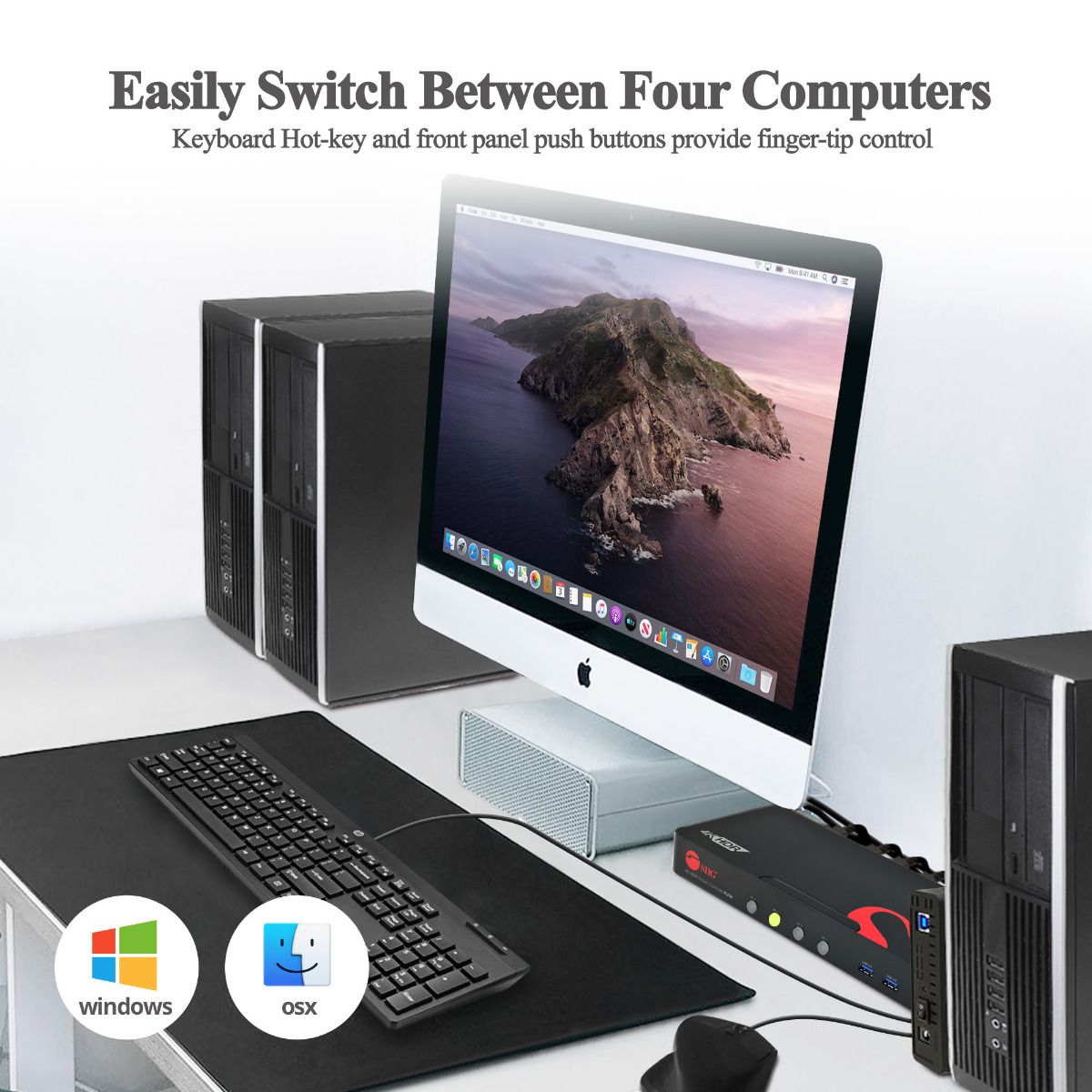

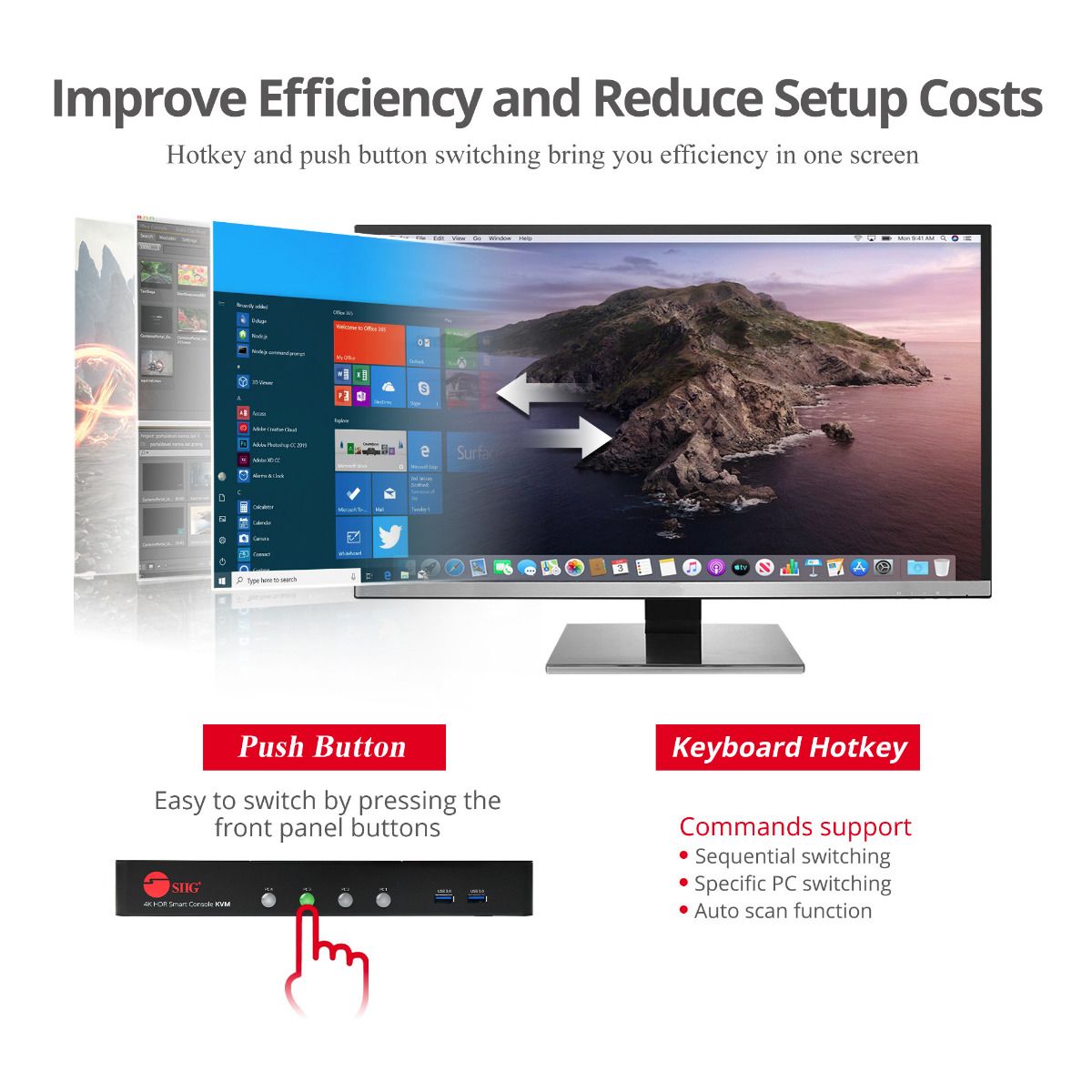

Easily Switching Between Computer/device via the Front Push Button or USB Keyboard Hotkeys

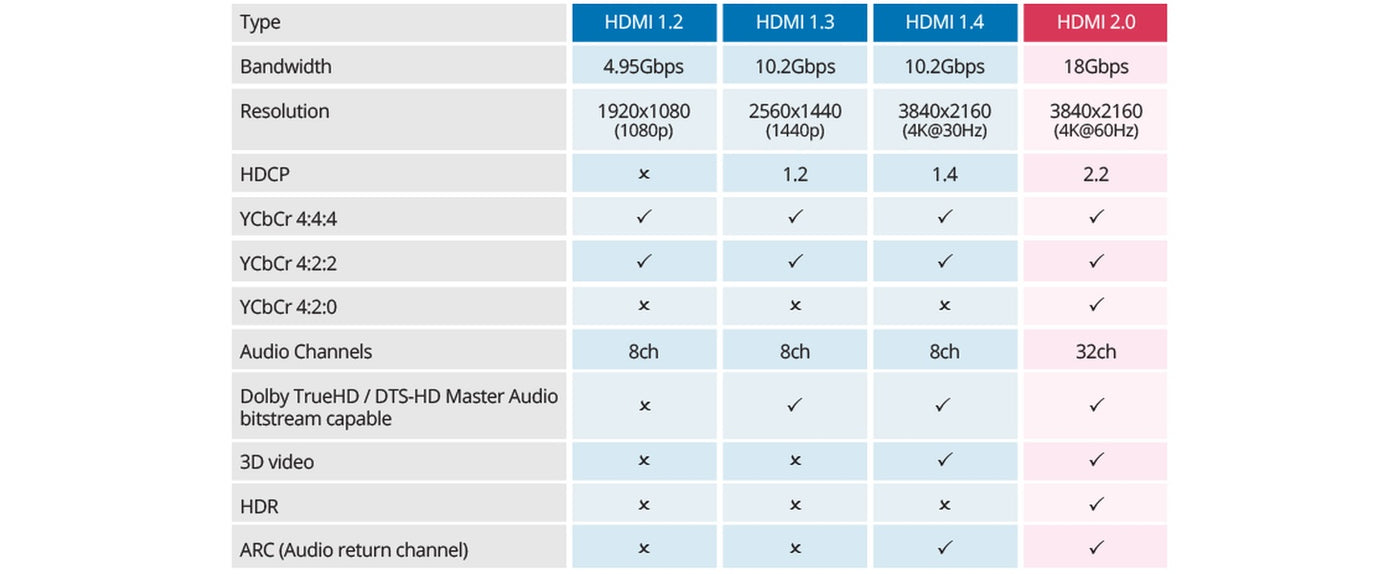

Offers a True 18Gbps Video Bandwidth and Supports 7.1ch Surround Sound or Stereo Audio

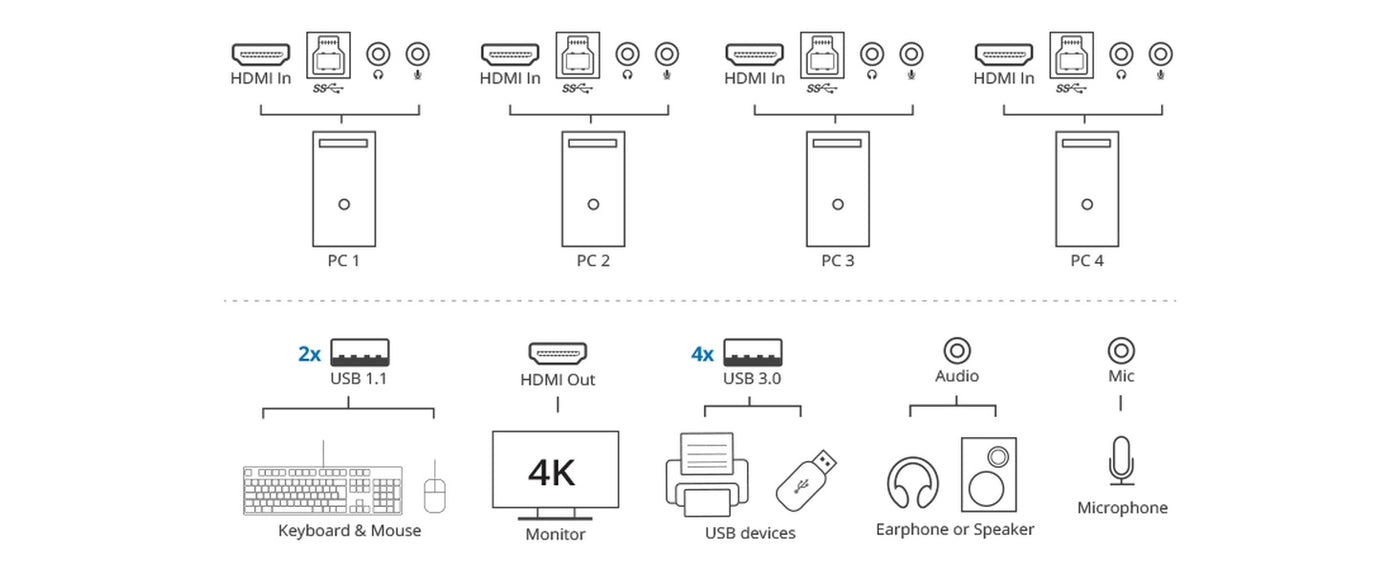

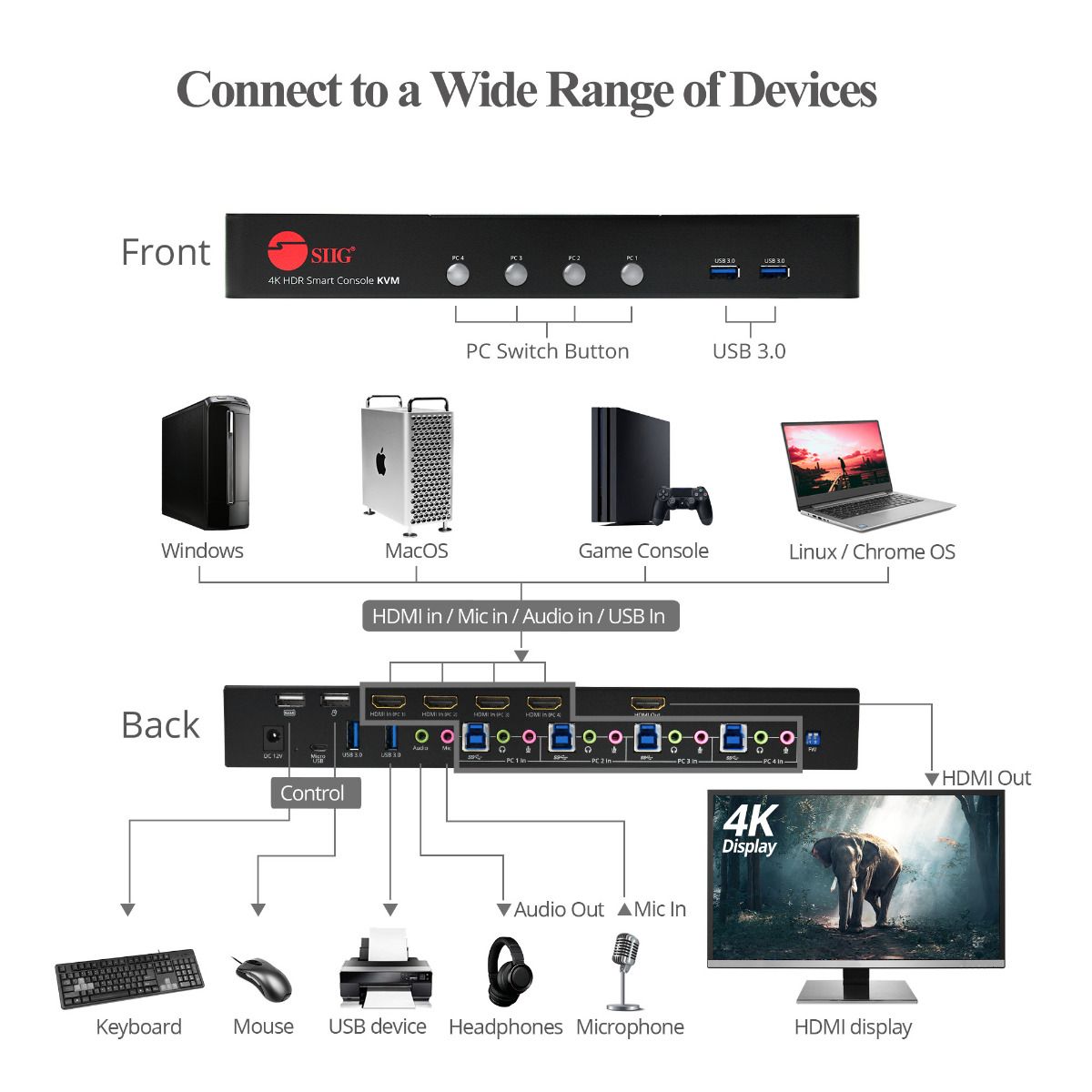

Multiple Connectivity Port
Connection

| Chipset | TI SN75DP130 |
| Video | |
| HDMI | 4Kx2K @60Hz, HDCP 2.2, 3D, Deep color |
| Bandwidth | Single-link 594MHz, Up to 18Gbps |
| Resolution | Up to 3840x2160@60Hz YUV 4:4:4 8-bit HDR 3840x2160@60Hz YUV 4:2:0 10-bit Note:3440x1440 not supported |
| USB | |

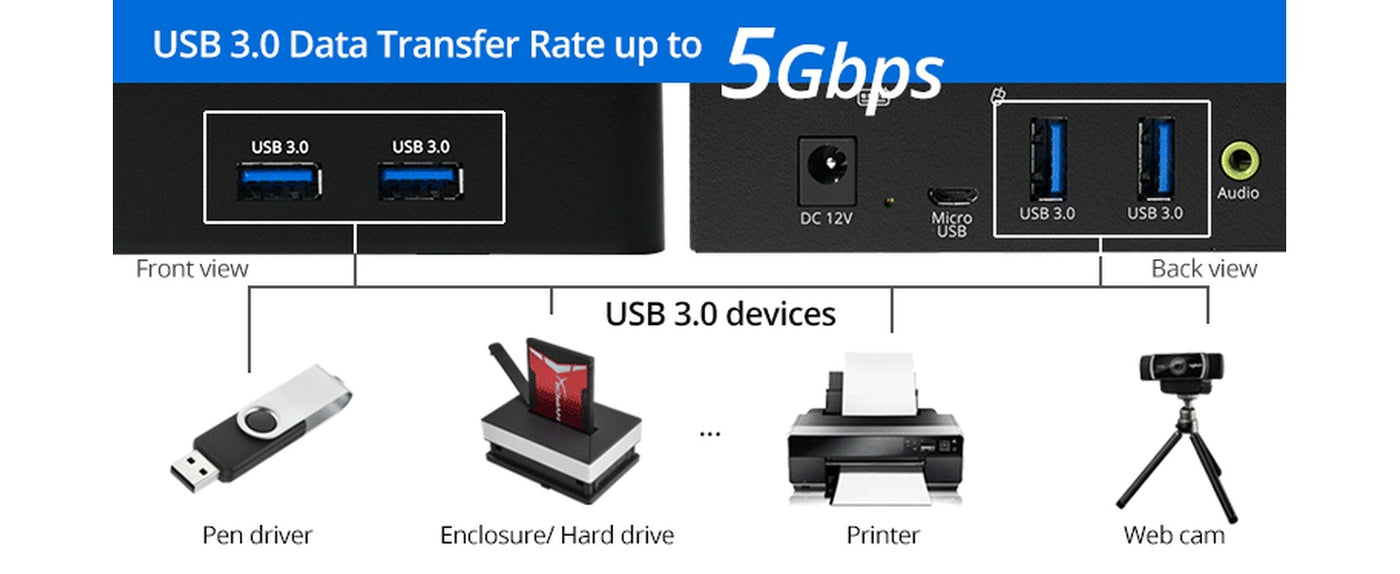

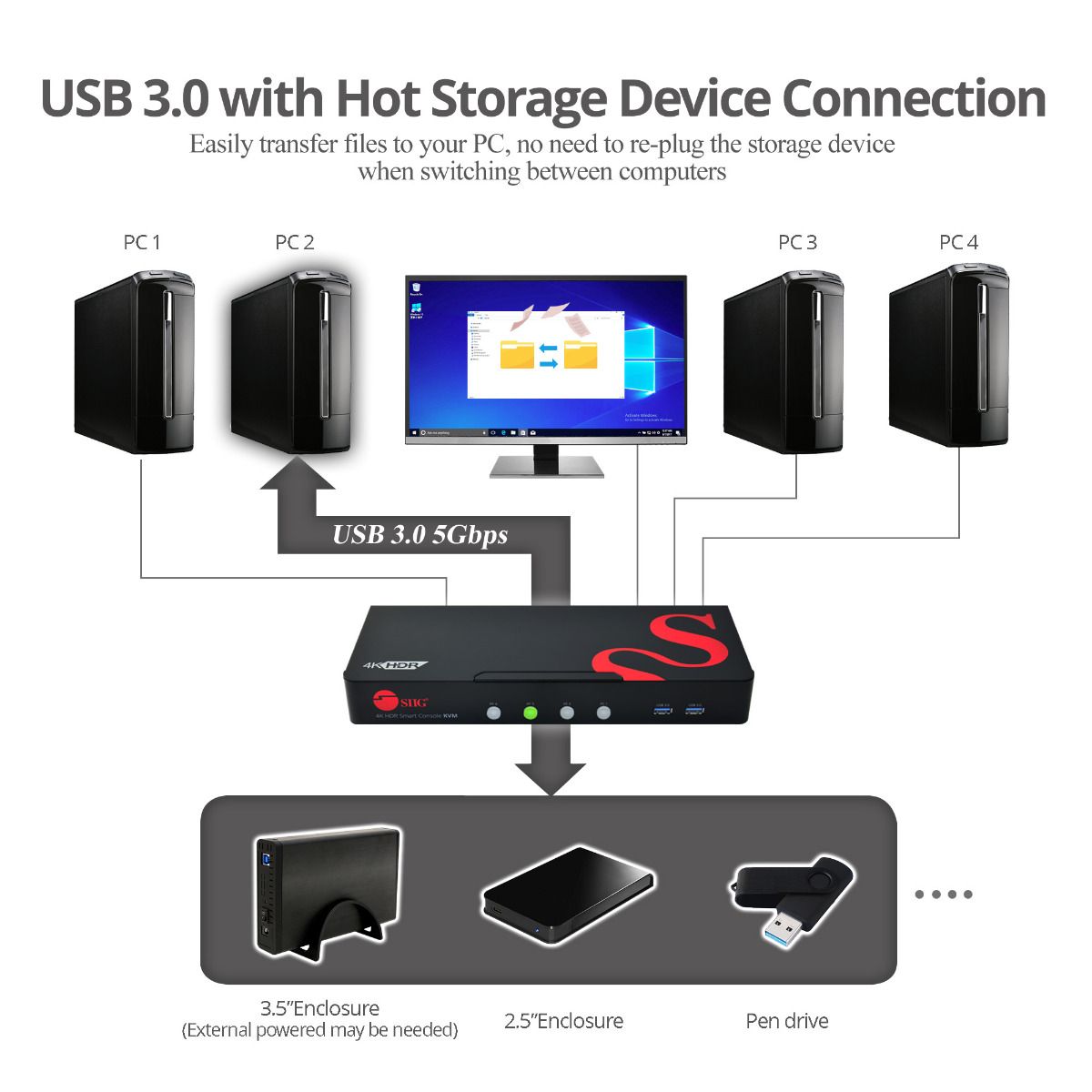

| USB 3.0 | 4x Type-A, Gen 1 up to 5Gbps |
| USB 1.1 | 2x Type-A, Up to 12Mbps |
| Audio | 7.1 channel surround sound PCM 2.1 channel stereo digital audio |
| Power Adapter | Input: AC 100-240V / 50-60Hz Output: DC 12V/2A UL Listed: E163743, Level VI |
| Interface | 4x 19-pin HDMI Female (PC input) 4x 9-pin USB 3.0 Type-B Female 8x 3.5mm phone jack for Microphone and Stereo audio Female (PC) 1x 19-pin HDMI Female (Output) 2x 3.5mm phone jack for Microphone and Stereo audio Female (Device) 4x 9-pin USB 3.0 Type-A Female 2x 4-pin USB 1.1 Type-A Female (Keyboard/Mouse) 1x 5-pin Micro USB Female (FW update) 1x DC power jack (5.5x2.5x10mm) |
| Environmental Conditions | |
| Operating temperature | 32 to 104 degrees F |
| Storage temperature | -4 to 140 degrees F |
| Relative humidity | <85% RH (non-condensing) |
| Product | |
| Dimensions (L) x (H) x (W) | 11.10" x 1.46" x 4.42" 28.19 cm x 3.71 cm x 11.23 cm |
| Weight | 2.09 lbs (0.95 kg) |
| Color | Black |
| Housing | Metal |
| Unit Package | |
| Dimensions (L) x (H) x (W) | 13.03" x 8.03" x 6.37" 33.09 cm x 20.40 cm x 16.18 cm |
| Weight | 5.72 lbs (2.59 kg) |
| Master Carton | |
| Dimensions (L) x (H) x (W) | 19.68" x 13.39" x 17.00" 49.99 cm x 34.01 cm x 43.18 cm |
| Weight | 37.57 lbs (17.04 kg) |
| Quantity | 6 pcs/ctn |
| Certifications/Standards | FCC, CE, RoHS, TAA compliant Cable UL Listed: E465682 |
| UPC Code | 662774-042916 |
| Warranty | 3 years limited |
| Country of Origin | Taiwan |
| System Requirements | - PC or Laptop with available HDMI, USB Type-A port (USB 3.0 recommended), audio and Mic ports - Compliant with Windows or Mac system |

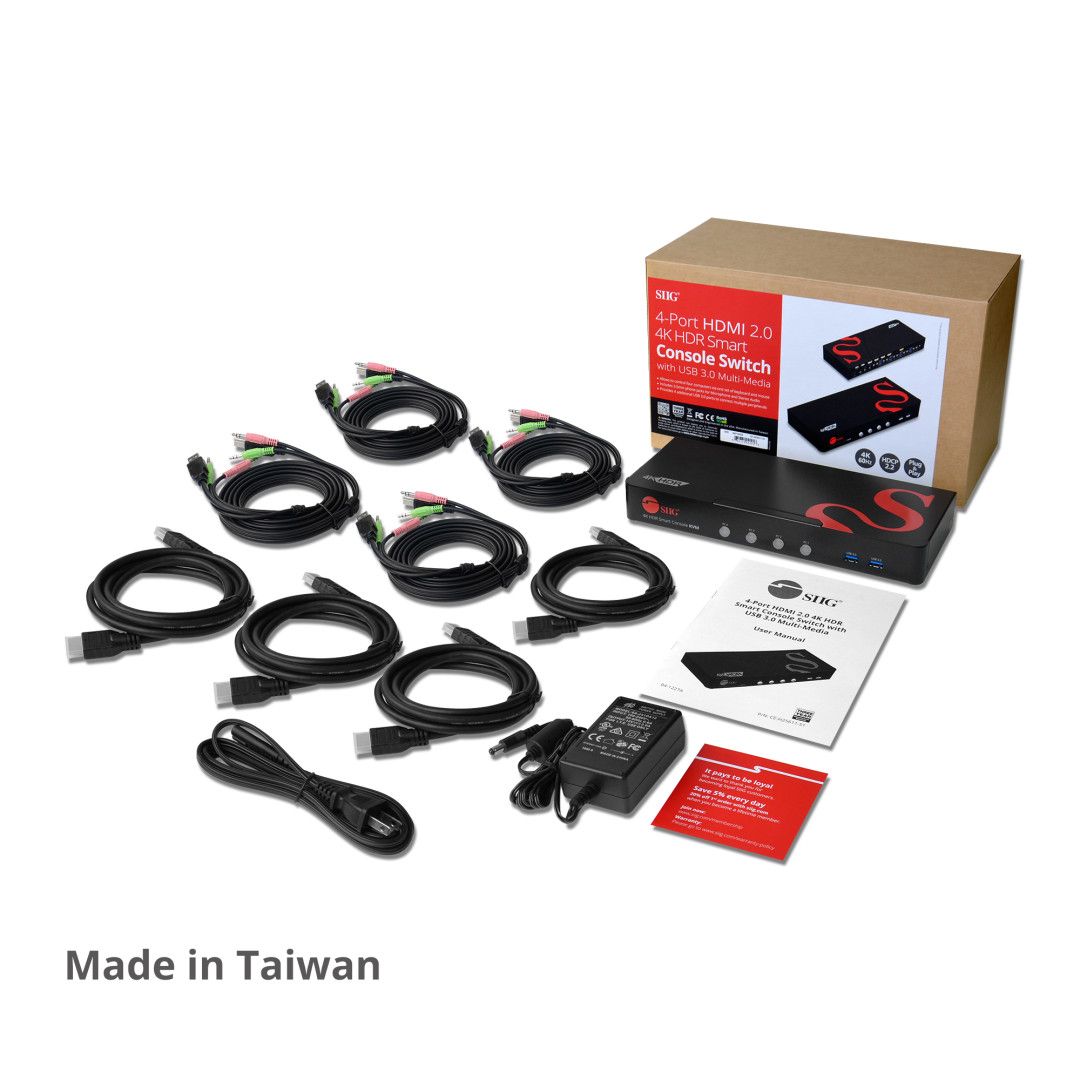

| Package Contents | 1x 4-Port HDMI 4K HDR Smart Console KVM Switch with USB 3.0 Multi-Media 4x HDMI cable (1.8m) 4x 3-in-1 cable (USB 3.0+Mic+Stereo, 1.8m) 1x Power Adapter (12V/2A) 1x User Reference Guide |
Q1: Are the 4K Smart Console KVM Switches DDM Fast Switching Compliant?
Q1: Are the 4K Smart Console KVM Switches DDM Fast Switching Compliant?
- 2-Port HDMI 2.0 4K HDR Smart Console KVM Switch with USB 3.0 and Multimedia Ports (CE-H25511-S1)
- 4-Port HDMI 2.0 4K HDR Smart Console KVM Switch with USB 3.0 and Multimedia Ports (CE-H25611-S1)
- 2-Port DVI Dual-Link Smart Console KVM Switch with USB 3.0 and Multimedia Ports (CE-DV0111-S1)
- 4-Port DVI Dual-Link Smart Console KVM Switch with USB 3.0 and Multimedia Ports (CE-DV0211-S1)
- 2-Port DisplayPort 1.2 4K Smart Console KVM Switch with USB 3.0 and Multimedia Ports (CE-DP0F11-S1)
- 4-Port DisplayPort 1.2 4K Smart Console KVM Switch with USB 3.0 and Multimedia Ports (CE-DP0G11-S1)
Answer:
DDM fast switching feature is not supported.
Q2: Does this unit support USB dongles for wireless keyboards and mice? If yes, will one dongle suffice OR must one be put in each USB port?
Q2: Does this unit support USB dongles for wireless keyboards and mice? If yes, will one dongle suffice OR must one be put in each USB port?
