SKU:
CE-DV0211-S1

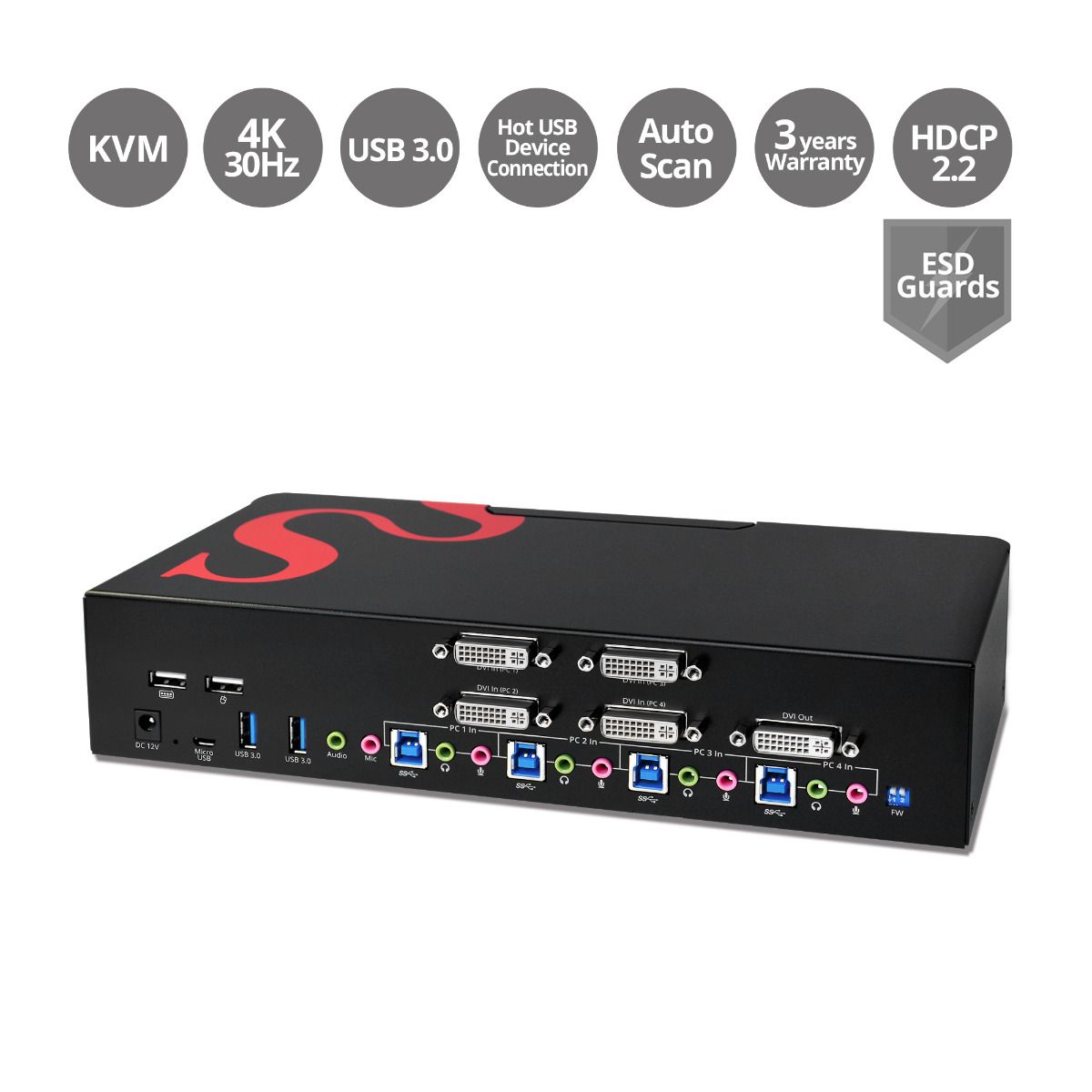

4-Port DVI Dual-Link Smart Console KVM Switch with USB 3.0 and Multimedia Ports
DVI Dual Link KVM
4 In / 1 Out
4K30Hz
USB 5Gbps
3.5mm Audio / MIC
Regular price
$469.99
Unit price
/
Unavailable
Shipping calculated at checkout.
4-Port DVI Dual-Link Smart Console KVM Switch with USB 3.0 and Multimedia Ports is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Features

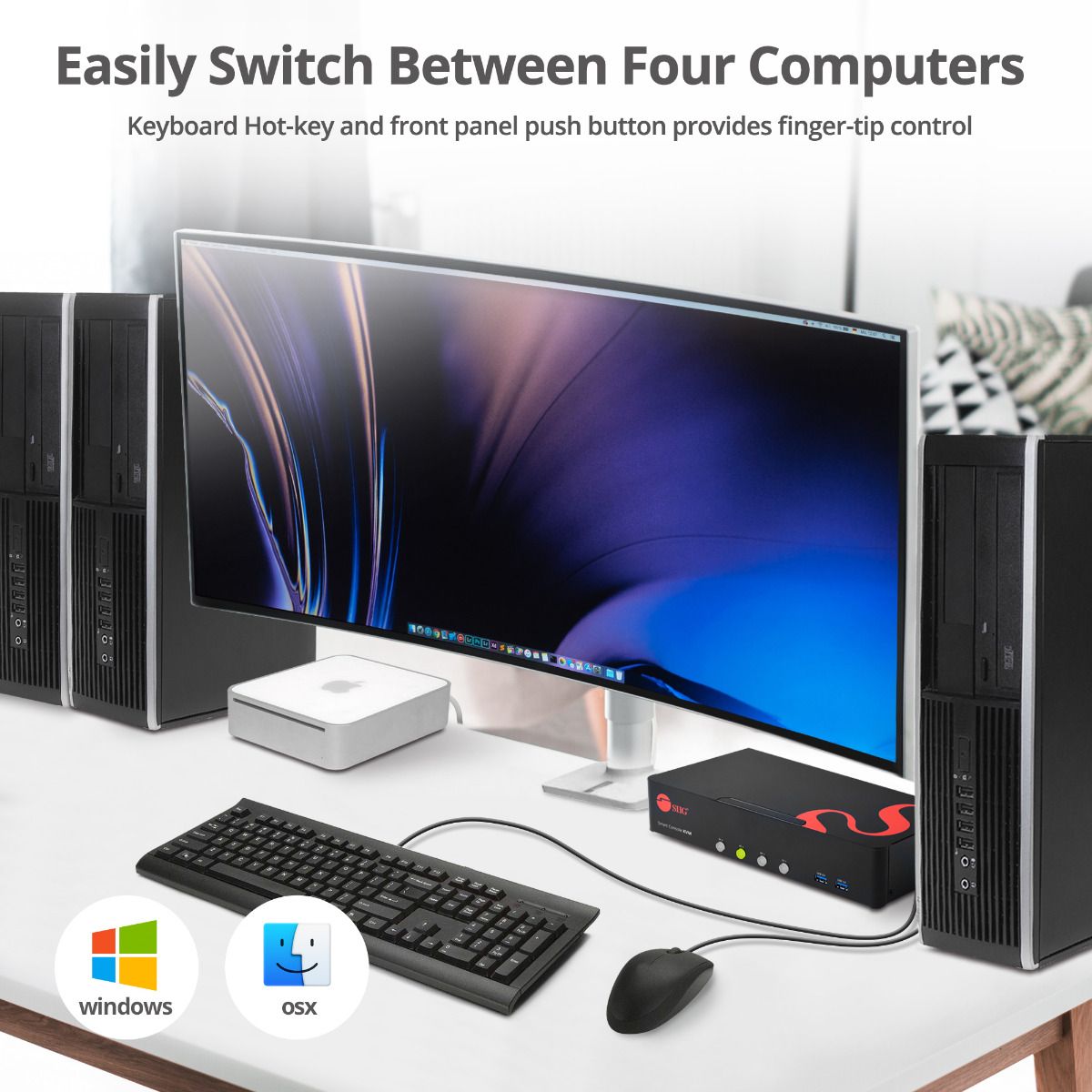

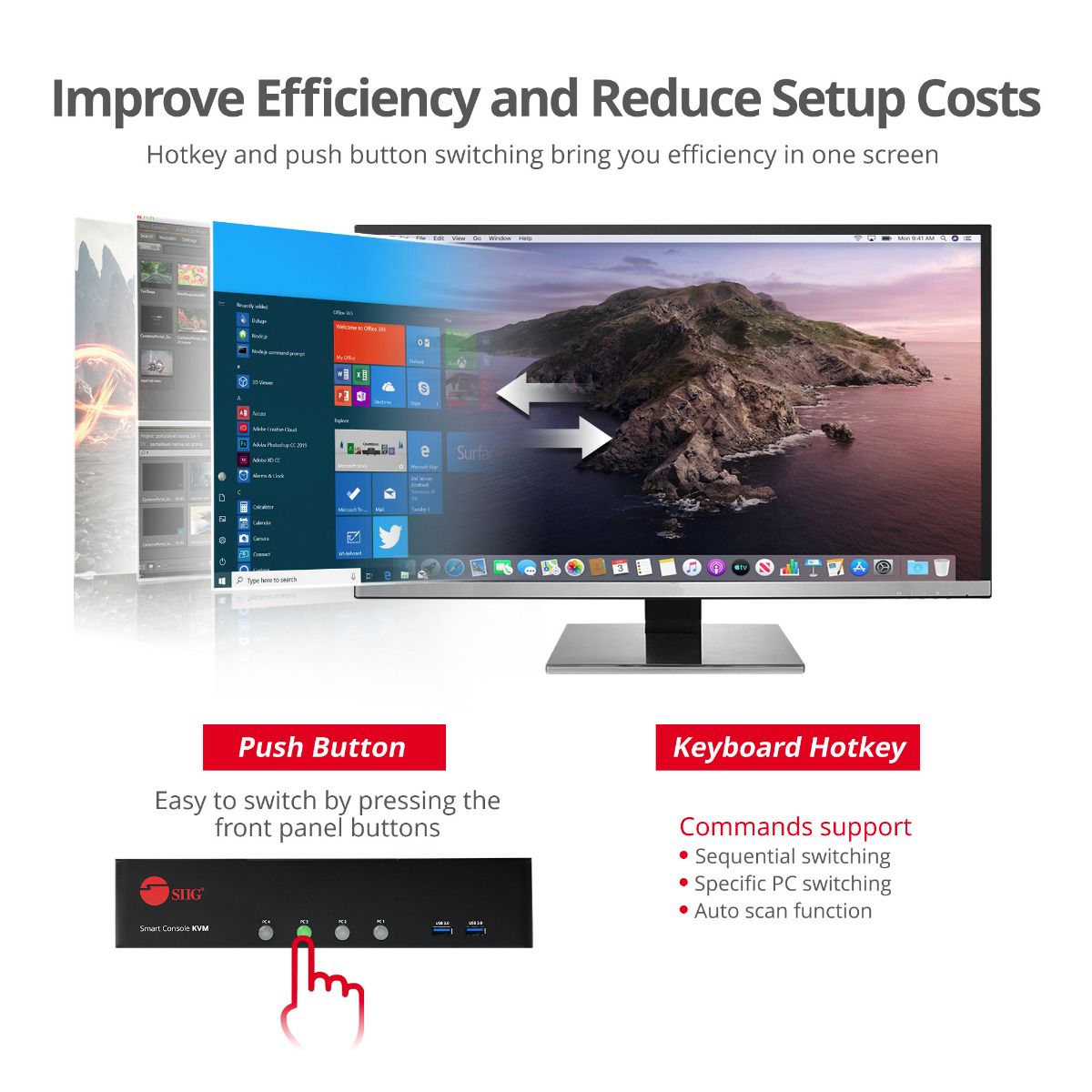

Effortlessly Switch
Effortlessly Switch
High Performance
High Performance

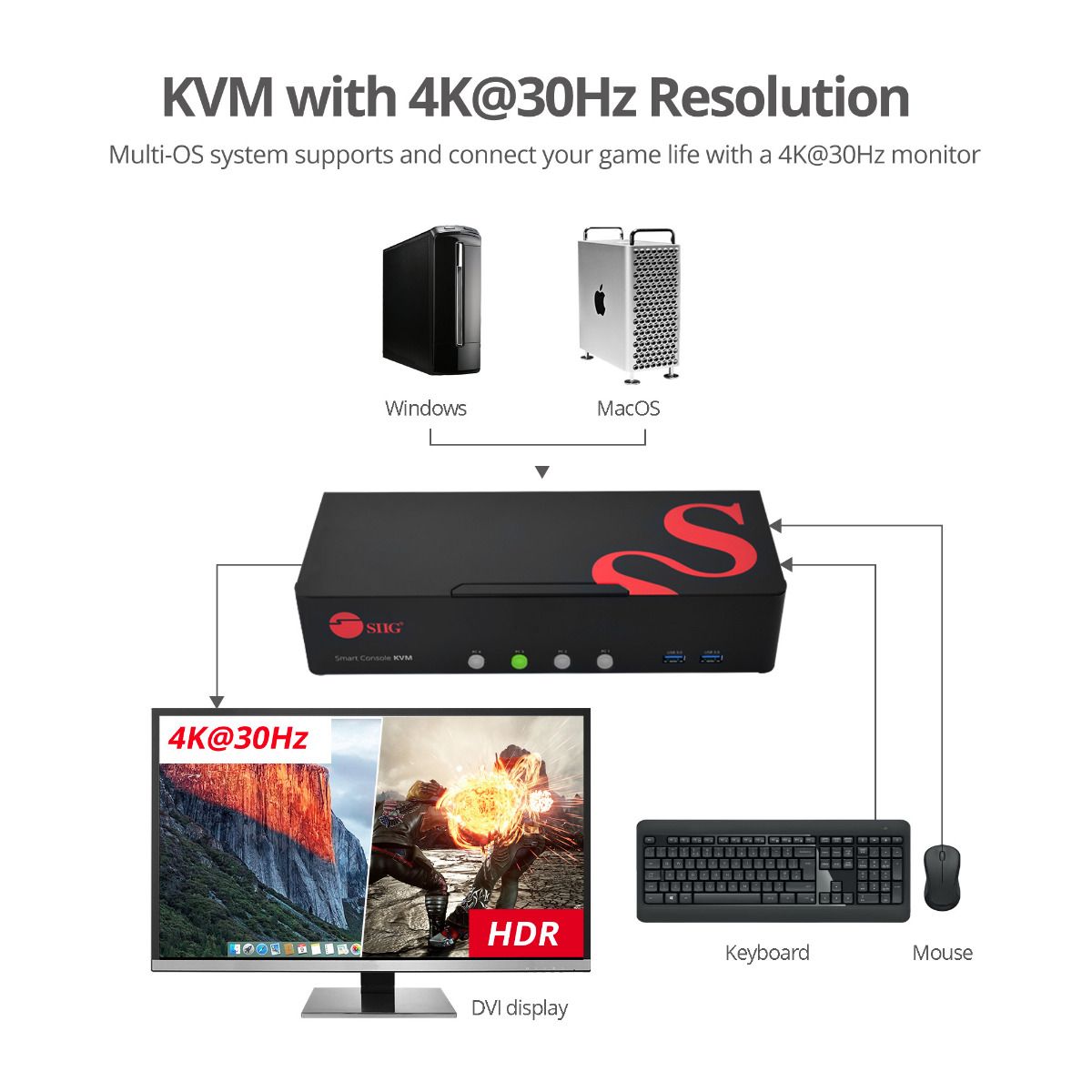

High Resolution
High Resolution

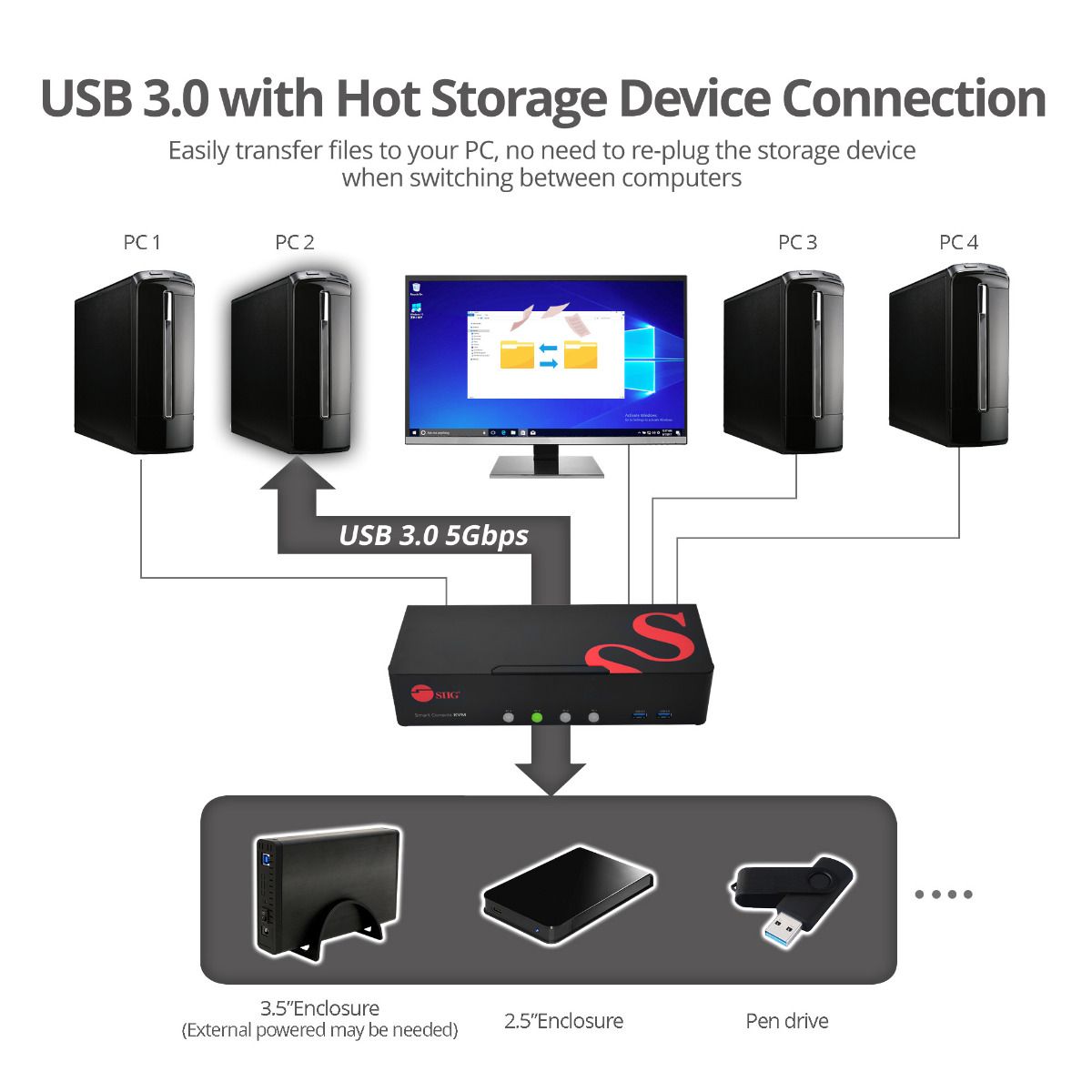

High-Speed Data Transfer & Compatibility
High-Speed Data Transfer & Compatibility

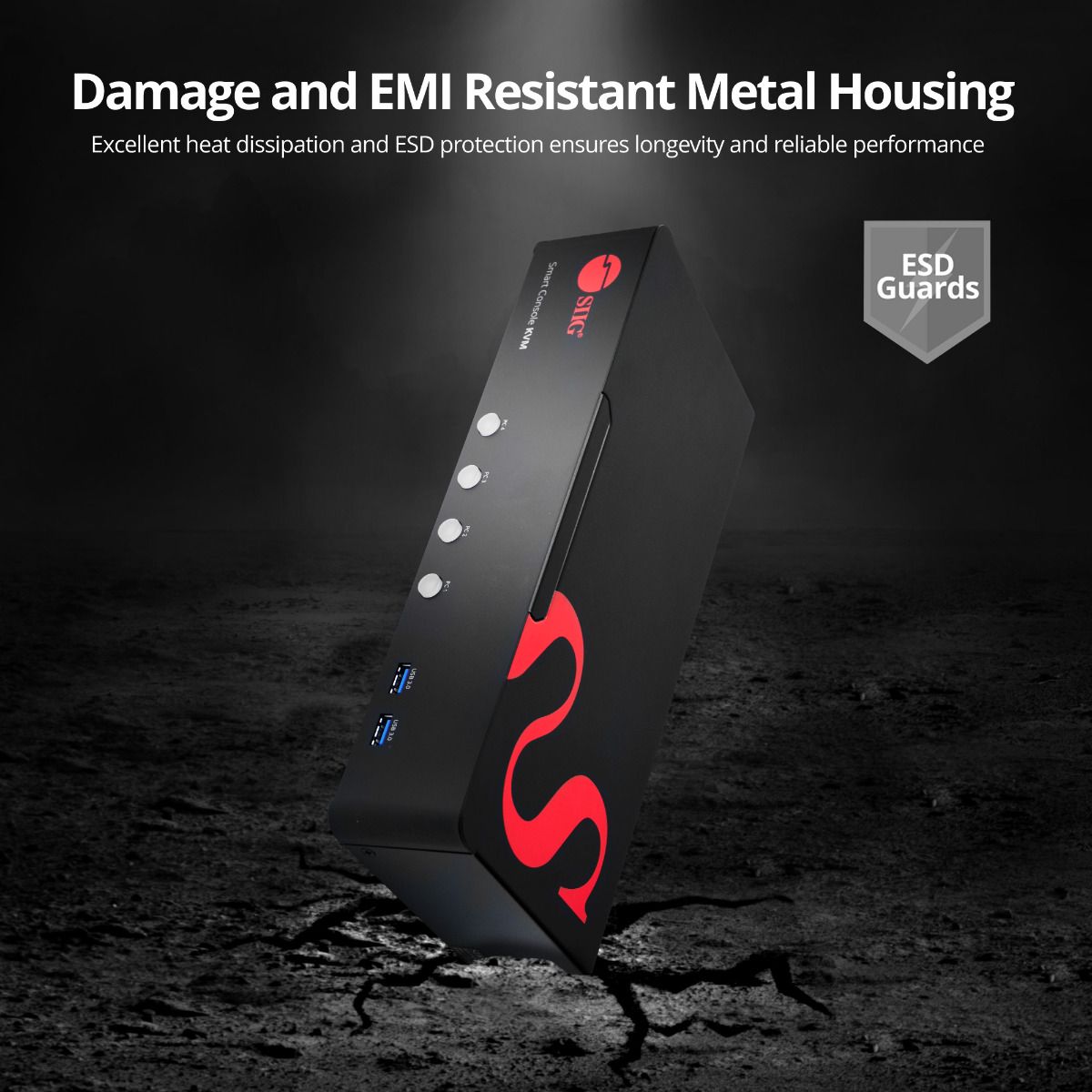

Metal Housing Design & TAA compliant
Metal Housing Design & TAA compliant
No content found
| Chipset | AX68004 |
| Bandwidth | Up to 6Gbps |
| DVI-D Video | Dual-Link: 4Kx2K30Hz or 2K@60Hz Single-Link: 1920x120060Hz |
| Audio | PCM 2.0 channel stereo digital audio |
| USB | |
| USB 3.0 | 4x Type-A, Gen 1 up to 5Gbps |
| USB 1.1 | 2x Type-A, Up to 12Mbps |
| Power Adapter | Input: AC 100-240V / 50-60Hz Output: DC 12V/2A UL Listed:E163743, Level VI Power Cord UL Listed: E318430 |

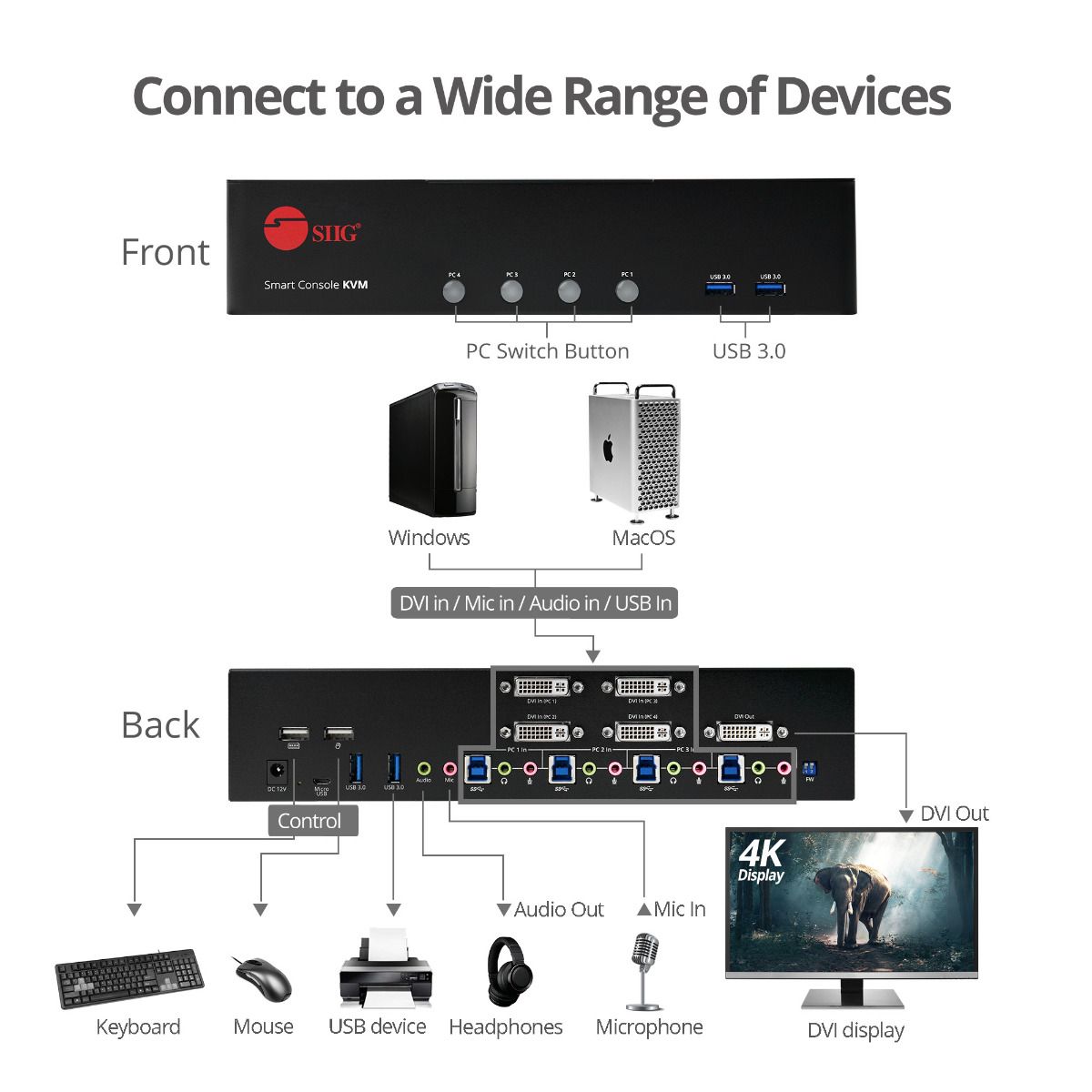

| Interface | 4x 29-pin DVI-D Dual-Link Female (PC input) 4x 9-pin USB 3.0 Type-B Female 8x 3.5mm phone jack for Microphone and Stereo audio Female (PC) 1x 29-pin DVI-D Dual-Link Female, (Output) 2x 3.5mm phone jack for Microphone and Stereo audio Female (Device) 4x 9-pin USB 3.0 Type-A Female 2x 4-pin USB 1.1 Type-A Female (Keyboard/Mouse) 1x 5-pin Micro USB Female (FW update) 1x 2-pin DIP switch (control FW) 1x DC power jack (5.5x2.5x10mm) |
| Certifications/Standards | FCC,CE,RoHS,TAA compliant |
| UPC Code | 662774-042930 |
| Warranty | 3 years limited |
| Country of Origin | Taiwan |
| System Requirements | - PC or Laptop with available DVI-D Dual Link port, USB Type-B port (USB 3.0 recommended), audio and Mic ports - Compliant with Windows or Mac system |
| Product | |
| Dimensions (L) x (H) x (W) | 11.10" x 2.36" x 4.42" 28.20 cm x 6.00 cm x 11.23 cm |
| Weight | 2.49 lbs (1.13 kg) |
| Color | Black |
| Housing | Metal |
| Unit Package | |
| Dimensions (L) x (H) x (W) | 13.03" x 8.03" x 6.37" 33.10 cm x 20.40 cm x 16.18 cm |
| Weight | 7.13 lbs (3.23 kg) |
| Master Carton | |
| Dimensions (L) x (H) x (W) | 19.88" x 13.58" x 17.17" 50.50 cm x 34.49 cm x 43.61cm |
| Weight | 46.41 lbs (21.05 kg) |
| Quantity | 6 pcs/ctn |
| Environmental Conditions | |
| Operating Temperature | 32° to 122° F |
| Storage Temperature | 14° to 158° F |
| Relative Humidity | 20% to 90% RH (non-condensing) |

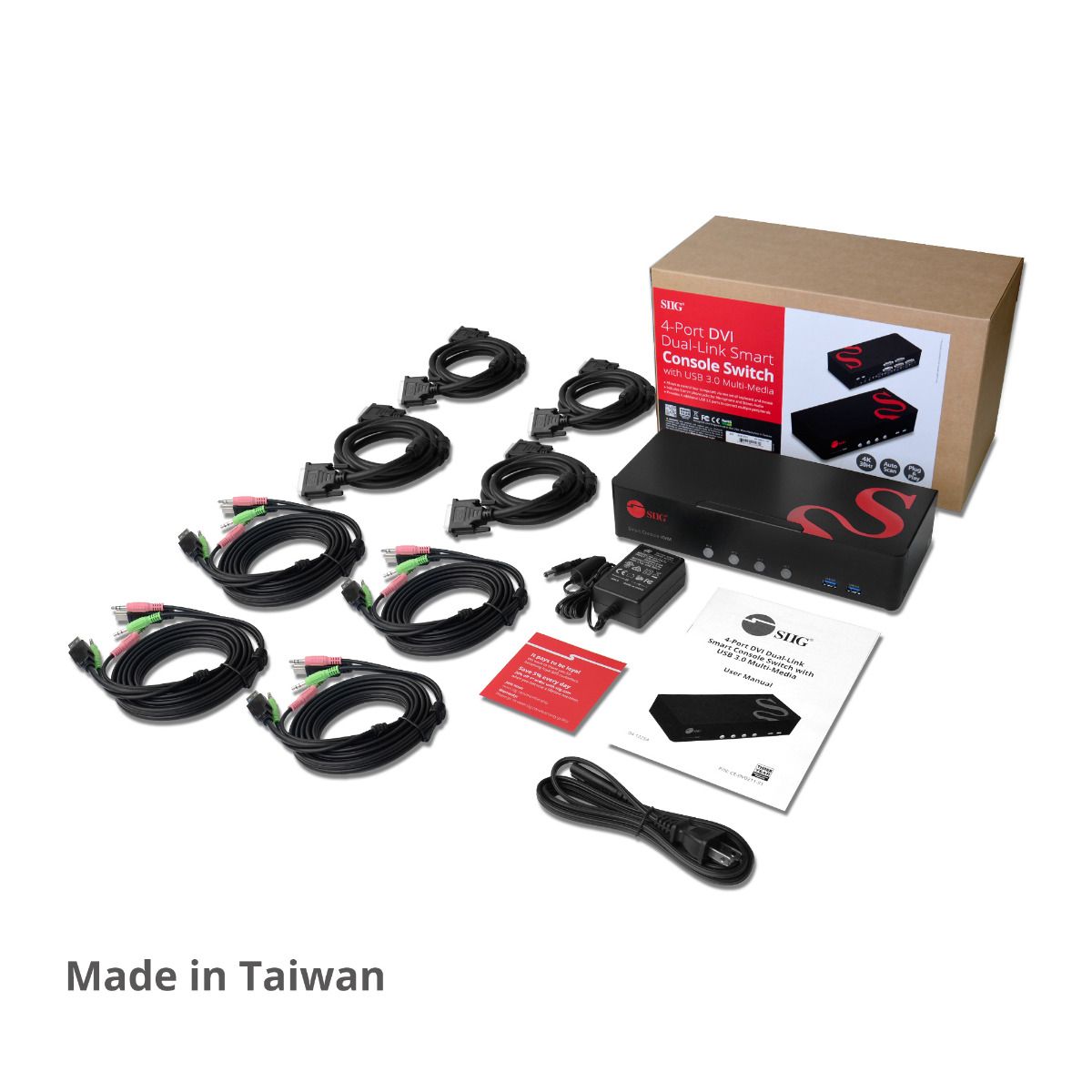

| Package Contents | 1x 4-Port DVI Dual-Link Smart Console KVM Switch with USB 3.0 Multi-Media 4x DVI-D Dual-Link cable (1.8m) 4x 3-in-1 cable (USB 3.0+Mic+Stereo, 1.8m) 1x Power Adapter (12V/2A) 1x User Reference Guide |
