KVM |
SKU:
CE-KV0H11-S1
4-Port DisplayPort 1.4 8K MST Dual Head KVM Console Switch
4x DisplayPort PCs In
32.4Gbps/ 8K@30Hz or dual 4K@144Hz
2x DisplayPort MST Out
Auto EDID
TAA Compliant
Regular price
$899.99
Unit price
/
Unavailable
Shipping calculated at checkout.
4-Port DisplayPort 1.4 8K MST Dual Head KVM Console Switch is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Features
4-Port DisplayPort 1.4 KVM Switch for Multi-Computer Control
4-Port DisplayPort 1.4 KVM Switch for Multi-Computer Control
8K & Dual 4K Ultra HD Resolution Support
8K & Dual 4K Ultra HD Resolution Support
USB 3.2 Gen 1 Hub with Audio Integration
USB 3.2 Gen 1 Hub with Audio Integration

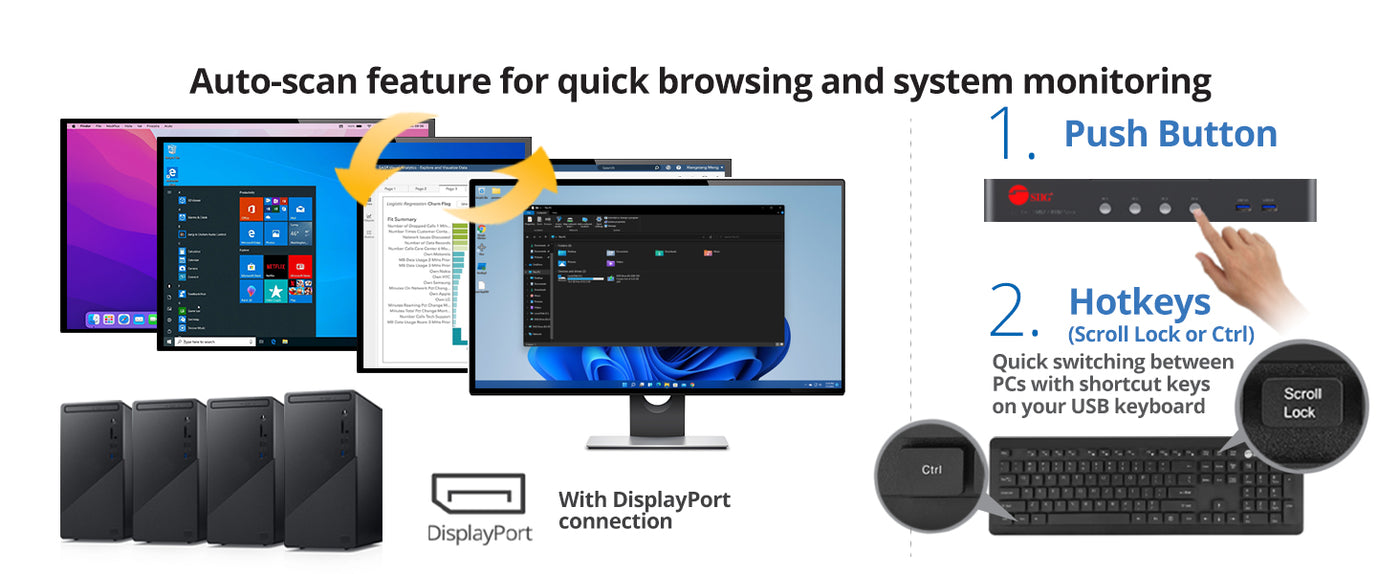

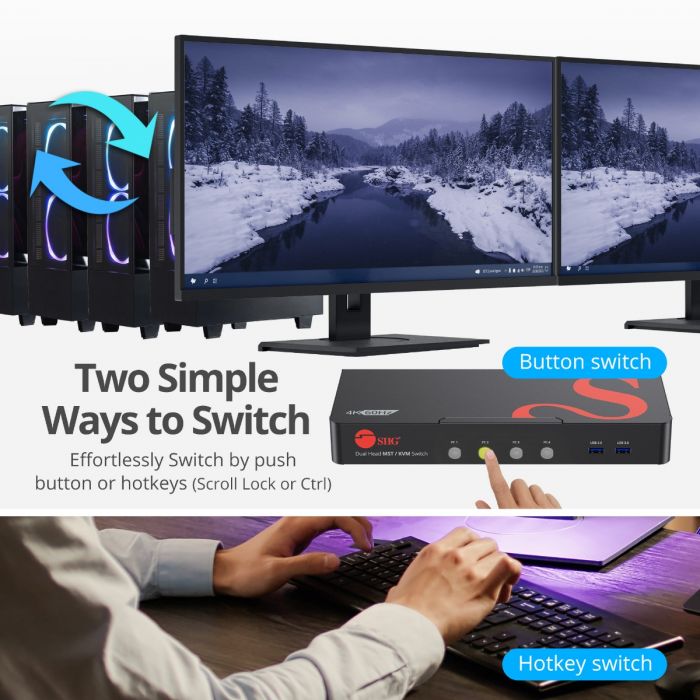

Easy Switching via Hotkeys or Push Button
Easy Switching via Hotkeys or Push Button
Plug & Play with Wide Compatibility
Plug & Play with Wide Compatibility
Perfect for Businesses that Need to Switch Between Multiple Computers Quickly and Easily




Unique Features
-

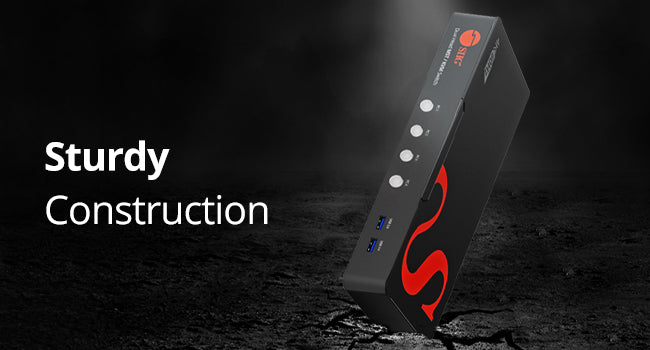

Metal Housing
The metal housing of this product is both drop-resistant and anti-collision, which also helps it dissipate heat better and improve its overall performance and safety. -
Manufactured in TAA Country
Suppose you or your company are involved with GSA Schedules, IDIQ, or DoD contracts.
This kit complies with TAA for businesses seeking to acquire goods wholly made or substantially transformed in trusted countries.

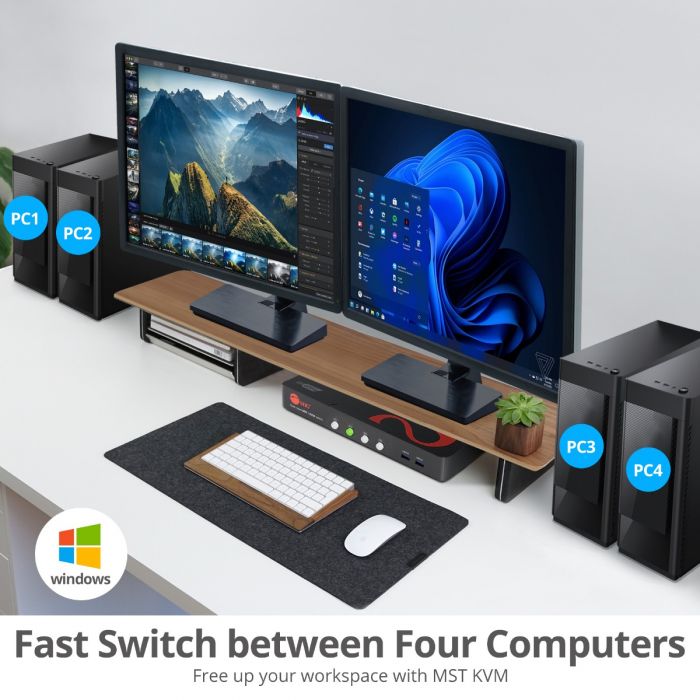

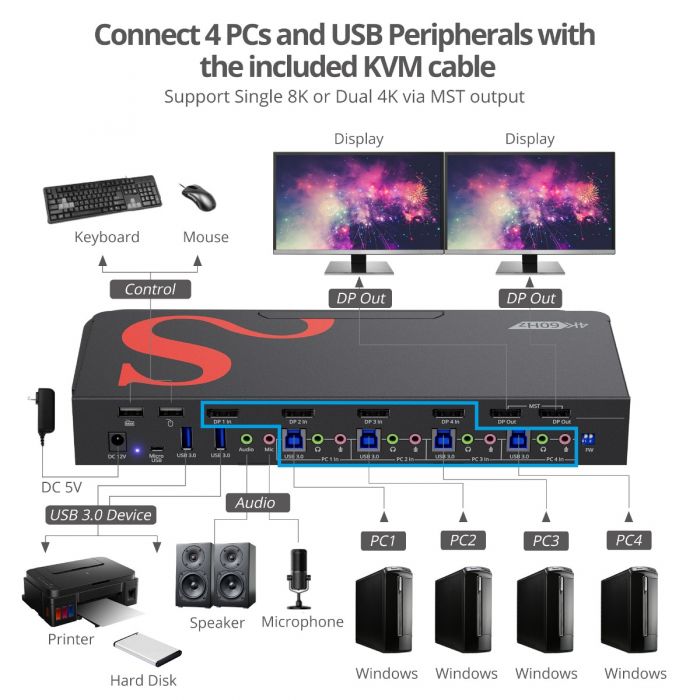

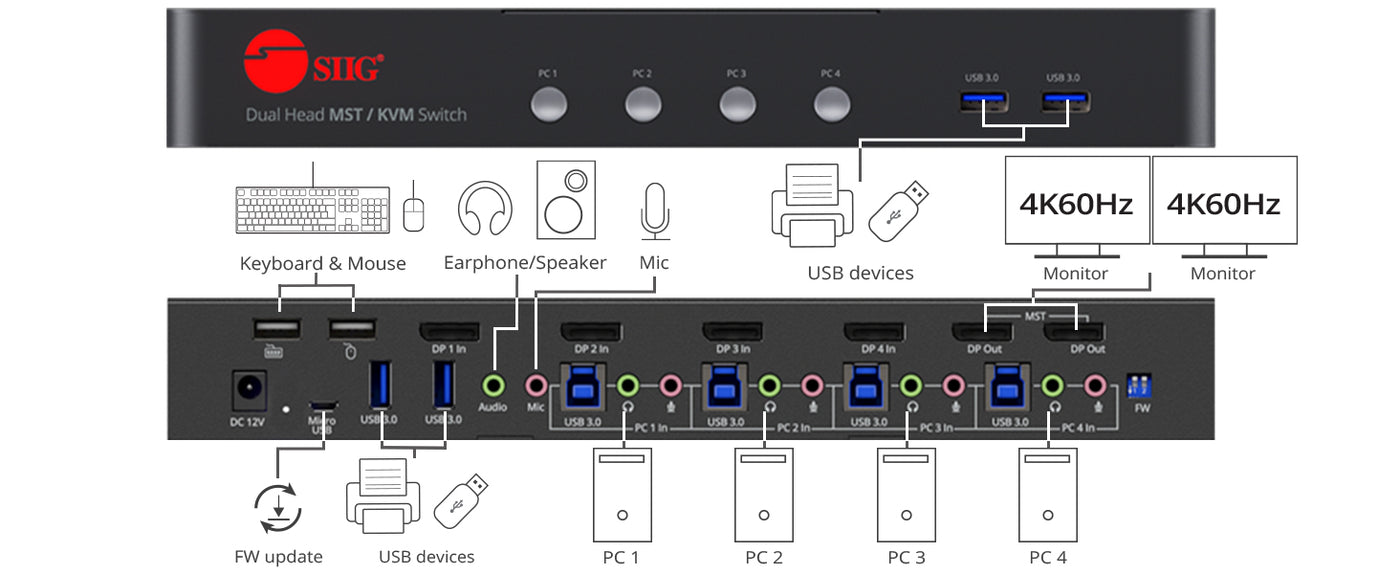

Control 4 DisplayPort 8K Computers Using One Keyboard and Mouse

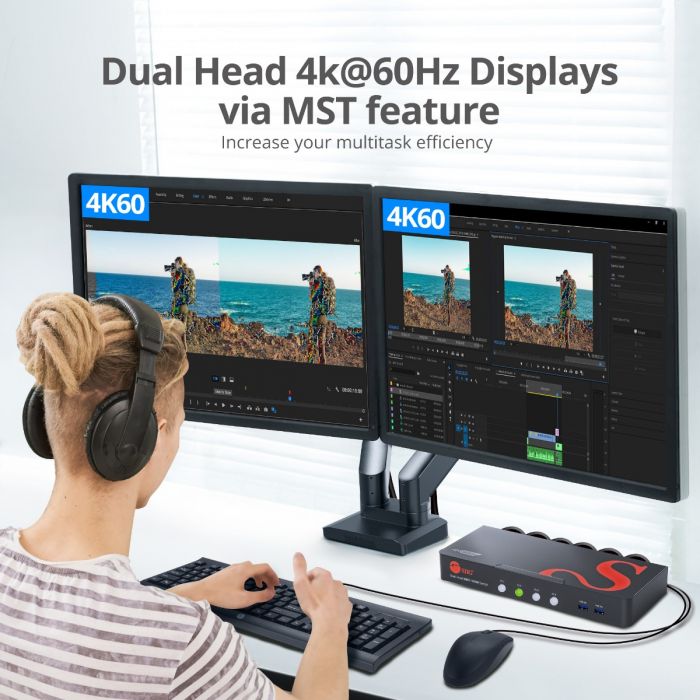

The KVM Switch Can Output Dual 4K60Hz DisplayPort Signals via the MST Feature

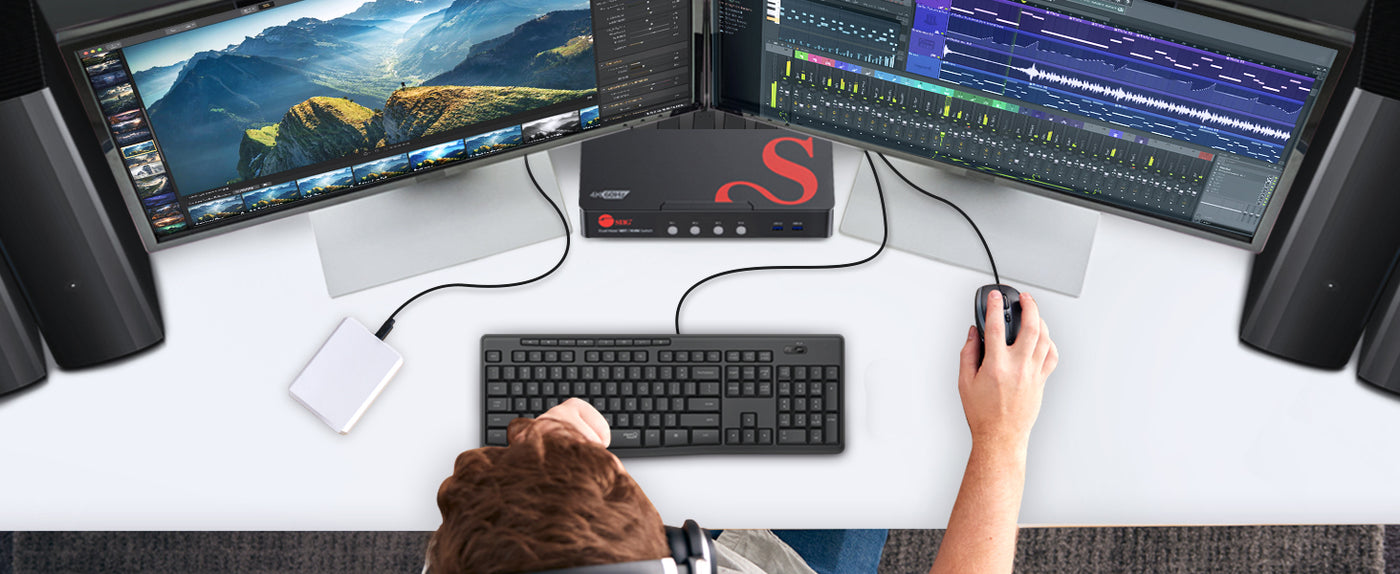

4-Port DisplayPort 1.4 8K MST Dual Head KVM Switch for Studio, Data Center, Office & Home Theater
| Video | |
| DisplayPort | 4x input, 2x output |

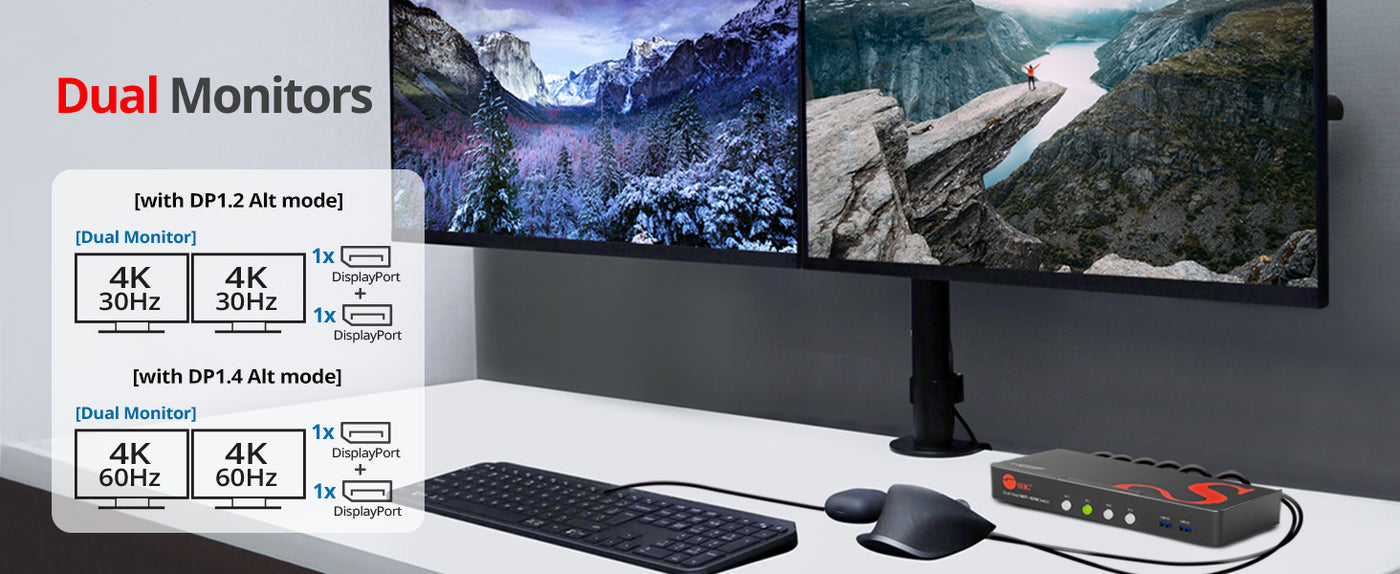

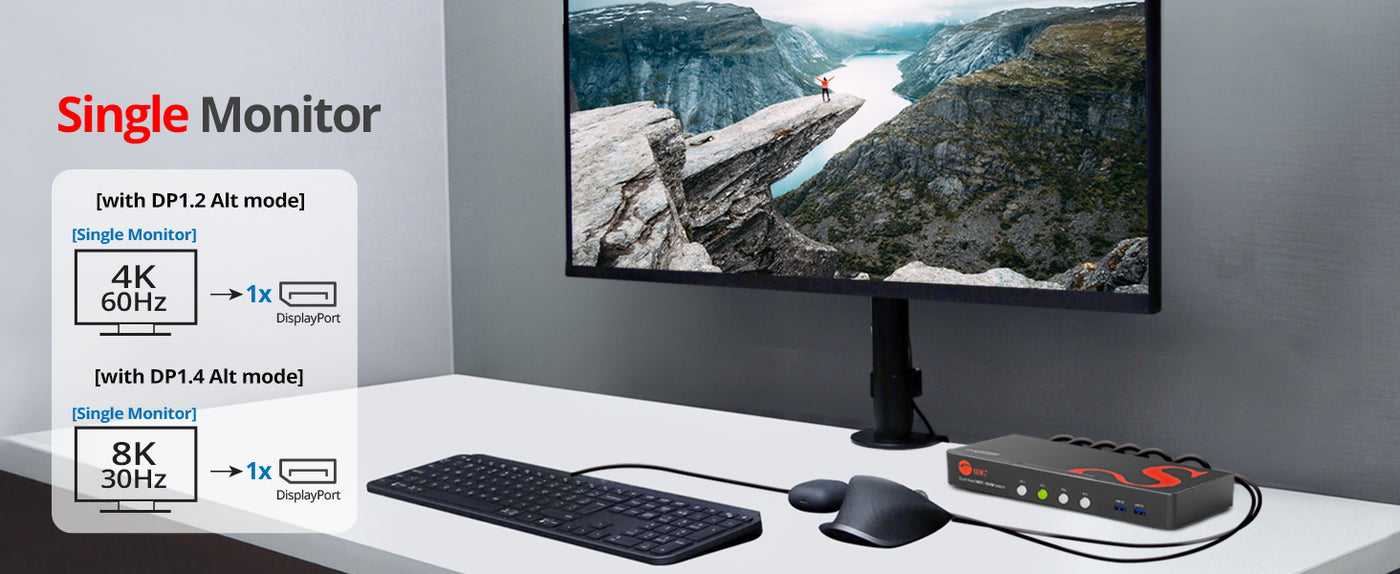

| Resolution | Single: 8K (7680x4320) @30Hz / 4K 144Hz YUV 4:2:2 8-bit Dual: 4K (3840x2160) @60Hz YUV 4:4:4 8-bit, HDCP 2.2, Deep Color, 3D |
| Video Bandwidth | Up to 32.4Gbps |
| USB Data Transfer Rate | |
| USB 3.2 Gen 1 | 4x Type-A, up to 5Gbps, 5V/900mA |
| USB 1.1 | 2x Type-A, up to 12Mbps, for HID keyboard & mouse |
| Audio | - 7.1 channel surround form DisplayPort port (PCM, Dolby Digital, DTS-HD and Dolby True-HD audio) - 2 channel stereo audio from 3.5mm audio jack (PCM 2-ch. stereo audio) |
| Power Adapter | |
| Input | AC 100-240V / 50-60Hz |
| Output | DC 12V / 2A |
| UL Listed | E253376/Level: VI |

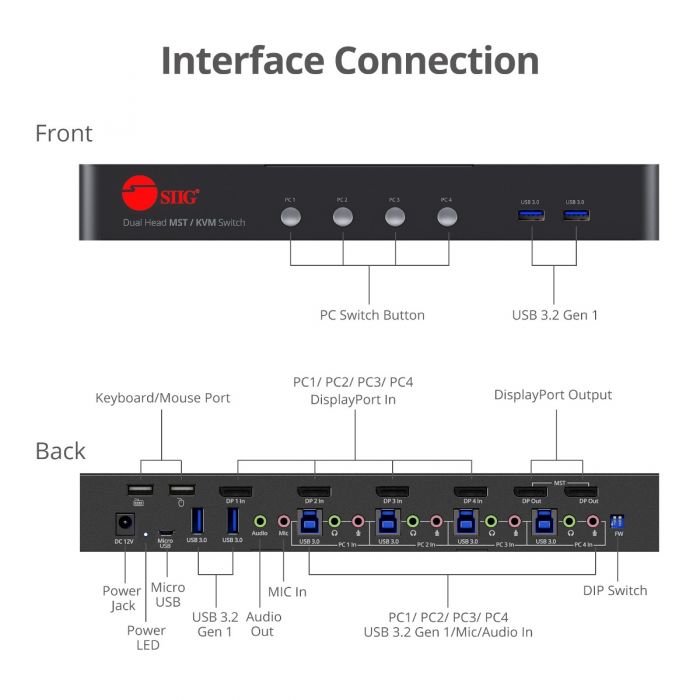

| Interface | |
| Input | 4x 20-pin, DisplayPort, Female 4x 9-pin, USB-B 3.2 Gen 1, Female (Host) 4x 9-pin, USB-A 3.2 Gen 1, Female 2x 4-pin, USB-A 1.1, for HID keyboard & mouse, Female 5x 3.5mm phone jacks, for microphone 1x 5-pin, Micro USB, for Firmware update 1x 2-pin, DIP switch, for Firmware control 4x Switch button, for PC1/PC2/PC3/PC4 switching 1x DC power adapter, 12V/2A |
| Output | 2x 20-pin, DisplayPort, Female 5x 3.5mm phone jack, for stereo audio |
| System Requirements | - PC with available DisplayPort, USB-A 3.2 Gen 1, 3.5mm audio, and 3.5mm microphone ports - Windows® 11 / 10 - * macOS® only supports Mirror mode |
| Product | |
| Dimensions (L) x (H) x (W) | 11.10" x 1.43" x 4.39" 28.19 cm x 3.63 cm x 11.15 cm |
| Weight | 2.15 lbs (0.98 kg) |
| Color | Black |
| Housing Material | Metal |
| Unit Package | |
| Dimensions (L) x (H) x (W) | 13.03" x 6.38" x 8.03" 33.10 cm x 16.20 cm x 20.40 cm |
| Weight | 5.59 lbs (2.54 kg) |
| Master Carton | |
| Dimensions (L) x (H) x (W) | 19.88" x 13.58" x 17.17" 50.50 cm x 34.50 cm x 43.60 cm |
| Weight | 36.16 lbs (16.4 kg) |
| Quantity | 6 pcs/ctn |
| Environmental Conditions | |
| Operating Temperature | 32 to 104 degrees F |
| Storage Temperature | -4 to 140 degrees F |
| Relative Humidity | 20% to 90% RH (non-condensing) |
| Certifications & Standards | FCC, CE, RoHS, REACH, TAA compliant |
| UPC Code | 662774-045443 |
| Warranty | 3 years limited |
| Country of Origin | Taiwan |

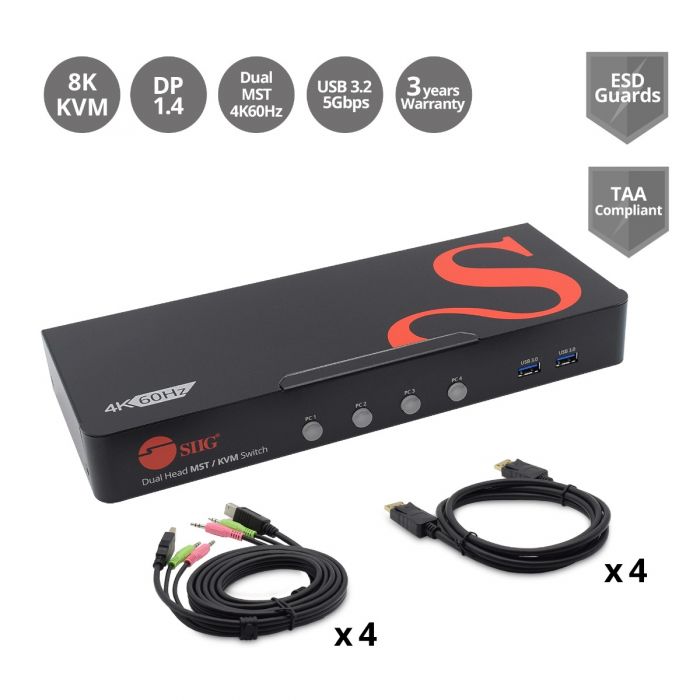

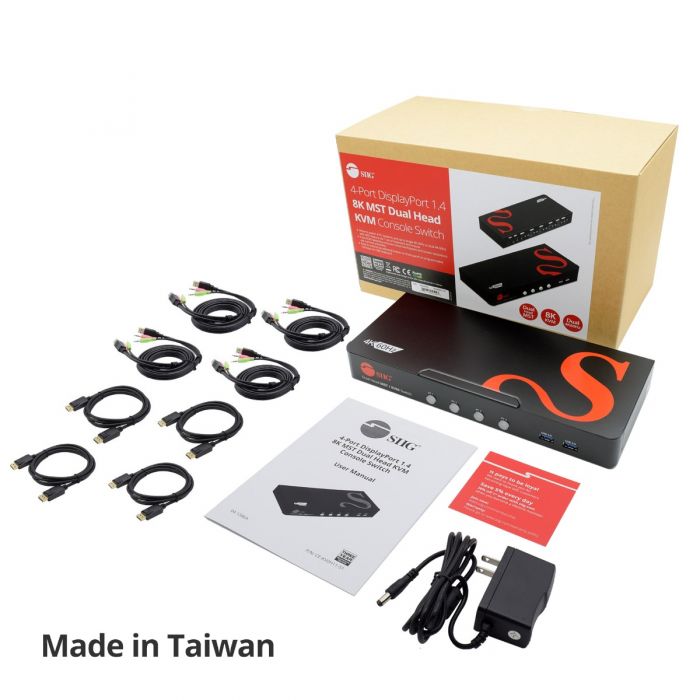

| Package contents | 1x 4-Port DisplayPort 1.4 8K MST Dual Head KVM Console Switch 4x DisplayPort cable 4x 3-in-1 cable (USB-A 3.2 Gen 1 to USB-B+MIC+audio) 1x DC power adapter, 12V/2A 1x User reference guide |
Q1: Is CE-KV0H11-S1 compatible with 32:9 ratio 5120x1440 HDR @240hz?
Q1: Is CE-KV0H11-S1 compatible with 32:9 ratio 5120x1440 HDR @240hz?
A1: No, it doesn't support 5120x1440@240Hz. The maximum refresh rate is 5120x1440@120Hz or 144Hz.
