Video Wall | SKU: CE-H26F11-S1

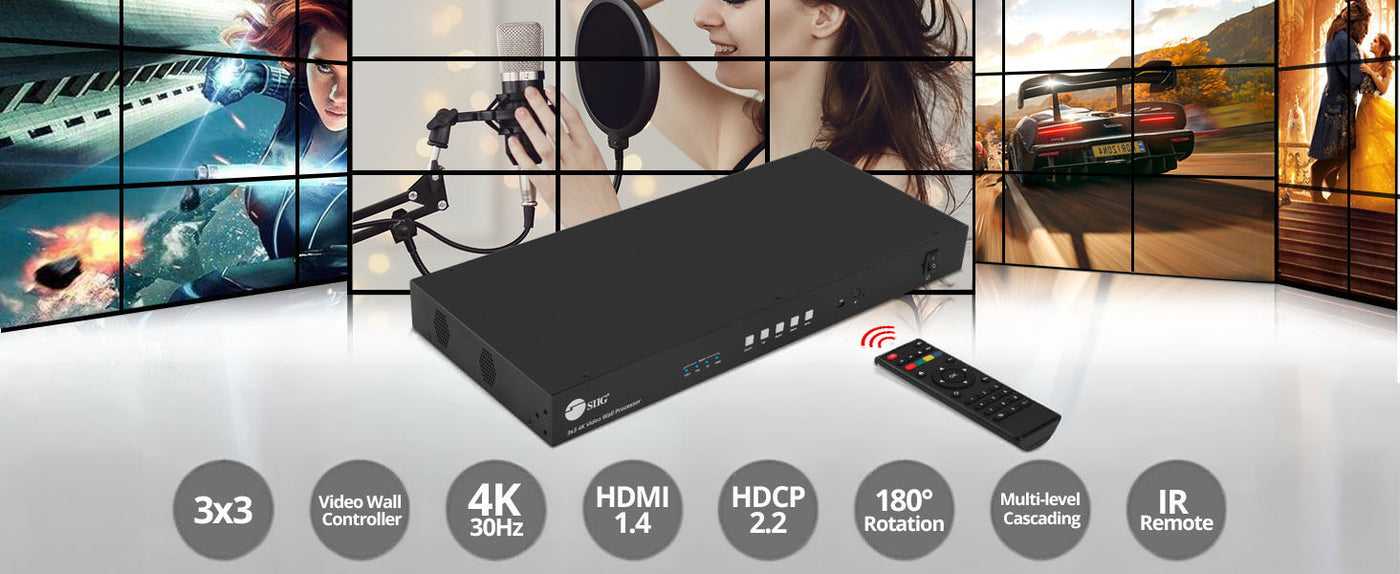

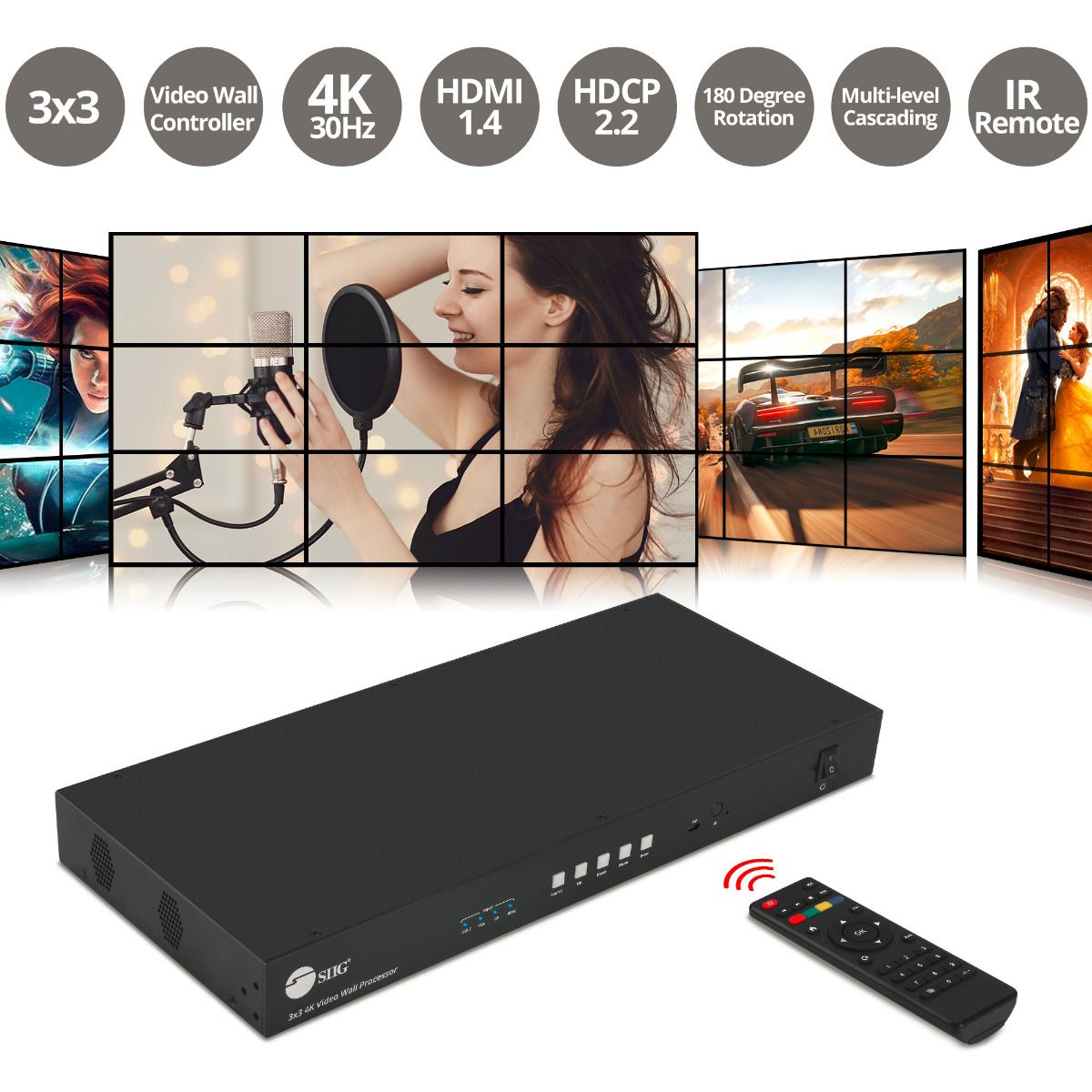

3x3 4K Video Wall Processor with USB-C/DP/VGA/HDMI In, RS-232/IR Remote/Web GUI control, SPDIF/3.5mm Audio Extract, Cascading up to 10x10

3x3 Vieo Wall
4K30Hz
USB-C / DP / VGA / HDMI In
25 Modes
10x10 Max
$2,199.99
Shipping calculated at checkout.
Product Features

9 Screen Video Wall Controller

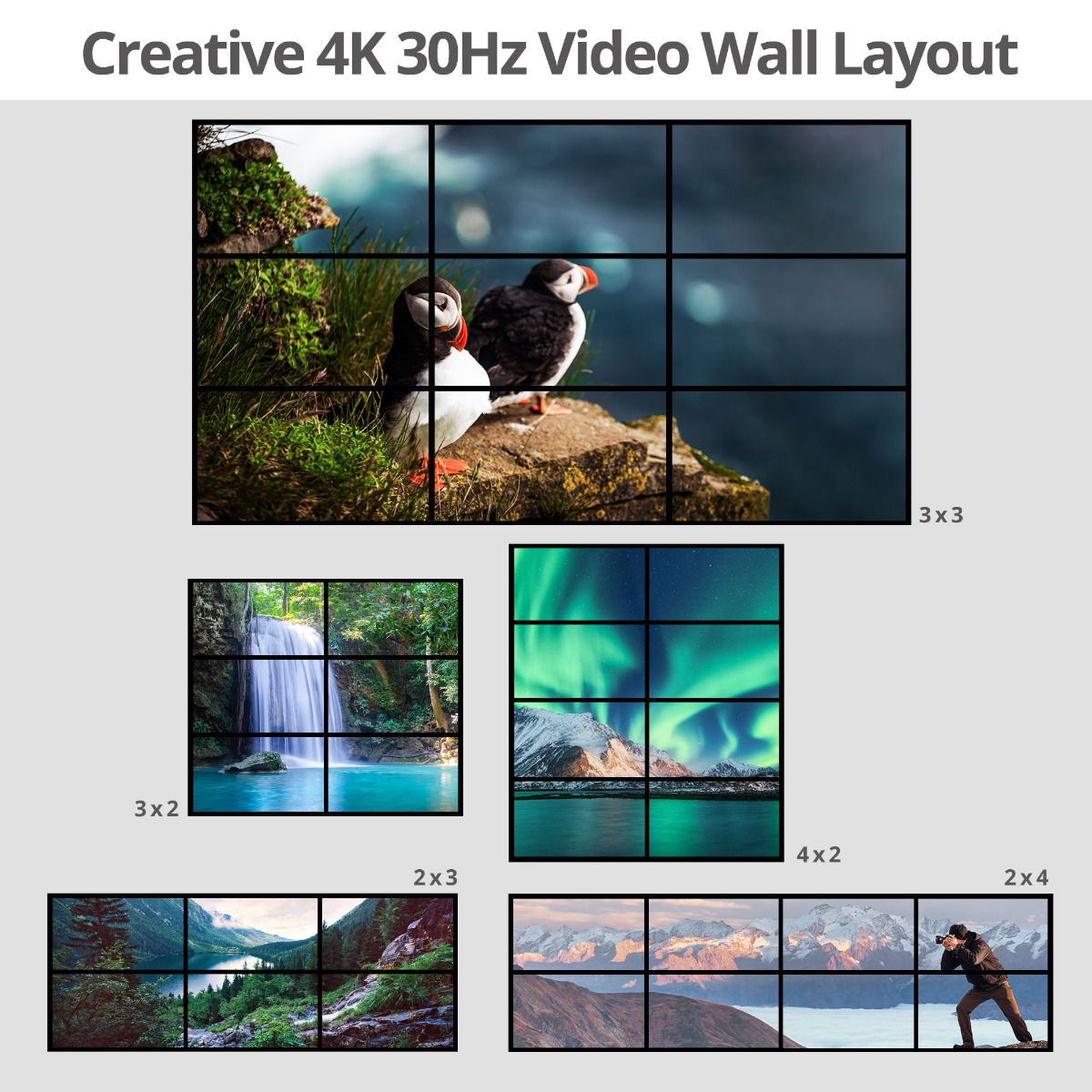

Customize your 4K 3x3 video wall, also supports 2x3, 2x4, 3x2, 4x2 configurations. Supports cascading function by using more units to create a bigger video wall (4x4, 5x5, … 10x10).

Four Multi-Input Switch

Supports USB-C, DP, VGA, and HDMI sources resolution up to 4K 30Hz. HDCP compliant. NOTE: VGA input only supports up to 1080p.

Nine & One 4K30Hz Outputs

Supports each display up to 4K 30Hz resolution. HDMI Loop port for easy setup and multi-level cascading. Coaxial S/PDIF 5.1ch and Stereo 2.1ch extraction for a better audio entertainment experience.

Four Control Methods

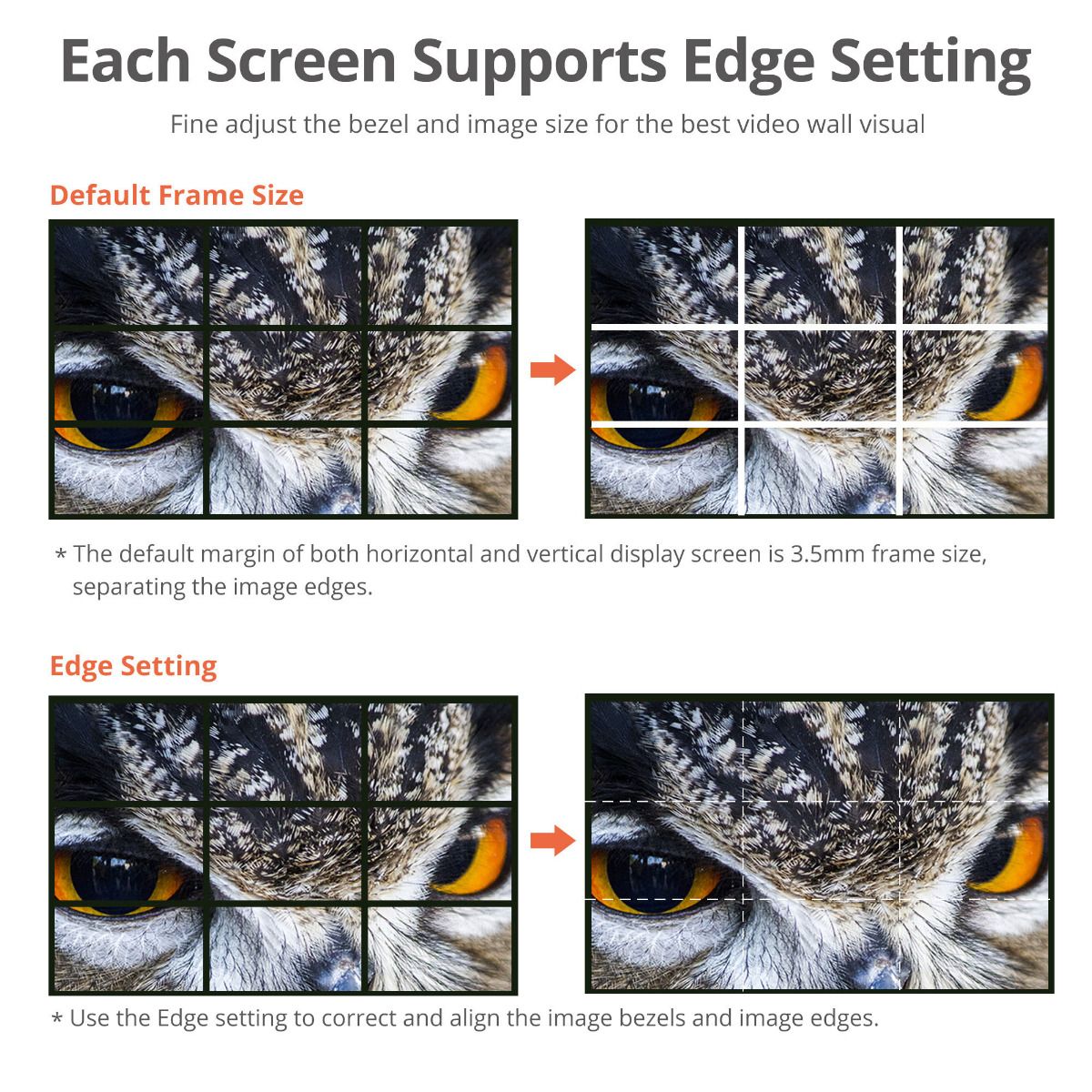

Front Panel buttons / IR remote control / RS-232 / Web UI with built-in bezel correction, easily resize, position, rotate, and zoom with each output.

Durable Design

Supports USB firmware upgrade for the latest feature and technology enhancement. The mountable metal housing perfect for Bars, Night Clubs, Casinos, Hotels, or your theater room.

  • 45 Days Free Return

  • 2 Years Warranty

  • Lifetime Technical Support

SIIG 3x3 4K Video Wall Processor with USB-C/DP/VGA/HDMI In

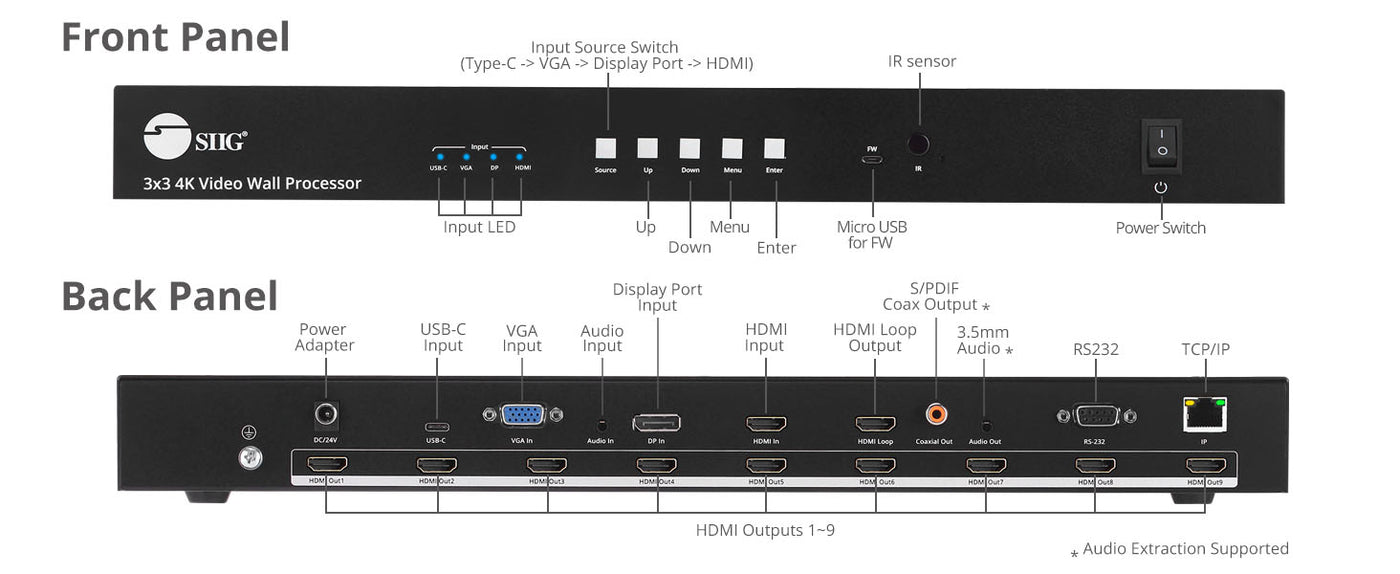

    Allows you to select and switch between 4 source devices (1 HDMI, 1 DisplayPort, 1 USB-C, and 1 VGA) to display on 9 HDMI displays with 1 local output for monitoring or cascading, Create a 3x3 Video Wall using any source device to 9 displays.

    Flexible Video Wall Configurations with Advanced Features

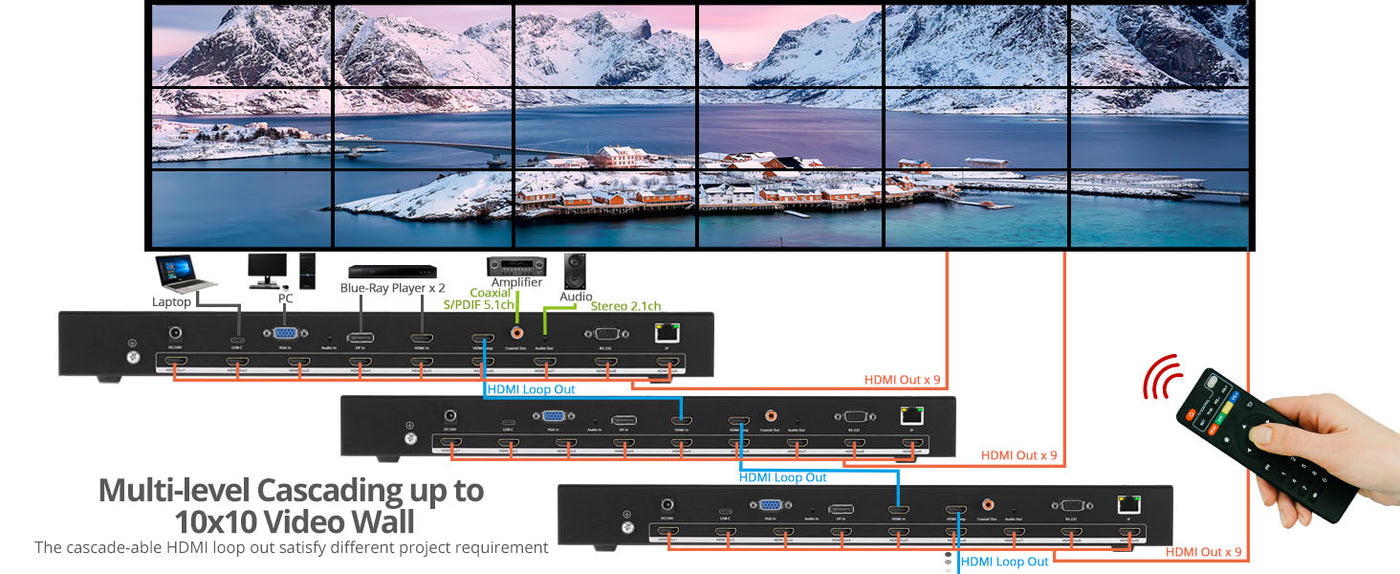

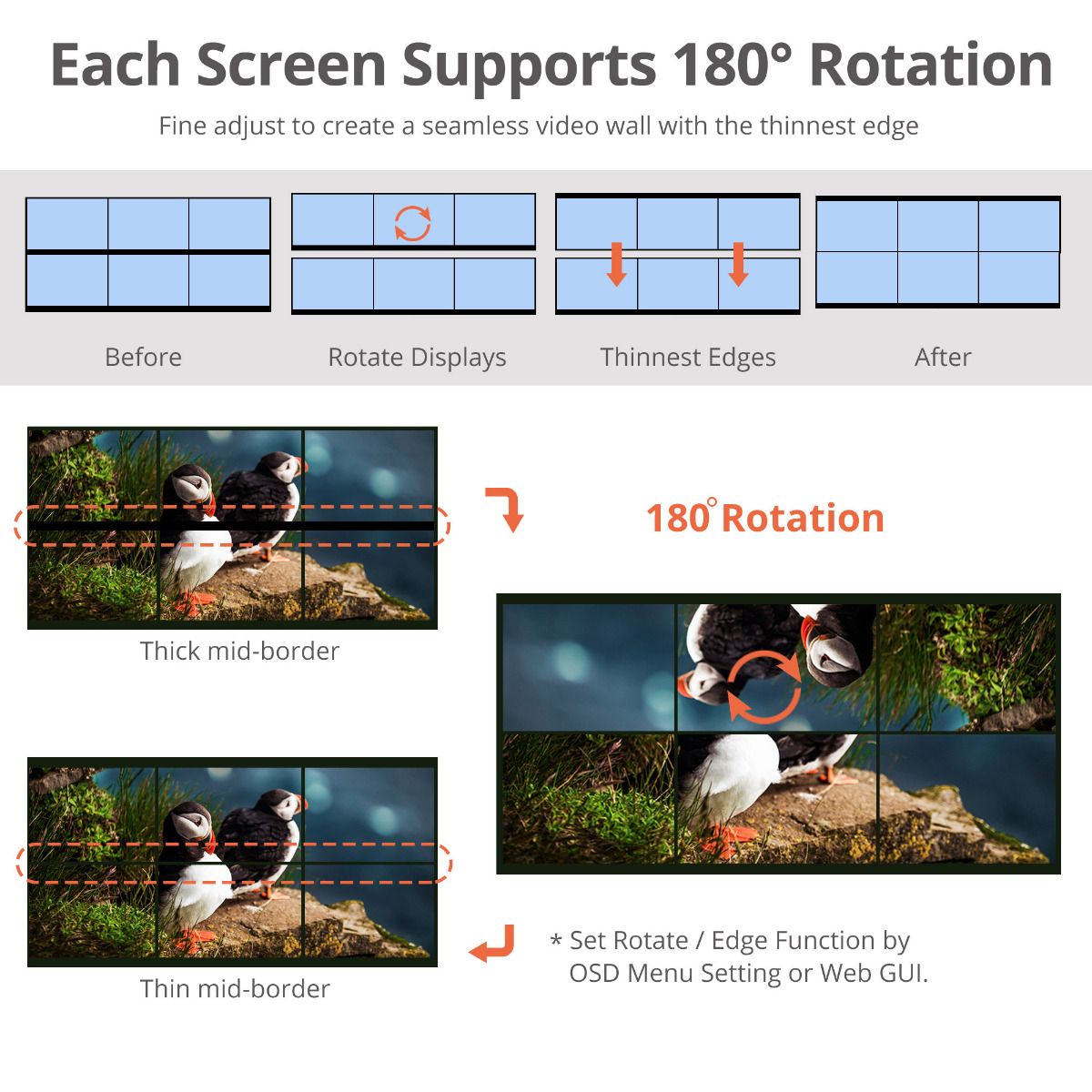

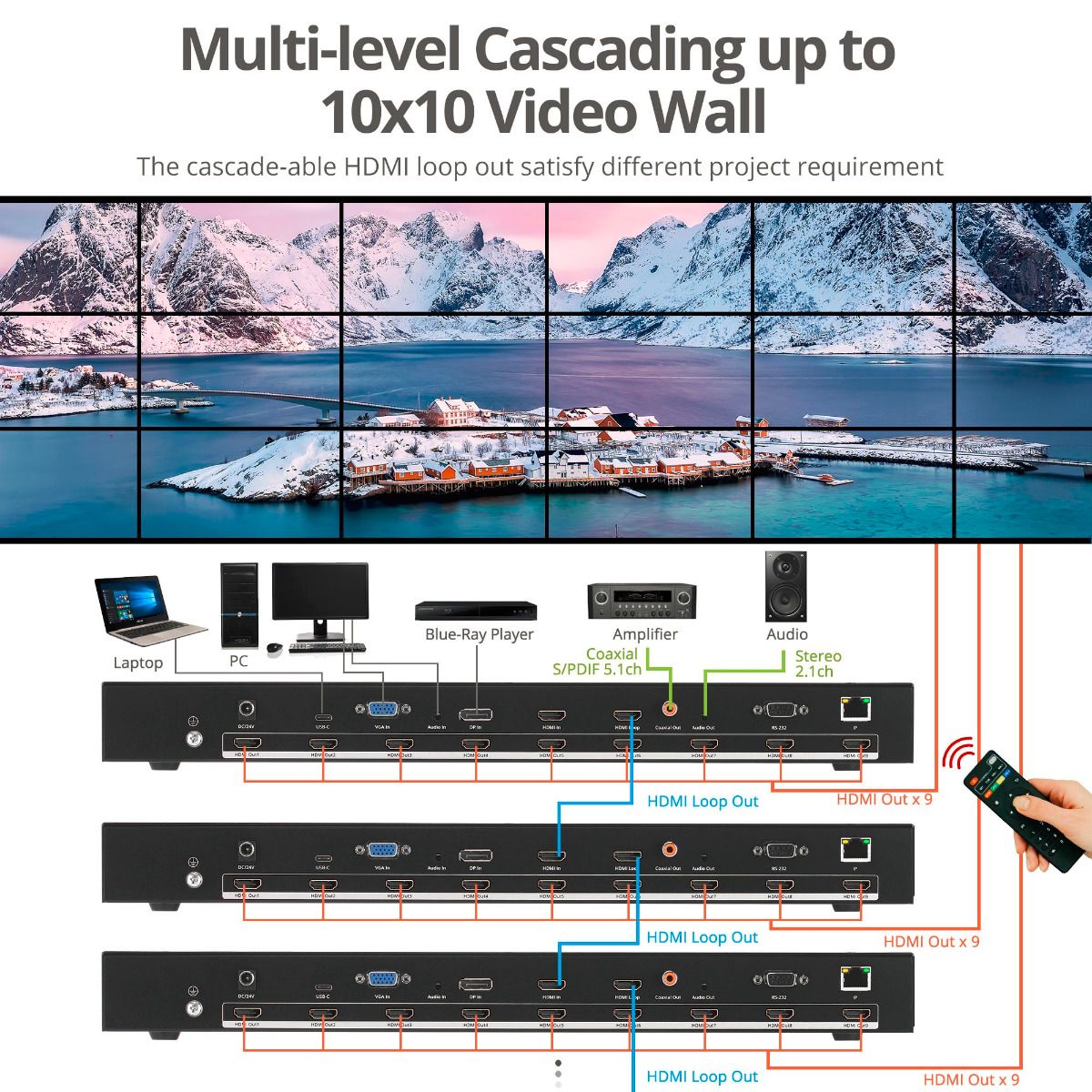

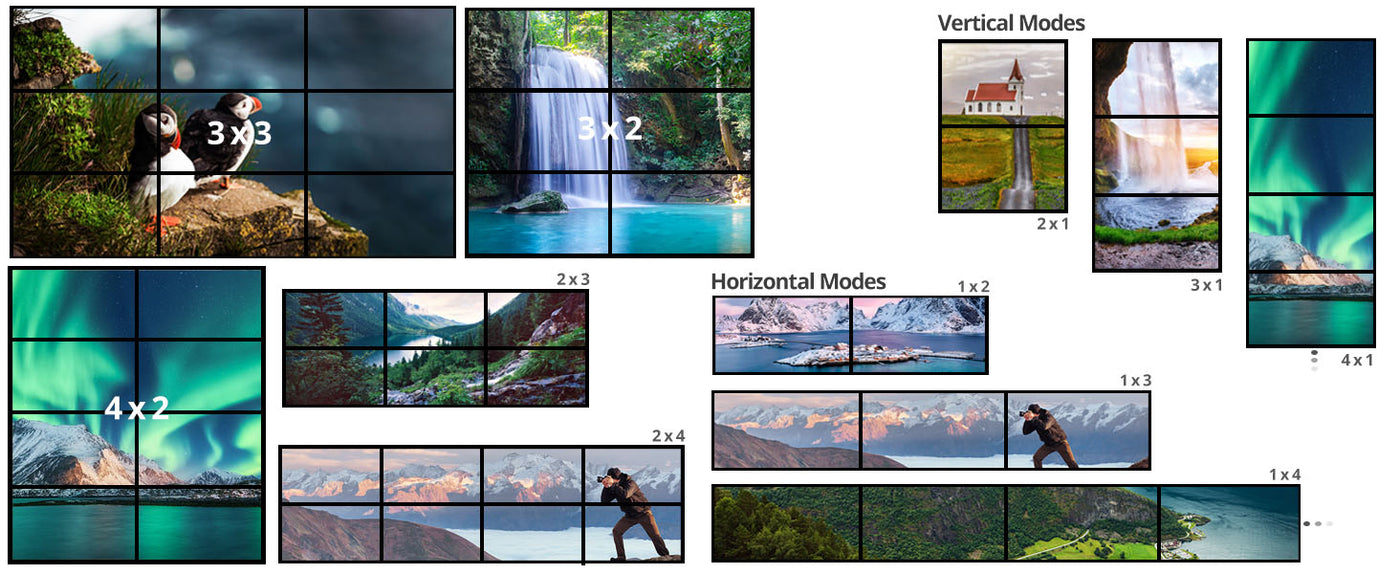

      Supports multiple preset video wall modes including 1x2, 2x2, 3x3, 4x4, and more, with cascading capability for creating large-scale video walls up to 10x10. Users can also manually customize layouts for greater installation flexibility. Features support for resolutions up to 4K@30Hz, multiple input options including USB-C, VGA, DisplayPort, and HDMI, built-in audio extraction via coaxial or 3.5mm stereo, 180° image rotation per display, edge correction, HDMI loopout, and firmware upgrades for future enhancements and expanded compatibility.

      Applications

      Comparison Table

      2x2 4K HDMI Video Wall Processor with USB-C/DVI/HDMI Input, RS-232/IR Remote/Web GUI control, SPDIF/3.5mm Audio Extract, Cascading up to 10x10
      View details
      3x3 4K Video Wall Processor with USB-C/DP/VGA/HDMI In, RS-232/IR Remote/Web GUI control, SPDIF/3.5mm Audio Extract, Cascading up to 10x10
      View details
      SKU
      SKU
      CE-H26E11-S1
      CE-H26F11-S1
      Connection port
      Connection port

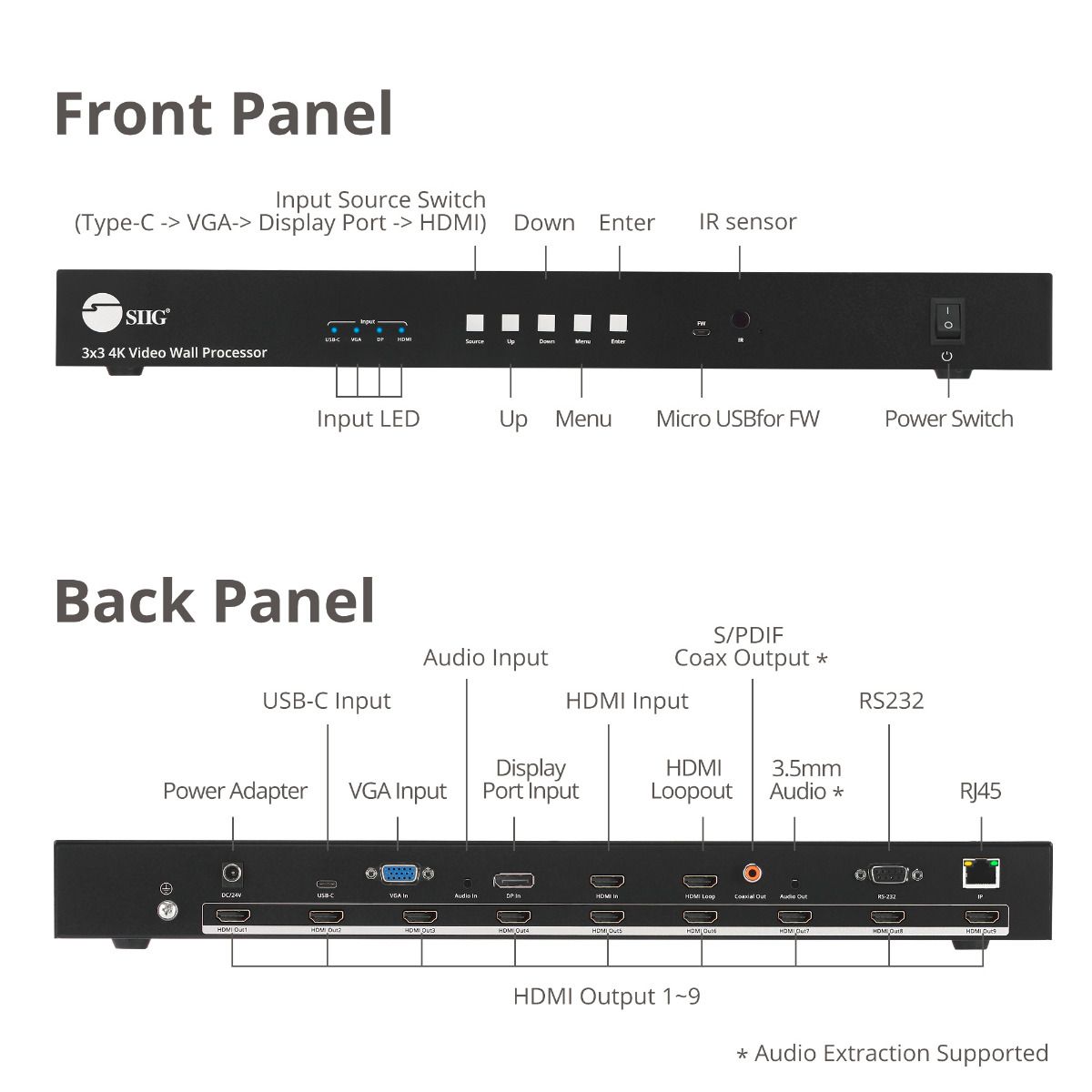

      7x HDMI, Micro USB, USB-C, DVI-I, RJ45, RS-232, Coaxial, 3.5mm, Power Jack
      11x HDMI, Micro USB, USB-C, DisplayPort, VGA, RJ45, RS-232, Coaxial, 3.5mm, Power Jack
      Data Transfer (Max)
      Data Transfer (Max)
      10.2Gbps
      10.2Gbps
      Additional function
      Additional function
      Videw Wall, Remote Control, Audio Extractor, RS-232, Etnernet, Cascading up to 10x10, Power Switch
      Videw Wall, Remote Control, Audio Extractor, RS-232, Etnernet, Cascading up to 10x10, Power Switch
      Housing material
      Housing material
      Metal
      Metal
      Color
      Color
      Black
      Black

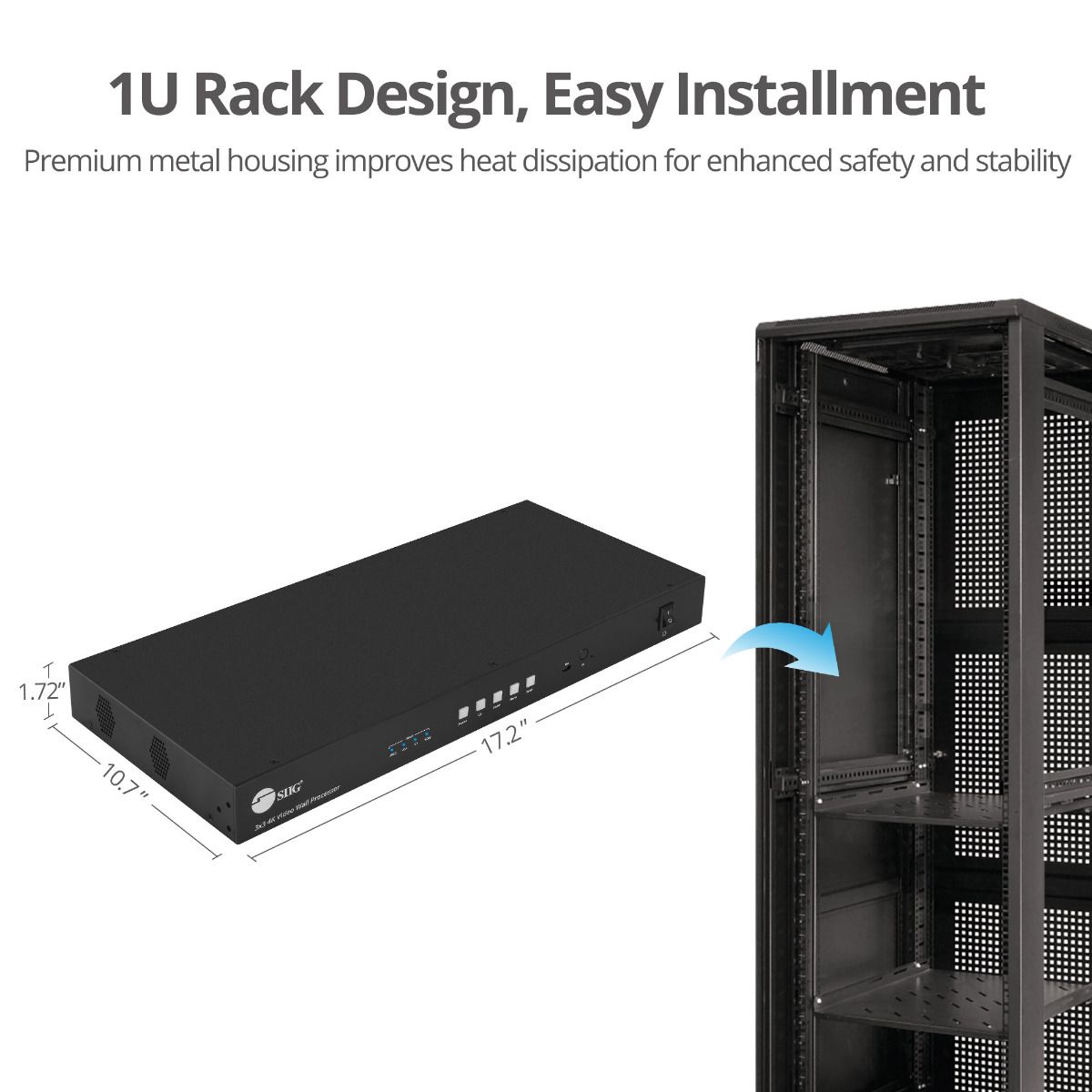

      Dimensions
      Dimensions
      17.24" (W) x 1.73" (H) x 7.48" (D) (43.79 cm x 4.39 cm x 19 cm)
      17.24" (W) x 1.73" (H) x 10.79" (D) (43.79 cm x 4.39 cm x 27.41 cm)
      Weight
      Weight
      5.51 lbs
      8.16 lbs
      Mountable
      Mountable
      Yes
      Yes
      Certification/ Standards
      Certification/ Standards
      FCC / CE / RoHS
      FCC / CE / RoHS
      Warranty
      Warranty
      2 years
      2 years
      Country of Origin
      Country of Origin
      China
      China
      Resolution
      Resolution
      Up to 4K30Hz
      Up to 4K30Hz
      Audio spec
      Audio spec
      Up to 5.1ch
      Up to 5.1ch
      IR function
      Remote control
      EDID button
      EDID button
      Yes
      Yes
      Distance
      Antenna spec
      Reset key
      Bandwidth
      Bandwidth
      10.2Gbps
      10.2Gbps
      Power Output (Max)
      Power Indicator
      Power Indicator
      Yes
      Yes
      Protection
      Protection
      ESD
      ESD
      Protocol
      Power Adapter
      Power Adapter
      12V/2A
      24V/2A
      Spec
      Spec
      HDMI 1.4, HDCP 2.2
      HDMI 1.4, HDCP 2.2
