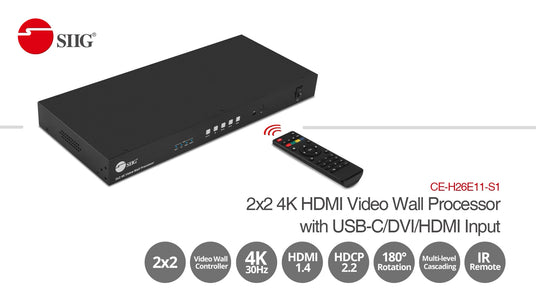

Video Wall | SKU: CE-H26E11-S1

2x2 4K HDMI Video Wall Processor with USB-C/DVI/HDMI Input, RS-232/IR Remote/Web GUI control, SPDIF/3.5mm Audio Extract, Cascading up to 10x10

2x2 Vieo Wall
4K30Hz
USB-C / HDMI / DVI In
9 Modes
10x10 Max
$1,699.99
Shipping calculated at checkout.
Product Features

Quad Screen Video Wall Controller

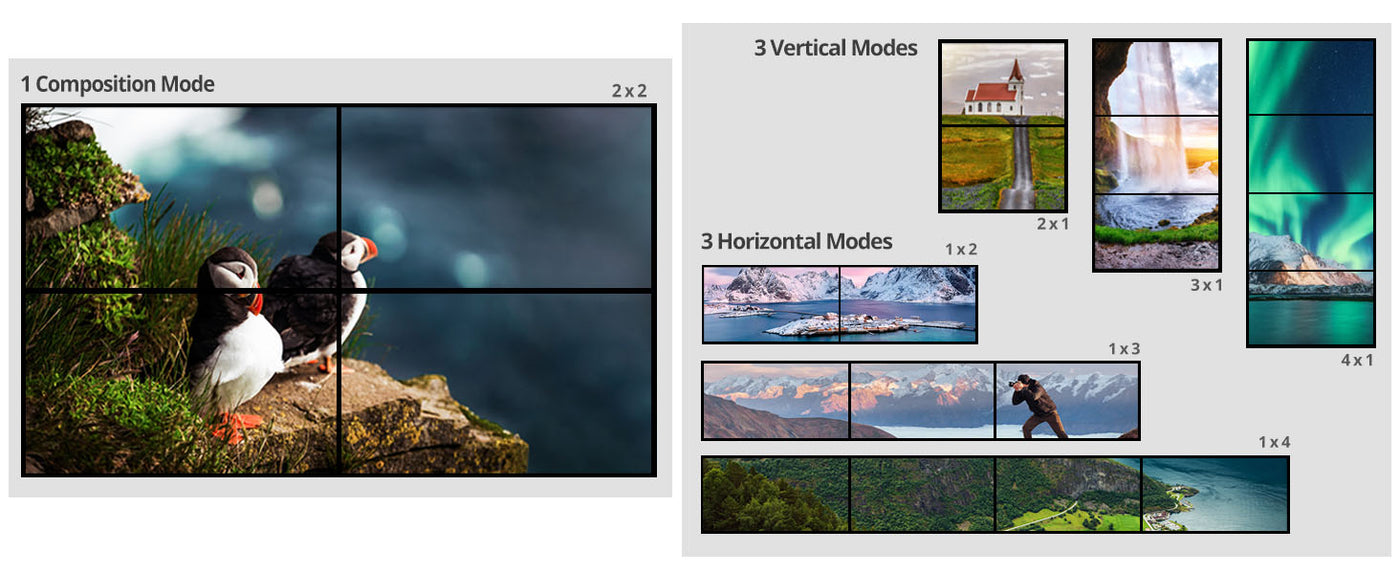

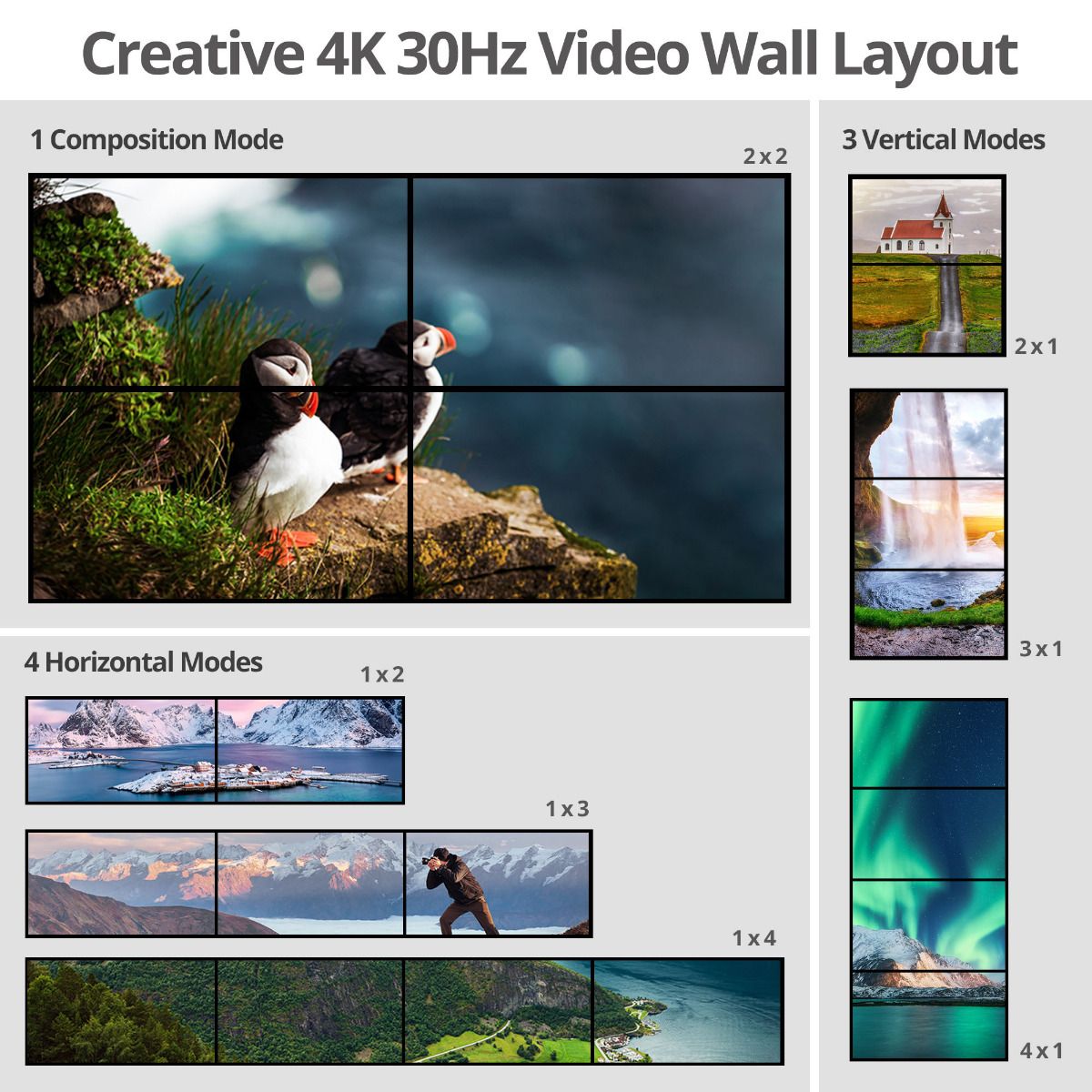

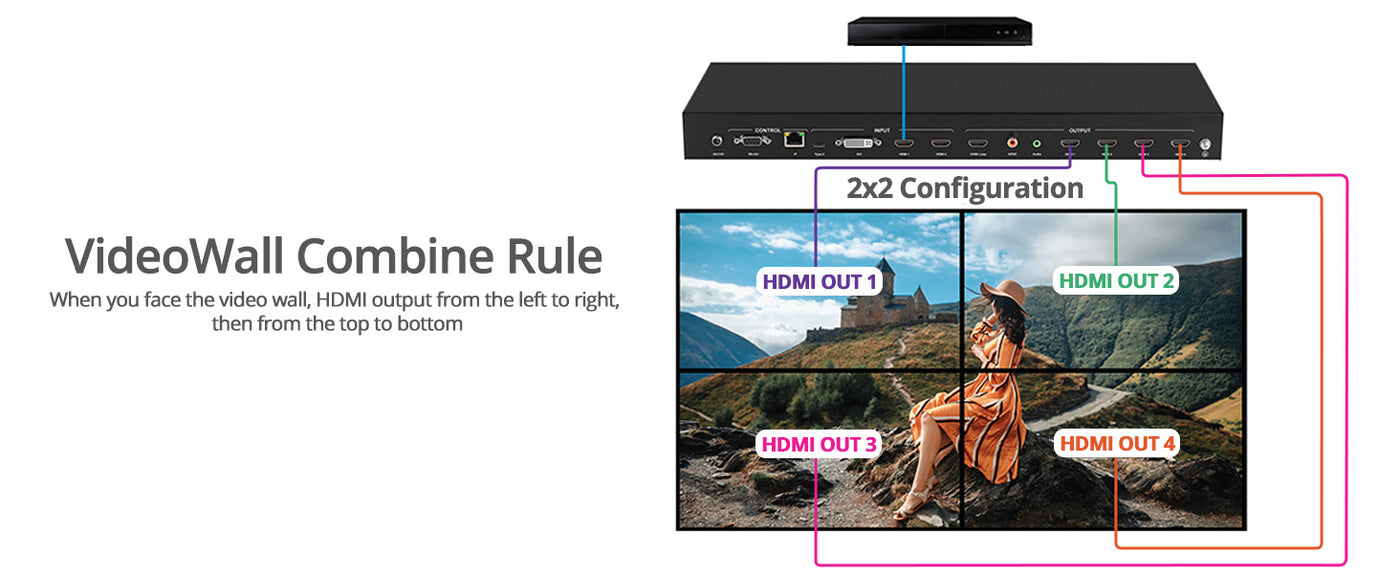

Customize your 4K 2x2 video wall, also supports 1x3, 1x4, 3x1, 4x1 configurations. Supports cascading function by using more units to create a bigger video wall (3x3, 4x4 … 10x10).

Four Multi-Input Switch

Supports USB-C, DVI, and two HDMI sources resolution up to 4K30Hz. HDCP compliant.

Four & One 4K30Hz Outputs

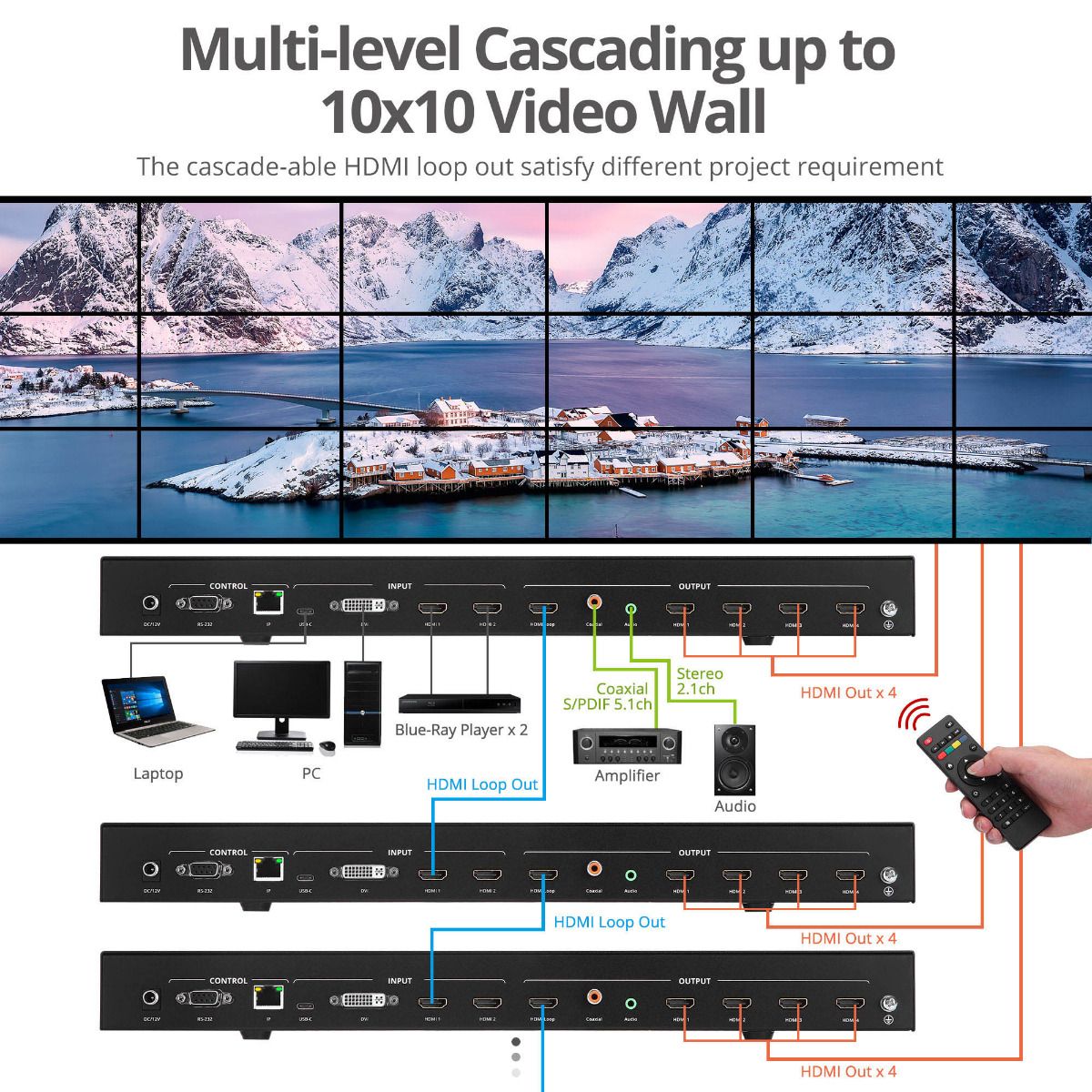

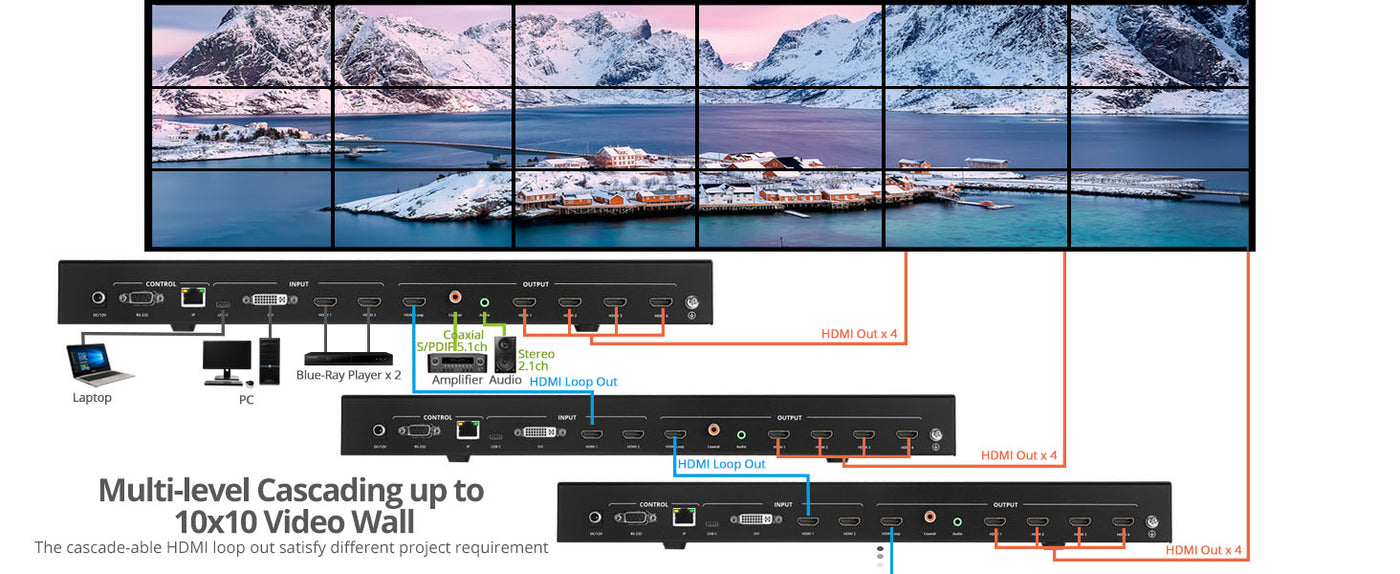

Supports each display up to 4K30Hz resolution. HDMI Loop port for easy setup and multi-level cascading. Coaxial S/PDIF 5.1ch and Stereo 2.1ch extraction for a better audio entertainment experience.

Four Control Methods

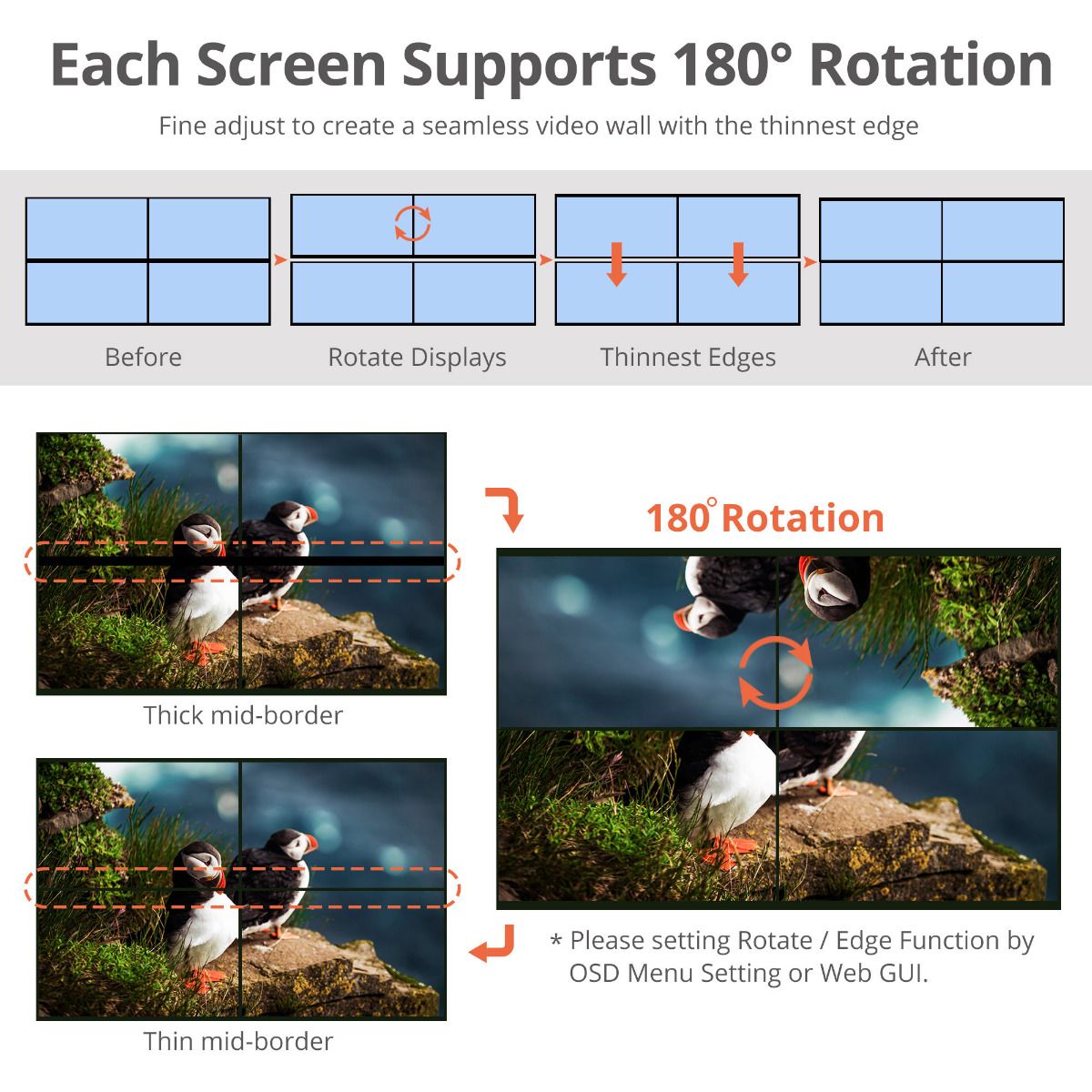

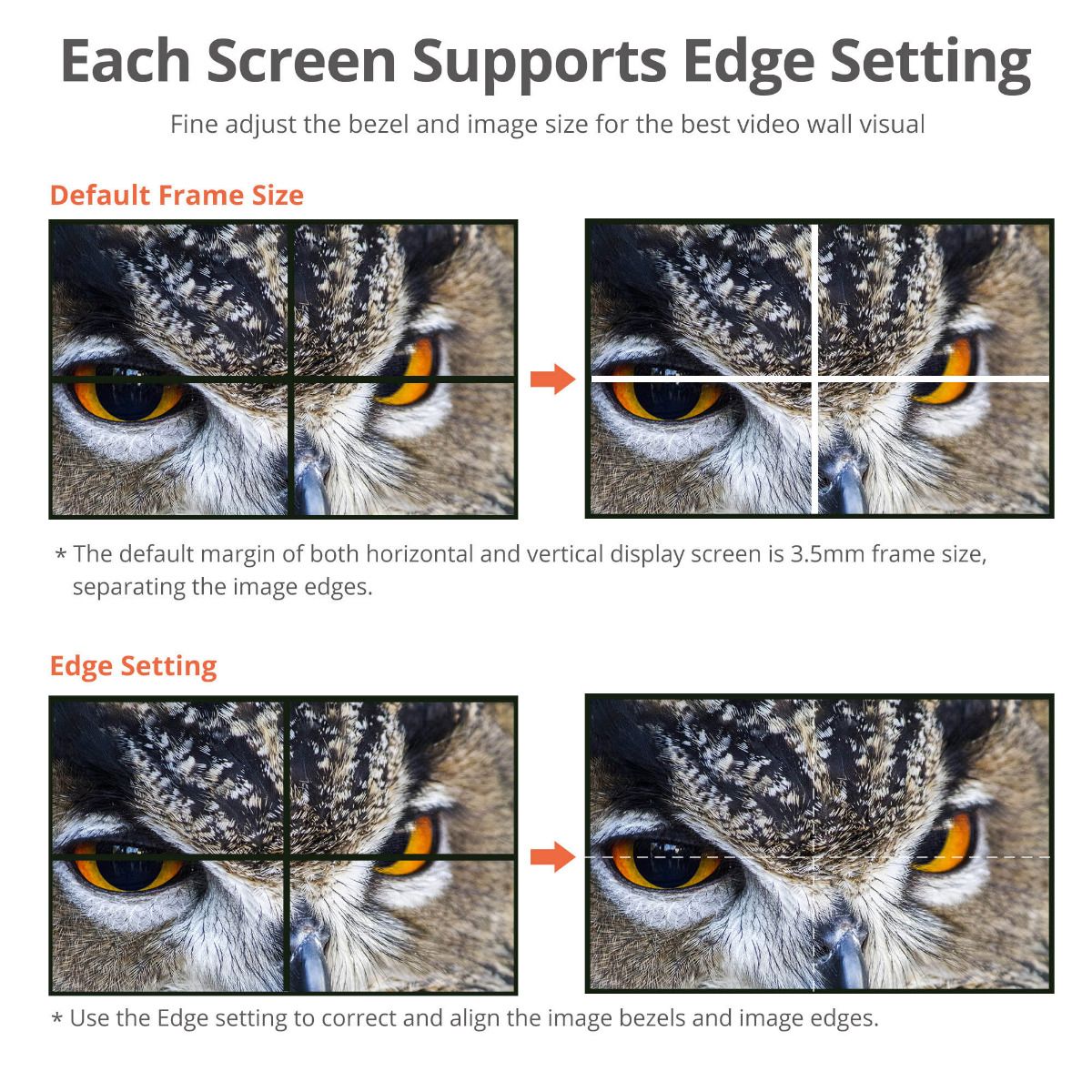

Front Panel buttons / IR remote control / RS-232 / Web UI with built-in bezel correction, easily resize, position, rotate, and zoom with each output.

Durable Design

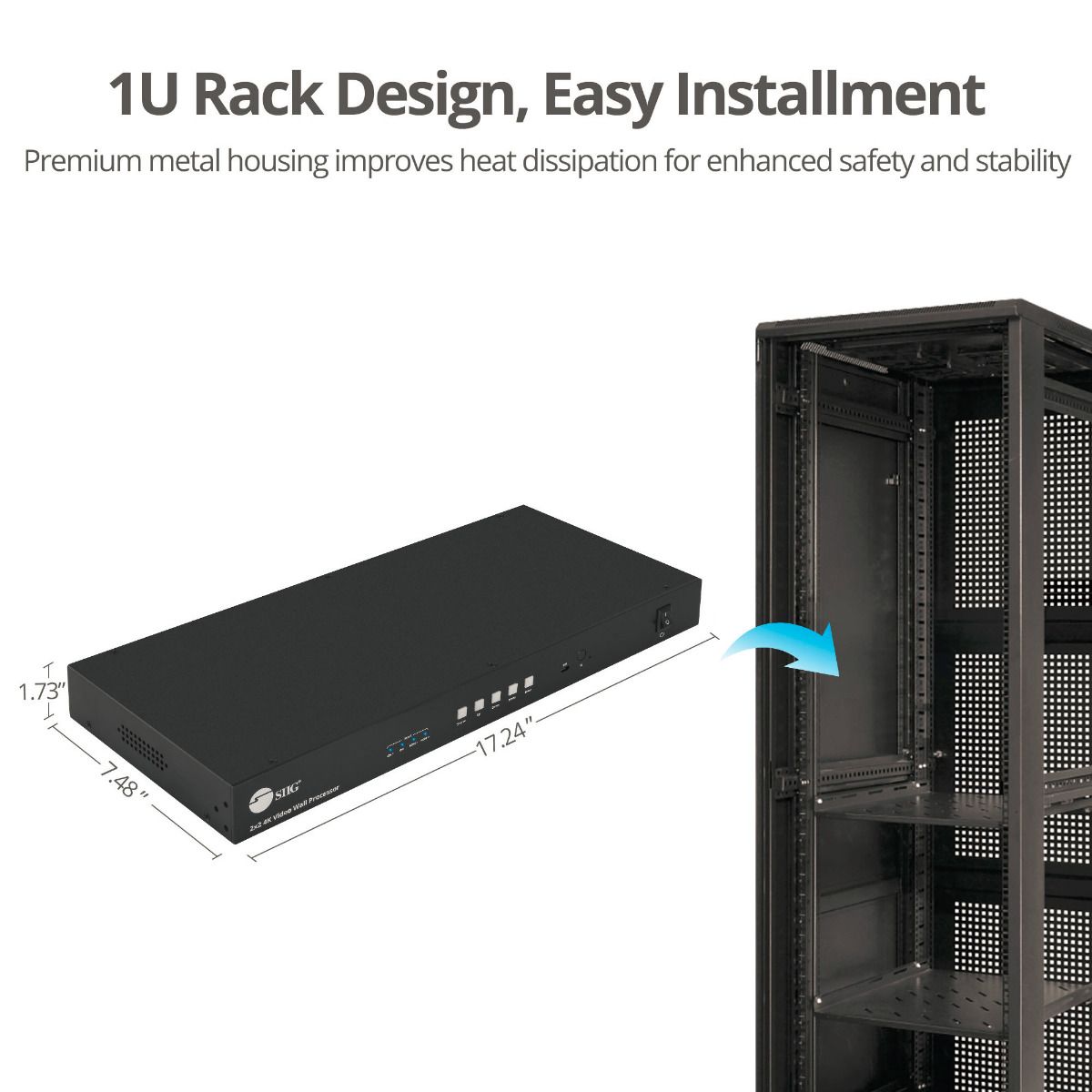

Supports USB firmware upgrade for the latest feature and technology enhancement. The mountable metal housing perfect for Bars, Night Clubs, Casinos, Hotels, or your theater room.

  • 45 Days Free Return

  • 2 Years Warranty

  • Lifetime Technical Support

SIIG 2x2 4K HDMI Video Wall Processor with USB-C/DVI/HDMI Input

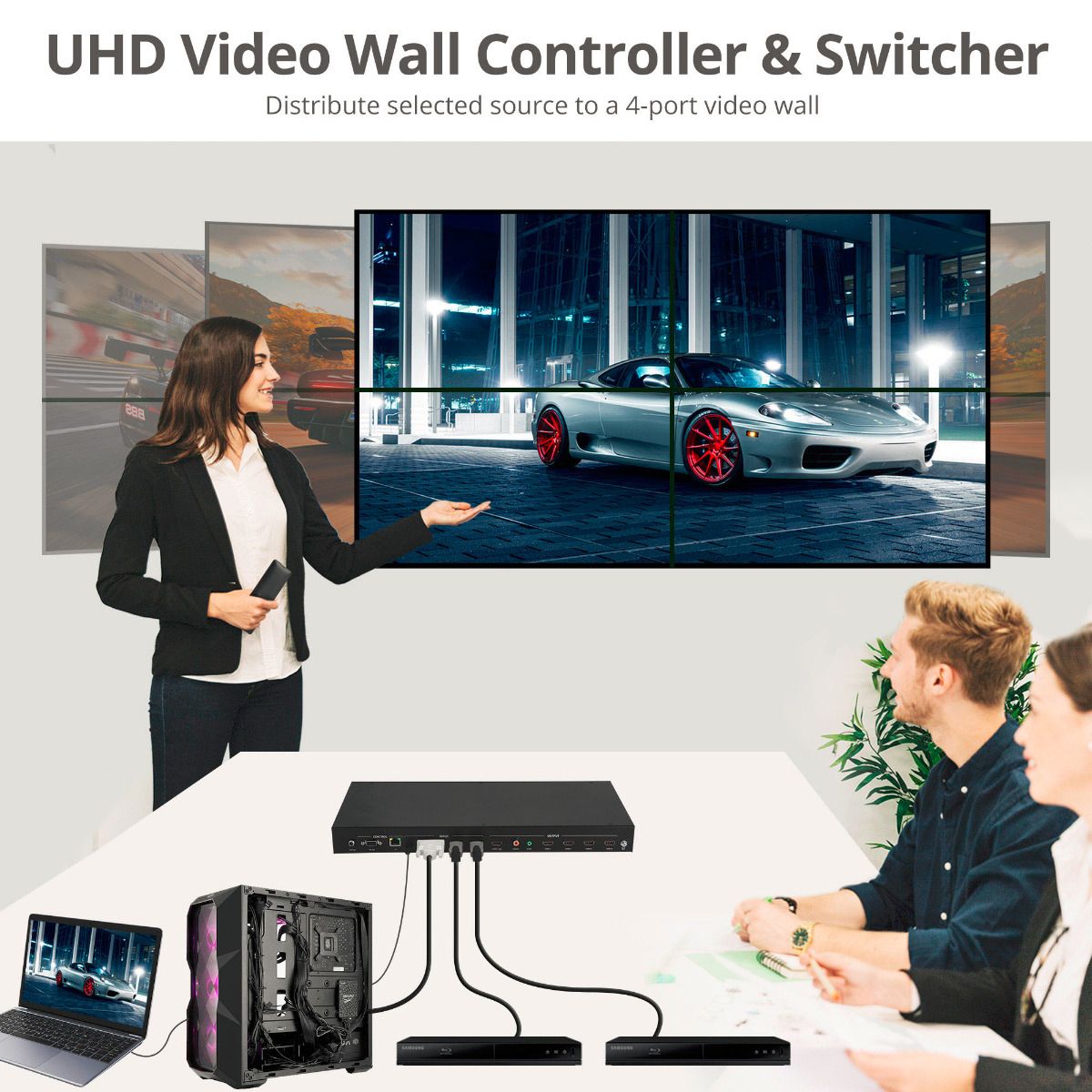

    Allows multiple TVs to be combined into a large customizable display, delivering eye-catching high-definition images and video content for an immersive viewing experience. Ideal for digital signage, advertising, information displays, and decorative applications in retail stores, restaurants, corporate environments, and public spaces.

    *Note: TVs/displays are sold separately.

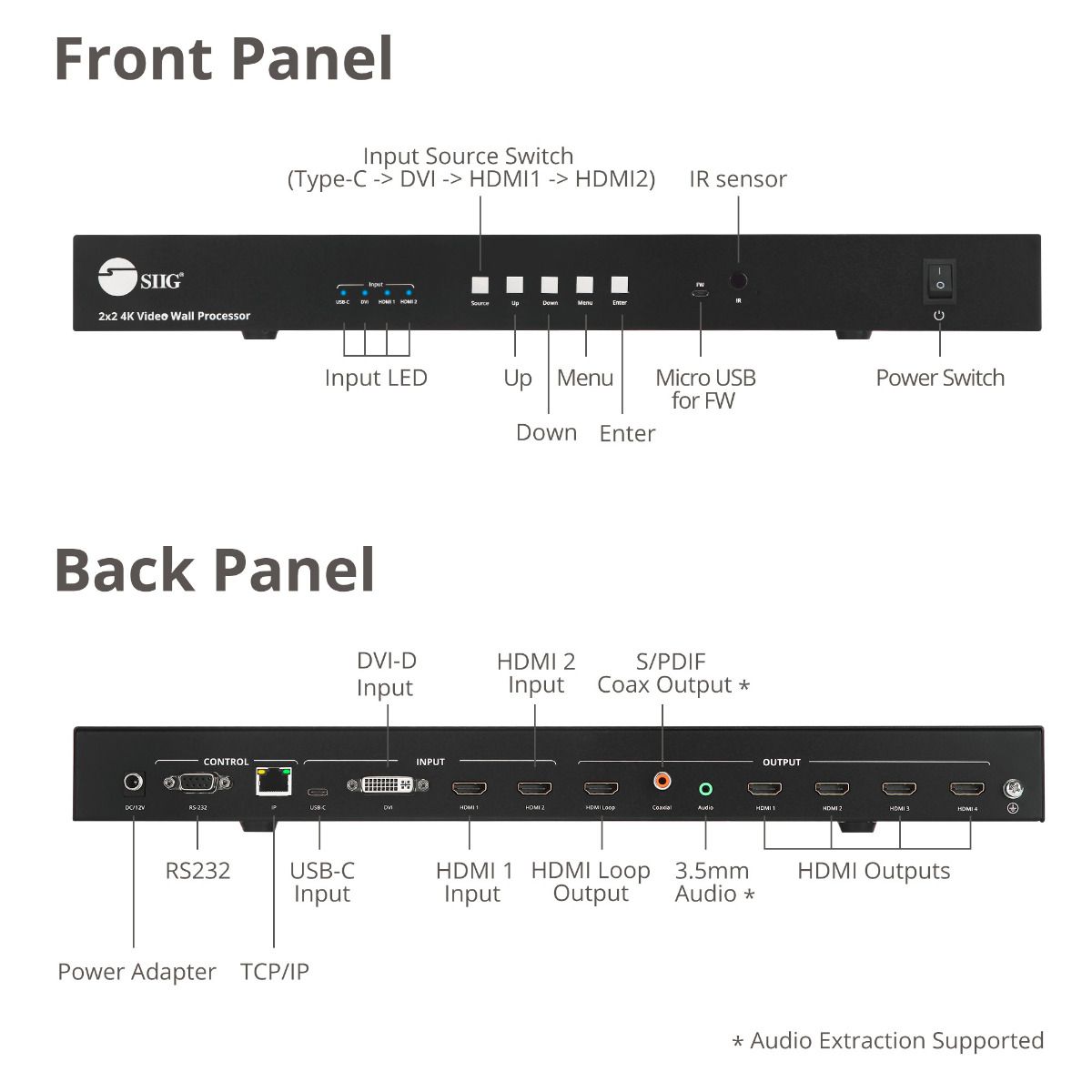

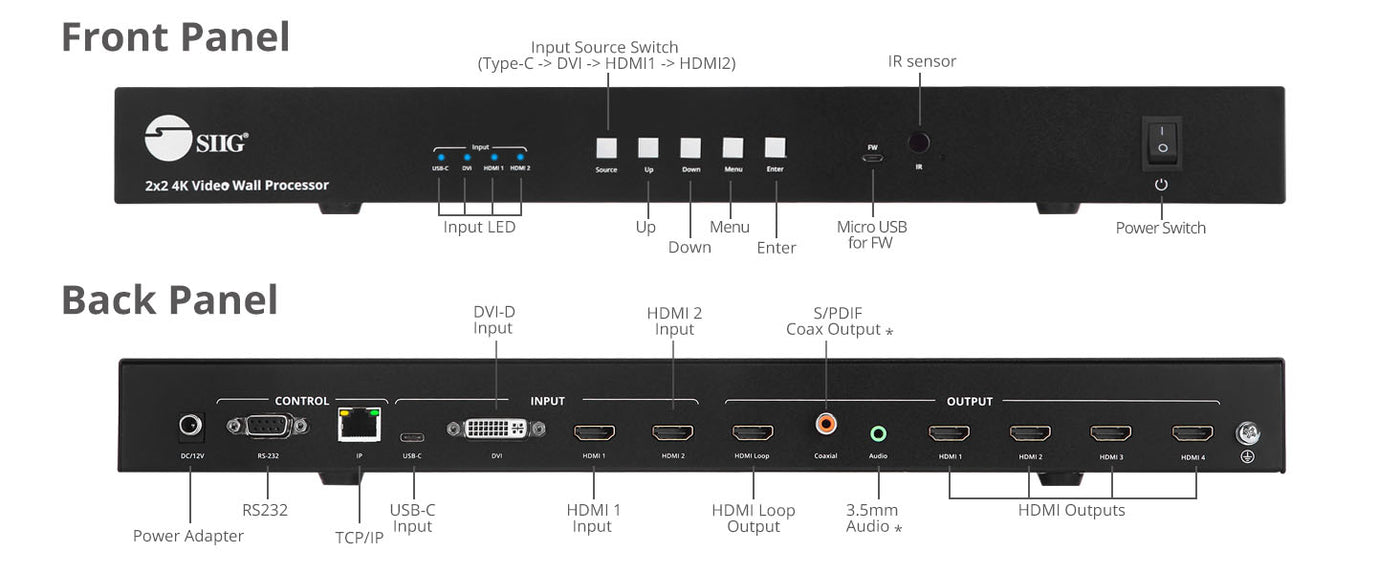

    Multiple Connectivity Ports

    Applications

    Comparison Table

    2x2 4K HDMI Video Wall Processor with USB-C/DVI/HDMI Input, RS-232/IR Remote/Web GUI control, SPDIF/3.5mm Audio Extract, Cascading up to 10x10
    View details

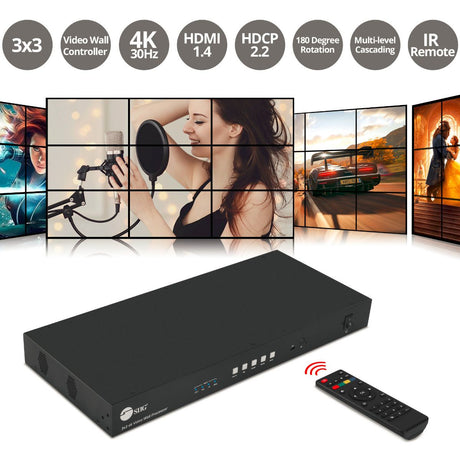

    3x3 4K Video Wall Processor with USB-C/DP/VGA/HDMI In, RS-232/IR Remote/Web GUI control, SPDIF/3.5mm Audio Extract, Cascading up to 10x10
    View details
    SKU
    SKU
    CE-H26E11-S1
    CE-H26F11-S1
    Connection port
    Connection port
    7x HDMI, Micro USB, USB-C, DVI-I, RJ45, RS-232, Coaxial, 3.5mm, Power Jack
    11x HDMI, Micro USB, USB-C, DisplayPort, VGA, RJ45, RS-232, Coaxial, 3.5mm, Power Jack
    Data Transfer (Max)
    Data Transfer (Max)
    10.2Gbps
    10.2Gbps
    Additional function
    Additional function
    Videw Wall, Remote Control, Audio Extractor, RS-232, Etnernet, Cascading up to 10x10, Power Switch
    Videw Wall, Remote Control, Audio Extractor, RS-232, Etnernet, Cascading up to 10x10, Power Switch
    Housing material
    Housing material
    Metal
    Metal
    Color
    Color
    Black
    Black
    Dimensions
    Dimensions
    17.24" (W) x 1.73" (H) x 7.48" (D) (43.79 cm x 4.39 cm x 19 cm)
    17.24" (W) x 1.73" (H) x 10.79" (D) (43.79 cm x 4.39 cm x 27.41 cm)
    Weight
    Weight
    5.51 lbs
    8.16 lbs
    Mountable
    Mountable
    Yes
    Yes
    Certification/ Standards
    Certification/ Standards
    FCC / CE / RoHS
    FCC / CE / RoHS
    Warranty
    Warranty
    2 years
    2 years
    Country of Origin
    Country of Origin
    China
    China
    Resolution
    Resolution
    Up to 4K30Hz
    Up to 4K30Hz
    Audio spec
    Audio spec
    Up to 5.1ch
    Up to 5.1ch
    IR function
    Remote control
    EDID button
    EDID button
    Yes
    Yes
    Distance
    Antenna spec
    Reset key
    Bandwidth
    Bandwidth
    10.2Gbps
    10.2Gbps
    Power Output (Max)
    Power Indicator
    Power Indicator
    Yes
    Yes
    Protection
    Protection
    ESD
    ESD
    Protocol
    Power Adapter
    Power Adapter
    12V/2A
    24V/2A
    Spec
    Spec
    HDMI 1.4, HDCP 2.2
    HDMI 1.4, HDCP 2.2
